GE WH49X10064 Reference manual

GE Consumer & Industrial
Service Bulletin
August 2009
LAUNDRY – TOP-LOAD WASHERS HL 02-09
MODELS WITH THREE-PIECE APRON BRACKET
BUILT MAY 2007 THROUGH JUNE 2009
Cover and Front Apron Bracket
Service Kit
The service kit is to repair washers that have a sagging front
apron bracket and/or damaged apron flange. The retrofit uses
a “hook” design similar to the rear brace sections to engage
the cover for added strength.
Models Affected
All three-piece apron bracket models without hooks on
the front bracket (approximate serial numbers HM – LS)
Kit Includes:
• Front apron bracket with hooks
• Cover
• (2) Screws
• Bleach funnel (white cover only)
• Installation instructions
• (2) Locking clips
Special Tools Required:
• 1/8" drill bit
Repair/Resolution
Remove cover from washer. Carefully peel off and transfer
the model serial label from the old cover to the new cover.
Remove all hardware from the original cover (bleach funnel,
lid, locking clips, lid switch, etc.) and reinstall on new cover.
Remove front apron bracket from washer. Remove dampening
straps from the original bracket. Assemble new locking clips
and original dampening straps to the new apron bracket.
If the apron has deflected, straighten the flange so it is level
with the top of the washer.
Attach new front bracket assembly to the apron and sub-
washer.
Use holes in top of front bracket as a guide to drill a 1/8" hole
in both the left- and right-side apron flange.
Secure front bracket to the apron flange using provided
screws.
Install new cover assembly. Locate front apron bracket hooks
(two in front, two in rear) into the corresponding cover slots.
Using an underhand grip, place palms on front edge of cover
and wrap fingers around the front bracket; squeeze to engage
hooks.
62412 08-09 JR
GE Appliances
General Electric Company
Louisville, Kentucky 40225
GE CONFIDENTIAL AND PROPRIETARY INFORMATION—NOT FOR PUBLIC DISCLOSURE

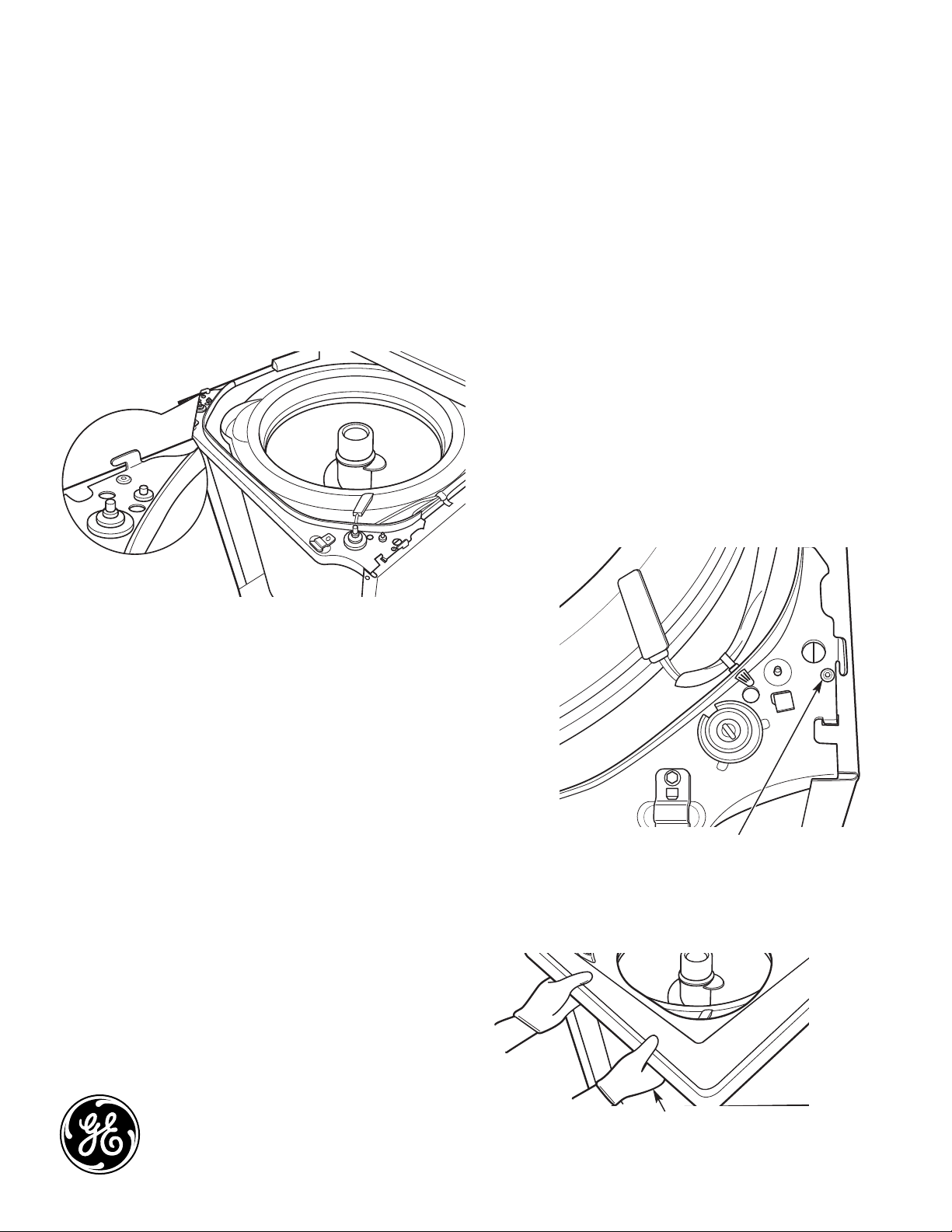

Hook Design
Hole and Screw Location (Left and Right Side)
Locate hooks in cover slot; squeeze against apron bracket to engage.

WH49X10064 COIN COVER KIT
WCCB1030H1WC
WCCB1030H3WC
WCCB1030H4WC
WCCB1030H5WC
WCCB1030J0WC
WCCD2050H1WC
WCCD2050H3WC
WCCD2050H4WC
WCCD2050H5WC
WCCD2050J0WC
WCRD2050H1WC
WCRD2050H3WC
WCRD2050H4WC
WCRD2050H5WC
WCRD2050J0WC
WMCD2050H1WC
WMCD2050H3WC
WMCD2050H4WC
WMCD2050H5WC
WMCD2050J0WC
