GE IS-ZW-TSTAT-300 User manual

IS-ZW-TSTAT-300
Advanced Thermostat
Installation Guide
Content
Contact information 1
Introduction 2
Location 3
Remove the old unit 3
Wiring 4
Mount the thermostat to the wall 6
HVAC selection 7
Install the batteries 8
To complete the installation 9
Testing the installation 10

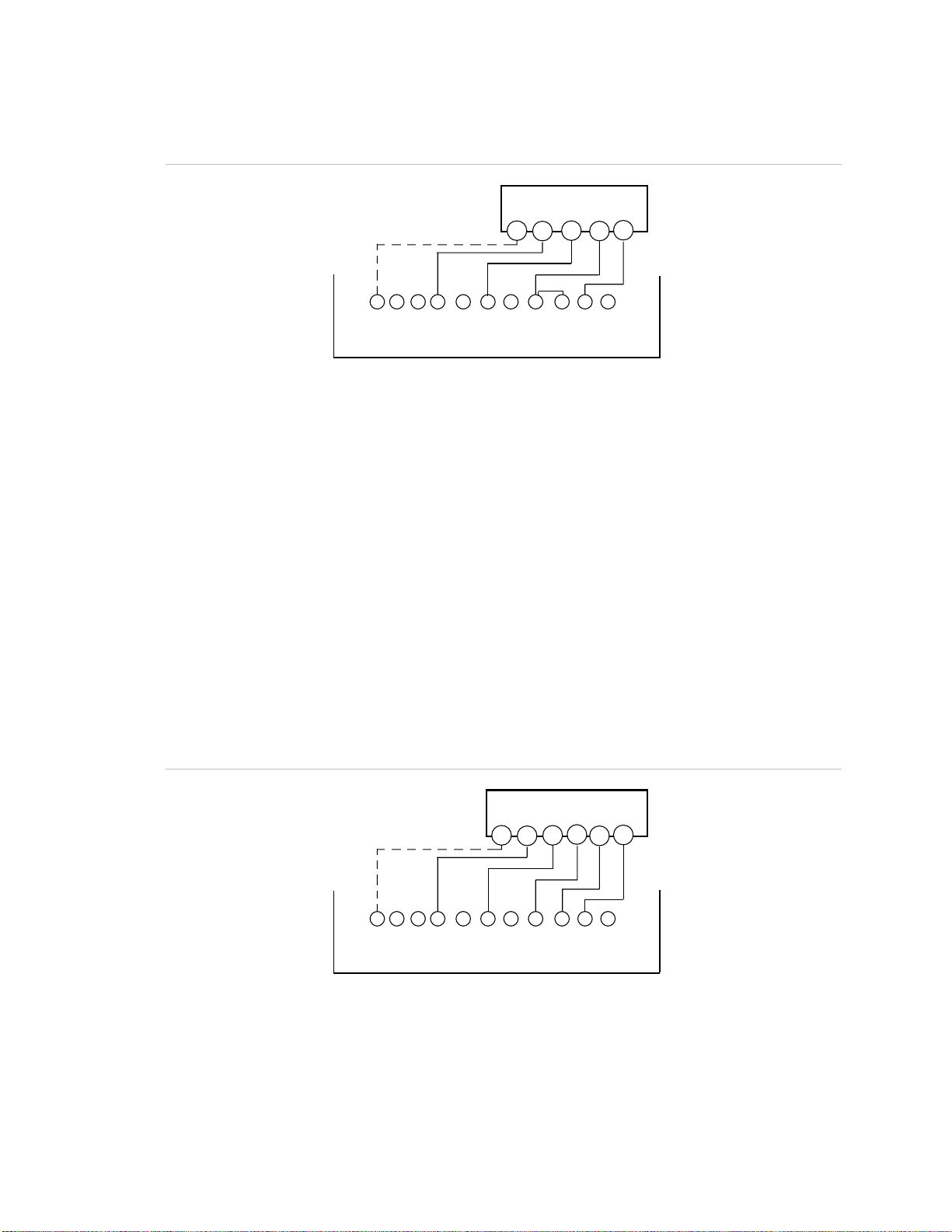

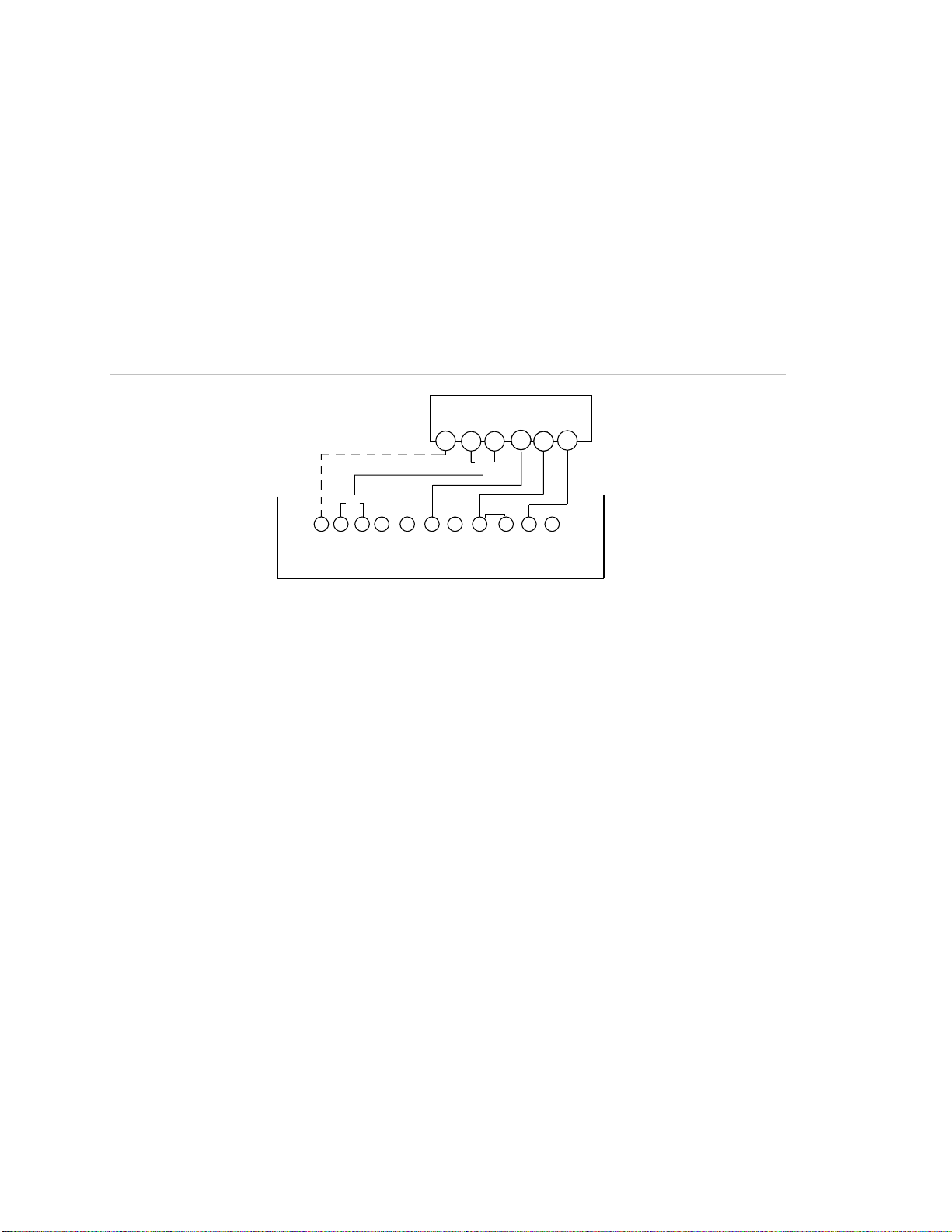

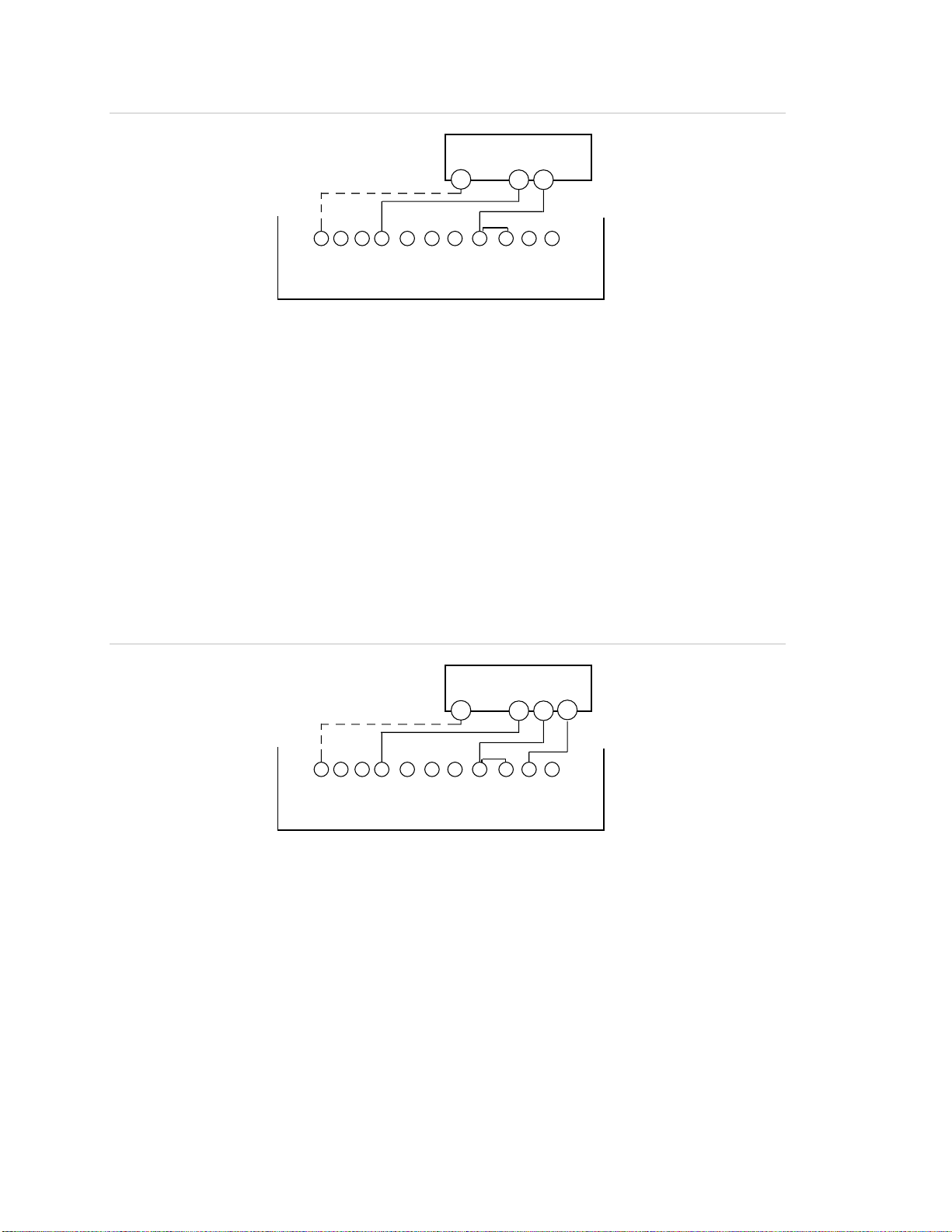

Wiring diagrams 11
Wire reference chart 16
Specifications 17
Contact information
For contact information, see www.interlogix.com.
Copyright © 2010 UTC Fire & Security. All rights reserved.
GE and the GE monogram are trademarks of the General Electric Company and
are under license to Interlogix, a UTC Fire & Security Company, 9 Farm Springs
Road, Farmington, CT 06034-4065
P/N 1069510 • REV A • ISS 09NOV10 1

Introduction
The IS-ZW-TSTAT-300 programmable communicating thermostat operates via a
high-quality, easy-to-use touch screen.
Figure 1: IS-ZW-TSTAT-300
L
IN
K
RA
D
IO
TA
RGET
TE
M
P
Top cover
Bottom cover
Wire terminals
MODE button
FAN button
Menu button
Prog button
Reset button
HVAC switches
Save Energy
button
Power grid
status
indicator
Touch screen
WARNING: To avoid electrical shock and to prevent damage to the furnace, air
conditioner, and the thermostat, disconnect the power supply before beginning
work. This can be done at the circuit breaker.
Caution: Your thermostat is a precise instrument, handle it with care:
• Turn off electricity to the HVAC system before installing or servicing the
thermostat or any part of the system.
• Do not turn electricity back on until work is completed.
• Do not short (jumper) across electrical terminals at the control on the furnace
or air conditioner to test the system. This may damage the thermostat.
• All wiring must conform to local codes and ordinances.
This thermostat is designed for use with three AA alkaline batteries and/or 24
VAC C wire (or a 12 to 24 AC or DC source) and millivolt gas systems. Each
thermostat relay load should be limited to 1.0 A; higher amperage may cause
damage to the thermostat.
2 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Tools
You will need a small Phillips screwdriver and a drill with a 3/16-in. (4.8 mm) bit
for wall mounts.
Location
For replacement installations, mount the thermostat in place of the old
thermostat. A new location will require moving your wiring.
For new installations and relocating the thermostat, follow these guidelines:
• Locate the thermostat on an inside wall, about 5 ft. (1.5 m) above the floor,
and in a room that is used often.
• Do not install the thermostat where there are unusual heating conditions,
such as: in direct sunlight; near a lamp, radio, television, radiator register, or
fireplace; near water pipes in a wall; or near a stove on the other side of a
wall.
• Do not locate in unusual cooling conditions, such as on a wall separating an
unheated room; or in a draft from a stairwell, door, or window.
• Do not locate in a damp area. This can lead to corrosion that will shorten
thermostat life.
• Do not locate where air circulation is poor, such as in a corner; in an alcove;
or behind a door.
• Do not install the thermostat until all construction and painting has been
completed.
• This thermostat does not require leveling.
Remove the old unit
Caution: Read the instructions carefully before removing any wiring from the
existing thermostat. Wires must be labeled before they are removed. There is no
standard color code. When removing wires from their terminals, ignore the color
of the wires and label them by the lettered terminal where they are screwed.
Switch off electricity to the heating and cooling systems, and then follow these
instructions.
1. Remove the cover from the old thermostat. Most are snap-on types and
simply pull off. Some have locking screws on the side or front. These must be
loosened. Do not remove wires. Note the letters printed near the terminals.
Attach labels (enclosed) to each wire for identification.
2. Label wires one at a time. You must label all the wires before you proceed.
P/N 1069510 • REV A • ISS 09NOV10 3

3. With all wires labeled, remove them from the old unit. Make sure the wires do
not fall back inside the wall. You can wind them around a pencil to keep them
from falling.
4. Loosen all screws on the old thermostat and remove it from the wall.
Figure 2: Labeling wires
Wiring
Make sure your wires are labeled. This may require you to find the other end
connection for each wire on your heating or air conditioning equipment and read
the label there. See “Wire reference chart” on page 16 for more information on
wire labels from different HVAC system makers.
Note: The thermostat runs on three AA alkaline batteries and/or the C wire if
available. If you do not have a C wire, you can run a new wire from the HVAC or
use a standard 12 to 24 VAC or VDC wall transformer. An external power source
is required when using a radio module.
Note: If you have both RH and RC you need to remove the jumper wire between
these two terminals (see Figure 3 on page 5).
Prepare the wires
Follow these guidelines for safe and secure wire connections:
• You will need at least 2.6 in. of wire for each connection to the thermostat. If
you do not have enough wire, splice additional wire to allow enough slack.
• Terminals accept 16 to 22 AWG wire.
• Fan out wires below the mounting hole (see Figure 3 on page 5).
• Remove insulation 1/8 in. from the tip of each wire (see Figure 3 on page 5).
• When handling, take care not to damage the labels for each wire.
4 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Figure 3: Preparing the wires
Jumper wire
Y2 RHRCG A
From HVAC
System
2.6 in.
CWYRH G
Wire terminals
Identify your wiring diagram
Select the reference page with your wiring diagram and set-up information.
• “Two-wire heat, gas millivolt or 24 VAC system (C, W, RH):” on page 11
• “Three-wire heat (C, W, RH, G):” on page 12
• “Four-wire heat/cool (C, W, Y, RH, G)” on page 12
• “Five-wire heat/cool (C, W, Y, RH, RC, G)” on page 13
• “Four-wire heat pump without AUX heat (C, B or O, Y, RH, G):” on page 13
• “Five-wire heat pump with AUX heat (C, B or O, W2, Y, RH, G):” on page 14
• “Two-stage heat and two-stage cool (C, W2, W, Y, Y2, RH, G):” on page 15
• “Three-wire zoned hot water (W, RH, [A]):” on page 15
The C wire is optional, but preferred for all installation (shown as a dotted line in
the wiring diagrams listed above). Some radio modules will require the 24 VAC C
wire power.
If your combination of wires is not listed, you can use the “Wire reference chart”
on page 16 to determine your connections, contact customer support for help.
Fan out wires with the thermostat below the wall opening so that the C wire is
above the C terminal, the W wire above the W terminal, etc. This allows the
thermostat to fit snug to the wall. Wires will position behind the thermostat and up
over the terminal area. Do not bunch wires behind the thermostat. Feed any
slack back into the wall opening.
P/N 1069510 • REV A • ISS 09NOV10 5

Figure 4: Thermostat terminals
From HVA
C
CBOW W2 YY2RHRCGA
Caution: Do not allow wires to touch each other or parts of the thermostat.
Connect your wires
Connect the labeled wires only to a terminal with the same letter label. Insert the
wire in the terminal well and tighten the screw securely.
Note: If you prefer, you can mount the thermostat to the wall first, and then
connect the wires.
The thermostat can be externally powered with a power source rated 12 V to 24
V AC or DC, at 300 ma or greater. If used, connect to the C and RH terminals (no
polarity).
Mount the thermostat to the wall
1. Hold the thermostat against the wall, with the wires coming over the top
above the terminal block. The thermostat will cover the hole in the wall.
Position the thermostat for best appearance.
2. Mark first and drill a 3/16 in. (4.8 mm) hole for the insert at each screw
location, then mount the unit.
3. Attach the thermostat to the wall with the screws provided. If you are
mounting the thermostat to sheet rock or if you are using the old mounting
holes, use the plastic anchors provided.
6 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Figure 5: Mounting the thermostat
MODE
FA N
Wall ancho
r
Wall
Wires
HVAC selection
• If you have conventional heat, set the HVAC Type switch to NORM (normal).
• If you have a heat pump system, set the HVAC Type switch to HP (heat
pump).
• If you have normal gas or oil heat or if you have a heat pump with gas or oil
AUX heat, set the Heat Type switch to GAS.
• If you have normal electric heat or if you have a heat pump with electric AUX
heat, set the Heat Type switch to ELEC.
Figure 6: HVAC selection
HVAC type Heat type
P/N 1069510 • REV A • ISS 09NOV10 7

Install the batteries
Install three AA alkaline batteries (required) following the marked polarity in the
battery compartment. Put the lower battery in negative end first against the
spring, then push the positive end in. Then insert the last two batteries as shown
below.
Figure 7: Battery installation
Special battery warning
• Always replace the batteries as soon as the “Low Batt” flashes. The
thermostat is a battery-powered device. You must be responsible to replace
the batteries before they run out.
• Even if the “Low Batt” indicator does not flash, you should always replace the
batteries at least once a year. Replacing the batteries also helps to prevent
leakage that can corrode and damage the thermostat.
• if you are leaving your home for a month or more, you should replace the
batteries as a precaution against battery failure in your absence.
• Failing to replace the batteries, when necessary could cause the thermostat
to lose power or malfunction. If the thermostat loses power, then the
thermostat will not control the temperature which could result in your HVAC
system not functioning as you intended and lead to possible damage from
overheating or excessive cooling.
• If the thermostat batteries fail with the heat OFF, this could result in no
heat and possible frozen or broken pipes and water damage.
• If the thermostat batteries fail with the cool OFF, this could result in no
cooling and could cause possible damage or excessive temperatures.
• Always use new alkaline batteries.
8 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

To complete the installation
Press the Reset button (under the top cover, see Figure 1 on page 2) to
implement the HVAC switch selections.
With all the wires connected, it is time to turn the AC power back on. Do this at
the breaker you used to switch it off. The thermostat will power-up in the OFF
mode. Your thermostat is not configured to operate you HVAC system yet. You
must now configure your thermostat for your HVAC system.
HVAC setup
1. Make sure the thermostat is powered up and the MODE button is set to OFF.
The HVAC selection switches should already be set (see “HVAC selection” on
page 7).
2. With mode in OFF, press the Menu button
3. Press HVAC SETUP on the Menu screen.
4. On the HVAC setup screen, use the +/- icons to select the HVAC number.
The LCD display will show your selection and indicate the number of stages you
have selected. During setup, 2nd stage will blink when both heat and cool have
2nd stages.
Figure 8: HVAC setup screen
If you have a normal HVAC system and you want fast temperature recovery:
Heat and Cool Select 1
Two-stage Heat, one-stage Cool Select 2
Two-stage Heat, two-stage Cool Select 3
If you want efficient (but slower) recovery:
Two-stage Heat, one-stage Cool Select 4
Two-stage Heat, two-stage Cool Select 5
P/N 1069510 • REV A • ISS 09NOV10 9

If you have a heat pump HVAC system:
Heat pump with AUX heat (Fast Recovery) Select A
Heat pump with AUX heat (Efficient Recovery) Select B
Heat pump no AUX heat Select C
Note: For two-stage systems your thermostat can recover from a temperature
setback in two ways:
• Fast Recovery - this uses your 2nd stage to bring the house to target
temperature. This may use slightly more energy.
• Efficient Recovery - This uses the 2nd stage to bring your house to within a
few degrees of the target temperature and then uses the 1st stage to go the
last bit. (Refer to the Operating Guide for information about setting the
differential). This is more efficient.
Testing the installation
Follow these procedures to verify you have correctly installed the thermostat.
To check the fan (if you have the G wire):
1. Press the FAN button to turn the fan ON.
2. Verify that air is blowing from the system.
3. Press the FAN button again to return to AUTO.
To check heat:
1. Set the mode to HEAT by pressing the MODE button until HEAT is displayed.
2. Touch the temperature display to bring up the Manual screen.
3. Touch the + icon and raise the target temperature to 90°F; allow the system 2
minutes to respond.
4. Verify that heat is blowing from the system.
5. Return the target temperature to a normal setting.
6. Return mode to OFF by pressing the MODE button.
To check cool (do not operate AC if the outside temperature is below 65°F):
1. Set the mode to COOL by pressing the MODE button until COOL is
displayed.
2. Touch the temperature display to bring up the Manual screen.
10 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

3. Touch the - icon and lower the target temperature to 50°F; allow the system 5
minutes to respond.
4. Verify that cool air is blowing from the system.
5. Return the target temperature to a normal setting.
6. Return mode to OFF by pressing the MODE button.
Note: If you have a heat pump, leave the thermostat in OFF mode for 4 minutes
before checking cool.
If you have labeled and connected your wires and followed the correct HVAC
setup, and your system still does not operate, contact technical support.
Statement of use
This thermostat can be used with three AA batteries, 24 VAC (C wire), 24 VAC
adapter, heating and cooling systems, and millivolt heating. It cannot be used
with line voltage systems. This thermostat is digital and your desired heat or cool
temperatures can be set on the large touch screen with the +/- buttons. A
minimum 4-minute off time protects the compressor from damage.
This thermostat runs on three AA batteries. The thermostat can be externally
powered with a power source from 12 to 24 VAC or VDC, at 300 mA or greater. If
used, connect to the C and RH terminals (no polarity). The 24 VAC “C” wire is on
the other side of the 24 VAC heating transformer and can be found where the
other thermostat wires connect at the wall or at the furnace. Do not use the
common or ground side of the line voltage.
Wiring diagrams
Two-wire heat, gas millivolt or 24 VAC system (C, W, RH):
1. Connect the R (or RH) wire to the RH terminal. This connects the power.
2. Connect the W wire to the W terminal. This connects the heat.
3. Set the HVAC Type switch to NORM and the Heat Type switch to GAS.
Your HVAC system is now connected to the thermostat.
P/N 1069510 • REV A • ISS 09NOV10 11

Figure 9: Two-wire heat
C B O W W2 Y Y2 RH RC G A
Thermostat
HVAC system
WR
C
Power
Three-wire heat (C, W, RH, G):
1. Connect the R (or RH) wire to the RH terminal. This connects the power.
2. Connect the Wire to the W terminal. This connects the heat.
3. Connect the G wire to the G terminal on the thermostat. This connects the
fan.
4. Set the HVAC Type switch to NORM and:
If you have gas or oil heat, set the Heat Type switch to GAS.
If you have electric heat, set the Heat Type switch to ELEC.
Your HVAC system is now connected to the thermostat.
Figure 10: Three-wire heat
C B O W W2 Y Y2 RH RC G A
Thermostat
HVAC system
WR G
C
Power
Four-wire heat/cool (C, W, Y, RH, G)
1. Connect the RH or R wire to the RH terminal. This connects the power.
2. Connect the W wire to the W terminal. This connects the heat.
3. Connect the Y wire to the Y terminal. This connects the compressor.
4. Connect the G wire to the G terminal. This connects the fan.
5. Set the HVAC Type switch to NORM and:
If you have gas or oil heat, set the Heat Type switch to GAS.
If you have electrical heat, set the Heat Type switch to ELEC.
12 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Your HVAC system is now connected to the thermostat.
Figure 11: Four-wire heat/cool
C B O W W2 Y Y2 RH RC G A
Thermostat
HVAC system
WRG
C Y
Power
Five-wire heat/cool (C, W, Y, RH, RC, G)
1. Connect the W wire to the W terminal. This connects the heat.
2. Connect the Y wire to the Y terminal. This connects the compressor.
3. Disconnect the jumper between the RH and RC terminals.
4. Connect the RH wire to the RH terminal and the RC wire to the RC terminal.
This connects the power.
5. Connect the G wire to the G terminal. This connects the fan.
6. Set the HVAC Type switch to NORM and:
If you have gas or oil heat, set the Heat Type switch to GAS.
If you have electrical heat, set the Heat Type switch to ELEC.
Your HVAC system is now connected to the thermostat.
Figure 12: Five-wire heat/cool
C B O W W2 Y Y2 RH RC G A
Thermostat
HVAC system
WRC G
CYRH
Power
Four-wire heat pump without AUX heat (C, B or O, Y, RH, G):
1. Connect the O wire to the O terminal or the B wire to the B terminal. This
connects the change-over valve. If you have both O and B, connect only the
P/N 1069510 • REV A • ISS 09NOV10 13

O wire to the O terminal and do not connect the B wire to the B terminal (see
“Wire reference chart” on page 16 under Trane for B wire terminal).
2. Connect the Y wire to the Y terminal. This connects the compressor.
3. Connect the R wire to the RH terminal. This connects the power.
4. Connect the G wire to the G terminal. This connects the fan.
5. Set the HVAC Type switch to HP (heat pump) and set the Heat Type switch
to ELEC.
Your HVAC system is now connected to the thermostat.
Figure 13: Four-wire heat pump without AUX heat
C B O W W2 Y Y2 RH RC G A
Thermostat
Heat pump system
OG
CYR
B
or
or
Power
Five-wire heat pump with AUX heat (C, B or O, W2, Y, RH, G):
1. Connect the O wire to the O terminal or the B wire to the B terminal. This
connects the change-over valve. If you have both O and B, connect only the
O wire to the O terminal and do not connect the B wire to the B terminal (see
“Wire reference chart” on page 16 under Trane for B wire terminal).
2. Connect the W2 wire to the W2 terminal. This connects the AUX heat.
3. Connect the Y wire to the Y terminal. This connects the compressor.
4. Connect the R wire to the RH terminal. This connects the power.
5. Connect the G wire to the G terminal. This connects the fan.
6. Set the HVAC Type switch to HP (heat pump) and:
If you have gas or oil AUX heat, set the Heat Type switch to GAS.
If you have electric AUX heat, set the Heat Type switch to ELEC.
Your HVAC system is now connected to the thermostat.
14 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Figure 14: Five-wire heat pump with AUX heat
C B O W W2 Y Y2 RH RC G A
Thermostat
Heat pump system
OG
CY R
B
or
or W2
Power
Two-stage heat and two-stage cool (C, W2, W, Y, Y2, RH, G):
1. Connect the W wire to the W terminal. This connects the 1st stage heat.
2. Connect the W2 wire to the W2 terminal. This connects the 2nd stage heat.
3. Connect the Y wire to the Y terminal. This connects the 1st stage cool.
4. Connect the Y2 wire to the Y2 terminal. This connects the 2nd stage cool.
5. Connect the RH or R wire to the RH terminal. This connects the power.
6. Connect the G wire to the G terminal. This connects the fan.
7. Set the HVAC Type switch to NORM and:
If you have gas or oil heat, set the Heat Type switch to GAS.
If you have electric heat, set the Heat Type switch to ELEC.
Your HVAC system is now connected to the thermostat.
Figure 15: Two-stage heat and two-stage cool
C B O W W2 Y Y2 RH RC G A
Thermostat
HVAC system
G
CYRH
W2
WY2 RC
Power
Three-wire zoned hot water (W, RH, [A]):
For solenoid valve or motor valve, connect the wires based on the diagrams
below to the correct terminal on the thermostat. Use only in Heat mode. The third
P/N 1069510 • REV A • ISS 09NOV10 15

wire on your valve may be called, 6, Y, or G (see “Wire reference chart” on page
16).
Figure 16: Three-wire zoned hot water
C B O W W2 Y Y2 RH RC G A
Thermostat
Motor valve
WRA
C B O W W2 Y Y2 RH RC G A
Thermostat
Solenoid valve
W
R
A
Wire reference chart
Possible wires What they control
R or V or VR RH and RC single power for heat and cool.
RH or 4 RH power for heat (RH not connected to RC jumper clip removed)
RC RC power for cool (RH not connected to RC jumper clip removed)
W W heat control.
W2 W2 2nd-stage heat or heat pump auxiliary heat.
W3 W3 3rd-stage heat or 2nd-stage of two-stage auxiliary heat.
Y Y cool control or 1st-stage of compression for heat pump.
Y2 Y2 2nd-stage cool control or 2nd-stage compression for heat
pump.
G or F G fan control.
C or X C 24 VAC power (to power thermostat). Note: Trane uses B for
this connection.
H H external humidifier.
DH DH external dehumidifier.
EX EX external fresh air baffle.
B B heat pump changeover (cool to heat, powered in heat).
O O heat pump changeover (heat to cool, powered in cool).
B and O If there are both B and O wires (Trane pump products), do not
connect B to B terminal, connect B to C terminal. If not a Trane
product, tape off B.
E N/A emergency heat (do not connect, tape off).
L N/A system monitor (do not connect, tape off).
T N/A outdoor sensor (do not connect, tape off).
16 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide

Lennox heat pump
V or VR or R RH power for heat.
M or Y Y cool control.
Y or W or W2 W2 2nd-stage heat.
F or G G fan control.
R or O O
X or X2 or C C
Trane products (American Standard)
B C 24 VAC power (to power thermostat).
W or W1 W2 2nd-stage heat.
X2 Emergency heat (do not connect, tape off).
Two-wire zoned hot water
R RH
W W
Three-wire motor driven valves
R or 5 RH (power)
W or 4 W (heat on)
Y or G or 6 (3rd wire) A (heat off)
Three-wire solenoid valves
R RH (power)
W A (heat on)
Y or G (3rd wire) W (heat off)
Specifications
Voltage 24 VAC (supplied via the C wire)
Batteries Three AA alkaline batteries ( Duracell, Energizer). Do not use
rechargeable batteries.
Dimensions (W x H x D) 5.5 x 3.5 x 1.5 in. (140 x 89 x 38 mm)
Operating environment
Temperature
Relative humidity
Indoor use only
32 to 104°F (0 to 40°C)
10 to 90% noncondensing
P/N 1069510 • REV A • ISS 09NOV10 17

Statement of use:
100% compatible with all popular residential HVAC systems; 24 VAC single, two-
stage conventional heating systems (gas/oil/electric), heat pumps, single stage or
auxiliary heat (electric or fossil), zoned forced air and zoned hot water (two or
three wire), millivolt systems (with a 12-24 AC or DC source), one or two stage
cooling, and hybrid systems.
FCC regulatory information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC ID: QO8-ZWave-0210
IC regulatory information
This Class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
IC: 4714A-ZWave-0210
18 IS-ZW-TSTAT-300 Advanced Thermostat Installation Guide
