GE MONOGRAM ZV800SJSS User guide

ZV800SJ/BJ
– GE Monogram
™
36" Chimney Hood
Specifi cation Created 8/04
130664
Dimensions and Specifi cations (in inches)
For answers to your Monogram,
®
GE Profi le
™
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
Note:
The vent hood canopy extends forward 5-7/8".
The vent hood must be installed 24" min., and 30" max. above
the cooking surface. The telescopic duct cover conceals the
ductwork running from the top of the hood to the ceiling. The
duct cover is sized to reach 8 ft. to 10 ft. ceiling heights.
The hood installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.
Installation Information:
Before installing, consult installation
instructions packed with product, or available online at
monogram.com, for current dimensional data.
Listed by
Underwriters
Laboratories
R
13-11/16" at center
12-15/16" at sides
1-1/2"
*Height to
Ceiling
35-7/8"
*The Supplied Duct Cover Fits
8 ft. to 10 ft. Ceiling Heights

ZV800SJ/BJ
– GE Monogram
™
36" Chimney Hood
Specifi cation Created 8/04
130664
Wall Mount Installations
These hoods may be installed onto a wall or below a wall cabinet.
• Telescopic duct covers are provided to conceal the ductwork,
running to the ceiling.
• This hood can be installed for recirculation operation. No
kits required.
Installation Below A Wall Cabinet
Order a cabinet that is at least 20" high from the bottom frame to the
inside top. The cabinet must be at least 12" deep.
• The hood installation height is determined by the ceiling height.
• The hood installation height must be 24" Min. above the cooking
surface.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
®
GE Profi le
™
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
36” Min.
24” Min.
30” Max.
24” Min.
*20” Min.
The vent hood must be installed 24" min. and 30" max. above the
cooking surface. The hood installation height, from the cooking
surface to the bottom of the hood, depends upon ceiling height.
Installation Below a Cabinet
* The cabinet must measure at least 20" from the bottom frame to the
inside top. The hood housing will occupy the interior cabinet space.

ZV800SJ/BJ
– GE Monogram
™
36" Chimney Hood
Specifi cation Created 8/04
130664

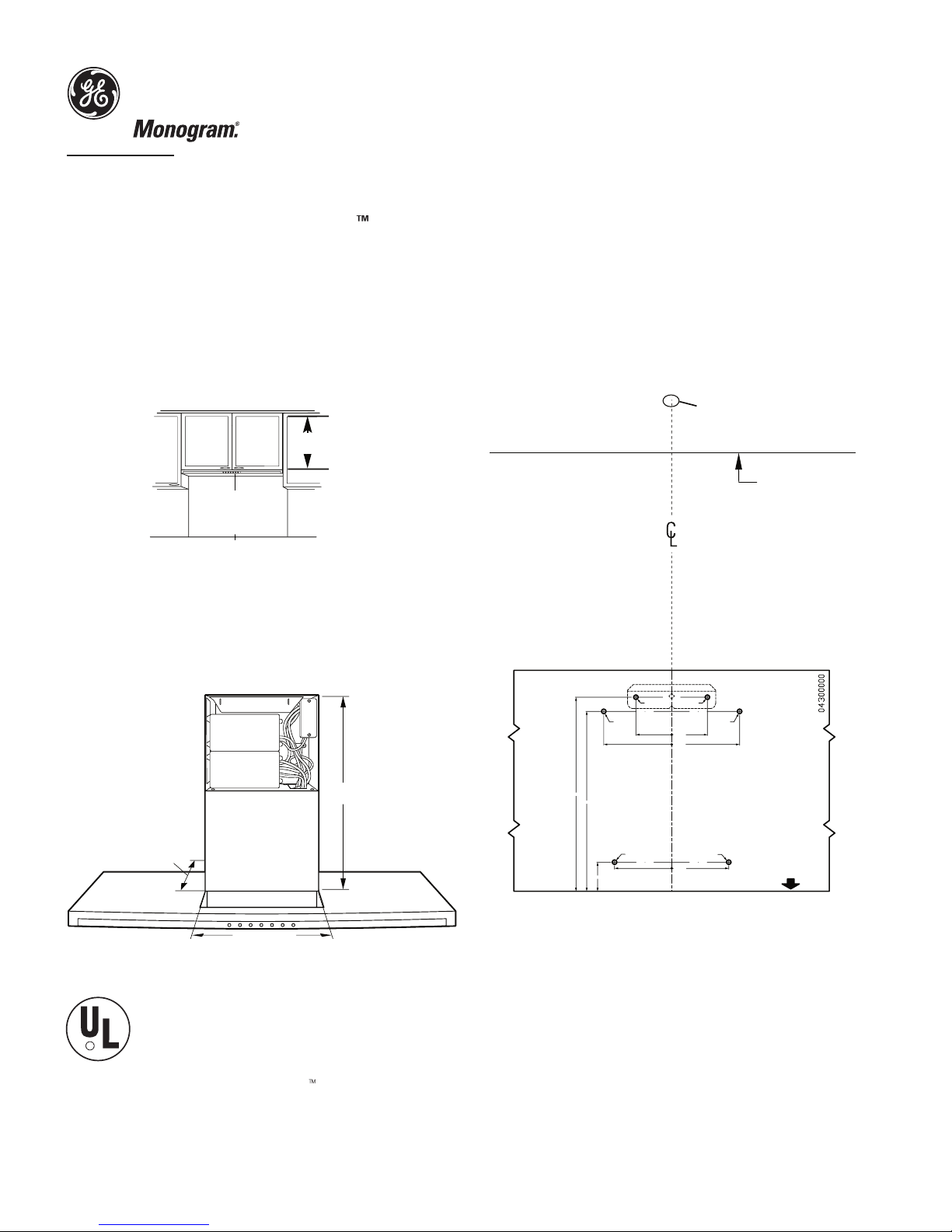

Cabinet Requirements
This hood may be installed beneath a wall-mounted cabinet.
• Both vented and recirculating operation can be accomplished in an
under-cabinet installation.
• If the cabinet has been installed, it must be removed so that wall
framing supports can be added.
The cabinet must be at least 20" high between the bottom frame and
the inside top. A custom cabinet or modifi cations to a different size
cabinet may be required to accommodate the hood housing.
• The cabinet must be 36" wide.
• The cabinet must be fi rmly secured to wall studs or the added
framing support and capable of supporting 100 pounds.
Ductwork, Wiring
• Determine the exact location of the vent hood.
• Locate the Rear Wall Template packed with the literature.
• Measure 36" from the fl oor to the top of the cooking surface. Add
the pre-determined hood installation height. Mark that location.
• Use a level to draw a straight pencil line on the wall.
• Tape the template in position along the penciled line. Check to be
sure the template is level.
• Use the level to draw a line straight up, from the centerline on the
template to the ceiling.
• Measure 3-3/34" from the back wall to the centerline of a 6-1/2"
hole on the ceiling.
NOTE:
If drywall is not present, add drywall thickness to the
3-3/4" dimension.
House Wiring Location:
• The junction box is located on the top right side of the hood.
• Wiring should enter the back wall 20" to 26" above the bottom of
the hood, and within 4" of the right side of the centerline. Wiring
should enter at least 4" above the bracket on the right side.
*25-1/2" Recommended
24” Min.
30” Max.
20” Min.
19-1/2"
11-3/4"
11"
19-1/2”
11-3/4”
11”
REAR WALL TEMPLATE
C
L
49-80271 JR 07-04
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
Drill 1/8"
Pilot Holes
ALIGN BOTTOM EDGE WITH
PENCIL LINE INDICATING
BOTTOM OF THE HOOD.
5-1/16"
9-5/8"
8-1/8"
2-1/16"
13-3/4"
12-3/4"
Ceiling
3-3/4” centerline
to wall
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
®
GE Profi le
™
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.

ZV800SJ/BJ
– GE Monogram
™
36" Chimney Hood
Specifi cation Created 8/04
130664
Features and Benefi ts
• Under-cabinet or stand-alone installation – The chimney
hood installs beneath a cabinet, above most cooktops
and ranges. For a more contemporary look, the system
can be wall-mounted with matching 8-to-10-ft. duct cover.
• Low-profi le design. High-impact style – The retractable
glass canopy is sleekly styled with a streamlined design,
seamlessly fi nished edges and front-mounted touch
controls.
• Powerful ventilation – A four-speed, 500-CFM fan blower
with boost option captures the smoke and steam produced
by high-performance cooking equipment.
• Multilevel halogen lighting – Six levels of intensity, from
accent to ambient settings, allow you to choose the lighting
to match the cooking task or occasion.
• Easy maintenance – Stainless steel fi lters can be easily
removed for safe cleaning in your dishwasher.
• Recirculating kit – Included for applications that do not
allow outside venting.
• Model ZV800SJSS – Stainless steel
• Model ZV800BJBB – Black on black
ZV800SJSS
