GE Monogram ZV850 User manual

GE Monogram®
Installation
Instructions
36" Island
Vent Hood
Model
ZV850

2
Before you begin — Read these instructions completely and carefully.
IMPORTANT - Save these instructions for local inspector’s use.
IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions with your Use and Care Book for future reference.
WARNING: This appliance must be properly grounded. See “Electrical Supply,” page 4
If you have a question concerning the installa-
tion of this product, call the GE Answer
Center®Consumer Information Service at
800.626.2000, 24 hours a day, 7 days a week.
If you received a damaged vent hood, you
should immediately contact your dealer or
builder.
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada, call
1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
CAUTION!
Due to the weight and size of this vent hood
and to reduce the risk of personal injury or
damage to the product, TWO PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
Proper installation is the responsibility of the
installer. Product failure due to improper
installation is not covered under the GE
Appliance Warranty. See the Use & Care
Guide for warranty information.
WARNING:
To reduce the risk of fire or electrical shock,
do not use this hood with any external solid-
state speed control device. Any such alteration
from original factory wiring could result in
damage to the unit and/or create an electrical
safety hazard.
To reduce the risk of fire and to properly
exhaust air, be sure to duct air outdoors. Do
not vent exhaust air into spaces within walls or
ceilings or into attics, crawl spaces or garages.
WARNING; TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
TO REDUCE THE RISK OF FIRE, ELECTRI-
CAL SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have any ques-
tions, contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at the service panel and lock service
panel to prevent power from being switched
on accidentally. If the service panel cannot be
locked, fasten a tag or prominent warning
label to the panel.
For general ventilating use only. Do not use to
exhaust hazardous or explosive materials or
vapors.
Structural framing, installation work and
electrical wiring must be done by qualified
person(s), in accordance with all applicable
codes and standards including fire-rated
construction.
Sufficient air is needed for proper combustion
and exhausting of gases through the flue
(chimney) of fuel burning equipment to
prevent back drafting. Follow the heating
equipment manufacturer’s guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA),
and the American Society for Heating, Refrig-
eration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
Local codes vary. Installation electrical con-
nections and grounding must comply with
applicable codes. In the absence of local
codes, the vent should be installed in accor-
dance with National Electrical Code ANSI/
NFPA 70-1990 or latest edition.
Contents Models available ........................................... 3
Required Accessory...................................... 3
Product Dimensions..................................... 3
Tools and Materials Required ..................... 4
Power Supply ................................................ 4
Duct Fittings ................................................. 5
Installation Preparation
Step 1, Advance Planning........................ 6, 7
Installation
Step 2, Remove the Packaging .................... 8
Step 3, Check Installation Hardware .......... 8
Step 4, Mount Template .............................. 9
Step 5, Install Support Frame...................... 9
Step 6, Secure Wiring ................................ 10
Step 7, Size and Install Ductwork.............. 10
Step 8, Install Decorative Duct Covers ..... 11
Step 9, Install Hood ................................... 12
Step 10, Connect Electrical ....................... 12
Step 11, Slide Duct Cover Down,
Install Utility Bars ........................ 13
Step 12, Install Filters................................. 14
Step 13, Finalize Installation ..................... 14

3
Design Information
36" Island Vent Hood
Model
ZV850
Model
Available
Required
Accessory
This vent hood is designed to be used in
vented ceiling mounted installations.
NOTE: Accessories to meet proper ceiling
height are required to complete the installation.
The vent hood must be installed 24” min. and
30” max. above the cooking surface. 25-1/2” is
recommended for best venting performance
and to insure that the duct cover meets the
ceiling. The cooking surface should be at least
36” above the floor. Installation will be easier if
the vent hood is installed before the cooktop
and countertop is installed.
Product
Dimensions
ZX858 – For 8 ft. ceiling height.
This kit includes decorative duct covers and
support frames to reach an 8 ft ceiling height.
ZX859 – For 9 ft. ceiling height.
This kit includes decorative duct covers and
support frames to reach an 9 ft ceiling height.
* The distance between the cooking surface and the bottom of the
hood must be at least 24” and up to 30” The 25-1/2”
recommended installation height, above the standard 36”
countertop, will insure duct cover fit to the ceiling.
ZX8510 – For 10 ft. ceiling height.
This kit includes decorative duct covers and
support frames to reach a 10 ft. ceiling height.
Order the required accessory at the same time
as the vent hood and have on site before
installation.
*25-1/2" Recommended
36" Reference
*26-1/4" for 8 ft. Ceiling
Using ZX858 Accessory
38-1/8" for 9 ft. Ceiling
Using ZX859 Accessory
50-1/8" for 10 ft. Ceiling
Using ZX8510 Accessory
*Height
to Ceiling
8-1/4"
35-3/8" 27-1/2"

4
Installation Preparation
36" Island Vent Hood
• Tape measure
• Knife
• Spirit level
• Wire cutter
• Wire stripper
• Wire nuts
• Electric drill and 5/32” bit
• Phillips screwdriver
• Flat blade screwdriver
• Hammer
• Pliers
• 10 mm Hex wrench/socket
• Safety glasses
• Tape to mount template
• Gloves to protect against sharp edges
Electrical supply
This vent hood must be supplied with 120V,
60Hz, and connected to an individual, prop-
erly grounded branch circuit, and protected
by a 15 or 20 amp circuit breaker or time delay
fuse.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the
above requirements, call a licensed electrician
before proceeding.
• Route house wiring in the ceiling, as close to
the installation location as possible.
Allow an additional 3 feet length from ceiling
joists to reach the junction box on the hood.
• Connect the wiring to the house wiring in
accordance with local codes.
Tools and
Materials
Required
(not supplied)
• 120V 60Hz. 15 or 20 Amp, 2 wire with ground. Properly
grounded branch circuit.
• Strain relief for junction box cover.
• Plumb
• Center punch
Power
Supply
CAUTION
FOR PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY
GROUNDED.
Remove house fuse or open circuit
breaker before beginning
WARNING
installation.
Do not use an extension cord or adapter
plug with this appliance. Follow National
electrical codes or prevailing local codes and
ordinances.
IMPORTANT - (Please read carefully) Grounding Instructions
The grounding conductor must be connected
to a ground metal, permanent wiring system,
or an equipment-grounding terminal or lead
on the hood.
CAUTION
Warning: The improper connec-
tion of the equipment-grounding
conductor can result in a risk of
electric shock. Check with a
qualified electrician or service
WARNING
representative if you are in doubt whether
the appliance is properly grounded.

5
Installation Preparation
36" Island Vent Hood
Duct
fittings Total
Equivalent Quantity Equivalent
Duct Piece Dimensions Length* Used Length
Round, 1 ft.
straight (per foot
length)
3-1⁄4" x 10" 1 ft.
straight (per foot
length)
90°elbow 15 ft.
45°elbow 9 ft.
3-1⁄4" x 10"
90°elbow 15 ft.
3-1⁄4" x 10"
45°elbow 9 ft.
3-1⁄4" x 10"
90°flat elbow 20 ft.
6" round to
3-1⁄4" x 10" or
3-1/4" x 12" transition 1 ft.
3-1⁄4" x 10"
to 6" round transition 5 ft.
6" round to
3-1/4" x 10"
transition 90°elbow 5 ft.
3-1⁄4" x 10" to 6" round
transition 90°elbow 15 ft.
Round
wall cap
with damper 30 ft.
3-1⁄4" x 10" wall cap
with damper 30 ft.
Round
roof cap 26 ft.
Round
roof vent 24 ft.
Use this chart to
compute maximum
permissable lengths
for duct runs to
outdoors.
Note: Do not exceed maximum
permissable equivalent lengths!
Maximum duct length:
100 foot for range hoods.
Flexible ducting:
If flexible metal
ducting is used, all
the equivalent feet
values in the table
should be doubled.
The flexible metal
duct should be
straight and smooth
and extended as
much as possible.
Do NOT use flexible
plastic ducting.
Note: Any home ventilation
system, such as a ventilation
hood, may interrupt the proper
flow of combustion air and
exhaust required by fireplaces,
gas furnaces, gas water heaters
and other naturally vented
systems. To minimize the chance
of interruption of such naturally
vented systems, follow the heating
equipment manufacturer’s
guidelines and safety standards
such as those published by NFPA
and ASHRAE.
This Hood Must
Use 6" Round Duct
It Can Transition to
3-1/4" x 10" or
3-1/4" x 12" Duct
*Actual length of straight duct plus duct fitting
equivalent. Equivalent length of duct pieces are based
on actual tests conducted by GE Evaluation Engineer-
ing and reflect requirements for good venting
performance with any ventilation hood.
Total Duct Run

6
Installation Preparation
36" Island Vent Hood
Advance
Planning
1
Step
Note: The cross framing
must be spaced 8-3/4” on
the side from centerline to
centerline in order to
accept the hood mounting
screws.
Plan the location
Determine the exact location of the vent hood.
• Use a plumb to check location to be sure
countertop/cooktop location below the hood
will align exactly.
• The hood should project forward 1-1/2”
beyond the front edge of the cooking appli-
ance. See illustration.
• Observe the recommended 25-1/2" space
between the cooking surface and bottom of
hood.
Ceiling
Hood
Ducting
Centerline
Side View
Approx. 1-1/2"
Beyond Cooking
Surface Cooktop
Countertop
27-1/2"
Hood
Front 13-3/4"

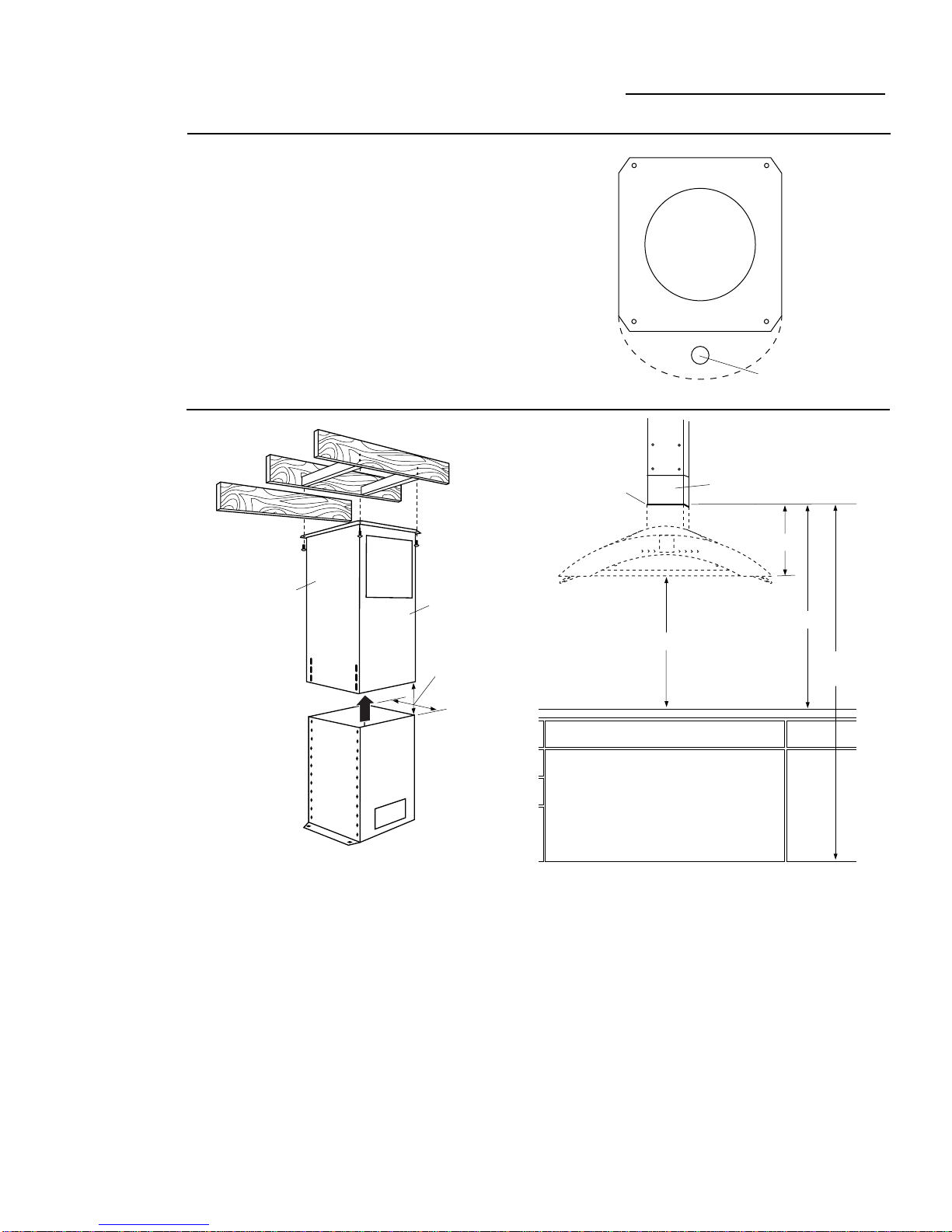

Ceiling support structure
• At the hood location, install 2 x 4 cross
framing between ceiling joists as shown.
• The 2 x 4 cross framing can be installed
standing or flat, depending on duct run.
See illustration of ductwork, page 7.
*The framing should be spaced 8-3/4” on the sides and 7-5/8" at
the front from centerline to centerline to accept mounting screws
in the vent support frame.
Typical Support Frame Mounting
8-3/4"
Cross
Framing
Top View of Support Framing
*7-5/8" 16"
Joist
Ceiling
Cross
Framing
Support
Frames
Side
View
Upper
Lower
8-3/4"
Front of
Hood

7
Installation Preparation
36" Island Vent Hood
Advance
Planning
(continued)
1
Step
Ductwork
• Use the shortest and straightest duct route
possible. For satisfactory performance, duct
run should not exceed 100 feet equivalent
length for any duct configuration.
• Refer to “Duct Fittings” chart to compute the
maximum permissible length for duct runs
to the outdoors.
• This vent hood must use 6” round duct. The
6” round duct can transition to 3-1/4” x 10”
or 3-1/4” x 12”.
• Install the house ductwork to run horizon-
tally between ceiling joists or straight up
through the roof.
Finish the Ceiling
Finish the ceiling surface. Be sure to mark
location of the ceiling joists and cross framing.
Check to be sure that ceiling is level, use shims
if necessary.
• Arrange cross framing in the ceiling to suit
the existing structure. See examples.
– Secure each 2 x 4 block with at least four (4),
#10 wood screws, 3” long (minimum size
screws, not supplied). Use 8 wood screws
total for the two supports.
• The cross framing must be accurately aligned
to assure correct positioning of the hood.
• The cross framing must be level in all direc-
tions. Check with a spirit level and adjust if
necessary.
IMPORTANT: The ceiling structure must be capable of supporting
the weight of the hood (approximately 100 pounds) and any
inadvertent user contact loads. It is recommended that the hood
support frame be supported by a minimum of 2 x 4 cross framing.
Ceiling Joint
2x4
6"
Duct
Vent Straight Up
Through The Ceiling
Flat
Vent Between
Ceiling Joists
Standing
6" Round
Duct Elbow
Support
Frame
Opening
Upper Half
Of Support
Frame
Ceiling
Joist
Cross Framing
Height
Adjustment
Slot
Front
of
Hood
7-5/8"
8-3/4"

8
Installation
36" Island Vent Hood
Check
Installation
Hardware
3
Step
Check contents of the required
accessory, ZX858, ZX859 or ZX8510.
Locate the hardware accessory box packed
with the hood and check contents.
4 Hex head
wood lag screws
(6mm x 2-1/2")
or
(1/4 x 2-1/2")
4 Flat Washers
8 Frame Attachment
Screws with Washers
(attached to
accessory support
frames)
Template
2 Phillips Head
Decorative Screws
2 Side Bars With 4 Machine Screws
3 Filters
Check service manual envelope taped
to the front on the hood to be sure it
contains one stop screw. Leave this
screw in the envelope.
4 (10mm) Nuts and Lock Washers
2
Remove the
Packaging
Step
The vent hood is packed separate from the
required accessory ZX858, ZX859 or ZX8510.
• Remove the frame, cover, parts box, side bars
and packaging.
• Remove junction box cover.
• Install strain relief onto junction box cover.
Decorative Duct Covers
Front of Hood
Mounting Screw Holes
Support Frames
with 8 Screws
and 8 Washers

9
Installation
36" Island Vent Hood
• Align the template with the marks on the
ceiling and tape in place.
– Be sure the template is oriented correctly,
with the front of the hood.
• Use a plumb to check to be sure the mount-
ing holes will provide parallel alignment
with the countertop below.
• Center punch all hole locations.
• Drill pilot holes in the 4 screw locations. Use
a 5/32” bit and drill approximately 1-1/2”
deep.
• Cut the 6-1/4" dia. duct opening and
approx. 1" dia. wire access hole.
Install upper support frame
• Secure the upper support frame to the
ceiling joists and/or cross framing with
the 4 screws provided. For maximum
rigidity and strength, the screws must be
driven into the center of the joists and/or
cross framing.
• Check to be sure the support frame is
level, vertically and horizontally.
Install lower support frame
• Insert lower support frame (from required
accessory ZX858, ZX859 or ZX8510) into the
upper support frame and loosely secure with
8 screws and washers (4 on front and 4 on
back sides).
• Adjust the lower support frame up or down
to the desired height above the countertop.
Tighten screws.
Important: Again, check to be sure the support
is level in both directions. There is no way to
level the hood after the hood is secured to the
frame.
4
Step
Mount
Template
5
Step
Install
Support
Frame
*Note: 39-1/8" to top of hood flange can be increased
up to 42" max.
** 75-1/8" min. to floor, 77-7/8" max.
Wire Access Hole
Front of Hood
25-1/2" Recommended
13-5/8
*39-1/8"
Countertop
Hood
Mounting
Flange Lower Support
**75-1/8"
to Floor
Support
Frame
Opening
Upper
Support
Frame
Lower
Support
Frame
Check Level in
Both Direction
Front
Of
Hood

10
Installation
36" Island Vent Hood

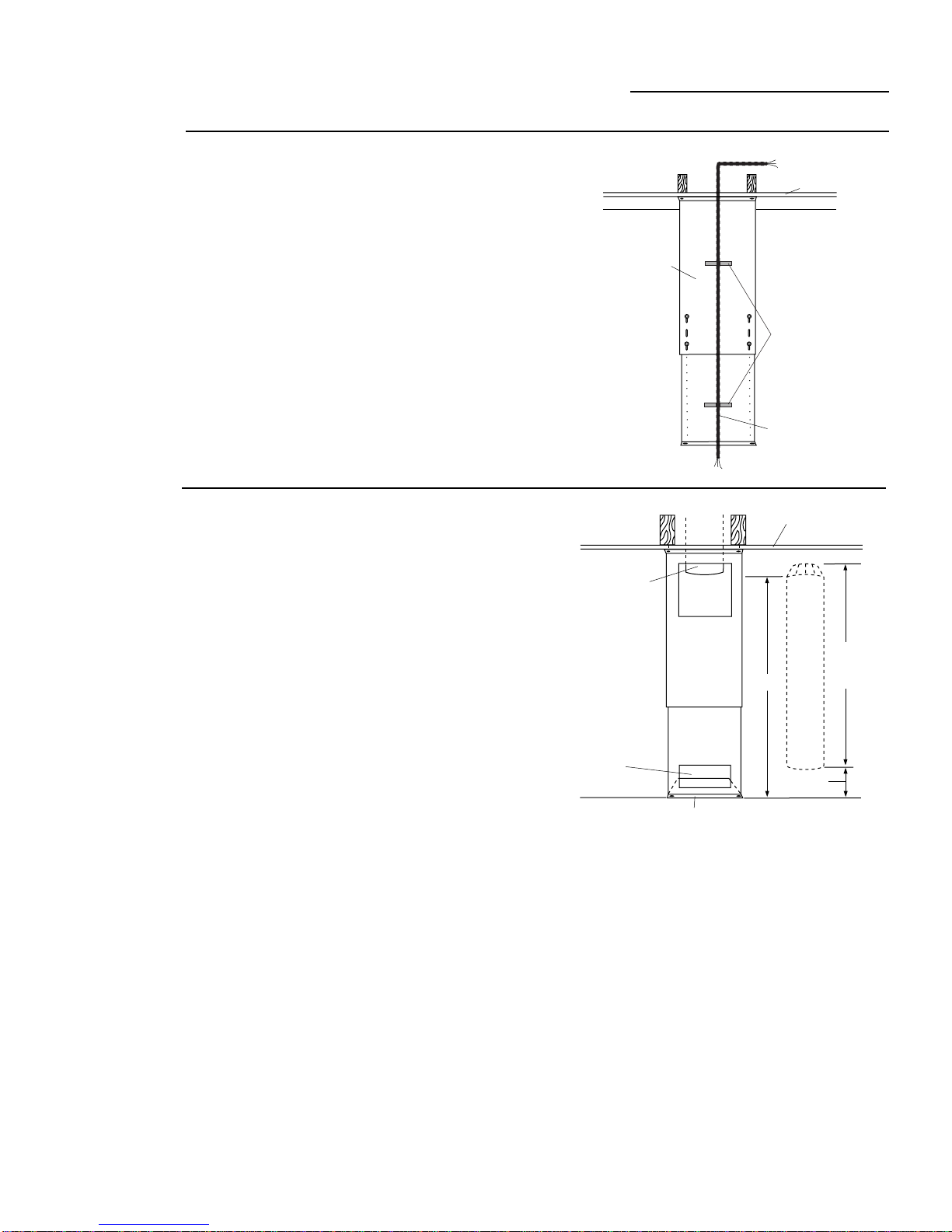

Wiring
• Route house wiring through the ceiling hole
and pull a length to reach the hood junction
box, approximately 6” below the support.
• Tape the wire to the front of the frame
support to prevent damage during installa-
tion and service.
7
Step
Size And
Install
Ductwork
To Find Required Duct Length:
• Measure from house duct flange to bottom
of support frame. (Dimension A)
– Add at least 1” to Dim. A for duct overlap at
the top.
– Subtract 1-3/4” for hood insertion into the
bottom of the frame to determine required
duct length.
• Cut the 6” duct to required length.
Note: The bottom of the duct must be external
(female) connection to the top of the hood.
The bottom end should be flared slightly, to
facilitate installation of the hood.
• Install duct up through support frames and
attach to house ducting with sheet metal
screws.
• Seal the connection with duct tape.
Secure
Wiring
Step
6Ceiling
Support
Frames
Tape
House
Wiring
Front Side
Ceiling
Duct
Dim. A
Duct Connection
To Hood
Bottom Support
Frame Flange
House Duct
1-3/4"
Side
View
Support
Frame
Required
Duct
Length

Installation
36" Island Vent Hood
Install
Decorative
Duct Covers
Step
8
11
•Pretap or drive decorative screw into the
screw holes on the support frame. This will
make screw installation easier.
• Separate the two decorative duct covers.
• Select the inside (top) cover, which has two
screw holes in the top.
• Slide the decorative duct cover over the
support frame and push to the ceiling.
• Attach to the hood support at the top with
2 supplied decorative screws.
• Locate the stop screw in the envelope taped
to the front of the hood. Set aside.
• Slide the bottom decorative duct over the
installed top duct and push up past the stop
screw hole location.
• Install the supplied temporary stop screw in
one of 3 holes in the support frame or the
top duct cover to prevent the bottom
decorative duct cover from sliding down.
The stop screw must be
installed. Failure to do so could result in
personal injury or damage to the duct
cover.
Pretap
2 Screw
Holes Top Duct
Cover
Install Screw on
Each Side
Bottom Duct Cover
Stop Screw
Top Duct
Cover
Bottom Duct
Cover
Top Duct
Cover
Install Stop
Screw in One
of 3 Holes

12
Installation
36" Island Vent Hood
10
Step
Connect
Electrical
Verify that power is turned off at the source.
CAUTION
If house wiring is not 2-wire with a
ground wire, a ground must be
provided by the installer.
When house wiring is aluminum,
be sure to use U.L. approved anti-
oxidant compound and alumi-
num-to-copper connectors.
WARNING
• Install strain relief into the knockout of the
junction box cover.
• Insert house wiring through strain relief and
tighten.
• Connect white leads to branch circuit white
lead.
• Connect black leads to branch circuit black
lead.
• Connect green/yellow leads to branch
circuit green or bare ground lead.
• Secure all connections with wire nuts on
each electrical connector.
• Push wires into junction box and replace
cover. Be sure wires are not pinched.

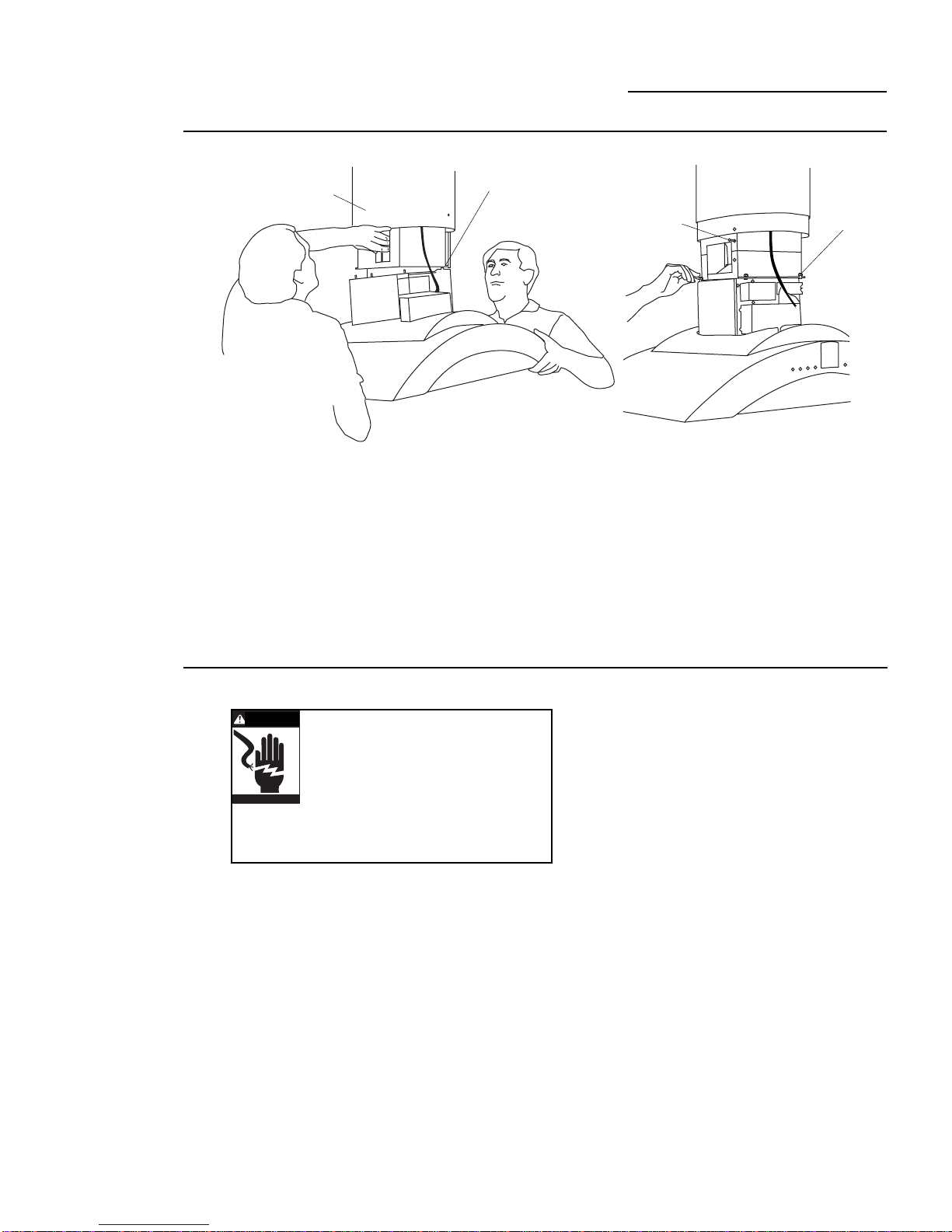

9
Step
Install
Hood
Note: TWO PEOPLE ARE REQUIRED TO
COMPLETE THIS INSTALLATION!
• Lift the hood up to the support frame.
Carefully align the hood mounting studs
into the support frame holes, and at the
same time, guide the hood duct connector
into the house duct.
• Install 4 nuts and lock washers to the mount-
ing studs. Tighten with a 10mm wrench.
• Check hood level in both directions.
• Check to be sure that the duct is positioned
over the hood connector.
• Seal the duct connection with duct tape.
Note: Do not drive screws through lower duct
connection. Doing so will prevent proper
damper operation.
Align
Mounting
Studs
Align Duct
Connector to
House Duct Stop Screw Install
4 lock
washer
and 4 Nuts
Bottom
Duct
Cover

13
Installation
36" Island Vent Hood
Slide Duct
Cover Down,
Install Side
Utility Bars
Step11
• Hold the decorative duct cover and remove
the temporary stop screw. Return the screw
to the service manual envelope for future
use.
• Slide the lower duct cover down onto the
hood.
• Install the side utility bars with screws as
shown.

14
Installation
36" Island Vent Hood
• Remove protective film on filters.
• Tip the filter into the lower slots at the rear
of the opening. Lift the filter and pull the
knob forward until the filter rests on the
slots.
• To remove the filters, grasp the knob, push
the filter towards the rear and tilt down-
wards.
12
Step
Finalize
Installation
Step13
Install
Filters
• Remove the protective film covering the
control panel on the front face of the hood,
and any other packaging materials.
• Check all 4 lamps to assure tightness in
sockets.
• Refer to the Use and Care book for
operating instructions.
Lower Filter
Slots

Notes
36" Island Vent Hood
15

Pub. No. 49-8970-1
Dwg. No. 164D3333P197
 1999 GE Appliances
(N.D. 500) 12/99
04306398
Monogram.
®
General Electric Company
Louisville, KY 40225
Note: While performing installations described in this book,
safety glasses or goggles should be worn.
To obtain specific information concerning any
Monogram product or service, call GE Answer Center®
consumer information service at 800.626.2000—any
time, day or night.
For Monogram local service in your area, call
1-800-444-1845.
NOTE: Product improvement is a continuing endeavor at General
Electric. Therefore, materials, appearance and specifications are subject
to change without notice.
