GEIGER SOLIDline ZIP-Perfection GU45 E11 Series User manual

1
www.geiger.de EN
EN
DE Original-Montage- und
Betriebsanleitung
Original assembly and
operating instructions
Notice originale de montage
et d’utilisation
Instrucciones originales de
instalación y funcionamiento
Istruzioni originali di installazione
e funzionamento
EN
FR
ES
IT

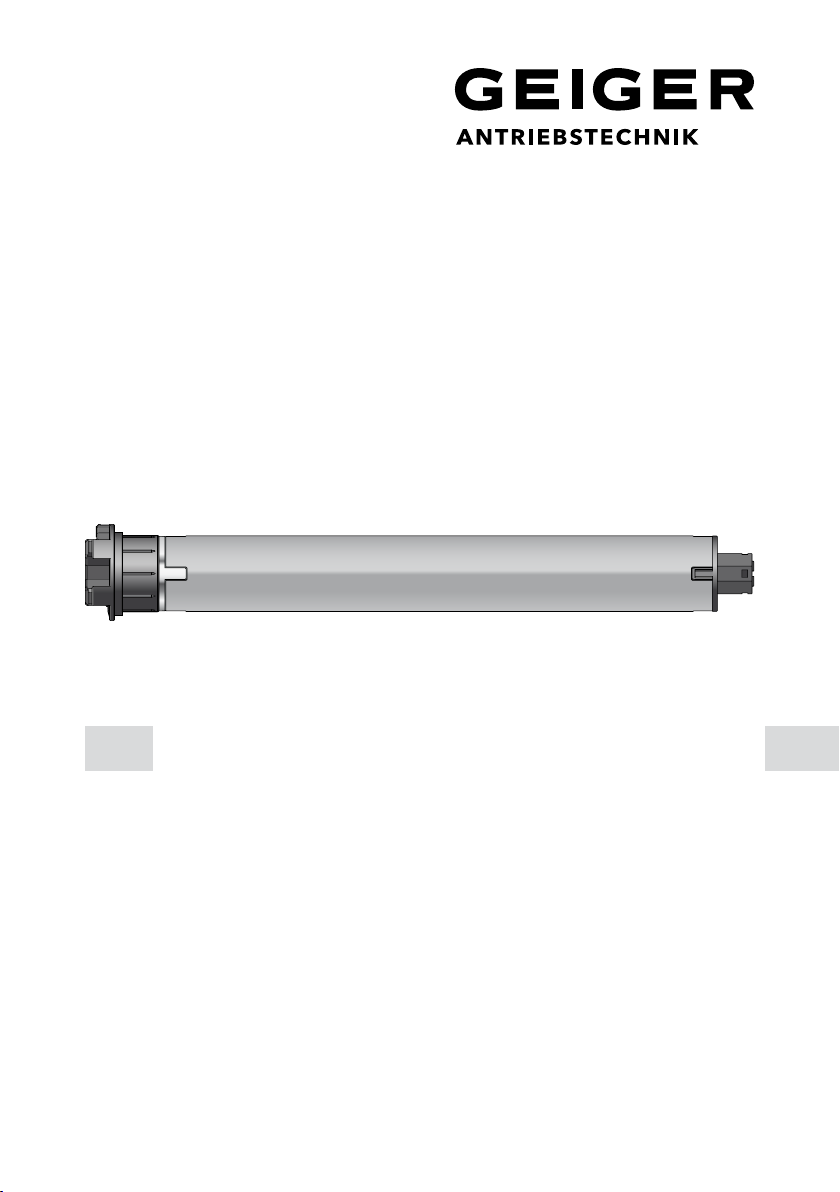

Tubular motor:
GEIGER SOLIDline
Motor control:
SOLIDline ZIP-Perfection (GU45...-E11)
for screens with ZIP guidance

2Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
1. General information
Dear customer,
By purchasing a GEIGER motor you have decided on a quality product from GEIGER.
Thank you very much for your decision and the condence placed in us.
Before you put this drive into operation please observe the following safety instructions. It
serves for the prevention of danger and for the avoidance of personal injury and damage to
property.
The installation and operating instructions contain important information for the installer, the
specialist electrician and the user. Please pass on these instructions if you transfer the product.
These instructions should be kept by the user.
2. Guarantee
In the case of incorrect installation contrary to the installation and operating instructions and/
or constructional modication, the legal and contractual guarantee for property damage and
product liability lapses.
Index
1. General information..................................................................2
2. Guarantee ..................................................................................2
3. Intended use..............................................................................3
4. Safety instructions....................................................................3
5. Safety instructions for assembly ............................................4
6. Installation instructions ...........................................................5
7. Information for the specialist electrician................................6
8. Connection of the setting switch ............................................6
9. Starting the setting modes.......................................................7
10. Factory settings ........................................................................7
11. Automatic setting of the end positions ..................................7
12. Manual programming of the end positions ............................8
13. Semi-automatic programming of the end positions..............8
14. Exit the programming modes ..................................................8
15. Change/delete the end position ..............................................8
16. Obstacle detection....................................................................9
17. Referencing / End position correction..................................10
18. Resetting to factory setting ...................................................10
19. What to do if….........................................................................10
20. Maintenance ............................................................................10
21. Declaration of conformity ...................................................... 11
22. Technical data for SOLIDline motors ....................................12
23. Notes on waste disposal ........................................................12

3
www.geiger.de EN
EN
3. Intended use
The motors of the series SOLIDline (GU45...-E11) with electronic end stop are designed
exclusively for the operation of ZIP screens.
The motors may not be used for the operation of roller grilles, garage doors, furniture and lifting
tools.
GU 45 .. . - E11
Motor control
Motor head
Torque in Nm
Motor diameter
GEIGER universal drive
4. Safety instructions
I ATTENTION: Important safety instructions. For personal safety,
it is important to follow these instructions. Please keep these
instructions for future reference.
fDo not allow children to play with stationary controls. Keep remote controls away
from children.
fThe installation is to be checked regularly for defective balance, signs of wear or
damaged cables and springs, if relevant.
fDo observe the moving sun protection system and keep persons away until it has
closed completely.
fWhen operating the manual release with the sun protection system open, please be
cautious as it can fall down quickly if springs or tapes wear off or are broken.
fDo not operate the device if operations such as, for example, window cleaning are to
be carried out in the vicinity.
fDisconnect the automatic controlled device from the mains power supply if opera-
tions such as, for example, window cleaning are being carried out in the vicinity.
fDuring operation observe the danger zone.
fDo not use the installation if people or objects are in the danger zone.
fUrgently shut down damaged installations until repair.
fUnconditionally shut down the unit during maintenance and cleaning operations.
fPinching and shearing points are to be avoided and must be secured.
fThis appliance can be used by children aged 8 and above and persons whose
physical, sensorial or mental capacities are impaired, or who have no experience or
know-how if they have been supervised or been given instructions on the use of the
appliance and if they understand the possible resulting dangers. Children are not
permitted to play with the device. Cleaning and maintenance should not be carried
out by children.
fThe rated sound pressure level is less than 70 dB(A).
fDisconnect the device from the mains power supply for maintenance and replace-
ment of parts.
If the motor is disconnected via a plug connection the operator must be able to
control - from any place to which it has access – that the plug is removed.
If this is not possible - due to design or installation - the disconnection from the
power supply must be ensured via locking in the disconnected position (e.g. isolator).
fThe motor tube can get very hot during prolonged use.
When working on the unit, do not touch the tube before it has cooled down.

4Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
5. Safety instructions for assembly
I ATTENTION: Important safety instructions. Follow all installation
instructions, as incorrect installation can lead to serious injuries.
fWhen mounting the motor without any mechanical protection of the driven parts and
of the tube which may become hot, the motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the drive.
fBefore the motor is installed, all cables which are not needed are to be removed and
all equipment which is not needed for power-operated actuation is to be put out of
operation.
fThe actuating element of a manual release must be mounted at a height of less than
1.8 m.
fIf the motor is controlled by a switch or pushbutton, the switch or pushbutton must
be mounted within eyeshot of the motor. The switch or pushbutton must not be
located in the vicinity of moving parts. The height of installation must be at least
1.5mabovetheoor.
fPermanently installed control devices must be attached visibly.
fIn case of devices extending horizontally, a horizontal distance of at least 0.4 m must
berespectedbetweenthefullyextendedpartandanyotherxedelement.
fThe rated speed and the rated torque of the motor must be compatible with the
device.
fThe mounting accessories that are used must be designed in accordance with the
selected rated torque.
fGood technical knowledge and good mechanical skills are necessary for the motor
installation. Incorrect installation can lead to serious injury.
Electricalworkmustbecarriedoutbyaqualiedelectricianinaccordancewiththe
regulations in force locally.
fOnly use connecting cables that are suitable with the environmental conditions and
which meet the construction requirements. (see accessories catalogue)
fIf the device is not equipped with a connecting cable and a plug, or other means for
disconnecting from the mains with a contact opening on each pole according to the
conditions of the overvoltage category III for full disconnection, a disconnecting
device of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules.
fDo not mount the connecting cables near hot surfaces.
fA plug for the disconnection of the motor from the power supply must be accessible
after installation.
fDamaged connecting cables must be replaced by GEIGER connecting cables of the
same type.
fThe device must be mounted as described in the installation instructions. Fixations
shall not be made with adhesives since they are regarded as unreliable.

5
www.geiger.de EN
EN
6. Installation instructions
I Beforexing,thestrengthofthemasonryorofthesubsurfaceistobe
checked.
I Prior to installation please check to ensure there is no visible damage
to the motor like cracks or open cables.
I Caution: If the tube is screwed/riveted to the drive, the measure must
be taken from the tube end to the center of the drive and marked on
the tube.
When drilling the winding shaft never drill into the
area of the tubular motor!
When inserting into the shaft, the tubular motor must not
be struck and must not be allowed to fall into the shaft.
Installation into the screen:
Insert motor with a suitable adapter and drive into the shaft
up to the stop of the shaft adapter.
Fix the motor support on the side piece.
Fix the motor together with the shaft on the motor support.
Depending on the selected motor head,
differentxationsystemscanbeused:
– Place the motor with square insert in the star-shaped
bearer and lock with pin
– Place the motor into the existing engine bearer and
lock
– Place the motor in a compatible engine bearer with clip
system and lock with spring or rotating lever
I The GEIGER SOLIDline motor is suitable
for shaft diameters from 50 mm!

6Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
7. Information for the specialist electrician
H Caution: Important installation instructions.
Please follow all instructions since
incorrect installation can lead to
the destruction of the motor and the
switching unit.
The operations with the service clamps may be accom-
plished only by an electrical specialist.
Motors with electronic limit stops can be connected in
parallel. In this case the maximum load of the switching
unit must not be exceeded.
When changing the running direction the switchover must
be effected through an off-position.
When changing the running direction the switchover time
must be at least 0.5 s.
With a three-phase network, please use the same external
conductor in order to control the UP and DOWN directions.
PVC cables are not suitable for equipment used outdoors
or exposed to prolonged high levels of UV radiation. These
cables should not be used if they are likely to touch metal
parts that can heat up to temperatures exceeding 70°C.
Connecting cables with plug connectors of the Hirschmann
Company are tested and approved with couplings of the
Hirschmann Company.
In order to prevent a malfunction caused by coupling,
the supply line (ref. NYM) from the actuator/switch to
the motor must not exceed 100 m in case of motors with
electronic end stops.
8. Connection of the setting switch
I In order to set the end positions on SOLIDline motors, any setting
switch can be used that has a programming key or that allows a
simultaneous UP/DOWN command. In this case, the UP/DOWN keys
must be activated simultaneously instead of the programming key.
Connect setting cable to the connecting cable of the motor (see diagram on the back of the
setting switch). The assignment to the direction of rotation is dependent on the installation
situation of the drive. Then connect the setting switch to the 230V mains.
Article Number / GEIGER setting switch
M56F152 with service terminal (D), 5 wires, SMI compatible
M56F153 with service terminal (CH), 5 wires, SMI compatible
M56F154 with service terminal (D), 4 wires
12 3
PE N
L1
N
PE
Electronic /
mechanical
limit stop
blue brown black green/yellow
Mains: 230V / 50Hz
Mains:
230
V~/50 Hz
Service
terminals
Connecting cable
to limit stop
12
Programming
key
PROG
Setting cable
M56...
Direction
keys
LED

7
www.geiger.de EN
EN
9. Starting the setting modes
PROG key
pressed in sec.
Mode
Reaction
 Options
 Feedback
Learning
mode
activated
 Start-Stop-
Start by
each run.
 Move in UP direction for
referencing ON
 1 x Stop & Go
 Move in DOWN direction for
referencing OFF
 2 x Stop & Go
 Any move in
UP and DOWN direction
is possible.

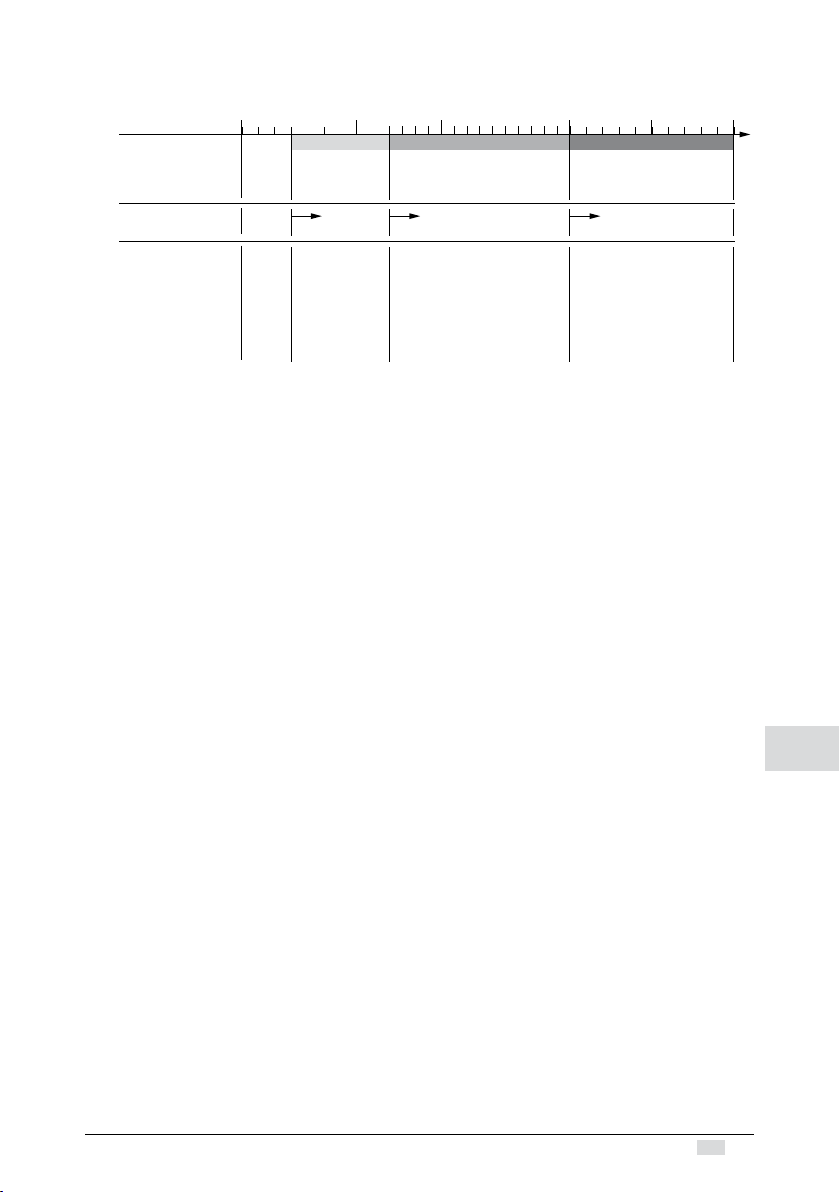

1 x UP-DOWN 3 x UP-DOWN 4 x UP-DOWN
Referencing
activated
Reset
to factory setting
03 62
03
0
As soon as the drive has entered the respective mode and has started to respond, the PROG
key can be released and the appropriate setting can be made.
10. Factory settings
The drive is delivered with the factory settings which allow any number of UP and DOWN runs
with max. power.
This mode is optimally suited for initial commissioning in the factory.
11. Automatic setting of the end positions
I The distance between the upper and lower end stops must be about
7 cm which corresponds to 1/4 tube rotation at least. If the distance is
not maintained the drive deletes the end positions that have already
been stored and starts again with the programming.
Programming the end positions
1. To activate the programming mode, press the PROG key or the UP and DOWN keys at the
same time until the motor conrms (1 x „clac-clac“). The learning mode is indicated with
each move command by a short interruption of the screen movement (start-stop-start).
2. Keep the UP or DOWN key pressed to move the screen to the desired end position until the
motor reaches the stop and switches off (torque shutoff).
3. Keep the UP or DOWN key presses to move the screen in the opposite direction until the
motor reaches the stop and switches off (torque shutoff).
4. The programming process is then completed and the motor switches to normal operation.
I The direction of rotation of the motor is automatically assigned to the
upper and lower end positions.
I The end positions are stored only after the second torque switch-off
for each end position.

8Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
12. Manual programming of the end positions
I The distance between the upper and lower end stops must be about
7 cm which corresponds to 1/4 tube rotation at least. If the distance is
not maintained the drive deletes the end positions that have already
been stored and starts again with the programming.
Programming the end positions
1. To activate the programming mode, press the PROG key or the UP and DOWN keys
simultaneously until the motor conrms (1 x „clac-clac“). The learning mode is indicated with
each move command by a short interruption of the screen movement (start-stop-start).
2. Press and hold the UP or DOWN key to move the screen to the desired end stop until the
desired position is reached.
3. The position is saved by pressing the PROG key for at least 1 sec. The drive signals that
the rst end position has been saved (2 x „clac-clac“).
4. Press and hold the UP or DOWN key to move the screen in the opposite direction until the
desired position is reached.
5. The position is saved by pressing the PROG key for at least 1 second. The drive signals that
the second end position has been saved (3 x „clac-clac“).
6. The learning process is then completed and the motor switches to normal operation.
13. Semi-automatic programming of the end positions
I The distance between the upper and lower end stops must be about
7 cm which corresponds to 1/4 tube rotation at least. If the distance is
not maintained the drive deletes the end positions that have already
been stored and starts again with the programming.
Programming the end positions
1. To activate the programming mode, press the PROG key or the UP and DOWN keys
simultaneously until the motor conrms (1 x „clac-clac“). The learning mode is indicated with
each move command by a short interruption of the screen movement (start-stop-start).
2. Keep the UP or DOWN key pressed to move the screen to the desired end position until the
motor reaches the stop and switches off (torque shutoff).
3. Press and hold the UP or DOWN key to move the screen in the opposite direction until the
desired position is reached.
4. The position is saved by pressing the PROG key for at least 1 second. The drive signals that
the second end position has been saved (3 x „clac-clac“).
5. The learning process is then completed and the motor switches to normal operation.
14. Exit the programming modes
The learning process can be cancelled completely at any time by pressing the PROG key for 20
to 30 sec. The drive signals the termination by 4x UP/DOWN movements.
The drive returns to the delivery state.
15. Change/delete the end position
In order to change or delete the end positions, a new programming must be started (see
«Setting of the end stops»).

9
www.geiger.de EN
EN
16. Obstacle detection
The drive has a sensitive obstacle detection in the DOWN direction as well as a blockage
detection in the UP direction. The required torque is automatically readjusted at any time.
Slow changes in the system due to ageing, dirt, cold or heat are thus automatically taken
into account. If a travel command is blocked by an obstacle, the motor switches off and a
short return run takes place. The motor tries up to three times to reach the end position. If an
obstacle is still detected, the drive returns to the corresponding end position.
I Because of the motor sensitive obstacle detection, the correct dimen-
sioning of the torque for the respective installation size is essential.
Note: the chart below serves only as indication to determine the motor size.
Whether the specied motor size is sufcient for the respective installation size and is sensitive
enough should be examined with the previously unknown factors like weight of the sun protec-
tion (total weight), friction, etc. for each installation type and size, as there might be important
variations.
Winding shaft diameter [mm]
Ø100
Ø8
5
Ø7
8
Ø6
3
0246810 12 14 16 18 20 22 24
6 Nm 10 Nm
End slat weight [kg]

10 Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
17. Referencing / End position correction
If, e.g. due to temperature changes, a screen elongation/shortening has occurred, this is
automatically corrected when the screen is closed, depending on the setting.
If, due to changes in temperature, the winding behaviour should change and the screen should
run against the stop, an immediate end position correction or a torque shut-off takes place,
depending on the setting.
After the rst reference run, the motor automatically detects the torque required to close the
screen and closes it with the lowest possible force in order to optimally protect the fabric.
18. Resetting to factory setting
To reset the drive to the factory setting, press the PROG key for 20 to 30 sec. The drive signals
the reset with 4 UP/DOWN movements.
The drive returns to the delivery state.
19. What to do if…
Problem Solution
Motor does not run. • Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible
damage.
• Check the mains voltage and allow the
cause of the voltage breakdown to be
tested by a specialist
electrician.
Instead of in the upwards direction, motor
runs downwards.
• The control leads are interchanged.
Exchange black/brown control leads.
Motor only runs in one
direction.
• Motor in the end position.
Run motor in the opposite direction.
Re-adjust the end positions, if necessary.
After running several times,
the motor breaks down and
no longer responds.
• The motor became too hot and has
switched off.
Try it again after a cooling time of about
15 min.
20. Maintenance
The drive is maintenance-free.

11
www.geiger.de EN
EN
21. Declaration of conformity
Schleifmühle 6 |D-74321 Bietigheim-Bissingen
Phone [phone] |Fax [phone] |[email protected] |www.geiger.de
Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRA 300591 | USt-IdNr. DE145002146
Komplementär: Geiger Verwaltungs-GmbH |Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRB 300481
Geschäftsführer: Roland Kraus |WEEE-Reg.-Nr. DE47902323
Gerhard Geiger GmbH & Co. KG
300H0204
EU Declaration of Conformity
Bietigheim-Bissingen, 06.04.2021 Roland Kraus (General Manager)
Product designation:
Venetian blinds motor, motor for rolling shutters, motor for awnings
Type designation:
GJ56.., GR45.., GU45.., GSI56.., GS56.., GS45.., GB45.., GB35..
Applied directives:
2006/42/EG
2014/53/EU
2011/65/EU + (EU)2015/863 + (EU)2017/2102
Applied standards:
EN 60335-1:2012
EN 60335-1:2012/AC:2014
EN 60335-1:2012/A11:2014
EN 60335-1:2012/A13:2017
EN 60335-1:2012/A1:2019
EN 60335-1:2012/A14:2019
EN 60335-1:2012/A2:2019
EN 60335-2-97:2006+A11:2008+A2:2010+A12:2015
EN 62233:2008
EN 62233 Ber.1:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2019
EN 61000-3-3:2013
ETSI EN 301 489-1 V2.2.0(2017-03)
ETSI EN 301 489-3 V2.1.1(2019-03)
ETSI EN 300 220-2 V3.1.1(2017-02)
DIN EN IEC 63000:2019-05
Authorized representative for technical data:
Gerhard Geiger GmbH & Co. KG
Address:
Schleifmühle 6, D-74321 Bietigheim-Bissingen
en
Gerhard Geiger GmbH & Co. KG
Antriebstechnik
Schleifmühle 6
D-74321 Bietigheim-Bissingen
0421100W1518
Current declarations of conformity are available under www.geiger.de

12 Gerhard Geiger GmbH & Co. KG | 100W2580 0322V000en
EN
EN
For technical questions, please call our service team at: [phone].
They will be happy to assist you.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6 | D-74321 Bietigheim-Bissingen
T [phone] | F [phone]
[e-mail] | www.geiger.de
22. Technical data for SOLIDline motors
Technical data of tubular motor SOLIDline-SOC (GU45..)
GU4506 GU4510 GU4520 GU4530
Voltage 230 V~/50 Hz
Current 0,36 A 0,47 A 0,63 A 0,8 A
Cos Phi (cosj)>0,95
Inrush current (factor) x 1,2
Power 83 W 105 W 140 W 180 W
Torque 6 Nm 10 Nm 20 Nm 30 Nm
Speed 16 rpm
Protection class IP 44
Total length1) 509,5 mm 519,5 mm 549,5 mm 569,5 mm
Operating mode S2 4 min S2 4 min S2 5 min S2 4 min
Sound pressure level2) 39 dB(A) 39 dB(A) 41 dB(A) 41 dB(A)
Diameter 45 mm
Weight ca. 1,85 kg ca. 1,90 kg ca. 2,20 kg ca. 2,40 kg
Storage temperature/
Humidity
T = -15°C .. +70°C / dry and non-condensing place
1) SOLIDline-ROC + 5,9 mm / SOLIDline-COM + 4,2 mm
2) The average sound pressure level data are intended for guidance only. The values were determined by
GEIGER at a distance of 1 m, with a hanging motor at idle speed and averaged over 10 seconds. There is no
reference to any specific test standard.
Subject to technical modifications. Please find information to the ambient
temperature range of our GEIGER motors under www.geiger.de DE
V
geprüfte
Sicherheit
23. Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please contact your local government’s recycling
or solid waste management department to learn more about the services it provides.
Waste disposal of electric and electronic equipment
Electrical and electronic equipment must be collected and disposed of separately in
accordance with EU regulations.
