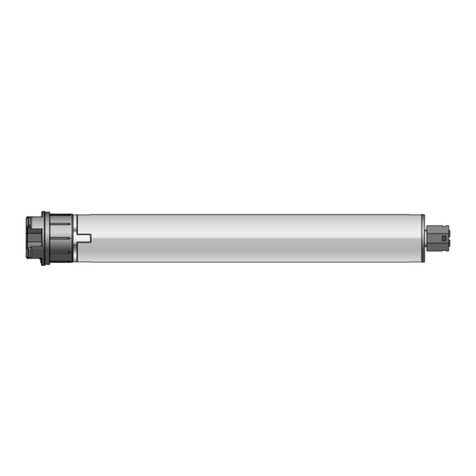

Tubular motor:
GEIGER PRO.TECline
Motor control:
PRO.TECline Radio (GB45R-../..)
for rolling shutters, awnings and screens

2Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
Index
1. General information..................................................................2
2. Guarantee ..................................................................................3
3. Intended use..............................................................................3
4. Safety instructions....................................................................3
5. Safety instructions for assembly ............................................4
6. Installation instructions ...........................................................5
7. Information for the specialist electrician................................6
8. Initial commissioning ...............................................................6
9. Further functions ......................................................................7
10. Setting of the end positions.....................................................8
11. What to do if….........................................................................10
12. Declaration of conformity ...................................................... 11
13. Technical data .........................................................................12
14. Maintenance ............................................................................12
15. Disposal information ..............................................................12
1. General information
Dear customer,
By purchasing a GEIGER motor you have decided on a quality product from GEIGER.
Thank you very much for your decision and the condence placed in us.
Before you put this drive into operation please observe the following safety instructions.
It serves for the prevention of danger and for the avoidance of personal injury and damage to
property.
The installation and operating instructions contain important information for the installer, the
specialist electrician and the user. Please pass on these instructions if you transfer the product.
These instructions should be kept by the user.

3
www.geiger.de EN
EN
2. Guarantee
In the case of incorrect installation contrary to the installation and operating instructions and/
or constructional modication, the legal and contractual guarantee for property damage and
product liability lapses.
3. Intended use
The tubular motors of the model range PRO.TECline (GB45R-../..) with the Radio system are
designed exclusively for the operation of rolling shutters and screens.
The motors may not be used for the operation of roller grilles, garage doors, furniture and lifting
tools.
GB 45 R - .. / ..
Speed
Torque in Nm
Motor control
Motor diameter
GEIGER PRO.TECline
4. Safety instructions
I ATTENTION: Important safety instructions. For personal safety,
it is important to follow these instructions. Please keep these
instructions for future reference.
fDo not allow children to play with stationary controls. Keep remote controls away
from children.
fThe installation is to be checked regularly for defective balance, signs of wear or
damaged cables and springs, if relevant.
fDo observe the moving sun protection system and keep persons away until it has
closed completely.
fWhen operating the manual release with the sun protection system open, please be
cautious as it can fall down quickly if springs or tapes wear off or are broken.
fDo not operate the device if operations such as, for example, window cleaning are to
be carried out in the vicinity.
fDisconnect the automatic controlled device from the mains power supply if opera-
tions such as, for example, window cleaning are being carried out in the vicinity.
fDuring operation observe the danger zone.
fDo not use the installation if people or objects are in the danger zone.
fUrgently shut down damaged installations until repair.
fUnconditionally shut down the unit during maintenance and cleaning operations.
fPinching and shearing points are to be avoided and must be secured.
fThis appliance can be used by children aged 8 and above and persons whose
physical, sensorial or mental capacities are impaired, or who have no experience or
know-how if they have been supervised or been given instructions on the use of the
appliance and if they understand the possible resulting dangers. Children are not
permitted to play with the device. Cleaning and maintenance should not be carried
out by children.
fThe rated sound pressure level is less than 70 dB(A).
fDisconnect the device from the mains power supply for maintenance and replace-
ment of parts.
If the motor is disconnected via a plug connection the operator must be able to
control - from any place to which it has access – that the plug is removed.
If this is not possible - due to design or installation - the disconnection from the
power supply must be ensured via locking in the disconnected position (e.g. isolator).
fThe motor tube can get very hot during prolonged use.
When working on the unit, do not touch the tube before it has cooled down.

4Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
5. Safety instructions for assembly
I ATTENTION: Important safety instructions. Follow all installation inst-
ructions, as incorrect installation can lead to serious injuries.
fWhen mounting the motor without any mechanical protection of the driven parts and
of the tube which may become hot, the motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the drive.
fBefore the motor is installed, all cables which are not needed are to be removed and
all equipment which is not needed for power-operated actuation is to be put out of
operation.
fThe actuating element of a manual release must be mounted at a height of less than
1.8 m.
fIf the motor is controlled by a switch or pushbutton, the switch or pushbutton must
be mounted within eyeshot of the motor. The switch or pushbutton must not be
located in the vicinity of moving parts. The height of installation must be at least
1.5mabovetheoor.
fPermanently installed control devices must be attached visibly.
fIn case of devices extending horizontally, a horizontal distance of at least 0.4 m must
berespectedbetweenthefullyextendedpartandanyotherxedelement.
fThe rated speed and the rated torque of the motor must be compatible with the
device.
fThe mounting accessories that are used must be designed in accordance with the
selected rated torque.
fGood technical knowledge and good mechanical skills are necessary for the motor
installation. Incorrect installation can lead to serious injury.
Electricalworkmustbecarriedoutbyaqualiedelectricianinaccordancewiththe
regulations in force locally.
fThe mains connection cable must be suitable for the ambient conditions and meet
the construction requirements.
fIf the appliance is not equipped with a plug or other means of disconnection from
the mains which has a contact opening in each pole corresponding to the conditions
of overvoltage category III for full disconnection, such a disconnection device must
beinstalledinthexedelectricalinstallationinaccordancewiththeinstallation
regulations.
fDo not mount the connecting cables near hot surfaces.
fA plug for the disconnection of the motor from the power supply must be accessible
after installation.
fIf the mains connection cable of this unit is damaged, it must be replaced by the
manufactureroritscustomerserviceorasimilarlyqualiedpersoninordertoavoid
any danger.
fThe device must be mounted as described in the installation instructions. Fixations
shall not be made with adhesives since they are regarded as unreliable.

5
www.geiger.de EN
EN
6. Installation instructions
I Prior to installation please check to ensure there is no visible damage to
the motor like cracks or open cables.
I Beforexingpleasecheckthestrengthofthemasonryandofthe
surface.
I Caution: If the tube is screwed/riveted to the drive, the measure must be
taken from the tube end to the center of the drive and marked on the
tube.
When drilling the winding shaft never drill into the
area of the tubular motor!
When inserting into the shaft, the tubular motor must not
be struck and must not be allowed to fall into the shaft.
Installation into the rolling shutter:
Fix motor support to available stud bolts or in the side
frame.
Insert motor into the shaft with a suitable adapter and drive
up to the stop of the shaft adapter.
Insert roller capsule on the opposite side.
Put shaft with motor on motor support or on pivoting
engine bearer. On the opposite side pull out roller capsule
until bolt ts into ball bearing.
Screw together roller capsule with shaft.
Screw together shaft with tubular carrier.
Fix rolling shutter casing to shaft.
Alternatively: Use mounting plates for front elements.
Insert the motor. The bearing snaps into place. To loosen:
Turn the spring ring.
Installation into screens:
Insert motor with a suitable adapter and drive into the shaft
up to the stop of the shaft adapter.
Fix the motor support on the awning. Fix the motor
together with the shaft on the motor support. The bearer
locks into place.
Depending on the selected motor head, different
xationsystemscanbeused:
– Place the motor with square insert in the star-shaped
bearer and lock with pin (< 20 Nm).
– Place the motor into the existing engine bearer and
lock
– Place the motor in a compatible engine bearer with clip
system and lock with spring or rotating lever
I The GEIGER PRO.TECline motor is
suitable for shaft diameters from 50 mm!

6Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
7. Information for the specialist electrician
H Caution: Important installation instructions.
Please follow all instructions since
incorrect installation can lead to the
destruction of the motor and the
switching unit.
The operations with the service clamps may be
accomplished only by an electrical specialist.
TECline drives with radio control can be connected in
parallel.
When connecting in parallel, please do observe the
maximum load of the switching unit.
8. Initial commissioning
Teaching-inthersttransmitter
1. Connect the drive to the power supply. The drive clicks (short UP and DOWN movement)
and starts in teach-in mode.
For multi-channel hand-held transmitters: Select the desired channel.
2. Press the UP and DOWN keys on the hand-held transmitter simultaneously until the drive
clicks. The hand-held transmitter and the drive are connected to each other.
Changing the rotation direction of the drive
1. Press the PAIR key for at least 5 seconds. The drive clicks.
2. Press the STOP key for at least 2 seconds. The drive clicks, the direction of rotation of the
drive has been changed.
Teaching-in another hand-held transmitter
1. Press the PAIR key for at least 5 seconds on the hand-held transmitter that has already
been programmed. The drive clicks.
2. Press the PAIR key on the new hand-held transmitter for at least 2 seconds.
The drive clicks, the new hand-held transmitter has been programmed.
L
LN
PE
N
PE
Mechanical
limit stop
+ Radio receiver
M
blue brown black
Antenna
green/yellow
Mains 230V / 50Hz
230 V

7
www.geiger.de EN
EN
9. Further functions
Deleting a hand-held transmitter
1. Press the PAIR key on a hand-held transmitter that is not to be deleted for at least 5 sec.
The drive clicks.
2. Press the PAIR key for at least 10 seconds on the hand-held transmitter that is to be
deleted. The drive clicks, the hand-held transmitter has been deleted.
Replacing a lost hand-held transmitter
1. Disconnect the drive from the power supply for at least 2 seconds.
2. Reconnect the drive to the power supply for 10 seconds.
3. Disconnect the drive from the power supply for at least 2 seconds.
4. Connect the drive to the power supply again. The drive clicks.
5. Press the PAIR key on a new hand-held transmitter for at least 2 sec. The drive clicks, the
new hand-held transmitter is taught-in.
I ATTENTION: The lost hand transmitter is still stored in the drive.
If you are not sure where this hand transmitter is, all hand-held trans-
mitters can be deleted by resetting the drive to the delivery state.
Resetting the drive to the delivery state
1. Disconnect the drive from the power supply for at least 2 seconds.
2. Reconnect the drive to the power supply for 10 seconds.
3. Disconnect the drive from the power supply for at least 2 seconds.
4. Connect the drive to the power supply again. The drive clicks.
5. Press the PAIR key on a hand-held transmitter that has already been programmed for at
least 7 seconds.
The drive clicks once after approx. 2 sec. and a second time after approx. 7 sec., the drive
is reset to the delivery state.
Copying hand-held transmitters without a drive
It is possible to copy the functions of a hand-held transmitter
(master hand-held transmitter) to a new hand-held transmitter.
The procedure must be carried out separately for each key.
Make the new hand-held transmitter ready to receive.
1. Remove the bottom shell of the new hand-held transmitter.
Press the PAIR key with a paper clip or similar of the new
hand-held transmitter (A). The LED starts ashing.
2. Press the UP key on the new hand-held transmitter (A) within
4 seconds and keep it pressed. The LED starts to light up
permanently.
Transferring the key to the new hand-held transmitter
3. Continue to hold down the key on the new hand-held
transmitter (A) and align the fronts of the two hand-held
transmitters (distance max. 5 mm).
4. Press the UP key on the master hand-held transmitter (B).
As soon as the LED on the new hand-held transmitter (A)
turns darker, the copying of the UP key is nished and you
can release both keys.
Repeat the process with the STOP and DOWN keys.
0 ... 5 mm
1
2
4
3
(A)
(A)
(A)
(A
)(
B)

8Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
Forming groups with the display hand-held transmitter
Several drives can be combined into a group on one channel of the display hand-held trans-
mitter.
Example:
Drive 1 is taught-in on channel 1, drive 2 on channel
2 and drive 3 on channel 3. All three drives are to be
combined into a group on channel 4.
1. Select channel 1.
2. Press the PAIR key for at least 5 sec. The drive
clicks.
3. Select channel 4.
4. Press the PAIR key for at least 5 sec. The drive clicks, the rst drive has been added to the
group.
5. Select channel 2.
6. Press the PAIR key for at least 5 sec. The drive clicks.
7. Select channel 4.
8. Press the PAIR key for at least 5 sec. The drive clicks, the second drive has been added to
the group.
9. Select channel 3.
10. Press the PAIR key for at least 5 sec. The drive clicks.
11. Select channel 4.
12. Press the PAIR key for at least 5 sec. The drive clicks, the third drive has been added to the
group.
If drive 2 is to be removed from the group again, proceed as follows:
1. Select channel 2.
2. Press the PAIR key for at least 5 sec. The drive clicks.
3. Select channel 4.
4. Press the PAIR key for at least 5 sec. The drive clicks, the second drive has been removed
from the group.
10. Setting of the end positions
I CAUTION: In the factory setting, the motor can make 2 rotations in both
directions.
Installationconguration
CDAB
Top-mounted box/
right-hand installation
Front-mounted box/
left-hand installation
Top-mounted box/
left-hand installation
Front-mounted box/
right-hand installation
The setting of the end positions for installation situations A and B is described below.
In situations C and D, the assignment of the setting screws changes.
To turn the setting screws, use a 4mm hexagon key or the included adjustment aid.
1 2 3
1234

9
www.geiger.de EN
EN
Changing the setting range
Irrespective of the assignment of the setting screws:
• Rotation in minus direction reduces the setting range
• Rotation in plus direction increases the setting range
Setting the upper end position
Press the UP key on the control switch until the hanging
stops automatically.
Depending on the installation situation, turn the
corresponding setting screw with UP key pressed down in
PLUS direction until the selected upper end position is
reached.
If the upper end position is overrun (the motor
switches off too late):
• Press the DOWN key until the hanging is below the selected end position.
• Turn the setting screw a few turns in MINUS direction and repeat the procedure described
above again.
Setting the lower end position
Press the DOWN key on the control switch until the
hanging stops automatically.
Depending on the installation situation, turn the
corresponding setting screw with DOWN key pressed
down in PLUS direction until the selected lower end
position is reached.
If the lower end position is overrun (the motor
switches off too late):
• Press the UP key until the hanging is above the selected end position.
• Turn the setting screw a few turns in MINUS direction and repeat the procedure described
above again.

10 Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
11. What to do if…
Problem Solution
Motor does not run. • Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible
damage.
• Check the mains voltage and allow the
cause of the voltage breakdown to be
tested by a specialist
electrician.
• Hand-held transmitter is not taught-in.
• Check the transmitter and replace the
batteries in the transmitter if necessary.
Instead of in the upwards direction, motor
runs downwards.
• The control leads are interchanged.
Exchange black/brown control leads.
Motor only runs in one
direction.
• Motor in the end position.
Run motor in the opposite direction.
• Check control leads.
After running several times,
the motor breaks down and
no longer responds.
• The motor became too hot and has
switched off.
Try it again after a cooling time of about
15 min.
The adjusted end position
is not correct.
• Adjusting knob not pressed properly.
Repeat adjustment process, press adjus-
ting knob deeply.
• Actuator does not rotate simultaneously.
Push shaft onto tube actuator, repeat
adjustment process.
The drive does not click during commis-
sioning, the hand-held transmitter cannot
be programmed.
• A hand-held transmitter has already been
programmed.
Teach-in a new hand-held transmitter as
described in chapter „Further functions >
Replacing a lost hand-held transmitter“
and, if necessary, reset the drive to the
delivery status.

11
www.geiger.de EN
EN
12. Declaration of conformity
Current declarations of conformity are available under www.geiger.de
Schleifmühle 6 |D-74321 Bietigheim-Bissingen
Phone [phone] |Fax [phone] |[email protected] |www.geiger.de
Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRA 300591 | USt-IdNr. DE145002146
Komplementär: Geiger Verwaltungs-GmbH |Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRB 300481
Geschäftsführer: Roland Kraus |WEEE-Reg.-Nr. DE47902323
Gerhard Geiger GmbH & Co. KG
300H0204
EU Declaration of Conformity
Bietigheim-Bissingen, 20.04.2022 Roland Kraus (General Manager)
Product designation:
Venetian blinds motor, motor for rolling shutters, motor for awnings
Type designation:
GJ56.., GR45.., GU45.., GSI56.., GB45.., GB35..
Applied directives:
2006/42/EG
2014/53/EU
2011/65/EU + (EU)2015/863 + (EU)2017/2102
Applied standards:
EN 60335-1:2012
EN 60335-1:2012/AC:2014
EN 60335-1:2012/A11:2014
EN 60335-1:2012/A13:2017
EN 60335-1:2012/A1:2019
EN 60335-1:2012/A14:2019
EN 60335-1:2012/A2:2019
EN 60335-2-97:2006+A11:2008+A2:2010+A12:2015
EN 62233:2008
EN 62233 Ber.1:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2019
EN 61000-3-3:2013
ETSI EN 301 489-1 V2.2.0(2017-03)
ETSI EN 301 489-3 V2.1.1(2019-03)
ETSI EN 300 220-2 V3.1.1(2017-02)
DIN EN IEC 63000:2019-05
Authorized representative for technical data:
Gerhard Geiger GmbH & Co. KG
Address:
Schleifmühle 6, D-74321 Bietigheim-Bissingen
en
Gerhard Geiger GmbH & Co. KG
Antriebstechnik
Schleifmühle 6
D-74321 Bietigheim-Bissingen
0422100W1518

12 Gerhard Geiger GmbH & Co. KG | 100W2573 1222V000en
EN
EN
For technical questions, please call our service team at: [phone].
They will be happy to assist you.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6 | D-74321 Bietigheim-Bissingen
T [phone] | F [phone]
[e-mail] | www.geiger.de
13. Technical data
Technical data of tubular motor PRO.TECline Radio (GB45R-../..)
GB45R-
10/15
GB45R-
20/15
GB45R-
30/15
GB45R-
40/15
GB45R-
50/12
Voltage 230 V~/50 Hz
Current 0,47 A 0,63 A 0,80 A 1,00 A 1,00 A
Cos Phi (cosj)>0,95
Inrush current (factor) x 1,2
Power 105 W 140 W 180 W 220 W 220 W
Torque 10 Nm 20 Nm 30 Nm 40 Nm 50 Nm
Speed 15 rpm 15 rpm 15 rpm 15 rpm 12 rpm
Protection class IP 44
Total length 558 mm 578 mm 608 mm 638 mm 638 mm
Operating mode S2 4 min
Sound pressure level1) 39 dB(A)
Diameter 45 mm
Limit switch range 22 rotations
Weight ca. 2,10 kg ca. 2,20 kg ca. 2,20 kg ca. 2,60 kg ca. 2,60 kg
Storage temperature/
Humidity
T = -15°C .. +70°C / dry and non-condensing place
1) The average sound pressure level data are intended for guidance only. The values were determined by
GEIGER at a distance of 1 m, with a hanging motor at idle speed and averaged over 10 seconds. There is
no reference to any specific test standard.
Subject to technical modifications. Please find information to the ambient temperature range of our GEIGER
motors under www.geiger.de
14. Maintenance
The drive is maintenance-free.
15. Disposal information
Disposal of packaging materials
Packaging materials are raw materials and can therefore be reused. In the interest of environ-
mental protection, please dispose of them properly.
Disposal of electrical and electronic equipment
According to the EU Directive, electrical and electronic equipment must be collected and
disposed of separately.
