GEM P-UB-UBK300-A User manual

UBK-300 series Bracket
For full frameless glass door
Application of Electromagnet: 10001, EM-300 Series
Frameless Glass Door
Frameless Glass Wall
UBK-300-2
UBK-300-3
Unit:mm
Spacer
250
250
5560
50
15
5
63
25
250
42
250
48
5
30
Spacer
UBK-300-2
UBK-300-3
Spacer
In-swing Glass Door
Glass Wall
Spacer
Armature

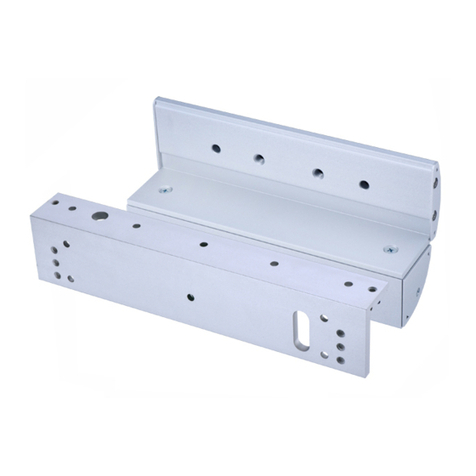

LZ-300
Bracket
U B K - 3 0 0 - 2 a n d br a c k e t s ar e
compatible with LZ-300 brackets for 10001, EM-
300 series of electromagnetic locks. These
brackets allow for installation on 10 ~ 13 mm
thickness of in-swing glass doors and frames.
U B K - 3 0 0 - 3
GIANNI INDUSTRIES, INC.
Plate
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: [phone] / Fax: [phone]
E-Mail: [e-mail]
Website: gianni.tw
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-UBK-300 Ver. F Published on 2011.09.16

Application of Electromagnet: 10001 Series
UBK-300-1
UBK-300-1
UBK-013
Unit:mm
Armature
Spacer
250
56
14
22.5
L-300
UBK-013
Out-swing
L-300 UBK-300-1
Glass Wall
Spacer
Armature
Frameless glass door
UBK-300-1 bracket is compatible with L-300 and
U B K - 0 1 3 f o r 1 0 0 0 1 , E M - 3 0 0 s e r i e s o f
electromagnetic locks. The bracket allows for
installation on 10 ~ 13 mm thickness of out-
swing glass doors and frames.
GIANNI INDUSTRIES, INC.
UBK-300 series Bracket
For full frameless glass door
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: [phone] / Fax: [phone]
E-Mail: [e-mail]
Website: gianni.tw
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-UBK-300 Ver. F Published on 2011.09.16

Application of Electromagnet: 10001 Series
UBK-300-2
LZ-300
Bracket
Armature
Minimal:48mm
UBK-300-2
In-swing
Frame
Glass Door
Spacer
UBK-300-2 brackets are compatible with LZ-300
b r a c k e t s f o r 1 0 0 0 1 , E M - 3 0 0 s e r i e s o f
electromagnetic locks. These brackets allow for
installation on 10 ~ 13 mm thickness of in-swing
glass doors .
UBK-300-2
LZ-300
Bracket
Spacer
Armature
250
250
5560
50
15
5
63
25
250
42
250
48
5
30
Plate
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-UBK-300 Ver. F Published on 2011.09.16
