GEN ENERGY G-B100 User manual

01
02
03
04
05
06
07
08
Safe instructions
WE STRONGLY RECOMMEND THAT YOU READ THIS INSTRUCTION BEFORE USE.
PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
DANGER
* Use only with recommended charger. (16.8V )
* Do not short the contact pins with any metal objects.
Do not carry or store this pack with metal equipments.
* Only for professional use! Keep batteries out of reach of children and personnel
that has not been instructed in the use of high capacity Lithium-ion batteries!
* Keep the battery dry and do not immerse in water.
* Never open the case of the battery.
* Do not expose to temperature over 60℃.
*
Do not leave the battery exposed to excessive heat such as in a car or direct sunshine.
* Do not expose the battery to fire! May explode if thrown into fire!
* Do not leave the battery on a device when the 10% charging LED is blinking.
* Handle with care! Do not throw! Do not drop!
* Do not pierce or drill into the casing.
* Do not replace the cells inside. If so, it has risk of explosion.
WARNING
* If immersed in water, don’t charge it and call the verdors.
*
The casing becomes hot when the battery is discharged in high temperature or with high loards.
*
Stop charging immediately if it is taking much more time to charge the battery than usual.
* Do not use if the battery smells odd.
*
In case of leakage, wash your hands and face immediately with clean water and contact doctor.
* If battery fluid gets into your eyes, contact doctor immediately.
CAUTION
* Charge the batteries right after every use.
* During long periods of inactivity, remove the battery from the equipment.
* Do not use, store or place the battery in an electrostatic area.
* Keep the connectors clean always.
The most important to read !!
Read below thoroughly.
* If you don’t use 20% bottom of capacity, its life time will become
double.
* Charge the batteries right after every use.
* If you discharge 100% and leave it, the batteries may die and
can not wake up again
Storing
* Store in cool and dry conditions. -20~40 ℃ ( -4~104 ℉) less than 1 month.
* Do not store or leave over 50 ℃ (122 ℉)
If so, it will deteriorate the battery performance seriously.
* For long term storage, store with about 60~70% of capacity ( with 3 LEDs on )
and recommended to re-charge every 4 Weeks.
* After long time storage, before re-use, recharge the battery fully.
Life Cycle
Compensation for recorded content
Recycle
Commercial Air Transport ( IATA regulations)
Warranty
* Remember only two factors below to extend its life time.
1) Don’t use 20% of bottom capacity
2) Keep the batteries cool as much as you can, always.
*
Recorded content can not be compensated, if recording or palyback is disabled
due to a malfunction of the battery pack.
* As battery cell is chemical product, its life time is various according to its
conditionsf use.
* This Li-ion battery can be recycled. Follow the regulation in your country.
* We care and strongly respect the IATA requirements for batteries transportation.
* This pack is covered by 2 years unconditional warranty on all parts, except the cells.
* The cells are covered by 1 year warranty, 80% of the original capacity.
* For warranty issues or if you have any additional questions, please contact
vendors you purchased from.
Specification
* Do not use the battery (Main, D-Tap, USB) while charging.
* Charge the battery to full before first use.
* Lithium ion batteries have a slight self discharge, therefore it is recommended to
charge prior to use.
* Battery run time reduces when it is working below or above the recommended
temperature range.
*
Battery pack goes to sleep mode 48 hours after no use, then if you push the LED gauge button,
it will be activated again. It will prolong the life of battery by minimizing the self discharging.

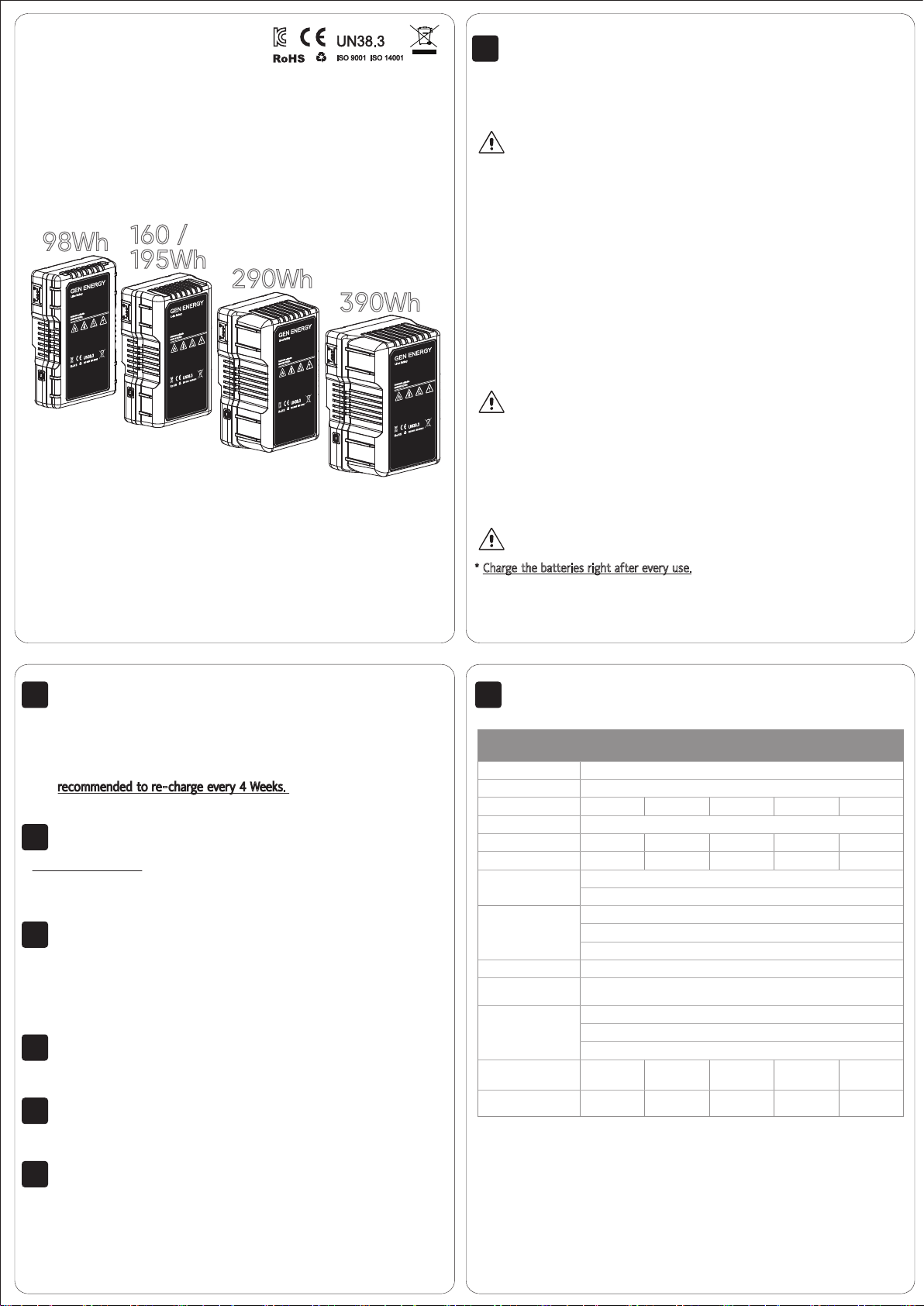

Professional
Li-ion Battery
98Wh 160 /
195Wh
390Wh
290Wh
98Wh 160Wh
(15A)
195Wh
(15A)
290Wh
(15A/22A)
390Wh
(15A/26A)
Cell chemistry Li-ion
Norminal voltage DC 14.4V
Capacity 6.8Ah 11Ah 13.5Ah 20Ah 27.2Ah
Charge voltage 16.8V
Charge current MAX. 3.5A MAX. 6A MAX. 6A MAX. 6A MAX. 6A
MAX. discharge rate 12A12A (15A) 12A (15A) 12A (15A/22A) 12A (15A/26A)
D-TAP
Output norminal voltage : 14.4V
MAX. load : 7A (Sum of two D-Taps), 12A (15A, 22A, 26A Models)
USB
Output voltage : DC 5.0V
MAX. load : 2.3A
Auto power off : 30minutes after no use
End voltage 12V
Battery protection circuit
Over-charge, Over-discharge, Over-current (Cell and Pack separately),
Over-temperature, Reverse charge
Ambient temperature
To charge : 10℃~ 30℃(32℉~ 104℉recommended)
To discharge : -20℃~ 50℃(-4℉~ 122℉), 10℃~ 40℃(50℉~ 104℉recommended)
To store : -20℃~ 40℃(-4℉~ 122℉) (<85% RH) – Less than 1 month
Dimension
(W x H x D)
97x146x39 mm
3.82x5.75x1.54"
97x146x59 mm
3.82x5.75x2.32"
97x146x59 mm
3.82x5.75x2.32"
97x146x78 mm
3.82x5.75x3.07"
97x146x97 mm
3.82x5.75x3.82"
Weight Approx. 620g
1.36lbs
Approx. 1.07kg
2.35lbs
Approx. 1.07kg
2.35lbs
Approx. 1.52kg
3.35lbs
Approx. 2kg
4.4lbs

10
11
CHARGE
DISCHARGE
09

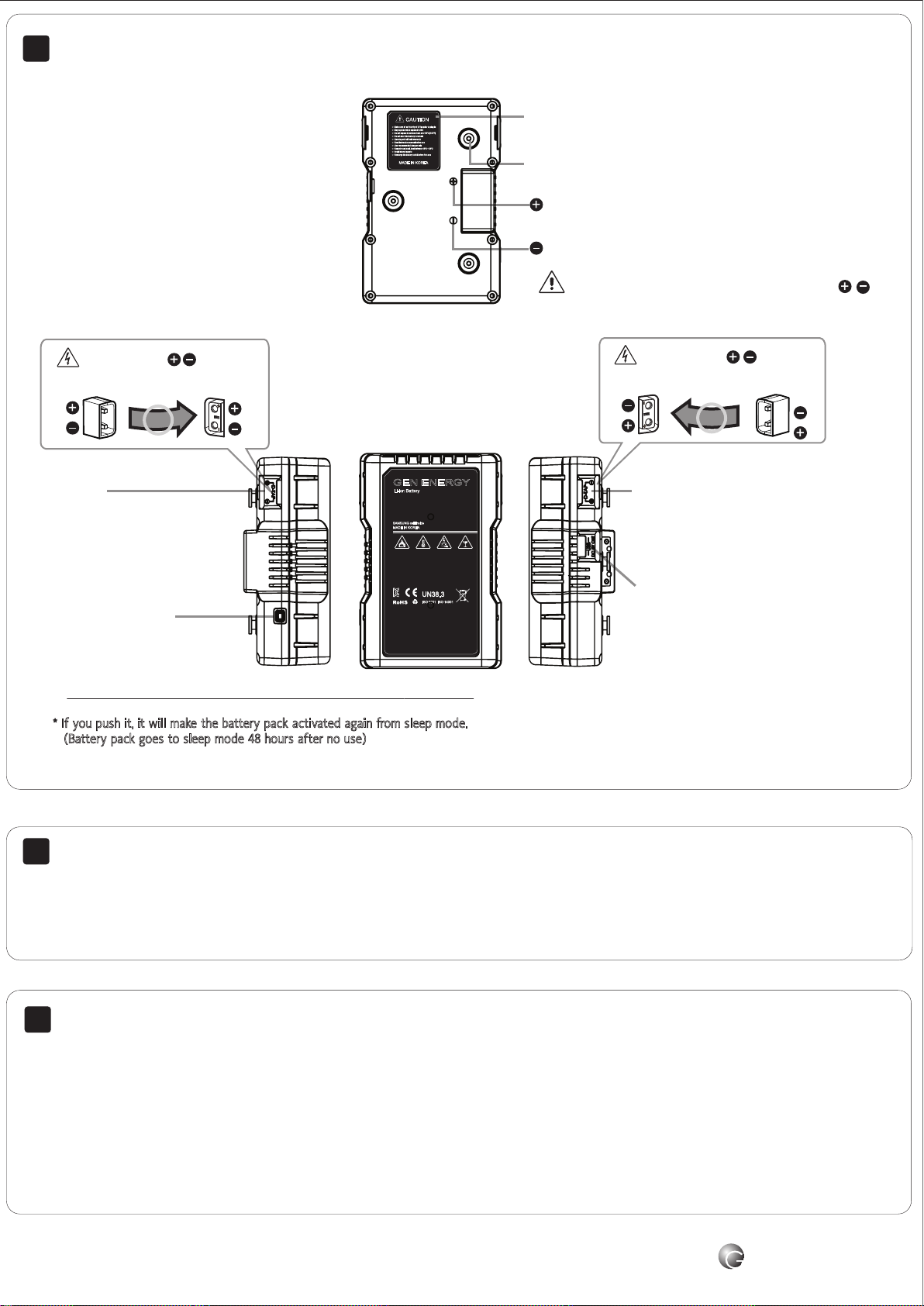

Quick Guide (V-mount Type)
* Do not use the battery (Main, D-Tap, USB) while charging.
If so, it may cause a charging error or damage the charger.
* Charge the battery to full before first use.
* When you charge this battery, Battery capacity LED gauge button will turn on indicating the capacity being charged.
* Lithium ion batteries have a slight self discharge, therefore it is recommended to charge prior to use.
* If you don’t use 20% bottom of capacity, its life time will become double.
* Camera's low voltage alarm is recommended to set 13V.
*
Battery will stop at 11.4V to extend its life. ( Reset it to re-use it by pushing and holding the gauge button for over 5 sec.)
* Microwave transmitters with 5W outputs or over should be kept as far away from the battery.
It may disrupt or stop supplying power.
* Be sure to remove the battery from the device after use.
If so, it will consume large standby power and over-discharge protection may be activated.
* USB is activated by pushing Battery capacity LED gauge button.
USB power will turn off automatically 30 minute after no use.
* Battery run time reduces when it is working below or above the recommended temperature range.
GEN ENERGY
Li-ion Battery
MADE IN KOREA
ISO 9001 ISO 14001
SAMSUNG cell inside
 Make sure of + - Polarity of D-Tap prior to plug-in
 May explode when exposed to fire
 Do not expose to extreme heatover 60ºC (140ºF)
 Do not short the battery terminals
 Opening unit will void warranty
 Read instruction manual beforeuse
 Use recommended chargeronly
 Keep dry and cool, best between 10ºC ~ 30ºC
 Avoid heavy impacts
 Rechargethe battery to full before first use
MADE IN KOREA
CAUTION
D-Tap 1
Charge : 16.8V
Discharge : 12~16.8V 7A max.
12A max.(15A, 22A, 26A models)
(sum of two D-Taps)
D-Tap 2
Charge : 16.8V
Discharge : 12~16.8V 7A max.
12A max.(15A, 22A, 26A models)
(sum of two D-Taps)
LED gauge button
5 LEDs
LED On : 20 %
Blinking : 10%
Red blinking : to be charged (1% left)
※ Red On : Error (Push and hold this button for 5 seconds)=>Reset
* While discharging, if you push it three times, blue LED light disappears, push it three times again, light's back.
* If you push it, it will make the battery pack activated again from sleep mode.
(Battery pack goes to sleep mode 48 hours after no use) Main connector
USB
Discharge : 5V, 2.3A max.
USB activated by pushing LED gauge button
(If no use for 30 min, it goes to sleep mode.)
CAUTION
Read throughly before use
V-mount lock
Do not short these two terminals
For more information,http://www.genenergy.co.kr
GEN ENERGY
Make sure of polarity
Plug side
(male connector) Receptacle side (female connector) Plug side
(male connector)
Receptacle side
(female connector)
Make sure of polarity
Charging : 16.8V
Discharge : 12~16.8V 12A (sum of main, D-Tap, USB),
15A (15A model), 22A (22A model), 26A (26A model)
Negative
