Stop Valve with Bellows Seal
Flanged ends
Ref. GENEBRE: 2231

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
2
Installation, operation and maintenance instructions
1. Product description ............................................................................... 3
2. Transport and Storage conditions ....................................................... 3
3. Exploded drawing ................................................................................... 4
4. Installation instructions …….............................................................. 5
4.1 Preparation ………………….................................................................. 5
4.2 Installation of valves with flanged ends ……..……………………... 6
5. Operating instructions
5.1 Usage .................................................................................................... 7
5.2 Manual operation .................................................................................. 7
6. Maintenance instructions ...................................................................... 7
7. Reparation instructions ....................................................................... 8
8. Hygiene and Safety Instructions ........................................................... 10

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
3
1. Product description.
Genebre, S.A. offers a wide range of valves designed and assembled to handwheel and
drive fluids in industrial procedures.
The compatibility of materials used to build the valves (see technical specifications) and
the application of valves to the different industrial processes is at user's risk. Valves will
have an optimal behavior when working conditions do not exceed pressure and
temperature limits (pressure curve) for which they have been designed.
2. Transport and Storage conditions
Transport and storage of this kind of products must be done keeping them in their
original package!
VISUAL INSPECTION
Check whether during transport, unloading and placement the products have suffered
damages.
During storage it is recommended to keep them into the included protective wrapping to
avoid damages or dirt accumulation in the inside part of the valve.The wrap must not be
removed until valve is to be installed.
Valves must be stored in a dry and clean environment.
If you notice any kind of anomaly during reception of the goods, contact immediately
with GENEBRE in order to determine the possible responsibilities on the issue.
IMPORTANT NOTE:
Before installing and/or manipulating these elements, READ CAREFULLY these
instructions for use and OBSERVE all contained information. If you fail to
understand any of their content, please contact GENEBRE, S.A.

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
4
User is responsible for the safe use of these products, according to present
instructions for use and specific technical documentation of the device.

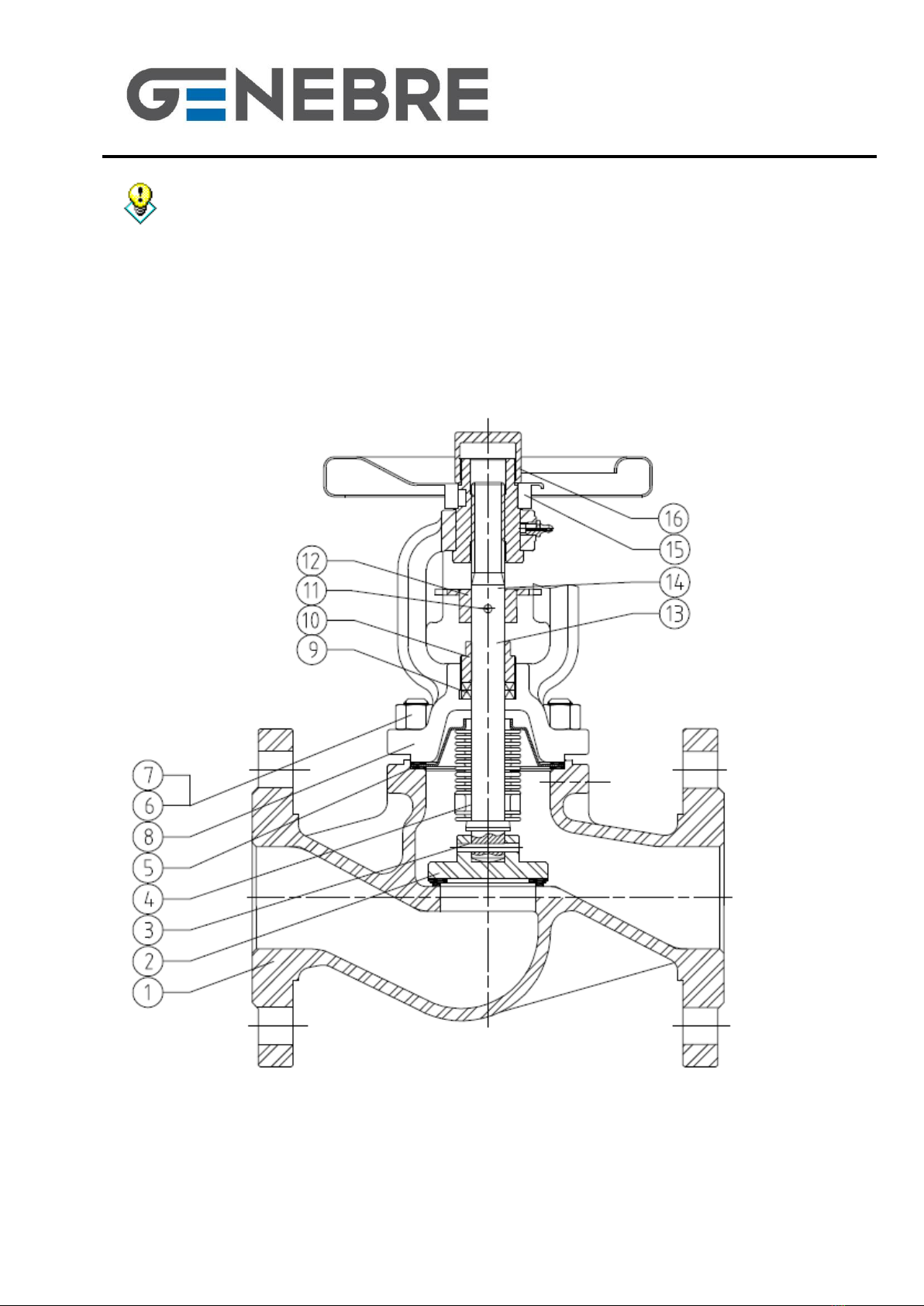

3. Exploded drawing

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
5
Nº
Name
Material
Surface
Treatment
Spare
Part Code
1
Body
Carbon Steel 1.0619
Painting
-----
2
Disc
Carbon Steel 1.0460 + 13Cr
------
-----
3*
Pin
Stainless Steel AISI 410
------
K2231 xx
4*
Bellow
Stainless Steel AISI 304
------
K2231 xx
5*
Body Gasket
AISI 304 + Graphite
------
K2231 xx
6
Bolt
ASTM A 193-B7
------
-----
7
Nut
ASTM A 194-2H
------
-----
8
Bonnet
Carbon Steel 1.0619
Painting
-----
9*
Packing
Graphite
------
K2231 xx
10
Gland
Stainless Steel AISI 410
------
-----
11
Pin
Stainless Steel AISI 410
------
-----
12
Guide
Carbon steel
------
-----
13*
Stem
Stainless Steel AISI 420
------
K2231 xx
14
Yoke Nut
Brass
------
-----
15
Handwheel
Carbon Steel
Epoxy
-----
16
Nut
Carbon Steel
Painting
-----
*Available spare parts
4. Installation instructions
4.1) Preparation
Remove any material remains of the valve wrapping.
Serious problems may arise with the installation of a valve in a dirty pipe.
Make sure the pipe is not dirty and doesn’t have welding particles, for example, before
installing it. This may cause irreparable damages in the valve when the equipment is
started → prepare a clean working area.
Plan beforehand enough space for future maintenance operations.
Control the correct performance of the valve by turning the handwheel both sides (close
and open) and observing if the disc or needle slides correctly. If this is not the case,
check if there are foreign particles inside the valve and repeat the whole operation.

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
6
In case of vibrations in the pipe it is strongly recommended to mount anti-vibration
elements to absorb them. Otherwise, the life of the product could be drastically reduced
4.2) Installation of valves with flanged ends

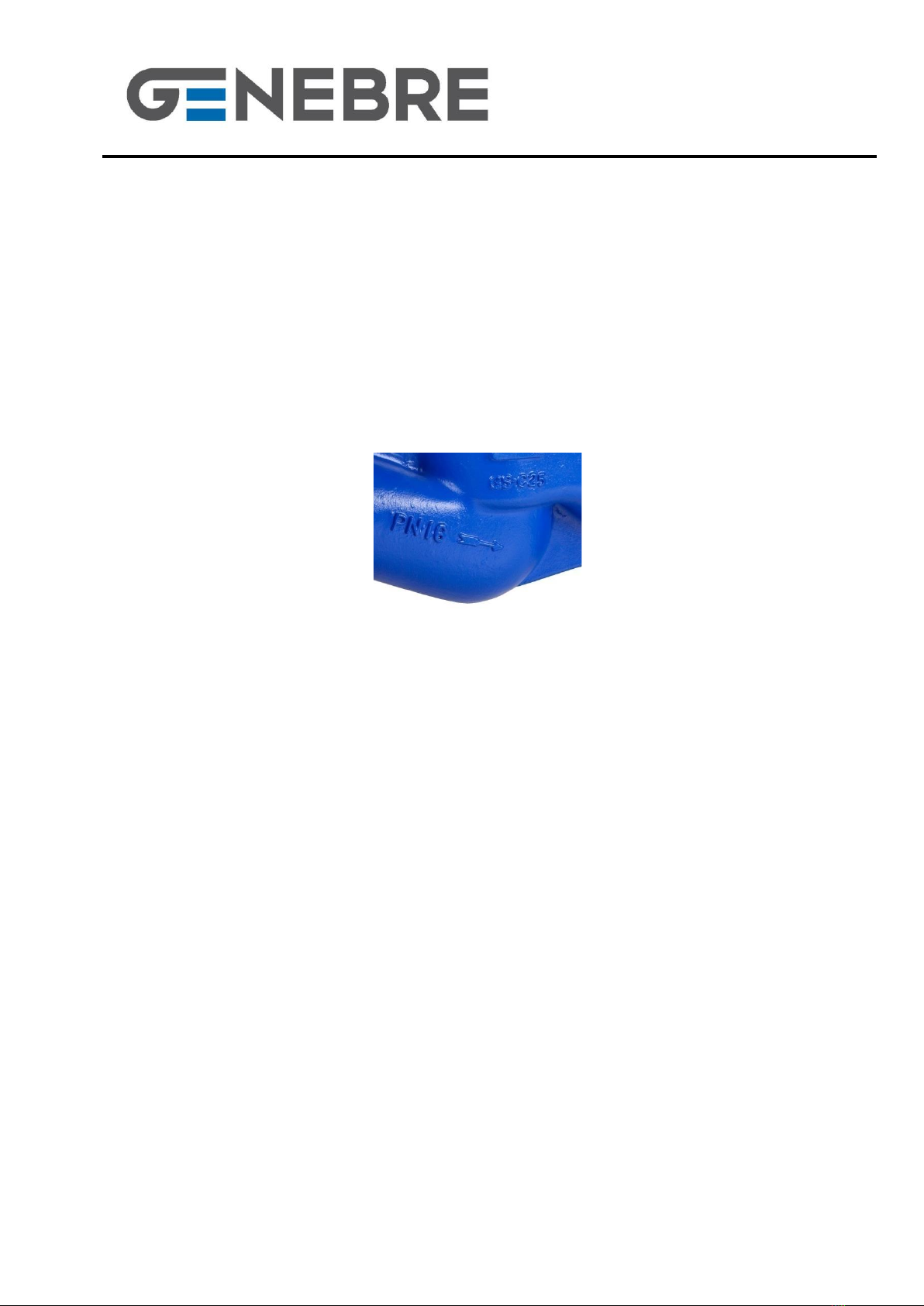

Design for this kind of regulation valves allows only one position for
assembling it to the pipe, specified by means of an arrow in the valve's body
that indicates the direction in which the fluid needs to circulate.
NOTE: DN150 and DN200 the direction flow is reversed, the fluid input is
from top part of the disc.
Do not disassemble the valves to install them.
Make sure the pipe's and edges flanges of the valve are clean.
Use the corresponding screws in all of the flanges drill holes.
Place an adequate joint in each end and align it in the center of the flanges.
Tighten screws evenly and cross-shaped to avoid deformations. To do so, you must not
force in any case the pipe to center the valve; it should take its position smoothly. Last,
verify that screws are tightened with the recommended torque for each type of screw.
Make sure the flanges joints are well placed.
After assembling, check the tightness and performance of the valve.
It is recommended to install the valve (from DN15 to DN125) in horizontal position
and the handwheel upwards. NEVER install with handwheel down.
Valves do not have to support pipe's efforts so it is advisable to anticipate a good
alignment and parallelism of such pipe.

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
7
It is also recommended to use filters in the pipe to extend lifecycle of the valve.
When installed on steam systems a suitable steam trap should be fitted
immediately upstream of the isolation valve to drain condensate. This will ensure
drainage of the pipe when the valve is closed, and will prevent damage of the valve
due to waterhammer.
5. Operating instructions
5.1) Usage
GENEBRE valves provide a leakproof lock when used adjusted to the pressure and
temperature values for which they have been designed.
Valve materials have to be fully compatible with the fluid circulating through the valve.
Otherwise, valve could be seriously damaged.
Do not use for slurries or fluids containing solids that can build up in valve
cavities.
5.2) Manual operation
When operating the valve you must avoid excessive lateral efforts with the handwheel.
To close, the operation consists in turning the handwheel clockwise and anticlockwise if
you want to open the valve.
Always open isolation valves slowly to avoid system shocks.
6. Maintenance instructions
Frequency, place and process of maintenance will be determined by the user by taking
into account usage of the product. However, periodical checks explained below will be
useful to extend the service life of the valve and reduce installation problems.
6.1)Valves must not remain in open or closed position for a long period of time. It is
recommended, if the process allows for it, to operate it for control purposes every six
months.
6.2) Verify possible leaks in the stem area; in case they exist, it is likely that the bellows is
damaged; stem and bellow should be replaced (see section 7).

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
8
6.3) Verify possible leaks through the line (due to closure); this defect is probably caused
by deposition of impurities between the disc or needle and the seat, transported by the
fluid. Disassemble the valve from the pipe, clean it thoroughly and reinstall it. If the
problem persists you should change the valve, since it is possible that some metallic
parts used for closure are damaged (erosion, corrosion).
6.4) Keep the stem well greased, for it use the lubricating nipple.
“Pay attention, that the lubricant is suitable for the media”.
7. Reparation instructions
7.1) Disassembling
You must remove the valve from its installation to repair it, making sure the pipe has
been previously depressurized.
Prepare a clean working area and adequate tools to perform mechanical tasks.
a. Loosen and remove the nut (part.16), remove the handwheel (part.15).
b. Loosen and remove the nuts (part.7)
c. Remove the Bonnet (part.8), Stem (part.13) and Disc (part.2) of the valve Body
(part.1).
d. Loosen totally the gland (part.10).
e. Take out the pin (part.11).
Before disassembling the pipe's valve to clean or replace it, make sure that line
has been closed and depressurized because a bad operational procedure could
cause a serious accident to staff and installation system
Lubricating
Nipple

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
9
f. Remove the Stem (part.13), bellow (part.4) and Disc (part.2) assembly of the
Bonnet (part.8).
g. Take out the pin (part.3) and remove the Disc (part.2) of the stem (part.13).
h. Remove the gasket (part.5) of the body (part.1) and remove the packing (part.9) of
the Bonnet (part.8).
Once the valve is completely disassembled, you must verify the state of each one of the
pieces that compose it and the ones to be reused will have to be completely cleaned and
stored in a safe and clean environment.
All locking surfaces, seats, joints and sides have to be checked for corrosion, erosion,
metallic inlays and marks. If they were damaged or in case of doubt, they will need to be
replaced.
Cleaning of the valve's pieces must be done using an adequate degreasing agent. You
must be careful with the locking surfaces, locking sides of the ends and joints, because if
they were damaged this could cause a bad impact in the valve's performance.
7.2) Rebuilding (assembling of the valve)
Before proceeding to reassemble the valve, make sure that reparation kit and/or pieces
to be used are appropriate and original from the factory.
When it is assembled again, cleaning is essential for a long life for the valve.
a. Place the disc (part.2) in the new stem / bellow assembly and after place the pin
(part.3).
b. Place the new packing (part.9) in the bonnet (part.8).
c. Introduce the stem (part.13), bellow (part.4) and disc (part.2) assembly in the
bonnet (part.8).
d. Fix with pin (part.11) the guide (part.12) and the stem (part.13).
e. Place the new gasket (part.5) in the body (part.1).
f. Place the bonnet assembly over the body (part. 1), place the nuts (part.7) on the
bolts (part.6) to bring together the two different parts of the valve.
g. Then, tighten the nuts (part.7) adjusting slowly and alternating diagonally and
evenly until obtaining the recommended tightening torque (see Torque table 7.3.
h. Tight the gland (part.10).
i. Place the handwheel (part.15).
j. Place and tight the nut (part.16)

Genebre Building. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 09/10/2020 UPDATE NUMBER: 6
10
7.3) Tightening torque Screws/ Nuts for joining the valve's different parts:
It is required for all body screws to make contact of body metal against cover metal.
Bolts / Nuts
Torque N.m
M8
25
M10
50
M12
87
M14
138
M16
210
M20
412
(These values are the recommended values by screws manufacturers, in our case we
have considered using them in cal. 8.8)
8. Hygiene and Safety Instructions
8.1) Fluid passing through a valve or accessory can be corrosive, toxic, flammable or
pollutant. They can also be found at very high or low temperature. When operating
valves, you must follow the security instructions and it is recommended to use personal
protection gadgets:
1) Protect your eyes.
2) Wear gloves and appropriate working clothes.
3) Wear safety footwear.
4) Wear a helmet.
5) Have running water at hand.
6) To operate flammable fluids, make sure you have an extinguisher at hand.
8.2) Before removing a valve from a pipe, check always if the line is completely
drained and depressurized.
8.3) Operate the valve in open position to make sure there is no pressure in the internal
cavity.
8.4) Any valve being used by toxic services department needs to obtain a cleanliness
certificate before being operated.
8.5) Any type of repair or maintenance should be performed in ventilated places.
