1 1/2” BUILT-IN FLUSHING VALVE
www.genebre.es
Manual Ref 1054 08 (eng).indd 1 2/10/18 11:53

2
PRODUCT DESCRIPTION

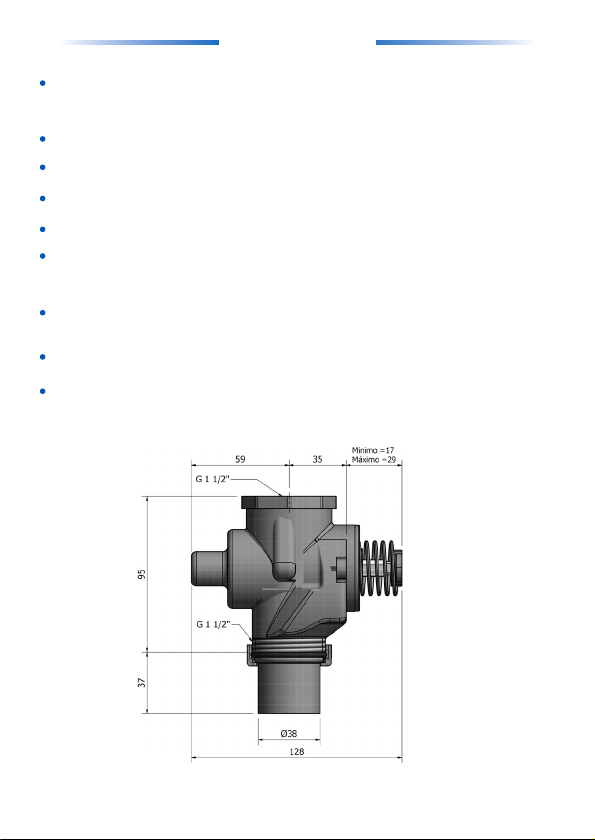

1 1/2” flushing valve for flush-mounted toilet for low pressure and pressurised
circuits, suitable for use from 015 bar to 5 bar, designed to work efficiently with
water tanks at 1.5 m in height above it or more, as well as pressurised circuits.
15 discharge litres at 3 bar, (8 seconds duration) adjustable flow rate.
8 discharge litres at 0.25 bar, (10 seconds duration) adjustable flow rate.
Option to regulate the water flow rate by discharge.
Includes a full water flow shut-off system.
The valve can be directly installed using its 1 1/2” thread and its 1 1/2” thread output,
or with one of the supplied adapters, metal for welding with copper pipes or techno-
polymer for plastic pipes.
Includes a plastic protector to facilitate the valve’s installation and protect it until the
plate and push-button are installed.
Repairing the valve is very straightforward and spare parts are available.
Three types of plates can be combined with our valve: PA1051, PA1052, PA1054.
Manual Ref 1054 08 (eng).indd 2 2/10/18 11:53

3
RECOMENDED INSTALLATION
The GENEBRE flushing valve can be used in
very low pressure circuits with water tanks
or pressurised circuits.
With the aim of preventing unwanted noise,
the installation of a pressure reducer or
intermediate tanks is advised above 2.5 bar
or 25 meters of water column.
For tank installations with horizontal piping
of up to 4 meters in length, it must have
a minimum diameter of 1 1/4” in order to
supply one single valve, and a minimum
diameter of 1 1/2” to supply more than 1
valve or above 4 meters in length. Please
note that exceeding 10 meters in length in
the horizontal section is not advised.
Always install curves and avoid T-type
branches for minimum load losses (do not
install elbows)
Our valve has an input thread of 1 1/2” which
can be used directly or reduced in the case
of using water columns exceeding 10 meters
or pressures exceeding 1 bar.
It is advised to install a maximum of 4 valves
per supply line.
We advise the use of independent supply lines for flushing valves and the
remaining installed taps, as please note that using the valve may cause a drop in
water pressure in the cold water circuit, which could cause a sharp rise in
temperature in mixed taps in use.
The installation must be correctly sized (see tables) in order to ensure efficient
discharge.
INLET PIPE (SPOUT) MINIMUM DIMENSIONS
Maximum height Copper pipe Threaded pipe Thermofusion pipe
From 4 to 10 meters Diameter 38 mm. G1 1/2” Diameter 50 mm.
From 10 to 30 meters Diameter 32 mm. G1 1/4” Diameter 40 mm.
From 30 to 45 meters Diameter 25 mm. G1” Diameter 32 mm.
Manual Ref 1054 08 (eng).indd 3 2/10/18 11:53

4
OUTLET PIPE (SPOUT) MINIMUM DIMENSIONS
Copper pipe Threaded pipe Thermofusion pipe
Diameter 32 mm. G1 1/4” Diameter 40 mm.
The GENEBRE discharge valve is supplied with a plastic
lid which protects it during the installation process.
Please do not remove until the tiling is complete and
proceed to install the push-button.
The valve can be directly installed using its 1 1/2” thread and its 1 1/2” thread output,
or with one of the supplied adapters, metal for welding with copper pipes or techno-
polymer for plastic pipes.
Manual Ref 1054 08 (eng).indd 4 2/10/18 11:53

5
Prior installation of the valve insures that piping is free from foreign bodies like
Teflon, hemp, stones, etc. It is advised to previously purge the installation in order to
remove remains that could damage the valve.

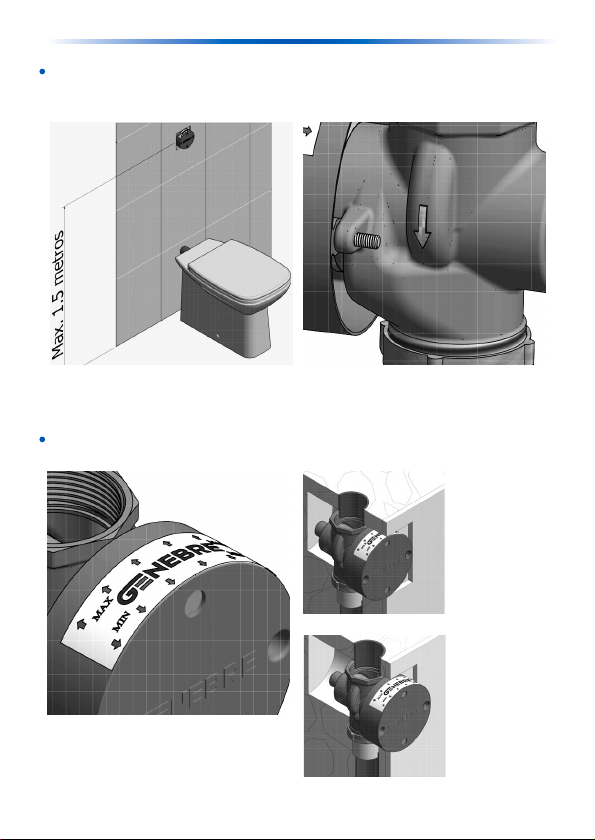

When installing the valve please note the maximum and minimum depth indicated
on the plastic protector, and the final finish (tiles) must be within these limits.
Please note the maximum installation height.
MINIMUM
MAXIMUM
Please check the circulation direction of the
water indicated by the arrow marked on the side
of the body.
Manual Ref 1054 08 (eng).indd 5 2/10/18 11:53

6
When tiling cut the tiles that are
touching the protector.
Mount and adjust the adjusting screw
on the stem of the value, leaving
a tolerance of 1 mm to 2 mm between
the adjusting screw and the push-button
on the plate.
Remove the plastic protector
Manual Ref 1054 08 (eng).indd 6 2/10/18 11:53

7

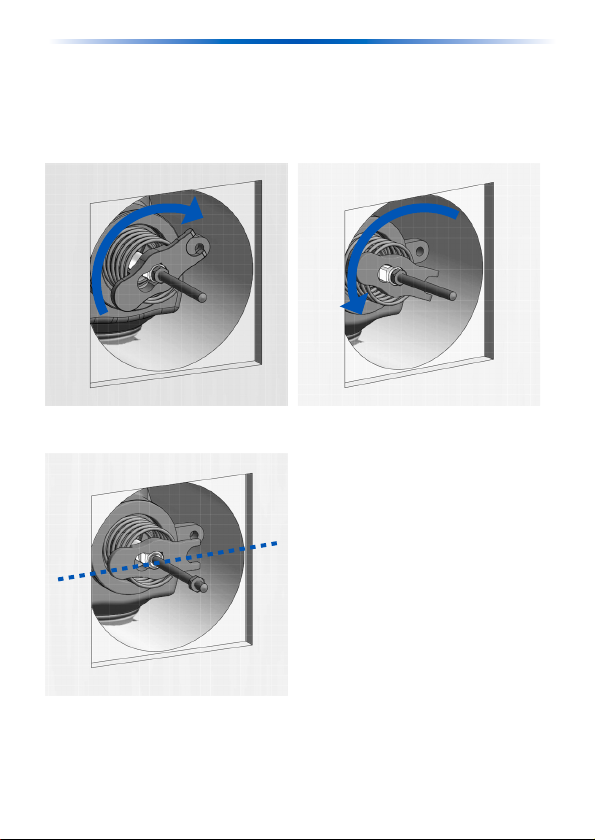

Leave the adjusting key in the horizontal
position to facilitate the installation of
push-button PA-1051.
Adjust to the desired flow by using the adjusting handle, to increase or decrease the
discharge volume or completely close the valve.
CLOSE
Turn the handle clockwise
OPEN
Turn the handle anti-clockwise
Manual Ref 1054 08 (eng).indd 7 2/10/18 11:53

8

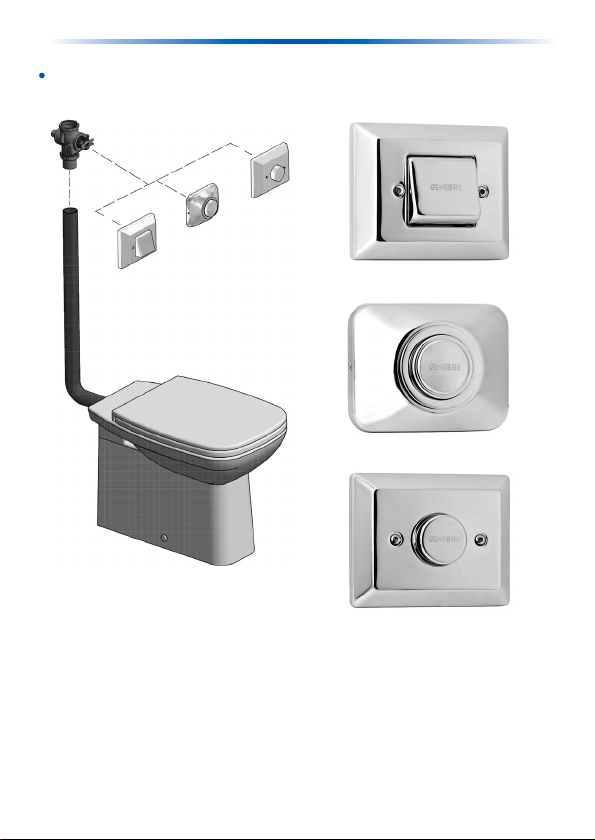

Once the valve is installed, please choose one of our three types of push-
buttons:
PA-1051
PA-1054
PA-1052
Manual Ref 1054 08 (eng).indd 8 2/10/18 11:53

9
Closed position
Please observe a cross-section of the valve in the
CLOSED position.
We can see that the water is in the area above it and
retained by the closing O-ring located on the piston
body, and the decompression O-ring located on the
shaft.
The push-button is at rest, it outcrops over the plate
and the spring is decompressed.
Open position
Please observe a cross-section of the valve in the
OPEN position.
By pressing the push-button we move the shaft and
hence the body of the piston, decompressing the
chamber of the vessel and opening to let the water
flow by separating the closing O-ring located on the
body of the piston.
The push-button is flush with the plate and the
spring is compressed.
From this position the spring and the internal
pressure of the POM vessel cause the piston
body to displace towards
the exterior, returning to
the initial position.
PA-1051
PA-1054
PA-1052
VALVE OPERATION
Shaft
Descompression O’ring
Closing O’ring
Lip seal
Piston body
The displacement will be controlled by the vacuum caused
inside the POM vessel and the lip seal. Through the POM
vessel’s groove, water will enter its chamber until it returns
to its initial position.
Groove
POM vessel
Manual Ref 1054 08 (eng).indd 9 2/10/18 11:53

10
VALVE MAINTENANCE

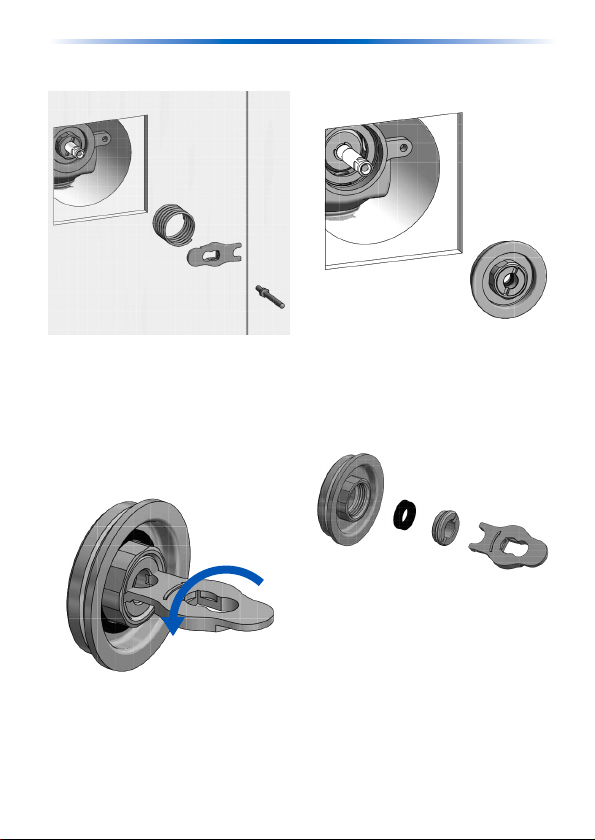

Dismantling the cartridge
1. Close the installation’s shut-off valve
and discharge several times in order to
empty the water circuit.
2. Dismantle the push-button’s plate.
3. Remove the adjusting screw, the flow
rate adjusting handle and the spring.
4. Using a 15/16” key, turn anti-clockwise
to extract the lid from the valve.
6. Assemble the flow rate adjusting
handle and turn clockwise until the
cartridge vessel is released from the
body of the valve.
5. Remove the perforated ring and its
O’ring joint.
Manual Ref 1054 08 (eng).indd 10 2/10/18 11:53

11
Cleaning the timed grooves of the cartridge vessel.
7. Remove the shaft-piston set from the
body of the valve.
8. To proceed with assembly, please note
the correct position of the piston and
follow the steps in reverse order.
9. When replacing the shaft into the lid,
take care not to bend or damage the lip
seal found in its interior.
DO NOT LUBRICATE THE VALVE
1. Dismantle the cartridge following the
instructions “Dismantling the cartridge”.
2. Clean the timed vessel’s grooves using a
toothbrush and rinse thoroughly.
3. To proceed with assembly, please note
the correct position of the piston and
follow the steps in reverse order.
4. When replacing the shaft into the lid,
take care not to bend or damage the lip
seal found in its interior.
DO NOT LUBRICATE THE VALVE
Timed groove
Manual Ref 1054 08 (eng).indd 11 2/10/18 11:53

12
1. Dismantle the cartridge following the
instructions “Dismantling the cartridge”.
2. Remove the metal ring (clamp).
4. Using a coin or a screwdriver, dismantle
the piston body.
5. To proceed with assembly, please note
the correct position of the piston and
follow the steps in reverse order.
6. When replacing the shaft into the lid,
take care not to bend or damage the lip
seal found in its interior.
DO NOT LUBRICATE THE VALVE
3. Remove the piston body from the shaft.
Manual Ref 1054 08 (eng).indd 12 2/10/18 11:53

13
Changing the lip seal
1. Close the installation’s shut-off valve and
discharge several times in order to empty
the water circuit.
2. Dismantle the push-button’s plate.
3. Remove the adjusting screw, the flow
rate adjusting handle and the spring.
4. Using a 15/16” key, turn anti-clockwise to
extract the lid from the valve.
5. Using the flow rate adjusting handle and
turning anti-clockwise dismantle the cable
gland.
6. Remove the cable gland.
7. To proceed with assembly, please note
its correct position and follow the steps in
reverse order.
8. When replacing the shaft into the lid,
take care not to bend or damage the lip
seal found in its interior.
DO NOT LUBRICATE THE VALVE.
Manual Ref 1054 08 (eng).indd 13 2/10/18 11:53

14
Closing the valve or regulating the water flow rate
3. To proceed with the assembly, place
the flow rate adjusting handle in the
horizontal position if the valve is open,
to facilitate the installation of push-
button PA-1051 and reassemble the
push-button plate.
1. Dismantle the push-button’s plate.
2. Adjust to the desired flow by using the adjusting handle, to increase or decrease
the discharge volume or completely close the valve.
CLOSE
Turn the handle clockwise
OPEN
Turn the handle anti-clockwise
Manual Ref 1054 08 (eng).indd 14 2/10/18 11:53

15
VALVE SPARE PARTS
1. Flumax Cartridge Ref. CA1053
2. Cartridge Vessel. Ref. 9901 0016
3. Set of joints. Ref. 9901 0013
4. Flumax Spring Ref. 9901 0012
5. Fixing key. Ref. 9901 0011
1
2
3
3
3
3
3
3
3
3
4
5
Manual Ref 1054 08 (eng).indd 15 2/10/18 11:53

TROUBLESHOOTING
ISSUE CAUSE SOLUTION
No discharge, very little
water or closing without
timing.
Button (key) touching the tiling,
unable to move correctly.
Cut the tiles.
Valve is fully or partially closed. Open the valve using the adjus-
ting handle.
The button's (key's) pathway is
too long.
Adjust the adjusting screw
leaving a tolerance between 1 mm
and 2 mm.
Obstructed pipe. Remove the obstruction.
Badly sized piping. Size the installation correctly by
reviewing our recommendations
and avoiding the installation of
elbows.
Very tightly closed valve. Open the valve using the adjus-
ting handle.
Deterioration of the lip seal
(located on the piston)
Dismantle and proceed to replace
the lip seal.
Excess water in the
discharge.
Valve open too far. Close and adjust using the adjus-
ting handle.
Excess time for discharge
or loss through the toilet.
Cartridge vessel dirty. Dismantle the cartridge vessel
and proceed to clean the timed
grooves.
Cartridge shaft dirty or damaged. Dismantle and proceed with its
cleaning or replacement.
Non-existence (loss) of tolerance
between the button or key and
the adjusting screw.
Adjust the adjusting screw
leaving a tolerance between 1 mm
and 2 mm.
Obstruction (loss) and or deterio-
ration of the piston's closing joint.
Dismantle and proceed to replace
the joints.
Loss of water through
the shaft.
Deteriorated shaft. Replace the shaft and lip seal.
Deteriorated lip seal. Replace lip seal, review shaft and
replace if necessary
Edificio Genebre. Av. Joan Carles I, 46-48 - 08908 L’Hospitalet de Llobregat - Barcelona (Spain)
Tel.: [phone]
Manual Ref 1054 08 (eng).indd 16 2/10/18 11:53
