Generac Power Systems MLT6SK User manual

Generac Mobile Products LLC l800-926-9768 l 920-361-4442 lwww.generacmobileproducts.com
Page 1 of 3
MLT6SK
ENGINE
•Kubota® D1005- liquid cooled, diesel engine; Final Tier 4
oStandby - 13.1 hp @ 1800 rpm
oPrime - 11.7 hp @ 1800 rpm
o3 cylinder
o1.0 L displacement
•Polyethylene Fuel Tank:
oFuel Type: Diesel
oFuel Capacity: 39.9 gal (151.04 L)
oExternal 3.5 in. (89 mm) fill port
•Fuel Consumption:
oFull load: 0.58 gph (2.18 Lph)*
oLights Only: 0.42 gph (1.60 Lph)*
oMaximum Runtime (Lights Only): 95 hours*
•Cooling system capable of operating at 120°F (49°C) ambient
•1,000-hour service interval*
•Full flow oil filter, spin on type
•Dry type cartridge air filter
•60 Hz engine/generator
•Wind Rating: 65 mph (105 kph)
*Results based on engine manufacturer and field test data after 100-hour engine break-in period and may vary based on factors including age
and maintenance of equipment, environmental conditions and fuel density. Consult the Owner's Manual for fuel and maintenance
recommendations.
GENERATOR
•Marathon Electric®, Brushless
•Up to 6kW power output
•120/240 VAC – 50/25A
•+/-6% capacitor voltage regulation
ENGINE CONTROLS
•External, illuminated control panel with sealed switches
•Four position keyed switch – (off, run, glow start)
•Digital hour meter
•Automatic low oil pressure/high temperature shutdown system
ELECTRICAL SYSTEM
•30A start trip breaker (assures no load condition exists before starting)
•Individual floodlight circuits with sealed 15A breakers
•Standard individually breakered convenience outlets:
o(1) 120 VAC 20 Amp GFCI duplex outlet (NEMA 5-20R type)
o(1) 240 VAC 30 Amp twist lock outlet (NEMA L6-30R type)
•Wiring is sized and fused to the amperage draw required
•440CCA wet cell battery
SPECIFICATIONS
METAL HALIDE LIGHT TOWER

Generac Mobile Products LLC l800-926-9768 l 920-361-4442 lwww.generacmobileproducts.com
Page 2 of 3
SPECIFICATIONS
MLT6SK
METAL HALIDE LIGHT TOWER
FLOODLIGHTS
•Four (4) 1,100 watt metal halide
o132,000 bare bulb lumens each
o70,356 fixture lumens each
oTotal bare bulb lumens: 528,000
oTotal fixture lumens: 281,424

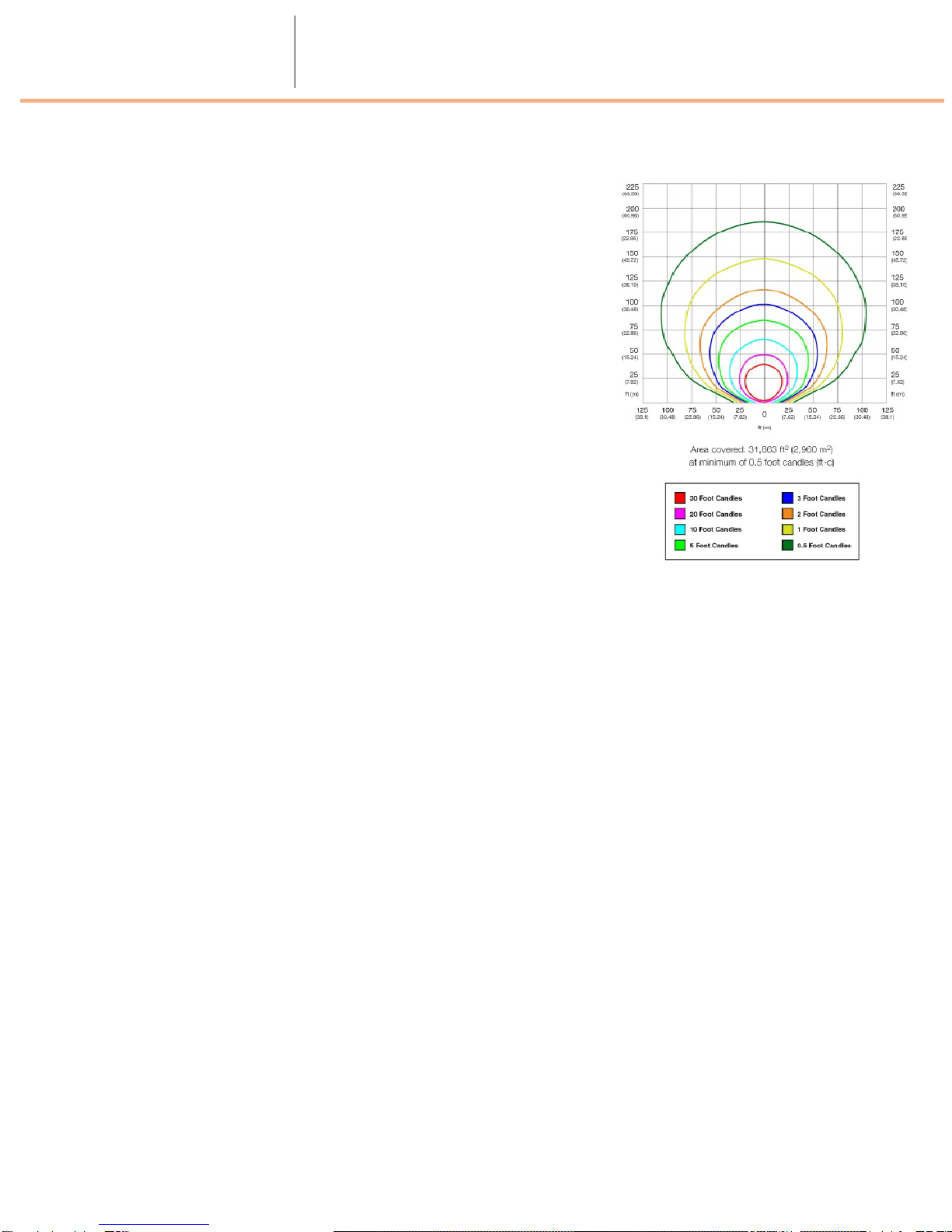

•Coverage @ 0.5 ft-c: 31,863 ft2 (2,960 m2)
•Efficiency: 120 lumens per watt
•Oval aluminum reflector
•Tempered glass lens
•Silicone gaskets for moisture and dust protection
•Friction disc mounting for tool less positioning
•Individual floodlight On/Off switches
MAST
•Vertical mast; 23 ft. (7 m), 5-section with ground adjustable light fixtures
•Dual handle manual winch for ease of deployment: electric winch optional
•Distinctive angle fixture mount for common light distribution
•359° ground rotational mast with mast fully extended
•Industrial black powder coat finish with polymer guides
ENCLOSURE
•Injection-molded hood enclosure with UV protected colorant
•Flip hood engine compartment for ease of service
•Multi-lingual operating/safety decals
•License plate holder with light
•Manual holder with operating manual
•68 dB(A) at 23 ft. (7 m) – prime power
TRAILER
•Tubular steel frame
•(3) 1200 lb. (544 kg) tube and sleeve leveling jacks
•All jacks transport and lock in position for storage
•Side outriggers deployed – 10 in. (25.4 cm) span
•7,800 lb. (3538 kg) safety chains with spring loaded safety hooks
•2 in. (50.8 mm) ball hitch
•Molded polyethylene fenders
•DOT-approved LED tail, side, brake, and directional lights
•2200 lb. (907 kg) leaf spring axle
•ST175/80D13 – 6 ply
•47 in. (119.4 cm) track width

Generac Mobile Products LLC l800-926-9768 l 920-361-4442 lwww.generacmobileproducts.com
Page 3 of 3
SPECIFICATIONS
MLT6SK
METAL HALIDE LIGHT TOWER
WEIGHT & DIMENSIONS
•Dry weight: 1330 lbs. (603 kg)
•Operating weight: 1600 lbs. (726 kg)
WARRANTY
1 Year, Unlimited Hours / 2 Years, 2000 Hours
CERTIFICATIONS
CSA Approved / Listed
OPTIONS
Contact sales representative or factory for a list of current available options.
For more information, consult the Owner’s Manual at http://www.generacmobileproducts.com/resources-tools/manuals
