General International BT8008 Manual instruction

BT8008 man v.141212
Model#
SETUP & OPERATION MANUAL
Portable Drum
Dust Collector
BT8008
FEATURES
●Metal dust collection
drum
●Flexible hose
●Large carry handle
●0.5 micron ltration
efciency
●Includes
─ dust extractor & drum
─ cartridge lter
─ exible hose
─ 3 lter bags
─ 4 hose adaptors
SPECIFICATIONS
●120 V AC, 60 Hz, 9.2 A,
1100 W (3/4 HP) motor
●No-load speed:
20,000 rpm
●7 ft. (2.1 m) X 4 in. (100
mm) diam. exible hose
●Metal dust collection
drum capacity:
13.2 US gal. (50 L)
●Air Flow Rate:
108 cfm (183 m3/hr)
●Dust extraction hose:
78-3/4 in. (2 m)
●Sound level: 85 dB(A)
●CSA certication
●Net weight:
23 lb. (10.5 kg)

2
ENGLISH
THANK YOU
for choosing this General International
machine. This tool has been carefully tested
and inspected before shipment and if properly
used and maintained, will provide you with
years of reliable service. To ensure optimum
performance and trouble-free operation, and
to get the most from your investment, please
take the time to read this manual before
assembling, installing and operating the unit.
The manual’s purpose is to familiarize you
with the safe operation, basic function, and
features of this tool as well as the set-up,
maintenance and identication of its parts and
components. This manual is not intended as a
substitute for formal woodworking instruction,
nor to offer the user instruction in the craft
of woodworking. If you are not sure about
the safety of performing a certain operation
or procedure, do not proceed until you can
conrm, from knowledgeable and qualied
sources, that it is safe to do so.
Once you’ve read through these instructions,
keep this manual handy for future reference.
GENERAL®
INTERNATIONAL
WARRANTY
All component parts of General®International
products are carefully inspected during
all stages of production and each unit is
thoroughly inspected upon completion of
assembly.
2-YEAR LIMITED WARRANTY
All products are warranted for a period of 2
years (24 months) from the date of purchase.
General®International agrees to repair or
replace any part or component which upon
examination, proves to be defective in either
workmanship or material to the original
purchaser during this 2-year warranty period,
subject to the “conditions and exceptions” as
listed below. Repairs made without the written
consent of General International will void the
warranty.

3
ENGLISH
141212
DISCLAIMER
The information and specications in this
manual pertain to the unit as it was supplied
from the factory at the time of printing.
Because we are committed to making
constant improvements, General International
reserves the right to make changes to
components, parts or features of this unit as
deemed necessary, without prior notice and
without obligation to install any such changes
on previously delivered units. Reasonable
care is taken at the factory to ensure that the
specications and information in this manual
corresponds with that of the unit with which
it was supplied. However, special orders and
“after factory” modications may render some
or all information in this manual inapplicable to
your machine. Further, as several generations
of this model of dust collector and several
versions of this manual may be in circulation,
if you own an earlier or later version of this
unit, this manual may not depict your machine
exactly. If you have any doubts or questions
contact your retailer or our support line with
the model and serial number of your unit for
clarication.
TO FILE A CLAIM
To le a claim under our Standard 2-year
Limited Warranty, all defective parts,
components or machinery must be returned
freight or postage prepaid to General®
International, or to a nearby distributor,
repair center or other location designated by
General®International. For further details call
our service department at 1-888-949-1161.
Along with the return of the product being
claimed for warranty, a copy of the original
proof of purchase and a “letter of claim” must
be included (a warranty claim form can also
be used and can be obtained, upon request,
from General®International or an authorized
distributor) clearly stating the model and serial
number of the unit (if applicable) and including
an explanation of the complaint or presumed
defect in material or workmanship.

4
ENGLISH
CONDITIONS AND EXCEPTIONS
This coverage is extended to the original
purchaser only. Prior warranty registration
is not required but documented proof of
purchase, i.e. a copy of original sales invoice
or receipt showing the date and location of the
purchase as well as the purchase price paid,
must be provided at the time of claim.
Warranty does not include failures, breakage
or defects deemed after inspection by
General®International to have been
directly or indirectly caused by or resulting
from; improper use, or lack of or improper
maintenance, misuse or abuse, negligence,
accidents, damage in handling or transport,
or normal wear and tear of any generally
considered consumable parts or components.
Repairs made without the written consent of
General®International will void all warranty.
READ ALL INSTRUCTIONS
BEFORE OPERATING
SAVE THESE INSTRUCTIONS
Before attempting to operate your new tool,
please read these instructions thoroughly.
You will need these instructions for the
safety warnings, precautions, assembly,
operation, maintenance procedures, parts list
and diagrams. Keep your invoice with these
instructions. Write the invoice number on the
inside of front cover. Keep the instructions
and invoice in a safe, dry place for future
reference.
THE WARNINGS, CAUTIONS AND
INSTRUCTIONS discussed in this
instruction manual cannot cover all possible
conditions or situations that could occur. It
must be understood by the operator that
common sense and caution are factors
which cannot be built into this product, but
must be supplied by the operator.
!

5
ENGLISH
141212
IMPORTANT
SAFETY
INSTRUCTIONS
The purpose of safety symbols is to attract
your attention to possible hazards. The
safety symbols, and the explanations with
them, deserve your careful attention and
understanding. The safety warnings do not,
by themselves, eliminate any danger. The
instructions or warnings they give are not
substitutes for proper accident prevention
measures.
DANGER! Indicates an imminently
hazardous situation which, if not avoided,
will result in serious injury or death.
WARNING! Indicates an imminently
hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION: Indicates an imminently risky
situation which, if not avoided, could result
in minor injuries or slight injury. It may also
be used to notify the user to remain alert
regarding unsafe practises which may cause
property damage.
!
!
!

6
ENGLISH
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL instructions before using this
product. We strongly recommend that this
tool not be modied and/or used for any
application other than that for which it was
designed. If you have any questions relative
to its application, do not use the equipment
until you have consulted us and we have
advised you.
1. DO NOT OPERATE the dust collector
when tired, distracted, or under the effects
of drugs, alcohol or any medication that
impairs reexes or alertness.
2. DO NOT OPERATE any power tool in
explosive atmospheres, such as in the
presence of ammable liquids, gases or
dust. Power tools create sparks which may
ignite the dust or fumes.
3. THE WORKING AREA should be well lit,
clean and free of debris.
4. KEEP CHILDREN AND visitors at a safe
distance when the dust collector is in
operation; do not permit them to operate
the dust collector.
5. CHILDPROOF AND TAMPER proof your
shop and all machinery with locks, master
electrical switches and switch keys, to
prevent unauthorized or unsupervised use.
6. STAY ALERT! GIVE your work your
undivided attention. Even a momentary
distraction can lead to serious injury.
7. FINE PARTICULATE DUST is a carcinogen
that can be hazardous to health. Work
in a well-ventilated area and wear face,
eye, ear, respiratory and body protection
devices.
8. DO NOT WEAR loose clothing, gloves,
bracelets, necklaces or other jewelry while
the dust collector is in operation. Wear
protective hair covering to contain long hair
and wear non-slip footwear.
!

7
ENGLISH
141212
9. DO NOT INSERT hands, ngers or any
foreign objects into ventilation inlet and
outlet openings.
10.DO NOT OPERATE this machine without
either a lter bag or lter cannister properly
installed on the unit.
11.CLEAN THE FILTER bags on a regular
basis and replace as needed.
12.DO NOT HANDLE the electrical plug with
wet hands.
13. DO NOT USE this unit outdoors, on or near
wet surfaces.
14. ALWAYS TURN ON the dust collector
before starting the dust producing machine.
Always turn off the dust producing machine
before turning off the dust collector.
15.DO NOT VACUUM anything that is
burning, smoking or smoldering such as
cigarettes,matches or hot ashes.
16.DO NOT VACUUM or use this dust
collector near ammable or combustible
liquids, gases, gasoline or other fuels,
lighter uid, cleaners, oil or solvent based
paints, natural gas, hydrogen or explosive
dusts like coal dust,magnesium dust, grain
dust or gun powder.
17.DO NOT OPERATE the unit until a dust
hose is installed onto the hose inlet.
18.NEVER LEAVE THE machine unattended
while it is running or with the power on.
19.TO AVOID HEALTH hazards from vapors
or dusts, do not vacuum toxic material.
20.USE ONLY RECOMMENDED accessories.
Use of accessories NOT recommended
by GENERAL®INTERNATIONAL may
result in a risk of injury or damage to the
machine.
21.ALWAYS DISCONNECT THE unit from the
power source before servicing, performing
any maintenance or repairs, when
changing bags or hoses, or if the machine
will be left unattended.
22.MAKE SURE THAT the switch is in
the“OFF”position before plugging in the
power cord.

8
ENGLISH
23. MAKE SURE THE tool is properly
grounded. If equipped with a 3-prong
plug, it should be used with a threepole
receptacle. Never remove the third prong.
24. DO NOT USE this dust collector for any
purpose other than its intended use. If
used for other purposes,GENERAL®
INTERNATIONAL disclaims any real or
implied warranty and holds itself harmless
for any injury,which may result from that
use.
25.IMPORTANT NOTICE: SOUND Level-
the sound level of this machine is rated
at approximately 85 dB during operation.
Make sure that adequate hearing
protection is used and that the overall
sound level within the working environment
is taken into consideration.
ELECTRICAL REQUIREMENTS
1. BEFORE CONNECTING THE machine to
the power source, verify that the voltage
of your power supply corresponds with
the voltage specied on the motor I.D.
nameplate. A power source with greater
voltage than needed can result in serious
injury to the user as well as damage to the
machine. If in doubt, contact a qualied
electrician before connecting to the power
source.
2. THIS TOOL IS for indoor use only. Do
not expose to rain or use in wet or damp
locations.
GROUNDING INSTRUCTIONS
In the event of an electrical malfunction or
short circuit, grounding reduces the risk of
electric shock. The motor of this machine is
wired for 120 V single phase operation and
is equipped with a 3-conductor cord and a
3-prong grounding plug to t a grounded type
receptacle B. Do not remove the 3rd prong
(grounding pin) to make it t into an old 2-hole
wall socket or extension cord. If an adaptor
plug is used C, it must be attached to the
metal screw of the receptacle.

9
ENGLISH
141212
NOTE: The use of an adaptor plug is illegal
in some areas, including Canada. Check
your local codes. If you have any doubts
or if the supplied plug does not correspond
to your electrical outlet, consult a qualied
electrician before proceeding.
CIRCUIT CAPACITY
Make sure that the wires in your circuit are
capable of handling the amperage draw from
your machine, as well as any other machines
that could be operating on the same circuit. If
you are unsure, consult a qualied electrician.
If the circuit breaker trips or the fuse blows
regularly, your machine may be operating on
a circuit that is close to its amperage draw
capacity. However, if an unusual amperage
draw does not exist and a power failure still
occurs, contact a qualied technician or our
service department.
EXTENSION CORDS
If you nd it necessary to use an extension
cord with your machine, use only 3-wire
extension cords that have 3-prong grounding
plug and a matching 3-pole receptacle that
accepts the tool’s plug. Repair or replace a
damaged extension cord or plug immediately.
Make sure the cord rating is suitable for the
amperage listed on the motor I.D. plate.
An undersized cord will cause a drop in
line voltage resulting in loss of power and
overheating. The accompanying chart shows
the correct size extension cord to be used
based on cord length and motor I.D. plate amp
rating.
Amp
Rating Total Extension Cord Length
Feet Meters Feet Meters Feet Meters Feet Meters
25 8 50 15 100 30 125 40
3-10 18 ga. 16 ga. 14 ga. 14 ga.
10.1 - 12 16 ga. 16 ga. 14 ga. 14 ga.
12.1 - 16 14 ga. 12 ga. Not Recommended
Use only UL or CSA approved extension cords
If in doubt, use the next heavier gauge. The
smaller the number, the heavier the gauge.

10
ENGLISH
SAFETY RULES
SPECIFIC TO THIS
DUST COLLECTOR
●Never pick up metal, glass or water.
CAUTION: This dust extractor is not
suitable for picking up hazardous dust.
●When wood dust and wood shavings are
conned to an area, the possibility of an
explosion exists. Be aware of the existence
of possible sources of ignition and take
steps to minimise these.
●Do not pick up any material that is burning
or smouldering such as metal grinding
dust, cigarette ends, matches, etc.
●Never try to move the dust extractor by the
cordset.
●Never use the dust extractor without the
cartridge lter assembled.
●Always switch the machine off before
changing lters and emptying the dust
collection drum.
●Regularly inspect the lters for damage.
Replace damaged lters. Regularly check
that the lter cartridge and lter bag are
properly sealed and tted.
●Regularly check that the motor housing is
secured to the dust collection drum by the
locking strap.
●Always wear personal protection
equipment such as a dust mask, safety
glasses and ear muffs.
●When emptying lter bag or dust collection
drum, be careful not to inhale dust.
●This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
!

11
ENGLISH
141212
●Children should be supervised to ensure
that they do not play with the appliance.
●If the supply cord is damaged, it must be
replaced by an electrician or power tool
repairer in order to avoid a hazard.
●Only replace the supply cord with an
approved type.
CAUTION: This appliance is for dry use
only and is not to be used or stored outdoors
in wet or damp conditions.
WARNING! The warnings, cautions, and
instructions detailed in this manual cannot
cover all possible conditions and situations
that occur. It must be understood by the
operator that COMMON SENSE AND
CAUTION ARE FACTORS that cannot
be built into this product, but MUST BE
SUPPLIED BY THE OPERATOR.
PACKAGE CONTENTS
1. Carefully remove the contents of the carton.
2. Release the locking strap on the drum and
remove the motor housing.
WARNING! During assembly ensure the
tool is disconnected from the power supply.
3. Inside the dust collection drum you will nd
all the parts required to assemble the dust
extractor. (Fig.1)
4. Remove the contents and ensure that all
the parts are there undamaged (g.1 & 2).
NOTE: please let your local General
International distributor know immediately
about any missing or damaged items.
!
!
!

12
ENGLISH
A Motor housing
BDrum
C Filter cartridge
D Filter bag
E Flexible hose
F4” (100 mm)
hose coupling
G1-5/16” (34 mm)
hose adaptor
H1-9/16” (40 mm)
hose adaptor
I1-3/4” (45 mm)
hose adaptor
J2-11/16” (68 mm) hose
adaptor
KHose clamp (2)

13
ENGLISH
141212
ASSEMBLY
WARNING! Serious personal injury could
occur if you connect the machine to the
power source before you have completed
the setup process. Do not hook up the
machine to a power source until instructed
to do so.
1. SLIDE THE FILTER bag (D, g 2) over the
lter cartridge (C, g 2)
2. FOLD IN AND Tuck any overhang of the
lter bag into the inner cavity of the lter
cartridge.
3. PUSH THE CARTRIDGE lter with the lter
bag onto the motor housing.
4. PLACE THE ENTIRE motor housing
assembly on the dust collectior drum and
secure with the locking strap.
5. MOUNT THE FLEXIBLE hose to the
collecting drum. Ensure that the exible
hose is ush with the hose coupling of the
dust collection drum before tightening the
hose clamp (g 3).
6. FASTEN THE HOSE tting to the other end
of the hose with a hose clamp (g 4).
!

14
ENGLISH
OPERATING
INSTRUCTIONS
CAUTION: Always turn on the dust
collector before starting your dust-producing
machinery and always stop the dust-
producing machinery before turning off the
dust collector.
BEFORE STARTING
1. To minimize airborne dust make sure that
all hoses, ttings and clamps are secure
and airtight.
2. For maximum system efciency,make sure
a cover is installed on any unused hose
inlet openings.
3. Never operate the machine without the
lter bag and the collection bag properly
installed.
4. The sound level of this machine is rated at
approximately 80-85 db during operation.
Make sure that adequate hearing
protection is used and that the overall
sound level within the working environment
is taken into consideration.
CAUTION: Make sure the switch is in the
“OFF” position before plugging in the power
cord.
1. Assemble the dust extractor as described
under “Assembly”.
2. Select the hose adaptor to suit the dust
extraction adaptor on the power tool to be
used.
3. Ensure that the dust extraction adaptor on
the power tool connects securely to the
exible hose of the dust extractor. Use one
of the hose adaptors if required.
4. Connect the cordset of the dust extractor to
a power supply.
5. Move the On/Off switch of the dust extractor
(g 5) to the “I” position.
!
!

15
ENGLISH
141212
6. Start and operate the power tool in the
normal way.
7. When the job is complete, turn off the power
tool, then move the On/Off switch of the
dust extractor to the “0” position.
MAINTENANCE &
SERVICING
WARNING! Make sure the switch is in
the “off” position and unplug the unit from
the power source before performing any
maintenance.
This machine operates on 120 V; if you
suspect any electrical problems call a qualied
electrician to do the verication of the electrical
circuit or the machine.
●Periodically inspect all hardware, ttings
and fasteners that may have loosened due
to vibration - retighten as needed.
● Keep the motor housing clean of dust and
dirt.
●Remove dust and dirt from the tool
regularly with a soft cloth, brush or
compressed air. Keep the outside of the
unit clean and wipe off excessive dust or
dirt with a dry rag.
●Periodically inspect inside all pipes,
ttings, hoses, blast gates, and connectors
for accumulated dust build-up or other
obstructions, and clean as needed.
Remove sections and vacuum or manually
remove debris as needed.
● Check and if necessary replace all
damaged parts or components.
●Do not operate with a damaged canister
lter - replace damaged lter immediately.
●Periodically inspect the power cord and
plug for damage. If necessary, replace the
power cord and plug at the rst signs of
visible damage.
!

16
ENGLISH
●Use only recommended parts and
accessories. The use of parts or
accessories NOT recommended
by GENERAL®INTERNATIONAL
may result in a risk of injury or
damage to the machine.
●If you need further help with
your dust collector contact your
General®International distributor
or our Technical Service
Department at 1-888-949-1161.
PARTS LIST
POS. DESCRIPTION QTY.
1Tank 1
2Clamping ring 1
3Filter assy 1
4Motor 1
5Hex cross self-tapping
screw ST5.5 x 16
3
6Upper cover 1
7Cross self-tapping
screw M5 x 10
4
8Long sponge 3
9Round sponge 1
10 Right cover 1
11 Cross self-tapping
screw M5 x 45
2
12 Cross self-tapping
screw M5 x 25
1
13 Hex nut M5 3
14 Left cover 1
15 Cable & plug 1
16 Switch 1
17 Cable clamp 1
POS. DESCRIPTION QTY.
18 Spring washer 6
19 Lock washer 4
20 Seal ring 2
21 Filter bag 5
22 Suction hose inlet 1
23 Clamp for suction hose 2
24 Adaptor F 1
25 Suction hose 1
26 Cross screw M5 x 12 4
27 Hex nut M5 4
28 Adaptor G 1
29 Adaptor H 1
30 Adaptor I 1
31 Hex nut M8 4
32 Spring washer 8 2
33 Washer 8 2
34 Screw M8 x 25 2
35 Screw M6 x 40 4
36 Hanger 1
37 Adaptor C 1

17
ENGLISH
141212

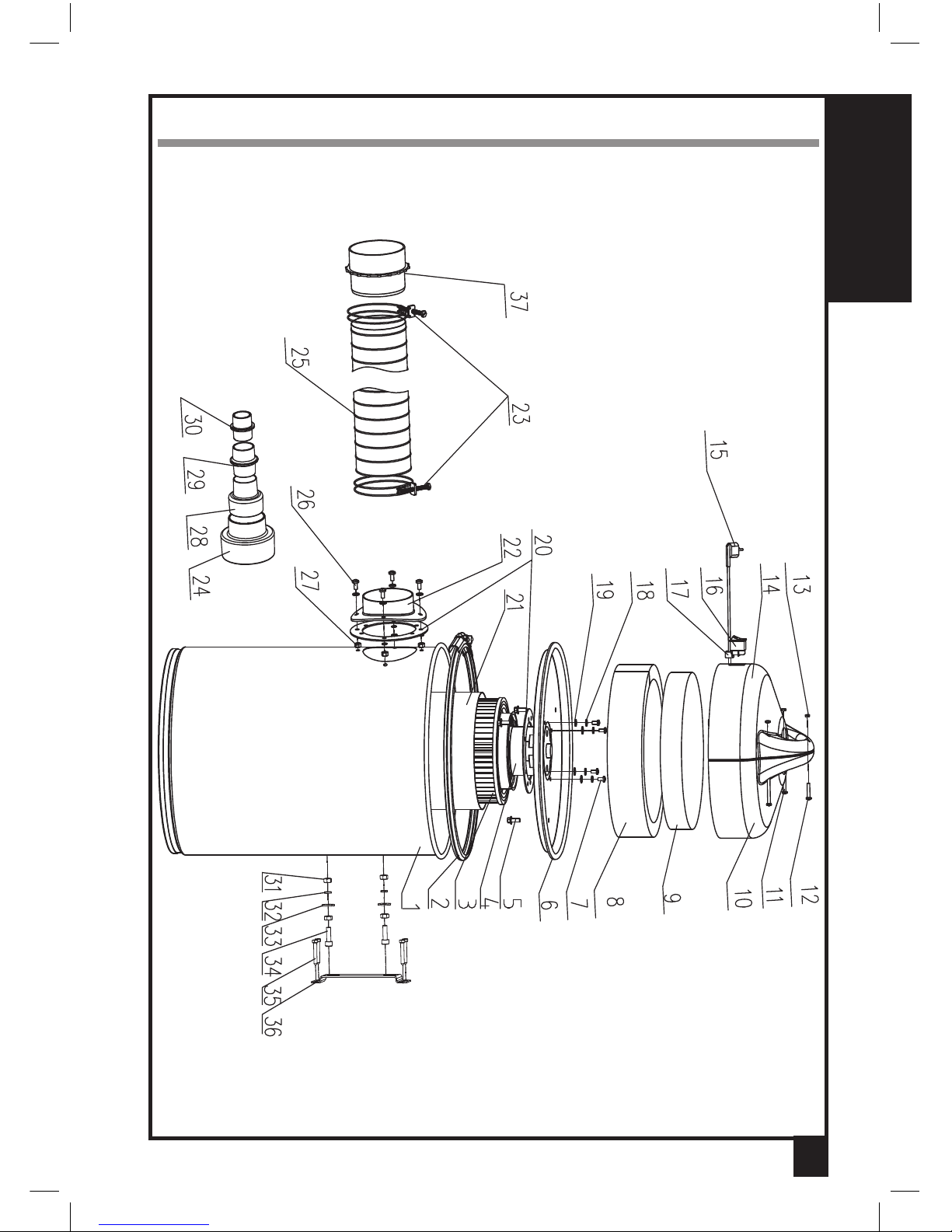

SCHEMATIC DRAWING

18
ENGLISH

BT8008 man v.141212
Modèle #
MANUEL D’INSTRUCTIONS ET D’ASSEMBLAGE
Aspirateur de
Poussière Portable
BT8008
CARACTÉRISTIQUES
●Réservoir à poussière de
métal
●Tuyau exible
●0,5 micron d’efcacité de
ltration
●Incluant
─ extracteur de
poussière et tambour
─ ltre à cartouche
─ tuyau exible et
attaches
─ 3 sacs ltrants
─ 4 adaptateurs pour
boyau
SPECIFICATIONS
●Voltage : 120 V AC,
60 Hz
moteur de 9,2 Ampères
1100 W (3/4 cv)
●Vitesse sans charge :
20 000 tr/min
●Tuyau flexible d’un
diamètre de 7 pi X 4 po
(100 mm x 2,1 m)
●Capacité du réservoir à
poussière métallique :
13,2 gal (50 L)
●Boyau d’extraction de
poussière :
78-3/4 po (2 m)
●Niveau sonore : 85 dB
●Certification CSA
●Poids net :
23 lb (10,5 kg)

20
FRANÇAIS
NOUS VOUS REMERCIONS
d’avoir choisi l’aspirateur de poussière,
modèle BT8010 de General International.
Cette machine a été soigneusement testée
et inspectée avant de vous être expédiée,
et moyennant une utilisation et un entretien
adéquats, elle vous procurera un service able
pendant de nombreuses années. An d’obtenir
un rendement optimal et une utilisation sans
problème, et d’optimiser votre investissement,
veuillez prendre le temps de lire ce manuel
avant d’assembler, d’installer et d’utiliser la
machine.
Ce manuel vise à vous familiariser avec
l’utilisation sécuritaire, les fonctions
élémentaires et les caractéristiques de cette
scie ainsi qu’avec le réglage, l’entretien et
l’identication de ses parties et composantes.
Il n’est pas conçu pour remplacer un
enseignement théorique sur le travail ni pour
offrir à l’utilisateur une formation en la matière.
En cas de doute concernant la sécurité d’une
opération ou d’une procédure, demandez
l’aide d’une personne qualiée avant
d’entamer le travail.
Une fois que vous avez lu ces instructions,
conservez ce manuel aux ns de consultation
ultérieure.
GARANTIE DE
GENERAL®
INTERNATIONAL
Toutes les composantes des machines de
General®International sont soigneusement
inspectées durant chacune des étapes de
production, et chaque unité est inspectée en
profondeur une fois l’assemblage terminé.
GARANTIE STANDARD
LIMITÉE DE 2 ANS
En raison de son engagement envers la
qualité et la satisfaction du consommateur,
General®International accepte de réparer ou
