General Pump DHRTM50100 User manual

DHRTM50100/DHRTM50200
ACCESSORIES ACCESSORIES
GENERAL PUMP A member of the Interpump Group
SPECIFICATIONS
PART NUMBER DHRTM50100 DHRTM50200
3/8" Hose Capacity 100 ft. 200 ft.
Pressure Rating 5,000 PSI 5,000 PSI
Inlet 1/2" NPT-F 1/2" NPT-F
Outlet 1/2" NPT-F 1/2" NPT-F
Max. Temp 250° F 250°F
FEATURES / BENEFITS
Trailer Mounted Hose Reel
General Pump
is a member of
the Interpump Group Ref 301026 Rev F
08-21
• Direct hand-crank rewind with locking pin
• Solid steel construction
• Durable powdercoated finish
• 360°swivel rotation
•Robust folding handle
• 180°pivoting hose guide
• Adjustable friction lever brake
• Full flow high pressure stainless steel swivels
• Coupler connection to secure hose when not
in use
DHRTM50100 DHRTM50200

GENERAL PUMP A member of the Interpump Group
ASSEMBLY INSTRUCTIONS
1. Slide washer (Item 10) over
the shaft of the upper arm assembly.
2. Insert the shaft onto the lower arm.
3. Assemble the remaining components
with the layout shown. Use a thread
sealant (not provided) designed for
locking and sealing of metal pipes
(e.g. LOCTITE 263, 542, 545 & 577)
on the inlet threads of the swivel.
4. Attach inlet hose to the swivel on
the lower arm assembly.
5. Attach the outlet hose to the swivel
on the upper arm assembly then
secure to hose clamp (Item 15).
6. Route the opposite end of the hose
 throughtheopeningsintheange
and hose guide.
7. The hose reel is ready for
operation.
DIMENSIONS (DHRTM50100)
DHRTM50100/DHRTM50200
Trailer Mounted Hose Reel
Ref 301026 Rev F
08-21
[IN] / MM

GENERAL PUMP A member of the Interpump Group
DIMENSIONS (DHRTM50200)
DHRTM50100/DHRTM50200
Trailer Mounted Hose Reel
No. Part No. Description Qty.
1 2103157 Arm Kit, Upper 1
2 2103159 Arm Assy., Lower 1
3 2103339 Flange Assy. 1
4 2560014 Hose Guide 1
5 2103158 Handle Kit, 26 Degree 1
6 DSW9022MSS Swivel, M22-M x 1/2" NPT-F,
Ball Bearing 2
7 2103408 Brake, 30 mm 1
8 2200151 SS Snap Ring 1
9 2660380 Bushing 2
10 2203423 Washer 5
11 2720037 Spring 1
12 2203400 Washer, M16 1
13 2530112 Fitting, 1/2NPT-M x 3/8NPT-F 2
14 2400178 Caution Label 1
15 2540078 Clamp, Hose 1
16 2702094 Guard, Hose 1
17 2200154 Flange Nut, M6, SS 1
18 2200026 Nut, Nylok, M6 1
19 2200018 Washer, M6 1
Opt. 2701103 O-Ring, for M22 thread
Opt. 2103249 Internal Swivel Repair Kit
PARTS LIST (DHRTM50100)
Ref 301026 Rev F
08-21
[IN] / MM

Ref 301026 Rev F
08-21
No. Part No. Description Qty.
1 2103404 Arm Kit, Upper 1
2 2103405 Arm Kit, Lower 1
3 2103370 Flange Assy. 1
4 2560007 Hose Guide 1
5 2103407 Handle Kit 1
6 DSW9022MSS Swivel, M22-M x 1/2" NPT-F,
Ball Bearing 2
7 2103408 Brake, 30 mm 1
8 2200151 SS Snap Ring 1
9 2660380 Bushing 2
10 2203423 Washer 5
11 2720037 Spring 1
12 2203400 Washer, M16 1
13 2530112 Fitting, 1/2NPT-M x 3/8NPT-F 1
14 2400178 Caution Label 1
15 2540078 Clamp, Hose 1
16 2660338 Guide, Hose 1
17 2200154 Flange Nut, M6, SS 1
18 2200026 Nut, Nylok, M6 1
19 2200018 Washer, M6 1
20 2400004 Decal, GP 1
WARNING!
Exposure of skin directly to
pressurized air or fluids could
result in severe bodily injury!
1. Make sure incoming pressure does not exceed the rated pressure.
2. Use proper eye protection when assembling and using the hose reel.
3. Assemble the hose reel on a clean workbench free of debris and moisture.
4. Keep children away from work area.
5. When using this hose reel with hot water outside surfaces with be HOT
and can cause severe burns. Handle with care.
6. High pressure systems should only be serviced by qualified personnel.
SAFETY PRECAUTIONS
GENERAL PUMP A member of the Interpump Group DHRTM50100/DHRTM50200
Trailer Mounted Hose Reel

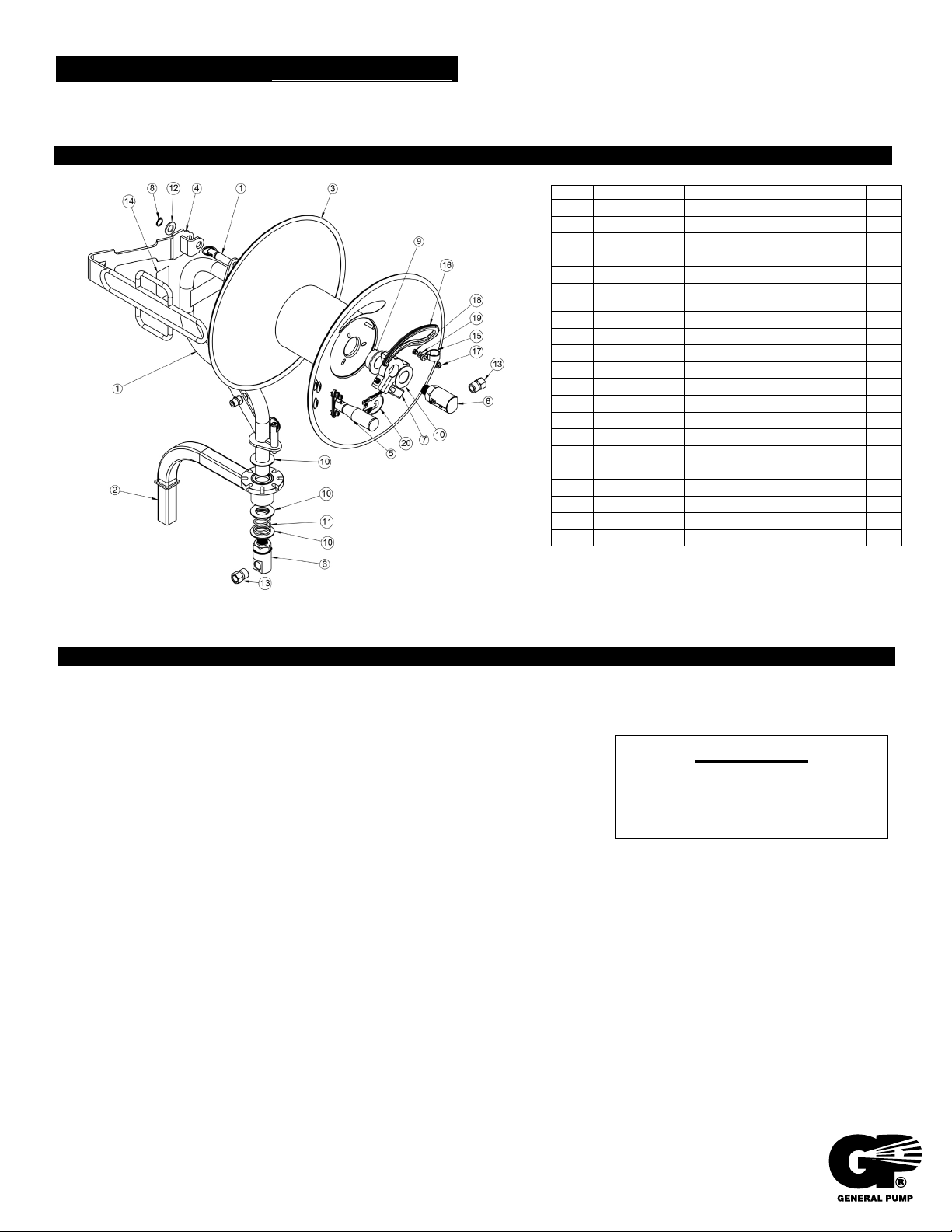

PARTS LIST (DHRTM50200)

GENERAL PUMP • 1174 Northland Drive • Mendota Heights, MN 55120
Phone: [phone] • Fax: [phone] • email: [email protected] • www.generalpump.com Ref 301026 Rev F
08-21
GENERAL PUMP A member of the Interpump Group DHRTM50100/DHRTM50200
Trailer Mounted Hose Reel
OPTIONAL ACCESSORIES (sold separately)
The DHRUM mounting kit can be used to mount
your DHRTM50200 trailer mount hose reel to a wall
or a wide range of portable pressure washer frames.
The clamp system securely attaches to any round
pipe or square tube frame up to 2" in size/diameter.
The clamps grip to the frame to prevent slippage.
The bracket consists of one powder-coat & rust-
proof aluminum receiving socket, four galvanized
steel clamps, and four stainless steel nuts and bolts.
MOUNT TO A WALL
HORIZONTAL PIPE MOUNT
VERTICAL PIPE MOUNT
DHRUM UNIVERSAL MOUNTING KIT
DHRFM FLAT MOUNTING KIT
Dimensions
Bolt Pattern
TheDHRFMatmountingkitcanbeusedtomount
your DHRTM50200 trailer mount hose reel to
horizontal surfaces. Bearings allow for 360° rotation
of hose reel with lock for desired angle. Durable
powder-coatednishprotectsfromtheelements.
[IN] / MM
DHRFM
shown with
DHRTM50100
