Genie CCTV V1.0 H.264 MDVR4SD User manual

1
H.264
4Channel Mobile DVR User Manual - V1.0
MODEL: MDVR4SD
www.geniecctv.com

2
Copyright○
C2009 Genie CCTV Limited
All rights reserved. This material, information and instructions for use contained
herein are the property of Genie CCTV Ltd. No part of this manual, including the
products and software described in it, may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any languages in any form or by any
means, except documentation kept by the purchaser for backup purposes, without
the express written permission of Genie CCTV Ltd
Liability: Genie CCTV Ltd provides this manual “as is” without warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
Genie CCTV Ltd its directors, officers, employees or agents be liable for any indirect,
special, incidental, or consequential damages (including damages for loss of profits,
loss of business, loss of use or data, interruption of business and the like), even if
Genie CCTV Ltd has been advised of the possibility of such damages arising from
any defect or error in this manual or product.
Specifications or information contained in this manual are furnished for informational
use only, and are subject to change at any time without notice, and should not be
constructed as a commitment by Genie CCTV Ltd.
Genie CCTV Ltd assumes no responsibility or liability for any errors or inaccuracies
that may appear in this manual, including the products and software described in it.
Trademarks. Product and cooperate names appearing in this manual may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners’ benefit, without intent to
infringe.
Translated material. Any discrepancies, errors or omissions in non-English versions
of this manual should be referenced to the English version for clarification.


3
PACKAGE CONTENTS
Prior to installation of this MDVR4SD DVR, please verify that the packaging contains
the following contents:
1. One DVR
2. One AC Adaptor
3. One Power Cable
4. One Remote Controller
5. DVR Viewer Program CD
6. Instruction Manual on CD
7. Two AAA batteries
8. Rack Mount Ears and Screws
9. One 4Gb SD Card
If any of the contents are missing, please contact the seller immediately.

4
RISK OF ELECTRICAL SHOCK WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR
OTHER OPENINGS ON THE EQUIPMENT.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instruction in the literature
WARNIN
G
CAUTION
accompanying the product.

Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will
help to conserve natural resources. For more detailed information about recycling of this product,
please contact your local office , your household waste disposal service or the distributor where you
purchased the product.

5
DISCLAIMER
While every effort has been made to ensure that the information contained in
this guide is accurate and complete, no liability can be accepted for any
errors or omissions.
Maker reserves the right to change the specifications of the hardware and
software described herein at any time without prior notice.
No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without prior written permission of Maker.
Maker makes no warranties for damages resulting from corrupted or lost data
due to a mistaken operation or malfunction of the Digital Video Recorders, the
software, personal computers, peripheral devices, or
unapproved/unsupported devices.
Trademark Acknowledgements
MDVR4SD Digital Video Recorder is the trademark of the Maker.
Other names and products not mentioned here may be registered trademarks
or trademarks of their respective companies.






















6
Read this First
Test Sessions
Before you attempt to record important subjects, we highly recommend that you have
several test sessions to ensure that the Digital Video Recorder is operating and
being operated correctly. Please note that Maker, its subsidiaries and affiliates, and
its distributors are not liable for any consequential damages arising from any
malfunction of the Digital Video Recorder or its accessories.
The Privacy Act
Please note that the Digital Video Recorders are intended for surveillance use and
should never be used in a manner that invades other people’s privacy or
contravenes international or domestic privacy acts and their regulations. Please be
advised that in certain cases the monitoring of individuals, private properties, or
commercial properties may contravene legal rights of such individuals even if the
images were recorded for personal use.
Warranty Limitations
This equipment’s warranty is only effective in the country of sale. If a problem
arises while the Digital Video Recorder is in use abroad, please convey it back to the
country of sale before proceeding with a warranty claim to the Maker.















7
SAFETY PRECAUTIONS
Before using the Digital Video Recorder, please ensure that you read and
understand the safety precautions described below. Always ensure that the
Digital Video Recorder is operated correctly.
The safety precautions noted on the following pages are intended to instruct
you in the safe and correct operation of the Digital Video Recorder and its
accessories to prevent injuries or damage to the self, other persons and
equipment.
In this Instruction Manual, the term “Digital Video Recorder”, “equipment” and
“device” refers primarily to the Digital Video Recorder and its accessories
such as power supply and its remote controller.
WARNINGS
Do not cover the ventilation opening or slots on the outer casing. To prevent
the Digital Video Recorder from overheating, provide at least two inches of air
space around the vent and the slots.
Do not drop metallic parts through slots. This could permanently damage the
Digital Video Recorder. If this should occur immediately turn the Digital Video
Recorder’s power off or unplug the power cord from the power outlet. Contact
a qualified service personnel authorised by the equipment distributor or the
Maker.
Do not attempt to disassemble or alter any part of the equipment that is not
expressly described in this guide. Disassembly or alteration may result in
high voltage electric shock. Internal inspections, alterations and repairs
should be conducted by qualified service personnel authorised by the
equipment distributor or the Maker.
Stop operating the equipment immediately if it emits smoke or noxious fumes.
Failure to do so may result in fire or electrical shock. Immediately turn the
Digital Video Recorder’s power off, remove the power cable from the power
outlet. Confirm that smoke and fume emissions have ceased. Please consult
the Digital Video Recorder reseller.
Stop operating the equipment if a heavy object is dropped or the casing is
damaged. Do not strike or shake. Failure to do so may result in fire or
electrical shock. Immediately turn the Digital Video Recorder’s power off or
unplug the power cord from the power outlet. Please consult the Digital Video
Recorder reseller.

8
Do not allow the equipment to come into contact with, or become immersed
in, water or other liquids. Do not allow liquids to enter the interior. The Digital
Video Recorder has not been waterproofed. If the exterior comes into
contact with liquids or salt air, wipe it dry with a soft, absorbent cloth. In the
event that the water or other foreign substances enter the interior,
immediately turn the Digital Video Recorder’s Power off or unplug the power
cord from the power outlet. Continued use of the equipment may result in
fire or electrical shock. Please consult the Digital Video Recorder reseller.
Do not use substances containing alcohol, benzene, thinners or other
flammable substances to clean or maintain the equipment. The use of these
substances may lead to fire. Use a dry cloth on a regular periodic basis and
wipe away the dust and dirt that collects on the device. In dusty, humid or
greasy environments, the dust that collects around the ventilation or the slots
on the outer casing over long periods of time may become saturated with
humidity and short-circuit, leading to fire.
Do not cut, damage, alter or place heavy items on the power cord. Any of
these actions may cause an electrical short circuit, which may lead to fire or
electrical shock.
Do not handle the device or power cord with wet hands. Handling it with wet
hands may lead to electrical shock. When unplugging the cord, ensure that
you hold the solid portion of the plug. Pulling on the flexible portion of the
cord may damage or expose the wire and insulation, creating the potential for
fires or electrical shocks.
Use only the recommended power accessories. Use of power sources not
expressly recommended for this equipment may lead to overheating, damage
of the equipment, fire, electrical shock or other hazards.
The supplied power supply and power cord are designed for exclusive use
with the Digital Video Recorder. Do not use it with other products or battery.
There is a risk of fire and other hazards.
Avoid using, placing or storing the equipment in places subject to strong
sunlight or high temperatures, such as a greenhouse or boot of a car. High
temperatures may also cause deformation of the casing. Ensure that there
is good ventilation when using the equipment.
Do not operate the Digital Video Recorder beyond its specified temperature,
humidity or power source ratings. Do not use the Digital Video Recorder in
an extreme environment such as in high temperature or high humidity. Use
the device at temperatures within 0℃~+60℃ (32°F~140°F) and humidity
below 90%.

9
PREVENTING MALFUNCTIONS
Avoid Strong Magnetic Fields. Never place the Digital Video Recorder in
close proximity to electric motors or other equipment generating strong
electromagnetic fields. Exposure to strong magnetic fields may cause
malfunctions or corrupt image data.
Avoid Condensation Related Problems. Moving the equipment rapidly
between hot and cold temperatures may cause condensation (water droplets)
to form on its external and internal surfaces. You can avoid this by placing
the equipment in an airtight, re-sealable plastic bag and letting it adjust to
temperature changes slowly before removing it from the bag.
If Condensation forms inside the Digital Video Recorder. Stop using the
equipment immediately if you detect condensation. Continued use may
damage the equipment. Remove the power cord from the power outlet and
wait until the moisture evaporates completely before resuming use.




















10
Table of Contents
1. ABOUT THIS MANUAL................................................................ 13
2. FEATURES & SPECIFICATIONS................................................ 13
2.1Features ....................................................................................................... 14
2.2Specifications ............................................................................................... 15
3. OVERVIEW & CONTROLS.......................................................... 18
3.1Front Panel ..................................................................................................... 18

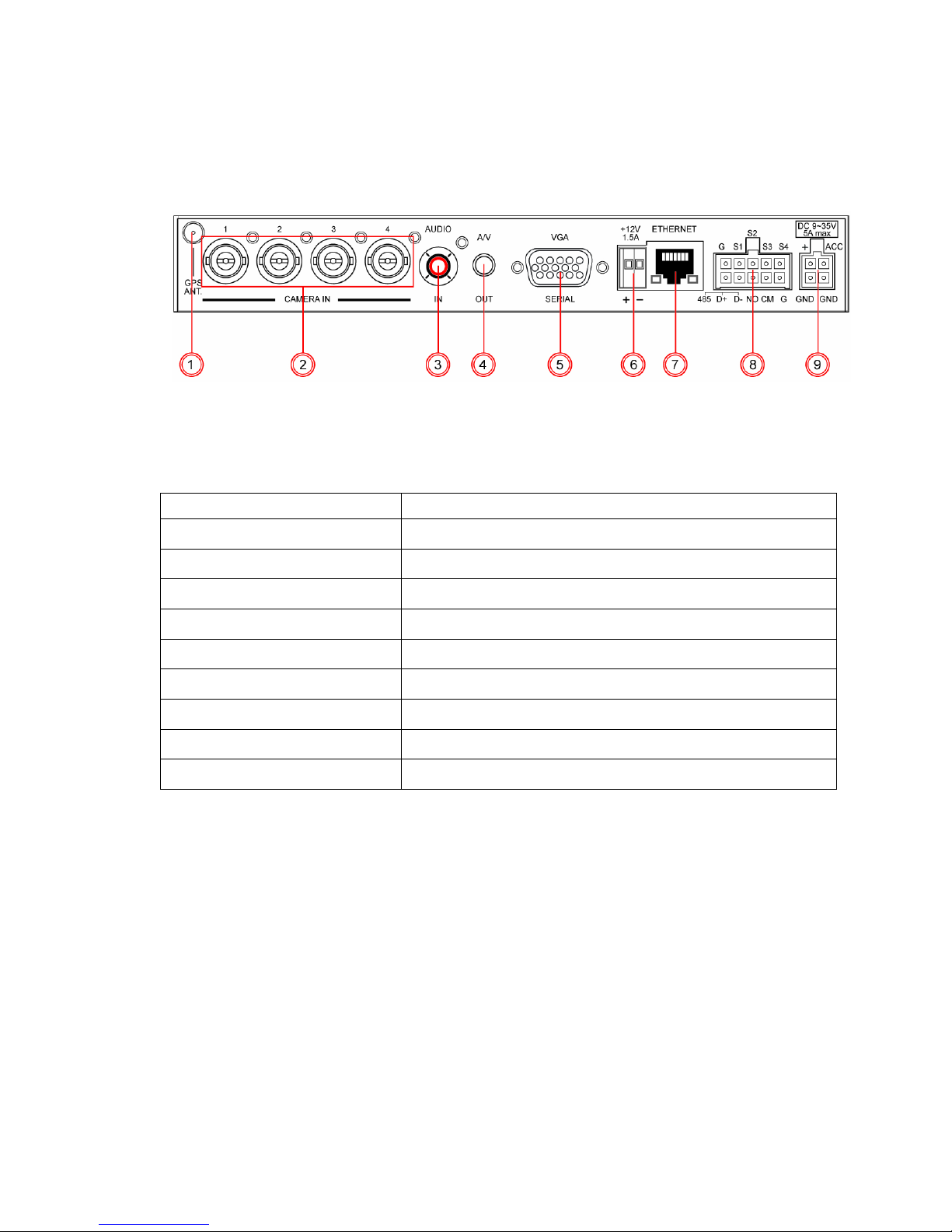

3.2Rear View..................................................................................................... 19
3.3IR REMOTE CONTROLLER ....................................................................... 20
3.3MOUSE CONTROLLER .............................................................................. 22
4. MAIN SCREEN ............................................................................ 23
5. MAIN MENU................................................................................. 25
5.1QUICK SETUP............................................................................................. 25
5.1.1QUICK SETUP ...............................................................................................................25
5.1.2IMAGE SIZE ...................................................................................................................26
5.1.3RECORD FRAME ..........................................................................................................26
5.1.4IMAGE QUALITY............................................................................................................27
5.1.5EVENT ...........................................................................................................................27
5.1.6PRE RECORD TIME ......................................................................................................28
5.1.7POST RECORD TIME....................................................................................................28
5.1.8PREVIEW QUALITY.......................................................................................................28
5.1.9AUDIO RECORD............................................................................................................29
5.1.10SAVE ..............................................................................................................................29
5.2SCREEN ...................................................................................................... 29
5.2.1AUTO SEQUENCE.........................................................................................................30
5.2.2DISPLAY.........................................................................................................................30
5.2.2.1STORAGE FREE SPACE ........................................................................................................... 31
5.2.2.2STORAGE FREE SPACE MODE ............................................................................................... 31
5.2.2.3RECORD STATUS ...................................................................................................................... 31
5.2.2.4CLOCK DISPLAY........................................................................................................................ 32
5.2.2.5DATE & TIME MODE .................................................................................................................. 32
5.2.2.6TITLE DISPLAY........................................................................................................................... 32
5.2.2.7TITLE MODE............................................................................................................................... 33
5.2.2.8BORDER COLOUR .................................................................................................................... 34
5.2.2.9GPS INFORMATION................................................................................................................... 34
5.2.2.10SPEED DISPLAY MODE ............................................................................................................ 35
5.2.3TITLE..............................................................................................................................35
5.2.4COVERT.........................................................................................................................36
5.2.5CAMERA ........................................................................................................................37

11
5.3RECORD...................................................................................................... 37
5.3.1RECORD SETUP ...........................................................................................................37
5.3.2RECORD PROGRAM.....................................................................................................38
5.3.3PREVIEW QUALITY.......................................................................................................38
5.3.4AUDIO RECORD............................................................................................................39
5.3.5REPEAT RECORD .........................................................................................................39
5.3.6HOLIDAY ........................................................................................................................40
5.3.7RECORD LIMIT..............................................................................................................40
5.4EVENT ......................................................................................................... 41
5.4.1MOTION DETECTION....................................................................................................41
5.4.1.1CHANNEL ................................................................................................................................... 41
5.4.1.2SENSITIVITY .............................................................................................................................. 42
5.4.1.3AREA SETUP.............................................................................................................................. 42
5.4.1.4TEST MOTION............................................................................................................................ 42
5.4.2EVENT SCREEN MODE ................................................................................................43
5.4.3EVENT CHECK ..............................................................................................................43
5.4.4EVENT INDICATION ......................................................................................................44
5.4.5SENSOR INPUT SELECT ..............................................................................................44
5.4.6RELAY OUTPUT ............................................................................................................45
5.4.7GPS................................................................................................................................46
5.5SYSTEM....................................................................................................... 47
5.5.1STORAGE ......................................................................................................................47
5.5.1.1STORAGE CONFIGURATION ................................................................................................... 47
5.5.1.2SD CARD INITIALISE ................................................................................................................. 48
5.5.2CLOCK ...........................................................................................................................48
5.5.2.1DATE&TIME ................................................................................................................................ 49
5.5.2.2TIME ADJUST ............................................................................................................................. 49
5.5.3VIDEO STANDARD........................................................................................................50
5.5.4LANGUAGE....................................................................................................................50
5.5.5ADVANCED SETUP .......................................................................................................50
5.5.5.1PASSWORD CHECK..................................................................................................................51
5.5.5.2SET PASSWORD........................................................................................................................ 51
5.5.5.3USER AUTHORITY..................................................................................................................... 52
5.5.5.4DVR MENU SETUP .................................................................................................................... 52
5.5.5.4.1MENU INITIALISE.................................................................................................................. 52
5.5.5.4.2LOAD MENU FROM FILE ..................................................................................................... 53
5.5.5.4.3SAVE MENU TO FILE............................................................................................................ 53
5.5.6FIRMWARE UPGRADE..................................................................................................54
5.6LINK ............................................................................................................. 56
5.6.1NETWORK .....................................................................................................................57
5.6.1.1DHCP .......................................................................................................................................... 57
5.6.1.1.1IP ADDRESS.......................................................................................................................... 57
5.6.1.2SUBNET MASK........................................................................................................................... 58
5.6.1.3GATEWAY ................................................................................................................................... 58
5.6.1.4DNS ............................................................................................................................................. 58
5.6.1.5PORT........................................................................................................................................... 59
5.6.1.6DYNAMIC IP SERVER ...............................................................................................................59
5.6.1.7BACKUP IP SERVER ................................................................................................................. 60
5.6.2RS485 ............................................................................................................................60
5.6.2.1SYSTEM ID ................................................................................................................................. 60
5.6.2.2BAUD RATE ................................................................................................................................ 61
5.6.2.3DATA BIT ..................................................................................................................................... 61
5.6.2.4PARITY BIT ................................................................................................................................. 61
5.6.2.5STOP BIT .................................................................................................................................... 62
5.6.3PTZ.................................................................................................................................62
5.6.4E-MAIL ...........................................................................................................................64
5.6.4.1SEND E-MAIL ............................................................................................................................. 64
5.6.4.2SMTP SETUP ............................................................................................................................. 64

12
5.6.4.2.1SMTP SERVER...................................................................................................................... 65
5.6.4.2.2SMTP PORT .......................................................................................................................... 65
5.6.4.3DVR E-MAIL ADDRESS ............................................................................................................. 64
5.6.4.4USER ID AND PASSWORD ....................................................................................................... 64
5.6.4.5E-MAIL ADDRESS 1 THROUGH 10........................................................................................... 64
5.6.5DVR NAME.....................................................................................................................67
5.6.6DVR LOCATION.............................................................................................................68
5.6.7BANDWIDTH..................................................................................................................69
5.6.8 WIRELESS……………………………………………………………………………………....69
5.6.8.1 WIRELESS MODE…………………………………………………………………………………… 69
5.6.8.2 MOBILE SERVER……………………………………………………………………………………… 70
5.7SEARCH .................................................................................................. 70
5.7.1CALENDER SEARCH ....................................................................................................70
5.7.2SEARCH & COPY ..........................................................................................................72
5.7.3TIME SEARCH ...............................................................................................................72
5.7.4EVENT SEARCH............................................................................................................73
5.7.5BLOCK SEARCH ...........................................................................................................74
5.7.6FILE SEARCH ................................................................................................................74
5.7.7BOOKMARK SEARCH ...................................................................................................75
5.7.8 LOG FILE………………………………………………………………………………………...76
5.8COPY ........................................................................................................... 76
5.8.1COPY .............................................................................................................................76
5.8.2COPY STATUS ..............................................................................................................77
5.8.3MEDIA FORMAT ............................................................................................................78
5.9STATUS SCREEN........................................................................................ 78
5.9.1DVR STATUS .................................................................................................................78
5.9.2NETWORK STATUS.......................................................................................................79
5.9.3RECORDING BITRATE..................................................................................................79
5.10.EXIT ............................................................................................................. 80

13
1.ABOUT THIS MANUAL

This is the Instruction Manual of the H.264 Mobile Digital Video Recorder - Model MDVR4SD, The
manual details how the user should install and operate the DVR, along with the features and
specifications.
Please read this manual carefully and follow the installation procedure before using the system.
Please contact your Distributor if you have any queries.


























14
2. FEATURES & SPECIFICATIONS
2.1 Features
This DVR has the following features:

- H.264 Compression Algorithm
- Max 100ips (HD1)/50ips (D1) Recording in PAL
- Quadraplex: Playback, Record, Copy and Network Transmission Simultaneously
- Install max. 2 x SD Memory Cards (expandable to 6 x SD with the MDVR4SD-PRO model)
- 1 Channel of Synchronised Audio
- SD Card Memory
- 4 Level Settings of Image Quality
- Schedule Recording with Various Recording Setups per Channel
- 4 Channel Sensor Inputs - Pre-Alarm and Post-Alarm Recording
- Panic Alarm Allows Emergency Recording in Full Frame Rate on Every Channel
- Digital Watermark Support
- Smooth Reverse Playback
- Ease of Operation: Remote Controller, Front Buttons, and Network Viewer
- Supported Copy Media: USB Memory Stick, External USB HDD/CDRW/DVDRW.
- Firmware Upgrade via SD card, USB or Network.
- RS-485 Port for PTZ & External Controller Support.
- Driving Information (Warning Lights, Brakes, Indicators) Overlay on Live and Playback Video
- GPS Data (PRO model) can Overlay Location & Speed and Record with Video
- Impact Sensor (PRO model) Detects Excessive Gravitational Forces on the X,Y & Z axis
- Daylight Saving
- Web Browser Support
- AVI File Conversion
- Multi-Language Support
- Network Client Viewer: 16 units x 16 Clients Connected Simultaneously.

15
2.2 Specification
VIDEO
Video Input 4CH (BNC)
Input Level 1.0Vp-p±10% Composite, 75ΩBalanced
Loop Through Output Not Supported
Video Standard NTSC, PAL, AUTO
Main Monitor Output 1.0 V p-p Composite, 75ΩBalanced
Analogue Spot Monitor Output Not Supported
Camera Name Max. 8 Characters
Display Options Full Screen, Sequential Switching, Event or Quad Display
Display Dwell Time 1~60 Seconds
NTSC 720(H) × 480(V)
Resolution
PAL 720(H) × 576(V)
NTSC 120 frames(Every CH Real Time)
Speed PAL 100 frames(Every CH Real Time)
Display
Function Auto Sequence, Full Screen and Quad
AUDIO
Compression ADPCM
Audio Input (Line) 1CH (RCA)
Input Level 0.5~1.4Vp-p@20kΩ
Audio Output (Line) 3.5mm Stereo Mini Jack
RECORDING
Compression H.264
720(H) × 480(V), 720(H) × 240(V), 360(H) × 240(V)
Resolution
720(H) × 576(V), 720(H) × 288(V), 360(H) × 288(V)
340 x240 Max. 120 Images(CIF)
720 x240 Max.120 Images(Half D1)
NTSC
720 x480 Max. 60 Images(D1)
340 x288 Max. 100 Images(CIF)
720 x288 Max. 100 Images(Half D1)
Speed
PAL
720 x576 Max. 50 Images(D1)
Multiplexer Quadraplex
Frame Setting Available
Event, Normal Available
Speed Available
Resolution Available
Each CH
Quality 4 Selectable Qualities (Low, Normal, Fine, BEST)
Setup per Channel Individual
Record Limit Configurable Automatic Data Deletion
Data Size 1~3KB(CIF), 3~7KB(D1/2), 6~15KB(D1)

16
Recording Mode Normal (Continuous),Event (Motion Detection, Sensor, Video Loss),
Schedule
Pre-Alarm Configurable. 1-5 Seconds
Watermark Supported
Schedule 24-7 Calendar with Holiday Settings.
Summer Time Support
Internal Storage 2 x SD Cards in the Front of the Unit
Storage SD Bay Interface 4 x SD EXP Bay (File)
GPS Board GPS (MDVR4SD-PRO Only)
SD Bay Interface 4 x SD EXP + GPS (MDVR4SD-PRO Only)
Searching & Playback
Search Method Time, Calendar, Event, File (Copied), Text
Playback Speed 1, x2, x4, x16, x32, x 64, x128
COPY DEVICE
Media Support USB Memory Stick, External USB HDD/CD-R/CD RW/ DVD RW/
DVD ROM
USB 2.0 1 Port ( Front)
Copied File Compatibility with
PC (Windows) Compatible
MULTI-REMOTE SURVEILLANCE
Monitoring Environment Client Software / CMS for Mobile DVR / SD Viewer
Transmission Rate Max. 100ips (CIF) Full Motion Transmission
Search Supports Multi-Client (16 Clients Accessible)
SYSTEM MONITORING & RECOVERY
System Logging Power Failure Checkable/Menu Change/Network Connection
Monitoring Software Watchdog
Recovery Auto-Reboot by Watchdog - Automatic Database Recovery
OTHERS
OS Embedded Linux
Menu Type Graphic + Text
Supported Languages English, Korean, Japanese, Polish, Spanish, Russian, French,
Turkish, German, Italian, Portuguese
ATM Interface GPS Module Interface (MDVR4SD-PRO Only)
POS Interface Shock Sensor (MDVR4SD-PRO Only)
Control Device Front Key, Remote Controller and Mouse Control
PTZ
SPD & SRX(Samsung Techwin), SCC-643(Samsung Electronics),
SD-290 (Smile CAM), CS-854A(Panasonics), LPT-A100L, EZ
PROTOCOL(Vitek)DSC-230S (Dongyang Unitech),
SKD106(Sunkwang), VC-C4R(Canon) PELCO P, PELCO D,TK-
C655/676 (JVC), DMP23(DAIWA), BOSCH PCS-SERIES
Number of Event List / Log List 50,000 / 20,000 per SD

17
Connector
Video Input 4Channels (BNC)
Loop Though Not Supported
Composite Supported
Main Monitor
Output VGA Output Supported
Spot Monitor
Output S-Video Not Supported
Audio Input ( Line) 1Channel (RCA)
Audio Output ( Line) 1Channel (RCA)
HDD Bay Connection 1Channel Line Output (RCA)
External Control ( RS-232C) Not Supported
Firmware Update Updated by USB 2.0 Port or Network
Sensor Input 4Channel - Terminal Block
Alarm Output 1 Relay Output: 2 Pins Terminal Block (NO, Common)
RS-485 for External Control & PTZ 2 Pins (Box Connector) (Terminal Block)
Ethernet RJ-45, 10/100Mbps
USB 2.0 1 Port (Front)
ELECTRICAL
Power Source Input DC 9V ~ 35V, Output DC 12V,1.5A
Power Consumption Approx.10 Watts ( Including 2x SD Memory Cards)
ENVIRONMENTAL
Operating Temperature 0°C~ +40°C
Storage Temperature -10°C ~ + 60°C
Humidity 30 ~ 90%RH (Non-Condensing)
PHYSICAL
Construction Shape Rectangular
Construction Material Steel Case
Body Colour Black, with Tactile Switch Buttons ( 10 Buttons)
Dimension 200(W) x 110(D) x 30(H) mm
Weight Approx. 1Kg
BACK UP
Digital Backup Option(USB2.0)/Support (USB2.0)






18
3 OVERVIEW & CONTROLS
This section provides information about the front and rear panels.
3.1 Front Panel
NO. Function
①Power Switch This switch turns the DVR ON and OFF
②SD Card Image storage, capacity of 32Gb per SD card
③2..0 Port The USB 2.0 port can be used to connect to numerous USB 2.0
backup devices, individual external hard drives, external optical
drives and USB memory sticks.
④IR Sensor
Infrared signal receiver for the IR remote controller.
*Do not block the receiver as a clear line of sight is required for
proper operation.
⑤Panic REC Press this button for Full Frame Recording @1/2 D1 Real Time
⑥REC Starts manual recording and accesses the Main Menu & goes back to the previous
menu. (press and hold for 3secondss to access)
⑦ Fast Forward , press this button to speed-up playback speed
⑧  Press this button to slow-down playback speed
⑨  Change the playback direction
⑩▶ Press this button to begin playback
⑪■ Returns to the live mode from the playback mode
⑫Auto/ Selects Quad or sequential display
⑬Enter Executes the selected function in the menu screen or enters the selected
submenu.

19
3.2 Rear View
NO. Function
①GPS ANT. GPS Aerial Connection (MDVR4SD-PRO Only)
②Camera Input BNC Connectors for Composite Video Signal Input
③Audio Input RCA Connectors for Connecting the Audio Input
④Audio & Video Out 3.5 Jack Connector for Connecting the Audio & Video Output
⑤VGA Output D-Sub 15-pin Connector for Connecting to a VGA Monitor
⑥Power Out +12V Output (1.5A max)
⑦Ethernet Port 10/100 Base-T RJ-45 Port Network Connection
⑧Alarm & Sensor Alarm and Sensors Connector
⑨Power In Power Socket for Nominal DC 12V

20
3.3 IR REMOTE CONTROLLER
Button Name Description
①(IRIS-/+) PTZ Iris open and close
Frame by Frame (field by field) playback
②(ZOOM-/+) PTZ Zoom in and out
③SPOT / ESC Enter the spot mode / Return to the previous mode
④ENTER (HOME) Enter / Go home Position in PTZ mode
⑤( ◀) Move the cursor left in the setup menu
⑥( ▲) / MENU Move the cursor up to the next line in the setup
menu / Display the setup menu
⑦( ▼) / PIP Move the cursor down to the next line / Enter the
PIP mode / Exit the loop playback mode
