Genie GS-2646 User manual

Operator’s Manual First Edition
Seventeenth Printing
Part No. 46281
with Maintenance Information

Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
Copyright © 1997 by Genie Industries
First Edition: Seventeenth Printing, October 2002
"Genie" is a registered trademark of
Genie Industries in the U.S.A. and many other
countries. "GS" is a trademark of Genie
Industries.
These machines comply with
ANSI/SIA92.6-1999.
Printed on recycled paper
Printed in U.S.A.
Important
Read, understand and obey these safety rules and
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual should
be considered a permanent part of your machine and
should remain with the machine at all times. If you have
any questions, call Genie Industries.
Contents
Page
Safety ........................................................................ 1
Legend ....................................................................... 9
Controls .................................................................... 10
Pre-operationInspection ........................................... 12
Maintenance ............................................................. 14
Function Tests .......................................................... 16
WorkplaceInspection ................................................ 21
OperatingInstructions ............................................... 22
TransportInstructions ............................................... 27
Decals ...................................................................... 28
Specifications ........................................................... 32
Contact us:
Internet:http://www.genielift.com
e-mail:[email protected]

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 1
Operator's Manual
First Edition • Seventeenth Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will
result in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey:
Manufacturer's instructions and safety
rules—safetyand operator'smanuals
and machine decals
employer's safety rules and worksite
regulations
applicablegovernmentalregulations
You are properly trained to safely operate the
machine.

2 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo. 46281
Operator's Manual First Edition • Seventeenth Printing
SAFETY RULES
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase Approach Distance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.05
50KV to 200KV 15 4.60
200KV to 350KV 20 6.10
350KV to 500KV 25 7.62
500KV to 750KV 35 10.67
750KV to 1000KV 45 13.72
Allow for platform movement, electrical line sway
or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground
or in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.

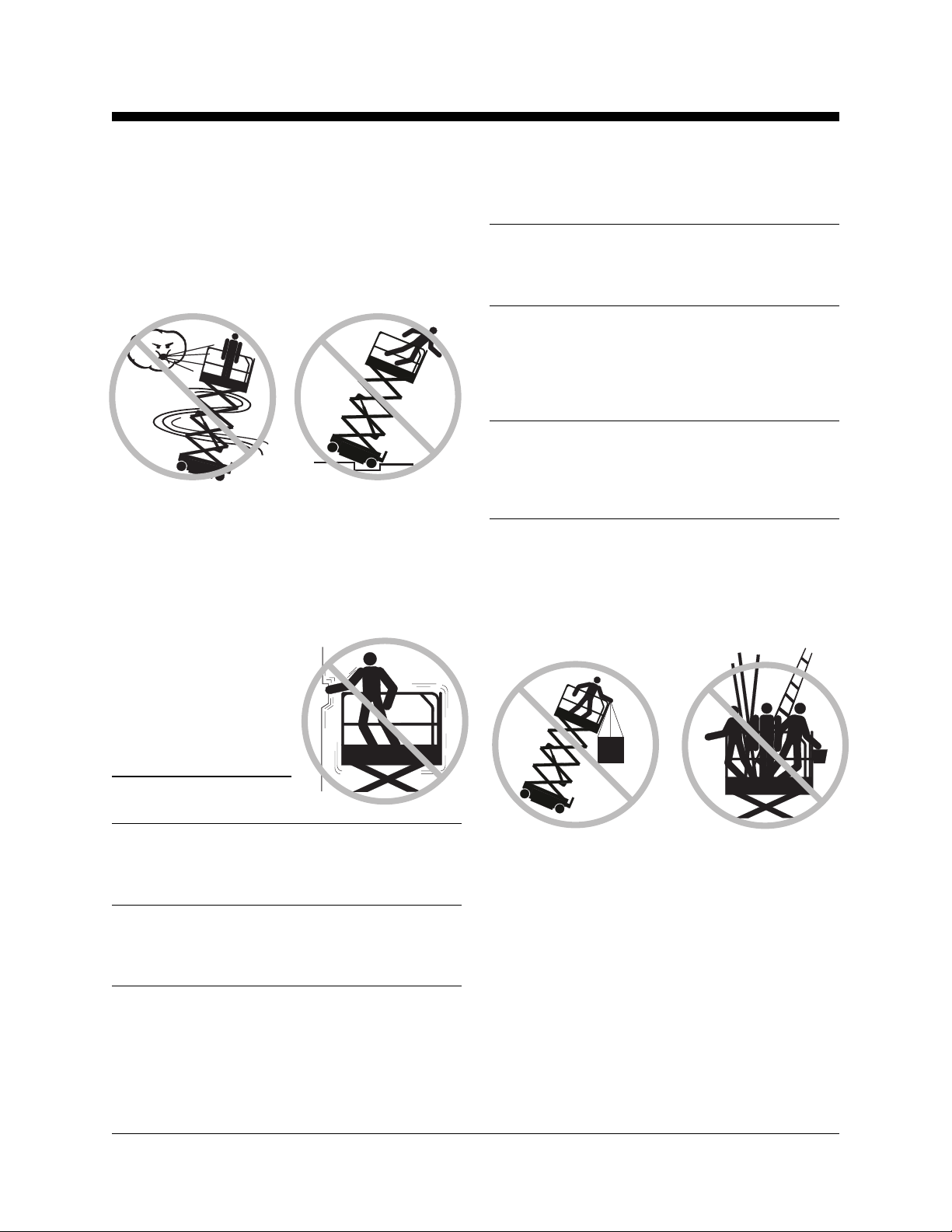

Tip-over Hazards
Occupants and equipment must not exceed the
maximum platform capacity or the maximum
capacity of the platform extension.
Maximum capacity - GS-2032
Platform retracted 800 lbs 363 kg
Platform extended - Platform only 550 lbs 249 kg
Platform extended - Extension only 250 lbs 113 kg
Maximum occupants - ANSI and CSA 2
Maximum occupants - CE and Australia
Outdoor use 1
Indoor use only 2
Maximum capacity - GS-2632
Platform retracted 500 lbs 227 kg
Platform extended - Platform only 250 lbs 113 kg
Platform extended - Extension only 250 lbs 113 kg
Maximum occupants - ANSI and CSA 2
Maximum occupants - CE and Australia
Indoor use only 2
800 lbs / 363 kg Extension only
250 lbs / 113 kg
Platform only
550 lbs / 249 kg
500 lbs / 227 kg Extension only
250 lbs / 113 kg
Platform only
250 lbs / 113 kg

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 3
Operator's Manual
First Edition • Seventeenth Printing
SAFETY RULES
Do not raise the platform unless the machine is on
a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not alter or disable the limit switches.
Do not drive over 0.5 mph / 0.7 km/h with the
platformraised.
Maximum capacity - GS-2046
Platform retracted 1200 lbs 544 kg
Platform extended - Platform only 950 lbs 431 kg
Platform extended - Extension only 250 lbs 113 kg
Maximum occupants 2
Maximum capacity - GS-2646
Platform retracted 1000 lbs 454 kg
Platform extended - Platform only 750 lbs 340 kg
Platform extended - Extension only 250 lbs 113 kg
Maximum occupants - CE 2
Maximum occupants - Australia
Outdoor use 1
Indoor use only 2
Maximum capacity - GS-3246
Platform retracted 700 lbs 318 kg
Platform extended - Platform only 450 lbs 204 kg
Platform extended - Extension only 250 lbs 113 kg
Maximum occupants - ANSI and CSA 2
Maximum occupants - CE and Australia
Outdoor use 1
Indoor use only 2
1000 lbs / 454 kg Extension only
250 lbs / 113 kg
Platform only
750 lbs / 340 kg
700 lbs / 318 kg Extension only
250 lbs / 113 kg Platform only
450 lbs / 204 kg
1200 lbs / 454 kg Extension only
250 lbs / 113 kg
Platform only
950 lbs / 431 kg

4 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo. 46281
Operator's Manual First Edition • Seventeenth Printing
GS-2046
ANSI & CSA - 2 person 180 lbs / 801 N
CE - Indoor use only - 2 person 180 lbs / 801 N
CE - Outdoor use - 2 person 90 lbs / 400 N
GS-2646
ANSI & CSA - 2 person 150 lbs / 667 N
CE - Indoor use only - 2 person 150 lbs / 667 N
CE - Outdoor use - 2 person 90 lbs / 400 N
Australia - Indoor use only - 2 person 120 lbs / 534 N
Australia - Outdoor use - 1 person 45 lbs / 200 N
GS-3246
ANSI & CSA - 2 person 105 lbs / 467 N
CE & Australia -
Indoor use only - 2 person 105 lbs / 467 N
CE & Australia - Outdoor use - 1 person 45 lbs / 200 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not place or attach fixed or overhanging loads to
any part of this machine.
Do not place ladders or scaffolds in the platform or
against any part of this machine.
Do not modify or alter an aerial work platform.
Mounting attachments for holding tools or other
materials onto the platform, toeboards or guard rail
system can increase the weight in the platform and
the surface area of the platform or the load.
Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the platform raised.
Use extreme care and slow speeds while driving
the machine in a stowed position across uneven
terrain, debris, unstable or slippery surfaces and
near holes and drop-offs.
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable
manual force
GS-2032
ANSI & CSA - 2 person 120 lbs / 534 N
CE - Indoor use only - 2 person 120 lbs / 534 N
CE - Outdoor use - 1 person 45 lbs / 200 N
GS-2632
ANSI & CSA - 2 person 100 lbs / 445 N
CE - Indoor use only - 2 person 100 lbs / 445 N
Australia - Indoor use only - 2 person 90 lbs / 400 N
SAFETY RULES

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 5
Operator's Manual
First Edition • Seventeenth Printing
SAFETY RULES
Do not replace items critical to machine stability
with items of different weight or specification.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
Each battery must weigh 65 pounds / 30 kg.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not operate the machine with the chassis trays
open.
Do not use the platform controls to free a platform
that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
groundcontrols.
Fall Hazards
Occupants should wear a
safety belt or harness and
comply with applicable
governmentalregulations.
Attach the lanyard to the
anchor provided in the
platform.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform floor at
all times.
Do not climb down from the platform when raised.
Keep the platform floor clear of debris.
Attach the platform entry chain or close the entry
gatebeforeoperating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.

6 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
SAFETY RULES
Do not lower the platform unless the area below is
clear of personnel and obstructions.
Limit travel speed according to the condition of the
ground surface, congestion, slope, location of
personnel, and any other factors which may cause
collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
Crushing Hazards
Keep hands and limbs out of scissors.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.

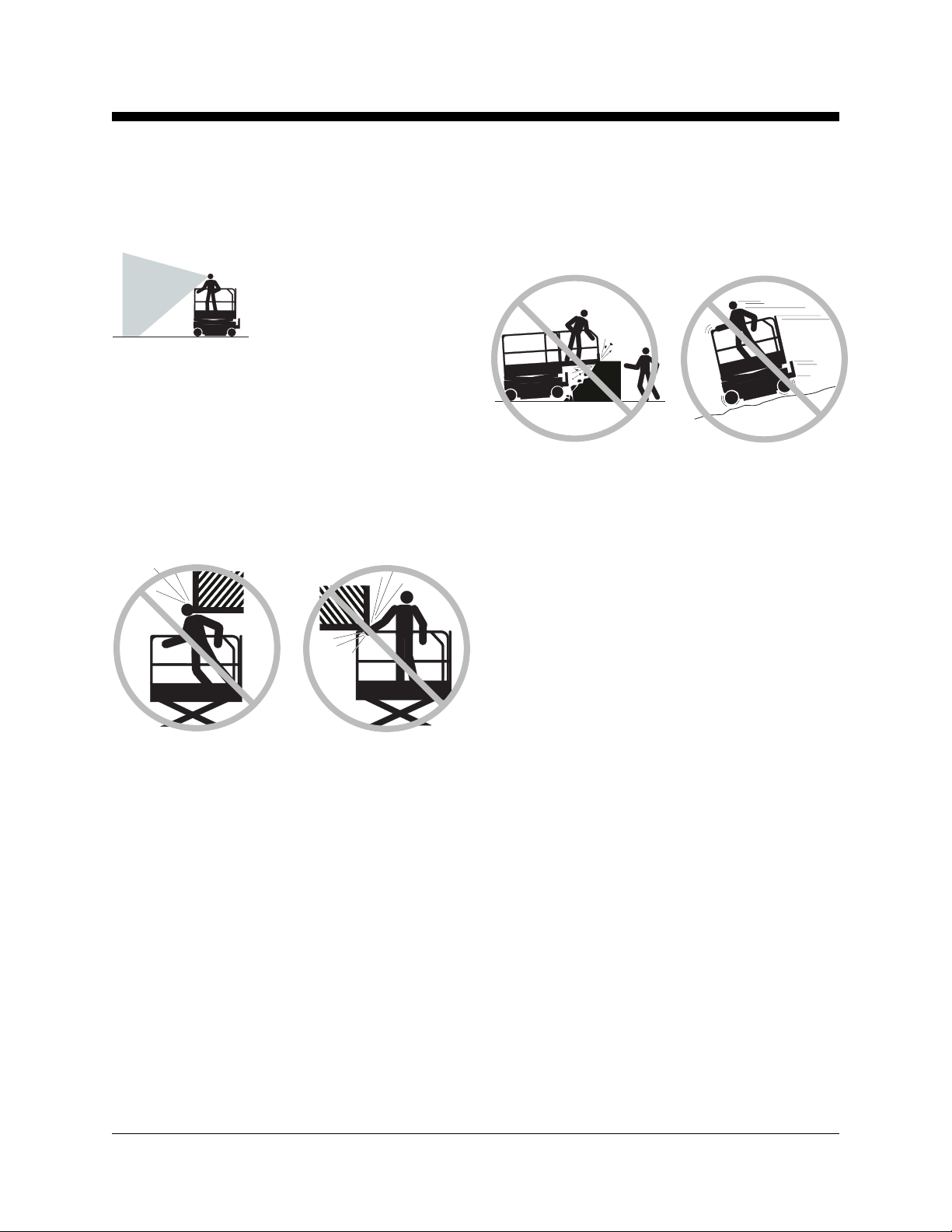

Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of the extended platform position when
moving the machine.
The machine must be on a level surface or secured
before releasing the brakes.
It is recommended that operators wear an approved
hard hat when operating the machine.
Check the work area for overhead obstructions or
other possible hazards.
Be aware of crushing hazards when grasping the
platform guard rail.
Observe and use the color-coded direction arrows
on the platform controls and platform decal plate for
drive and steer functions.
No stunt driving or horseplay while operating a
machine.

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 7
Operator's Manual
First Edition • Seventeenth Printing
Component Damage Hazard
Do not use the machine as a ground for welding.
Explosion and Fire Hazard
Do not operate the machine in hazardous locations
or locations where potentially flammable or
explosive gases or particles may be present.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damagedor malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate service
manual.
Be sure all decals are in place and legible.
Be sure the operator’s, safety, and responsibilities
manuals are complete, legible and in the storage
container located on the platform.
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personnel to potential personal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—used to indicate the
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Orange—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentially hazardous situation
which, if not avoided, may cause
minor or moderate injury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedto indicate operation
or maintenance information.
SAFETY RULES

8 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
SAFETY RULES
Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective
clothing and eyewear when working with batteries.
Avoid spilling or contacting battery acid. Neutralize
battery acid spills with baking soda and water.
Do not expose the batteries or the charger to
water or rain during charging.
Explosion Hazards
Keep sparks, flames
and lighted tobacco
away from batteries.
Batteries emit an
explosive gas.
The battery tray should
remain open during the
entire charging cycle.
Do not contact the battery terminals or the cable
clamps with tools that may cause sparks.
Component Damage Hazard
Do not use any battery charger greater than 24V to
charge the batteries.
Electrocution Hazards
Connect the battery charger to a
grounded,AC 3-wire electrical
outlet only.
Inspect daily for damaged cord,
cables and wires. Replace
damaged items before
operating.
Avoid electrical shock from contact with battery
terminals. Remove all rings, watches and other
jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
Each battery must weigh 65 pounds / 30 kg.
Lifting Hazard
Use the appropriate number of people and proper
lifting techniques when lifting batteries.

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 9
Operator's Manual
First Edition • Seventeenth Printing
Legend
1 Platform entry chain or entry
gate
2 Platform entry rail
3 Platform guard rails
4 Lanyardanchoragepoint
5 Manualstoragecontainer
6 Platform controls
7 GFCI outlet
8 Platform extension
9 Platform extension release
pedal
10 Tilt alarm (under cover)
11 Transporttie-down
12 Steer tire
13 Groundcontrols
14 Auxiliary lowering knob or
button or switch
15 LED diagnostic readout
16 Hydraulic oil level indicator
17 Potholeguard
18 Non-steertire
19 Entryladder/transport
tie-down
20 Battery charger
21 Brake release pump knob
22 Brake release knob
23 Safety arm
(GS-3246: safety arm located
above cylinder mount)

10 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
Controls

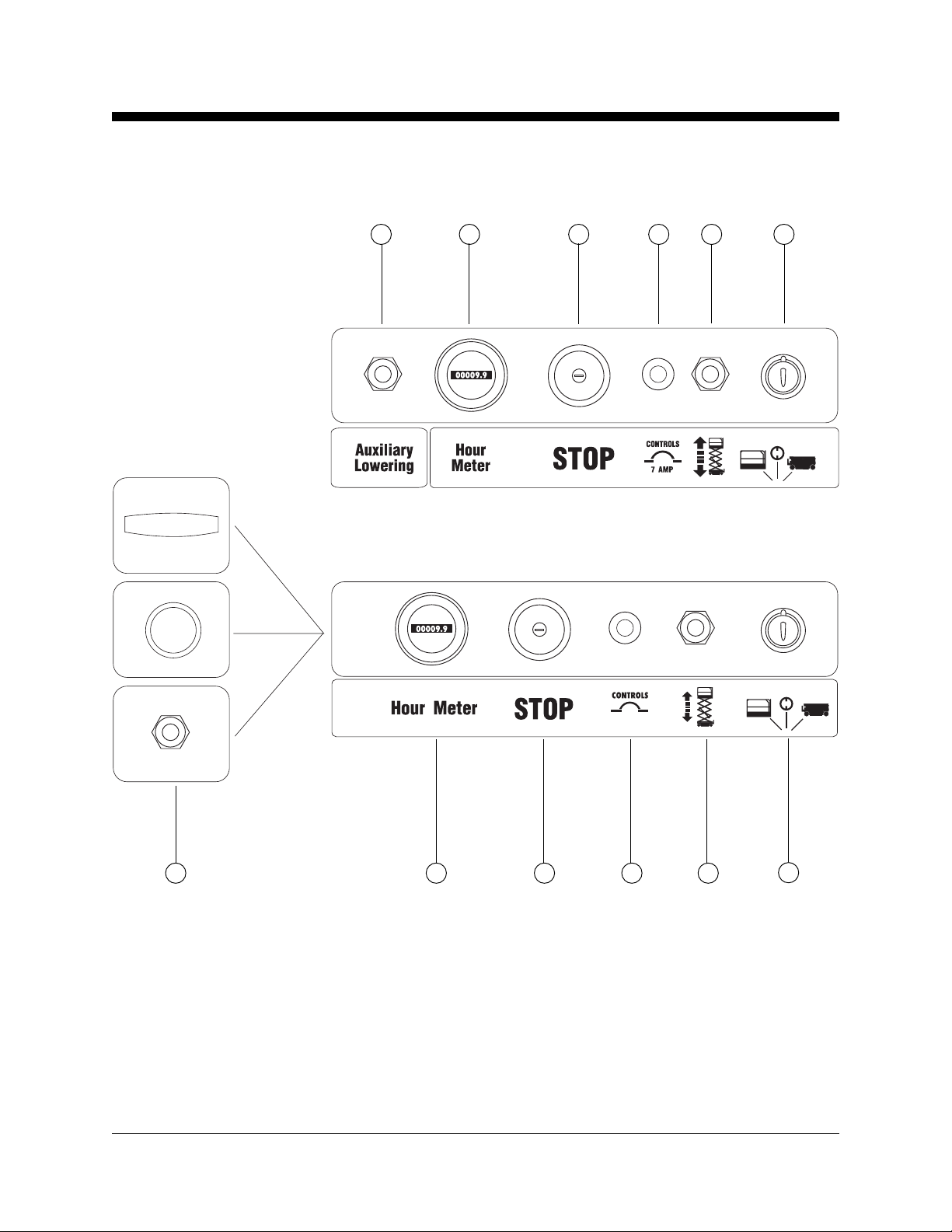

Ground Control Panel
1 Auxiliarylowering/manual
lowering toggle switch or
knob or button
2 Hourmeter
3 5 6421
3 Red Emergency Stop button
4 Breaker for electrical circuits
5 Platformup/down toggle
switch
6 Key switch for platform/off/
ground selection
3 5 6 421

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 11
Operator's Manual
First Edition • Seventeenth Printing
CONTROLS
Joystick Controller
1 Horn
2 Machine on incline symbol: Low
speed operation for inclines
3 Lift function select button with
indicator light
4 Drive function select button with
indicator light
5 Red Emergency Stop button
6 Function enable switch
7 Proportional control handle for lift
and drive functions and thumb
rocker for steer function
8 Error indicator light
9 Power light
10 Battery level indicator
11 Lift function enable button
12 Lift/drive select toggle switch
13 Low battery indicator light
The symbols shown below appear in
the text in this operator’s manual as
an aid to identifying operating
instructions.
Use the symbols on this page to
identify which controller you have on
your machine, and use the symbols
in the text to identify which action to
complete on your controller.
If no symbol is listed for your
controller, then no action is needed.
Two function select buttons
and Emergency Stop button
in upper left corner
One function select button
and Emergency Stop button
in upper left corner
Emergency Stop button in
lower right corner

12 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Alwaysperformapre-operation
inspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a
pre-operationinspectionand routine maintenance.
The pre-operation inspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
is apparently wrong with a machine before the
operator performs the function tests.
The pre-operation inspection also serves to
determine if routine maintenance procedures are
required. Only routine maintenance items specified
in this manual may be performed by the operator.
Refer to the list on the next page and check each
of the items and locations for modifications,
damage or loose or missing parts.
A damaged or modified machine must never be
used. If damage or any variation from factory
delivered condition is discovered, the machine
must be tagged and removed from service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer's specifications. After repairs are
completed, the operator must perform a
pre-operation inspection again before going on to
the function tests.
Scheduled maintenance inspections shall be
performed by qualified service technicians,
according to the manufacturer's specifications and
the requirements listed in the responsibilities
manual.

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 13
Operator's Manual
First Edition • Seventeenth Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
oBe sure that the operator's, safety and
responsibilities manuals are complete, legible
and in the storage container located on the
platform.
oBe sure that all decals are legible and in place.
See Decals section.
oCheck for hydraulic oil leaks and proper oil level.
Add oil if needed. See Maintenance section.
oCheck for battery fluid leaks and proper fluid
level. Add distilled water if needed. See
Maintenancesection.
Check the following components or areas for
damage, modifications and improperly installed or
missing parts:
oElectrical components, wiring and electrical
cables
oHydraulic power unit, tank, hoses,
fittings, cylinders and manifolds
oBattery pack and connections
oDrive motors
oWearpads
oTires and wheels
oLimit switches, alarms and horn
oNuts, bolts and other fasteners
oPlatform entry chain (if equipped)
oPlatform entry gate (if equipped)
oBeacon and alarms (if equipped)
oBrake release components
oSafety arm
oPotholeguards
oPlatform extension
oScissor pins and retaining fasteners
oPlatform control joystick
oGenerator(ifequipped)
oCounterweight(ifequipped)
Check entire machine for:
oCracks in welds or structural components
oDents or damage to machine
oBe sure that all structural and other critical
components are present and all associated
fasteners and pins are in place and properly
tightened.
oSide rails are installed and bolts are fastened
oBe sure that the chassis trays are in place,
latched and properly connected.

14 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
Observe and Obey:
Only routine maintenance items specified in this
manual shall be performed by the operator.
Scheduled maintenance inspections shall be
completed by qualified service technicians,
according to the manufacturer's specifications
and the requirements specified in the
responsibilitiesmanual.
Maintenance Symbols Legend
The following symbols have been
used in this manual to help
communicate the intent of the
instructions. When one or more of
the symbols appear at the
beginning of a maintenance
procedure, it conveys the meaning
below.
Indicates that tools will be required to
performthis procedure.
Indicates that new parts will be required to
performthis procedure.
Check the Hydraulic Oil Level
Maintaining the hydraulic oil at the proper levels is
essential to machine operation. Improper hydraulic
oil levels can damage hydraulic components. Daily
checks allow the inspector to identify changes in oil
level that might indicate the presence of hydraulic
system problems.
Perform this procedure with the
platform in the stowed position.
1 Visually inspect the oil level in the hydraulic
tank through the sight gauge in the side of the
powerunit module.
Result: The hydraulic oil level should be within
the full and add marks on the oil level indicator
decal.
2 Add oil if necessary. Do not overfill.
Hydraulic oil specifications
Hydraulic oil type Refer to machine decal
Maintenance

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 15
Operator's Manual
First Edition • Seventeenth Printing
Check the Batteries
Proper battery condition is essential to good engine
performance and operational safety. Improper fluid
levels or damaged cables and connections can
result in engine component damage and hazardous
conditions.
This procedure does not need to
be performed on machines with
sealedormaintenance-free
batteries.
Electrocution hazard. Contact with
hot or live circuits may result in
death or serious injury. Remove all
rings, watches and other jewelry.
Bodily injury hazard. Batteries
contain acid. Avoid spilling or
contacting battery acid. Neutralize
battery acid spills with baking soda
andwater.
Perform this test after fully
charging the batteries.
1 Put on protective clothing and eye wear.
2 Be sure that the battery cable connections are
tight and free of corrosion.
3 Be sure that the battery retaining fasteners are
in place and secure.
4 Remove the battery vent caps.
5 Check the battery acid level of each battery. If
needed, replenish with distilled water to the
bottom of the battery fill tube. Do not overfill.
6 Install the vent caps.
MAINTENANCE
Scheduled Maintenance
Maintenanceperformedquarterly, annually and
every two years must be completed by a person
trained and qualified to perform maintenance on this
machine according to the procedures found in the
service manual for this machine.
Machines that have been out of service for more
than three months must receive the quarterly
inspection before they are put back into service.

16 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
Function Tests
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation inspection.
3 Alwaysperformfunctiontestspriorto
use.
Know and understand the function tests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into service.
The operator must follow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician, according to the manufacturer's
specifications.
After repairs are completed, the operator must
perform a pre-operation inspection and function
tests again before putting the machine into service.
The symbols shown below appear in the text in
this operator’s manual as an aid to identifying
operating instructions.
Use the symbols on this page and page 11 to
identify which controller you have on your machine,
and use the symbols in the text to identify which
action to complete on your controller.
If no symbol is listed for your controller, then no
action is needed.
Two function select buttons and
Emergency Stop button in upper left
corner
One function select button and
Emergency Stop button in upper left
corner
Controller with Emergency Stop button in
lower right corner

PartNo.46281 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 17
Operator's Manual
First Edition • Seventeenth Printing
1 Select a test area that is firm, level and free of
obstruction.
2 Be sure the battery pack is connected.
At the Ground Controls
3 Pull out the platform and ground red Emergency
Stop buttons to the on position.
4 Turn the key switch to ground control.
5 Observe the diagnostic LED readout.
Result: LED should read 23 or --.
TestEmergencyStop
6 Push in the ground red Emergency Stop button
to the off position.
Result: No functions should operate.
7 Pull out the red Emergency Stop button to
the on position.
TesttheUp/DownFunctions
The audible warnings on this machine and the
standard horn all come from the same central
alarm. The horn is a constant tone. The descent
alarm sounds at 60 beeps per minute. The alarm
that goes off when the pothole guards have not
deployed sounds at 300 beeps per minute. The
alarm that goes off when the machine is not level
sounds at 600 beeps per minute. An optional
automotive-style horn is also available.
8 Activate the up function.
Result: The platform should raise.
9 Activate the down function.
Result: The platform should lower. The descent
alarm should sound while the platform is
lowering.
TestAuxiliaryLowering/ManualLowering
10 Activate the up function and raise the platform
approximately 2 feet / 60 cm.
11 Activate the auxiliary lowering/manual lowering
function. Move the toggle switch OR pull the
knob OR push the button.
Result: The platform should lower. The descent
alarm will not sound.
12 Turn the key switch to platform control.
At the Platform Controls
TestEmergencyStop
13 Push in the platform red Emergency Stop button
to the off position.
Result: No functions should operate.
TesttheHorn
14 Pull the red Emergency Stop button out to the
on position.
15 Push the horn button.
Result: The horn should sound.
FUNCTIONTESTS

18 Genie GS-2032 & GS-2632 & GS-2046 & GS-2646 & GS-3246 PartNo.46281
Operator's Manual First Edition • Seventeenth Printing
TesttheFunctionEnableSwitch
16 Do not hold the function enable switch.
17 Slowly move the control handle in the direction
indicated by the blue arrow, then in the direction
indicated by the yellow arrow.
Result: No functions should operate.
Testthe Up/DownFunctions
18 Press the lift function select button.
Press and hold the lift function enable
button.
Move the lift/drive selector switch to
the lift position (if equipped).
19 Press and hold the function enable switch on
the control handle.
20 Slowly move the control handle in the direction
indicated by the blue arrow.
Result: The platform should raise. The pothole
guards should deploy.
21 Release the control handle.
Result: The platform should stop raising.
22 Press and hold the function enable switch.
Slowly move the control handle in the direction
indicated by the yellow arrow.
Result: The platform should lower. The descent
alarm should sound while the platform is
lowering.
CE models: When lowering the platform, the
platform should stop when it is 7 feet / 2.1 m from
the ground. Be sure the area below the platform is
clear of personnel and obstructions before
continuing. To continue lowering, release the
control handle, wait 5 seconds, then move the
controlhandle again.
TesttheSteering
Note: When performing the steer and drive function
tests, stand in the platform facing the steer end of
the machine.
23 Press the drive function select switch.
Move the lift/drive selector switch to
the drive position (if equipped).
24 Press and hold the function enable switch on
the control handle.
25 Depress the thumb rocker switch on top of the
control handle in the direction identified by the
blue triangle on the control panel.
Result: The steer wheels should turn in the
direction that the blue triangle points on the
controlpanel.
26 Depress the thumb rocker switch in the direction
identified by the yellow triangle on the control
panel.
Result: The steer wheels should turn in the
direction that the yellow triangle points on the
controlpanel.
FUNCTION TESTS
