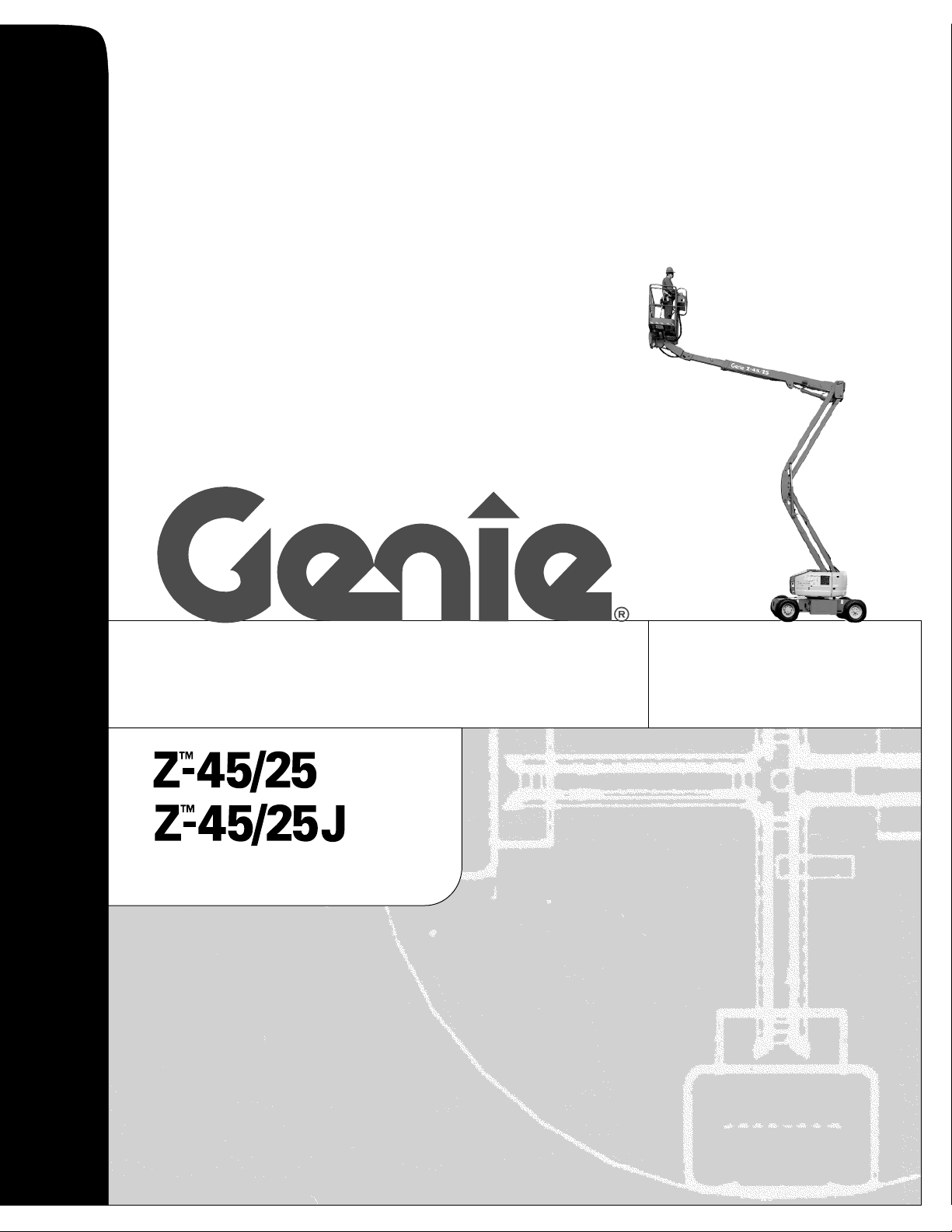

Genie Z-45/25 Setup guide

Second Edition
Second Printing
Part No. 82596
Operator’s Manual
with Maintenance Information
Bi-Energy Power

GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition · Second Printing
Copyright © 1999 by Genie Industries
First Edition: Fifth Printing, April 2002
Second Edition: Second Printing, August 2004
"Genie" and "Z" are registered trademarks of
Genie Industries in the U.S.A. and many other
countries.
These machines comply with
ANSI/SIA 92.5-1992.
Printed on recycled paper
Printed in U.S.A.
Important
Read,understandandobeythesesafetyrulesand
operating instructions before operating this machine.
Only trained and authorized personnel shall be
permitted to operate this machine. This manual should
be considered a permanent part of your machine and
should remain with the machine at all times. If you
have any questions, call Genie Industries.
Contents
Page
Safety ........................................................................ 1
Controls ..................................................................... 8
Pre-operationInspection ........................................... 11
Maintenance ............................................................. 13
Function Tests.......................................................... 16
WorkplaceInspection................................................ 21
OperatingInstructions............................................... 22
Transportand LiftingInstructions .............................. 27
Decals ...................................................................... 30
Specifications ........................................................... 34
Contact us:
Internet:http://www.genielift.com
E-mail:[email protected]

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 1
Operator's ManualSecond Edition • Second Printing
Safety Rules
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
Knowandunderstandthesafetyrulesbefore
going on to the next section.
2 Alwaysperformapre-operationinspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Youread,understandandobeythe
manufacturer'sinstructions and safetyrules—
safetyandoperator'smanualsandmachine
decals.
Youread,understandandobeyemployer's
safety rules and worksite regulations.
Youread,understandandobeyallapplicable
governmentalregulations.
Youareproperlytrainedtosafelyoperate the
machine.

2 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
SAFETY RULES

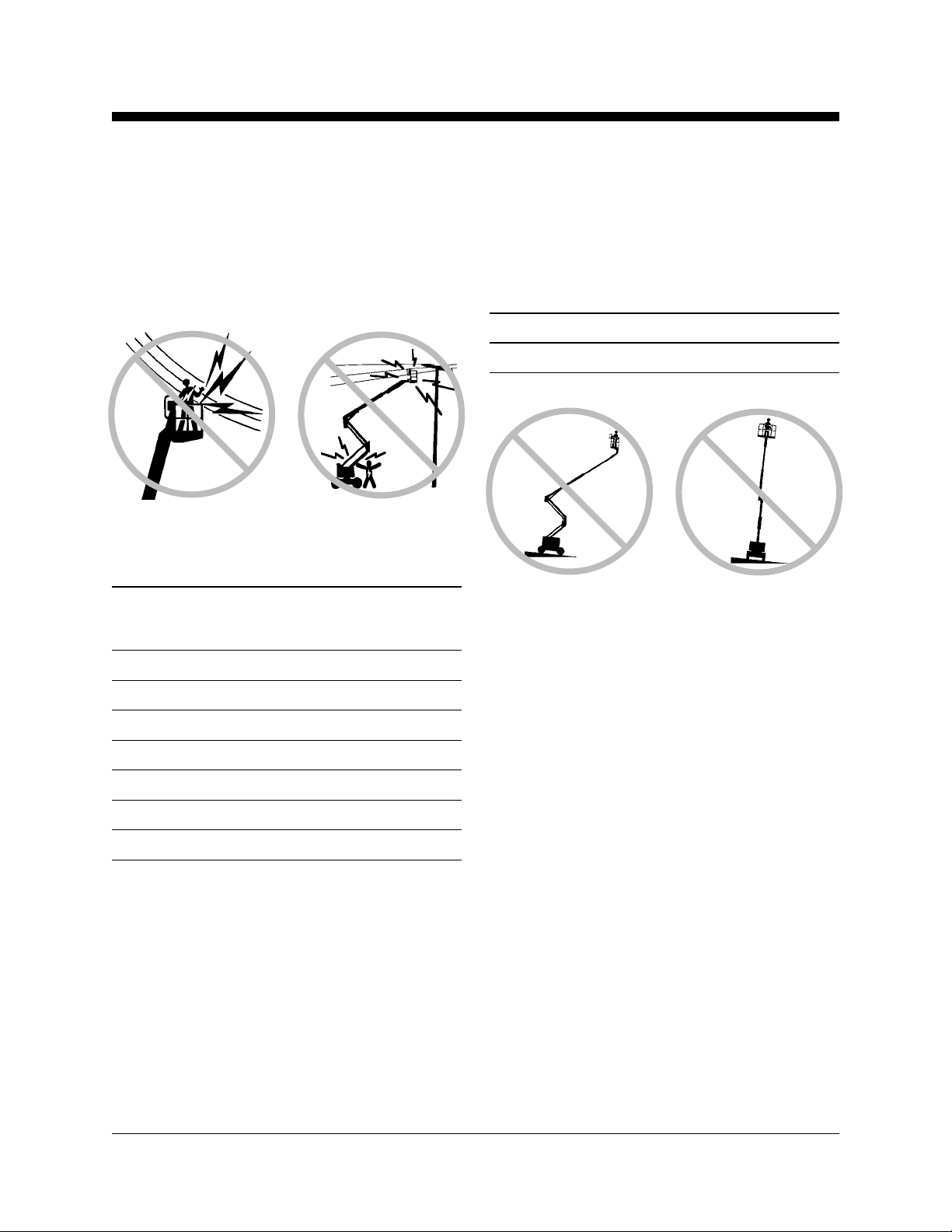

Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Maintain safe distances from electrical power lines
and apparatus in accordance with applicable
governmental regulations and the following chart.
Voltage Minimum Safe
Phase to Phase ApproachDistance
Feet Meters
0 to 300V Avoid Contact
300V to 50KV 10 3.1
50KV to 200KV 15 4.6
200KV to 350KV 20 6.1
350KV to 500KV 25 7.6
500KV to 750KV 35 10.7
750KV to 1000KV 45 13.7
Allow for platform movement, electrical line sway or
sag and beware of strong or gusty winds.
Keep away from the machine if it contacts
energized power lines. Personnel on the ground or
in the platform must not touch or operate the
machine until energized power lines are shut off.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants,equipment and materials shall not
exceed the maximum platform capacity.
Maximum platform capacity 500 lbs 227 kg
Maximum occupants 2
Do not raise or extend the boom unless the
machine is on a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds in the platform only when the
machine is on a severe slope.
If the tilt alarm sounds:
Do not extend, rotate or raise the boom above
horizontal. Move the machine to a firm, level
surface before raising the platform. If the tilt alarm
sounds when the platform is raised, use extreme
caution to retract the boom and lower the platform.
Donot rotate the boom whilelowering. Move the
machine to a firm, level surface before raising the
platform.
Do not use the platform controls to free a platform
that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 3
Operator's ManualSecond Edition • Second Printing
SAFETY RULES

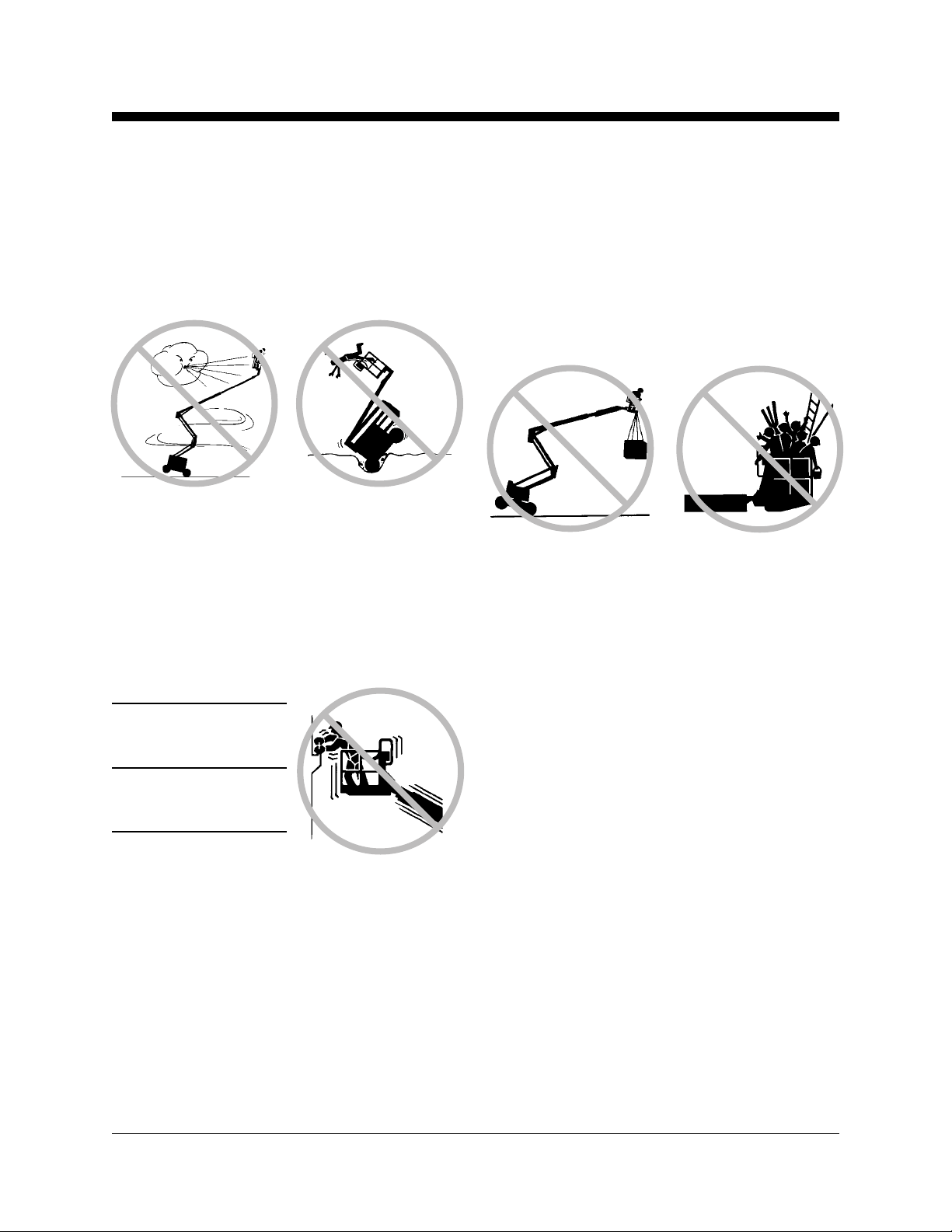

Do not operate the machine in strong or gusty
winds. Do not increase the surface area of the
platform or the load. Increasing the area exposed to
the wind will decrease machine stability.
Use extreme care and slow speeds while driving
the machine in the stowed position across uneven
terrain,debris,unstableor slippery surfaces and
nearholesanddrop-offs.
Donotdrivethe machine on or near uneven terrain,
unstablesurfacesor otherhazardousconditions
withthe boom raised or extended.
Do not push off or pull toward any object outside
of the platform.
Maximum allowable
side force - ANSI & CSA
150 lbs / 667 N
Maximum allowable
side force - CE
90 lbs / 400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform
withoutprior writtenpermission fromthe
manufacturer.Mountingattachmentsforholding
toolsor other materials onto the platform, toeboards
or guard rail system can increase the weight in the
platform and the surface area of the platform or the
load.
Do not place ladders or scaffolds in the platform or
against any part of this machine.
Do not use the machine on a moving or mobile
surface or vehicle.
Do not transport tools and materials unless they are
evenly distributed and can be safely handled by
person(s)intheplatform.
Be sure all tires are in good condition, air-filled tires
areproperlyinflated andlug nutsareproperly
tightened.
Do not use batteries that weigh less than the
originalequipment. Batteriesareused as
counterweight and are critical to machine stability.
Each battery must weigh 105 pounds / 47.6 kg.
Each battery box including batteries must weigh a
minimum of 530 pounds / 240.4 kg.

4 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
SAFETY RULES

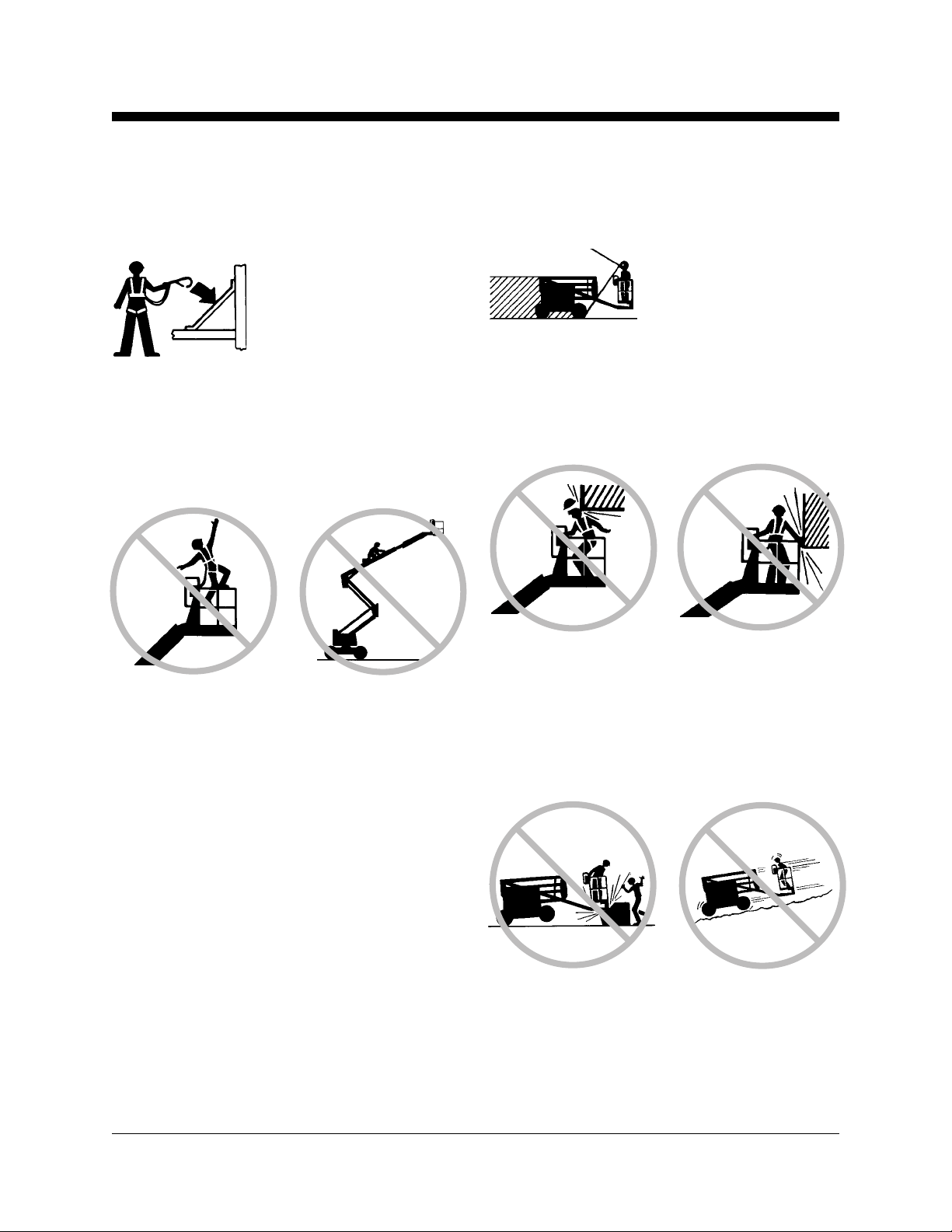

Fall Hazards
Occupants must wear a
safety belt or harness in
accordancewith
governmentalregulations.
Attach the lanyard to the
anchorprovidedinthe
platform.
Do not sit, stand or climb on the platform guard
rails. Maintain a firm footing on the platform floor at
all times.
Do not climb down from the platform when raised.
Keep the platform floor clear of debris.
Lower the platform entry mid-rail or close the entry
gatebeforeoperating.
Collision Hazards
Be aware of limited sight
distance and blind spots
whendrivingoroperating.
Beawareofboompositionwhenrotatingturntable.
Operators must comply with employer, job site and
governmentalrulesregardingtheuseofpersonal
protectiveequipment.
Checkthe work area for overheadobstructionsor
otherpossiblehazards.
Beawareofcrushinghazards whengrasping the
platformguardrail.
Observeandusecolor-codeddirectionarrowson
the platform controls and drive chassis for drive
and steer functions.
Do not lower the boom unless the area below is
clearof personnelandobstructions.
Limit travel speed according to the condition of the
ground surface, congestion, slope, location of
personnel, and any other factors which may cause
collision.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 5
Operator's ManualSecond Edition • Second Printing
Do not operate a boom in the path of any crane
unless the controls of the crane have been locked
out and/or precautions have been taken to prevent
any potential collision.
Nostunt driving or horseplaywhileoperatinga
machine.
Bodily Injury Hazard
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/orburnskin.
Whenthe engine isrunning,operate the machinein
awell-ventilatedareatoavoidcarbonmonoxide
poisoning.
Impropercontact with componentsunderany cover
will cause serious injury. Only trained maintenance
personnel should access compartments. Access
by the operator is only advised when performing a
pre-operationinspection.Allcompartmentsmust
remainclosedandsecuredduringoperation.
Component Damage Hazards
Do not use any battery or charger greater than 12V
tojump-starttheengine.
Do not use the machine as a ground for welding.
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleumgas (LPG), gasoline, diesel fuel or other
explosive substances.
Donot refuel the machine with the engine running.
Refuel the machine and charge the battery only in
anopen, well-ventilatedareaaway from sparks,
flames and lighted tobacco.
Donot operate the machine in hazardous locations
orlocationswherepotentiallyflammableor
explosive gases or particles may be present.
Donot spray etherintoengines equipped with glow
plugs.
Damaged Machine Hazards
Donot use a damaged or malfunctioning machine.
Conductathoroughpre-operationinspectionofthe
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the Genie Z-45/25
Bi-Energy&Z-45/25JBi-Energy Service Manual.
Be sure all decals are in place and legible.
Be sure the operator’s, safety and responsibilities
manualsarecomplete, legible and in the storage
containerlocated on the platform.
SAFETY RULES

6 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
SAFETY RULES

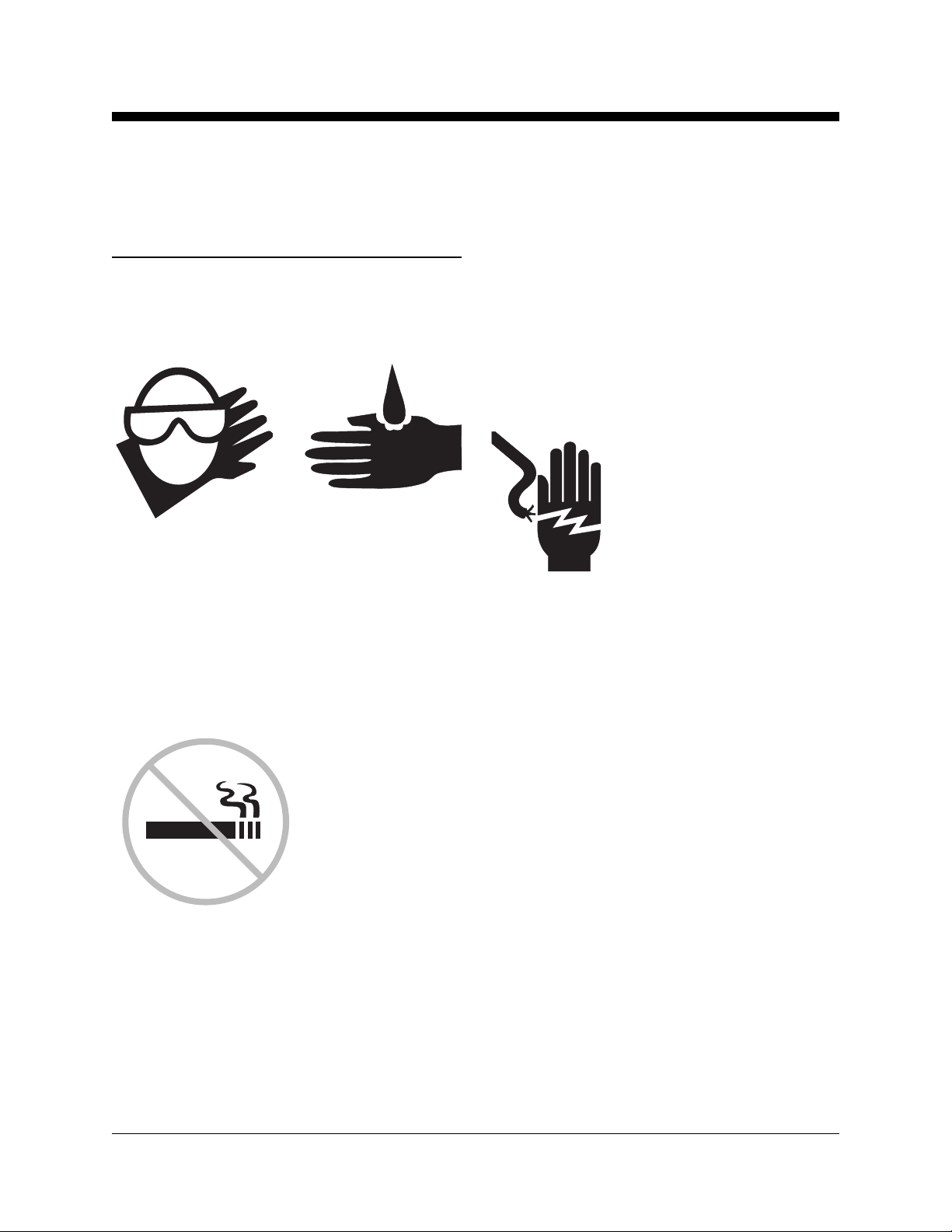

Battery Safety
Burn Hazards
Batteries contain acid. Always wear protective
clothingandeyewearwhenworkingwithbatteries.
Avoid spilling or contacting battery acid. Neutralize
battery acid spills with baking soda and water.
The battery pack must remain in an upright
position.
Do not expose the batteries or the charger to water
orrain.
Explosion Hazards
Keep sparks, flames
andlightedtobacco
awayfrom batteries.
Batteries emit an
explosive gas.
The battery pack cover
mustremain off during
theentirecharging
cycle.
Do not contact the battery terminals or the cable
clamps with tools that may cause sparks.
Component Damage Hazards
Do not use any battery charger greater than 48V to
chargethebatteries.
Both battery packs must be charged together.
Disconnectthe battery pack plug before removing
the battery pack.
Electrocution Hazards
Connect the battery charger to a
grounded,AC3-wireelectrical
outlet only.
Inspect daily for damaged cord,
cablesandwires. Replace
damageditemsbefore
operating.
Avoid electrical shock from contact with battery
terminals. Remove all rings, watches and other
jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the
originalequipment. Batteriesareused as
counterweight and are critical to machine stability.
Each battery must weigh 105 pounds / 47.6 kg.
Each battery box including batteries must weigh a
minimum of 530 pounds / 240.4 kg.
Lifting Hazard
Use a forklift to remove or install the battery packs.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 7
Operator's ManualSecond Edition • Second Printing

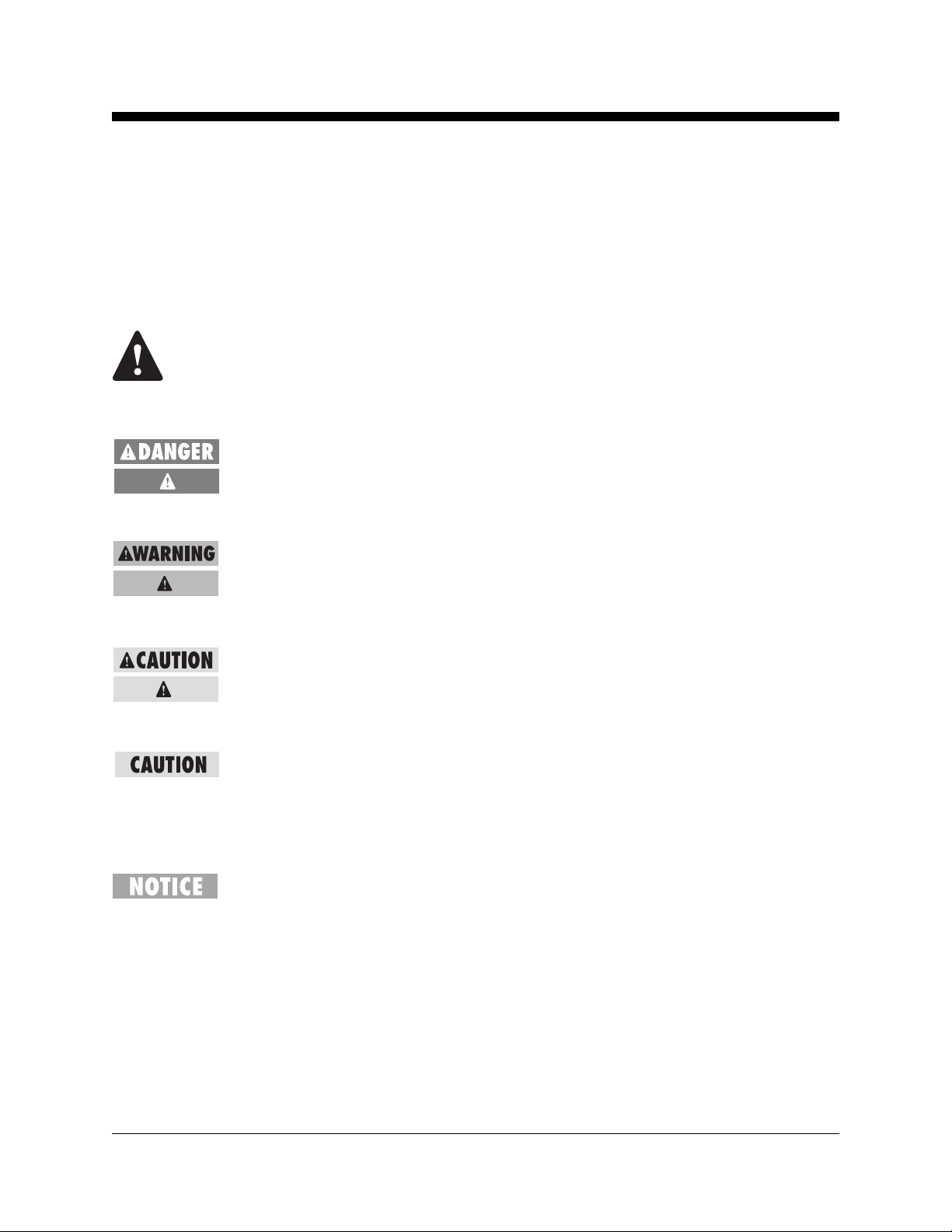

Decal Legend
Genie product decals use symbols, color coding
and signal words to identify the following:
Safety alert symbol—used to alert
personneltopotentialpersonal
injury hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Red—usedtoindicatethe
presence of an imminently
hazardous situation which, if not
avoided, will result in death or
seriousinjury.
Orange—usedtoindicatethe
presence of a potentially
hazardous situation which, if not
avoided, could result in death or
seriousinjury.
Yellow with safety alert symbol—
used to indicate the presence of a
potentiallyhazardoussituation
which, if not avoided, may cause
minorormoderateinjury.
Yellow without safety alert
symbol—used to indicate the
presence of a potentially
hazardous situation which, if not
avoided, may result in property
damage.
Green—usedtoindicateoperation
ormaintenanceinformation.
SAFETY RULES

8 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
13
6 Platform rotate switch
7 Platform level switch
8 Optionalequipment
9 Glowplug switch
10 Engine start switch
PlatformControlPanel
1 Hornbutton
2 Auxiliarypower switch
3 Driveenableindicatorlight
4 Driveenableswitch
5 Z-45/25JBi-Energy models: Jib boom
up/down switch
2
Controls
56 7
18198
4
2021

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 9
Operator's ManualSecond Edition • Second Printing
CONTROLS
11 Engine idle (rpm) select switch
· Rabbit & Foot Switch: foot switch activated
highidle
· Turtle: low idle
· Rabbit: high idle and quickest battery
charging
12 Platformoverloadindicatorlight(ifequipped)
13 Machine not level indicator light (if equipped)
14 RedEmergencyStopbutton
810 11
1516
912 13 14
17
15 Proportionalcontrolhandlefordrivefunctionand
thumb rocker for steer function
16 Boomfunctionspeedcontroller
17 Primaryboomextend/retract switch
18 Primaryboomup/downswitch
19 Secondaryboomup/downswitch
20 Turntablerotateleft/right switch
21 Batterychargeindicator

10 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
CONTROLS
5
89 7
2
1
3
4
10
11
5
12
13
14515161718

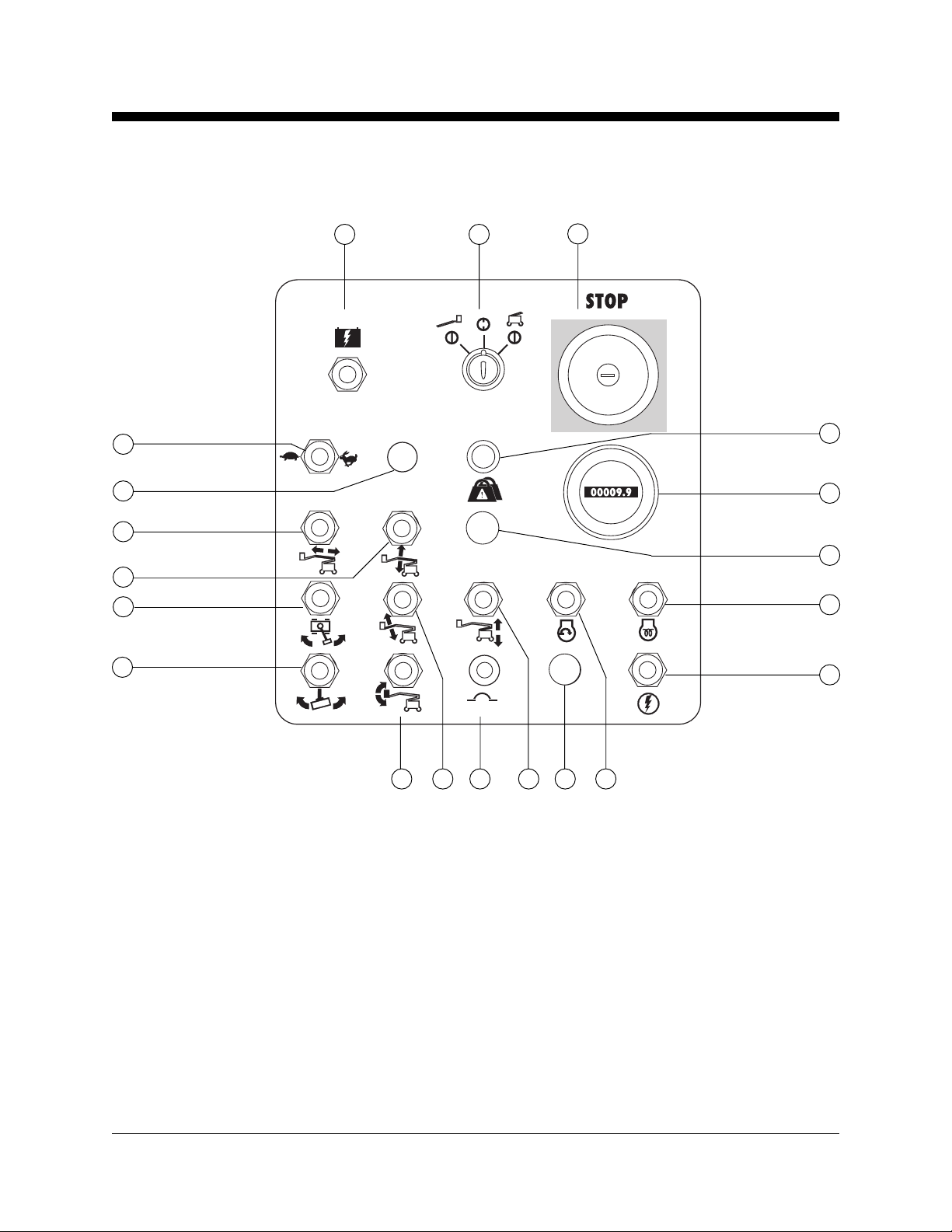

GroundControlPanel
1 Platform rotate switch
2 Turntablerotateswitch
3 Primaryboomup/downswitch
4 Primaryboom extend/retract switch
5 Notused
6 Engine idle (rpm) select switch
· turtle: low idle
· rabbit: high idle and quickest battery
charging
7 Auxiliary power switch
8 Key switch for platform/off/ground selection
9 RedEmergencyStop button
10 Platformoverloadindicatorlight(ifequipped)
11 Hourmeter
12 Glowplugswitch
13 Functionenableswitch
14 Engine start switch
15 Secondaryboomup/downswitch
16 10A breaker for control electrical circuits
17 Z-45/25JBi-energymodels:Jibboom
up/downswitch
18 Platform level switch
6

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 11
Operator's ManualSecond Edition • Second Printing
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
Knowandunderstandthepre-operation
inspection before going on to the next
section.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a
pre-operationinspectionandroutinemaintenance.
Thepre-operationinspection is a visual inspection
performed by the operator prior to each work shift.
The inspection is designed to discover if anything
is apparently wrong with a machine before the
operator performs the function tests.
Thepre-operationinspectionalsoservesto
determine if routine maintenance procedures are
required. Only routine maintenance items specified
in this manual may be performed by the operator.
Refer to the list on the next page and check each
of the items.
Ifdamage oranyunauthorized variationfrom
factory delivered condition is discovered, the
machinemust be tagged and removed from
service.
Repairs to the machine may only be made by a
qualified service technician, according to the
manufacturer's specifications. After repairs are
completed, the operator must perform a
pre-operation inspection again before going on to
the function tests.
Scheduled maintenance inspections shall be
performed by qualified service technicians,
according to the manufacturer's specifications and
the requirements listed in the responsibilities
manual.

12 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
PRE-OPERATIONINSPECTION
Pre-operation Inspection
oBe sure that the operator's, safety and
responsibilities manuals are complete, legible
and in the storage container located on the
platform.
oBe sure that all decals are legible and in place.
See Decals section.
oCheck for engine oil leaks and proper fluid level.
Add oil if needed. See Maintenance section.
oCheck for engine coolant leaks and proper fluid
level. Add coolant if needed. See Maintenance
section.
oCheck for hydraulic oil leaks and proper oil
level. Add oil if needed. See Maintenance
section.
oCheck for battery fluid leaks and proper fluid
level. Add distilled water if needed. See
Maintenancesection.
oCheck for proper tire pressure. Add air if
needed.SeeMaintenancesection.
Checkthefollowing components or areas for
damage,improperly installed or missingpartsand
unauthorizedmodifications:
oElectricalcomponents,wiringandelectrical
cables
oHydraulicpowerunit,hoses,
fittings, cylinders and manifolds
oGenerator,beltsandrelatedcomponents
oFuel and hydraulic tanks
oDriveandturntablemotorsandtorquehubs
oBoomwearpads
oTiresandwheels
oEngineandrelatedcomponents
oLimit switches, alarms and horn
oNuts, bolts and other fasteners
oPlatformentrymid-rail/gate
oBeaconandalarms(ifequipped)
Checkentire machine for:
oCracks in welds or structural components
oDentsor damagetomachine
oBe sure that all structural and other critical
components are present and all associated
fasteners and pins are in place and properly
tightened.
oAfter you complete your inspection, be sure that
all compartment covers are in place and
secured.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 13
Operator's ManualSecond Edition • Second Printing
Maintenance
Observe and Obey:
Only routine maintenance items specified in this
manual shall be performed by the operator.
Scheduled maintenance inspections shall be
completed by qualified service technicians,
according to the manufacturer's specifications
and the requirements specified in the
responsibilitiesmanual.
Check the Hydraulic Oil Level
Maintaining the hydraulic oil at the proper level is
essential to machine operation. Improper hydraulic
oil levels can damage hydraulic components. Daily
checks allow the inspector to identify changes in oil
level that might indicate the presence of hydraulic
system problems.
1 Be sure the boom is in the stowed position, then
visually inspect the oil level in the hydraulic
tank.
Result: The hydraulic oil level should be within
the FULL and ADD marks on the hydraulic tank.
Hydraulic oil specifications
Hydraulic oil type Chevron Rykon
Premium MV equivalent
Maintenance Symbols Legend
The following symbols have been
used in this manual to help
communicate the intent of the
instructions. When one or more of
the symbols appear at the
beginning of a maintenance
procedure, it conveys the meaning
below.
Indicates that tools will be required to
perform this procedure.
Indicates that new parts will be required to
perform this procedure.

14 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
Check the Batteries
Proper battery condition is essential to good
machineperformanceandoperationalsafety.
Improperfluid levels ordamagedcables and
connectionscan result incomponentdamageand
hazardousconditions.
Bodily injury hazard. Batteries
contain acid. Avoid spilling or
contacting battery acid. Neutralize
battery acid spills with baking soda
and water.
Charging the batteries with the
engine does not fully charge the
batteries. Periodically, use the AC
battery charger to fully charge the
batteries.
Perform this test after fully
charging the batteries.
1 Put on protective clothing and eye wear.
2 Be sure that the battery cable connections are
tight and free of corrosion.
3 Remove the battery vent caps.
4 Check the battery acid level. If needed,
replenish with distilled water to the bottom of
the battery fill tube. Do not overfill.
5 Install the vent caps.
MAINTENANCE
Check the Engine Oil Level
Maintaining the proper engine oil level is essential
to good engine performance and service life.
Operating the machine with an improper oil level
can damage engine components.
Check the oil level with the
engine off.
1 Check the oil level dipstick. Add oil as needed.
Result: The oil level should be at the FULL mark
on the dipstick.
Kubota Engine Z482-E
Oil viscosity requirements 10W-30
Engine oil should have properties of API classification
CC/SE, CD/SE, CC/SF or CD/SF grades. Units ship
with 10W-40 SG/CC
Check the Engine Coolant Level
Maintaining the engine coolant at the proper level is
essential to engine service life. Improper coolant
level will affect the engine's cooling capability and
damage engine components. Daily checks will
allow the inspector to identify changes in coolant
level that might indicate cooling system problems.
1 Check the fluid level in the coolant recovery
tank. Add fluid as needed.
Result: The fluid level should be at the
FULL mark.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 15
Operator's ManualSecond Edition • Second Printing
Scheduled Maintenance
The scheduled maintenance items must be
completed by a person trained and qualified to
perform maintenance on this machine according to
the procedures found in the service manual for this
machine.
Machines that have been out of service for more
than three months must receive the quarterly
inspection before placing the machine back into
service.
MAINTENANCE
Check the Tire Pressure
Tip-overhazard.Anover-inflated
tire can explode, which may
compromise machine stability and
cause the machine to tip over.
Tip-over hazard. The use of
temporary flat tire repair products
may lead to tire failure, which
couldcompromisemachine
stability and cause the machine to
tip over.
Bodily injury hazard. An over-
inflated tire can explode and may
cause death or serious injury.
This procedure does not need to
be performed on machines
equipped with foam-filled tires.
1 Check each tire with an air pressure gauge and
add air as needed.
Tire pressure 100 psi
6.9 bar

16 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
Function Tests
Fundamentals
The function tests are designed to discover any
malfunctions before the machine is put into
service. The operator must follow the step-by-step
instructions to test all machine functions.
A malfunctioning machine must never be used. If
malfunctions are discovered, the machine must be
tagged and removed from service. Repairs to the
machine may only be made by a qualified service
technician, according to the manufacturer's
specifications.
After repairs are completed, the operator must
perform a pre-operation inspection and function
tests again before putting the machine into service.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator's
manual.
1 Avoid hazardous situations.
2 Always perform a pre-operation
inspection.
3 Always perform function tests prior to
use.
Knowandunderstandthefunctiontests
before going on to the next section.
4 Inspect the workplace.
5 Only use the machine as it was intended.

PartNo.82596 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy 17
Operator's ManualSecond Edition • Second Printing
FUNCTIONTESTS
Test the Tilt Sensor
9 Turn the key switch to
platform control. Pull out
the platform red
Emergency Stop button to
the on position.
10 Opentheengineside
turntablecoverandlocate
the tilt sensor to the right of
thehydraulicpump.
11 Press down one side of the tilt sensor and hold
for 5 seconds.
Result: The alarm, located in the platform,
should sound.
Test Auxiliary Controls
12 Turn the key switch to ground control.
13 Pull out the red Emergency Stop button to the
onposition.
14 Simultaneously hold the
auxiliarypowerswitchonand
activateeachboomfunction
toggle switch.
Note: To conserve battery power, test each
function through a partial cycle.
Result: All boom functions should operate.
1 Select a test area that is firm, level and free of
obstruction.
At the Ground Controls
2 Turn the key switch to ground control.
3 Pull out the red Emergency Stop button to
the on position.
Result:The beacon (if equipped) should flash.
4 Startthe engine. See Operating Instructions
section.
TestEmergencyStop
5 Push in the red Emergency Stop button to the
off position.
Result: The engine should turn off and all
functionsshould notoperate.
6 Pull out the red Emergency Stop button to
the on position.
TesttheMachineFunctions
7 Donot hold the function enable
switch to either side. Attempt to
activate each boom and
platform function toggle switch.
Result: All boom and platform functions should
notoperate.
8 Hold the function enable switch to either side
and activate each boom and platform function
toggle switch.
Result: All boom and platform functions should
operate through a full cycle. The descent alarm
(ifequipped)shouldsoundwhilethe boom is
lowering.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.

18 GenieZ-45/25Bi-Energy&GenieZ-45/25JBi-Energy PartNo.82596
Operator's Manual Second Edition • Second Printing
FUNCTIONTESTS
TestMachineFunctions
23 Press down the foot switch.
24 Activate each machine function control handle
or toggle switch.
Result: All boom/platform functions should
operate through a full cycle.
Note: Control the speed of boom functions by
adjusting the boom function speed controller. Drive
and steer functions are not affected by the boom
function speed controller.
Machines equipped with Platform Level Control
Disable Function: The platform level toggle switch
will not operate when the primary boom is raised
past the drive speed limit switch.
Test the Steering
25 Press down the foot switch.
26 Depress the thumb rocker switch on top of the
drive control handle in the direction identified by
the blue triangle on the control panel.
Result: The steer wheels should turn in the
direction that the blue triangles point on the
drive chassis.
27 Depress the thumb rocker switch in the
direction identified by the yellow triangle on the
control panel.
Result: The steer wheels should turn in the
direction that the yellow triangles point on the
drive chassis.
At the Platform Controls
TestEmergencyStop
15 Push in the platform red Emergency Stop button
to the off position.
16 Activate each machine function control handle
or toggle switch.
Result: No functions should operate.
17 Pull out the red Emergency Stop button to the
onposition.
TesttheHorn
18 Push the horn button.
Result:The hornshouldsound.
Testthe Foot Switch
19 Push in the platform red Emergency Stop button
to the off position.
20 Pull out the red Emergency Stop button to
the on position but do not start the engine.
21 Press down the foot switch and attempt to start
the engine by moving the start toggle switch to
either side.
Result: The engine should not start.
22 Do not press down the foot switch and test each
machinefunction.
Result: The machine functions should not
operate.
