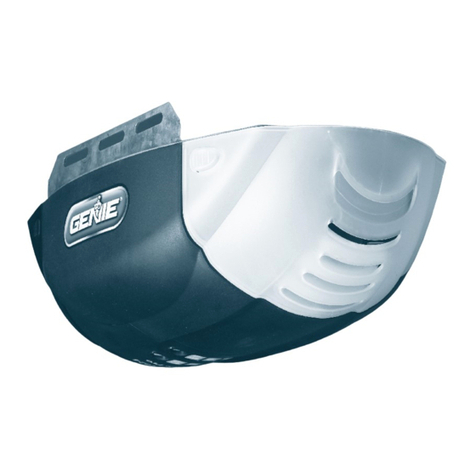

Genie Intellicode 1022 User manual

Models 1022/1024/1042
GARAGE DOOR OPENERS
Includes INTELLICODE®Remote Control
Safe-T-Beam®System must be installed to close door.
For use only with sectional doors. Your Residential
Opener comes with a Rail Assembly which is standard
for up to a 7 foot high door.
Homelink® and Car2U®compatible
For Answers and Assistance:
1.800.354.3643
or visit www.geniecompany.com
SAVE THIS MANUAL FOR FUTURE REFERENCE
Installer:
Leave this manual
with homeowner.
PN# 3642036534, 2/26/2010 REV.1
Homelink®is a registered trademark of
Johnson Controls Technology Company.
Car2U®is a registered trademark of
Lear Corporation.
© The Genie Company 2010. X900-745
A L W AY S AT Y O U R C O M M A N D

PN# 3642036534, 02/26/2010 REV. 1
2
OVERVIEW OF POTENTIAL HAZARDS
READ THIS SAFETY INFORMATION
Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving
objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others depend on the owner or
user of this system to read, understand and implement the information in this manual. If you have questions or do NOT
understand the information presented, contact The Genie Company or an authorized Genie®Dealer.
The safety alert symbol and following signal words DANGER, WARNING, and CAUTION are used throughout this manual to call
attention to and identify different levels of hazard and special instructions.
This is the safety alert symbol. This symbol is placed next to signal words and messages to help you identify
important safety information
The word:
DANGER indicates an imminently hazardous situation which, if NOT avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if NOT avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if NOT avoided, may result in injury or property damage.
The word NOTE is used to indicate important steps to be followed, important considerations, or location of parts.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
SAFETY INFORMATION
POTENTIAL
HAZARD EFFECT PREVENTION
Keep people clear of opening while door is moving.
Do NOT allow children to play with the door operator.
Do NOT operate a door that jams or one that has a broken spring.
MOVING DOOR
WARNING:
Could result in Death
or Serious Injury
Turn OFF power before removing operator cover.
When replacing cover, make sure wires are not pinched or near
moving parts.
Operator must be properly grounded.
ELECTRICAL
SHOCK
WARNING:
Could result in Death
or Serious Injury
Do NOT try to remove, install, repair or adjust springs or anything to
which door spring parts are fastened, such as, wood blocks, steel
brackets, cables or other like items.
Installations, repairs and adjustments must be done by a trained door
system technician using proper tools and instructions.
HIGH
SPRING
TENSION
WARNING:
Could result in Death
or Serious Injury

PN# 3642036534, 02/26/2010 REV. 1
3
TABLE OF CONTENTS OPENER FEATURES
INTELLICODE
®
Rolling Code Security System.
An electronic rolling code system that enhances the security of
the door opener by continuously changing the access code
each time the remote control is used. The door opener
responds to each new code only once. An access code copied
from a working system and tried again will not control the door
opener.
Lighted Wall Button*
Operates door opener from inside garage.
(Refer to section 3)
and Car2U®compatible.
Follow the Homelink®or Car2U®instructions in your car
owner’s manual.
*Opener MUST be installed with the
included Wall Button.
SAFETY FEATURES
Safe-T-Beam®Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door stops
and reverses to the full open position if anything passes
through the beam. Red or green LED indicator lights on the
power head provide a self diagnostic code if an operational
problem exists. (Refer to Section 10.)
Safe-T-Reverse
®
Contact Reversing System.
Automatically stops and reverses a closing door within 2
seconds of contact with an object. (Refer to Section 6.)
Safe-T-Stop
®
Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
Watch Dog
™ Monitoring System.
Monitors the Safe-T-Beam® system to ensure proper function-
ality and will automatically stop and reverse a closing door if a
problem is detected.
Automatic Lighting System.
One bulb lighting supplies up to 75 watts of light for safer
evening exits and entries. Turns ON when door is activated and
automatically turns OFF 3 minutes later.
Manual Emergency Release.
Manually releases door from door opener. Use during a power
failure or other emergency to allow manual opening and closing
of door. (Refer to Section 6.)
**Safe-T-Beam®Safety Reverse System
MUST be installed to close door.
SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
OPENER FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRE-INSTALLATION CHECK LIST . . . . . . . . . . . . . . . . . . . . . . . 4-5
RECOMMENDED TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
KEY ILLUSTRATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SAFETY INSTALLATION INFORMATION . . . . . . . . . . . . . . . . . . . . 9
INSTALLATION
1OPENER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
2INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
3WALL BUTTON INSTALLATION . . . . . . . . . . . . . . . . . . . 15-16
4SAFE-T-BEAM®SYSTEM INSTALLATION . . . . . . . . . . . 17-18
5CONNECTING TO POWER . . . . . . . . . . . . . . . . . . . . . . . . . 19
ADJUSTMENTS
6LIMIT SWITCHES & FORCE ADJUSTMENT . . . . . . . . . 20-22
KEYED EMERGENCY RELEASE . . . . . . . . . . . . . . . . . . . . 21
CONTACT REVERSE TEST. . . . . . . . . . . . . . . . . . . . . . . . . 22
7PROGRAMMING REMOTE CONTROLS. . . . . . . . . . . . . . . 23
8BATTERY/ VISOR CLIP INSTALLATION . . . . . . . . . . . . . . . 24
9LIGHT BULB AND LENS INSTALLATION . . . . . . . . . . . . . . 24
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MAINTENANCE & TROUBLESHOOTING
10 ROUTINE MONTHLY MAINTENANCE . . . . . . . . . . . . . . . . 25
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
TROUBLESHOOTING GUIDE - OPENER. . . . . . . . . . . . . . 27
TROUBLESHOOTING GUIDE - POWER HEAD LED . . . . . 28
TRANSMITTER COMPLIANCE STATEMENT . . . . . . . . . . . . . . . 29
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PN# 3642036534, 02/26/2010 REV. 1
6To avoid damage to your door and/or
opener, make sure you disable and/or
remove any door locks, ropes, and/or cables
(NOT door lift cables) prior to installing your
opener. (
Refer to Section 1.)
4
PRE-INSTALLATION CHECK LIST FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
Things to consider if you are planning to "Do-it-yourself."
This opener is designed for use with SECTIONAL doors only.
In many cases you will be replacing an existing door opener with a new one, however, if this
will be the first opener installed there are some pre-installation issues which need to be
addressed. They are as follows:
The Genie Company recommends that you read and fully understand all information and
instructions contained herein before choosing a "Do-it-yourself" installation. Any
questions should be directed to The Genie Company or an authorized Genie®Dealer.
1Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
position needed with respect to the garage door
opener. It may be necessary to add an
additional bracket and
fasteners (not included
with your new door opener kit).
(Refer to Section 2.)
2Check the wall directly above the garage
door.The door opener’s header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location. (
Refer to Section 2.)
3Check to see if the mounting location
for the Safe-T-Beam®System is clear from
obstruction and has a wood surface available
for attaching the mounting brackets.The
brackets may be attached to concrete if necessary
but extra tools and special fasteners (not supplied)
will be required.
(Refer to Section 4 and 5.)
NOTE: Mounting brackets must be installed
within code specifications.
4Is your sectional garage door made of
aluminum, light-weight steel, fiberglass
or glass panels?Additional support bracing
must be added to these type doors. If this is the
case, please contact the door manufacturer or
authorized dealer so that they can furnish you
with a "bracing kit."
(Refer to Section 2.)
7Insure that your door is properly balanced
and moving freely. (
Refer to Section 2.)
If your door jams, binds, is improperly
balanced or has a broken spring, have it
repaired or adjusted by a trained door system
technician. Door springs, cables, pulleys,
brackets and associated hardware are under
extreme tension and can cause serious injury
or death.
WARNING
(The issue numbers below refer to the circled numbers in the illustrations on page 5.)
8(NOT SHOWN) If your garage does not have
a separate entry door, you should consider
an emergency release kit (GER-2)for installation on
your garage door. (See emergency release kit
installation notes on page 21.)
DO NOT USE AN EXTENSION CORD!
DO NOT USE A PORTABLE GENERATOR! This
product is designed to operate on
standard house current.
DO NOT USE ALTERNATE POWER SUPPLIES.
WARNING
5You need a properly grounded 110-120 Volt
power supply available.The outlet should be
no more than 3 feet from the power head once it is
mounted.
(Refer to Section 5.)
Remove
Remove
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING

PN# 3642036534, 02/26/2010 REV. 1
5
TYPICAL SECTIONAL DOOR INSTALLATION FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
TYPICAL SUPPORT
BRACKET
(NOT PROVIDED)
EXTENSION SPRING
OR
TORSION SPRING
SAFE-T-BEAM®
SENSORS
BRACES
ADDED
HEADER BRACKET
MOUNTING BOARD
POWER CORD
(APPROX. 45 IN.)
TO 120V GROUNDED
OUTLET
4
1
3
6
2
3
5
SECTIONAL DOOR
Pg. 19 Pg. 13
Pg. 12-13
Pg. 14
Pg. 11
Pg. 17-18 Pg. 17-18
MAX. 6"
MIN. 5"
Pg. 12
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING
7
NOTE: This opener is designed for
use with SECTIONAL doors only.

PN# 3642036534, 02/26/2010 REV. 1
6
RECOMMENDED TOOLS FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
3/16" Drill Bit
1/4", 7/16", 3/8" and
1/2" Sockets
Step ladder
Drill
Ratchet
Carpenter’s level
Pencil
Tape measure
Wire strippers
Phillips screwdriver
Adjustable wrench
PARTS IDENTIFICATION -
Not Shown Full Size .
Three-button
Remote Control
Child can be pinned under automatic garage door.
Death or serious injury can result.
•
Never let child walk or run under moving door. .
•
Never let child use door opener controls.
•
Always keep moving door in sight.
•
If person is pinned, push control button or use
emergency release.
•
Test door opener monthly:
Refer to your owner'
’
s manual.
Place 1
1
/ 2 -inch object (or 2x4 laid flat) on floor.
If door fails to reverse on contact, adjust opener.
If opener still fails to reverse door, repair or replace opener.
Do not remove or paint over this label.
Mount wall control out of child's reach (at least 5 feet above floor).
Place next to wall control. ©1999
Wall Button
Safety Brochures Entrapment Warning
Label
Safe-T-Beam®Source
with wire
(Red LED)
Safe-T-Beam®Sensor
with wire
(Green LED)
Wire
Insulated Staple
Door
Bracket
Header Bracket
Rail Section Clamp
Safe-T-Beam®
Source/Sensor Bracket
ARRANGING BOX CONTENTS FOR ASSEMBLY
ORGANISATION DU CONTENU DE LA BOÎTE POUR LE MONTAGE
DISPOSICIÓN DEL CONTENIDO DE LA BOLSA PARA EL MONTAJE
Remove internal boxes.
Enlever les boîtes internes.
Quite las cajas internas.
Arrange three small boxes for easy access.
Arranger les trois petites boîtes de manière à pou-
voir y accéder facilement.
Disponga las tres cajas pequeñas para tener acceso
fácil.
Arrange rails in line and pull plastic sleeve off chain.
Arranger les rails en ligne et tirer sur le manchon en plastique
pour le dégager de la chaîne.
Disponga los rieles en línea y estire la camisa de plástico fuera
de la cadena.
Remove lens Box and motor power head.
Enlever la boîte des lentilles et la tête motorisée.
Quite la caja de la lente y el motor de la caja de control.
Carefully remove third rail (with chain
attached) and place on floor.
Enlever soigneusement le troisième rail (avec la
chaîne attachée) et le placer sur le sol.
Cuidadosamente quite el tercer riel (con la
cadena acoplada) y ponga en el piso.
Remove rail sections not connected
to chain.
Enlever les sections de rail non connectées
à la chaîne.
Quite las secciones de riel no conectadas a
la cadena.
Follow instructions in the Installation Manual for assembly steps.
Procéder selon les instructions stipulées dans le manuel d'installation pour les étapes de
montage à suivre.
Si l i t i lM ld i t l ió l d t j
©OverheadDoor Corporation 06/2007
Box Contents Sheet
Head Rail (Chain) Section
Center Rail Section
End Rail Section
Door Arm
Hammer
Safety Glasses
Head Rail (Belt) Section
Pro Rail (Chain) Section
Pro Rail (Belt) Section
OR

PN# 3642036534, 02/26/2010 REV. 1
FASTENERS - Shown Full size (
See Parts List below for full description.)
Lag screw - 5/16" x 2"
Self-drilling Screw
1/4"-20 x 3/4"
Hex Flange Nut
1/4"-20
Cotter pin
Clevis pin
5/16" x 3/4"
Hex Bolt - 5/16"-18 x 3/4"
Hex Flange Nut
5/16"-18
Rail Clamp Bolt - 5/16"-18 x 5/8"
#10-16 x 1-1/4" Phillips Hex Screw
Hex Bolt - 5/16"-18 x 1/2"
#4-24 x 1" Pan Head
Phillips Screw
Clevis pin, long 5/16" x 3"
7
BAG NO. DESCRIPTION QUANTITY
0RAIL SECTION CLAMP 2
RAIL CLAMP BOLT – 5/16''-18 x 5/8'' 8
HEX FLANGE NUT – 5/16''-18 8
1BOLT – 5/16''-18 x 1/2'' 3
2CLEVIS PIN, LONG – 5/16" x 3" 1
COTTER PIN 1
HEADER BRACKET 1
LAG SCREW – 5/16'' x 2'' 2
3HEX BOLT – 5/16''-18 x 3/4'' 5
HEX FLANGE NUT – 5/16''-18 5
LAG SCREW – 5/16'' x 2'' 2
4SELF DRILLING SCREW – 1/4''-20 x 3/4'' 3
DOOR BRACKET 1
5HEX BOLT – 5/16''-18 x 3/4'' 3
SELF LOCKING NUT – 5/16''-18 1
HEX FLANGE NUT – 5/16''-18 2
CLEVIS PIN – 5/16" x 3/4" 1
COTTER PIN 1
6WALL BUTTON BUTTON ASSEMBLY 1
PAN HEAD PHILLIPS SCREW – #4-24 x 1'' 2
713 MM INSULATED STAPLE 30
8 Safe-T-Beam®SOURCE/SENSOR BRACKET 2
PHILLIPS HEX SCREW – #10-16 x 1- 1/4'' 4
WIRE NUT (GREY) 4
NO NUMBER REMOTE WITH BATTERY 1
NO BAG Safe-T-Beam®SOURCE/SENSOR & WIRE SET 1
NO NUMBER LIGHT COVER - WHITE 1
NO NUMBER LIGHT COVER - COLOR 1
Self Locking Nut
5/16"-18
Wire Nut
MISSING ANY PARTS? Please call toll free - 1.800.354.3643
DO NOT RETURN TO POINT OF PURCHASE.
IMPORTANT! - Information needed when calling
• Model number - (located on packaging)
• Store, city, state, and date of purchase
Shoulder Bolt
5/16"-18 x 1"

PN# 3642036534, 02/26/2010 REV. 1
8
1-PIECE RAIL HARDWARE ASSEMBLED VIEW
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
3-PIECE RAIL HARDWARE ASSEMBLED VIEW
Tensioner
Rail with chain
Chain
Trolley Slide
Release
Knob
Header
Bracket
Power Head
Power Cord
Clevis Pin, Long
& Cotter Pin
NOTE
Somedoors need
bracing.Contact
doordistributor or
manufacturerfor
instructions.
HIGH SPRING TENSION
Can Cause Serious Injuryor Death
Repairsoradjustmentsmustbemadebyatrained
servicepersonusingpropertoolsandinstructions
Rail with belt
Belt
Trolley Slide
Belt Clamp
Rail Clamps
Rail Clamp Bolts
Rail Clamp Nuts
Tensioner
Rail with chain
Center Rail
End Rail
Chain
Trolley Slide
Release
Knob
Header
Bracket
Clevis Pin, Long
& Cotter Pin
Power Head
Power Cord
NOTE
Somedoors need
bracing.Contact
doordistributor or
manufacturerfor
instructions.
HIGHSPRING TENSION
Can Cause Serious Injury or Death
Repairsor adjustments must be made by a trained
serviceperson using proper tools and instructions
Rail with belt
Center Rail
End Rail
Belt
Release
Knob
NOTE
Somedoors need
bracing.Contact
doordistributor or
manufacturerfor
instructions.
HIGHSPRING TENSION
Can Cause Serious Injury or Death
Repairsor adjustments must be made by a trained
serviceperson using proper tools and instructions
CHAIN
CHAIN
BELT
BELT

PN# 3642036534, 02/26/2010 REV. 1
9
OPENER ASSEMBLY
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
1
NOTE: Three (3) piece rail assemblies are for a 7
foot high door.
Clear a workspace area to unpack and organize box
and contents for assembly.
1. There are 4 boxes inside the carton. Each box is
numbered 1 - 4. Note that some openers will
contain the same parts and be packaged with
fewer boxes. Carefully remove the three
internal boxes (Labeled #1, 2, and 3) and place
them on the floor for easy access (Fig. 1-1).
These boxes contain assembly parts and the
contents are organized by assembly tasks. For
quick reference inside the lid of each box there is
a label illustrating the components inside.
2. Remove the motor power head and place it on
the floor for later use. Remove box #4 and
place it on the floor for later use.
Do NOT run until opener is fully assembled and
instructed to do so.
CAUTION
FIG. 1-1 Internal boxes.
RAIL ASSEMBLY: Use a clean, flat surface.
Rail Connectors
Rail Connector Bolts
Rail Connector Nuts
NOTE
Somedoorsneed
bracing.Contact
doordistributoror
manufacturerfor
instructions.
HIGHSPRINGTENSION
CauseSerious Injury orDeath
mentsmustbemadebyatrained
ropertoolsandinstructions
Bolts
Power head
Rail
Lag Srews
5/16" Nuts
& Bolts
Header Bracket
Bolts
Header Bracket
Bag 2
Bag 3Bag 1
Bag 0
Box Label Example
#4
1. READ AND FOLLOW ALL SAFETY, INSTALLATION
AND OPERATION INSTRUCTIONS.
(If you have
questions or do not understand an instruction, call The
Genie Company or an authorized Genie®Dealer.)
2. Install only on a properly balanced sectional garage door.
An improperly balanced door could cause severe injury.
Have a trained door system technician make repairs or
adjustments to cables, spring assemblies, and other
hardware before installing the opener.
3. Remove all ropes and remove or make inoperative all
locks connected to the garage door before installing opener.
4. Where possible, install the door opener 7 feet or more
above the floor. For products having an emergency
release, mount the emergency release 6 feet above the floor.
IMPORTANT INSTALLATION INSTRUCTIONS
WARNING:
To reduce the risk of severe injury or death:
5. Do NOT connect the opener to source of power
until instructed to do so.
6. Locate the control button:
• Within sight of door,
• At minimum height of 5 feet so small children are not
able to reach it, and
• Away from all moving parts of the door.
7. Install the Entrapment WARNING Label next to the Wall
Control button in a prominent location. Install the
Emergency Release Tag on or next to the emergency
release.
8. After installing the opener, the door must reverse within
2 seconds when it contacts a 1-1/2 inch high object (or a
2 x 4 board laid flat) on the floor.
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
WARNING
NOTE: For 1-piece rail—skip to POWER HEAD &
RAIL ASSEMBLY.

10
FIG. 1-2 Split Rail sections.
FIG. 1-3 Split Rail assembly.
A
B
Chain Rail Center Rail
End Rail
Wire Tie(s)
Rail Assembly for CHAIN DRIVE OPENER
NOTE: For split rail clamps, nuts, and bolts
locate Bag 0 from Box 1.
3. Remove the two rail sections that are not
connected to the chain and place them on
floor (Fig. 1-2, A).
4. Carefully remove the third rail section with
chain and plastic sleeve. Place rail section on
floor and extend chain straight out
(Fig. 1-2, B). Chain and rail should extend
approximately 7 feet.
5. Remove wire ties and plastic bag from chain.
Leave chain extended straight out on floor.
Avoid kinks in the chain by careful handling and
keeping chain flat on the floor.
6. Align the three rail sections by pulling the
chain straight and wrapping it around the
chain tensioner pulley (Fig. 1-3 & 1-4).
7. Attach the two rail clamps to the rail section
joints with (4) bolts and nuts. After both rail
clamps have been assembled to the rail sections,
securely tighten the bolts and nuts.
PN# 3642036534, 02/26/2010 REV. 1
Rail Clamps
Rail Clamp Bolts
Rail Clamp Nuts
Rail with chain
Center Rail
End Rail
Chain
Trolley Slide
Release
Knob
ng
Power Head
NOTE
Somedoorsneed
bracing.Contact
doordistributor or
manufacturerfor
instructions.
HIGHSPRINGTENSION
CanCauseSeriousInjury orDeath
Repairsoradjustmentsmustbemadebyatrained
servicepersonusingpropertoolsandinstructions
Rail with belt
Center Rail
End Rail
Belt
Release
Knob
NOTE
Somedoorsneed
bracing.Contact
doordistributor or
manufacturerfor
instructions.
HIGHSPRINGTENSION
CanCauseSeriousInjuryorDeath
Repairsoradjustmentsmustbemadebyatrained
servicepersonusingpropertoolsandinstructions
Rail Assembly for BELT DRIVE OPENER
NOTE: For split rail clamps, nuts, and bolts
locate Bag 0 from Box 1.
3. Remove the two rail sections that are not
connected to the belt and place them on floor
(Fig. 1-2, A).
4. Carefully remove the third rail section with
belt. Place rail section on floor, remove ties on
belt and extend belt straight out (Fig. 1-2, B).
Avoid twists and kinks in the belt by careful
handling and keeping belt flat on the floor. Belt
and rail should extend approximately 7 feet.
5. Align the three rail sections by pulling the belt
straight and wrapping it around the tensioner
pulley (Fig. 1-3 & 1-4).
6. Attach the two rail clamps to the rail section
joints with (4) bolts and nuts. After both rail
clamps have been assembled to the rail sections,
securely tighten the bolts and nuts.
Belt Rail
Center Rail
End Rail
CHAIN DRIVE RAILS
BELT DRIVE RAILS
FIG. 1-4 Mount chain/belt to tensioner pulley.
Wrap around tensioner pulley
CHAIN
BELT
A
B

POWER HEAD & RAIL ASSEMBLY
Assembly for CHAIN DRIVE OPENER
NOTE: Handle carefully! Drive chain can slide out
of rail.
NOTE: For power head and rail assembly locate
Bag 1 from Box 1.
NOTE: Copy serial number from power head
frame and record it on warranty page.
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-5).
2. Tighten the chain by turning the adjustment
nut clockwise. The chain adjustment nut is
located in the Chain Pulley Bracket (opposite rail
end from the power head) (Fig. 1-6).
3. Tighten chain until chain is approximately 1/8
inch above the base of the rail at midpoint on
the rail (Fig. 1-6). Do NOT over tighten chain.
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
PN# 3642036534, 02/26/2010 REV. 1
11
FIG. 1-6 Chain adjustment.
FIG. 1-5 Rail - Power head assembly.
Chain Pulley Bracket (at wall end of rail)
Chain
T-Rail at center of rail assembly
1/8"
T-Rail
Chain
Tighten nut to move pulley this direction
Use 1/2" socket
on adjustment nut
Use
5/16"-18 x 1/2"
Bolts
FIG. 1-8 Disable garage door lock.
Remove
Remove
FIG. 1-7 Belt adjustment.
Belt Pulley Bracket (at wall end of rail)
Belt
T-Rail at center of rail assembly
1/8"
T-Rail
Belt
Tighten nut to move pulley this direction
Use 1/2" socket
on adjustment nut
Assembly for BELT DRIVE OPENER
NOTE: For power head and rail assembly locate
Bag 1 from Box 1.
NOTE: Copy serial number from power head
frame and record it on warranty page.
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-5).
2. Tighten the belt by turning the adjustment nut
clockwise. The belt adjustment nut is located in
the Belt Pulley Bracket (opposite rail end from the
power head) (Fig. 1-7).
3. Tighten belt until belt is approximately 1/8 inch
above the base of the rail at midpoint on the
rail (Fig. 1-7). Do NOT over tighten belt.
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
You should have removed all ropes and/or
cables (NOT door lift cables) and disabled
the door lock already. If you have not,
remove all ropes and/or cables and disable
garage door lock NOW before continuing
with installation (Fig. 1-8).
CAUTION
You should have removed all ropes and/or
cables (NOT door lift cables) and disabled
the door lock already. If you have not,
remove all ropes and/or cables and disable
garage door lock NOW before continuing
with installation (Fig. 1-8).
CAUTION

12
PN# 3642036534, 02/26/2010 REV. 1
FIG. 2-2 Finding highest point of travel.
INSTALLATION FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
2
HEADER AND DOOR
MOUNTING BRACKETS:
1. Finding header bracket mounting location.
• Close garage door.
– Use a pencil and level.
a) Mark center of garage door (one-half overall
width) on the wall with 6" vertical line at top
edge of door.
b) Continue this line on wall above door for
about 12" (Fig. 2-1, a).
• Raise garage door until top edge of door
reaches its maximum height
(Fig. 2-2) .
• With door at highest point.
–
Measure height from top edge of door to floor
(Fig. 2-2).
• Close door again.
• Mark height measurement on wall above door
(Fig. 2-1, c) .
– Make your mark across vertical line made earlier.
• Add 2-1/2" to height mark just made on
wall. This
is location for header bracket (Fig. 2-1, d).
NOTE: If header bracket location needs to be
above header for garage door opening, you need
to add a "mounting surface." A 2" x 6" board
securely attached (board and fasteners not
included) to wall studs on either side of your mark
is sufficient (Fig. 2-3).
NOTE: For header bracket and bolts locate Bag 2
from Box 1.
NOTE: The bolts supplied in Bag 2 are designed
to be used on pressure treated lumber.
2. Mounting the header bracket.
• Hold header bracket against wall (Fig. 2-3).
• Position bracket as shown.
– Place center on vertical line,
– Bottom edge on final height line.
• Mark screw hole locations on wall.
• Drill 3/16" pilot holes at each screw hole mark.
– Fasten header bracket with 2 lag screws
(provided) (Fig. 2-3).
FIG. 2-1 Final height mark.
Header bracket must be fastened to garage
framing. Do NOT fasten to drywall, particle
board, plaster or other such materials.
WARNING
2-1/2"
top of door
in closed
position
d) - final
height mark
HIGHEST POINT OF TRAVEL
TRACK
SECTIONAL
DOOR
HEADER
FROM HERE
TO FLOOR
2-1/2"
HIGHEST POINT OF TRAVEL
TRACK
SECTIONAL
DOOR
HEADER
FROM HERE
TO FLOOR
a) - 6" vertical
line
b) - extend
vertical line
c) - door at
highest point
door at highest point
door at highest point
final height mark
final height
mark
2-1/2"
FIG. 2-3 Header bracket mounting (on header &
above header) .
Door springs are under high tension. If spring or
its shaft is in the way, measure 2-1/2" above
spring or shaft on the garage door centerline and
mark this height as your location for header
bracket.
Do NOT move door spring!
WARNING

MOUNTING THE OPENER:
1. Getting started.
• Position assembled rail
on wall next to header
bracket
(Fig. 2-4).
– Place material on floor under power head to
protect from scratching. (A box, stool, or
similar device may be needed to clear a
torsion spring.)
NOTE: For header bracket pins locate Bag 2 from
Box 1.
2. Mounting the assembly.
• Attach rail to header bracket using clevis pin
and cotter pin (Fig. 2-5).
• Support power head on step-ladder to prevent
interference with header mounted (torsion)
spring.
NOTE: Before final attachment to ceiling, insure
that assembly is in proper alignment (Fig. 2-4).
NOTE: For nuts, bolts, and lag screws locate Bag
3 from Box 1.
• On finished ceilings, locate ceiling joists or
trusses using a stud finder or similar device.
Attach angle iron (not provided) to joists or
trusses through finish material using (provided)
lag screws (Fig. 2-6).
• On unfinished ceilings or open ceilings, straps
may attach directly to joists or trusses.
Depending on the garage construction, extra
framing material (not provided) which may be
required should be installed using appropriate
construction techniques (Fig. 2-6).
NOTE: Refer to your local building codes for
appropriate framing materials and construction
techniques.
• Attach mounting straps (not provided) to ceiling
using lag bolts (Fig. 2-6).
• Set height of power head to following (Fig. 2-6).
a) Rail must clear door at door’s highest point
of travel.
b) Be level or power head slightly below level.
• Securely tighten power head mounting bolts
and nuts.
• Carefully raise and lower door manually. Ensure
door does not contact any section of power head
or rail.
• Check that rail clamp bolts and nuts are tight.
•DO NOT PLUG OPENER IN YET!
YES / SÍ / OUI
NO
NO
FIG. 2-4 Position assembly and align.
VIEW
FROM ABOVE
(not to scale)
HEADER BRACKET
Mounting Straps
(not provided)
FIG. 2-6 Mounting the power head.
ANGLE IRON ON FINISHED CEILING
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing
not needed
Extra framing
NEEDED
DRYWALL
bolts & nuts
bolts & nuts
FIG. 2-5 Rail mounting to header bracket .
COTTER PIN
CLEVIS PIN
(Chain drive
shown)
PN# 3642036534, 02/26/2010 REV. 1
13

14
PN# 3642036534, 02/26/2010 REV. 1
DOOR BRACKET:
NOTE: For door bracket and bolts locate Bag 4
from Box 2.
1. Finding door bracket mounting location.
• Door bracket is mounted as high on door as
possible along vertical centerline and NO LOWER
THAN top set of rollers (Fig. 2-7).
2. Mounting the door bracket.
• Proper bracing should be verified at this point.
– Align door bracket centered on your vertical
centerline (Fig. 2-8).
– Attach using 3 self-drilling screws for sheet
metal or other light weight material.
– Use lag screws (not provided) for solid
wooden sectional doors.
NOTE: For solid wood doors, carriage bolts
WITHOUT SLOTTED HEADS (not included) may
also be used for attaching door bracket.
INSTALL DOOR ARMS
NOTE: For door arm nuts and bolts, clevis and
cotter pins locate Bag 5 from Box 2.
1. Attach the arms.
• Fasten short branch of curved door arm to door
bracket using bolt and locking nut (Fig. 2-9).
• Fasten straight arm to carriage using short
clevis pin and cotter pin (Fig. 2-9).
2. Connecting the arms.
•
Slide carriage back and forth to adjust arm length.
– Position the straight arm 50º down from the
rail.
• With the arms arranged in this position, fasten
arms together using bolts and nuts spaced as
far apart as possible (Fig. 2-9).
Doors made of masonite, lightweight wood,
fiberglass, and sheet metal must be properly
braced before mounting door opener. Contact
door manufacturer or distributor for a bracing kit.
The Genie Company is not responsible for
damage caused due to improperly braced door.
CAUTION
FIG. 2-7 Mounting door Bracket .
centerline
even with or
above top roller
FIG. 2-9 Attaching door arms.
FIG. 2-8 Examples of door bracket positioning.
centerline of top roller
A B
centerline
50°
short clevis pin & cotter pin
bolts as far
apart as
possible

PN# 3642036534, 02/26/2010 REV. 1
NOTE: For Wall Button, wire and insulated sta-
ples locate Bags 6 and 7 from Box 2.
1. Wall Button location.
• Wall Button location should be in direct sight
of door.
• It should be at least five feet (5') above floor to
prevent small children from operating door.
• It must be away from any moving parts. (You
should NOT be able to reach the garage door
while standing at Wall Button.)
• Wall Button board screw connections are
polarized, (+) positive and (-) negative.
2a. Wiring (If pre-wired).
• Locate wall button pre-wired wire ends
(Fig. 3-1). (They should be located within the
guidelines mentioned above.)
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to wall button board screws on back
of wall button.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
2b. Wiring (If NOT pre-wired).
• Pick a convenient location for mounting
wall button using the guidelines mentioned
above (Fig. 3-1).
• Run wire from wall button to power head
(Fig. 3-1).
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to control board screws on back of
wall button button.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
WALL BUTTON INSTALLATION
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
3
Verify there is NO power to the opener before
installing wall button wires and wall button.
WARNING
Staples which are too tight can cut or pinch wires.
Cut or pinched wires can cause the wall button to
stop working. When using the insulated staples,
make sure you fasten them only as tightly as
needed to hold the wire snugly.
CAUTION
FIG. 3-2 Splitting and stripping .
FIG.3-1 Wall button wire routing
Wire from
power head
to wall control.
Wall
control
"Entrapment"
warning label
Separate
entry door EXAMPLE ONLY!
This is an example of wire routing
when NOT pre-wired. Your wire
routing may be different.
1/2"
2"
15
or
or
Black
Striped
White
Use of any other wall control can cause the door to
operate unexpectedly and the light not to work.
Use only the included wall button.
WARNING

PN# 3642036534, 02/26/2010 REV. 1
16
3.Securely fasten wires.
• Securely fasten wires to ceiling and
wall using insulated staples provided.
– Use insulated staples.
– Staples should be snug only.
• If rear cover is attached to power head,
remove it.
• On power head:
– Route wall button wires through wire guide on
power head.
– Split and strip ends of wire (Fig. 3-2 on
previous page).
– Insert wire into terminal holes and lightly press in
the orange locking clips above each terminal
hole. (You can use a pencil or small screwdriver
to comfortably press in locking clips.) The white
wire into #1 terminal hole and striped wire into
the #2 terminal hole.
– Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
•Do NOT install rear cover yet.
4. Mounting.
• Fasten wall button to wall with 2 screws
(provided) (Fig. 3-4).
• Remove protective backing from "Entrapment"
warning label (Fig. 3-5). The "Entrapment" label
is located in the center of this manual.
– Stick label on wall near wall button.
FIG. 3-4 Mounting wall button.
Insulated
Staple
+–
PB
Infrared Sensor
123456
FIG. 3-3 Insert wires .
(Power Head With Rear Cover Removed)
1234
Terminal
Holes
Locking
Clips
56
FIG. 3-5 Mounting Entrapment warning label.
wire guide

PN# 3642036534, 02/26/2010 REV. 1
17
SAFE-T-BEAM®SYSTEM INSTALLATION
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
4
NOTE: The opener will not close the door
automatically unless the Safe-T-Beam®System is
installed.
NOTE: For Sensors, screws, wire, and insulated
staples locate items and Bag 8 from Box 3.
1. Mounting brackets.
• Mark both sides of garage door frame or wall no
higher than 6" and no lower than 5" above floor
(Fig. 4-1)
.
• Hold bracket against door frame or wall.
– Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks or any door hardware.
– If not:
a) Mounting bracket extensions are available
through an authorized Genie®Dealer.
b) Blocks of wood, etc. may be substituted for
extensions.
• Center bracket on your mark (Fig. 4-2).
• Fasten each with 2 screws (Fig. 4-2).
NOTE: Mounting brackets can be attached to the
floor or concrete rim using concrete anchors
(not provided).
2. Mounting Safe-T-Beam®Source (Red LED) and
Sensor (Green LED).
• If garage has only one garage door.
– Determine which side of garage receives most
direct sunlight (Fig. 4-4).
– Red LED should always be on sunny side
whenever possible (Fig. 4-4).
• For multiple doors.
– Preventing crossed signals is critical.
– Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 4-4).
NOTE: To help prevent interference from sun,
Safe-T-Beam®sensor with Green LED may be
placed further away from the door opening,
though extended no further out from the wall,
where it will spend more time in shadow.
• Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 4-3).
3a. Wiring (If NOT pre-wired).
• Route wire from Safe-T-Beam®sensors to power
head using method shown in (Fig. 4-5a).
• Securely fasten wires to wall and ceiling
as you go (Fig. 4-6 on next page).
– Use insulated staples.
– Staples should be snug only.
There should be no electrical power to the opener
while installing Safe-T-Beam®wires. If you have
plugged in the power cord—UNPLUG IT NOW!
WARNING
FIG. 4-1 Mark door frame .
FIG. 4-2
Mounting brackets .
FIG. 4-3 Attach
sensors to brackets .
s
l
id
e
bracket
tongue
mark
center of
bracket
FIG. 4-4 Safe-T-Beam®source and sensor
locations
.
SUN
ONE DOOR
GARAGE
THREE DOOR
GARAGE
RED
LED
RED
LED
GREEN
LED
RED
LED GREEN
LED
GREEN
LED GREEN
LED RED
LED
RED
LED
RED
LED
GREEN
LED GREEN LED
TWO DOOR
GARAGE
FIG. 4-5a Source and sensor wiring methods .
or
6 5 4 3 2 1 6 5 4 3 2 1
SensorSource
Red Green
Power
Head
Dashed Line = striped wire
Solid Line = white wire
Insulated
Staple

PN# 3642036534, 02/26/2010 REV. 1
18
3b. Wiring (pre-wired).
• Route wire from wall to Safe-T-Beam®sensors
(Fig. 4-5b).
• Splice pre-wiring to shortened sensor wire,
match wire pairs dash-to-dash and
plain-to-plain.
- Trim sensor wire to approximately one foot
(1 ft) from sensor.
- Split and strip ends of sensor wires and
pre-wired wires (Fig. 4-7).
- Splice wires together with (provided)
wire nuts.
• Route wire from ceiling to power head
(Fig. 4-5b).
• Securely fasten wires where they exit
wall and ceiling as you go.
– Use insulated staples.
– Staples should be snug only.
4. Split and strip ends of sensor wires (Fig. 4-7).
NOTE: For rear cover locate Box 4.
5. Attach Safe-T-Beam®wire to power head wire
terminal.
• Route Safe-T-Beam®wires through wire guide.
– Insert wire into terminal holes and lightly press
in the orange locking clips above each terminal
hole. (You can use a pencil or small
screwdriver to comfortably reach in and lightly
press down locking clips.) Insert white wires to
'even' numbered terminal holes and striped
wires into 'odd' terminal holes (Fig. 4-8).
– Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
• Install rear cover. The rear cover is the same
color as the power head clips and body
(Fig. 4-9).
• Do not install the white (lamp) cover at this time.
NOTE: Safe-T-Beam®alignment check must be
performed following connection to electrical
power (see page 19). DO NOT PLUG IN YET!
Staples which are too tight can cut or pinch wires.
Cut or pinched wires can cause the Safe-T-Beam®
System to stop working. When using the insulated
staples, make sure you fasten them only as tightly
as needed to hold the wire snugly.
CAUTION
FIG. 4-7
Splitting and stripping .
FIG. 4-6 Wire routing .
Wire
Wire
Sensor
Sensor
Invisible Light Beam
Protection Area
Insert Wire
Into Connector
Use this
wire routing
if NOT pre-wired
1234
Terminal
Holes
Locking
Clips
56
+–
PB
InfraredSensor
123456
FIG. 4-8
Insert wires .
(Power Head With Rear Cover Removed)
FIG. 4-5b Pre-Wired source and sensor wiring
methods
.
or
6 5 4 3 2 1 6 5 4 3 2 1
SensorSource
Red Green
Power
Head Dashed Line = striped wire
Solid Line = white wire
Wall Wall
Ceiling
1/2"
2"
Cover clips
FIG. 4-9 Install rear cover
.
Insulated
Staple
Wire Nut

PN# 3642036534, 02/26/2010 REV. 1
19
CONNECTING TO POWER
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
5
Plug the opener into a properly grounded
electrical outlet (Fig. 5-1).
• To reduce the risk of electrical shock, this equipment
has a grounded type plug that includes a third
(grounding) pin. This plug will only fit a grounded type
outlet. If you do not have a grounded outlet, contact
a qualified licensed electrician to install one. DO NOT
alter the plug in any way. The door opener must be
properly grounded in order to prevent personal injury
and damage to the components.
• DO NOT remove motor cover. All work performed
on motor must be done by a trained door system
technician.
WARNING
•Check local building codes to make sure that you
are not required to have your garage door opener
permanently wired, with circuit breaker protection.
If building codes require door opener to be
permanently wired have a qualified licensed
electrician connect power with permanent wiring.
CAUTION
WITH GROUNDED PLUG:
5" min
f
r
om
fl
oo
r
6" m
ax
fr
o
m f
l
o
o
r
FIG. 5-4 Check Safe-T-Beam®alignment .
FIG. 5-1 Connect to power .
INFRARED PROTECTION FUNCTION
1. When the garage door is opening, its movement
will not be influenced if the Safe-T-Beam®is
obstructed.
2. If the Safe-T-Beam®is obstructed before the
garage door fully closes, the door will not close.
3. When the garage door is closing, if Safe-T-Beam®
is cut off by people or obstacle, the garage door
will reverse automatically to its fully opened position.
(Meanwhile, the opener light will keep blinking until
door moves to its fully opened position.)
4. If the Safe-T-Beam®System fails, loses power,
or is installed improperly, you will have to press
and hold the wall control "close" button until the
door reaches its fully closed position. The LED
indicator light on the power head will be green
and blink twice (Pattern: ☼☼ pause ☼☼ pause)
to inform you to eliminate problem first.
Otherwise, the door will reverse automatically to
its fully opened position if you release the
"close" button on the wall control during the
closing movement.
FIG. 5-2 Remove motor cover.
WITH PERMANENT WIRING:
Instructions for Electrician.
• Remove power from circuit.
• Remove rear cover and motor cover.
– Remove four motor cover screws (Fig. 5-2).
• Remove existing power cord and strain relief
from the 7/8" dia. hole and discard (Fig. 5-3).
• Connect permanent wiring to power head using
7/8" diameter hole.
–White to white/black to black/ground to green.
– Use only UL recognized wire nuts.
• Wires inside the power head must be at least 6"
in length.
• Replace motor cover and rear cover and
re-energize the circuit.
NOTE: The Genie Company is not responsible for
charges resulting from work preformed by an
independent electrician.
Check Safe-T-Beam®alignment (Fig. 5-4).
• Insure that no part of door or its hardware is
in path between lenses of source and sensor.
• Insure that tops of lenses are between 5" - 6"
above the floor (Fig. 5-4). The brackets are
flexible, and can be adjusted slightly if needed.
• Adjust the Red LED transmitter by aiming the
unit directly at the Green LED receiver. Use the
adjustment screw located on the top of the
transmitter housing to make adjustments.
• The Red LED transmitter will blink if there is a
misalignment. When the LED units are aligned
the Red LED will remain ON continuously.
• After the alignment is finished tighten the
adjustment screws on both sensors.
Motor Cover Screws
FIG. 5-3 Power cord strain relief.
• Do NOT use an extension cord.
• Do NOT use a portable generator. This product
is designed to operate using standard
household current.
• Do NOT use alternate power supplies.
CAUTION
WITH POWER SUPPLIED:

PN# 3642036534, 02/26/2010 REV. 1
20
DOOR LIMITS
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
6
The OPEN (UP) and CLOSE (DOWN) door positions
are controlled by making the adjustments on the
panel located on the bottom of the power head. The
adjustments that can be made are:
• Close Travel Limit,
• Open Travel Limit,
Maximum Closing Force
Maximum Opening Force
Transmitter Programming
SETTING & TESTING OPEN/CLOSE LIMITS
FIG. 6-1 Limit controls.
SET
SET
OPEN
FORCE
CLOSECODE
LEARN LIMITMANUAL
Open
Travel Limit
Open
Set Limit
Button
Close
Travel Limit
Close
Set Limit
Button
Down Force
Control
Adjustment
Up Force
Control
Adjustment
Learn
Code
Button
LED
Indicator Light
To
Garage Door
•Severe injury or death can result if the door
closing force is set too high.
• Never increase the door closing force above the
minimum required to move the door.
• Never adjust force to compensate for a sticking
or binding door.
• Perform monthly CONTACT REVERSE TEST as
described on page 22 and in Section 10.
WARNING
Limit Controls location
on power head.
CLOSE TRAVEL LIMIT
1. Press and hold the "Close Travel Limit" button
until the door is fully closed.
2. You can quickly press and release the "Close
Travel Limit" button to move the door in small
increments. You can also use the "Open Travel
Limit" button to move the door slightly in the
UP direction.
3. Door is fully closed when the bottom edge of door
presses firmly onto the ground.
4. Once the door is in the desired position, press and
release the "Close SET Limit" button for 5
seconds. The LED indicator light will blink green
once. This stores the closed position in memory.
OPEN TRAVEL LIMIT
1. Press and hold the "Open Travel Limit" button
to move the door to its fully opened position. This
starts the opener moving in the UP direction.
2. Hold the "Open Travel Limit" button until the
door is in the fully opened position that you desire,
then release this button.
3. You can quickly press and release the "Open
Travel Limit" button to move the door in small
increments. You can also use the "Close Travel
Limit" button to move the door slightly in the
DOWN direction.
4. Once the door is in the desired position, press
and release the "Open SET Limit" button for 5
seconds. The LED indicator light will blink green
twice. This stores the opened position in memory.
SET
SET
Carriage Assembly
Chain Connector
Latch
Movement
Latch
Movement
Move in this direction
Carriage Assembly
Belt Connector
Latch
Movement
Latch
Movement
Move in this direction
FIG. 6-2 Engage Chain/Belt Connector to Carriage.
Operation of the opener without the Chain or Belt
Connector engaged to the Carriage Assembly will
result in damage to rail components including the
rail pulley.
CAUTION
ENGAGE CHAIN/BELT CONNECTOR TO
CARRIAGE
1. Press and hold the "Close Travel Limit" button
until the chain or belt connector advances and
engages to the Carriage Assembly (FIG 6-2).
Failure to verify the engagement of the belt/chain
connector will result in damage to rail components.
CAUTION
NOTE: Set Close Travel Limit
before setting Open Travel
Limit for unit to operate
normally.
Unless limits are being reset
do not press set limit buttons.
