Genie GS-1330m User manual

Operator's Manual
Serial Number Range
GS™-1330m from GS30MD-101
to GS30MD-3168
ANSI/CSA
North America
South America
Asia
with
Maintenance
Information
Original Instructions
First Edition
Second Printing
Part No. 1290846GT

Operator's Manual First Edition • Second Printing
GS™-1330m Part No. 1290846GT
Front Matter
Contents
Introduction ........................................................... 1
Symbol and Hazard Pictorials Definitions............. 6
General Safety ...................................................... 8
Personal Safety................................................... 13
Work Area Safety................................................ 14
Legend ................................................................ 22
Controls............................................................... 23
Inspections.......................................................... 26
Operating Instructions......................................... 42
Transport and Lifting Instructions ....................... 52
Maintenance ....................................................... 57
Specifications...................................................... 59
Copyright © 2019 Terex Corporation
First Edition: Second Printing, May 2020
Genie is a registered trademark of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
These machines comply with
ANSI/SAIA A92.20
CAN/CSA B.354.6

First Edition • Second Printing Operator's Manual
Introduction
Part No. 1290846GT GS™-1330m 1
Introducti on
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification
The machine serial number is located on the serial
label.
Serial number stamped
on chassis
Serial label
located on chassis
Intended Use and Familiarization
Guide
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site. Before operating the machine, it’s
the operator’s responsibility to read and
understand this familiarization guide.
Each person must be trained to operate a
MEWP.
Familiarization with the MEWP must be given
to each person who is authorized, competent
and trained.
Only trained and authorized personnel should
be permitted to operate the machine.
The operator is responsible to read,
understand, and obey the manufacturer’s
instructions and safety rules provided in the
Operator’s Manual.
The Operator’s Manual is located in the
manual storage container, at the platform.
For specific product applications, see
Contacting The Manufacturer on the next
page.

Operator's Manual First Edition • Second Printing
Introduction
2 GS™-1330m Part No. 1290846GT
Platform controls symbology and related
machine movement:
Lift function enable button
Drive function enable button
Platform up/down (when lift function
selected)
Drive forward/reverse (when drive
function selected)
Steer right/left (when drive function
selected)
Ground controls symbology and related
machine movement:
Lift function enable button
Platform up/down button
Sequential functions and movement:
Drive and steer.
Interlocked functions:
Elevated drive speed.
Elevated drive in an off-level condition.
All platform and ground controls.
Limitations of use:
The intended use of this machine is to lift
personnel, including tools, and materials to an
aerial work site.
Do not elevate the platform unless the machine
is on firm level ground.

First Edition • Second Printing Operator's Manual
Introduction
Part No. 1290846GT GS™-1330m 3
Bulletin Distribution and Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register your
machine and keep your contact information up to
date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.
To view any open bulletins for your machine, visit
us on the web at www.genielift.com.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.

Operator's Manual First Edition • Second Printing
Introduction
4 GS™-1330m Part No. 1290846GT
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.

First Edition • Second Printing Operator's Manual
Introduction
Part No. 1290846GT GS™-1330m 5
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol—used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Indicates a property damage
message.
DANGER
WARNING
CAUTION
NOTICE

Operator's Manual First Edition • Second Printing
Symbol and Hazard Pictorials Definitions
6 GS™-1330m Part No. 1290846GT
Symbol and Hazard Pic torials Definiti ons
Read the operator’s
manual
Read the service
manual
Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts
Keep clear of
outriggers and tires
Move machine to
level ground
Close chassis tray
Lower the platform. Do not set up where it
cannot be leveled
with outriggers
Maintain required
clearance
Access by trained
and authorized
personnel only
Use a piece of
cardboard or paper to
search for leaks

First Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1290846GT GS™-1330m 7
Batteries used as
counterweights
Chock the wheels Release brakes Grounded AC
3-wire only
Replace damaged
wires and cords
Wheel load Lifting & tie down
instructions Tiedown Lanyard anchorage points No smoking
Voltage rating for
power to platform
Pressure rating for air
line to platform
Manual force Engage brake Wind speed
Maximum capacity Indoor

Operator's Manual First Edition • Second Printing
General Safety
8 GS™-1330m Part No. 1290846GT
General Safety
1294707
1293164 A
0 m/sec
Platform extended
Main deck:
200 Ibs / 91 kg
300 Ibs / 136 kg
extension deck:
Tip-over Hazard
Tipping over the machine will
result in death or serious injury.
Maximum allowable
wind speed:
0 mph / 0 m/sec side force:
90 lbs / 400 N
Maximum
allowable
Maximum capacity:
500 lbs / 227 kg
Occupants and
equipment must not
exceed 500 lbs / 227 kg
Maximum
occupants: 2
28236
1293164
44736
1293165
1294635
1294707

First Edition • Second Printing Operator's Manual
General Safety
Part No. 1290846GT GS™-1330m 9
1294681
DANGER
1290659
1292960
1294707
1294685
82561
1294707 A
1294707

Operator's Manual First Edition • Second Printing
General Safety
10 GS™-1330m Part No. 1290846GT
1290675
1290657
1294681
1294707
1294707

First Edition • Second Printing Operator's Manual
General Safety
Part No. 1290846GT GS™-1330m 11
82487
1290673
1293217 A
0to50KV 3.0 m5
50 to 200KV 4.6 m0
200 to 350KV 6.1 m0
350 to 500KV 7.6 m2
500 to 750KV 10.6 m7
750 to 1000KV 13.7 m2
1293217
1293217 A
0to50KV 3.0 m5
50 to 200KV 4.6 m0
200 to 350KV 6.1 m0
350 to 500KV 7.6 m2
500to750KV 10.6 m7
750 to 1000KV 13.7 m2
1293217
1292053 B
0 m/sec
400 N
GS-1 303 m
227 kg
227 kg
9 kg11 kg36
1293166
1292053
1290672
1290673
1290672
1290672
1 93166 A21 93166 A2
82487
82495
114338
1294686
82474
1294688

Operator's Manual First Edition • Second Printing
General Safety
12 GS™-1330m Part No. 1290846GT
1290670
=
6.52kg
1290670 A
1293217 A
0to50KV 3.0 m5
50 to 200KV 4.6 m0
200 to 350KV 6.1 m0
350 to 500KV 7.6 m2
500 to 750KV 10.6 m7
750 to 1000KV 13.7 m2
1293217
82474
114337
82481
1294686

First Edition • Second Printing Operator's Manual
Personal Safety
Part No. 1290846GT GS™-1330m 13
Personal Safety
Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the following
shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual First Edition • Second Printing
Work Area Safety
14 GS™-1330m Part No. 1290846GT
WorkArea Safety Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental regulations
regarding required
clearance from electrical
power lines. At a
minimum, the required
clearance contained in the
chart below must be
followed.
Line Voltage Required Clearance
0 to 50KV 10 ft 3.05 m
50 to 200KV 15 ft 4.60 m
200 to 350KV 20 ft 6.10 m
350 to 500KV 25 ft 7.62 m
500 to 750KV 35 ft 10.67 m
750 to 1000KV 45 ft 13.72 m
Allow for platform movement, electrical line sway
or sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must not
touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum capacity
Platform extended
Model
Platform
retracted
Platform
only
Extension
only
Maximum
occupants
GS-1330m 500 lbs
227 kg
300 lbs
136 kg
200 lbs
91 kg
2
Platform retracted Platform extended
Extension only Platform only
The weight of options and accessories, such as
panel carriers, will reduce the rated platform
capacity and must be subtracted from the platform
capacity. See the decals with the options and
accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1290846GT GS™-1330m 15
Do not raise the platform
unless the machine is on
a firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not drive over 0.5 mph / 0.8 km/h with the
platform raised.
Indoor Use: When raising the platform, follow
ratings for allowable side force and number of
occupants on the next page.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Use extreme care and
slow speeds while driving
the machine in the stowed
position across uneven
terrain, debris, unstable or
slippery surfaces and near
holes and drop-offs.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the platform raised.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.
Do not operate the machine with the chassis trays
open.

Operator's Manual First Edition • Second Printing
Work Area Safety
16 GS™-1330m Part No. 1290846GT
Do not push off or pull
toward any object outside
of the platform.
Model Maximum allowable
side force
Maximum
occupants
GS-1330m 90 lbs/400 N Indoor only – 2
Do not alter or disable the limit switches.
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not use batteries that weigh less than the
original equipment. Batteries are used as
counterweight and are critical to machine stability.
Each battery must weigh a minimum of
46 lbs/21 kg. Battery tray including batteries must
weigh a minimum of 138 lbs/62.5 kg.
Do not modify or alter a mobile elevated work
platform without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging
loads to any part of this
machine.
Do not place ladders or
scaffolds in the platform
or against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled
by person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.

First Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1290846GT GS™-1330m 17
Crushing Hazard
Keep hands and limbs out of scissors.
Keep hands clear when folding rails.
Do not work under the platform or in the scissor
links without the safety arm in place.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Model
Maximum slope
rating, stowed
position
Maximum side slope
rating, stowed
position
GS-1330m 25% (14°) 25% (14°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating. See Driving on a Slope in the
Operating Instructions section.
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Use approved lanyard attachment
point provided.

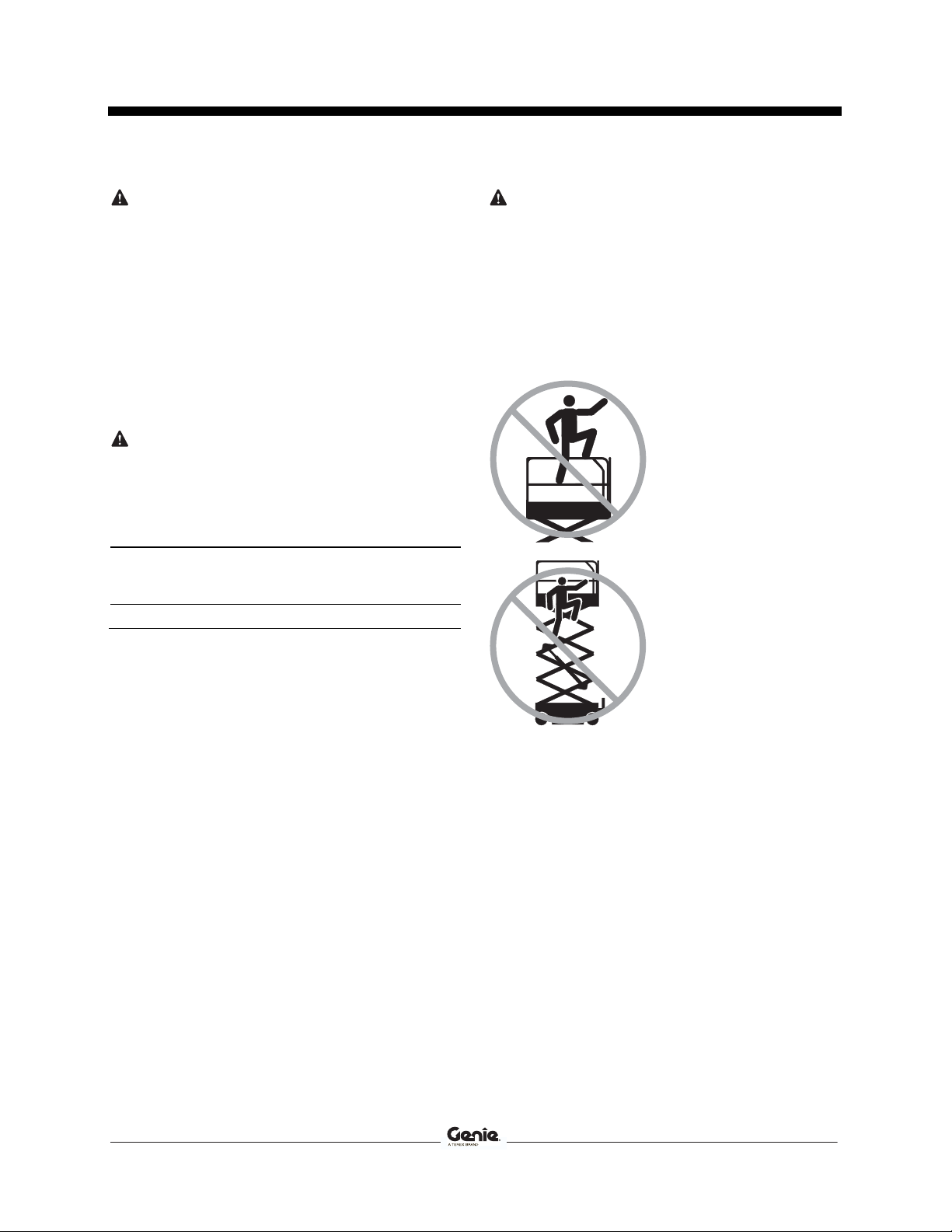

Do not sit, stand, or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Do not enter or exit the platform unless the
machine is in the stowed position.
Attach the platform entry chain or close the entry
gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.

Operator's Manual First Edition • Second Printing
Work Area Safety
18 GS™-1330m Part No. 1290846GT
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site,
and governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the platform guard rail.
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.
Do not lower the platform
unless the area below is
clear of personnel and
obstructions.
Limit travel speed
according to the condition
of the ground surface,
congestion, slope,
location of personnel, and
any other factors which
may cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.
