Genie GS-2669 RT User manual

Operator's Manual
GS™-2669RT
CE
GS™-3369RT
GS™-4069RT
with
Maintenance
Information
Original Instructions
Second Edition
Second Printing
Part No. 1278001
GT

Operator's Manual Second Edition • Second Printing
GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
FrontMatter
Important
Read, understand and obey these safety rules and
operating instructions before operating this
machine. Only trained and authorized personnel
shall be permitted to operate this machine. This
manual should be considered a permanent part of
your machine and should remain with the machine
at all times. If you have any questions, contact us.
Contact Us:
Internet: www.genielift.com
E-mail: [e-mail]
Contents
Introduction ............................................................1
Symbol and Hazard Pictorials Definitions..............4
General Safety.......................................................6
Personal Safety......................................................9
Work Area Safety................................................ 10
Legend................................................................ 17
Controls............................................................... 18
Inspections.......................................................... 23
Operating Instructions......................................... 34
Transport and Lifting Instructions ....................... 39
Maintenance ....................................................... 42
Specifications...................................................... 45
Copyright © 2011 by Terex Corporation
Second Edition: Second Printing, March 2018
Genie is registered trademarks of Terex South Dakota, Inc. in
the U.S.A. and many other countries. “GS” is a trademark of
Terex South Dakota, Inc.
Complies with EC Directive 2006/42/EC
See EC Declaration of Conformity

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 1
Intr oduct io n
About this manual
Genie appreciates your choice of our machine for
your application. Our number one priority is user
safety, which is best achieved by our joint efforts.
This book is an operation and daily maintenance
manual for the user or operator of a Genie
machine.
This manual should be considered a permanent
part of your machine and should remain with the
machine at all times. If you have any questions,
contact Genie.
Product Identification

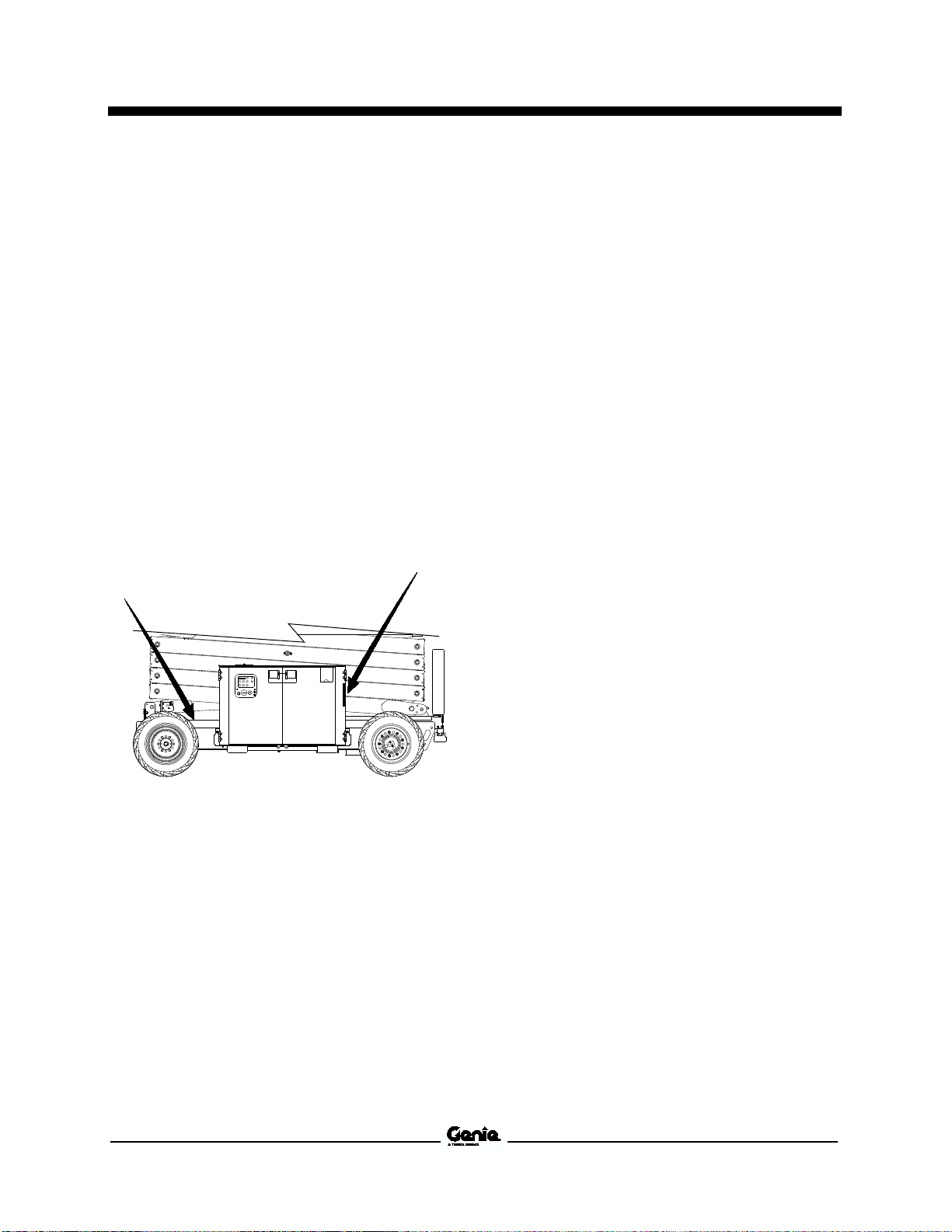

The machine serial number is located on the serial
label.
Serial number
stamped on chassis
Serial label location under
chassis cover
Intended Use
This machine is intended to be used only to lift
personnel, along with their tools, and materials to
an aerial work site.
Bulletin Distribution and
Compliance
Safety of product users is of paramount
importance to Genie. Various bulletins are used by
Genie to communicate important safety and
product information to dealers and machine
owners.
The information contained in the bulletins is tied to
specific machines using the machine model and
serial number.
Distribution of bulletins is based on the most
current owner on record along with their
associated dealer, so it is important to register your
machine and keep your contact information up to
date.
To ensure safety of personnel and the reliable
continued operation of your machine, be sure to
comply with the action indicated in a respective
bulletin.

Operator's Manual Second Edition • Second Printing
Introduction
2 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Contacting the Manufacturer
At times it may be necessary to contact Genie.
When you do, be ready to supply the model
number and serial number of your machine, along
with your name and contact information. At
minimum, Genie should be contacted for:
Accident reporting
Questions regarding product applications and
safety
Standards and regulatory compliance information
Current owner updates, such as changes in
machine ownership or changes in your contact
information. See Transfer of Ownership, below.
Transfer of Machine Ownership
Taking a few minutes to update owner information
will ensure that you receive important safety,
maintenance and operating information that
applies to your machine.
Please register your machine by visiting us on the
web at www.genielift.com or by calling us toll free
at 1-800-536-1800.
Danger
Failure to obey the instructions and
safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe
machine operation contained in this operator’s
manual.
1 Avoid hazardous situations.
Know and understand the safety rules
before going on to the next section.
2 Always perform a pre-operation inspection.
3 Always perform function tests prior to use.
4 Inspect the workplace.
5 Only use the machine as it was intended.
You read, understand and obey the
manufacturer’s instructions and safety
rules—safety and operator’s manuals and
machine decals.
You read, understand and obey employer’s
safety rules and worksite regulations.
You read, understand and obey all applicable
governmental regulations.
You are properly trained to safely operate the
machine.

Second Edition • Second Printing Operator's Manual
Introduction
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 3
Safety Sign Maintenance
Replace any missing or damaged safety signs.
Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use
solvent-based cleaners because they may damage
the safety sign material.
Hazard Classification
Decals on this machine use symbols, color coding,
and signal words to identify the following:
Safety alert symbol
—
used to alert
you to potential personal injury
hazards. Obey all safety
messages that follow this symbol
to avoid possible injury or death.
Indicates a
hazardous situation
which, if not avoided, will result in
death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in
minor or moderate injury.
Indicates a property damage
message.

Operator's Manual Second Edition • Second Printing
Symbol and Hazard Pictorials Definitions
4 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Symb ol an d H az ard Pi ct orial s D efi niti on s
Read the operator’s
manual Read the service manual Crush hazard Crush hazard Collision hazard
Tip-over hazard Tip-over hazard Tip-over hazard Tip-over hazard Electrocution hazard
Electrocution hazard Explosion hazard Fire hazard Burn hazard Skin injection hazard
Engage safety arm Keep away from
moving parts Keep clear of outriggers and tires
Move machine to level
ground Close chassis tray
Lower the platform. Do not set up where it
cannot be leveled with
outriggers
Maintain required
clearance
Access by trained and
authorized personnel
only
Use a piece of
cardboard or paper to
search for leaks

Second Edition • Second Printing Operator's Manual
Symbol and Hazard Pictorials Definitions
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 5
Chock the wheels Release brakes Tiedown Lanyard anchorage
points No smoking
Wheel load Transport diagram Side force Wind speed Outrigger load
Voltage rating for
power to platform Pressure rating for air line to platform Maximum capacity Crushing hazard
Hold rail while lowering Indoor Outdoor

Operator's Manual Second Edition • Second Printing
General Safety
6 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT

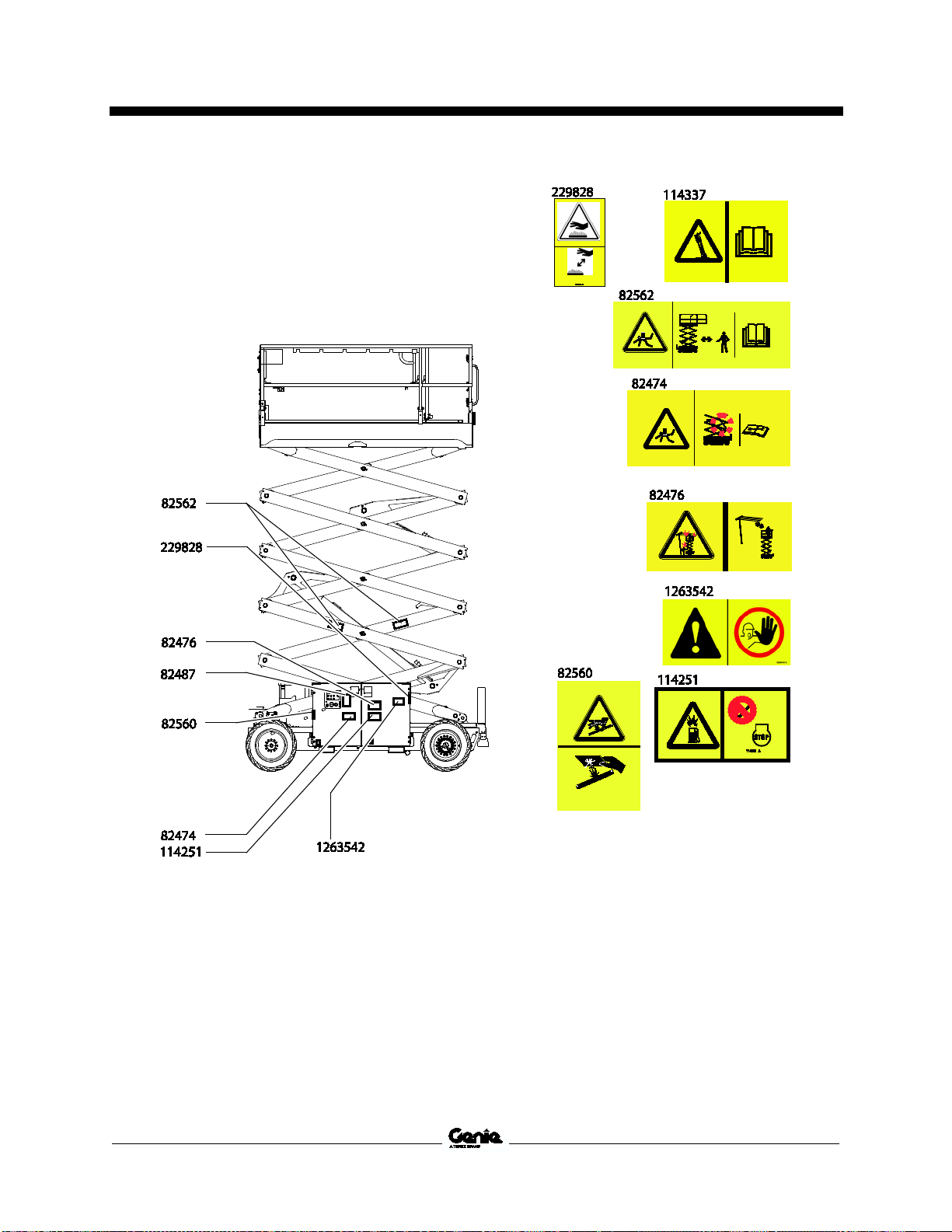

Gener al Safety

Second Edition • Second Printing Operator's Manual
General Safety
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 7

Operator's Manual Second Edition • Second Printing
General Safety
8 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT

Second Edition • Second Printing Operator's Manual
Personal Safety
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 9
Pers onal Safet y
Personal Fall Protection
Personal fall protection equipment (PFPE) is not
required when operating this machine. If PFPE is
required by job site or employer rules, the following
shall apply:
All PFPE must comply with applicable
governmental regulations and must be inspected
and used in accordance with the manufacturer’s
instructions.

Operator's Manual Second Edition • Second Printing
Work Area Safety
10 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Work Ar ea Safety
Electrocution Hazards
This machine is not electrically insulated and will
not provide protection from contact with or
proximity to electrical current.
Obey all local and
governmental
regulat
ions regarding
required clearance from
electrical power lines. At
a minimum, the required
clearance contained in
the chart below must be
followed.
Line Voltage
Required Clearance
0
to 50KV 3.05
m
5
0 to 200KV 4.60
m
20
0 to 350KV 6.10
m
35
0 to 500KV 7.62
m
50
0 to 750KV 10.67
m
75
0 to 1000KV 13.72
m
Allow for platform movement, electrical line sway or
sag, and beware of strong or gusty winds.
Keep away from the
machine if it contacts
energized power lines.
Personnel on the ground
or in the platform must not
touch or operate the
machine until energized
power lines are shut off.
Do not operate the machine during lightning or
storms.
Do not use the machine as a ground for welding.
Tip-over Hazards
Occupants, equipment and materials shall not
exceed the maximum platform capacity or the
maximum platform capacity of the platform
extension.
Maximum capacity
Platform extended
Model
Platform
retracted
Platform
only
Extension
only
Maximum
occupants
GS
-2669RT 680 k
g
544 k
g
136 k
g
4
GS
-3369RT 454 k
g
318 k
g
136 k
g
Indoor –
4
Outdoor –
2
GS
-4069RT 363 k
g
227 k
g
136 k
g
Indoor –
3
Outdoor –
2
Platform retracted Platform extended
Extension only Platform only
The weight of options and accessories, such as
panel carriers, will reduce the rated platform
capacity and must be subtracted from the platform
capacity. See the decals with the options and
accessories.
If using accessories, read, understand and obey
the decals, instructions and manuals with the
accessory.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 11

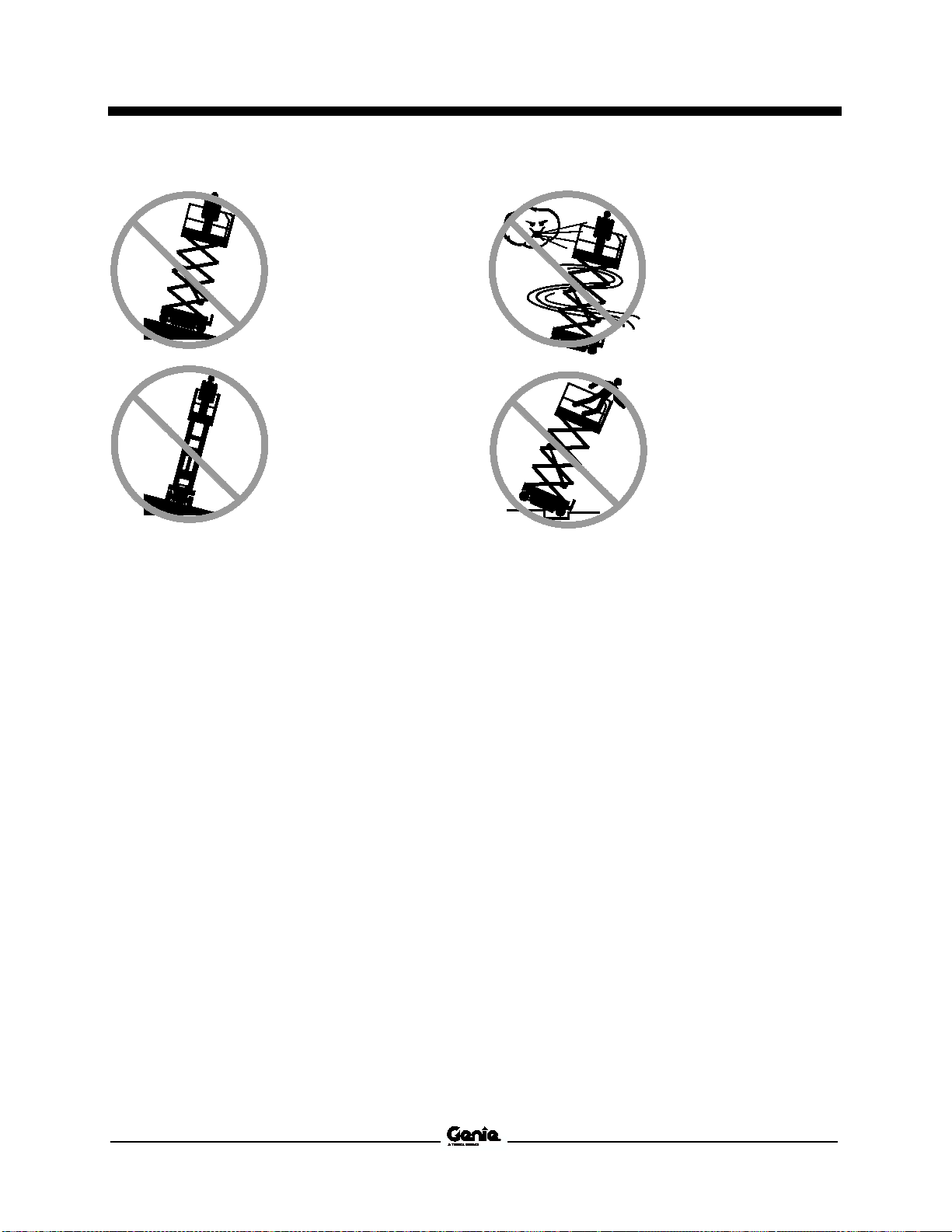

Do not raise the platform
unl
ess the machine is on a
firm, level surface.
Do not depend on the tilt alarm as a level indicator.
The tilt alarm sounds on the chassis only when the
machine is on a severe slope.
If the tilt alarm sounds:
Lower the platform. Move the machine to a firm,
level surface. If the tilt alarm sounds when the
platform is raised, use extreme caution to lower the
platform.
Do not alter or disable the limit switches.
Do not drive over 0.48 km/h with the platform
raised.
Outdoor Use: Do not raise the platform when wind
speeds may exceed 12.5 m/s. If wind speeds
exceed 12.5 m/s when the platform is raised, lower
the platform and do not continue to operate the
machine.
Indoor Use: When raising the platform, follow
ratings for allowable side force and number of
occupants on the next page.
Do not operate the
machine in strong or gusty
winds. Do not increase the
surface area of the
platform or the load.
Increasing the area
exposed to the wind will
decrease machine
stability.
Use extreme care and
slow speeds while
driving the machine in
the stowed position
across uneven terrain,
debris, unstable or
slippery surfaces and
near holes and
drop
-offs.
Do not use the platform controls to free a platform
that is caught, snagged, or otherwise prevented
from normal motion by an adjacent structure. All
personnel must be removed from the platform
before attempting to free the platform using the
ground controls.
Do not drive the machine on or near uneven terrain,
unstable surfaces or other hazardous conditions
with the platform raised.
Do not use the machine as a crane.
Do not push the machine or other objects with the
platform.
Do not contact adjacent structures with the
platform.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter.

Operator's Manual Second Edition • Second Printing
Work Area Safety
12 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Do not push off or pull
toward any object outside
of the platform.
Maximum allowable manual force
GS
-2669RT
Indoor use only
–4 person
Outdoor use
– 4 person
400
N
400 N
GS
-3369RT
Indoor use only
–4 person
Outdoor use
– 2 person
400 N
400 N
GS
-4069RT
Indoor use only
–3 person
Outdoor use
– 2 person
400 N
400 N
Do not alter or disable machine components that in
any way affect safety and stability.
Do not replace items critical to machine stability
with items of different weight or specification.
Do not modify or alter an aerial work platform
without prior written permission from the
manufacturer. Mounting attachments for holding
tools or other materials onto the platform,
toeboards, or guard rail system can increase the
weight in the platform and the surface area of the
platform or the load.
Do not place or attach
fixed or overhanging loads
to any part of this machine.
Do not place ladders or
scaffolds in the platform or
against any part of this
machine.
Do not transport tools and materials unless they
are evenly distributed and can be safely handled by
person(s) in the platform.
Do not use the machine on a moving or mobile
surface or vehicle.
Be sure all tires are in good condition, castle nuts
are properly tightened and cotter pins are properly
installed.
Operation on Slopes Hazards
Do not drive the machine on a slope that exceeds
the slope and side slope rating of the machine.
Slope rating applies to machines in the stowed
position.
Maximum slope rating, stowed position
GS
-2669RT
40% (22°)
GS
-3369RT
35% (19°)
GS
-4069RT
35% (19°)
Maximum side slope rating, stowed position
GS
-2669RT
40% (22°)
GS
-3369RT
35% (19°)
GS
-4069RT
35% (19°)
Note: Slope rating is subject to ground conditions
with one person in the platform and adequate
traction. Additional platform weight may reduce
slope rating.See Driving on a Slope in the
Operating Instructions section.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 13
Fall Hazards
The guard rail system provides fall protection. If
occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to
job site or employer rules, PFPE and its use shall
be in accordance with the PFPE manufacturer’s
instructions and applicable governmental
requirements. Attach the lanyard to the anchor
provided in the platform.
Do not sit, stand, or climb
on the platform guard
rails. Maintain a firm
footing on the platform
floor at all times.
Do not climb down from
the platform when raised.
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the guard rails
are properly installed and the entry is secured for
operation.
Do not enter or exit the platform unless the
machine is in the stowed position.
Collision Hazards
Be aware of limited sight
distance and blind spots
when driving or operating.
Be aware of extended platform position when
moving the machine.
The machine must be on a level surface or
secured before releasing the brakes.
Operators must comply with employer, job site, and
governmental rules regarding use of personal
protective equipment.
Check the work area for
overhead obstructions or
other possible hazards.
Be aware of crushing
hazards when grasping
the plat
form guard rail.
Observe and use color-coded direction arrows on
the platform controls and the platform decal plate
for drive and steer functions.

Operator's Manual Second Edition • Second Printing
Work Area Safety
14 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Do not lower the
platform unless the
area below is clear of
personnel and
obstructions.
Limit travel
speed
according to the
condition of the ground
surface, congestion,
slope, location of
personnel, and any
other factors which may
cause collision.
Do not operate a machine in the path of any crane
or moving overhead machinery unless the controls
of the crane have been locked out and/or
precautions have been taken to prevent any
potential collision.
No stunt driving or horseplay while operating a
machine.
Bodily Injury Hazard
Always operate the machine in a well-ventilated
area to avoid carbon monoxide poisoning.
Do not operate the machine with a hydraulic oil or
air leak. An air leak or hydraulic leak can penetrate
and/or burn skin.
Improper contact with components under any
cover will cause serious injury. Only trained
maintenance personnel should access
compartments. Access by the operator is only
advised when performing a pre-operation
inspection. All compartments must remain closed
and secured during operation.
Component Damage Hazards
Do not use any battery or charger greater than 12V
to jump-start the engine.
Do not use the machine as a ground for welding.

Second Edition • Second Printing Operator's Manual
Work Area Safety
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 15
Explosion and Fire Hazards
Do not start the engine if you smell or detect liquid
petroleum gas (LPG), gasoline, diesel fuel or other
explosive substances.
Do not refuel the machine with the engine running.
Refuel the machine and charge the battery only in
an open, well-ventilated area away from sparks,
flames and lighted tobacco.
Do not operate the machine in hazardous locations
or locations where potentially flammable or
explosive gases or particles may be present.
Do not spray ether into engines equipped with glow
plugs.
Damaged Machine Hazards
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the
machine and test all functions before each work
shift. Immediately tag and remove from service a
damaged or malfunctioning machine.
Be sure all maintenance has been performed as
specified in this manual and the appropriate Genie
service manual.
Be sure all decals are in place and legible.
Be sure the operator's, safety, and responsibilities
manuals are complete, legible, and in the storage
container located on the machine.
Crushing Hazard
Keep hands and limbs out of scissors.
Use common sense and planning when operating
the machine with the controller from the ground.
Maintain safe distances between the operator, the
machine and fixed objects.
Maintain a firm grasp on the platform rail when
pulling the rail pins. Do not allow the platform guard
rails to fall.
Outrigger Safety
Tip-over Hazards
Do not lower the outriggers unless the machine is
on a firm surface. Avoid drop-offs, holes, unstable
or slippery surfaces and other possible hazardous
conditions.
Do not raise the platform unless the machine is
level. Do not set the machine up on a surface
where it cannot be leveled using only the
outriggers.
Do not raise the platform unless all four outriggers
are properly lowered, the footpads are in firm
contact with the ground and the machine is level.
Do not adjust the outriggers while the platform is
raised.
Do not drive while the outriggers are lowered.

Operator's Manual Second Edition • Second Printing
Work Area Safety
16 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Battery Safety
Burn Hazards
Batteries contain acid. Always
wear protective clothing and
eye wear when working with
batteries.
Avoid spilling or contacting
battery acid. Neutralize battery
acid spills with baking
soda
and water.
Do not expose the batteries or the charger to water
or rain during charging.
Explosion Hazards
Keep sparks, flames, and
lighted tobacco away from
batteries. Batteries emit
explosive gas.
The battery tray should
remain open during
the entire
charging cycle.
Do not contact the battery
terminals or the cable clamps
with tools that may cause
sparks.
Component Damage Hazard
Do not use any battery charger greater than 24V to
charge the batteries.

Second Edition • Second Printing Operator's Manual
Legend
Part No. 1278001GT GS™-2669RT • GS™-3369RT • GS™-4069RT 17
Legend
1 Platform entry gate
2 Platform guard rails
3 Lanyard anchorage points
4 Platform extension lock
handle
5 Manual storage container
6 Platform controls
7 Platform extension
8 LPG tank
9 Fuel tank
10 Ground controls side covers
11 Hydraulic tank (behind cover)
12 Tilt alarm (behind cover)
13 Hydraulic oil level indicator
(behind cover)
14 Ground controls with LCD
readout screen
15 Outrigger housing (if
equipped with outriggers)
16 Outrigger footpad (if equipped
with outriggers)
17 Steer tire
18 Engine side covers
19 Non-steer tire
20 Entry ladder
21 Transport tie-down
22 Safety arm
23 GFCI outlet

Operator's Manual Second Edition • Second Printing
Controls
18 GS™-2669RT • GS™-3369RT • GS™-4069RT Part No. 1278001GT
Contr ols
Ground Control Panel
1 Hour meter or diagnostic display
2 Key switch for platform/off/ground selection
3 Gasoline/LPG models: Choke button
Diesel models: Glow plug button
4 Engine start button
5 Gasoline/LPG models: LPG select button with
indicator light
6 Engine idle select button with indicator light
7 LCD readout screen
8 Lift function enable button
9 Platform up button
10 Emergency lowering function enable button
11 Emergency lowering down button
12 Platform down button
13 Red Emergency Stop button
14 20A circuit breaker for controls circuit
15 15A breaker for controls circuit
