Genius SW-HF5.1 1200 User manual

Service Guide SW-HF5.1 1200
SERVICE GUIDE
KYE SYSTEMS CORP
SW-HF5.1 1200
Version:1.0
Version 1.0 Page 1 of 18
All manuals and user guides at all-guides.com
all-guides.com

Service Guide SW-HF5.1 1200
Revision History
Version Date Change
1.0 15/03/2005
Version 1.0 Page 2 of 18
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
Table of Contents
RevisionHistory 2
TableofContents 3
GettingStarted 4
Conventions Used in this Guide 4
SafetyPrecautions 4
Chapter 1. How to Handle Defective Returns 5
1.1Overview 5
1.2Problems 6
1.2.1 FL/FR, RL/RR channels no sound 7
1.2.2 CEN channel no sound 8
1.2.3 Woofer channel no sound 8
1.2.4 Woofer no power 9
Chapter 2. Specifications 10
Chapter 3. Block Diagram 12
Chapter 4. Exploded View 13
Chapter 5. Part List 15
Chapter 6. Schematic Diagram 16
SchematicDiagram 17

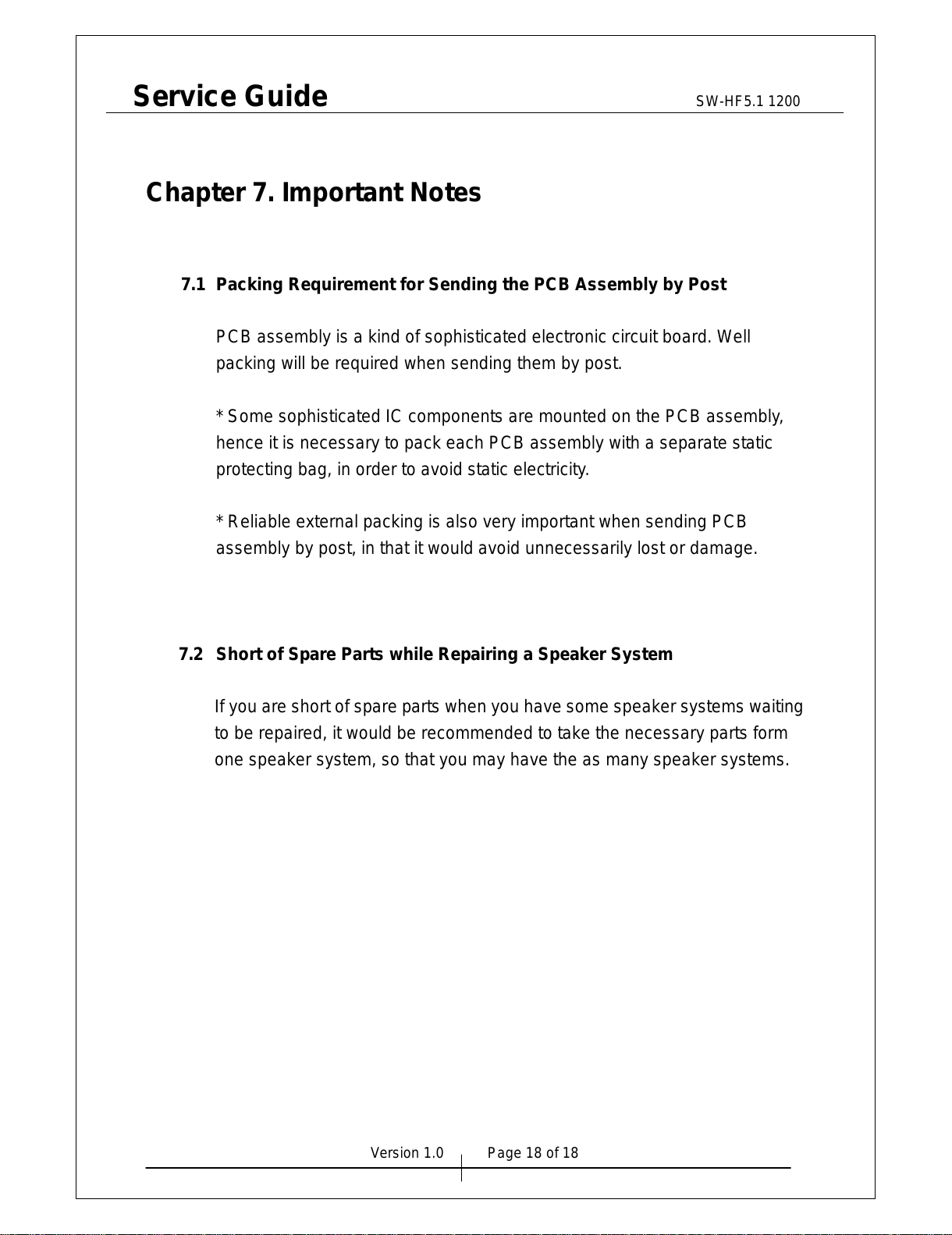

Chapter 7. Important Notes 18
7.1 Packing Requirement for Sending the PCB Assembly by post 18
7.2 Short of Spare Parts while Repairing a Speaker system 18
Version 1.0 Page 3 of 18
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

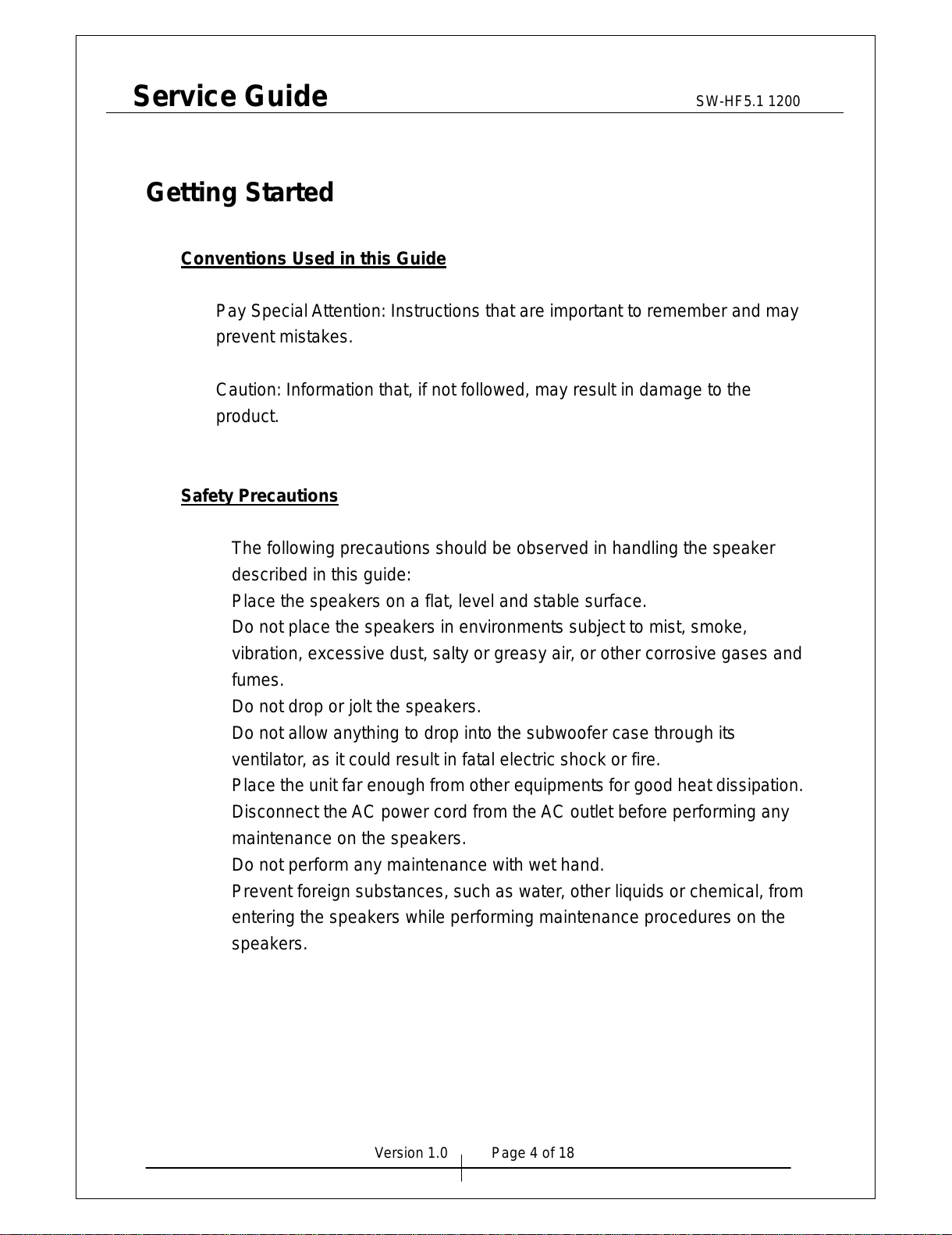

Getting Started
Conventions Used in this Guide
Pay Special Attention: Instructions that are important to remember and may
prevent mistakes.
Caution: Information that, if not followed, may result in damage to the
product.
Safety Precautions
The following precautions should be observed in handling the speaker
described in this guide:
Place the speakers on a flat, level and stable surface.
Do not place the speakers in environments subject to mist, smoke,
vibration, excessive dust, salty or greasy air, or other corrosive gases and
fumes.
Do not drop or jolt the speakers.
Do not allow anything to drop into the subwoofer case through its
ventilator, as it could result in fatal electric shock or fire.
Place the unit far enough from other equipments for good heat dissipation.
Disconnect the AC power cord from the AC outlet before performing any
maintenance on the speakers.
Do not perform any maintenance with wet hand.
Prevent foreign substances, such as water, other liquids or chemical, from
entering the speakers while performing maintenance procedures on the
speakers.
Version 1.0 Page 4 of 18
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

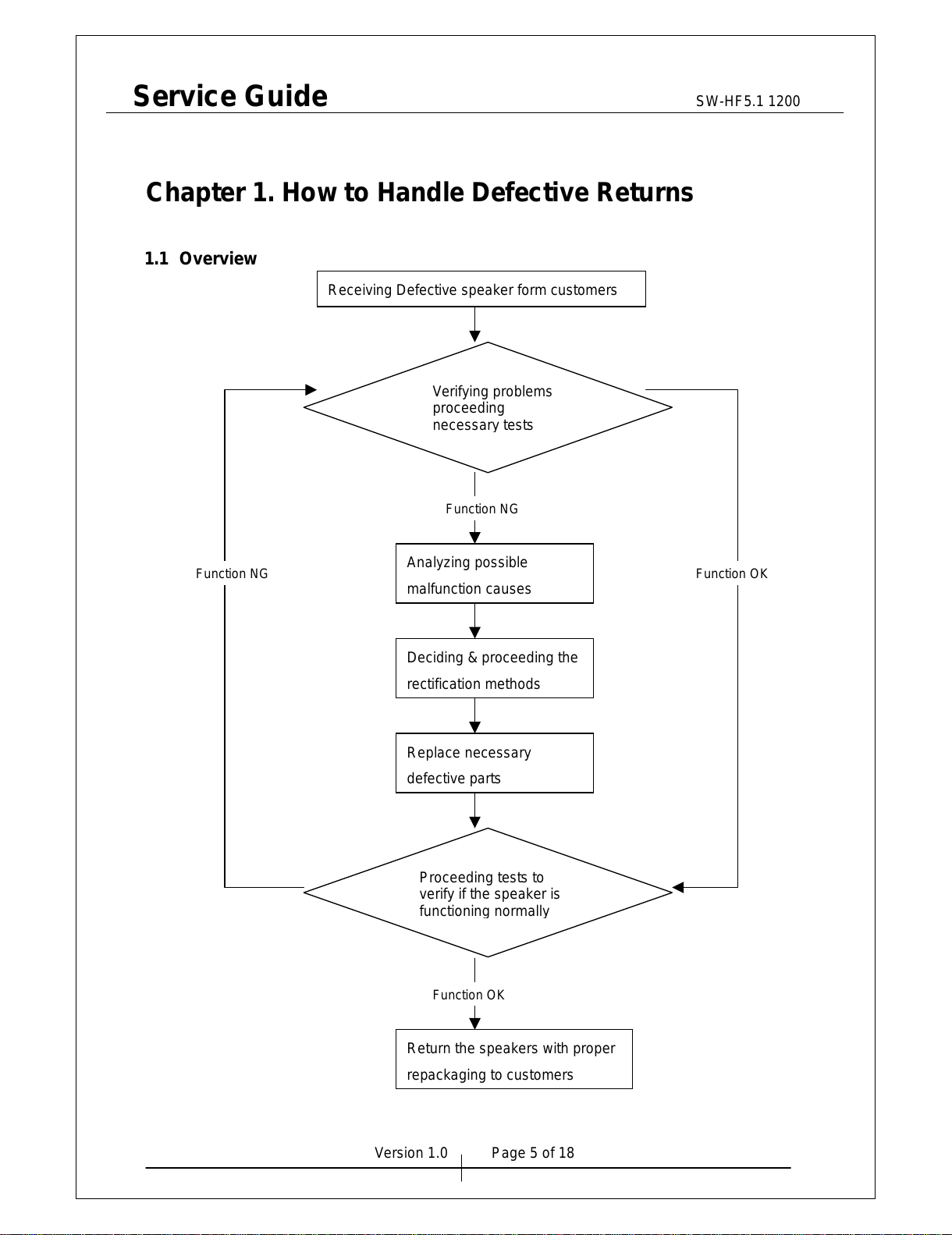

Chapter 1. How to Handle Defective Returns
1.1 Overview
Version 1.0 Page 5 of 18
Receiving Defective speaker form customers
Analyzing possible
malfunction causes
Deciding & proceeding the
rectification methods
Replace necessary
defective
p
arts
Return the speakers with proper
re
p
acka
g
in
g
to customers
Verifying problems
proceeding
necessar
y
tests
Proceeding tests to
verify if the speaker is
functionin
g
normall
y
Function OK
Function NG
Function OKFunction NG
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

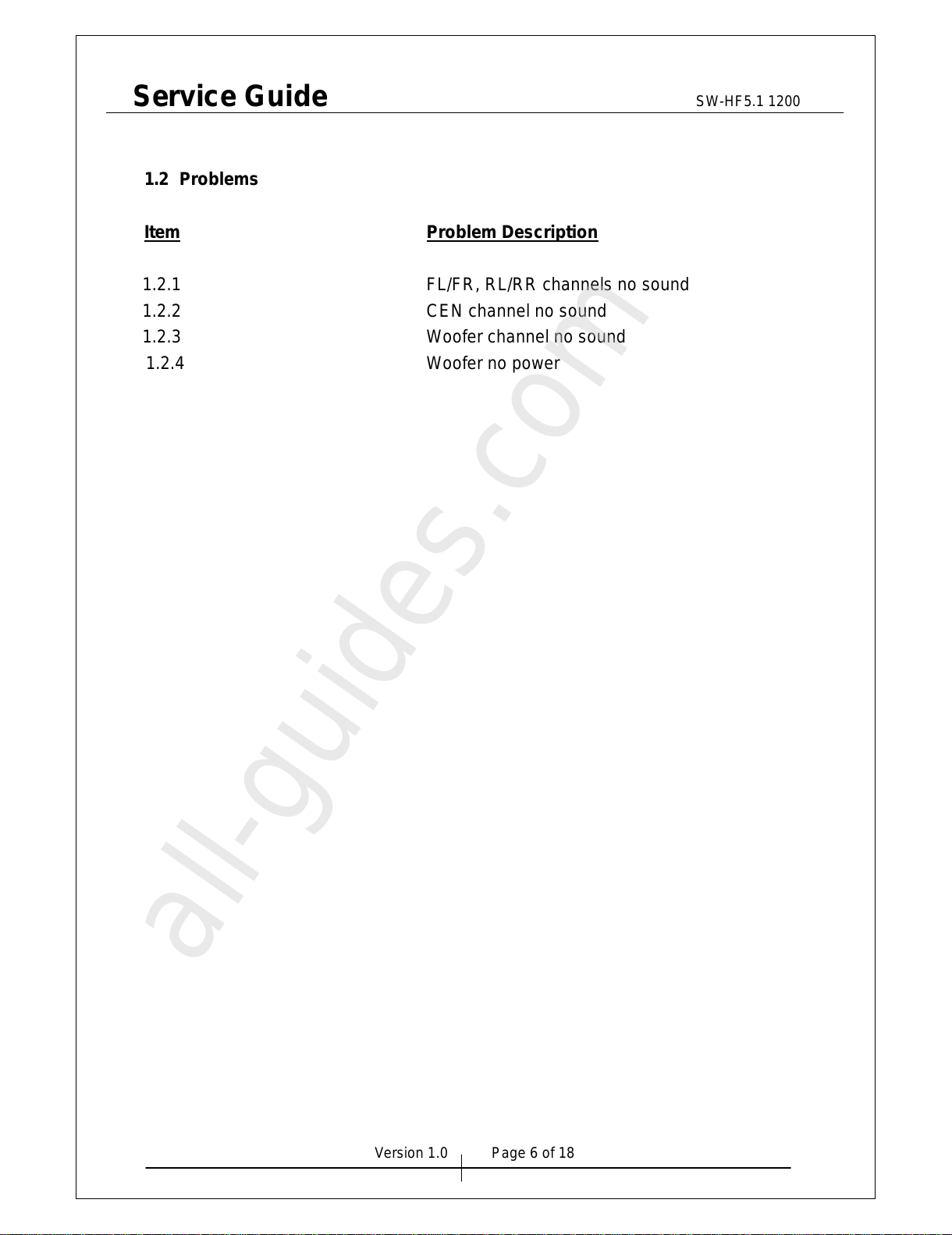

1.2 Problems
Item Problem Description
1.2.1 FL/FR, RL/RR channels no sound
1.2.2 CEN channel no sound
1.2.3 Woofer channel no sound
1.2.4 Woofer no power
Version 1.0 Page 6 of 18
All manuals and user guides at all-guides.com
all-guides.com

Service Guide SW-HF5.1 1200

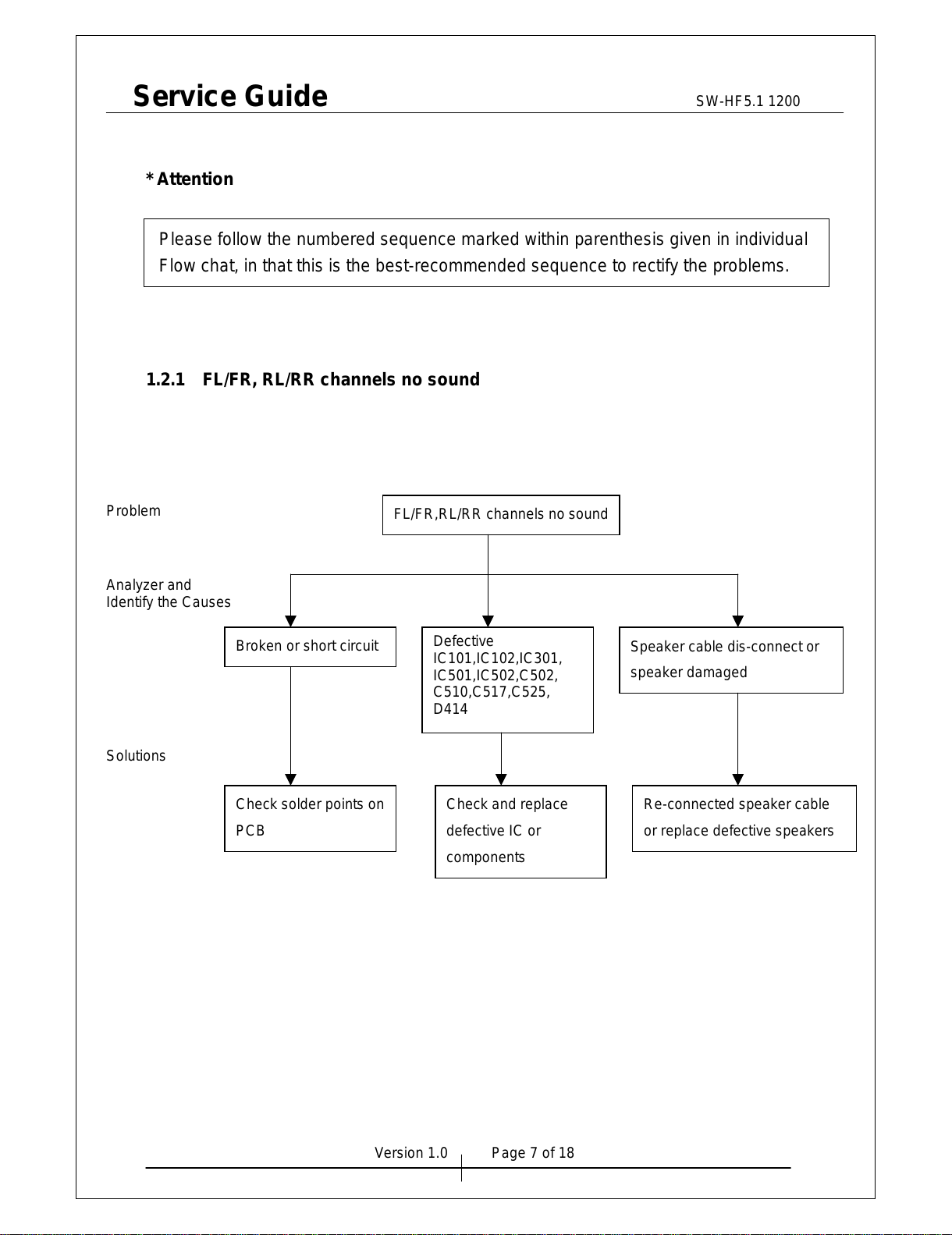

* Attention
Please follow the numbered sequence marked within parenthesis given in individual
Flow chat, in that this is the best-recommended sequence to rectify the problems.
1.2.1 FL/FR, RL/RR channels no sound
Problem
Analyzer and
Identify the Causes
Solutions
Version 1.0 Page 7 of 18
FL/FR,RL/RR channels no sound
Broken or short circuit
Check solder points on
PCB
Defective
IC101,IC102,IC301,
IC501,IC502,C502,
C510,C517,C525,
D414
Speaker cable dis-connect or
speaker damaged
Re-connected speaker cable
or replace defective speakers
Check and replace
defective IC or
components
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
1.2.2 CEN channel no sound
Problem
Analyzer and
Identify the Causes
Solutions
1.2.3 Woofer channel no sound
Problem
Analyzer and
Identify the Causes
Solutions
Version 1.0 Page 8 of 18
CEN channel no sound
Broken or short circuit
Check solder points on
PCB
Defective
IC103,IC301,IC503
C532,D414
Speaker cable dis-connect or
speaker damaged
Re-connected speaker cable
or replace defective speakers
Check and replace
defective IC or
components
Woofer channel no sound
Broken or short circuit
Check solder points on
PCB
Defective
IC103,IC301,IC504,
C541,Q1,IC302,Q301,
Q302,C314,D414
Speaker cable dis-connect or
speaker damaged
Re-connected speaker cable
or replace defective speakers
Check and replace
defective IC or
components
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

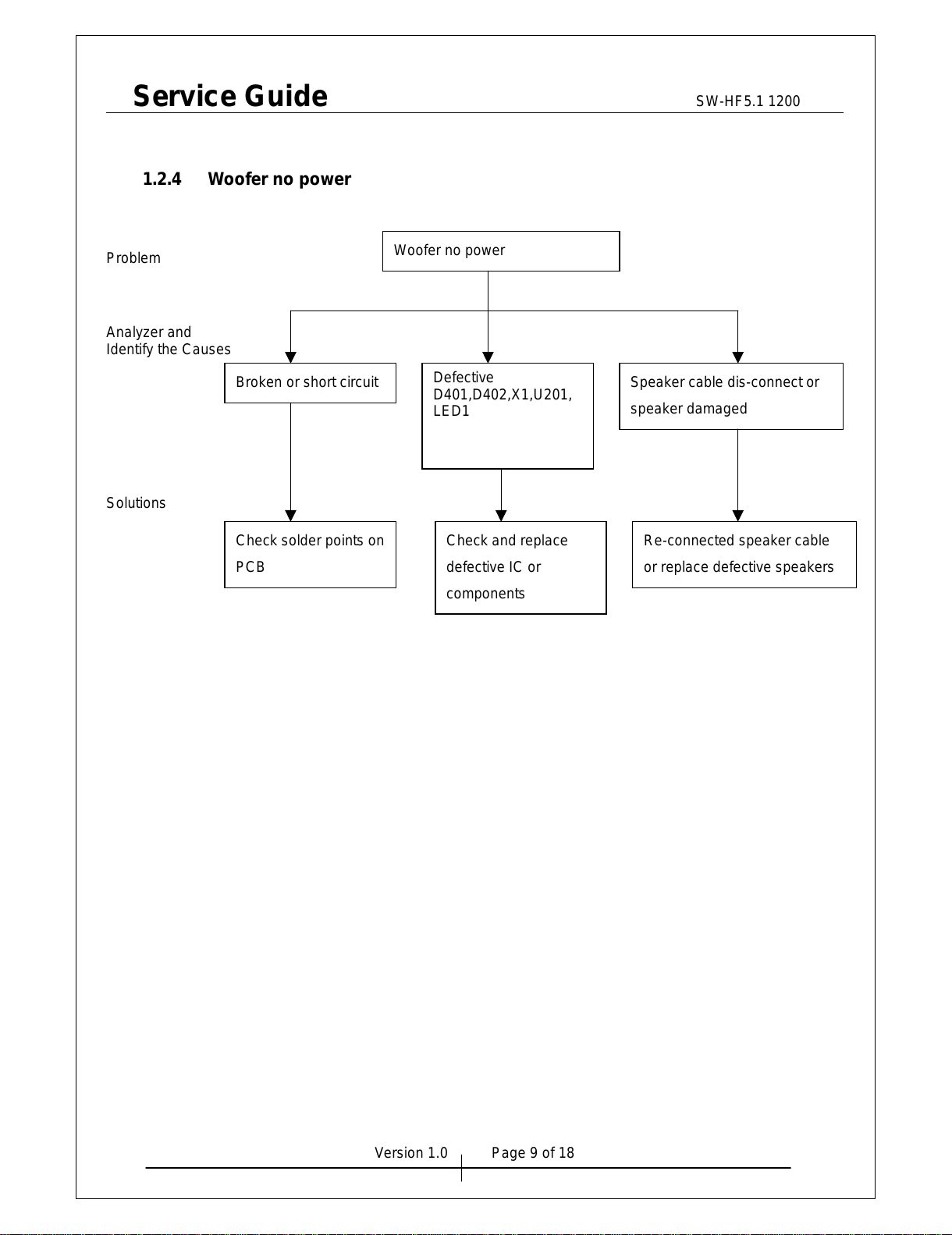

1.2.4 Woofer no power
Problem
Analyzer and
Identify the Causes
Solutions
Version 1.0 Page 9 of 18
Woofer no power
Broken or short circuit
Check solder points on
PCB
Defective
D401,D402,X1,U201,
LED1
Speaker cable dis-connect or
speaker damaged
Re-connected speaker cable
or replace defective speakers
Check and replace
defective IC or
components
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
Chapter 2. Specifications
Satellite – Center (AT 1KHZ):
NO Description Unit Specifications
1 Out Power at THD 10% W 3 ± 1
2 Sensitivity mV 350 ± 50
3 Freq Response (Ref:-3dB) Hz 120~20K
4 S/N ratio dB ≧50
5 Hum & Noise Vol:max mV ≦3
Satellite – Front (AT 1KHZ):
NO Description Unit Specifications
1 Out Power at THD 10% W 3 ± 1
2 Sensitivity mV 350 ± 50
3 Freq Response (Ref:-3dB) Hz 120~20K
4 Separation dB ≧35
5 S/N ratio dB ≧50
6 Hum & Noise Vol:max mV ≦3
Satellite – Rear (AT 1KHZ):
NO Description Unit Specifications
1 Out Power at THD 10% W 3 ± 1
2 Sensitivity mV 350 ± 50
3 Freq Response (Ref:-3dB) Hz 120~20K
4 Separation dB ≧35
5 S/N ratio dB ≧50
6 Hum & Noise Vol:max mV ≦3
Version 1.0 Page 10 of 18
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
Host (Woofer) (AT 100Hz):
NO Description Unit Specifications
1 Out Power at THD 10% W 15 ± 3
2 Sensitivity mV 100 ± 50
3 Freq Response (Ref:-3dB) Hz 50~250K
4 S/N ration dB ≧45
5 Hum & Noise Vol: max mV ≦5
Version 1.0 Page 11 of 18
All manuals and user guides at all-guides.com
all-guides.com

Service Guide SW-HF5.1 1200
Version 1.0 Page 12 of 18
Title

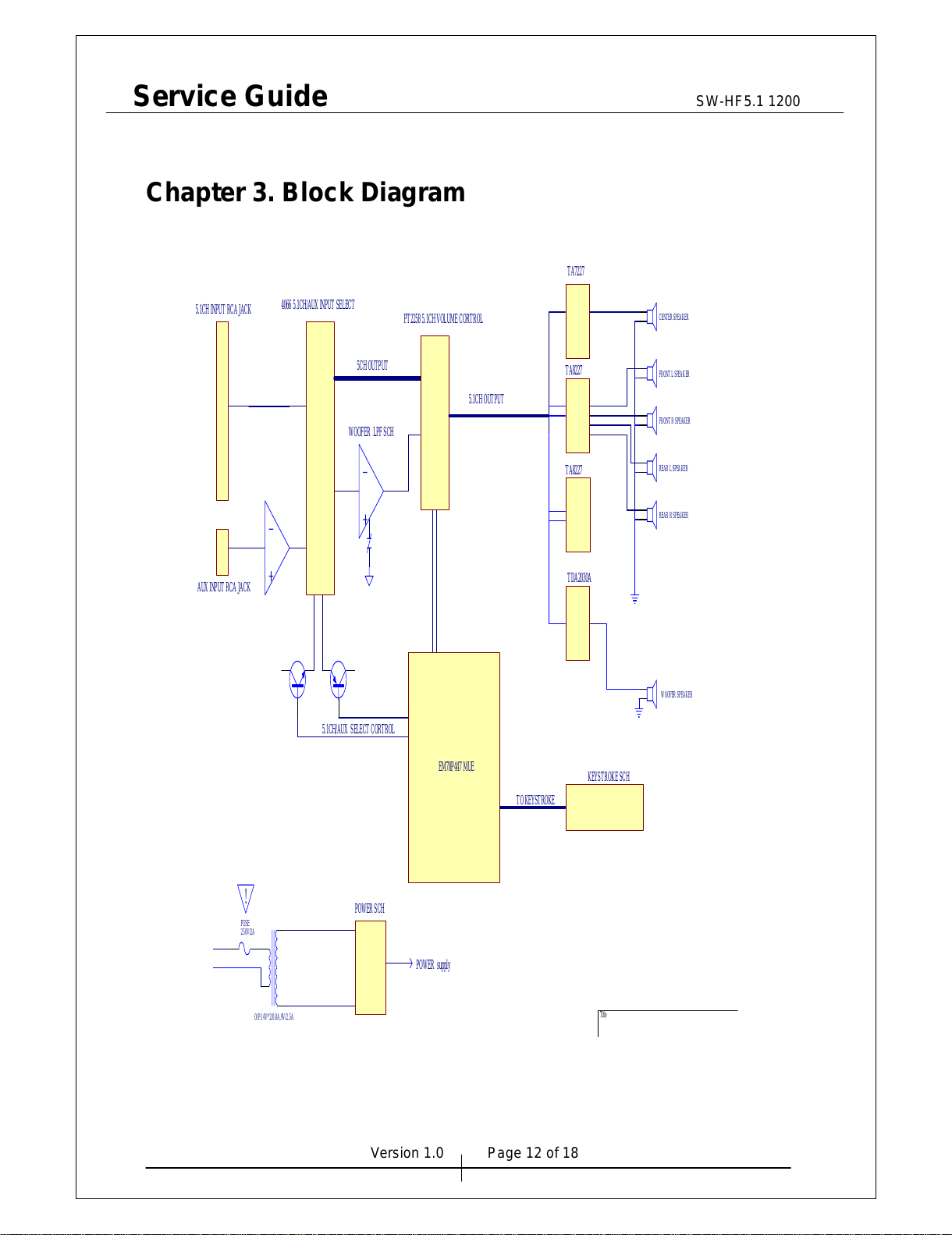

Chapter 3. Block Diagram
5.1CH INPUT RCA JACK
AUX INPUT RCA JACK
4066 5.1CH/AUX INPUT SELECT
5CH OUTPUT
PT2258 5.1CH VOLUME CORTROL
WOOFER LPF SCH
5.1CH OUTPUT
CENTER SPEAKER
FRONT L SPEAKER
FRONT R SPEAKER
REAR L SPEAKER
REAR R SPEAKER
WOOFER SPEAKER
TA7227
TA8227
TDA2030A
EM78P447 MUE
5.1CH/AUX SELECT CORTROL
TOKEYSTROKE
KEYSTROKE SCH
POWER SW
FUSE
250V/2A
O/P:14V*2/0.8A,9V/2.5A
POWER supply
POWER SCH
!
!
TA8227
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

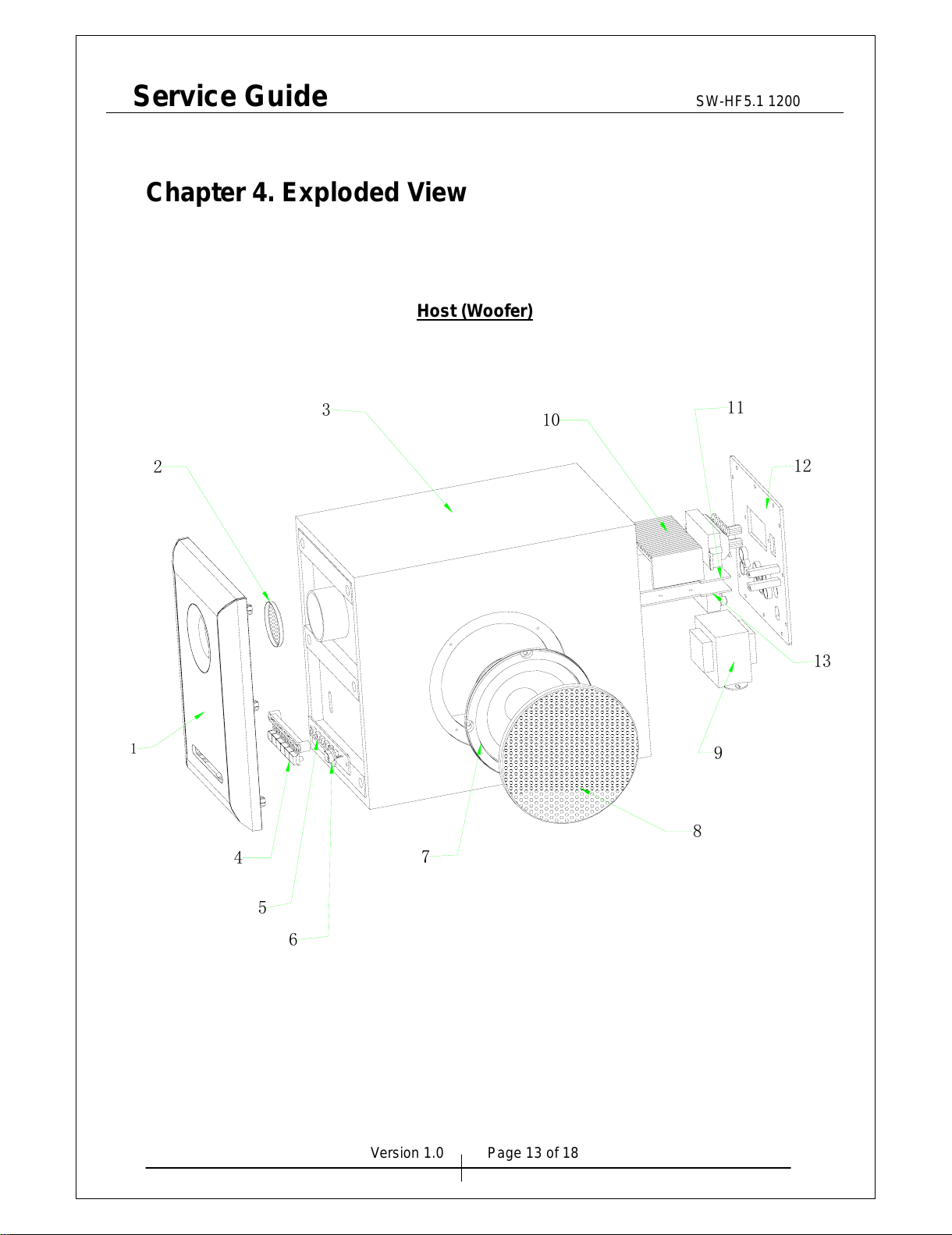

Chapter 4. Exploded View
Host (Woofer)
Version 1.0 Page 13 of 18
4
5
6
2
3
7
8
9
12
10
11
13
1
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

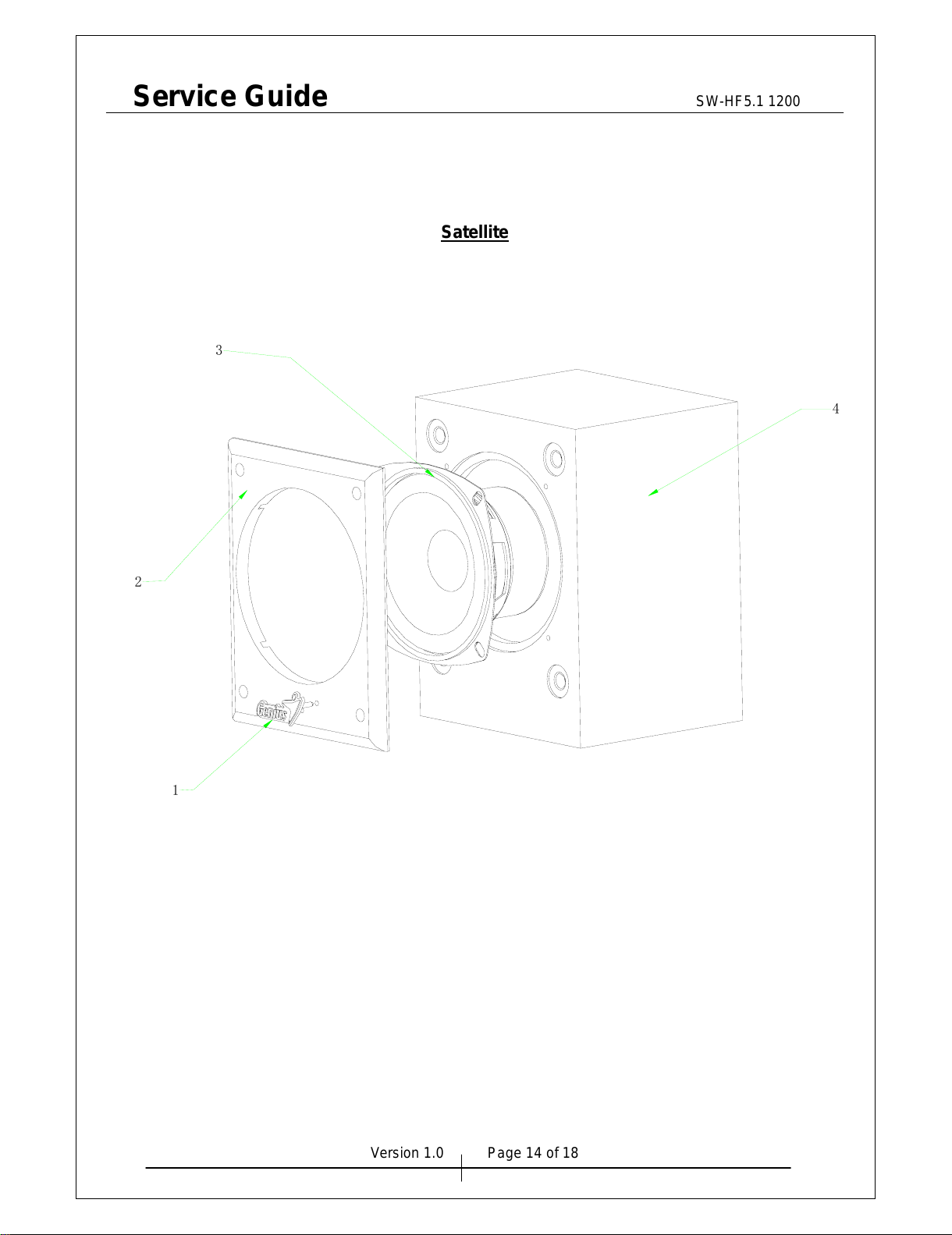

Satellite
Version 1.0 Page 14 of 18
2
1
3
4
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200

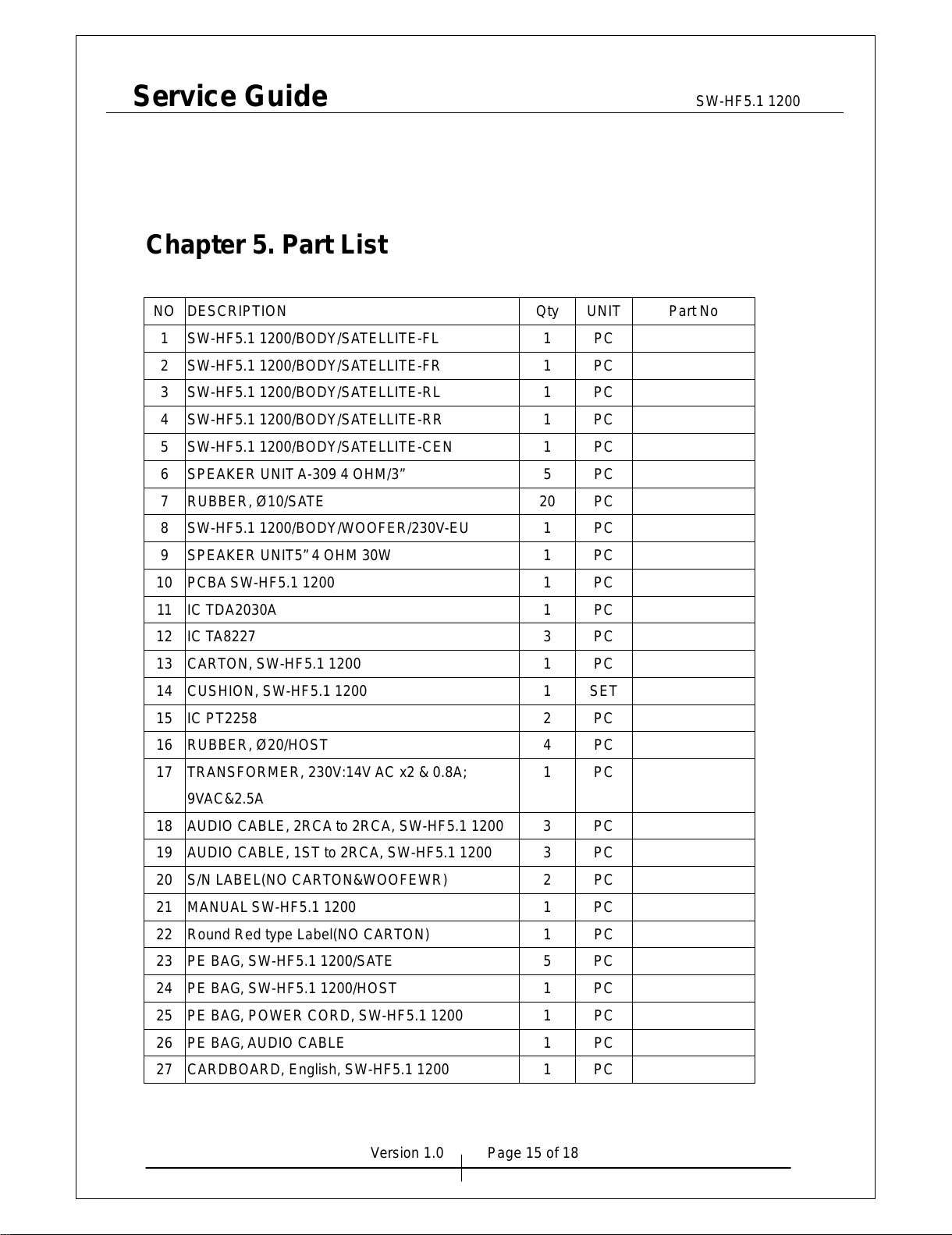

Chapter 5. Part List
NO DESCRIPTION Qty UNIT Part No
1 SW-HF5.1 1200/BODY/SATELLITE-FL 1 PC
2 SW-HF5.1 1200/BODY/SATELLITE-FR 1 PC
3 SW-HF5.1 1200/BODY/SATELLITE-RL 1 PC
4 SW-HF5.1 1200/BODY/SATELLITE-RR 1 PC
5 SW-HF5.1 1200/BODY/SATELLITE-CEN 1 PC
6 SPEAKER UNITA-309 4 OHM/3” 5 PC
7 RUBBER, Ø10/SATE 20 PC
8 SW-HF5.1 1200/BODY/WOOFER/230V-EU 1 PC
9 SPEAKER UNIT5” 4 OHM 30W 1 PC
10 PCBA SW-HF5.1 1200 1 PC
11 IC TDA2030A 1 PC
12 IC TA8227 3 PC
13 CARTON, SW-HF5.1 1200 1 PC
14 CUSHION, SW-HF5.1 1200 1 SET
15 IC PT2258 2 PC
16 RUBBER, Ø20/HOST 4 PC
17 TRANSFORMER, 230V:14V AC x2 & 0.8A;
9VAC&2.5A
1 PC
18 AUDIO CABLE, 2RCAto 2RCA, SW-HF5.1 1200 3 PC
19 AUDIO CABLE, 1ST to 2RCA, SW-HF5.1 1200 3 PC
20 S/N LABEL(NO CARTON&WOOFEWR) 2 PC
21 MANUAL SW-HF5.1 1200 1 PC
22 Round Red type Label(NO CARTON) 1 PC
23 PE BAG, SW-HF5.1 1200/SATE 5 PC
24 PE BAG, SW-HF5.1 1200/HOST 1 PC
25 PE BAG, POWER CORD, SW-HF5.1 1200 1 PC
26 PE BAG,AUDIO CABLE 1 PC
27 CARDBOARD, English, SW-HF5.1 1200 1 PC
Version 1.0 Page 15 of 18
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
Version 1.0 Page 16 of 18
Title
NumberSize
C
Date: 13-Jan-2005
File: D:\Documen ts an

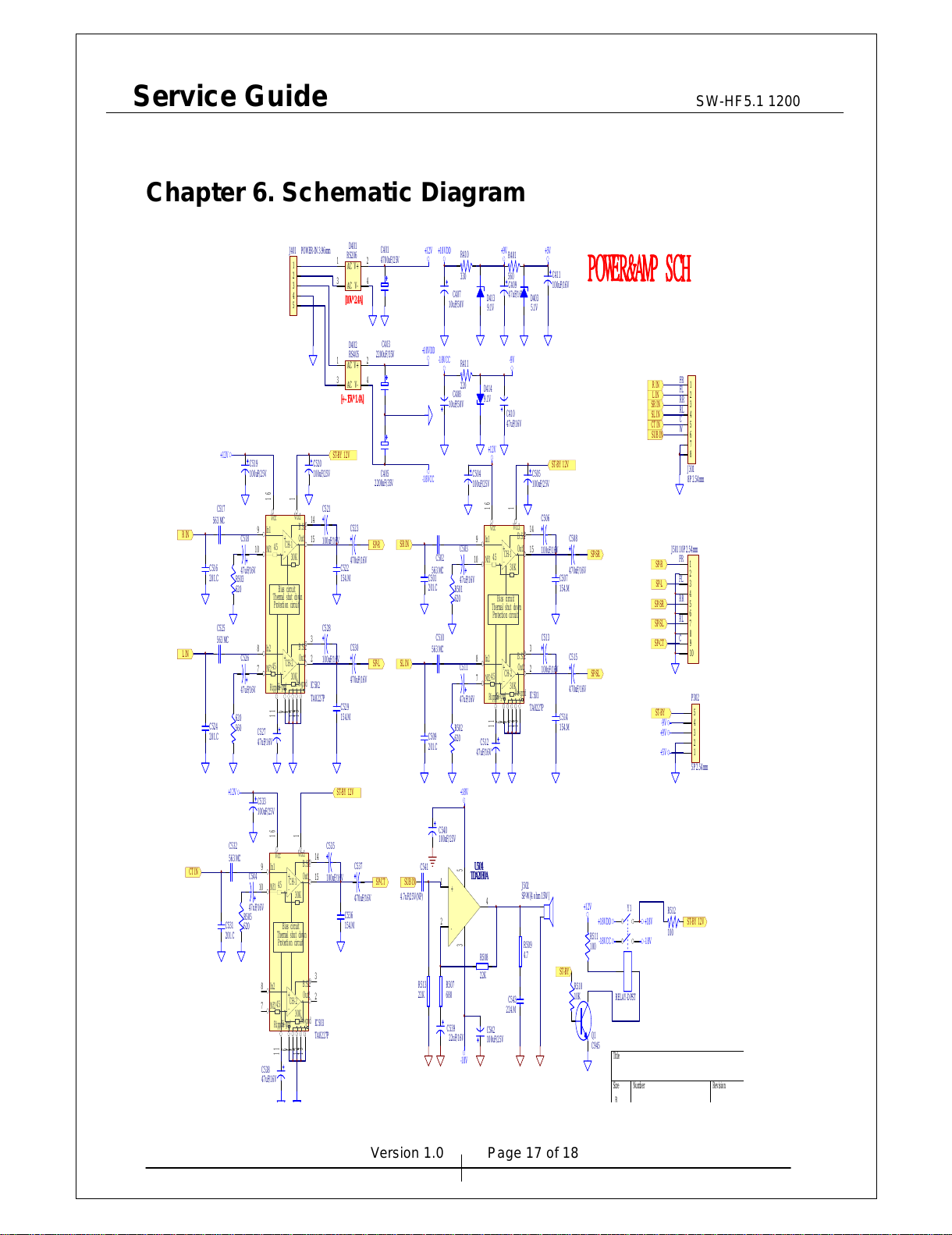

Chapter 6. Schematic Diagram
Revision
Sheet of
d Settings\Administrator\ \HN680F-1.DDB
桌面 Drawn By:
R315 10K
R313
1K
C315
22uF/16V
R314
2K
C316 103.C
+
_1
2
3
48
IC 30 2 A
JRC 4558
+
_
5
67
IC 30 2 B
JRC 4558
R318
8.2K
R317
8.2K
R316
8.2K
C317
683.M C318
104.M C319
273.M
+9V
R319
1K
-9V
SUB
WOOFER
C314
10uF/50V
R119
1K
R129
1K
R120
47K
R130
47K
C109
220pF
C114
220pF
C110
10uF/16V
C115
10uF/16V
R121
1.8M
R123
7.5K
Q101
2SC945
C111
33pF
R124
1.8K
R131
1.8M
R132
7.5K
Q102
2SC945
C116
33pF
R133
1.8K
7.5V
C113
10uF/16V
C117
10uF/16V
R125100K
R126100K
R12775K
R128 56K
R134100K
R135100K
R136 75K
R137 56K
L
R
R122
2K C112
100uF/16V
7.5V
+9V 2CH-L
2CH-R
2CH-SL
2CH-SR
2CH-CT
2CH-SUB
2CH-CT
2CH-SUB
2CHL
2CHR
I/O
1
O/I 2
O/I 3
I/O
4
CON 5
CON 6
Vss
7
I/O
8
O/I 9
O/I 10
I/O
11
CON 12
CON 13
Vdd 14
SWA
SWB
SWC
SWD
IC 10 1
CD4066B
R102
22K C101
101.C
5.1CH-L
R104
22K C102
101.C
5.1CH-R
L
I/O
1
O/I 2
O/I 3
I/O
4
CON 5
CON 6
Vss
7
I/O
8
O/I 9
O/I 10
I/O
11
CON 12
CON 13
Vdd 14
SWA
SWB
SWC
SWD
IC 10 2
CD4066B
R106
22K C103
101.C
5.1CH-SL
R108
22K C104
101.C
5.1CH-SR
SL
I/O
1
O/I 2
O/I 3
I/O
4
CON 5
CON 6
Vss
7
I/O
8
O/I 9
O/I 10
I/O
11
CON 12
CON 13
Vdd 14
SWA
SWB
SWC
SWD
IC 10 3
CD4066B
R110
22K
C105
101.C
5.1CH-CT
R112
22K
C106
101.C
5.1CH-SUB
CT
R
SR
SUB
2CH-L
2CH-R
2CH-SL
2CH-SR
2CH-CT
2CH-SUB
+9V
+9V
+9V
DVD
DVD
DVD
CD
CD
CD
R113
100
R114
100
R115
100
R116
100
R117
100
R118
100
-9V
-9V
-9V
R101
18K
R103
18K
R105
18K
R107
18K
R109
18K
R111
1K
IN1
1
IN2
2
IN3
3
CODE2
4
DGND
5
SCL
6
SDA
7
IN4
8
IN5
9
IN6
10 OUT6 11
OUT5 12
OUT4 13
GND 14
REF 15
VCC 16
CODE1 17
OUT3 18
OUT2 19
OUT1 20
IC301
PT2258
R301 10K
R302 10K
R303 10K
R304 10K
R305 10K
R306 10K
R307 100K
R308 100K
R309 100K
R310 100K
R311 100K
R312 100K
C302 10uF/50V
C303 10uF/50V
C305 10uF/50V
C306 10uF/50V
C304 10uF/50V
C301 10uF/50V C307 10uF/50V
C308 10uF/50V
C309 10uF/50V
C310 10uF/50V
C312 10uF/50V
C313 10uF/50V
C311 10uF/50V
1
2
3
4
5
6
7
8
J301
8P 2.54mm
FR
FL
RR
RL
C
W
FR
FL
RR
RL
C
W
SDA
SCL
+9V
L
SL
CT
R
SR
WOOFER
1
2
3
4
5
J302
5P 2.54mm
+5V
+9V
-9V
ST-BY
5.1CH-L
5.1CH-R
5.1CH-SL
5.1CH-SR
5.1CH-CT
5.1CH-SUB
1
2
3
4
5
6
7
8
9
JK101
DVD-INPUT 8P RCA J ACK
2CHR
2CHL
C207
47uF/16V
VDD
+5V
R201
330 R212
12
R200
47K
C208
103
R208
680
R206
680
R2074.7K
5.1CH 2CH
ST-BY
Pow er/O ff
SCL
SDA
R203100
R202100
RB2
RB3
RB7
RB5
RB4
VDD
PA2
1
PA3
2
RBB
3
RESET
4
VSS
5
RF
6
PB1
7
PB2
8
PB3
9PB4 10
PB5 11
PB6 12
PB7 13
VDD 14
OSC2 15
OSC1 16
PA0 17
PA1 18
U201
EM78P15
D200
IN 41 4 8
C201
104.C
VDD
X1
4M
晶体
C204
22p C205
22p
Crystal
R210
680
Q206
9015
Q301
1815
R350
4.7K
ST-BY
Q302
1815
R351
4.7K
W
Q205
C945
R323
68K
Q203
C945
R322
68K
Q202 90 15
Q204
9015
+9V
R321
2.2K R325
2.2K
+9V
DVD
CD
-9V
2CH
5.1CH
+9V
R352
10K
1
2
3
JP102
AUX INPUT
R1385.6K
R13913K
R320
100K
1
2
3
4
5
6
7
J201
CON 2.54mm
RB2
RB3
RB7
RB5
RB4
LED
LED
R209
100K
W
I NPUT SCH
All manuals and user guides at all-guides.com
all-guides.com

Service Guide SW-HF5.1 1200
Version 1.0 Page 17 of 18
Chapter 6. Schematic Diagram
Ti
Si
tle
Number Revisionze
B
C521
100uF/16V
C527
47uF/16V
C526
47uF/16V
C525
563 MC
C522
154.M
620
560
C523
470uF/16V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
+
_
+
_
CH-1
CH-2
In1
Nf1
In2
Nf2 45
45
30K
30K
B.S.1
Out1
Out2
B.S.2
Si-gnd Pw-gnd
Vcc Vcc1
Ripple
Bi as circuit
Thermal shut down
Protection circuit
IC 502
TA8227P
L IN
C518
47uF/16V
C517
563 MC
R503
620
R IN
C528
100uF/16V
C529
154.M
C530
470uF/16V
SP-R
SP-L
C506
100uF/16V
C512
47uF/16V
C511
47uF/16V
C510
563 MC
C507
154.M
R502
620
C508
470uF/16V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
+
_
+
_
CH-1
CH-2
In1
Nf1
In2
Nf2 45
45
30K
30K
B.S.1
Out1
Out2
B.S.2
Si-gnd Pw-gnd
Vcc Vcc1
Ripple
Bi as circuit
Thermal shut down
Protection circuit
IC 501
TA8227P
SL IN
C503
47uF/16V
C502
563 MC
R501
620
SR IN
C513
100uF/16V
C514
154.M
C515
470uF/16V
SP-SR
SP-SL
C535
100uF/16V
C538
47uF/16V
C536
154.M
C537
470uF/16V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
+
_
+
_
CH-1
CH-2
In1
Nf1
In2
Nf2 45
45
30K
30K
B.S.1
Out1
Out2
B.S.2
Si-gnd Pw-gnd
Vcc Vcc1
Ripple
Bias circuit
Thermal shut down
Protection circuit
IC 50 3
TA8227P
C544
47uF/16V
C532
563 MC
R505
620
CTIN SP-CT
C519
100uF/25V C504
100uF/25V
C516
201.C
C524
201.C
C501
201.C
C509
201.C
C531
201.C
C505
100uF/25V
+12V
ST-BY 12V
+12V C520
100uF/25V
ST-BY 12V
C533
100uF/25V
+12V ST-BY 12V +18V
-18 V
SUB IN
Q1
C945
R510
10K
R511
100
ST-BY
ST-BY 12V
+12V
SP-R
SP-L
SP-SR
SP-SL
SP-CT
1
2
3
4
5
6
7
8
9
10
J501 10P2.54mm
FR
FL
RR
RL
C
AC
1V+ 2
AC
3V- 4
D401
RS206
AC
1V+ 2
AC
3V- 4
D402
RS405
C401
4700uF/25V
C403
2200uF/35V
C405
2200uF/35V
+12V
-18VCC
+18VDD
+9V
-9V
C410
47uF/16V
C407
10uF/50V
C408
10uF/50V
+18VDD
-18 VCC
R401
560
C409
47uF/16V D403
5.1V
C411
100uF/16V
+5V
1
2
3
4
5
P302
5P2.54mm
+5V
+9V
-9V
[+ - 15V*1.4A]
1
2
3
4
5
J401 POWER-IN 3.96mm
[10V*2.4A]
ST-BY
C543
224.M
C542
100uF/25V
R509
4.7
J502
SP-W [4 o hm 1 5W ]
C540
100uF/25V
R513
22K
1
2
3
4
5
-
+
U504
TDA2030A
R507
680
R508
22K
C539
22uF/16V
C541
4.7uF/25V(NP)
R410
330
R411
220
D413
9.1V
D414
9.1V
Y1
RELAY-DPST
+18VDD
-18 VCC
+18V
-18V
R512
100
1
2
3
4
5
6
7
8
J301
8P2.54mm
FR
FL
RR
RL
C
W
POWER&AMP SCH
L IN
R IN
CTIN
SL IN
SR IN
SUB IN
All manuals and user guides at all-guides.com

Service Guide SW-HF5.1 1200
Chapter 7. Important Notes
7.1 Packing Requirement for Sending the PCB Assembly by Post
PCB assembly is a kind of sophisticated electronic circuit board. Well
packing will be required when sending them by post.
* Some sophisticated IC components are mounted on the PCB assembly,
hence it is necessary to pack each PCB assembly with a separate static
protecting bag, in order to avoid static electricity.
* Reliable external packing is also very important when sending PCB
assembly by post, in that it would avoid unnecessarily lost or damage.
7.2 Short of Spare Parts while Repairing a Speaker System
Version 1.0 Page 18 of 18
If you are short of spare parts when you have some speaker systems waiting
to be repaired, it would be recommended to take the necessary parts form
one speaker system, so that you may have the as many speaker systems.
All manuals and user guides at all-guides.com
