Gentec-EO TUNER User manual

TUNER User’s Manual Revision 4.21
Gentec Electro –Optics, Inc. All rights reserved
WARRANTY
The Gentec-EO TUNER Single Channel Laser Power Meter comes with a one-year warranty (from date
of shipment) against material and/or workmanship defects, when used under normal operating conditions.
The warranty does not cover damages related to battery leakage or misuse.
Gentec-EO Inc. will repair or replace, optionally, any TUNER that proves to be defective during the
warranty period, except in the case of product misuse.
Any attempt by an unauthorized person to alter or repair the product voids the warranty.
The manufacturer is not liable for consequential damages of any kind.
In case of malfunction, contact your local Gentec-EO distributor or nearest Gentec-EO Inc. office to obtain
a return authorization number. The material should be returned to:
Gentec Electro-Optics, Inc.
445, St-Jean-Baptiste, Suite 160
Québec, QC
Canada G2E 5N7
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Website: www.gentec-eo.com
CLAIMS
To obtain warranty service, contact your nearest Gentec-EO agent or send the product, with a description
of the problem, prepaid shipping and insurance, to the nearest Gentec-EO agent. Gentec-EO Inc.
assumes no risk for damage in transit. Gentec-EO Inc. will, at its option, repair or replace the defective
product free of charge or refund your purchase price. However, if Gentec-EO Inc. deems that the failure
is caused by misuse, alterations, accident or abnormal condition of operation or handling, you will be
billed for the repair and the repaired product will be returned to you (repetitive, see above).

TUNER User’s Manual Revision 4.22
Gentec Electro –Optics, Inc. All rights reserved
WARRANTY
The Gentec-EO TUNER Single Channel Laser Power/Energy Meter carries a one-year warranty (from
date of shipment) against material and/or workmanship defects, when used under normal operating
conditions. The warranty does not cover damages related to battery leakage or misuse.
Gentec-EO Inc. will repair or replace, optionally, any TUNER that proves to be defective during the
warranty period, except in the case of product misuse.
Any attempt by an unauthorized person to alter or repair the product voids the warranty.
The manufacturer is not liable for consequential damages of any kind.
Customers must fill in and mail the warranty card in order to activate the warranty.
In case of malfunction, contact your local Gentec-EO distributor or nearest Gentec-EO Inc. office to obtain
a return authorization number. The material should be returned to:
Gentec Electro-Optics, Inc.
445, St-Jean-Baptiste, Suite 160
Québec, QC
Canada G2E 5N7
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Website: www.gentec-eo.com
CLAIMS
To obtain warranty service, contact your nearest Gentec-EO agent or send the product, with a description
of the problem, transportation and insurance prepaid, to the nearest Gentec-EO agent. Gentec-EO Inc.
assumes no risk for the damage in transit. Gentec-EO Inc. will, at its option, repair or replace the
defective product free of charge or refund your purchase price. However, if Gentec-EO Inc. determines
that the failure is caused by misuse, alterations, accident or abnormal condition of operation or handling,
you will be billed for the repair and the repaired product will be returned to you, transportation prepaid.
P/N: 90043187 Rev. D

TUNER User’s Manual Revision 4.23
Gentec Electro –Optics, Inc. All rights reserved
SAFETY INFORMATION
Do not use the TUNER if the device or the detector looks damaged, or if you suspect that the TUNER is
not operating properly.
Appropriate installation must be done for water-cooled and fan-cooled detectors. Refer to the specific
instructions for more information. The user must wait for a while before handling these detectors after
power is applied. Surfaces of the detectors get very hot and there is a risk of injury if they are not allowed
to cool down.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, it is
suggested to try to correct the interference by taking one or more of the following steps:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and receiver.
•Connect the equipment to an outlet that is on a different circuit than the receiver.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved in writing by Gentec-EO Inc. may
void the user’s authority to operate this equipment.

TUNER User’s Manual Revision 4.24
Gentec Electro –Optics, Inc. All rights reserved
TABLE OF CONTENTS
WARRANTY..................................................................................................................................................1
CLAIMS.........................................................................................................................................................1
WARRANTY..................................................................................................................................................2
CLAIMS.........................................................................................................................................................2
P/N: 90043187 REV. D.................................................................................................................................2
SAFETY INFORMATION..............................................................................................................................3
TABLE OF CONTENTS................................................................................................................................4
LIST OF ILLUSTRATIONS ...........................................................................................................................4
1THE TUNER SINGLE CHANNEL LASER POWER METER.................................................................5
1.1 INTRODUCTION...............................................................................................................................................5
1.2 SPECIFICATIONS .............................................................................................................................................6
1.3 FRONT PANEL DESCRIPTION...........................................................................................................................7
1- Backlight / On-Off..........................................................................................................................................7
2- Speed / Zero...................................................................................................................................................7
3- Needle low-high / Att Control Key.................................................................................................................8
4- Display / Needle style ....................................................................................................................................8
5- Range ▲ / Range ▼ Control Keys................................................................................................................8
1.4 CONNECTORS DESCRIPTION ...........................................................................................................................9
1.5 DISPLAY DESCRIPTION..................................................................................................................................10
2GETTING STARTED...........................................................................................................................12
2.1 POWER MEASUREMENT PROCEDURE.............................................................................................................12
3BATTERIES.........................................................................................................................................13
3.1 BATTERY SELECTION....................................................................................................................................13
3.2 BATTERY INSTALLATION ..............................................................................................................................13
3.3 BATTERY REMOVAL .....................................................................................................................................13
4DECLARATION OF CONFORMITY....................................................................................................14
4.1 IMMUNITY LIMITATIONS...............................................................................................................................15
5APPENDIX...........................................................................................................................................16
5.1 RECYCLING AND SEPARATION PROCEDURE...................................................................................................16
5.2 SEPARATION.................................................................................................................................................16
5.3 DISMANTLING PROCEDURE...........................................................................................................................16
LIST OF ILLUSTRATIONS
FIG.1-1 TUNER FRONT PANEL.......................................................................................................................7
FIG.1-2 TUNER CONNECTORS.......................................................................................................................9
FIG.1-3 TUNER LCD DISPLAY .....................................................................................................................10
FIG.1-4 NEEDLE DISPLAY IN TAIL MODE.........................................................................................................11
FIG.1-5 NEEDLE DISPLAY IN BAR GRAPH MODE .............................................................................................11

TUNER User’s Manual Revision 4.25
Gentec Electro –Optics, Inc. All rights reserved
1 THE TUNER SINGLE CHANNEL LASER POWER METER
1.1 Introduction
To obtain full performance from the TUNER, we recommend that you read this manual carefully.
The TUNER is a numerical and digital needle LCD display laser power monitor that features outstanding
efficiency, ease of use and long battery life.
Unpacking
Each Gentec-EO TUNER is thoroughly tested and calibrated prior to shipment.
Visually inspect every TUNER unit after removing it from the shipping containers. If you see any damage,
retain all packaging materials and shipping receipts. Any damage claim should be made promptly to the
shipping company. Notify the nearest Gentec-EO representative concerning the claim, so that any repair
or replacement can be arranged as soon as possible.

TUNER User’s Manual Revision 4.26
Gentec Electro –Optics, Inc. All rights reserved
1.2 Specifications
The following specifications are based on a one-year calibration cycle, an operating temperature of 18 to
28ºC (64 to 82ºF) and a relative humidity not exceeding 80%.
Table 1-1 List of Specifications
TUNER POWER METER SPECIFICATIONS
Power Range
10 pW to 10 kW (detector dependent)
Power Scales
(photodetector)
Autoscale
Power Scales
(thermal head)
25 scales: 10nW, 30nW, 100nW, 300nW, 1uW, 3uW, 10uW, 30uW, 100uW,
300uW, 1mW, 3mW, 10mW, 30mW, 100mW, 300mW, 1W, 3W, 10W, 30W,
100W, 300W, 1kW, 3kW, 10kW
Compatible detector
heads
XLP12, all UP Series, PS 1.5k, PS 3k, PS 6k, all HP Series and all PH series
Digital Resolution (XLP-
12 detector)
1 µW
Digital Resolution
(UP/PS thermal
detector)
1 mW
Digital Resolution (HP
detector)
Autoscale
Digital Resolution
(photodetector)
10 pW
Monitor Accuracy
±1 % 5 µV
Response Time
(accelerated)1
< 1sec
Sampling Frequency
16.7 Hz
Analog out
0-1volt (±1%)
Digital Display
77 x 58 mm LCD
LCD segments
96 (55 segments for needle)
Needle accuracy
0.9%
Display Rate
4 Hz
Dimensions
210 mm(W) x 122 mm (H) x 44 mm (D)
Weight (including
batteries)
0.47 kg
Batteries (included)
4 Alkaline AA batteries
Current consumption
(without backlight)
5mA
Backlight current
60mA (with external 9 VDC power supply only)
Battery life (with
passive thermal
500 hours
1
Varies with detector head.

TUNER User’s Manual Revision 4.27
Gentec Electro –Optics, Inc. All rights reserved
detector)
External Power Supply
(included)
Input: 100/240 VAC 50-60 Hz, Output 9 VDC 1.66 A
1.3 Front Panel Description
Fig. 1-1 TUNER Front Panel
1- Backlight / On-Off
Switches the TUNER on and off (press for at least 2 seconds to turn off the TUNER) and
toggles backlight on and off when the TUNER is on (backlighting is available only when
the TUNER is powered by the external 9 VDC power supply). Backlight status is
memorized by the TUNER.
If no detector head is connected when the TUNER is powered on, the message “No
Detector” will be displayed. Turn off the TUNER; connect the detector to the Probe
Input Jack (see section 1.4) and turn the TUNER on again.
If the detector is not recognized by the TUNER, the message “Bad Detector” will be
displayed. Make sure you use a detector head that is compatible with the TUNER (see
section 1.2 for the list of compatible detector heads).
2- Speed / Zero
Press and release this key to toggle between fast and slow modes. The fast mode
enables anticipation, which shortens the natural response time of the detector. The slow
mode disables anticipation. By default, the TUNER will always power-up in fast mode.
1
6
5
4
5
6
7
2
3

TUNER User’s Manual Revision 4.28
Gentec Electro –Optics, Inc. All rights reserved
Press this key for at least 2 seconds for zeroing. This cancels electronic offset, detector
offset and ambient light on the detector. The TUNER should be zeroed before taking
measurements. Refer to p.11, adjusting the zero (steps 8 to 11).The TUNER will redo
the zero every time you press the zero button for two seconds, reboot the TUNER if you
wish to remove the zero cancellation.
3- Needle low-high / Att Control Key
This key enables memorization of the minimum and maximum readings. When enabled,
two blinking needles will continuously mark the current minimum and maximum values
since the memorization function has been enabled. (See point 6 and 7) for digital display
of minimum and maximum values). The minimum and maximum values for both the
needles and the digital high and low can be reset to the current measured value by
pressing this key 2 times quickly (like a mouse double click).
The blinking needles can be toggled on and off by pressing this key again, but once
activated, the minimum and maximum values are continuously updated, as long as the
TUNER is on.
When pressed for at least 2 seconds, Att is activated. Gentec-EO’s photodetectors are
calibrated with and without attenuator, with both responsitivity data captured in the
detector EEPROM and downloaded into the instrument upon start-up. This key allows
the user to select the proper configuration. The “ATT ON” LCD annunciator message
indicates whether the attenuator setting is activated. Press again for at least 2 seconds to
deactivate ATT, the message “ATT OFF” will scroll in the LCD to confirm button press
action.
4- Display / Needle style
Toggles the display between measurement, wavelength selection and range selection
modes. (See point 5 below for wavelength and range selection).
When pressed for at least 2 seconds, toggles the needle display between the following
four modes: single needle, tail needle (displays a short tail and a long tail following the
needle movement) and bar graph (displays a permanent, continuous trail between zero
and the current needle position).
5- Range ▲ / Range ▼ Control Keys
Allows the user to select the wavelength in wavelength display mode, or the range in
range display mode and in measurement mode. When selected by the user, the
wavelength and the range are automatically stored in non-volatile memory. The TUNER
returns to this same wavelength and/or range when it is turned on again with the same
detector head.
As the measured power varies upward, the range is automatically adjusted to provide the
most efficient reading There will be no automatic scale down as the power varies
downward.
The TUNER has 3 physical gains and it will always auto-scale the physical gain. The
TUNER will display a little variation during a physical gain change.
Range down can be manually selected using the range down button.
6 - Digital high Control Keys
Displays the maximum recorded values. To return to measurement display mode, press the key again.

TUNER User’s Manual Revision 4.29
Gentec Electro –Optics, Inc. All rights reserved
7 - Digital low / W/dBm Control Keys
Displays the maximum recorded values. To return to measurement display mode, press the key again.
The dBm function is available by pressing more than 2 seconds on the Digital-Low control key. The Tuner
will convert the displayed number in dBm (dB referenced to 1mW) and will display “dBm” message unit
and then no units. To get back to the previous display in Watt, press again more than 2 seconds on the
Zero control key. The ranges are also displayed in dBm.
8 - Display
Two parts digital/analog display LCD screen. Refer to section 1.5 for a detailed description.
1.4 Connectors Description
Fig. 1-2 TUNER Connectors
1- EXTERNAL POWER SUPPLY INPUT JACK.
Input voltage required: 9 VDC/100 mA. The external power supply does not charge the
batteries; it allows the use of the monitor without batteries, with dead batteries or simply
to avoid discharging the batteries inside the monitor.
CAUTION
Permanent damage to the optical meter may occur if an
external power supply other than the Gentec-EO P/N
200960A is used. Please call Gentec-EO or your local
distributor if extra power supplies are needed.
2- 0 to 1 VOLT ANALOG OUTPUT:
For monitoring laser average power by using external equipment such as a chart
recorder, a computer with an analog interface, a voltmeter, etc.
The output signal is the amplified power detector response, in fast or slow mode.
The 1 V value corresponds to the full scale reading of the selected range. That provides
the best signal-to-noise ratio. The measured power is then related to the output voltage
and to the selected range according to the following equations:
selectedRangeofMax outputVPower
1
3
2

TUNER User’s Manual Revision 4.210
Gentec Electro –Optics, Inc. All rights reserved
For example:
0.25 V corresponds to 2.5 Watts on the 10 W range
0.10 V corresponds to 30 milliwatts on the 300 mW range
Specifications:
Maximum output voltage: 1 V
Output impedance: 2.5 k
Connector type: Female 1/8” jack
3- PROBE INPUT JACK.
The TUNER uses a DB-15 female connector to mate with the detector heads (probes).
The TUNER works with all Gentec-EO thermal power detectors currently sold. It
automatically recognizes every power detector head, which ensures accurate auto-
calibration. More importantly, it can take advantage of our Personal wavelength
correction™. It reads the memory in the Smart Interface connector to provide a
wavelength correction that is based on spectral data measured from that specific
detector.
1.5 Display description

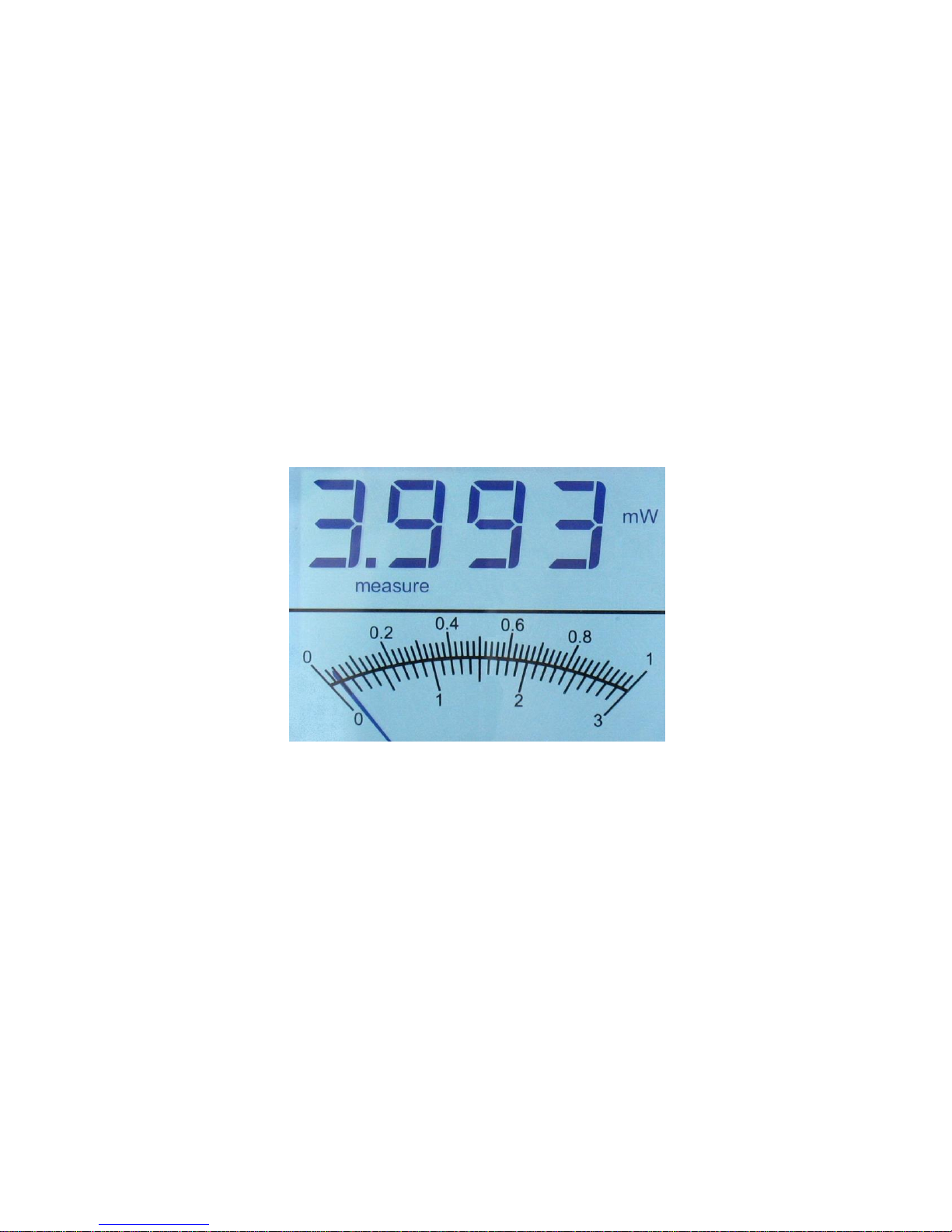

Fig. 1-3 TUNER LCD Display
The LCD provides measurement information, wavelength information, range information and other useful
messages.
The upper part of the screen displays TUNER setting information and digital values from the
measurements. The numeric display minimum resolution is 0.1% of the full scale. The smallest value
that can be displayed is 0.001 μW.
The lower part of the screen displays values from the measurements by showing a needle over an
analogue scale. The two following pictures show the needle in the “Tail” and “Bar Graph” display modes,
respectively.

TUNER User’s Manual Revision 4.211
Gentec Electro –Optics, Inc. All rights reserved
Fig. 1-4 Needle Display in Tail mode
Fig. 1-5 Needle Display in Bar Graph mode
When the batteries are discharged enough to compromise the measurement, the TUNER displays “LO
BATT” instead of the measurement. Refer to section 3 to replace the batteries.
If the voltage supplied by the external power supply is lower than 7 Volts, the TUNER displays “LO
JACK”.
If no detector head is connected when the TUNER is powered on, the message “No Detector” will be
displayed. Turn off the TUNER; connect the detector to the Probe Input Jack (see section 1.4) and turn
the TUNER on again.
If the detector is not recognized by the TUNER, the message “Bad Detector” will be displayed. Make sure
you use a detector head that is compatible with the TUNER (see section 1.2 for the list of compatible
detector heads).

TUNER User’s Manual Revision 4.212
Gentec Electro –Optics, Inc. All rights reserved
2 Getting Started
This section contains important information concerning the installation and operation of the TUNER.
The TUNER is delivered ready to use. Just install the 4 AA batteries, insert a compatible detector
head in the Probe Input Jack (#3 in Figure 1-2) and press the I/O key.
2.1 Power measurement procedure
1- Install the power detector on its optical stand.
2- First, slide the connector latch to the right to unlock the connector.
3- Turn the TUNER off and connect a power detector head to the TUNER using the PROBE
INPUT JACK (see Fig. 1-2). It is recommended to turn the TUNER off before connecting a
new head in order to prevent any loss of information from the detector head’s EEPROM.
4- Slide the latch to the left to lock the connector into place.
5- Switch the TUNER ON using the I/O key. The TUNER displays the current wavelength for a
moment before displaying measurements. If this wavelength is not the wavelength of the laser,
go to step 6, otherwise proceed to step 8.
6- Select the proper wavelength using the Display control key to go to the wavelength display
mode, then the Range ▲ / Range ▼ control keys to select the wavelength.The TUNER
automatically stores the wavelength selection in non-volatile memory when the TUNER is set
back to the measurement display mode, so it returns to this same wavelength when it is turned
on again.
7- Return to the measurement mode by pressing the Display control key twice.
Adjusting the zero (steps 8 to 11)
8- Remove the detector’s protective cover.
9- Put the detector into the laser beam path. The entire laser beam must be within the sensor
aperture. Do not exceed maximum specified power densities. For the most accurate
measurement, spread the beam across 60% to 80% of the sensor area. Leave it there until the
detector has reached its equilibrium temperature.
10- Block off laser radiation to the detector.
The power read by the TUNER when no laser beam is incident on the detector may not be
exactly zero. This is because the detector is not thermally stabilized OR there was a heat
source in the detector’s field of view when you turned on the TUNER, OR the internal
electronic offset of the TUNER is not zero.
11- To reset the zero, wait until the reading has stabilized and press the Zero control key on the
front panel for at least 2 seconds. The TUNER will display “----“ for a moment and then return
to the normal measurement display. You are now ready to make an accurate measurement.
12- Apply the laser beam to the detector.
Notes:
•Refer to the specific power detector documentation for complete installation and operating
instructions.
•The power detectors are thermal sensors sensitive to temperature variations.
For high-precision measurements, it is recommended to:
•Allow the power detector’s temperature to stabilize before zeroing the TUNER.
•Do not touch the detector itself when handling the power detector. Touch only the stand.
•Avoid forced airflow or drafts around the detector.

TUNER User’s Manual Revision 4.213
Gentec Electro –Optics, Inc. All rights reserved
3 BATTERIES
3.1 Battery selection
To avoid leakage and poor autonomy, it is highly recommended that only good quality, new and identical
alkaline batteries be put into the TUNER. Good quality rechargeable batteries can also be used with the
TUNER and recharged with an external charger.
The batteries need to be replaced if the TUNER displays “LO Batt” on its digital display or if it does not
power-up when the I/O control key is pressed.
3.2 Battery installation
- Put the TUNER face down on a flat surface.
- Lift the kickstand.
- Open and remove the battery door.

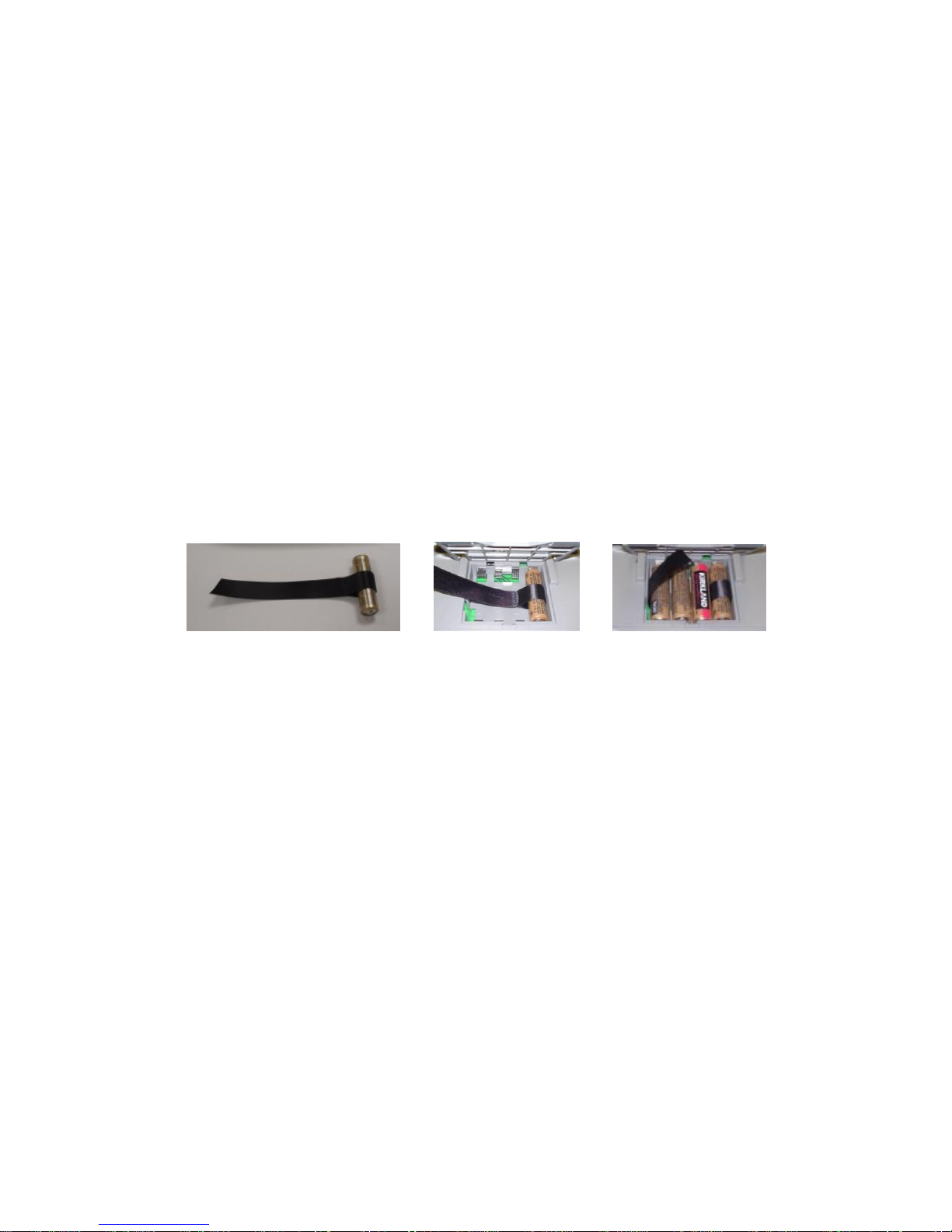

- Insert one battery in the nylon strap (to ease later removal) and insert it at one extremity of the TUNER
battery compartment with the right polarity. To avoid intermittent contact and involuntary disconnection,
firmly insert the batteries. Insert the other batteries over the nylon strap with the right polarity so that
pulling on the strap will pull every battery out of the TUNER.
- Put the battery door back in place.
3.3 Battery removal
- Put the TUNER face down on a flat surface.
- Lift the kickstand.
- Open and remove the battery door.
- Hold down the TUNER and slowly pull on the nylon strap to remove the batteries. Do not use a pointed
tool to remove the batteries, since that could puncture them. The batteries need a firm pull to be
removed.

TUNER User’s Manual Revision 4.214
Gentec Electro –Optics, Inc. All rights reserved
4 DECLARATION OF CONFORMITY
Application of Council Directive(s): 2004/108/EC EMC Directive
Manufacturer’s Name: Gentec Electro Optics, Inc.
Manufacturer’s Address: 445 St-Jean Baptiste, suite 160
Québec (Québec), Canada G2E 5N7
European Representative’s Name: Laser Components S.A.S.
Representative’s Address: 45 bis Route des Gardes
92190 Meudon (France)
Type of Equipment: Laser Power Meter
Model No.: TUNER
Year of test & manufacture: 2011
Standard(s) to which Conformity is declared:
EN 61326-1: 2006 Emission generic standard
Standard
Description
Performance
Criteria
CISPR 11 :2009
A1 :2010
Industrial, scientific and medical equipment –Radio-frequency
disturbance characteristics –Limits and methods of
measurement
Class A
EN 61000-3-2:2006
+A1:2009
Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for
harmonic current emissions (equipment input current <= 16 A per
phase)
Class A
EN 61000-4-2 2009
Electromagnetic compatibility (EMC) –Part 4-2: Testing and
measurement techniques- Electrostatic discharge.
Class B
EN61000-4-3
2006+A2:2010
Electromagnetic compatibility (EMC) –Part 4-3: Testing and
measurement techniques- Radiated, Radio Frequency,
electromagnetic field immunity test
Class A
EN61000-4-4
2004+A1:2010
Electromagnetic compatibility (EMC) –Part 4-4: Testing and
measurement techniques- Electrical fast transient/burst
immunity test.
Class B
EN 61000-4-5 2006
Electromagnetic compatibility (EMC) –Part 4-5: Testing and
measurement techniques- Surge immunity test.
Class B
EN 61000-4-6 2009
Electromagnetic compatibility (EMC) –Part 4-6: Testing and
measurements techniques- Immunity to conducted Radio
Frequency.
Class A
EN61000-4-11 2004
Electromagnetic compatibility (EMC) –Part 4-11: Testing and
measurement techniques- Voltage dips, short interruptions
and voltage variations immunity tests
Class B
Class B
Class C
Class C
I, the undersigned, hereby declare that the equipment specified above
conforms to the above Directive(s) and Standard(s).
Place: Québec (Québec)
Date : May 4, 2011
(President)

TUNER User’s Manual Revision 4.215
Gentec Electro –Optics, Inc. All rights reserved
4.1 Immunity limitations
The TUNER will have small measurement deviation (< 60 uV) when a cellular phone is within 15 cm of
the TUNER and detector cable.

TUNER User’s Manual Revision 4.216
Gentec Electro –Optics, Inc. All rights reserved
5 APPENDIX
5.1 Recycling and separation procedure
This section is used by the recycling center when the monitor reaches its end of life. Breaking the
calibration seal or opening the monitor will void the TUNER warranty.
The complete Monitor contains
1 Monitor
1 9 volt AC/DC adaptor (not manufactured by Gentec-eo)
4 AA Alkaline Batteries
1 CD Instruction manual
1 Calibration certificate
5.2 Separation
Paper : certificate.
Plastic: stand, connector plate, battery door, monitor enclosure, keypad.
Wires.
AA batteries: inside battery compartment.
Metal battery clips.
Printed circuit board: inside the monitor featuring a liquid crystal display less than 100 cm2.
5.3 Dismantling procedure
- Remove batteries.
- Remove the posts on each side of the DB15 connector using pliers.
- Open monitor by removing the Phillips head screws in the 4 corners.
- Cut the wires on the PCB side and battery clips side with cutters.
- Remove battery clips with pliers.
Internal #103142 Rev. C

Downloaded from www.Manualslib.com manuals search engine
