GenTran POWER STAY 6370C User manual

Mounting Instructions for Model 6370C Parallel Power Kit
For Honda E3000i Generators Only
Thank you for purchasing this Parallel Power Kit. Do not return this product
to the store! If any parts are missing or damaged, please contact us toll free
at 1-888-GEN-TRAN or visit our website at www.gen-tran.com. This product is
intended for use with two Honda EU3000i generators ONLY. Do NOT attempt
to parallel two unlike generators! For 125 Volt Use Only.
TOOLS NEEDED FOR ASSEMBLY:
10 mm socket wrench or nut driver
11/32 nut driver
HARDWARE INCLUDED:
(2) 8/32 Nylok nuts
(2) M6-35 Standoffs
1
STEP 1
NEVER connect Parallel Power Kit while generator is
running! Using the 10 mm socket wrench, remove the four
(4) cap nuts on the end of the generator, and set aside.
STEP 2
Mount Parallel Power Kit mounting plate on two bottom
studs, and reattach bottom two cap nuts loosely.
2
3
STEP 3
Insert two standoffs into the two upper holes, and
hand tighten.
STEP 4
Attach support bar with recesses over the standoffs.
Reattach the remaining two cap nuts over the standoffs,
and hand tighten. Then attach two Nylok nuts onto the
studs protruding from the mounting plate to secure the
support bar. Tighten all nuts moderately using a tool.
4
Configuration of receptacle
50 amps, 125 V
(L6377)

Mounting Instructions for Model 6370C Parallel Power Kit
For Honda E3000i Generators Only
5

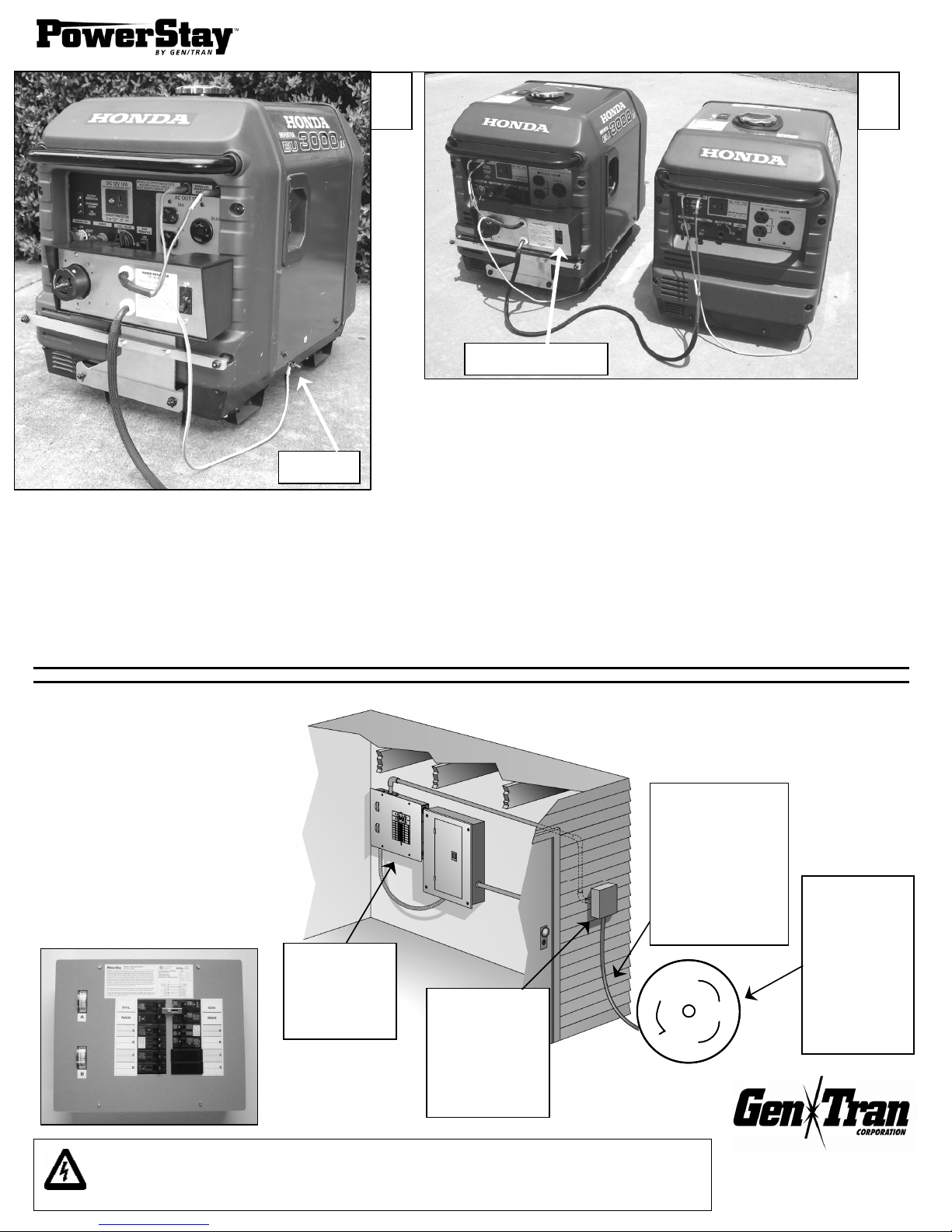

STEP 5
Insert short Parallel Cables into “Parallel Operation”
jacks on the first generator. Do not be concerned with
polarity when connecting to these outlets, as the
polarity is handled by the internal computer chip within
the EU3000i. Then attach the first green/yellow ground
cable to grounding stud on the lower right side of the
first generator using a screwdriver.
GROUND
STEP 6
Insert the set of longer Parallel Cables into “Parallel Operation” jacks
on second generator. Attach green/yellow ground cable to grounding
stud on the lower right side of the second generator as well.
During operation, if the Parallel Power Kit is not feeding power to
your load when generators are running, it is possible that the circuit
breaker has been tripped. You will need to reset circuit breaker on
the front of the Parallel Power Kit to “ON”.
Be sure to shut down generators before connecting to or
disconnecting from Parallel Power Kit.
For 120 volt applications ONLY.
6
NOTE: To use your paralleled
generators to provide backup
power to a home or other
dwelling, or an RV, you will need
an adapter cord to run from the
Parallel Power Kit (use 10/3 or
10/4 cord) with an appropriate
female connector to plug into your
power inlet box, transfer switch or
RV. A transfer switch is required
by the National Electrical Code
Article 702.6 for all backup
generator installations.
P.O. Box 1001, Alpharetta, GA 30009
Toll Free: 1-888-GEN-TRAN
www.gen-tran.com
PN 511759 Rev A
WARNING: Hazardous voltages present when generators running. Will cause death, serious injury or substantial property damage. Shut
off generators before connecting to or disconnecting from Parallel kit. IMPORTANT: The accessories noted here are intended for 120 volt
use only. Transfer switches and power inlet boxes should be installed by a qualified professional familiar with residential wiring and
electrical codes. Gen/Tran accepts no responsibility for accidents caused by incorrect or in appropriate installation or use of this product.
Transfer Switch
GenTran Model
300660
or
301060
30 Amp 125V
Power Inlet Box
GenTran 05302
Or
30 amp 125/250V
Power Inlet Box
GenTran 14302
REQUIRES
Male Plug
50 amp 125 V
GenTran Part
RJBP6361
Honda Code
6363550
** Use 10/4 or
10/3 Cord **
CORD REQUIRES
Female Conn.
GenTran Part
RJBC530
or
RJBC1430
Depending on transfer
switch or power inlet
box model
CIRCUIT BREAKER
DO YOU NEED A TRANSFER SWITCH
OR OTHER ACCESSORIES?
