GENUV GUVX-S SUC2.0-LA10 Series User manual

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Manual
Smart UV Checker 2.0
GUVX-SXXSUC2.0-LA10

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
1. Smart UV Checker 2.0 [GUVX-SXXSUC2.0-LA10] Manual _ English
·························P age 2 ~ 12
Contents
Page 1

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Page 2
Smart UV Checker 2.0
[GUVX-SXXSUC2.0-LA10]
Manual

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
1. Product Features and Specifications
2. Relative Response Curve
3. Caution
4. Product Operation Method
4-1. Android App Windows Configuration
4-2. APP Window Description
4-3. SAVE File Description
4-4. Error Window
5. FAQ
6. Request for A/S in Case of Abnormality
Page 3
Contents

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Description: The GUVX-SXXSUV2.0-LA10 are portable instruments with a Android App display.
1. Product Features and Specifications
* Customization is available (Maximum of detection power : 1W/㎠)
Page 4
Item UVA UVB UVC UVC –LED Blue light UV INDEX
Model name
1)GUVA-
S12SUC2.0-
LA10
2)GUVB-
S31SUC2.0-
LA10
3) GUVC-
S10SUC2.0-
LA10
4)GUVL-
S10SUC2.0-
LA10
5)GVBL-
S12SUC2.0-
LA10
6)GUVI-
S11SUC2.0-
LA10
Detection
Power range
0.000 ~ 100㎽/㎠* 0 ~ 11 UVI
Spectral
detection
range 240 ~ 370 nm
220 ~ 320 nm 220 ~ 280 nm 230 ~ 320 nm 345 ~ 450 nm 240 ~ 320 nm
Calibration
peak
point
365 nm
(LAMP) 306 nm (LAMP) 254 nm (LAMP) 275 nm (LED) 385/405 nm (LED)
Solarsimulator
Resolution
0 ~ 1㎽/㎠: 0.001 ㎽/㎠
1 ~ 10㎽/㎠: 0.01 ㎽/㎠
10~ 100㎽/㎠: 0.1 ㎽/㎠
100~ 1000㎽/㎠: 1 ㎽/㎠
1 UVI
Function Absolute Power (㎽/㎠), Dose (J/cm2, Start ~ End Time, Accumulated Time),
Max. Power (㎽/㎠) Min. Power(㎽/㎠), Avg. Power (㎽/㎠) Index(UVI)
Display Android App ( Smart UV Checker 2.0)
Operation
temperature 0 ~ 60 ℃
Operation
humidity RH 10 ~ 85 %
Accuracy ±10 % (NIST Traceable)

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Wear protective gear when monitoring UV lamps.
Allow lamps to warm-up prior to taking reading
(at least 5 minutes).
Do not subject the meter to extremes in temperature, humidity,
shock or dust.
When the surface contamination of the product, wipe with a soft,
clean cloth.
Keep sensor free of oil, dirt, etc.
Do not disassemble or modifications.
1) GUVA-S12SUC2.0-LA10 2) GUVB-S31SUC2.0-LA10 3) GUVC-S10SUC2.0-LA10
4) GUVL-S10SUV2.0-LA10 6) GUVI-S11SUV2.0-LA10 5) GVBL-S12SUV2.0-LA10
3. Caution
2. Relative Response Curve
Page 5

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
4. Product Operation Method
[Smart UV Checker 2.0 Window’s]
4-1) Android App Windows Configuration
Page 6
2) Run App after connecting Probe1) APP ICON
(Smart UV Checker Ⅱ)3) Start Logo Window 4) Menu Window
5) UV INTENSITY Window 6) UV DOSE Window 7) UV INDEX Window 8) UVC SAFE Window

Genicom Co., Ltd. 2020-rev.1-HJ.KIM

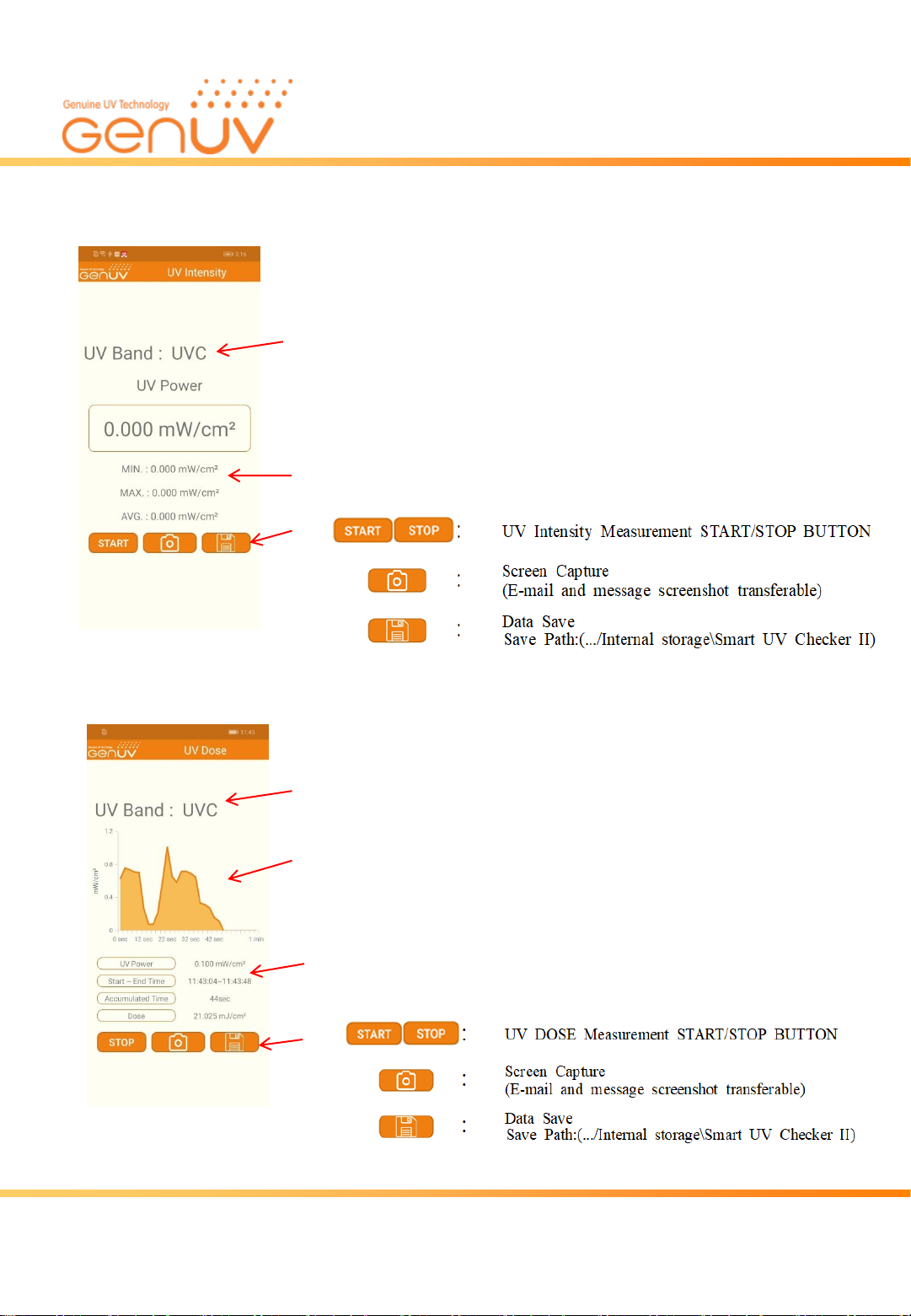

4-2) APP Window Description
A) UV Intensity
a) UV BAND : UV Measurement Band
Page 7
b) Real-Time Graph : UV DOSE Measurement Graph
c) MIN., MAX., AVG of UV Intensity Measurement
d)
B) UV DOSE
a) UV BAND : UV Measurement Band
c) UV Power(UV Intensity), DOSE Measurement Start ~ End Time
Accumulated Time, Dose Value
d)

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
C) UV INDEX
※ Normal operation only on GUVI-S11SUC2.0-LA10 Probes.
a) UV INDEX Graph
Page 8
b) UV Index Value
c) The Sun's damaging rays and a guideline to protection*.
d)
*

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
D) UV SAFE
※Normal operation only on GUVC-S10SUC2.0-LA10 Probes.
(GUVL-S10SUC2.0-LA10 Probe will also be added in the future.)
a) Input of UVC Wavelength Value
Page 9
b) UV Safe Graph
c) Irradiation and Biological Effective Irradiation Value
d)
4-3) SAVE File Description
A) UV Intensity
a) Save File Name : UV_Intensity_2019-11-21_10:18:31.csv
b) It can be viewed in the micro-office Excel program.
c) Example of save File
Date/Time
UV Power(mW/cm²)
MAX.(mW/cm²)
MIN.(mW/cm²)
AVG.(mW/cm²)
2019
-11-
21 10:18
2.32
2.32
2.32
2.32
2019
-11-
21 10:18
2.46
2.46
2.32
2.39
2019
-11-
21 10:18
2.49
2.49
2.32
2.43
2019
-11-
21 10:18
2.52
2.52
2.32
2.45
2019
-11-
21 10:18
2.51
2.52
2.32
2.46
2019
-11-
21 10:18
1.94
2.52
1.94
2.38
2019
-11-
21 10:18
1.24
2.52
1.24
2.21
2019
-11-
21 10:18
1.04
2.52
1.04
2.07
2019
-11-
21 10:18
0.89
2.52
0.89
1.94
2019
-11-
21 10:18
0.76
2.52
0.76
1.82
2019
-11-
21 10:18
0.71
2.52
0.71
1.72
2019
-11-
21 10:18
0.896
2.529
0.717
1.653

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Page 10
B) UV DOSE
a) Save File Name : UV_Dose_2020-06-15_08:56:32.csv
b) It can be viewed in the micro-office Excel program.
c) Example of save File
Date/Time
UV Power(
mW/cm²)
Dose(mJ/cm²)
2020-06-
15 8:55
0
0
2020-06-
15 8:55
0.055
0.055
2020-06-
15 8:55
0.094
0.149
2020-06-
15 8:55
0.088
0.237
2020-06-
15 8:55
0.086
0.323
2020-06-
15 8:55
0.094
0.417
2020-06-
15 8:56
0.09
0.507
2020-06-
15 8:56
0.055
0.562
2020-06-
15 8:56
0.031
0.593
2020-06-
15 8:56
0.026
0.619
2020-06-
15 8:56
0.135
0.754
∙∙∙
∙∙∙
∙∙∙
∙∙∙
C) UV INDEX
a) Save File Name : UV_Dose_2020-01-10_16:33:32.csv
b) It can be viewed in the micro-office Excel program.
c) Example of save File
Date/Time
UV Voltage(Hex)
UVINDEX
2020-01-
10 16:33
110
0
2020-01-
10 16:33
125
1
2020-01-
10 16:33
230
2
2020-01-
10 16:33
430
3
2020-01-
10 16:33
500
4
2020-01-
10 16:33
600
5
2020-01-
10 16:33
700
6
2020-01-
10 16:33
800
7
2020-01-
10 16:33
900
8
2020-01-
10 16:33
A00
9
2020-01-
10 16:33
B00
10
2020-01-
10 16:33
C00
11

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
Page 11
D) UV SAFE
a) Save File Name : UVC_Safe_2020-06-15_18:09:39.csv
b) It can be viewed in the micro-office Excel program.
c) Example of save File
Date/Time
Irradiation(mW/cm²)
Biological effective irradiation(mW/cm²)
2020-06-
15 18:08
0.03
0.015
2020-06-
15 18:08
0.031
0.0155
2020-06-
15 18:08
0.032
0.016
2020-06-
15 18:08
0.033
0.0165
2020-06-
15 18:08
0.034
0.017
2020-06-
15 18:08
0.035
0.0175
2020-06-
15 18:08
0.037
0.0185
2020-06-
15 18:08
0.039
0.0195
2020-06-
15 18:08
0.04
0.02
4-4) Error Window
※ The window and probe are not connected properly.
a) When measuring UV Intensity, UV DOSE with UV INDEX PROBE.
b) When measuring UVC Safe that is not UVC PROBE

Genicom Co., Ltd. 2020-rev.1-HJ.KIM
5. FAQ
Error item Check list
When the measured
value is [0.0]
Check that the light source is on.
For UV index meters, measurements may be impossible on cloudy days.
Make sure that the incident surface of the sensor probe is perpendicular to the light source.
Check the detection wavelength range of the measuring instrument and the
wavelength of the
light source.
The detection wavelength range can be found on page 4 of the manual and on the back of the
measuring instrument.
When the measured
value differs
depending on the
light source
Please check page 5 relative response curve.
Even if included in the measurement range, the output value may vary depending on the
wavelength of the light source.
The calibration light source information for the measuring instrument can be found on
page 4.
When the measured
value is measured
low
In the case of a UV index meter, the measured value may be low or not measured on cloudy
days
.
Make sure that the sensor measuring surface is positioned perpendicular to the light source.
If the angle is tilted, accurate measurements will not be made.
Check if there is foreign substance on the sensor measurement surface.
Foreign matter such as oil or dust can cause a decrease in light quantity.
When UVC SAFE
measurement fails
Please check the probe model.
Verify Micro 5pin OTG Connectors are properly connected.
When UV Index
measurement fails
Please check the probe model.
Verify Micro 5pin OTG Connectors are properly connected
※ If any problem occurs other than the above, please contact the sales company or A / S center.
6. A/S Request in Case of Product Failure
- Should any failure is found in product, please call the sales company or customer center for A/S.
- Product warranty period is 1 year from the date of procurement with no charge.
However, failure which is caused by user’s misuse or carelessness within warrant period or any failure
after the warrant period shall be chargeable for it’s A/S.
- Product inquiry and on-line customer service Tel : [phone], Fax : [phone]
E-mail : [e-mail] Website : http://www.geni-uv.com
