GeoVision GV-SD220 Series User manual

ISD-QG-K
Quick Start Guide
GV-IP Speed Dome
GV-SD220 Indoor IP Speed Dome
GV-SD220-S / 2300 / 2301 / 2411 Outdoor IP Speed Dome
GV-SD2723-IR / 2733-IR Outdoor IR IP Speed Dome
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual forfuture use.

© 2018GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent ofGeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note that memory card slot (local
storage) is not supported for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
April 2018

i
Contents
Note for Recording ........................................................... iv
Note for Installing Camera Outdoor................................. v
Note for Water Resistant Coating on Camera Cover..... vi
Options ............................................................................. vii
1. Introduction .................................................................... 1
2. GV-SD220 / 220-S / 2300 / .............................................. 2
2301 / 2411 / 2723-IR / 2733-IR .......................................... 2
2.1 Packing List................................................................................. 2
2.1.1 GV-SD220 (PoE) Indoor IP Speed Dome ......................... 2
2.1.2 GV-SD220-S (PoE) / 2300 Outdoor IP Speed Dome ........ 3
2.1.3 GV-SD2301 / 2411 Outdoor IP Speed Dome.................... 4
2.1.4 GV-SD2723-IR / 2733-IR Outdoor IP Speed Dome .......... 5
2.2 Overview ..................................................................................... 6
2.2.1 GV-SD220 / 220-S / 2300 ................................................. 6
2.2.2 GV-SD2301 / 2411 ........................................................... 7
2.2.3 GV-SD2723-IR / 2733-IR.................................................. 8
2.3 Installation................................................................................... 9

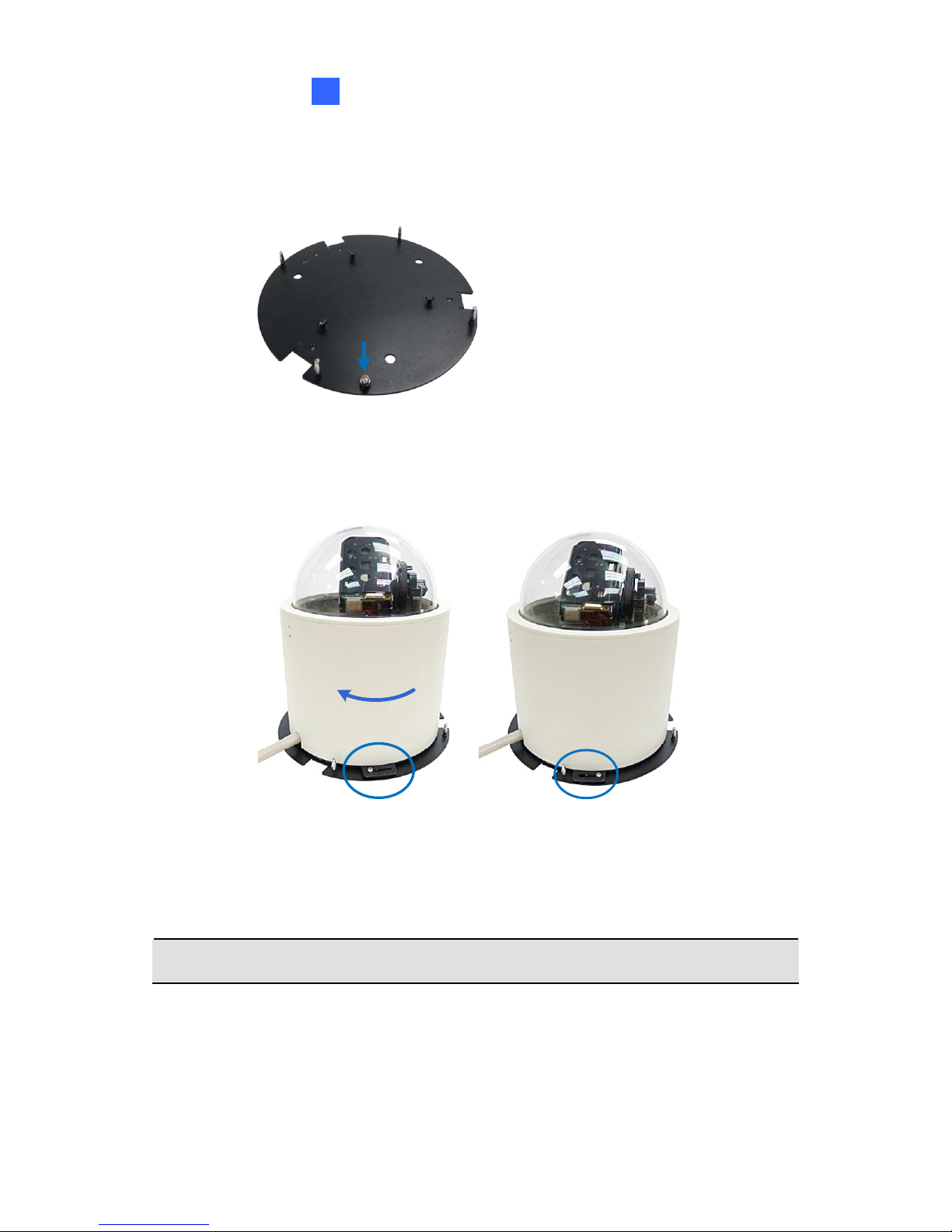

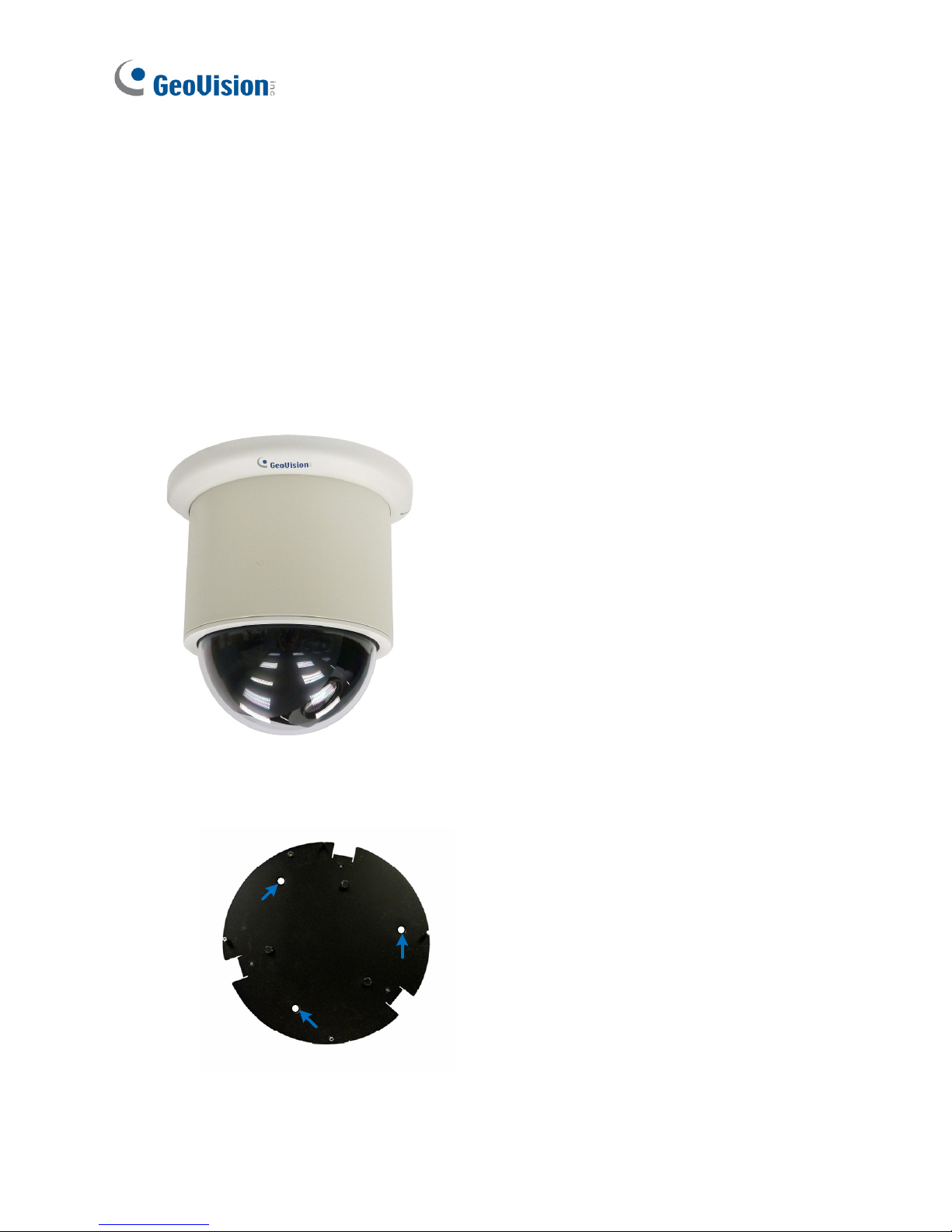

2.3.1 GV-SD220: Hard-Ceiling Mount........................................ 9
2.3.2 GV-SD220 / 220-S / 2300: Wall Pendant Mount ..............11
2.3.3 GV-SD2301 / 2411: Wall Pendant Mount........................ 13
2.3.4 GV-SD2723-IR / 2733-IR: Wall Pendant Mount .............. 18

ii
2.4 Connecting the Camera............................................................. 19
2.5 Accessing the Camera .............................................................. 22
2.5.1 System Requirements .................................................... 22
2.5.2 Looking Up the IP Address and Logging In..................... 23
2.6 The Web Interface..................................................................... 25
2.7 The PTZ Control Panel.............................................................. 27
2.8 Setting Presets.......................................................................... 29
2.9 Setting Cruise............................................................................ 30
2.10 Setting Auto Pan...................................................................... 31
2.11 Setting Sequence .................................................................... 32
2.12 Setting Tour ............................................................................. 34
2.13 Upgrading System Firmware ................................................... 36
2.14 Restoring Default Settings ....................................................... 38
2.14.1 Restoring System Settings............................................ 38
2.14.2 Restoring PTZ Configuration Settings........................... 40
3. GV-SD200 / 200-S ......................................................... 41
3.1 Packing List............................................................................... 41
3.1.1 GV-SD200 Indoor IP Speed Dome ................................. 41
3.1.2 GV-SD200-S Outdoor IP Speed Dome ........................... 42
3.2 Overview ................................................................................... 43

iii
3.3 Installation................................................................................. 44
3.3.1 GV-SD200: Surface Mount ............................................. 44
3.3.2 GV-SD200-S: Mini Pendent Mount ................................. 47
3.4 Connecting the Cables .............................................................. 49
3.5 Accessing the Camera .............................................................. 51
3.5.1 System Requirements .................................................... 51
3.5.2 Looking up the IP Address and Logging in...................... 52
3.6 The Web Interface..................................................................... 54
3.7 The PTZ Control Panel.............................................................. 55
3.8 Setting Presets.......................................................................... 57
3.9 Setting Sequence ...................................................................... 58
3.10 Setting Cruise.......................................................................... 60
3.11 Setting Auto Pan...................................................................... 62
3.12 Setting Tour ............................................................................. 63
3.13 Upgrading System Firmware ................................................... 66
3.14 Restoring Default Settings ....................................................... 68

iv
Note for Recording
1. By default, the images are recorded to the memory card inserted in the
GV-IP Speed Dome camera.
2. Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the
data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the
memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
The stored data can be lost if the memory card is not accessed
for a long period of time. Back up your data periodically if you
seldom access the memory card.
Memory cards are expendable and their durability varies
according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card
annually.
To avoid power outage, it is highly recommended to apply a
battery backup (UPS).
For better performance, it is highly recommended to use Micro
SD card or SD card of MLC NAND flash, Class 10.
Replace the memory card when its read/write speed is lower than
6 MB/s or when the memory card is frequently undetected by the
camera.

v
Note for Installing Camera Outdoor
When installing GV-IP Speed Dome outdoor, be sure that:
1. The camera is set up above the junction box to prevent water from
entering the camera along the cables.
2. Any power, audio and I/O cables are waterproofed using waterproof
silicon rubber or the like.
3. The screws are tightened and the cover is in place after opening the
camera cover.

vi
Note for Water Resistant Coating
on Camera Cover
The camera cover of GV-SD2301 / 2411 is treated with a water resistant
coating that prevents droplets from forming on the surface. The water
resistant coating will slowly wear off after approximately one year
depending on the operating environment.
Proper care and precautions can prolong the life of the water resistant
coating. Store the camera in a dry area before installation. Avoid touching
the camera cover once you remove the protective film on the camera cover.
Rinsing the Camera Cover
You can clean the camera cover using one of the methods below:
Rinse with water
Use an ultrasonic cleaner
Rinse with pH-neutral cleaning solution (5% diluted)
If there are grease or fingerprints on the camera cover that cannot be
removed by rinsing, you can gently wipe the cover with a clean cotton cloth.
Only wipe the camera cover after it is dried.
Make sure the surface is free of dust or debris before wiping to avoid
scratching the cover.
IMPORTANT:
1. Do not wipe the camera cover while it’s wet. Wiping a wet camera
cover will damage the hydrophilic water resistant coating.
2. Do not clean the camera cover with cleaning agents containing
organic solvent.

vii
Options
Optional devices can expand the capabilities and versatility of your GV-IP
Speed Dome. Contact your dealer for more information.
Name Details
GV-Mount Accessories The GV-Mount Accessories provide a
comprehensive lineup of accessories for
installing the outdoor GV-IP Speed Dome on
ceiling, wall corner and pole. For details, refer
to GV-Mount Accessories Installation Guide
from our website.
In-Ceiling Installation
Package
The in-ceiling package is used to install the
indoor GV-IP Speed Dome by embedding the
camera to the ceiling.
Power Adapter The 24V DC power adapter is designed to
convert AC 100V ~ 240V 2.5A to DC 24V
3.75A and supply the power to indoor and
outdoor GV-IP Speed Dome. Contact our
sales representatives for the countries and
areas supported.
GV-PA901 PoE Adapter The GV-PA901 is a Power over Ethernet (PoE)
adapter designed to provide power and
network connection for outdoor GV-IP Speed
Dome through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide
power along with network connection for IP
devices. The GV-POE Switch is available in
various models with different types and
numbers of ports.

1
1. Introduction
Welcome to the GV-IP Speed Dome Quick Start Guide. In the following
sections, you will be guided through the basic installations and
configurations of the GV-IP Speed Dome. For detailed information, refer to
GV-IP Speed Dome User’s Manual, available on our website.
Model Application Description
GV-SD220 (PoE) Indoor
GV-SD220-S (PoE) Outdoor
2 MP H.264, 20x / 30x optical
zoom, 12x digital zoom, WDR Pro
GV-SD200 Indoor
GV-SD200-S Outdoor
2 MP H.264, 18x optical zoom, 8x
digital zoom, WDR Pro
GV-SD2300 (PoE)
GV-SD2301 (PoE) Outdoor 2 MP H.264, 20x optical zoom, 12x
digital zoom, WDR Pro
GV-SD2411 (PoE) Outdoor 2 MP H.264, 30x optical zoom, 12x
digital zoom, WDR Pro
GV-SD2723-IR
(PoE) Outdoor 2 MP H.265, 20x optical zoom, 32x digital zoom, WDR Pro
GV-SD2733-IR
(PoE) Outdoor 2 MP H.265, 30x optical zoom, 32x digital zoom, WDR Pro


2
2. GV-SD220 / 220-S / 2300 /
2301 / 2411 / 2723-IR / 2733-IR
2.1 Packing List

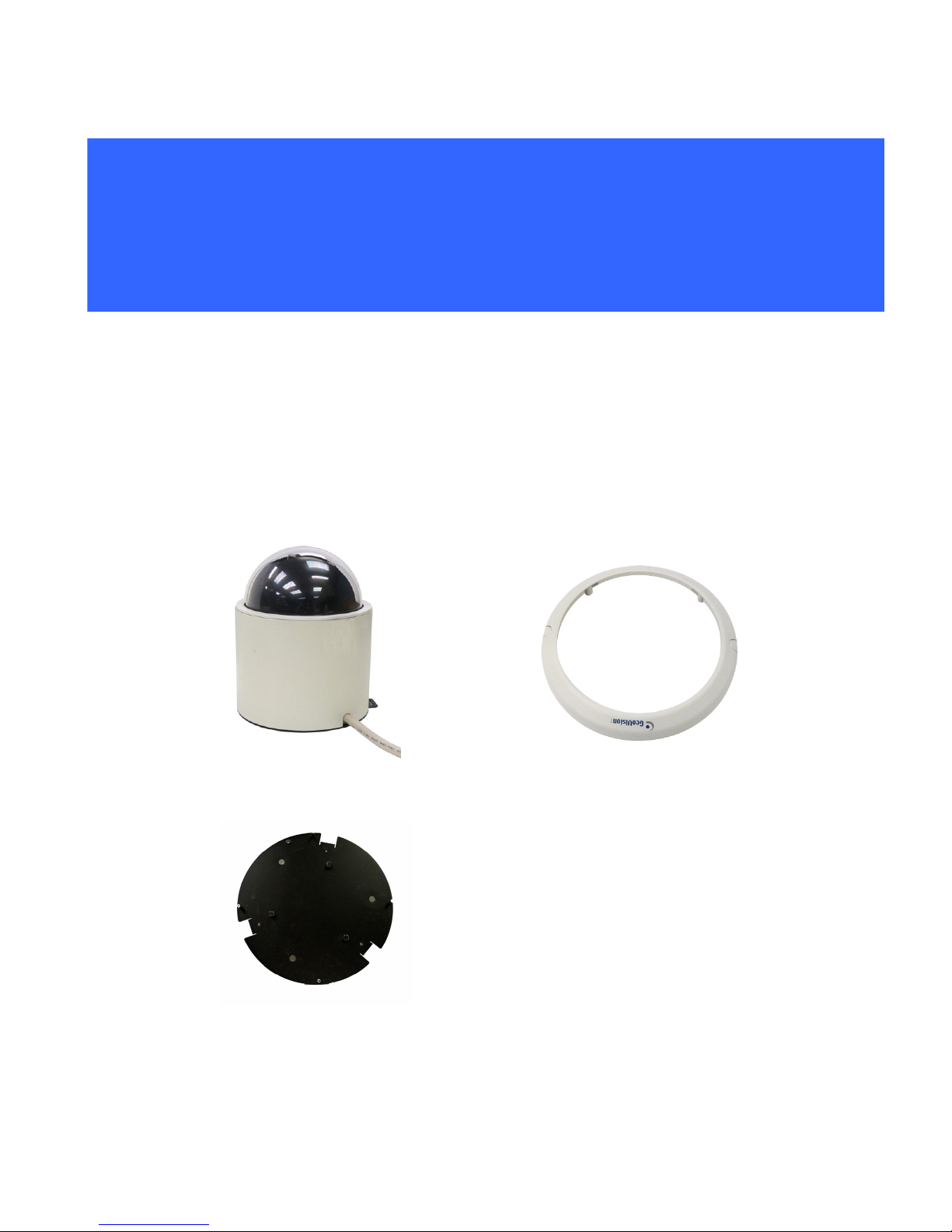

2.1.1 GV-SD220 (PoE) Indoor IP Speed Dome
Indoor GV-IP Speed Dome Hard-Ceiling Cover
Mounting Plate Download Guide
Warranty Card

3
2.1.2 GV-SD220-S (PoE) / 2300 Outdoor IP Speed Dome
Outdoor GV-IP Speed Dome Pendant Tube
Hex Key x 2 M6 Screw x 4
Desiccant Pack x 4 Download Guide
Warranty Card

GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR
4
2
2.1.3 GV-SD2301 / 2411 Outdoor IP Speed Dome
Outdoor GV-IP Speed Dome Pendant Tube
Hex Key x 2 Rubber ring
RJ-45 Connector Desiccant Pack x 2
Data Cable Download Guide
Warranty Card

5

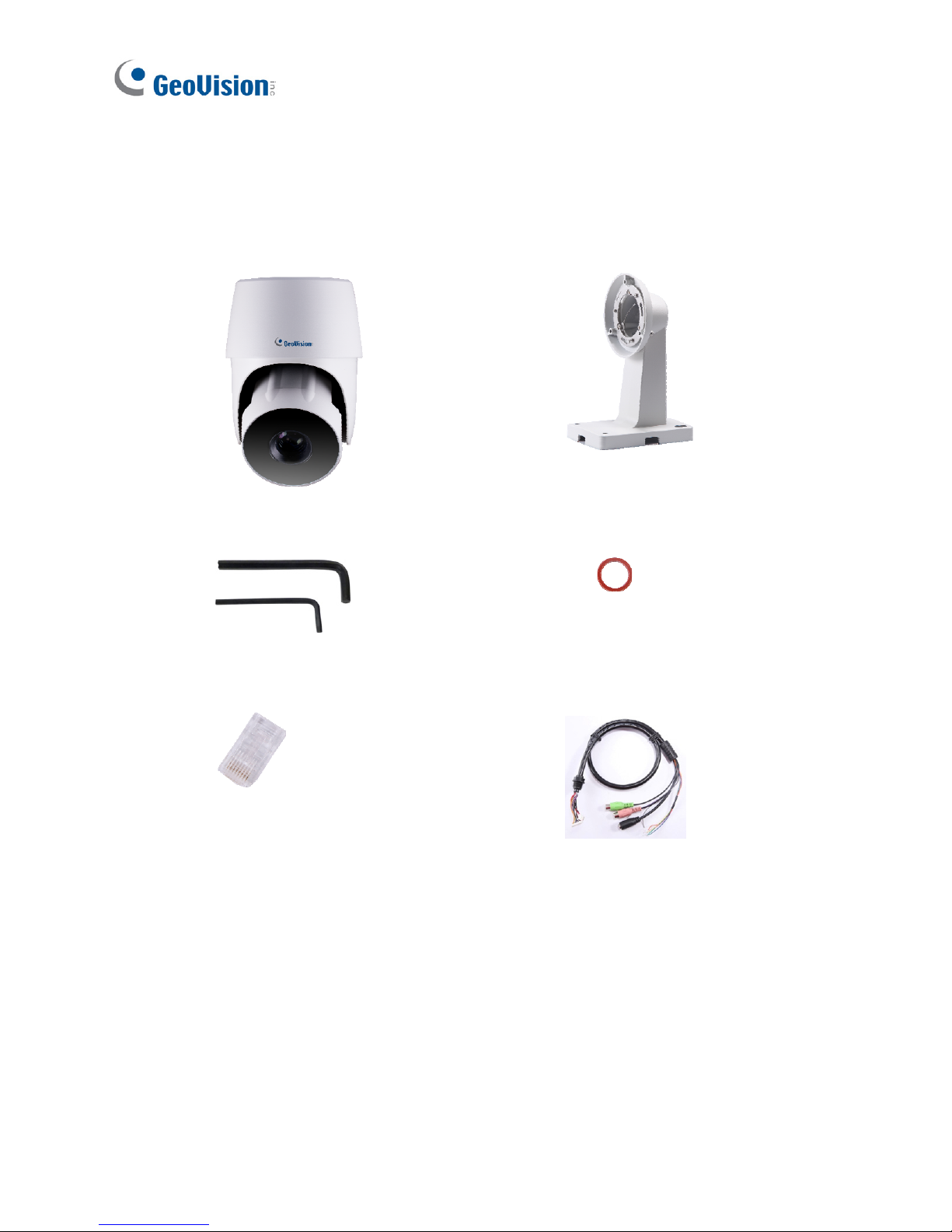

2.1.4 GV-SD2723-IR / 2733-IR Outdoor IP Speed Dome
Outdoor GV-IP Speed Dome Pendant Tube
Hex Key x 2 Rubber ring
RJ-45 Connector Data Cable
Download Guide Warranty Card

GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR
6
2
2.2 Overview
2.2.1 GV-SD220 / 220-S / 2300
1
2
3
4
5
6
No. Name Description
1. Default Restores all the settings back to factory default. For
details, see 2.14 Restoring Default Settings.
2. Status The status LED turns green when the power is on and
fades when the camera is ready for use.
3. Power The power LED turns green when the power is on.
4. ACT The ACT LED flashes orange light upon data
transmission.
5. Link The Link LED turns green with Internet connectivity.
6. Memory
Card Slot Insert a micro SD card to store recording data.

7
2.2.2 GV-SD2301 / 2411
1
2
No. Name Function
1. Default Restores all the settings back to factory default.
For details see 2.14 Restoring Default Settings.
2. Memory Card
Slot
Insert a micro SD / SD card to store the
recording data for GV-SD2301 / 2411.

GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR
8
2
2.2.3 GV-SD2723-IR / 2733-IR
No. Name Function
1. Memory Card
Slot
Insert a micro SD / SDHC card to store
recording data.
2. Default
Restores all the settings back to factory
default. For details see 2.14 Restoring Default
Settings.
IMPORTANT: Make sure the SD card cover is sealed after loading
default, or the cover may conflict with the camera’s automatic pan and tilt
movements during reboot.

9
2.3 Installation
There are multiple ways to install the GV-IP Speed Dome. Only the
standard installation methods are introduced in the Quick Start Guide. For
details on optional installations, see Chapter 6 Installing the GV-IP Speed
Dome, GV-Mount Installation Guide.
2.3.1 GV-SD220: Hard-Ceiling Mount
Required Items
Indoor packing (supplied)
Ceiling screws x 3 (user-prepared)
1. Secure the mounting plate to the ceiling with self-prepared screws.

GV-SD220 / 220-S / 2300 / 2301 / 2411 / 2723-IR / 2733-IR
10
2
2. Secure the indoor GV-IP Speed Dome to the mounting plate.
A. Loosen the screw on the mounting plate
B. Align the camera to the mounting plate and rotate the camera
body to the right.
C. Tighten the screw.
3. Put on the hard-ceiling cover.
Note: Cut away a side of the cover if you want to run the cable through.

11

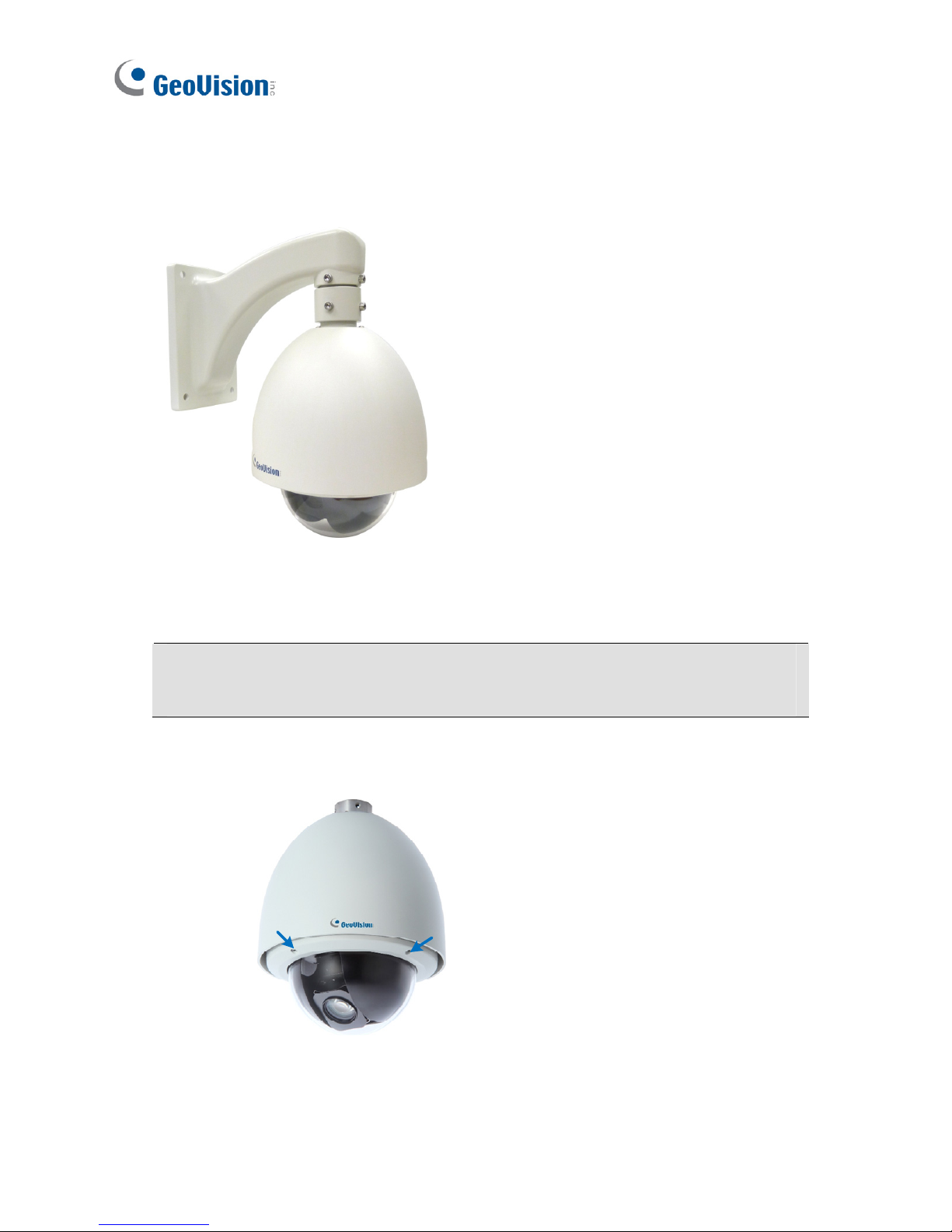

2.3.2 GV-SD220 / 220-S / 2300: Wall Pendant Mount
Required Items
Outdoor packing (supplied)
Ceiling screws x 4
(user-prepared)
1. Insert the desiccants to the camera.
IMPORTANT: Be sure to conceal the desiccants in the GV-IP Speed
Dome within 2 minutes of opening the desiccant pack.
A. Remove the camera cover using the supplied hex key.
