GeoVision GV-SD220 Series User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use. ISD-QG-I
Quick Start Guide
GV-IP Speed Dome

© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in
part, without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any
kind and assumes no responsibility for errors or omissions. No liability is
assumed for incidental or consequential damages arising from the use of
the information or products contained herein. Features and specifications
are subject to change without notice. Note that memory card slot (local
storage) is not supported for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows
XP are registered trademarks of Microsoft Corporation.
July 2015

i
Contents
Note for Recording ........................................................... iv
Note for Installing Camera Outdoor ................................. v
Note for Water Resistant Coating on Camera Cover..... vi
Options ............................................................................. vii
1. Introduction .................................................................... 1
2. GV-SD220 / GV-SD220-S / GV-SD2300 / GV-SD2301 ... 2
2.1 Packing List................................................................................. 2
2.1.1 Indoor GV-IP Speed Dome (GV-SD220)........................... 2
2.1.2 Outdoor GV-IP Speed Dome (GV-SD220-S / GV-2300) ... 3
2.1.3 Outdoor GV-IP Speed Dome (GV-SD2301) ...................... 4
2.2 Overview ..................................................................................... 5
2.2.1 GV-SD220 / GV-SD220-S / GV-SD2300........................... 5
2.2.2 GV-SD2301...................................................................... 6
2.3 Installation................................................................................... 7
2.3.1 Indoor GV-IP Speed Dome: Hard-Ceiling Mount
(GV-SD220)................................................................................ 7
2.3.2 Outdoor GV-IP Speed Dome: Wall Pendant Mount
(GV-SD220-S / GV-SD2300) ...................................................... 9
2.3.3 Outdoor GV-IP Speed Dome: Wall Pendant Mount
(GV-SD2301).............................................................................11
2.4 Connecting the Camera............................................................. 16

ii
2.5 Accessing the Camera .............................................................. 19
2.5.1 System Requirements .................................................... 19
2.5.2 Looking Up the IP Address and Logging In..................... 20
2.6 The Web Interface..................................................................... 22
2.7 The PTZ Control Panel.............................................................. 24
2.8 Configuring a Preset Position .................................................... 26
2.9 Configuring a Sequence Route.................................................. 28
2.10 Configuring a Cruise................................................................ 31
2.11 Configuring an Auto Pan.......................................................... 32
2.12 Configuring a Tour ................................................................... 34
2.13 Upgrading System Firmware ................................................... 36
2.14 Restoring to Default Settings ................................................... 38
2.14.1 Restoring System Settings............................................ 38
2.14.2 Restoring PTZ Configuration Settings........................... 39
3. GV-SD200 / SD200-S .................................................... 40
3.1 Packing List............................................................................... 40
3.1.1 Indoor GV-IP Speed Dome............................................. 40
3.1.2 Outdoor GV-IP Speed Dome .......................................... 41
3.2 Overview ................................................................................... 42
3.3 Installation................................................................................. 43
3.3.1 Indoor Speed Dome Mount: Surface Mount .................... 43
3.3.2 Outdoor Speed Dome Mount: Mini Pendent Mount......... 46

iii
3.4 Connecting the Cables .............................................................. 48
3.5 Accessing the Camera .............................................................. 50
3.5.1 System Requirements .................................................... 50
3.5.2 Looking up the IP Address and Logging in...................... 51
3.6 The Web Interface..................................................................... 53
3.7 The PTZ Control Panel.............................................................. 54
3.8 Configuring a Preset Position .................................................... 56
3.9 Configuring a Sequence Route.................................................. 58
3.10 Configuring a Cruise................................................................ 61
3.11 Configuring an Auto Pan.......................................................... 63
3.12 Configuring a Tour ................................................................... 65
3.13 Upgrading System Firmware ................................................... 68
3.14 Restoring to Default Settings ................................................... 70

iv
Note for Recording
1. By default, the images are recorded to the memory card inserted in the
GV-IP Speed Dome camera.
2. Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the
data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the
memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
To avoid power outage, it is highly suggested to apply a battery
backup (UPS).
For better performance, it is highly suggested to use Micro SD
card or SD card of MLC NAND flash, Class 10.
Replace the memory card when its read/write speed is lower than
6 MB/s or when the memory card is frequently undetected by the
camera.

v
Note for Installing Camera Outdoor
When installing the GV-IP Speed Dome, be sure that any PoE, power, audio
and I/O cables are waterproofed using waterproof silicon rubber or the like.

vi
Note for Water Resistant Coating
on Camera Cover
The camera cover of GV-SD2301 is treated with a water resistant coating
that prevents droplets from forming on the surface. The water resistant
coating will slowly wear off after approximately one year depending on the
operating environment.
Proper care and precautions can prolong the life of the water resistant
coating. Store the camera in a dry area before installation. Once you
remove the protective film on the camera cover, avoid touching the camera
cover.
Rinsing the Camera Cover
You can clean the camera cover using one of the methods below:
Rinse with water
Use an ultrasonic cleaner
Rinse with pH-neutral cleaning solution (5% diluted)
If there are grease or fingerprints on the camera cover that cannot be
removed by rinsing, you can gently wipe the cover with clean cotton cloth.
Only wipe the camera cover after it’s dried.
Make sure the surface is free of dust or debris before wiping to avoid
scratching the cover.
IMPORTANT:
1. Do not wipe the camera cover while it’s wet. Wiping a wet camera
cover will damage the hydrophilic water resistant coating.
2. Do not clean the camera cover with cleaning agent containing
organic solvent.

vii
Options
Optional devices can expand the capabilities and versatility of your camera.
Contact your dealer for more information.
Name Details
GV-Mount Accessories The GV-Mount Accessories provide a
comprehensive lineup of accessories for
installation on ceiling, wall corner and pole. For
details, see GV-Mount Accessories Installation
Guide on the software CD.
In-Ceiling Installation
Package
The in-ceiling package is used to install the
indoor GV-IP Speed Dome by embedding the
camera to the ceiling.
Power Adapter The power adapter is designed to convert AC
100 ~ 240V 2.5A to DC 24V 3.75A and supply
the power to indoor and outdoor GV-IP
Speed Dome. The power adapter is available
in the regions: US, AU, AR, EU, JU and UK.
GV-PA901 PoE Adapter The GV-PA901 is a Power over Ethernet (PoE)
adapter designed to provide power and
network connection through a single Ethernet
cable to outdoor GV-IP Speed Dome.
GV-PoE Switch The GV-PoE Switch is designed to provide
power along with network connection for IP
devices. The GV-PoE Switch is available in
various models with different numbers and
types of ports.

1
1. Introduction
Welcome to the GV-IP Speed Dome Quick Start Guide. In the following
sections, you will be guided through the basic installations and
configurations of the GV-IP Speed Dome. For detailed information, see
GV-IP Speed Dome User’s Manual on the Software CD.
Model Application Description
GV-SD220 (PoE) Indoor
GV-SD220-S (PoE) Outdoor
2 MP H.264, 20x / 30x optical
zoom, 12x digital zoom, WDR Pro
GV-SD200 Indoor
GV-SD200-S Outdoor
2 MP H.264, 18x optical zoom, 8x
digital zoom, WDR Pro
GV-SD2300 (PoE)
GV-SD2301 (PoE) Outdoor 2 MP H.264, 20x optical zoom, 12x
digital zoom, WDR Pro


2
2. GV-SD220 / GV-SD220-S / GV-SD2300 /
GV-SD2301
2.1 Packing List
2.1.1 Indoor GV-IP Speed Dome (GV-SD220)
Indoor GV-IP Speed Dome Hard-Ceiling Cover
Mounting Plate GV-IP Speed Dome
Software CD
GV-NVR Software DVD Warranty Card

GV-SD220 / GV-SD220-S / GV-SD2300 / GV-SD2301
3
2

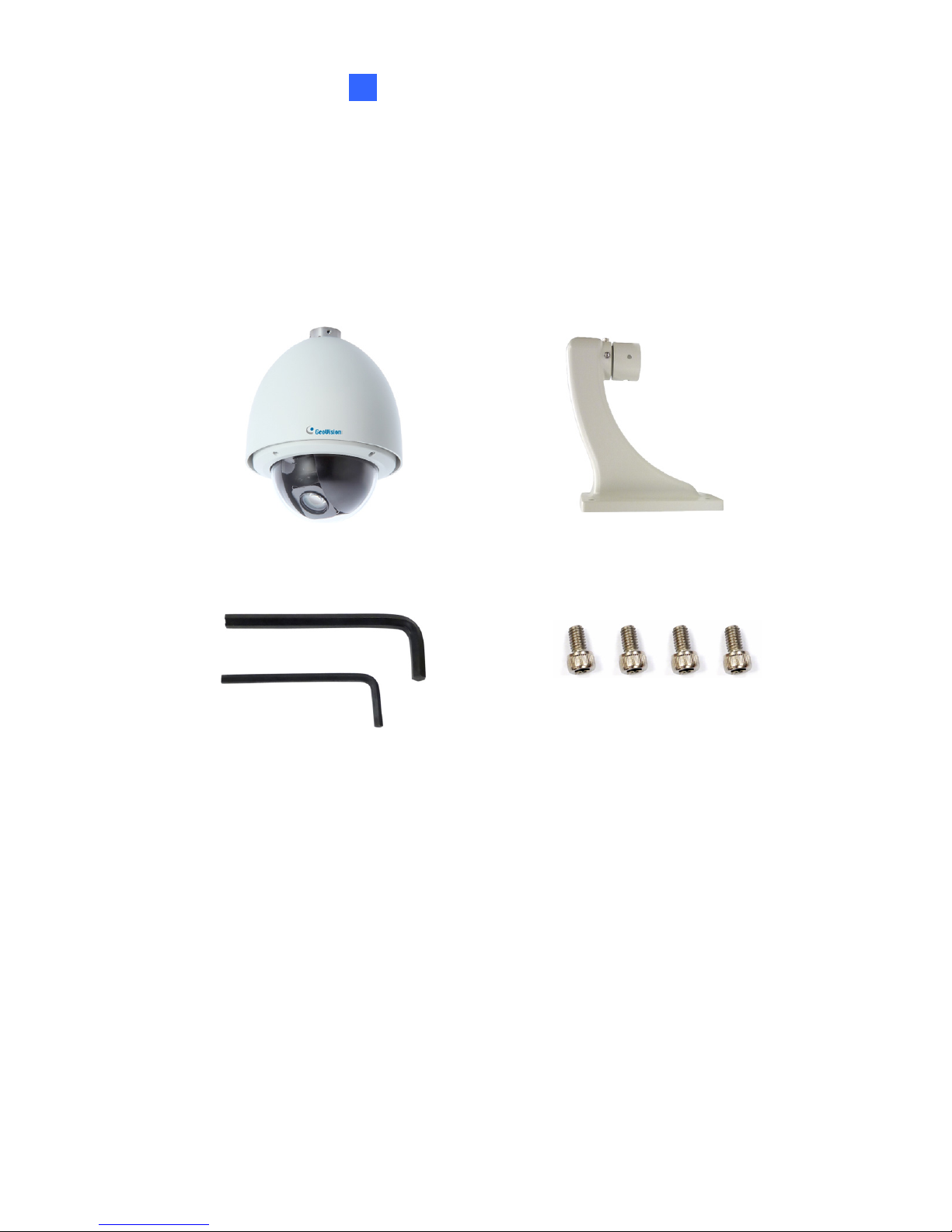

2.1.2 Outdoor GV-IP Speed Dome (GV-SD220-S /
GV-2300)
Outdoor GV-IP Speed Dome Pendant Tube
Hex Key x 2 M6 Screw x 4
Desiccant Pack x 4 GV-IP Speed Dome
Software CD
GV-NVR Software DVD Warranty Card

4
2.1.3 Outdoor GV-IP Speed Dome (GV-SD2301)
Outdoor GV-IP Speed Dome Pendant Tube
Hex Key x 2 Rubber ring
RJ-45 Connector Desiccant Pack x 2
Data Cable GV-IP Speed Dome
Software CD
GV-NVR Software DVD Warranty Card

GV-SD220 / GV-SD220-S / GV-SD2300 / GV-SD2301
5
2
2.2 Overview
2.2.1 GV-SD220 / GV-SD220-S / GV-SD2300
1
2
3
4
5
6
No. Name Description
1. Default Restores all the settings to the factory default values.
For details, see 2.14 Restoring to Default Settings.
2. Status The status LED turns green when the power is on and
fades when the camera is ready for use.
3. Power The power LED turns green when the power is on.
4. ACT The ACT LED flashes orange light upon data
transmission.
5. Link The Link LED turns green with Internet connectivity.
6. Memory
Card Slot Insert a micro SD/SDHC card to store recording data.

6
2.2.2 GV-SD2301
1
2
No. Name Function
1. Default
Restores all the settings to the factory default
values. For details see 2.14 Restoring to
Default Settings.
2. Memory Card
Slot Insert a SD card to store recording data.

GV-SD220 / GV-SD220-S / GV-SD2300 / GV-SD2301
7
2
2.3 Installation
There are multiple ways to install the GV-IP Speed Dome. Only the
standard installation methods are introduced in the Quick Start Guide. For
details on optional installations, see Installing the GV-IP Speed Dome,
Chapter 6, GV-Mount Installation Guide on the Software CD.
2.3.1 Indoor GV-IP Speed Dome: Hard-Ceiling Mount
(GV-SD220)
Required Items
Indoor packing (supplied)
ceiling screws x 3 (user-prepared)
1. Secure the mounting plate to the ceiling with self-prepared screws.

8

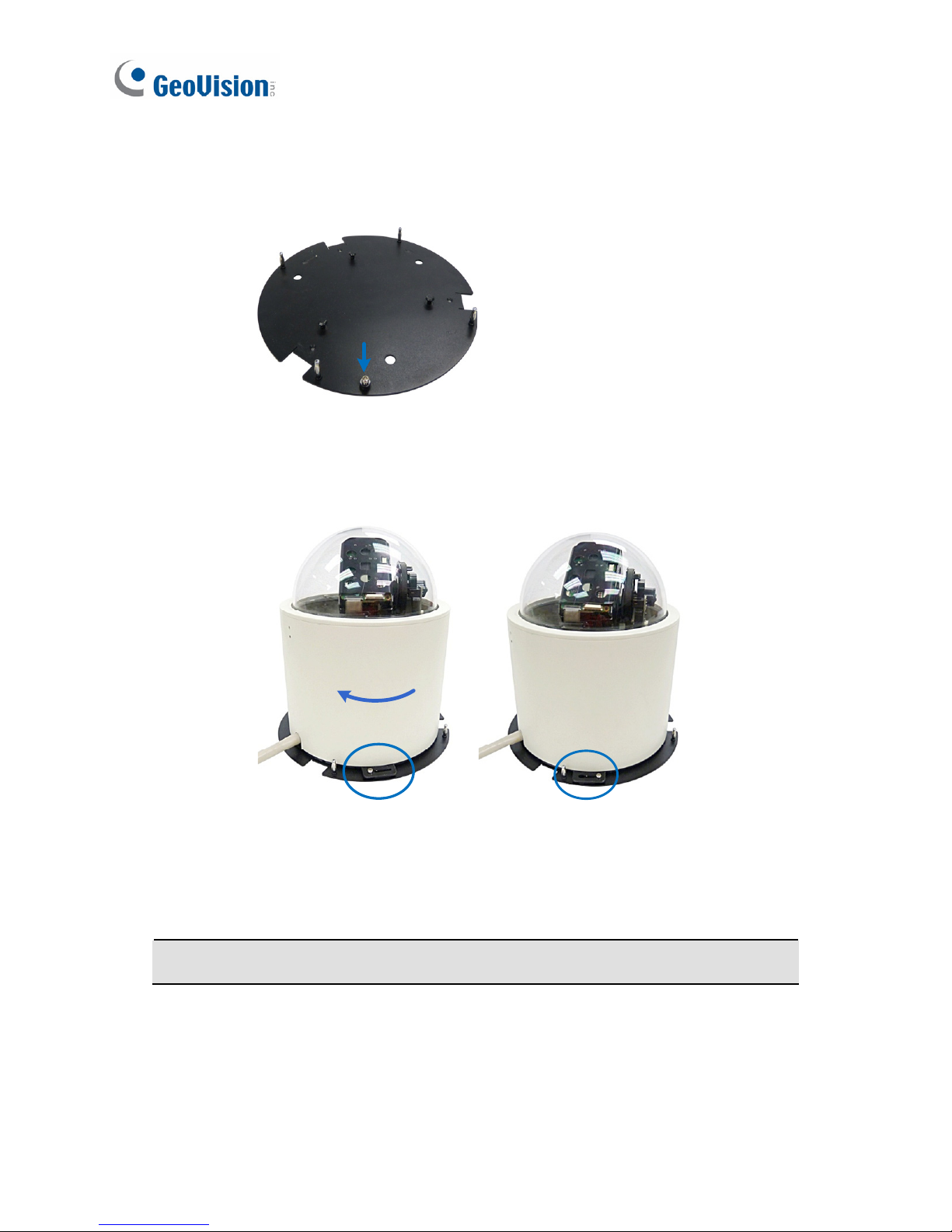

2. Secure the indoor GV-IP Speed Dome to the mounting plate.
A. Loosen the screw on the mounting plate
B. Align the camera to the mounting plate and rotate the camera
body to the right.
C. Tighten the screw.
3. Put on the hard-ceiling cover.
Note: Cut away a side of the cover if you want to run the cable through.

GV-SD220 / GV-SD220-S / GV-SD2300 / GV-SD2301
9
2
2.3.2 Outdoor GV-IP Speed Dome: Wall Pendant Mount
(GV-SD220-S / GV-SD2300)
Required Items
Outdoor packing (supplied)
Ceiling screws x 4
(user-prepared)
1. Insert the desiccants to the camera.
IMPORTANT: Be sure to conceal the desiccants in the GV-IP Speed
Dome within 2 minutes of opening the desiccant pack.
A. Remove the camera cover using the supplied hex key.

10
B. Insert two desiccant packs to the indicated places.
C. Follow step 1A to secure the camera cover with the supplied
hex key. Make sure the first two screws to be tightened are
diagonal to each other.
2. Assemble the camera with the pendant tube.
A. Thread the camera cable through the pendant tube.
B. Rotate the camera and lock it to the pendant tube.
C. Secure the camera to the pendant tube with the supplied M6
screws.
