German Light Product Mini Patend User manual

Instruction Manual
from software version 1.07
(instruction version 1.11)
e-mail: servic[email protected]
Internet: http://www.GLP.de

GLP German Light Production (V1.11) 2

GLP German Light Production (V1.11) 3
Table of contents
1Description of Device..............................................................................................5
1.1 Safety Instructions ............................................................................................6
2Preparation and Installation...................................................................................7
2.1 Mounting...........................................................................................................7
2.1.1 Clamps...................................................................................................7
2.1.2 Mounting plate........................................................................................8
2.2 Secure the M MI IN NI I P PA AT TE EN ND D ................................................................................8
2.3 Connections......................................................................................................9
2.3.1 Power supply..........................................................................................9
2.3.2 DMX .......................................................................................................9
2.4 Fuse..................................................................................................................9
3The Menu Field......................................................................................................10
3.1 Adjust the DMX- Address (D001) .....................................................................11
3.2 The Test Program (TEST).................................................................................11
3.3 The Audio Program (AUDI) ..............................................................................11
3.4 Lamp On/Off (LAMP).........................................................................................12
3.5 Reset (RESE) ....................................................................................................12
3.6 Running time of lamp and unit (TIME)..............................................................12
3.7 Invert Pan Movement (RPAN) ...........................................................................12
3.8 Invert Tilt Movement (RTLT) .............................................................................12
3.9 Special Functions (SPEC) .................................................................................13
3.9.1 Manual Drive (MANU)..............................................................................13
3.9.2 Lamp On automatically (LAAU) ..............................................................13
3.9.3 Lamp Off via DMX (DLOF)......................................................................14
3.9.4 DMX Input (DMXI) ..................................................................................14
3.9.5 Display (DISP) .......................................................................................14
3.9.6 Adjustments and Calibrations (ADJU) ....................................................15
3.9.7 Default Settings (DFSE)..........................................................................15
3.9.8 Error Code (EFLG) .................................................................................15
3.10 Error and Information Messages.....................................................................16
4DMX Channel Selection (DMX Protocol) .............................................................16
5Change the Lamp..................................................................................................19
5.1 Safety Regulations..........................................................................................19
5.2 Realize the Lamp Change ..............................................................................19

GLP German Light Production (V1.11) 4

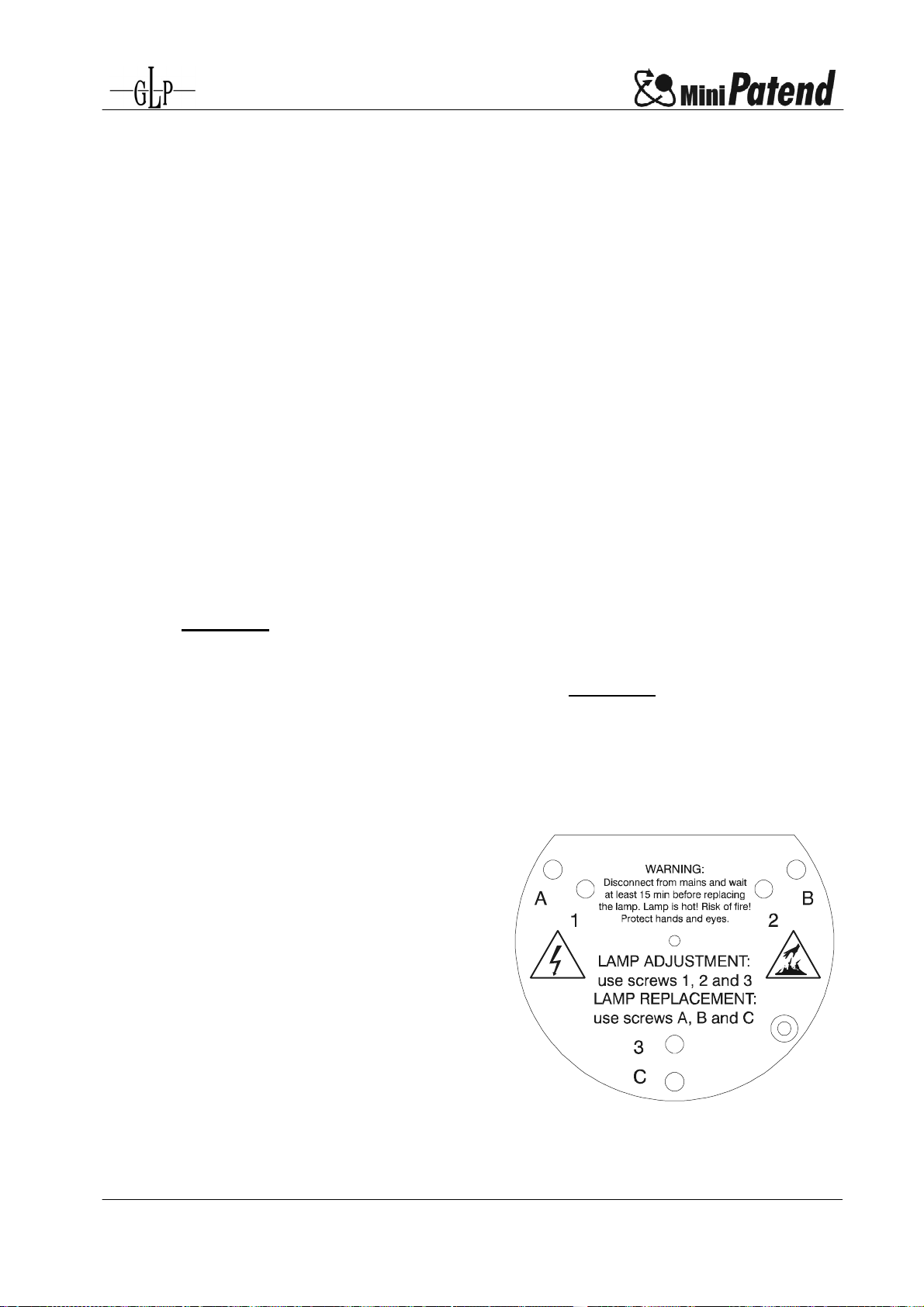

5.3 Lamp adjustment............................................................................................19
6Maintenance and Cleaning the M MI IN NI I P PA AT TE EN ND D.....................................................20
6.1 Safety Regulations..........................................................................................20
6.2 Circumference and Interval (rule-of-thumb)....................................................20
6.3 Cleaning the Optical System...........................................................................21
7Technical Specification ........................................................................................22
8Index.......................................................................................................................23

GLP German Light Production (V1.11) 5
1 Description of Device
1. Roto Head
2. Mirror
3. Base
4. Carrying handles
5. Connections
1. Mode- button
2. Enter- button
3. Up- button
4. Down- button
5. Microphone
6. Microphone Sensitivity
7. Software-Update connector
8. DMX- Input
9. DMX- Output
10.Fan (air inlet)
11.Power On/Off
12.Fuses
13.LED- Display
1
2
3
12
34
5
6
7
8
9
10
11
12
13

GLP German Light Production (V1.11) 6
1.1 Safety Instructions
The M MI IN NI I P PA AT TE EN ND Dis a High-
Tech product. To guarantee a
smooth operation it is necessary to keep the following rules.
The manu
facturer of this device will not take responsibility of
damages through disregard of the information given in this
manual. Warranty adjustments will be canceled.
1. Make sure before putting into operation that the fan and the air inlets are
clean and not blocked by anything.
2. Attention: Don’t touch the device during the operation. This can cause
injuries or damages.
3. Unplug the
M
MI IN NI I P PA AT TE EN ND D from the AC outlet before any service.
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the M MI IN NI I P PA AT TE EN ND D. Please do not touch the bulb of the lamp if you
are not absolutely sure it is cold. -Danger of BURNING-
5. Never look directly into the beam of the lamp. You risk injury of your retina and
blindness.
6. Pay attention of the maximum lamp operation time. You have to change it if
the lamp shows any deformations or damages. The same is with all glass
components, color filters, lenses and mirrors.
7. To allow a secure operation, follow also the installation guide described in
chapter 2. Operating the M MI IN NI I P PA AT TE EN ND D without suited safety aids like Safety
cables or clamps/hooks can increase the risk of accident.
8. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.
9. Use only original spare parts. Any structural modification will cancel all
warranty adjustments.

GLP German Light Production (V1.11) 7
2 Preparation and Installation
2.1 Mounting
The M MI IN NI I P PA AT TE EN ND D is fully operational whether it hangs or is mounted to the wall.
It can also be operated while standing on the floor. Keep a safety distance of 0.5
m towards any easy inflammable materials (decoration etc.). Install a safety wire
that can hold at least 10 times the weight of the fixture. Never use the carrying
handles for secondary attachment.
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217 !
The installation should be done by qualified staff only.
2.1.1 Clamps
Use two clamps on the backside of the M MI IN NI I P PA AT TE EN ND Dto mount the unit on
a truss (each two opposite threads max. M10x20). See also printing on the
backside of the case.

GLP German Light Production (V1.11) 8
2.1.2 Mounting plate
For a permanent installation of the M MI IN NI I P PA AT TE EN ND Dyou can use a optional
mounting plate to fix the unit on a wall. The plate uses 2x screws M6x10
and one M10x16 (the mounting plates are included in the delivery).
2.2 Secure the
M
MI IN NI I P PA AT TE EN ND D
Regardless of the rigging of the M MI IN NI I P PA AT TE EN ND D you have to use a stipulated safety
wire. Therefore you have to thread two safety wires through to two provided holes
on the backside of the fixture and connect it with the truss-support. Pay attention
to a safe and proper fastening.
The mounting plates will be connected by two M6x10 and one M10x16 screws.

GLP German Light Production (V1.11) 9
2.3 Connections
2.3.1 Power supply
230 Volt, 50 Hz,
Connected load 300W <=> 2 A (power factor corrected).
or 115V, 60 Hz,
Connected load 300W <=> 3.15 A (power factor corrected).
Please see printing on the case for the right Power supply !
2.3.2 DMX
DMX 512 Standard input/output. See also printing on the case for the right
pin assignment.
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
The DMX- Addressing starts at the DMX- Address [001].
2.4 Fuse
The M MI IN NI I P PA AT TE EN ND D electronic system is protected by two (live and neutral) 5x20
mm fuses.
230V / T 2A (EU model) or 115V / T 3.15A (US model)
Please see the printing on the M MI IN NI I P PA AT TE EN ND D for more details.
Attention:
• Disconnect mains supply before replacing the fuse!
• Replace fuse with same type and rating only!

GLP German Light Production (V1.11) 10
3 The Menu Field
The control panel is located at the side part of the base. It allows
you to make all necessary adjustments of the M
MI IN NI I P PA AT TE EN ND D.
.
With the Mode-key you get into the main menu. Afterwards you
can navigate through the menu with the Up/Down-keys. Push
the Enter-key to get in the next menu level or to confirm your
settings. Make them and set functions ON/OFF with the
Up/Down-keys. Confirm and save it with the Enter-key (the
display shows OK). Push the Mode-key to cancel the entry and
go back to the main menu.
Level 1 Level 2 Level 3 Remark
D001
Define the DMX start address
TEST
Test program of all functions
AUDI ASLW Self-running audio program (slow)
AFST Self-running audio program (fast)
MSTR Master for the audio program
LAMP
Switch on/off the lamp direct at the M
MI IN NI I P PA AT TE EN ND D
RESE
Reset
TIME POWR Running time of the fixture (no destructible)
LA1 Running time of the lamp (erasable)
LA2 Running time of the lamp (no destructible)
RPAN
Reverse Pan-direction
RTLT
Reverse Tilt-direction
SPEC MANU Manual drive of all device functions
LAAU Automatic lamp start
DLOF Switch off lamp via DMX
DMXI Reed out actual DMX-values
DISP D ON Display On/Off
REV Twist the display
ADJU CODE
xxxx
Use the code for entering
the calibration menu (for
authorized person only)
COLO Calibration of the color wheel
GOBO Calibration of the gobo wheel
SHTR Calibration of the shutter
ARES Adjust Reset
clre Settings in the internal memory (super-user only)
DFSE Call on the default function values
DOWN - UP 
EFLG Correction of faults

GLP German Light Production (V1.11) 11
3.1 Adjust the DMX- Address (D001)
Right after turning on the M MI IN NI I P PA AT TE EN ND D you can see the current DMX- address. If
there is no DMX- signal the display flashes.
D001
For the address setting please follow this procedure:
1. Switch ON the M MI IN NI I P PA AT TE EN ND D and wait until the fixture reset has finished (the
display is showing 'RST').
2. Press the Mode-key in order to access the main menu. Browse through the
menu by pressing the Up/Down-keys until the display shows D001. Confirm by
pressing the Enter-key.
3. Use the Up/Down-keys to select the desired address. Confirm the setting by
pressing the Enter-key (the display shows OK) or press the Mode-key to
cancel.
The DMX- address is stored also while switching off the M MI IN NI I P PA AT TE EN ND D!
3.2 The Test Program (TEST)
test
The Test-Program allows you to run a complete self test procedure of all
functions. Press Enter to confirm or Mode to cancel.
3.3 The Audio Program (AUDI)
Audi
The Audio-menu allows you to run a stand alone audio program. This chaser can
run either fast or slow. AFST: Every sound impulse on step of the chaser. Aslw:
Every second sound impulse one step of the chaser.
If you want to run the systems simultaneously, one of the M MI IN NI I P PA AT TE EN ND D' 's smust
be switched as the master. All others must be "Slave" Master = OFF.
Notice: The Audio function is only working when no DMX is connected. This can
work as an emergency program.

GLP German Light Production (V1.11) 12
3.4 Lamp On/Off (LAMP)
LAMP
Use the Up/Down-keys to select lamp On or lamp Off. Press Enter to confirm or
Mode to cancel and return to the main menu. (The lamp OFF command is only
working if the shutter is closed at the same time. Use an external controller or the
manual drive mode, see 3.9.1)
3.5 Reset (RESE)
RESE
Press the Enter-key to run a reset of all fixture functions (RST is shown in the
display).
3.6 Running time of lamp and unit (TIME)
TIME
By this option can read out three different running times of the fixture.
POWR Running time of the fixture (no destructible).
LA 1 Running time of the lamp (erasable). Push the Up/Down-
keys at one
time to delete this running time.
LA 2 Running time of the lamp (no destructible).
3.7 Invert Pan Movement (RPAN)
RPAN
This function allows you to invert the Pan movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel and return to the
main menu.
3.8 Invert Tilt Movement (RTLT)
RTLT
This function allows you to invert the Tilt movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel.

GLP German Light Production (V1.11) 13
3.9 Special Functions (SPEC)
SPEC
This menu allows you to enter further special functions of the M Mi in ni i P PA AT TE EN ND D. .
In detail they are:
3.9.1 Manual Drive (MANU)
MANU
This function allows you to drive all the fixture functions manually. Select
the desired function with the Up/Down-keys and confirm with Enter. Now
choose the desired value with the Up/Down-keys and confirm again with
Enter or cancel and return to the menu with the Mode-key.
Function Value Remark
PAN 000 - 255 Pan Position
TILT 000 - 255 Tilt Position
RPAN 000 - 255 Pan Rotation
RTLT 000 - 255 Tilt Rotation
COLO 000 - 255 Color wheel
GOBO 000 - 255 Gobo wheel
SHUT 000 - 255 Dimmer/Shutter/Strobe function (the lamp
strikes at DMX 255)
FOCU 000 - 255 Focus
SPED 000 - 255 Speed Pan/Tilt
SPEC 000 - 255
Lamp Off, Reset, ...
3.9.2 Lamp On automatically (LAAU)
LAAU
This function enables you to switch ON the lamp automatically after
switching ON the fixture. Use the Up/Down-keys to select ON if you want to
switch on the lamp automatically after switching on the fixture or Off if you
don't want this function. Press Enter to confirm or Mode to cancel and
return to the menu.
If you have chosen off you have the possibility to start the lamp either via
DMX or directly at the M Mi in ni i P PA AT TE EN ND Din the Lamp menu.

GLP German Light Production (V1.11) 14
3.9.3 Lamp Off via DMX (DLOF)
DLOF
This function enables you to switch off the lamp via DMX or not. Use the
Up/Down-keys to select ON if you want to switch off the lamp via DMX or
Off if you don't want this function. Press Enter to confirm or Mode to
cancel and return to the menu.
If you have chosen off you have the possibility to switch off the lamp either
directly at the M Mi in ni i P PA AT TE EN ND Din the Lamp menu or switch off the main
switch.
3.9.4 DMX Input (DMXI)
DMXI
Readout DMX values of each channel received by the fixture. Use the
Up/Down-keys to select desired channel and press Enter to read its value.
Function Value Remark
PAN 0 - 255 Pan Position
TILT 0 - 255 Tilt Position
RPAN 0 - 255 Pan Rotation
RTLT 0 - 255 Tilt Rotation
COLO 0 - 255 Color wheel
GOBO 0 - 255 Gobo wheel
SHUT 0 - 255 Dimmer/Shutter/Strobe function
FOCU 0 - 255 Focus
SPED 0 - 255 Speed Pan/Tilt
MOVE 0 - 255 Movement
SPEC 0 - 255
Lamp Off, Reset, ...
3.9.5 Display (DISP)
DISP
Use this function to choose between different display indications. Use the
Up/Down-keys to select desired function and press Enter to confirm or
Mode to cancel and return to the menu.
D ON Display On/Off (If you've chosen off, the display will go out with
in
15 seconds after the last input. The next key touch will reactivate
the display).
REV Turn around the display

GLP German Light Production (V1.11) 15
3.9.6 Adjustments and Calibrations (ADJU)
ADJU
By this function you can adjust and calibrate the positions of the different
wheels and other motors. This can be necessary after a service or repair
work.
For this function you have to entry the fixture code. This work should be
done only by authorized persons.
Use the Up/Down-keys to select the desired function and press Enter to
confirm or Mode to cancel and return to the menu. Use now the Up/Down-
keys to set the adjustment values and confirm once more with the Enter-
key or cancel with the Mode-key.
Function Value Remark
COLO - 99 - + 99 Color wheel
GOBO - 99 - + 99 Gobo wheel
SHTR - 01 - + 01
Shutter
ARES To initiate a reset for adjustment of the Shutter. Unit must be
turned off and on afterwards.
clre Adjustments in the internal circuit.
3.9.7 Default Settings (DFSE)
DFSE
Press Enter to reset all fixture personalities (not the adjusted functions) to
the default values. On the display will appear ok to indicate that the
defaults are set.
Function Display Default Settings
DMX Address D001 D001
Pan reverse RPAN ON OFF 
Tilt reverse RTLT ON OFF 
Automatic lamp on LAAU ON OFF 
Lamp on via DMX DLOF ON OFF
Display DISP
D ON REV
3.9.8 Error Code (EFLG)
EFLG
(Function available for authorized persons only)

GLP German Light Production (V1.11) 16
3.10 Error and Information Messages
RsER
This message informs you that one of the fixture function wasn’t
able to complete its reset successfully (
magnetic sensor,
stepping motor, driver on the PCB, cables, etc.). Repair the
defect and start the fixture again.
4 DMX Channel Selection (DMX Protocol)
Channel Function Time and Value DMX HEX %
1) PAN-
coarse 0 .. 360° min. 1/5min.
max. 4/sec. 0..255 00..FF 0..100
2) PAN-fine High- Pos ... High- Pos (16 Bit) 0..255 00..FF 0..100
3) Tilt-
coarse 0 .. 360° min. 1/5min.
max. 4/sec. 0..255 00..FF 0..100
4) Tilt-fine High- Pos … High- Pos (16 Bit) 0..255 00..FF 0..100
static, positioning with channel 1 and 2 0..1 0..1 1
CW, slow - fast 2..127 2..7F 2..49
5) Pan-
Rotation CCW, fast - slow 128..255
80..FF 50..100
static, positioning with channel 3 and 4 0..1 0..1 1
CW, slow - fast 2..127 2..7F 2..49
6) Tilt-
Rotation CCW, fast - slow 128..255
80..FF 50..100
open 0..1 00..01 0,2
open / color 1 2..3 02..03 1,0
color 1 4..5 04..05 1,8
color 1 / color 2 6..7 06..07 2,5
color 2 8..9 08..09 3,3
color 2 / color 3 10..11 0A..0B 4,1
color 3 12..13 0C..0D 4,9
color 3 / color 4 14..15 0E..0F 5,7
color 4 16..17 10..11 6,5
color 4 / color 5 18..19 12..13 7,3
color 5 20..21 14..15 8,0
color 5 / color 6 22..23 16..17 8,8
color 6 24..25 18..19 9,6
color 6 / color 7 26..27 1A..1B 10,4
color 7 28..29 1C..1D 11,2
color 7 / color 8 30..31 1E..1F 12,0
color 8 32..33 20..21 12,7
color 8 / color 9 34..35 22..23 13,5
color 9 36..37 24..25 14,3
color 9 / color 10 38..39 26..27 15,1
color 10 40..41 28..29 15,9
color 10 / color 11 42..43 2A..2B 16,7
color 11 44..45 2C..2D 17,5
color 11 / color 12 46..47 2E..2F 18,2
color 12 48..49 30..31 19,0
color 12 / color 13 50..51 32..33 19,8
7) Color
color 13 52..53 34..35 20,6

GLP German Light Production (V1.11) 17
Channel Function Time and Value DMX HEX %
color 13 / color 14 54..55 36..37 21,4
color 14 56..57 38..39 22,2
color 14 / color 15 58..59 3A..3B 22,9
color 15 60..61 3C..3D 23,7
color 15 / color 16 62..63 3E..3F 24,5
color 16 64..65 40..41 25,3
color 16 / color 17 66..67 42..43 26,1
color 17 68..69 44..45 26,9
color 17 / color 18 70..71 46..47 27,6
color 18 72..73 48..49 28,4
color 18 / color 19 74..75 4A..4B 29,2
color 19 76..77 4C..4D 30,0
color 19 / open 78..79 3E..4F 30,8
open 80..127 50..7F 32..49
color rotation, slow-fast, CW min. 1 turn/5 sec. 128..191 80..BF 50..75
color rotation, fast-slow, CCW max. 1 turn/sec. 192..253 C0..FD 76..98
Audio color chaser slow each 4th sound impulse
new color 254 DE 99
Audio color chaser fast each sound impulse
new color 255 FF 100
open 0..3 0..3 0,8
Gobo 1 4..7 4..7 2,0
Gobo 2 8..11 8..0B 3,8
Gobo 3 12..15 0C..0F 5,0
Gobo 4 16..19 10..13 7,0
Gobo 5 20..23 14..17 8,4
Gobo 6 24..27 18..1B 10
Gobo 7 28..31 1C..1F 11
Gobo 8 32..35 20..23 13
Gobo 9 36..39 24..27 14,5
Gobo 10 40..43 28..2B 16,2
Gobo 11 44..47 2C..2F 17
Gobo 12 48..51 30..33 19
Gobo 13 52..55 34..37 20,8
Gobo 14 56..59 38..3B 22,4
Gobo 15 60..63 3C..3F 24,3
Gobo 16 64..67 40..43 25,5
Gobo 17 68..71 44.47 27,5
Gobo 18 72..75 48..4B 29
Gobo 19 76..79 4C..4C 30,5
open 80..127 50..7F 32..49
Gobo rotation, slow-fast, CW min. 1 turn/5 sec. 128..191 80..BF 50..75
Gobo rotation, fast-slow, CCW max. 1 turn/sec. 192..253 C0..FD 76..98
Audio Gobo chaser slow each 4th sound impulse
new Gobo 254 DE 99
6) Gobo
Audio Gobo chaser fast each sound impulse 
new Gobo 255 FF 100
Shutter closed 0..1 0..1 0,2
Dimmer, closed - open 2..125 2..7D 0,5..49
Shutter open 126..127 7E..7F 50..51
Random Strobe 128..143 80..8F 52..56
Audio Strobe 144..159 90..9F 57..62
Strobe, slow - fast 160..239 A0..EF 63..93
Shutter open 240..255 8C..FF 94..100
9) Shutter
Shutter open (lamp start) 254..255 FE..FF 100

GLP German Light Production (V1.11) 18
Channel Function Time and Value DMX HEX %
10) Focus near - far 0..255 0..FF 0..100
Pan/Tilt relative movement 0..1 00..01 0..0,5
11) Speed Speed, slow - fast 2..255 02..FF 1..100
no movement 0 00 0
Movement Size Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D 4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D 11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159 80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191 A0..BF 63..75
lying eight size / phase see also PAN 192..223 C0..DF 76..87
12) Move-
ment
random movement size see also PAN 224..255
E0..FF 88..100
n.a. 0..63 0..3F 0..25
Special color chaser color -> color +1 slow - fast 64..79 40..4C 26..31
Special color chaser color -> color +2 slow - fast 80..95 50..5F 32..73
Pan/Tilt, audio-controlled slow 96..111 60..6F 38..44
Pan/Tilt, audio-controlled fast 112..127 70..7F 45..49
Pan/Tilt, random positioning 128..143 80..8F 50..56
Lamp off after 3 sec. 230..249 90..F9 57..97
13) Special
Reset after 3 sec. 250.255 FA..FF 98..100
Lamp ON Channel 9 Shutter open 254..255
FE..FF 100
Lamp OFF Channel 13 (Special) after 3 sec. 230..249
90..F9 57..97
Reset Channel 13 (Special) after 3 sec. 250.255
FA..FF 98..100

GLP German Light Production (V1.11) 19
5 Change the Lamp
For a troublefree operation please read this chapter carefully and follow all instructions.
5.1 Safety Regulations
• Pull out the main plug!
• Wait at least 20 minutes after the last operation to cool down the fixture.
• Don’t touch the bulb of the lamp with bare fingers (this can cause damages).
• Before you put the M MI IN NI I P PA AT TE EN ND Dinto operation close the casing, otherwise
your retina can be hurt!
5.2 Realize the Lamp Change
1. Pull out the main plug!
2. Open the 3 screws (A, B and C) at the lamp sheet and remove it.
3. Remove the old or broken lamp out of the socket.
Attention: The glass bulb of the lamp can splinter. For that reason remove the
lamp with safety gloves or some cloth.
4. Put in the new lamp securely into the socket. Attention: Use only the original
lamp type!
5. Close the
M
MI IN NI I P PA AT TE EN ND Din reverse order.
5.3 Lamp adjustment
The optimum position of the lamp (no
Hot-
Spot and maximum brightness)
inside the reflector must be controlled
after every lamp change.
The M Mi in ni i P PA AT TE EN ND D
lamp holder is
aligned at the factory. Due to differ-
ences between lamps, fine adjust
ments
may improve light performance.
Pease follow this procedure:

GLP German Light Production (V1.11) 20
1. Strike the lamp (for example in the LAMP menu) and wait a while until full
intensity of the lamp.
2. Direct the beam straight on a flat and bright surface/wall (beam open, white, no
gobo, no effects).
3. If the Hot-Spot (brightest part of the beam) is not in the middle and the beam is
not max. bright, you can adjust this by turning the screws 1, 2 and 3. Try to find
the brightest position.
Remark: A complete even beam can't be reached because of the design of
the lamp.
6
6 Maintenance and Cleaning the M
MI IN NI I P PA AT TE EN ND D
It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid
residues must not built up on or within the fixture. Otherwise the fixture's light-output will
be significantly reduced. Regular cleaning will not only ensure the maximum light-output
but will also allow the fixture to function reliably throughout its life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended, under no circumstances should alcohol or solvents be used!
The inside optical system should be maintained only by authorized persons. Please
contact your local dealer.
6.1 Safety Regulations
• Pull out the main plug!
• Wait min. 20 minutes after the last operation to cool down the fixture.
• Before you put the M MI IN NI I P PA AT TE EN ND Dinto operation close the casing, otherwise
your retina can be hurt!
6.2 Circumference and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Therefore
no general guidelines can be given. From this it follows that the intervals are only
suggestions from our practice experience.
