1.Overview
P.3
Contents
P.2
1. Overview
2. Safety instructions
3. Technical specifications
4. Dimensions
5. Installation
Installation site
Mounting accessories
Installing the wall bracket
Installing connection pieces
Installing the appliance
6. Direct connection
Wiring diagram
7. Electrical connection
Structural prerequisites
Load shedding relay
Electrical connection from below
Electrical connection from above
8. Initial operation
Modification of factory preset outlet temperature
9. Maintenance work
Cleaning and replacing the filter strainer
Cleaning and replacing the filter strainer if direct connected
10. Environment and recycling
11. How to use
12. Troubleshooting
03
04
05
06
06
06
07
08
09
09
10
10
11
11
12
13
13
14
14
15
15
16
16
17
18

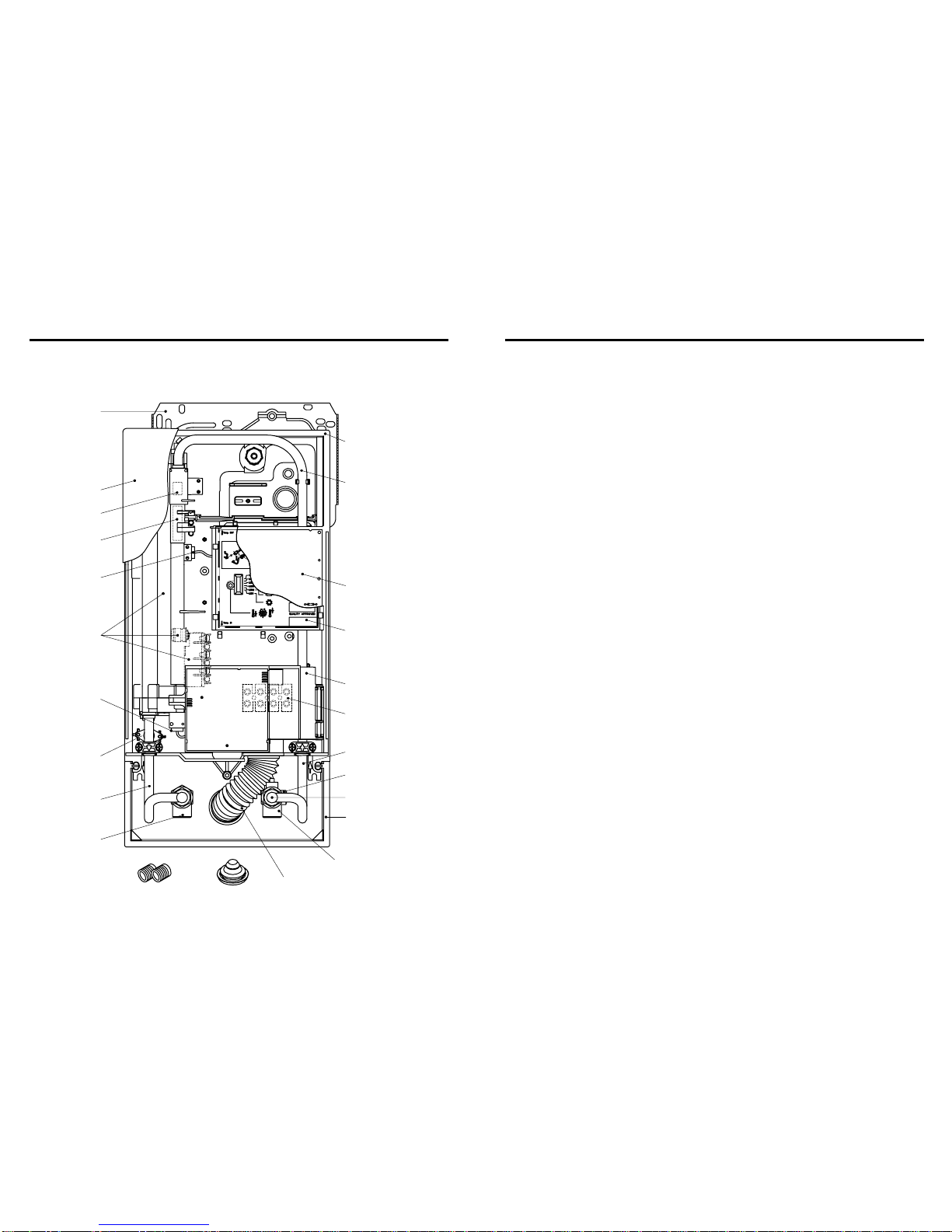

When ordering spare parts, please always specify the appliance model and serial number.
Connecting pipe
PCB
PCB cover
Control panel support
Connecting terminal
Inlet pipe
Cold water connection
Water splash protection sleeve GrommetScrew-in nipples ½”
Fine filter
Flow limiter
Frame
DBX hood
Non-return valve
Flow sensor
Thermal sensor set
Temperature sensor set
Outlet pipe
Hot water connection
Bottom part
Wall bracket
Safety thermal cut-out
Heating element
including safety
pressure cut-out

3.Technical Specications
P.5
2.Safety Instructions
P.4
The latest version of the instructions can be found online at German Pool website.
Note
Please read these instructions carefully before installing or using the appliance! Keep the instructions
handy with the appliance for future use!
- Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
- Do not remove the front cover under any circumstances before switching off the mains electrical supply
to the unit.
- Never make technical modications, either to the appliance itself or the electrical leads and water pipes.
- The appliance must be earthed at all times.
- Pay attention to the fact that water temperatures in excess of approx. 43°C are perceived as hot,
especially by children, and may cause a feeling of burning. Please note that the ttings and taps may be
very hot when the appliance has been in use for some time.
- The appliance is only suitable for domestic use and similar applications inside closed rooms, and must
only be used to heat incoming water from the mains supply.
- The appliance must never be exposed to frost.
- The values stated on the rating plate must be observed.
- In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the mains water supply
instantly. Repairs must only be carried out by the customer service department or an authorised professional.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
DBX 18 .. 27 BASITRONIC®
Model
DBX 18 DBX 21 DBX 24 DBX 27
A #)Energy efficiency class
18 kW (26 A) 21 kW (30 A) 24 kW (35 A) 27 kW (39 A) Capacity set / current
3~ / PE 380..415 V AC 3~ / PE 400 V
AC Electrical connection
4.0 mm24.0 mm26.0 mm2 2) 6.0 mm2Min. required cable size 1)
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
Hot water (l/min) 3) max. at ∆t =
28 K
max. at ∆t = 38 K
0.4 l Rated volume
Pressure type 1.0 MPa (10 bar) Type
Bare wire heating system IES®Heating system
≥ 1100 Ωcm
≤ 90 mS/m
Required specific
water resistance @ 15 °C
Specific electrical conductivity
≤ 30 °C Inlet temperature
2.5 – 7.0 l/
min
2.5 – 8.0 l/
min
2.5 – 8.0 l/
min
2.5 – 9.0 l/
min
Flow rate to switch on – max. flow
rate 4)
0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min 5) Pressure loss
30 °C – 60 °C Temperature range
G ½“ Water connection
3.65 kg Weight (when filled with water)
I VDE class of protection
PA-IX 6762/I Noise level test certificate
Type of protection / safety
#) The declaration complies with the requirements of the EU regulation. No 812/2013 being binding as of
September 2015.
1) Maximum applicable cable size is 10mm2.
2) When replacing a 21kW / 380 V appliance.the cable size of 4 mm2can be adopted.
3) Mixed water.
4) Flow rate limited to achieve optimum temperature rise.
5) Without flow regulator.
- Specifications are subject to change without prior notice.
- If there is any inconsistency or ambiguity between the Chinese versionand the English version, the English
version shall prevail.
- Refer to www.germanpool.com for the most up-to-date version of theUser Manual.

5.Installation
P.7
4.Dimensions
P.6
The following regulations must be observed:
- Installation must comply with all statutory regulations, as well as
those of the local electricity and water supply companies.
- The rating plate and technical specifications.
- Only intact and appropriate tools must be used.
Installation site
- Appliance must only be installed in frost-free rooms. Never expose
appliance to frost.
- The Appliance must be wall mounted and has to be installed with
water connectors downward.
- The appliance complies with protect-ion type IP25 and may therefore
be installed in protection zone 1 according to VDE 0100 part 701.
- In order to avoid thermal losses, the distance between the
instantaneous water heater and the tapping point should be as
small as possible.
- For maintenance work, a shut-off valve should be installed in the
supply line. The appliance must be accessible for maintenance work.
- Plastic pipes may only be used if they conform to DIN16893, Series2.
The hot water pipes must be thermally insulated.
- The specific resistance of the water must be at least 1100Ω cm at
15°C. The specific resistance can be asked for with your water
distribution company.
5.Installation

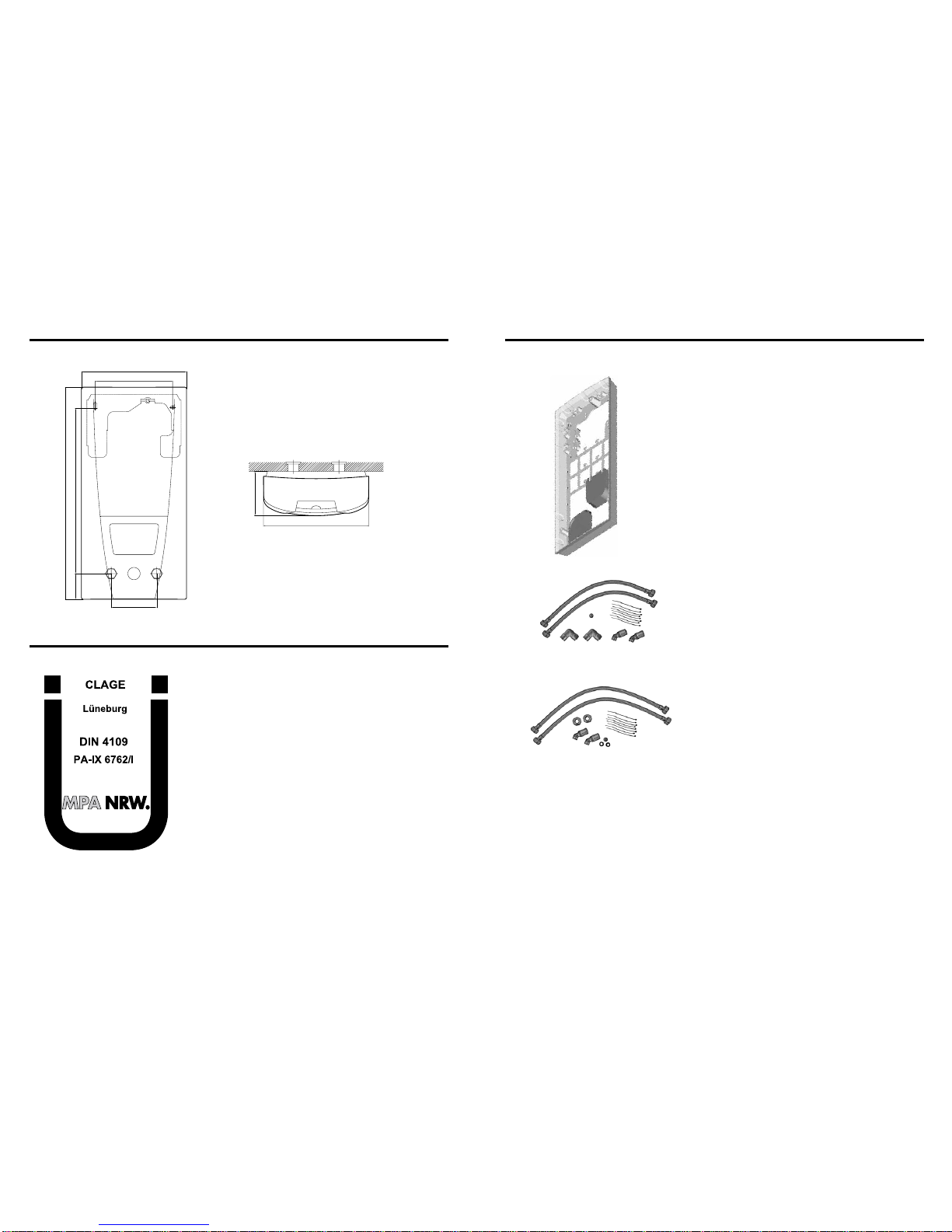

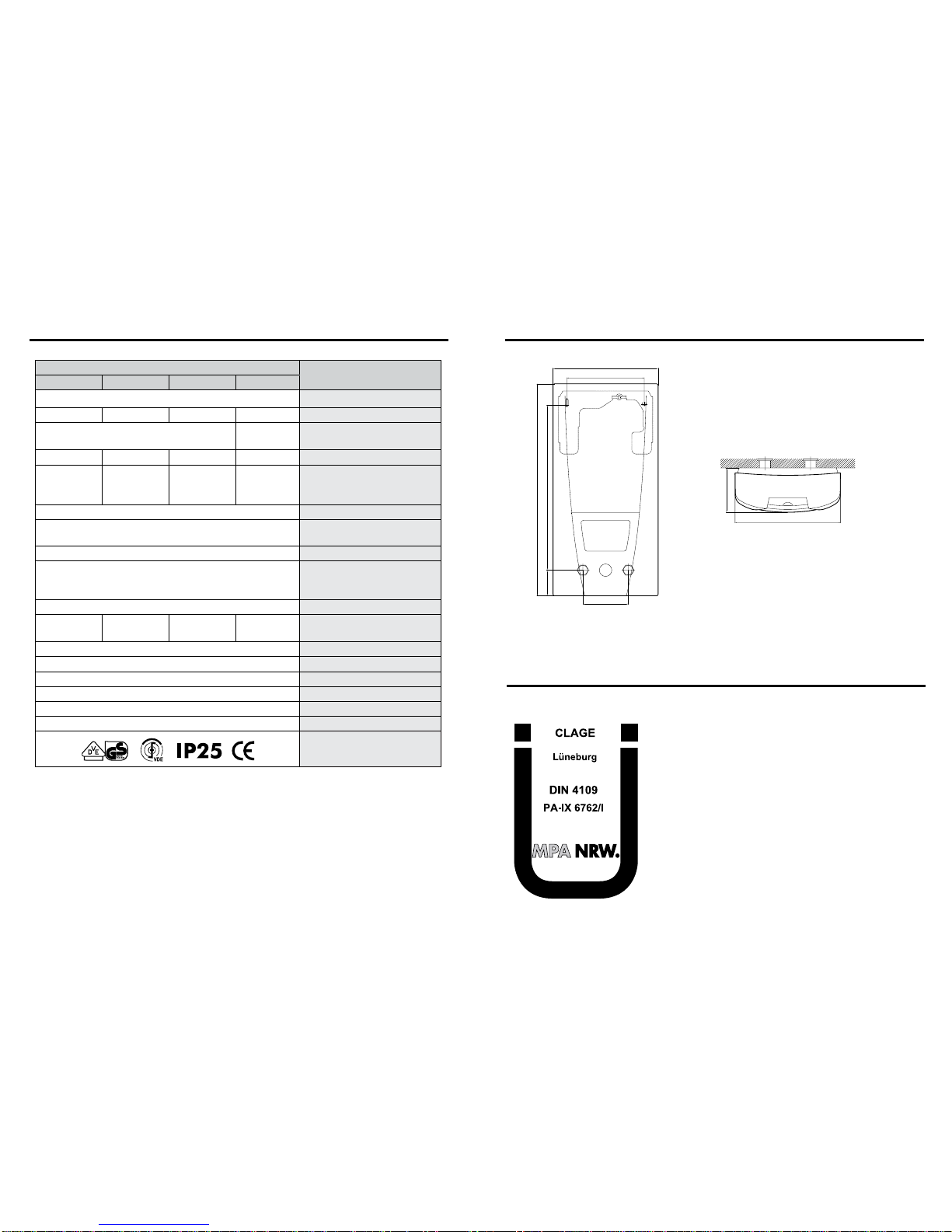

Dimensions in mm
Based on the national constitution guidelines a
general test certicate concerning the evidence
of applicability of noise behaviour is granted.
231
231
170
363
466
56
100
97

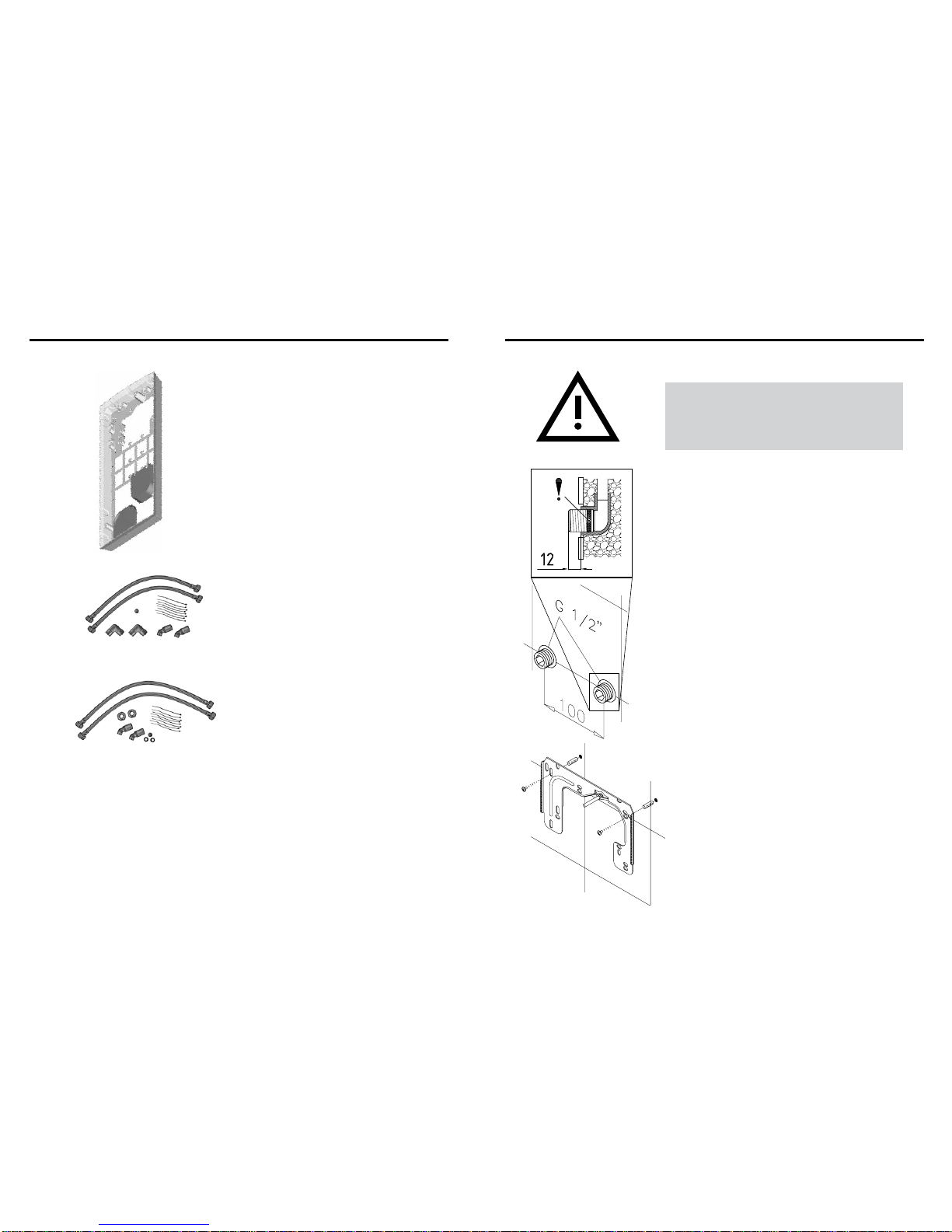

Mounting accessories
For installations under difficult conditions, these
mounting accessories are available:
Mounting kit RDX
(Art. no. 34100)
The instant water heater can be installed by means
of this mounting kit in the below situations. The
power supply cable is coming out of the wall at any
place from behind the unit, but the wall has unusual
surface conditions, making it difficult for installing
the water heater. The power supply cable is coming
from elsewhere and has to be connected to the back
of the unit.
Extension kit VDX
(Art. no. 34120) – RDX is necessary!
The instant water heater can be installed by means
of this extension kit if the water pipes are coming
displaced or exchanged out of the wall or if they are
coming edgewise on the wall to the unit. The power
supply could come out of the wall at any place under
the unit or the wiring could be installed surface-
mounted.
Extension kit UDX
(Art. no. 34110) – RDX is necessary!
The instant water heater can be installed by means
of this extension kit if the water-connections are
expiring above the unit. The power supply could
come out of the wall at any place under the unit or
the wiring could be installed surface-mounted.
RDX
VDX
UDX

5.Installation 5.Installation
P.8 P.9

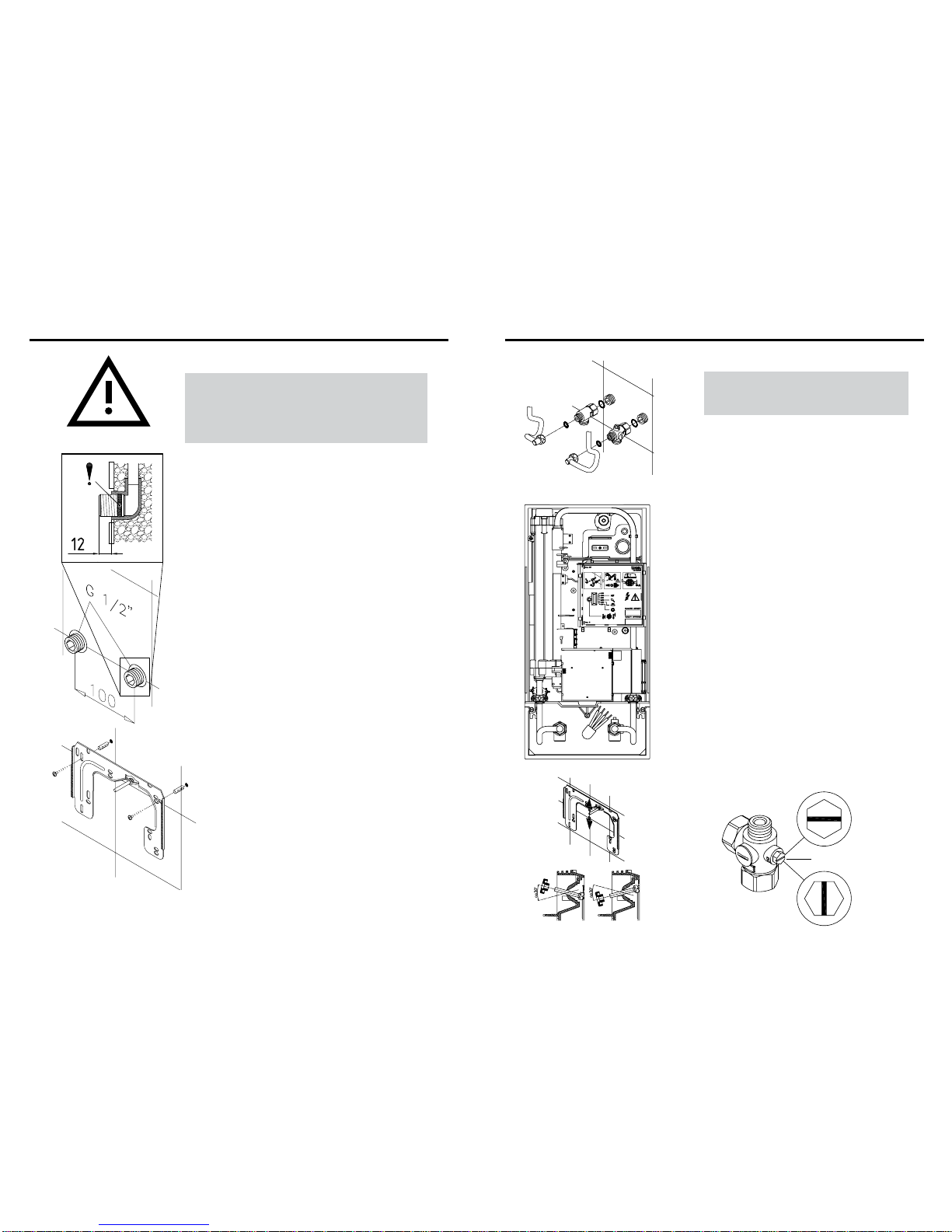

Installing the wall bracket

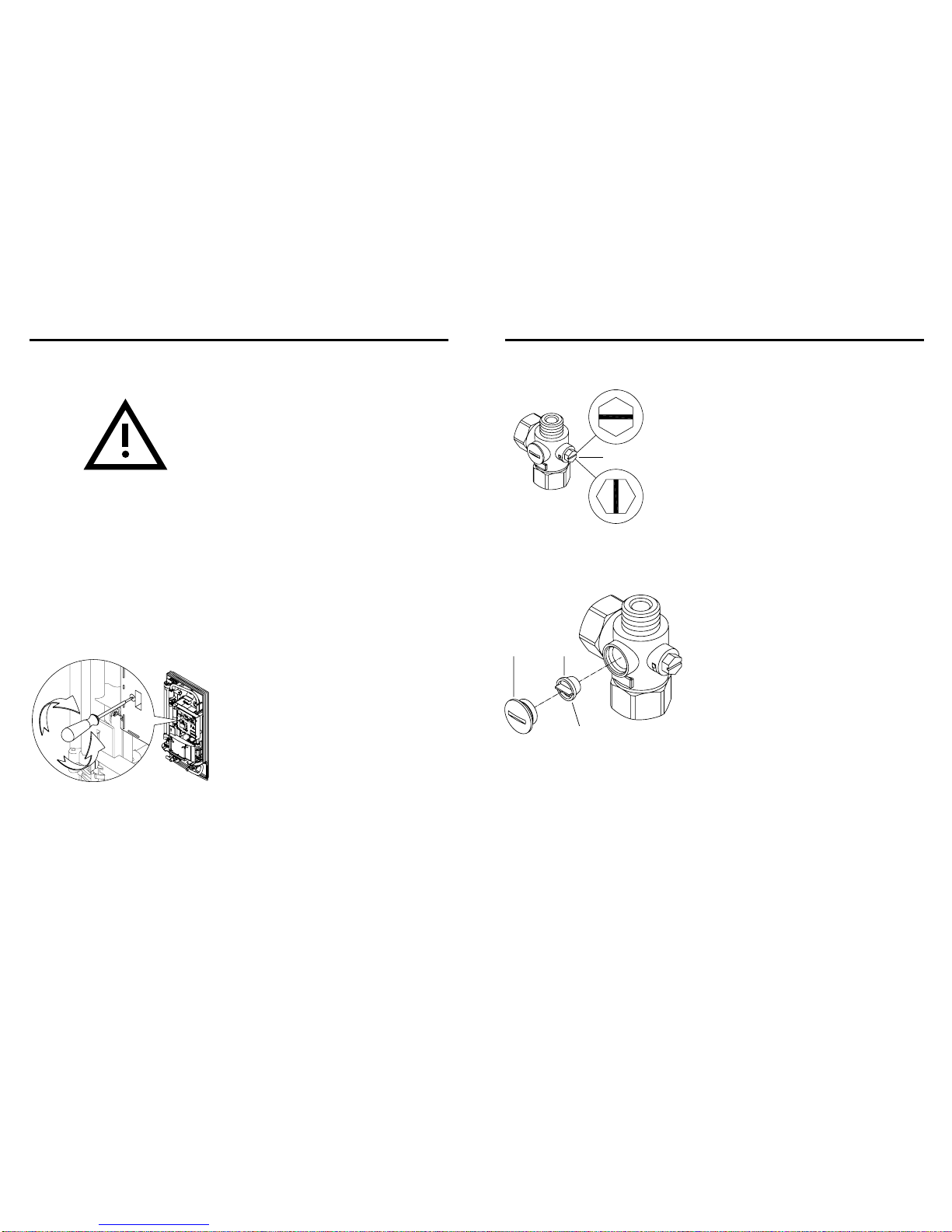

Thoroughly rinse the water supply pipes before installation to
remove soiling from the pipes.
1. Using a 12 mm hexagon socket screw key, screw the screw-
in nipples into the wall connections. The seals must be fully
screwed into the thread. After tightening, the double nipples
must protrude by at least 12mm.
2. Hold the included mounting template on the wall and align
it so that the holes in the template fit over the connections.
Mark the drill holes according to the template and drill them
using a 6mm drill. Insert the included dowels.
3. Screw in the wall bracket.Offset tiling or uneven surfaces
can be compensated by up to 30 mm with the aid of the
spacers supplied. The spacers are fitted between the wall
and the wall bracket.
Note
If you install this instantaneous water heater in exchange
for a conventional instantaneous water heater, there is
generally no need to drill holes for the wall bracket, in this
case step 2 would not be necessary.
Installing connection pieces
1. As shown in the illustration, screw the cold water
connection piece with the union nut and the ½”
seal onto the cold water connection.
2. Screw the hot water connection piece with the union
nut and the ½” seal onto the hot water connection.
Installing the appliance
Closed
Open
1. To open the appliance hood, take off the faceplate
and unscrew the main hood screw.
When replacing an appliance, the electrical power
supply cable may be connected in the upper part.
Only in such case, follow the instructions “Electrical
connection from above”.
2. Place the appliance on the heater bracket so
that the threaded rod of the wall bracket fits in the
provided hole of the appliance. If necessary, slight
corrections are possible by carefully bending the
threaded rod of the wall bracket. However, it must
be possible to screw on the water connection pipes
of the appliance without applying force.
3. Screw the two ⅜” union nuts of the appliance‘s
water connection pipes, each with the ⅜” seal,
onto the fittings.
4. Screw the plastic knurled nut onto the threaded rod
of the wall bracket.
5. Open the water supply line to the unit and slowly
open (position “open“) the shut-off valve (a) in the
cold water connection piece. Check all connections
for leaks.
6. Next, open and close the hot water tapping valve
several times until no more air emerges from the
line and all air has been eliminated from the
instantaneous water heater.
Note
Fasten the screw nuts with caution, to avoid
damage to the valves or the piping system.
(a)

7. Electrical Connection
P.11
6.Direct Connection
P.10

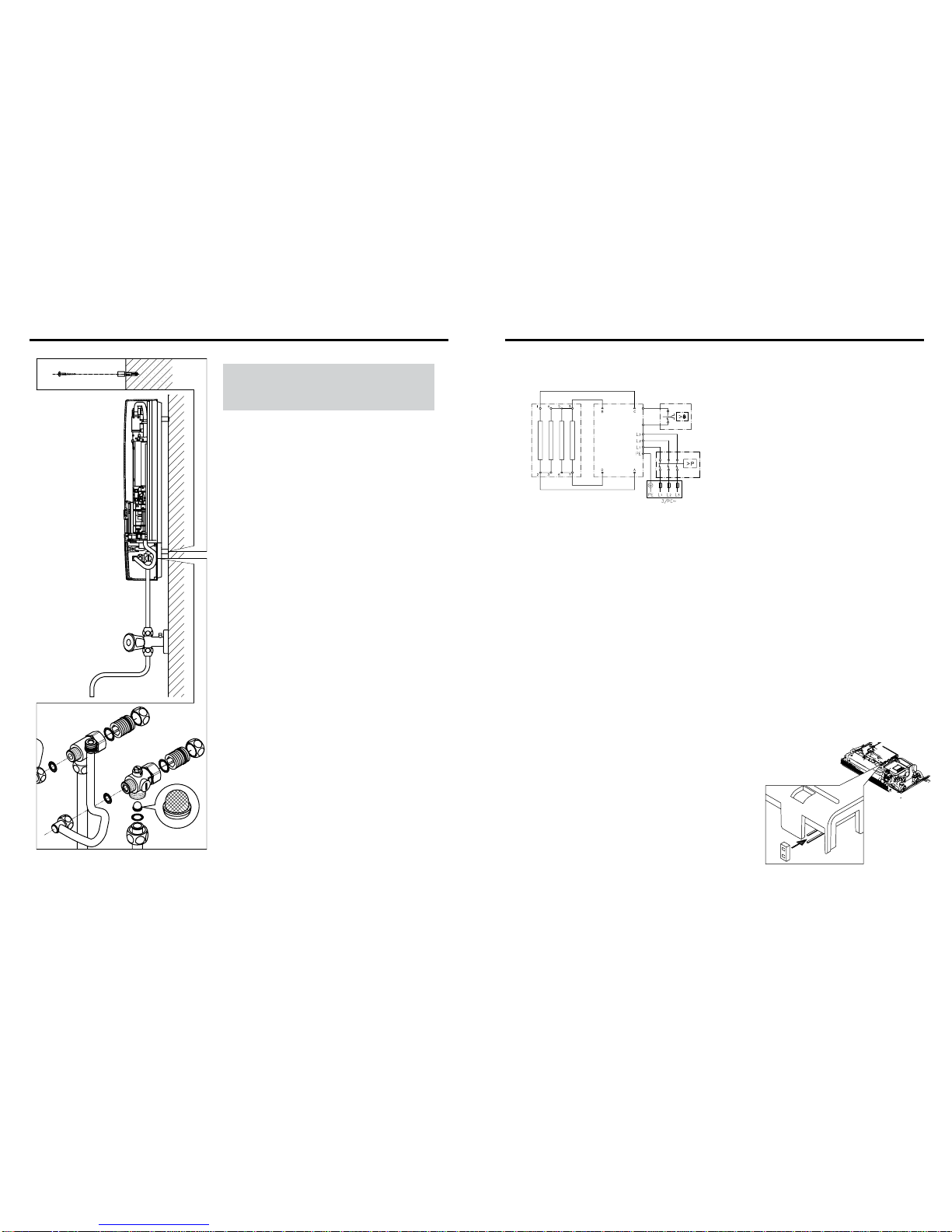

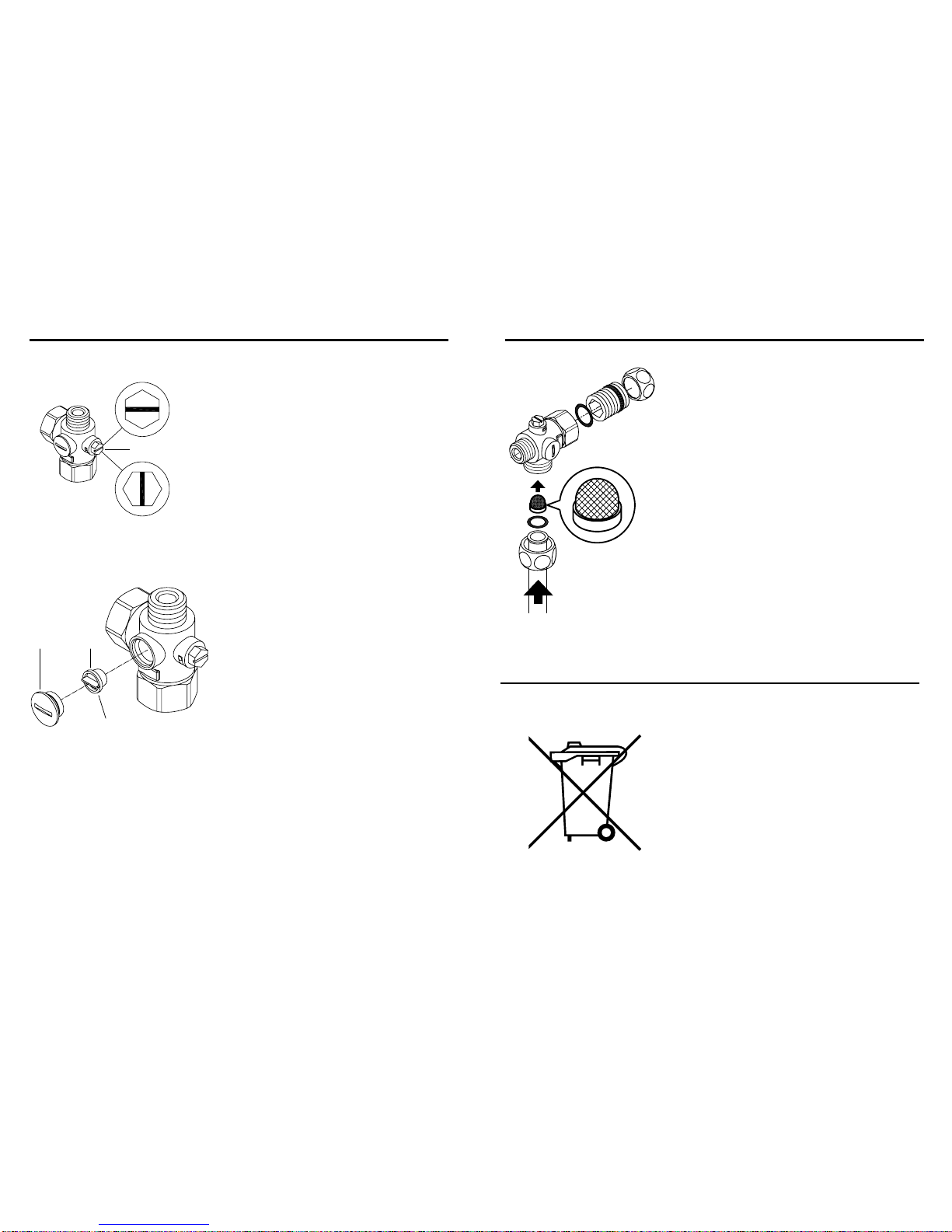

For direct connection, the two ½” screw-in nipples and
the ½” seals must be screwed into the ½” union nuts
of the hot-water and cold-water connectors. The two
½” caps of the side outlets of the hot-water and cold-
water connectors must be removed and screwed onto
the open end of the screw-in nipples. The hot-water
and cold-water connectors must then be screwed into
the 3 /8” union nut of the appliance and delivery pipe,
together with the 3 /8” seals.
For direct connection, it is advisable to mount the
appliance at a distance as illustrated alongside, using
the spacer sleeves supplied. It should therefore be
noted that the two fixing holes near the lower pipe
connections are also used.
The flared end of the pipes must be screwed into
the ½” side outlets of the hot-water and cold-water
connectors with ½” union nuts and ½” seals. The
holes required for the pipes must then be broken out
of the housing with the aid of a blunt implement.
In case of direct connection please note:
Put the strainer into the cold water connection!
Note
Fasten the screw nuts with caution, to avoid damage
to the valves or the piping system.
Only by a specialist!
Please observe:
- The installation must comply with current IEC and national local regulations or any particular
regulations, specified by the local electricity supply company.
- The rating plate and technical specifications.
- The unit must be earthed!
Structural prerequisites
- The appliance must be installed via a permanent connection. Heater must be earthed!
- The electric wiring should not be injured. After mounting, the wiring must not be direct accessible.
- An all-pole disconnecting device (e.g. via fuses) with a contact opening width of at least 3mm
per pole should be provided at the installation end.
- To protect the appliance, a fuse element must be fitted with a tripping current commensurate with
the nominal current of the appliance.
Load shedding relay
If further three-phase appliances are connected, a load
shedding relay designed for electronic instantaneous water
heaters (CLAGE no. 82250) can be connected to phase
conductor L2.
To avoid possible jitter of the load shedding relay caused
by low power consumption (low temperature set point
and low water flow rate) the “Load-sheddingmode” can
be activated as followed:
- Disconnect the appliance from the power supply (e.g. by
switching of the fuses).
- Insert the jumper on the power electronics (see picture).
- Put the appliance into operation again.

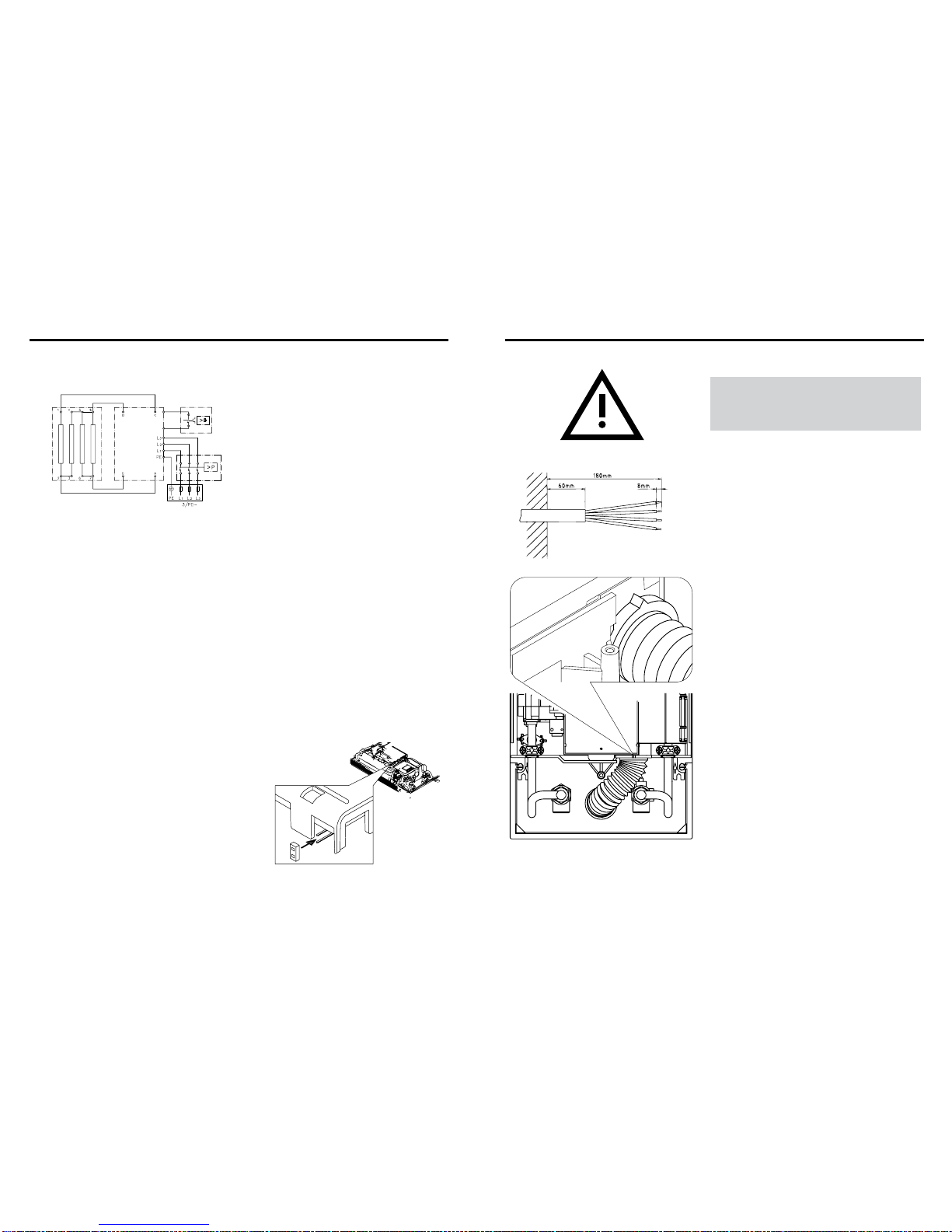

Wiring diagram
1.Electronic circuitry
2.Heating element
3.Safety pressure cut-out
4.Terminal strip
5.Safety thermal cut-out
6. Direct connection
4
5
3
2 1

7. Electrical Connection 7. Electrical Connection
P.12 P.13
Electrical connection from below
Check that the power supply is switched off prior to
electrical connection!
1. Dismantle approximately 6 cm off the connecting
cable above the wall outlet. With the smaller
opening ahead, slide the water splash protection
sleeve over the connecting cable so that the sleeve
is flush with the wall. This prevents any leaking
water from coming into contact with the electrical
leads. It must not become damaged! The protection
sleeve must be used!
2. Open the control panel rightwards.
3. Strip the cables and plug them in the connecting
terminals according to the wiring diagram. The
appliance must be earthed.
4. Pull the protective sleeve over the connecting
cables until the sleeve fits perfectly in the recess
of the intermediate panel. Adjust the water splash
protection sleeve as illustrated. Reinsert the control
panel and lock it on the heating element.
5. Place the hood on the appliance and screw in the
fastening screw. After that you can reinsert the
faceplate.
Note
If necessary, the connecting terminal can be
displaced to the upper part of the appliance. If
you want to do so, please follow the instructions
in the next chapter.

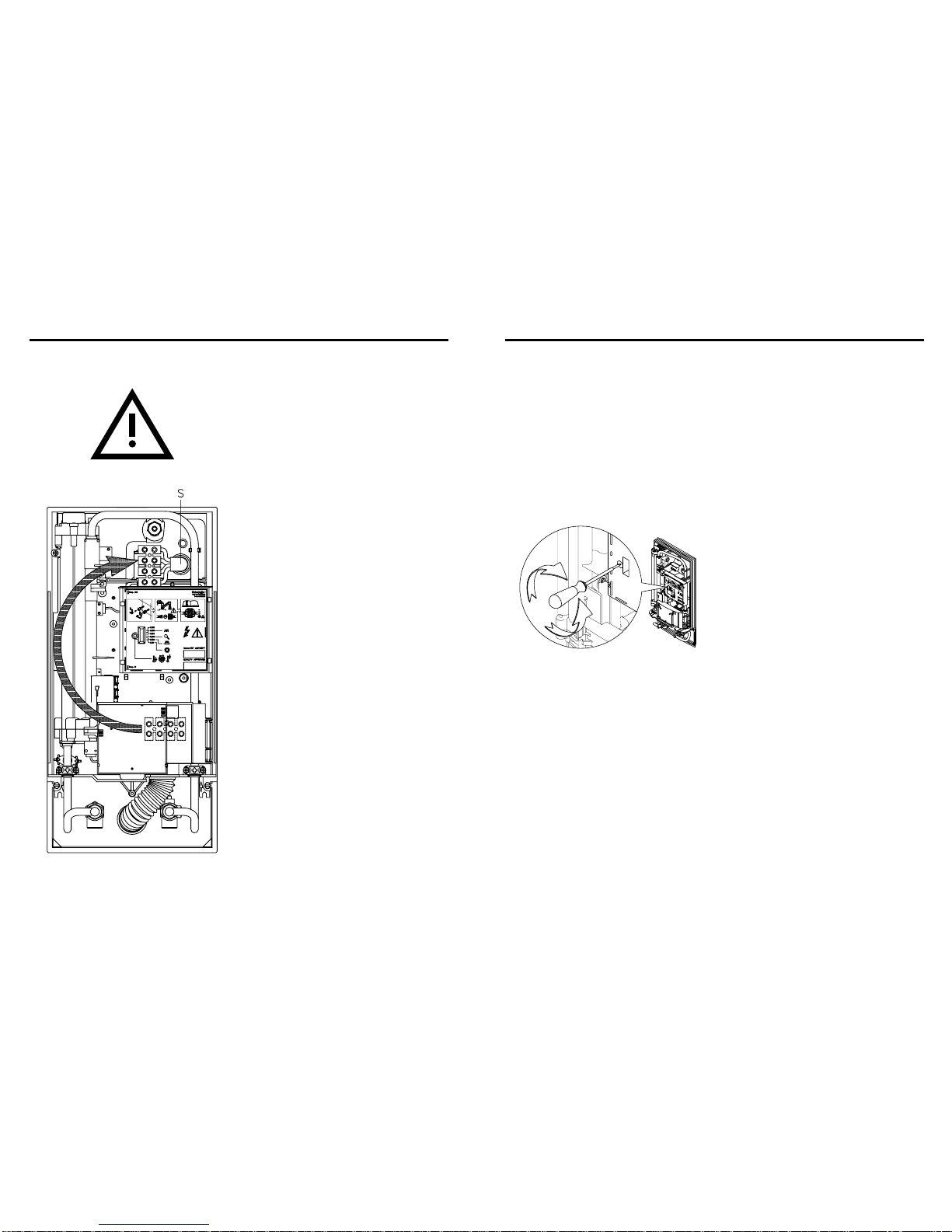

Electrical connection from above
Check that the power supply is switched off prior to
electrical connection!
1. Open the prepared breaking point (S) in the upper
part of the appliance by pressing with a blunt
implement (e.g. srewdriver).
2. Slit the grommet to match the cable size. The
opening in the grommet should be slightly smaller
than the cross-section of the cable in order to
ensure optimum protection against water. Fit the
grommet into the opening. The protection grommet
must be used!
3. Dismantle the cable roughly 6cm above the point
where it emerges from the wall. Hold the prepared
appliance so that you can route the cable into the
grommet with the other hand.
4. Place the appliance on the heater bracket so that
the threaded rod of the wall bracket fits in the
provided hole of the appliance.
5. Unscrew the fastening screw of the connecting
terminal. Displace the connecting terminal to the
upper foot. Affix the connecting terminal again.
6. Strip the cables and plug them in the connecting
terminals according to the wiring diagram. The
appliance must be earthed.
7. Place the hood on the appliance and screw in the
fastening screw. After that you can reinsert the
faceplate.

9. Maintenance work
P.15
8. Initial Operation
P.14
Before making the electrical connection, fill the
mains and the appliance with water by carefully
opening and closing the hot water tap in order to
vent completely. After every draining (e.g. after
work on the plumbing system or following repairs
to the appliance), the heater must be re-vented in
this way before starting it up again.
1. Switch on the power supply to the appliance.
2. Open the hot water tap. Check the function of
the appliance.
3. Explain the user how the instantane ous water
heater works and hand over the operating
instructions.
4. Fill out the guarantee registration card and send
it to the Central Customer Service or use the
online registration.
Modication of factory preset outlet temperature
The factory set hot water outlet temperature is
50°C.
This factory setting can be modied within the
range of approx. 30°C to 60°C by turning the
readout potentiometer with a slotted screwdriver
(width approx. 2mm).
The hot water outlet temperature will be
decreased by clockwise rotation and
increased by counterclockwise rotation.
Maintenance work must only be conducted by an
authorised professional.
Cleaning and replacing the filter strainer
The cold water connection of this instantaneous
water heater is equipped with an integrated shut-
off valve and a strainer. Soiling of the strainer may
reduce the warm water output. Clean or replace the
strainer as follows:
1. De-energize the instantaneous water heater
(e.g. via deactivating the fuses) and prevent
inadvertent reactivation of them.
2. To open the hood, take off the small face plate,
loose the screw behind this cover and detach the
hood.
3. Close the shut-off valve (a) in the cold water
connection piece (position “closed”).
4. Unscrew the screw plug (b) from the cold water
connection piece and take out the strainer (c).
5. The strainer can now be cleaned or replaced.
6. After fitting of the clean strainer tighten the screw
plug.
7. Slowly reopen the shut-off valve in the cold water
connection piece (position “open”).
8. Vent the unit by carefully opening and closing the
affiliated warm water tap valve several times until
air no longer emerges from the pipe.
9. Fit the hood of the unit. Then switch on the
voltage again (e.g. via activating the fuses).
(a)
closed
open
(c)(b)
Strainer

12. How to use
P.17
9. Maintenance work
P.16
Cleaning and replacing the filter strainer if direct
connected
The cold water connection of this instantaneous
water heater is equipped with a strainer. Soiling of the
strainer may reduce the warm water output. Clean or
replace the strainer as follows:
1. De-energize the instantaneous water heater
(e.g. via deactivating the fuses) and prevent
inadvertent reactivation of them.
2. Close the shut-off valve in the mains water supply
of the instantaneous water heater.
3. To open the hood, take off the small faceplate,
loose the screw behind this cover and detach the
hood.
4. Unscrew mains water inlet from connection piece
and take out the strainer.
5. The strainer can now be cleaned or replaced.
6. After refitting the clean strainer reconnect the
mains water inlet to the connection piece.
7. Slowly reopen the shut-off valve in the mains
water supply.
8. Vent the unit by carefully opening and closing the
affiliated warm water tap valve several times until
air no longer emerges from the pipe.
9. Fit the hood of the unit. Then switch on the
voltage again (e.g. via activating the fuses).
Your product was manufactured from high-quality, reusablematerials
and components. Please respect in case of discarding that electrical
devices should be disposed of separately from household waste
at the end of their service life. Therefore, please take this device
to a municipal collection point that accepts electronic scrap
on a free of charge basis. Disposing it correctly will support
environmental protection and will prevent any potential negative
effects on human beings and the environment that could arise
from inappropriate handling of these devices at the end of their
service life. Please contact your local authority for further details
of your nearest designated collection point or recycling site.
Business customers: If you wish to discard electronic equipment,
please contact your dealer or supplier for further information.
10. Environment and recycling
Venting after maintenance work
This instantaneous water heater features an automatic air bubble protection to prevent it from inadvertently
running dry. Nevertheless, the appliance must be vented before using it for the first time. Each time the
appliance is emptied (e.g. after work on the plumbing system, if there is a risk of frost or following repair
work), the appliance must be re-vented before it is used again.
1. Disconnect the instantaneous water heater from the mains (e.g. via deactivating the fuses).
2. Unscrew the jet regulator on the outlet fitting and open the cold water tap valve to rinse out the water pipe
and avoid contaminating the appliance or the jet regulator.
3. Open and close the hot water tap until no more air emerges from the pipe and all air has been eliminated
from the water heater.
4. Only then should you re-connect the power supply again (e.g. via activating the fuses) to the instantaneous
water heater and screw the jet regulator back in.
5. The appliance activates the heater after approx.10 seconds of continuous water flow.
Cleaning and maintenance
- Plastic surfaces and fittings should only be wiped with a damp cloth. Do not use abrasive or chlorine-
based cleaning agents or solvents.
- For a good water supply, the outlet fittings (special tap aerators and shower heads) should be unscrewed
and cleaned at regular intervals. Every three years, the electrical and plumbing components should be
inspected by an authorised professional in order to ensure proper functioning and operational safety at all times.

目錄
P.19
13. Troubleshooting
P.18
The instantaneous water heater was manufactured conscientiously
and checked several times before delivery. Should malfunctions
nevertheless occur, it is usually only due to a bagatelle. First
attempt to switch the house fuses off and on again in order
to reset the electronics. Next, try to remedy the problem with
reference to the following table. In doing so, you will avoid
unnecessary expense of customer service assistance.
Problem Cause Solution
Water stays cold Master fuse
tripped
Renew or aktivate
fuse
Flow rate of hot water
too weak
Outlet tting dirty
or calcied
Clean shower head,
jet regulator or sieves
Fine lter dirty or
calcied
Clean ne lter
Selected temperature
is not reached
Excessive water
ow (winter?)
Reduce water ow
rate at the outlet
Selected temperature
is perceived to be too
cold
Set temperature
too low
Increase set
temperature by a
specialist
Selected temperature
is perceived to be
too hot
Set temperature
too high
Decrease set
temperature by a
specialist
Repairs must only be carried out
by authorised professionals.
If a fault in your appliance cannot
be rectied with the aid of this
table, please contact the Central
Customer Service Department at
GERMAN POOL. Please have the
details of the typeplate at hand.
Hong Kong Sole Agent
German Pool Customer Service
Room 2-4, Upper G/F,
Newport Centre,
116 Ma Tau Kok Road, Tokwawan,
Kowloon, Hong Kong
Tel: [phone]
Fax: [phone]
Email: [email protected]
20
21
22
23
23
23
24
25
26
26
27
27
28
28
28
29
30
31
31
32
32
33
33
34
34
1.概觀圖
2.安全守則
3.規格
4.尺寸
5.安裝
安裝地點
裝掛配件
安裝牆上掛碼
安裝接駁配件
安裝熱水器
6.直接接駁
線路圖
7.電線接駁
結構要求
電量調校繼電器
底部標準電線接駁
上面部份電線接駁
8.初步操作
出廠預設出水溫度的修改
9.保養
清洗及更換沙隔
直接接駁時清潔並更換濾網
10.環保及再造
11.使用指示
12.檢查要點

2.安全守則
P.21
1.概觀圖
P.20
訂購個別零件時，請註明熱水器型號及機身編號。
掛接背板
DBX 外殼
止回閥
流量感應器
恒溫感應組件
加熱元件附安全
限壓斷電裝置
恒溫感應組件
感溫斷電
安全裝置
出水管
熱水接駁
底部
連接喉
PCB 面蓋
PCB
控制面板支架
接線端子
入水管
過濾網
限流器
框架
旋入杬牙 電線封套 濺水保護套
冷水接駁
安裝及使用本熱水器前請細閱本說明書。妥為保存本說明書。
由合格技師負責安裝、初始操作及保養，以確保符合有關安全標準及安裝條例。本公司對未遵照此規定
而引致之損失或問題概不負責
本說明書最新版本請查閱www.germanpool.com。
- 熱水器尚未完全穩妥安裝或被確定一切操作正常之前，請勿使用熱水器。
- 任何情況下，在關掉電源前，不能打開面蓋。
- 切勿對本熱水器(包括熱水器機體、電線或水管)作出任何技術性改動。
- 本熱水器必須時刻接地。
- 請注意溫度高於43℃的水會被界定為熱水(對於小童尤甚)，並可引致燙傷。熱水器經使用一段時間
後，水喉配件可能會很熱。
- 本熱水器只適宜用於室內不結霜的環境作家居用途，並只適宜將自來水加熱。
- 切勿將本熱水器暴露於結霜的環境中。
- 必須注意銘牌上所標籤之數值。
- 凡在有適當監督下，或已事前獲悉熱水器使用安全說明，並瞭解相關危害的前提下，8歲以上兒童及
身體、感官或心理障礙者或經驗及知識不足者，亦可使用本熱水器。禁止兒童隨意操作本熱水器。
禁止兒童在未經適當監督的情況下進行清潔與使用者維修保養工作。

4.尺寸
P.23
3.規格
P.22
DBX 18 .. 27 BASITRONIC®
型號
DBX 18 DBX 21 DBX 24 DBX 27
A #)能源標簽
18 kW (26 A) 21 kW (30 A) 24 kW (35 A) 27 kW (39 A) 接駁電源
3~ / PE 380..415 V AC 3~ / PE
400 V AC 最低電線尺寸要求
4.0 mm24.0 mm26.0 mm2 2) 6.0 mm2Min. required cable size 1)
9.2
6.8
10.7
7.9
12.3
9.0
13.8
10.2
熱水量 (升/分)3)
max. at ∆t = 28 K
max. at ∆t = 38 K
0.4 l 額定容量
Pressure type 1.0 MPa (10 bar) 額定壓力
Bare wire heating system IES®加熱系統
≥ 1100 Ωcm
≤ 90 mS/m
要求來水電阻 @ 15 °C
導電性能
≤ 30 °C 入水水溫
2.5 – 7.0 l/
min
2.5 – 8.0 l/
min
2.5 – 8.0 l/
min
2.5 – 9.0 l/
min 要求最低流量至最高流量 4)
0.2 bar at 2.5 l/min 1.3 bar at 9.0 l/min 5) 壓力損失
30 °C – 60 °C 溫度選擇
G ½“ 水管接駁
3.65 kg 重量（注水後）
IVDE安全保護級別
PA-IX 6762/I 嘈音測試憑證
安全認證
#)符合歐盟法規No.812/2013的要求。有關歐盟法規於2015年9月起生效。
1)最大電線尺寸10平方毫米。
2)更換21千瓦/380V設備時可以選用4平方毫米的電線。
3)混合水。
4)限流目的為達到最佳溫度上升效果。
5)不設限流器。
- 產品規格及設計如有變更，恕不另行通知。
- 中英文版本如有出入，一概以英文版為准。
- 本產品使用說明書以 www.germanpool.com 網上版為最新版本。
5.安裝
尺寸：（毫米）
安裝時必需遵守下列指示：
- 當地有關之電線安裝條例、安全標準、電力供應商或水務署
之安全條例。
- 銘牌上的產品規格。
- 必須使用完好和適當的工具。
安裝地點
- 必須安裝於全年都不結霜之房間內。
- 此熱水器只可作掛牆式安裝，出入水接駁喉位向下。
- 根據VDE0100 part701，熱水器的防護等級為IP25，熱水器
必須安裝於保護區1內。
- 為避免失溫，應將熱水器安裝於最接近出水位置。
- 為方便保養工作，應在供水喉位置裝上閘掣。熱水器必須處
於易於接近的地方。
- 如選用膠喉，該膠喉必須符合DIN16893 Series 2規格。熱水
喉必須有保溫保護。
- 來水於15℃時，水電阻最少應為1,100Ωcm。有關詳情可向
水務署查詢。
231
231
170
363
466
56
100
97

5.安裝 5.安裝
P.24 P.25
裝掛配件
若所選熱水器安裝地點難以安裝，可選配下列裝
掛配件：
裝掛套裝 RDX
(序號：34100)
在下列情況下，此裝掛套裝可以用來安裝熱水器。
當安裝牆壁表面不平均，而電源線出線位又正在這
表面之上，令熱水器難以安裝。電源線需從其他表
面拉到已選安裝位置才能被連接到熱水器的背面。
擴展套件 VDX
(序號：34120) - 必須選用RDX
下列情況下，此擴展套件可以用來安裝熱水器。當
水管冷熱水位倒置、水管出牆位置需要改動來迎合
熱水器的安裝位置時。電源線從熱水器的下方出牆
或電線可作表面安裝。
擴展套件 UDX
(序號：34110) - 必須選用RDX
下列情況下，此擴展套件可以用來安裝熱水器。當
水管在熱水器之上方終結時。電源線從熱水器的下
方出牆或電線可作表面安裝。
RDX
VDX
UDX
安裝牆上掛碼
安裝前先徹底清洗供水喉管。
1.用12毫米六角匙將杬牙旋入牆上接駁位置，旋妥杬牙後，
杬牙應外露12毫米。
2.將附上的範本放在牆上適當位置以配合冷熱水位置。根據
範本位置記下鑽孔位置，用6毫米鑽咀鑽孔，放入合縫釘
旋入掛碼。
3.可用附上的水平板碼調校達30毫米之牆面不平或傾斜情
況。水平板碼應裝在牆壁與掛碼之間。
注意
如果此即熱式熱水器用以更換傳統形式即熱式熱水器，
一般無需於牆上掛碼上鑽孔。在此情況下，無需理會步
驟2。

6.直接接駁
P.27
5.安裝
P.26
安裝接駁配件
1.如圖所示將緊固螺母1/2”密封圈與冷水進水配件
連接。
2.如圖所示將緊固螺母1/2”密封圈與熱水出水配件
連接。
1.旋鬆螺絲，打開面蓋。當更換熱水器時，電源線可
從熱水器上半部接駁，在此情況下，參考「上面部
份電線接駁」。
2.將熱水器掛在掛接背板上，如有需要可略為彎曲螺
紋棒。注意，彎曲螺紋棒後旋上進出水配件時應無
需使用蠻力。
3.將兩個3/8”緊固螺母及3/8”密封圈旋入進出入
連接配件內。
4.將膠螺母旋入牆上掛碼螺紋棒上。
5.打開冷水供水喉，慢慢旋開閘掣(a)(位置：開），
查看有否滲漏。
6.接著連續打開及關閉熱水龍頭閥數次將熱水器內
的空氣排出。
關
開
注意
旋緊螺母時應小心避免損壞閥或喉管。
(a)
直接接駁
直接接駁時把兩個1/2”杬牙及1/2”密封圈旋入冷熱
水接駁件的1/2”緊固螺母內。取出冷熱水接駁件的
1/2”密封帽，然後旋入杬牙的開放一端。將冷水及
熱水的接連配件旋入熱水器機身及送水管的3/8”緊
固螺母及3/8”密封圈。
直接接駁安裝時，應利用附上的水平板，儘量垂直緊
貼牆身安裝，可同時利用接駁喉管下半部的固定孔固
定位置。
喉管的喇叭接頭必需連1/2”緊固螺母及1/2”密封圈
旋入冷熱喉的1/2”接連配件。並在機身外殼底部開
孔讓冷熱水喉穿過。
直接接駁時請注意：將沙隔置於冷水入水接駁位!
注意
旋緊螺母時應小心避免損壞閥或喉管。
6. Direct connection

7.電線接駁 7.電線接駁
P.28 P.29
線路圖
1.電子線路
2.發熱元件
3.安全限壓斷電裝置
4.端子板
5.感溫斷電安全裝置
必須由合格技師負責!
請注意：
- 必須按現行之IEC標準、當地的電線安全標準及法規、及根據任何當地電力供應商之標準或法規安裝。
- 參照銘牌上註明的技術規格。
- 熱水器必須接駁地線！
結構要求
- 熱水器必須穩固永久接駁安裝。熱水器必須接駁地線！
- 電線不應損壞，安裝後電線不應可以直接觸摸得到。
- 電源開關應為全極式開關（經保險絲），兩極之間應保持最少3毫米距離。
- 應安裝保險絲。
電量調校繼電器
如進一步接駁其他三相電器，可將電量調校繼電器接駁至導電器L2。
為避免電量調校繼電器於低功耗（低溫設定或低水流）時抖動，可以啟動以下模式：
- 斷開熱水器電源(例如關掉保險絲)。
- 過線接通電源。(見圖)
- 再次運行熱水器。
底部標準電線接駁
接駁電線前，請必先確定電源已關上。
1.從牆上插座位上拆除約6厘米電線，套入濺水保護
套，使保護套與牆身齊平，確保如有漏水也不會沾
濕電線。
2.打開控制板。
3.按本頁頂部的線路圖剝去電線外皮並將其接到接線
端子上。此熱水器必須連接地線。
4.將電線的保護套拉上並套入中間層板的凹位，再蓋
上中間層板的面板，再用螺絲將電路板蓋面鎖緊。
5.用螺絲將熱水器面蓋鎖緊。
注意
如有需要，可將接駁線插移至熱水器上半部，如
需這樣做，請參照下一部份指示。
4
5
3
2 1

8.初步操作
P.31
7.電線接駁
P.30
上面部份電線接駁
接駁電線前，請必先確定電源已關上。
1.用工具(例如螺絲批)按壓預先預備的開孔位置(S)。
2.介開電線位密封膠蓋，介開的面積應略為少於電線
的面積以確保最佳的防水性能。將密封膠蓋套入入
線孔。
3.從牆身電線出線位預留約6厘米電線，將電線經密
封膠蓋穿入熱水器內。
4.將熱水器掛在背碼上，背碼有螺紋的支柱應套入熱
水器的孔內。
5.旋鬆電線接駁線插的螺絲，將線插移往上部位置，
再接駁線插。
6.按照線路圖接駁電線，此熱水器必須接駁地線。
7.裝回及固定外殼，然後裝回面板。
接駁電源前，先將水注入熱水器內，然後開關
熱水器龍頭數次，以將熱水器內的空氣排出。
每次維修或水喉工程後，必須將熱水器內的空
氣排出，然後再啟動熱水器。
1.開啟熱水器電源。
2.開啟熱水龍頭。測試熱水器性能。
3.將使用說明書交給客戶，並向客戶解釋熱水
器怎樣操作。
4.初步操作妥當後，請填妥及寄回保用証。
出廠預設出水溫度的修改
出廠時熱水出水溫度預設為50℃。
此出廠設置可以通過使用開蓋螺絲批子（寬度
大約為2毫米）旋轉調壓器來修改，其範圍大
約為 30℃到 60℃。
順時針旋轉可以降低熱水出水溫度，而逆時針
旋轉則可升高熱水出水溫度。

9. 保養 9. 保養
P.32 P.33
關
開
沙隔
清洗及更換沙隔
熱水器的冷水入水接駁位配備有綜合式的閘制及沙
隔，沙隔藏有污垢會減低熱水出水量，必須定時清
理或更換。步驟如下：
1. 先關掉電源(例如關掉保險表士)以防止電源意
外接通。
2. 打開熱水器蓋掩。先把蓋掩取下，旋出蓋掩下面
的螺絲，然後卸下面蓋。
3. 關掉冷水入水喉內的閘制(a)（狀態：「關」）。
4. 從冷水喉旋出螺絲塞子(b)，然後取出沙隔(c)。
5. 沙隔可以清洗或更換。
6. 放回沙隔後，旋緊螺絲塞子。
7. 慢慢打開閘制（狀態：「開」）。
8. 開關熱水龍頭數次將熱水器內的空氣排出。
9. 裝回面蓋，再接通電源(例如打開保險表士)。
(a)
(c)(b)
直接接駁時清潔並更換沙隔
熱水器的冷水入水接駁位配備有綜合式的閘制及沙隔，
沙隔藏有污垢會減低熱水出水量，必須定時清理或更
換。步驟如下：
1.先關掉電源(例如關掉保險表士)以防止電源意外接
通。
2.關掉向熱水器輸水的冷水喉閘制。
3.打開熱水器蓋掩。先把蓋掩取下，旋出蓋掩下面的
螺絲，然後卸下
面 蓋。
4.從冷水喉旋出螺絲塞子，然後取出沙隔。
5.沙隔可以清洗或更換。
6.放回沙隔後，重新把冷水入水管連接到連接件上。
7.慢慢打開閘制。
8.開關熱水龍頭數次將熱水器內的空氣排出。
9.裝回面蓋，再接通電源(例如打開保險表士)。
德國寶注重環保，選用包裝物料方面亦以環保為原則。請妥善
處理廢棄物以改善環境。
包裝物料對保護熱水器免於運送途中受損致為重要。選用的物
料為環保可循環再用的紙盒，膠袋亦為可循環再用的PE塑料。
塑設備的塑膠元件均標有材料代碼，以便在使用壽命結束時予
以回收。如處理得當，這些有用材料可100%循環再用。
電器產品應在其使用壽命完結後與生活垃圾分開處理。請把這
件產品棄置到電子廢料回收點。
10. 環保及再造

11. 使用指示
P.34
12.檢查要點
保養工作後的排氣程序
熱水器備有自動氣泡保護功能以防止非故意乾燒情況。
但每次熱水器因水喉工程或維修而需排出儲水，必需將熱
水器內空氣排出，然後再使用。
1. 關掉電源總掣。
2. 開啟冷水龍頭清洗水喉以免污染熱水器及水喉配件。
3. 開啟再關閉熱水掣，直至管內不再排出空氣，使熱水
器內空氣完全排出。
4. 然後再接駁電源。
5. 十秒的不停水流將啟動熱水器。
清潔與保養
- 塑料表面及配件只可用濕布擦拭。請勿使用腐蝕性或含
氯元素之清潔劑或溶劑。
- 為確保良好供水，應定期擰開並清洗出水口配件（特別
水龍頭及花灑噴頭）。每隔三年，電氣和管道組件應由
授權專業人士檢查，以確保正常運作。
本熱水器出廠前經多次反覆測試,如有故障,一般由小問題引致。
首先可嘗試重新開關電源重設電子設定。其次可參考以下列表措
施解決問題,這樣可節省不必要的維修費用。
故障 原因 措施
出水為冷水 總電源保險絲跳制 更新或啟動保險絲
熱水流量太弱
過濾網骯髒或釫化 清洗過濾網
出水配件骯髒或
釫化
清洗花灑頭沙隔等
配件
不能達致所選溫度 出水流量太大 (冬
天？) 減低出水流量
所選溫度感覺太冷 預設溫度太低 請專業人士調高溫度
所選溫度感覺太熱 預設溫度太高 請專業人士調低溫度
必需由合格技師維修。
如參考列表未能處理有關問題，
請聯絡德國寶客戶服務部。
香港總代理
德國寶(香港)有限公司
香港九龍土瓜灣馬頭角道116號
新寶工商中心高層地下2-4室
服務部電話: 2333 6249
傳真: 2365 6009
營業部電話: 2333 6245
傳真: 2765 8215
電郵: [email protected]
DBX
德國寶(香港)有限公司
香港 香港 Hong Kong
九龍灣啟興道1-3號
九龍貨倉10樓
[phone]
電話：
[phone]
傳真：
地址：
[email protected]
German Pool (Hong Kong) Limited
10/F, Kowloon Godown
1-3 Kai Hing Road, Kowloon Bay,
Kowloon, Hong Kong
Tel
: [phone]
Fax : [phone]
Email
Address :
: [email protected]
客戶服務部 客戶服務部 Customer Service Centre
電郵：
德國寶(香港)有限公司
九龍灣啟興道1-3號
九龍貨倉10樓
[phone]
電話：
[phone]
傳真：
地址：
[email protected]
電郵：
澳門 澳門 Macau
澳門俾利喇街145號
寶豐工業大廈3樓
[phone]
電話：
[phone]
傳真：
地址： 3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira,
Macau
Tel
: [phone]
Fax : [phone]
Address :
澳門俾利喇街145號
寶豐工業大廈3樓
[phone]
電話：
[phone]
傳真：
地址：
中國 中國 China
[phone]
全國服務熱線：
[phone]
傳真：
[email protected]
電郵：
[phone]
全國服務熱線：
[phone]
傳真：
[email protected]
電郵：
[phone]
China Customer Service Hotline
Under normal operations, the product will receive
a 1-year full warrently provided by German Pool
(effective starting from the date of purchase).
：
: [phone]
: [email protected]
Fax
Email

© 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。
© All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted.
德國寶(香港)有限公司 德國寶(香港)有限公司
German Pool (Hong Kong) Limited
Room 113.Newport Centre PhaseII. 116 Ma Tau
Kok Road. Tokwawan. Kowloon. Hong Kong.
電話
傳真
電話
傳真
3/F, Takshun Plaza, Nanguo East Road,
Shunde, Foshan, Guangdong
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira, Macau
電話
傳真
電話 Tel: [phone]
傳真 Fax:[phone]
電話 Tel:[phone]
傳真 Fax:[phone]
電話 Tel:[phone]
傳真 Fax:[phone]
香港九龍土瓜灣馬頭角道116號
新寶工商中心2期113號室
廣東省佛山市順德區
大良南國東路德順廣場三層
澳門俾利喇街145號
寶豐工業大廈3樓
香港
Hong Kong
香港九龍土瓜灣馬頭角道116號
新寶工商中心2期113號室
中國
China
廣東省佛山市順德區
大良南國東路德順廣場三層
澳門
香港 中國 澳門
澳門俾利喇街145號
寶豐工業大廈3樓
Macau
HONG KONG TOP BRAND TEN YEAR
ACHIEVEMENT AWARD
WH-DBX-M-16(3)
Subject to errors, technical & design changes.如有錯誤、技術規格或設計更改，恕不另行通知。9120-34523
