German pool GPU-6SSM User manual

Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
Rapid Fast Flow Electric Water Heater GPU-6SSM
USER MANUAL
Online Warranty Registration

P.2
Please register your warranty information now !
For Warranty Terms & Conditions,
please refer to the last page of this user manual.
請即進行保用登記！
有關保用條款細則，請看說明書最後一頁。

P.3
目錄 Table of Contents
警告及注意事項 Satefy Instructions 04
產品特點 Features 05
安裝說明 Installation Instructions 06
使用說明 Operating Instructions 10

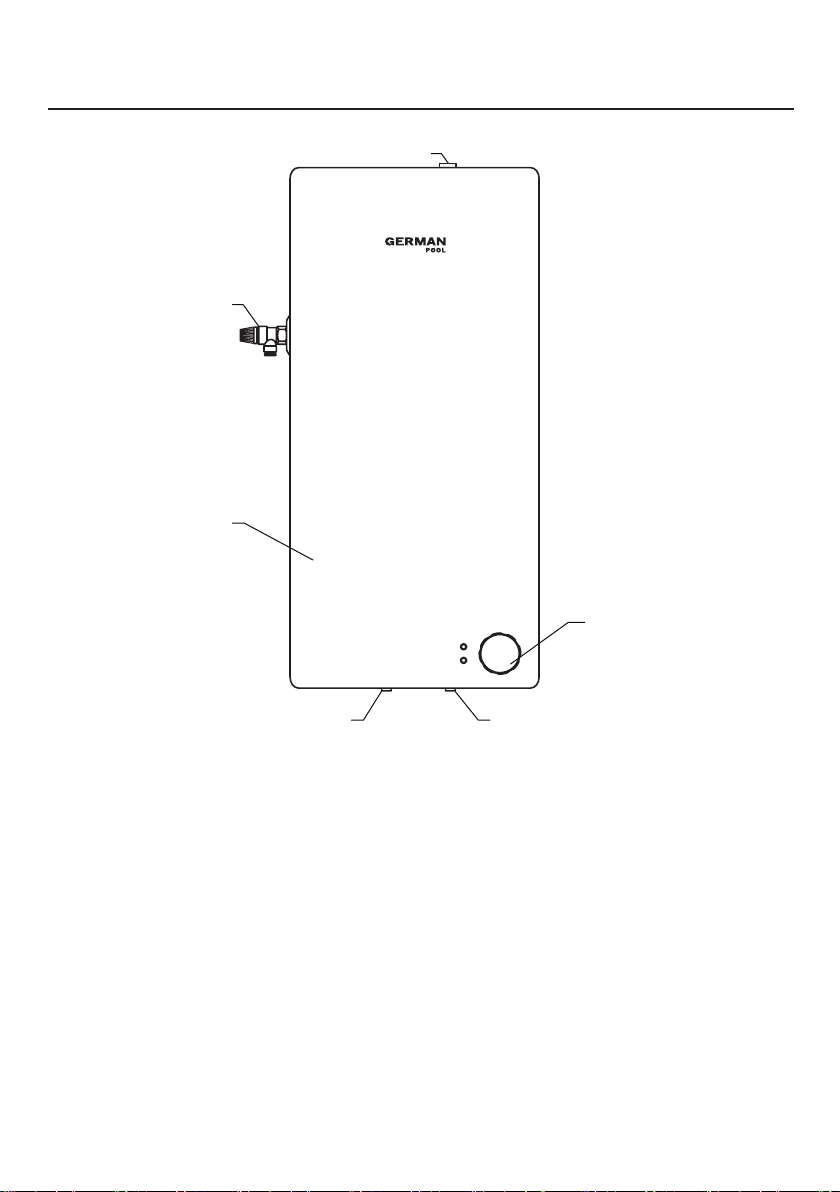

產品結構 Product Structure 11
安裝圖 Installation Diagram 12
電路圖 Wiring Diagram 13
產品規格 Specications 14
保用條款 Warranty Terms & Conditions 15

P.4
警告及注意事項 Satefy Instructions
警告
1.必須嚴密看管兒童，防止他們接觸及把玩
熱水器，以免燙傷、觸電或受傷。
2.本產品不適用於缺少了身體、感覺或精神
能力，或缺乏經驗和知識的人（包括兒
童）使用，除非他們在一個了解本產品使
用的人監督指導下使用，並對他們的安全
負責任。
3.若設置溫度超過50°C，會有燙傷危險，所
以必須混合冷水後才使用。
4.電源進線段應加裝漏電保護裝置，漏電保
護裝置的額定動作電流應不大於30mA。
警告
1.熱水器在安裝時必須裝配超溫及超壓感應
排放閥（PTV），當內膽水溫升至90°C或
水壓達至1000kPa，熱水會從PTV的排水
管中流出。
2.壓力釋放裝置（PTV）要定期運作測試（建
議每3個月一次），以去掉碳酸鈣沉積及
防止阻塞情況發生。
3.與壓力釋放裝置連接的排放管要以一種連
續向下的方式安裝在無霜的環境中，應保
持向下傾斜安裝，排水管出口要保持和大
氣相通，並保證排出的熱水不會危及人身
安全或造成財產損壞。
Warning
1. Do not allow children to touch or play with the
water heater. Supervision is required during
use, in order to prevent the danger of a scald,
electrical shock or any other injuries.
2. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
3.Ifthetemperatureissetabove50˚C,coldwater
must be mixed in to prevent the danger of a scald.
4. An electric-leakage protection device must be
installed to the power inlet. The electric current
of this protection device should be below 30mA.
Warning
1. The water heater must be installed together
with a Pressure and Temperature Relief Valve
(PTV), so that when the water temperature
insidethetankrisesto90°Corwhenwater
pressure reaches 1000kPa, hot water will be
released through the drain pipe of the PTV.
2. The PTV device must be tested and operated
regularly (suggested once every 3 months) to
remove calcium carbonate deposits and to
ensure that it is not blocked.
3. The PTV drain pipe must be installed continuously
downwards at an angle and the surroundings
must not be frosted. The drain pipe must be
left open to the atmosphere, and to ensure the
hot water drips from the PTV will not endanger
personal safety or cause property damage.
!
!
!
!
警告

若用戶需要安裝任何非隨機配件，必須先與
本公司認可之技術人員聯絡，否則本公司將
有權拒絕提供任何保養服務。
Warning
Please install water heater in accordance to the
instructions stated on this booklet. German Pool
will NOT provide warranty service on any product
installed with unauthorized components or
devices.

P.5
警告及注意事項 Satefy Instructions
德國寶速熱式電熱水器，GPU-6SSM(中央型)，
採用先進科技及根據國際標準(IEC)生產而
成，可接駁多個出水位使用；符合世界所有
國家有關之安全標準及水務條例，除設有地
線防漏電外，更配備「五重保險裝置」，確
保安全:
•自動恆溫設備 •超溫斷路設備
•超溫感應排放閥 •超壓感應排放閥
•防倒流裝置
產品特點 Features
GPU-6SSM(CentralType)isdesignedformulti-point
application.ConformtotheStandardsofInternational
Electro-technicalCommission(IEC)andcomplywith
international safety standards and waterworks regulations.
GPU-6SSM is built-in with “5-Tier Safety Device” for absolute
safety:
•AutomaticThermostaticControl
•ThermalCutout
• Temperature Relief Valve
• Pressure Relief Valve
• Anti-Back Syphon Device
* 正常情況下，如供水系統之來水水壓超過0.6 MPa，用戶必須額外加裝減壓器將水壓調低。
如來水壓力超過0.6 MPa 而用戶未有安裝減壓器，本公司有權拒絕為熱水器進行任何維修。
* Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary.
When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure control device is installed.
不銹鋼內膽
Stainless Steel
Inner Tank
採用長期耐高溫及受高壓容器專用之日本特殊不銹鋼製造，內膽結構堅
固，保證防銹、耐壓及不受水質侵蝕。
ConstructedofJapaneseheavygaugestainlesssteel,speciallymadeforhigh
temperature and pressure applications. It is durable and free of rust, corrosion,
deformity and hassle.
保溫
Thermal Insulation
採用一體成型美耐棉保持溫度，失溫程度達至最低，保持熱水溫度。
Maximum thermal insulation is achieved by high-density melamine foam
between the inner tank and outside casing.
發熱管
Heating Element
原廠優質不銹鋼發熱管，備有獨立不同功率，符合各種不同之熱水要求。
Prime quality stainless steel heating element ensures maximum thermal
efciencyeveninplaceswheredifferentpowerrating/wattageapplices.
來水要求
Water Supply Source
直接自來水供應或水箱供應均可。
Main supply or water tank supply.
額定壓力
Rated Pressure 1.0 MPa
最大來水壓力
Max. Inlet Water Pressure 0.6 MPa
超溫/超壓感應排放閥
Pressure & Temperature
Relief Valve
水溫達90℃或 水壓至1MPa時，超溫/超壓感應排放閥門會自動打開。
Whenwatertemperaturereaches90°C,orwaterpressurereaches1MPa,
water will be released through the Temperature Relief Valve.
溫度調節/超溫斷路器
CombinedThermostat/
Cutout
溫度調節/超溫斷路器自動恆溫，保持水溫在預調溫度，節省能源，超
溫自動斷路確保安全，並配合個人使用熱水的習慣。
CombinedThermostat/Cut-Outprovidesautomatictemperaturecontrolat
preset temperature to accommodate individual bathing habits and save
energy; built-in thermal cut-out ensures safety.
防水等級
Water Resistance IPX4
符合規格
Conformity
機電工程署電氣產品（安全）條例。
Electrical Product (Safety) Regulation, Hong Kong.
認證標準
Certications
IEC60335-2-21:2012
IEC60335-1:2013

P.6
安裝說明 Installation Instructions
Positioning
Positionwaterheaternearwatertap/pointof
use in order to minimize heat loss. For wall-mount
style, appropriate anchor screws must be used
and wall should be strong enough to withstand the
weight of water heater. Keep a minimal distance
between wall and water heater. you can also use
the mounting bracket for positioning.
安裝定位
熱水器應盡量安裝於接近出水龍頭之位置，以
減省熱量損耗。
掛牆型號須以膨脹螺絲安裝於能負重之牆壁位
置上，並調整至緊貼牆壁為佳，你也可以使用
外碼將熱水器固定。
安裝前注意

安裝必須使用原廠配件。若不按指示方法安
裝及使用而引致任何損壞，本公司概不負責。
安裝工作應由專業持牌水電技術人員負責。
Pre-Installation Notice
Installation should be done by a licensed
technician using the supplied parts. German Pool
is not responsible for any defect or damage
caused by incorrect or unauthorized installation.
接電方法
由電箱獨立伸延一條適合之電線（見下表）至浴
室門外接駁獨立開關掣，再將電線伸延至熱水器
穿進灰色線夾接到電線排上分別接上零線（N），
火線（L），及地線( )等。
本熱水器必須永久可靠地連接地線。
Electric Wiring
Use an independent wire (refer to table below)
leading from the meter box and connect it to an
independenton/offswitchoutsidebathroom.
Extend the wire through the grey wire grip on the
water heater. Dismount the bottom plate and wire
up Neutral (N), Life (L) and Earth ( ) terminals.
This water heater must be earthed at
all time.
發熱線功率 (千瓦)
Heating Element Rating (kW)
所需電源(安培)
ElectricCurrent(A)
電源線最低要求(平方毫米)
Wiring (mm²)
3kW 15 A (單相1PE) 2.5 mm²
2kW 10 A (單相1PE) 2.5 mm²
電源開關
設於熱水器外用以切斷電源供應之開關掣，應全
極切斷電源，兩極之間應保持最少3mm距離。於
浴室內安裝本電熱水器時必須遵照IEE之有關電
線安裝條例規格接駁。電源開關應採用有顯示燈
類型，當用戶需要作任何內膽清洗或維修，必先
切斷電源。
測試使用
水喉與電源接駁妥當及內膽注滿水後，便可進行
通電。此時指示燈會亮著，用戶便可將自動恒溫
旋鈕調校至最高度數。當溫度達到75°C時，恒
溫器即會自動停止加熱。選擇適當溫度後不應以
恒溫旋鈕當作開關掣使用，因此舉會縮減該配件
之使用壽命。
Power Switch
The external switch is used to completely
disconnect water heater from power supply.
It should disconnect all poles, and a contact
separation of at least 3 mm must be present. IEE
wiring regulations should be observed when the
water heater is installed in the bathroom.
Testing
When the piping and wiring are connected and
innertankhasbeenlledwithwater,switchonthe
power. The indicator on the water heater will be lit.
Turn control knob to the desired temperature (Max.
temperatureis75°C).Donotusethecontrolknob
asanon/offswitch.

P.7
安裝說明 Installation Instructions
Positioning
Positionwaterheaternearwatertap/pointofuse
in order to minimize heat loss. For wall-mount style,
appropriate anchor screws must be used and wall
should be strong enough to withstand the weight
of water heater. Keep a minimal distance between
wall and water heater.
掛牆定位
先將熱水器背板以膨脹螺絲安裝於承重的牆壁
上，然後將熱水器背部凹孔扣在背板上，並調
整至緊貼牆壁及保持垂直為佳。花灑頭插座以
膨脹螺絲安裝於適當位置上。
Connecting PTV and Inlet/Outlet Pipes
A Pressure & Temperature Relief Valve (PTV) is
supplied with each GPU water heater. Water will be
released through the PTV when water temperature
reaches90˚Corwhenwaterpressurereaches
1000 kPa in the inner tank. (It is normal that small
amount of water may drip out.)
PTV and water inlet & outlet must be installed
according to the following instructions:
1. Fit PTV to the marked position (normally it is
located on the upper side of the water heater
and is labeled “PTV”).
2. When connecting the pipe,the PTV must point
downward.The outlet of the discharge pipe
connecting the PTV must be positioned
approximately 25-50mm away from the ground,
so that it is easily observable when hot water is
being drained to ensure safety.
3. Connecttheinletpipe(blue)withwatersupply.
Then connect the outlet pipes (red) with supply
pipe leading to points of use. The diameter of
 pipingshouldbe1/2”BSP.
4. Turn on the hot water tap. Turn on water supply
 switchuntiltheinnertankhasbeenlledup
 withwater.Theinnertankhasbeenlledup
 whenwaterowsfromthewatertap.
排放閥及水喉接駁
每部GPU熱水器均附上超溫及超壓感應排放閥
(簡稱PTV)一枚，當內膽水溫升至90℃或水壓
達至1000kPa時，熱水會經PTV排出。(如有
少量水滴出，乃正常現象。)
PTV及出入水喉必須按照以下指示安裝︰
1. 取出PTV，安裝於指定位置(通常設在熱水器
  上半部側面，並貼有PTV標示)。
2.連接水管時，PTV必須向下垂。PTV接出之
 排水喉需離地約25mm至50mm，以便排出
熱水時容易察覺，確保安全。
3. 將自來水喉接駁到入水喉(藍色)，再由出水
  喉(紅色)接駁水喉通往各個出水龍頭。水喉
  管件直徑應為½”英吋。
4. 接駁妥當後，打開出水龍頭(紅色熱水掣)，
  然後打開水源總掣讓自來水注入熱水器內。
  當水從龍頭流出，表示內膽滿溢，此時可關
  掉紅色熱水掣。

P.8
安裝說明 Installation Instructions
!!
重要注意事項 WARNING!
!!
安裝注意事項 INSTALLATION REQUIREMENT
儲水式電熱水器安裝並進行通水通
電測試後，如果不是繼續使用，而
是先擱置一段時間後再使用，測試
完畢必需進行以下程序：
1.將電熱水器斷電斷水；
2.將電熱水器內測試的水排清；
3.當存放後需要正常使用前，必需將電熱水器
 注滿水並確定滿水後，才可以通電加熱，進
 入正常使用。
After initial installation and water
and electricity testings, if the storage
water heater will not be put to use
immediately, after testing is completed,
make sure to follow these instructions:
ATTENTION: When installing the
water heater, must leave ample space
for future maintenance and repair.
The minimum requirements are:
1. at least 100 mm space from the ceiling
2. at least 200 mm on either side of the wall
3. at least 300 mm underneath the heater
注意：安裝熱水器時必須預留足夠空間
作日後保養和維修之用。
最少預留空間：
1.距離天花最少100毫米
2.距離兩邊牆壁最少200毫米
3.爐底預留最少300毫米
! 特別注意 ! ATTENTION
1. Disconnect water and power source to the
water heater;
2.Completelydraintheresidualwaterinthe 
water heater;
3.Whenthewaterheaterisnallyputto 
 normaluse,userMUSTrstcompletelyll
up the water heater with water BEFORE
reconnecting the power source and
commencing heating.
注意：
對於水源是地下水以及（有可能海水倒灌的）河水地區的使用者，必需嚴格遵照上列程序，
以確保熱水器正常運作。
NOTE:
If water source is from underground water or near river area where seawater intrusion is
possible,userMUSTCOMPLYwithalloftheabovestepstoensureproperfunctionofwater
heater.

P.9
注：發熱管3kW
NOTE: Heating element 3kW
預留維修位置
Min. space for maintenance
≥100
≥300
≥200≥200
安裝說明 Installation Instructions

P.10
使用說明 Operating Instructions
超溫及超壓排放閥(PTV)
 -接駁PTV之排水喉出口必須向下垂，並保
  持開放與大氣接觸，且須確保周圍環境不
  會結霜。
Pressure & Temperature Relief Valve (PTV)
-The discharge pipe connecting to the PTV must
be pointing downward and be left open to the
atmosphere in a frost-free environment.
-Turn the lift handle or rotational cup of the PTV
regularly in order to prevent deposits in water
causing blockage to the easing gear.
-When water is discharged through PTV pipe,
shut off power and water supply immediately.
ThencontactourCustomerServiceCentre
for repair. (It is normal that small amount of
water may drip out.)
Under normal working conditions, incoming
pressure should not exceed 0.6 MPa. Otherwise, a
separate pressure control device is necessary. (It is
normal that small amount of water may drip from
PTV after installation of pressure limiting valve.)
 -超溫及超壓排放閥(PTV)之手動掣須定時
  撥動，以防止被水中之沉澱及礦物積聚而
  阻塞。
 -如發覺水從PTV之排水喉排出，請立即關
  掉電源及水源供應，然後致電本公司維修
  (如有少量水滴出，乃正常現象。)
正常情況下，如供水系統之來水水壓超過
0.6MPa，用戶必須額外加裝減壓器將水壓調
低。(加減壓掣後，溫度及壓力排放閥會有少
量水滴出，乃正常現象。)
注意
如來水壓力超過0.6 MPa而用戶未有安裝減壓
器，本公司有權拒絕為熱水器進行任何維修。
Note
When incoming water pressure exceeds 0.6 MPa,
German Pool will not provide any repair service
until a pressure control device is installed.
內膽排水
如要將內膽內的水排走，必須先關掉電源及水
源，待剩餘之熱水冷卻後，旋開排水喉之喉蓋
讓水排出。
水質問題
若來水水源為河水、井水、地下水或礦物質含
量較高，用戶必需經常定期清洗發熱線以確保
發熱線正常運作及發揮最佳製熱效能。
停水期間
停水時不應將熱水器內之存水用盡，否則會導
致發熱線損壞。恢復供水後，應先扭開熱水掣
直至有水從花灑或龍頭流出。待內膽注滿水
後，用戶便可重新開啟電源。
Draining
Todrainoutwaterfromtheinnertank,rstswitch
off both power and water supply. Let hot water
inside the inner tank cool down. Then unscrew the
drain pipe nut to release water.
Source of Water Supply
If the water source is a river, a well, underground
water or has relatively high mineral content, user
must clean the heating element regularly to ensure
itwilloperateatoptimumthermalefciency.
Water Shortage
During water shortage, do not drain water from in-
ner tank. The heating element would be damaged if
it is not submerged under water. When water supply
resumes,turnonhotwatertapandletwaterows
through the shower head before switching on the
power.

P.11
產品結構 Product Structure
防倒流裝置
超溫及超壓排放閥
發熱線(內部)
出水位(熱)
入水位(冷)
溫度調節/超溫斷路器
1
2
3
4
5
6
Anti Back Siphonage Device
Pressure & Temperature Relief Valve (PTV)
Heating Element (Inside)
Outlet (Hot)
Inlet(Cold)
CombinedThermostat/Cutout
1
2
3
4
5
6
1
2
3
6
4 5

P.12
安裝圖 Installation Diagram
使用外碼時注意：確定爐的安裝位置後，請先用螺絲將外碼固定在牆上，再將爐後蓋上
的方孔對準固定在牆上的外碼，向下將爐穩靠地固定掛在牆上。
Caution: Afterconrmationofinstallationlocation,properlysecurethemountingbracket
with screws on the wall, align the holes of the back plate of the water heater with the
mounting bracket, and downwardly hang the water heater.
排水
Drain
進水
Inlet
出水
Outlet
熱水器
Water Heater
溫度調節/超溫斷路器
Combined Thermostat/Cutout
進水
Inlet
出水
Outlet
外碼
Mounting
Bracket
排水
Drain
進水
Inlet
出水
Outlet
熱水器
Water Heater
溫度調節/超溫斷路器
Combined Thermostat/Cutout
進水
Inlet
出水
Outlet
外碼
Mounting
Bracket
排水口
Drainage Outlet
排水口
Drainage Outlet

P.13
電路圖 Wiring Diagram
(單相 1-Phase 220 V~)
(單相 1-Phase 220 V~)
電路圖
單項
溫度調節/超溫斷路器 溫度調節/超溫斷路器
指示燈 指示燈
發熱線 發熱線
繼電器
接外殼 接底板 接內膽
溫度調節/超溫斷路器 溫度調節/超溫斷路器
指示燈 、
、
發熱線 發熱線
繼電器
電路圖
單項
溫度調節/超溫斷路器 溫度調節/超溫斷路器
指示燈 指示燈
發熱線 發熱線
繼電器
接外殼 接底板 接內膽
溫度調節/超溫斷路器 溫度調節/超溫斷路器
指示燈 、
、
發熱線 發熱線
繼電器

P.14
型號 Model GPU-6SSM GPU-6SSM Y
電壓Voltage (單相/1Phase) 220V
頻率Frequency 50Hz
功率Power (單相/1Phase) 3kW 2kW
機身尺寸Dimensions (H)740 mm (W)355 mm (D)175 mm
淨重Net Weight 16.2kg
滿水Filled Weight 35.7kg
產品規格及設計如有變更，恕不另行通知。
Specicationsaresubjecttochangewithoutpriornotice.
中英文版本如有出入，一概以中文版為準。
IfthereisanyinconsistencyorambiguitybetweentheEnglishversionandtheChineseversion,
theChineseversionshallprevail.
本產品使用說明書以 www.germanpool.com 網上版為最新版本。
Refer to www.germanpool.com for the most up-to-date version of the Operating Instructions.
產品規格 Specications

產品規格 Specications 保用條款
此保用提供德國寶產品之機件在正常使用下壹年保用
(自購買日起計算)。
Warranty Terms & Conditions
Under normal operations, the product will gurantee a 1-year full
warranty provided by German Pool (effective from the date of
purchase).
1. Customer who fails to present original purchase invoice will
not beeligible for free warranty service.
2. Customer should always follow the operating
instructions. Thiswarrantydoes not apply to:
- labour costs for on-site installation, check-up, repair,
replacement of parts and other transportation costs;
- damages caused by accidents of any kind (including
material transfer and others);
- operating failures resulting from applying incorrect voltage,
improperusage, and unauthorized installations
or repairs.
3. Thiswarranty is invalid if:
- the purchase invoice is modified by an unauthorized party;
- the product is used for anycommercial or industrial purposes;
- the product is repaired or modifiedby unauthorized
personnel, orunauthorizedparts are installed;
- the serial number is modified, damagedor removed from
the product.
4. German Poolwill, at its discretion, repair or replace any
defective part.
5. Thiswarranty will be void if there is any transfer of
ownership from the original purchaser.
1. 未能出示購買發票正本者，將不獲免費維修服務。
2. 用戶應依照說明書的指示操作。本保用並不包括﹕
- 上門安裝、檢驗、維修或更換零件之人工以及
一切運輸費用﹔
- 因天然與人為意外造成的損壞 (包括運輸及其他)﹔
- 電源接合不當、不依說明書而錯誤或疏忽使用本
機所引致之損壞。
3. 於下列情況下，用戶之保用資格將被取消﹕
- 購買發票有任何非認可之刪改；
- 產品被用作商業或工業用途；
- 產品經非認可之技術人員改裝或加裝任何配件；
- 機身編號被擅自塗改、破壞或刪除。
4. 總代理有權選擇維修或更換配件或其損壞部份。
5. 產品一經被轉讓，其保用即被視作無效。
機身號碼 Serial No. :
購買商號 Purchased From :
發票號碼 Invoice No. :
購買日期 Purchase Date :
型號 Model No. :
另請填妥以下表格並與正本發票一併保存，以便維修時核對資料。用戶提供之所有資料必須正確無誤，否則免費保用將會無效。
Pleasefill out the form below. This information and the original purchaseinvoice will be required for anyrepairs. Warranty will be
invalidated if information provided is found to be inaccurate.
此保用只適用於香港及澳門 This warranty is valid only in Hong Kong and Macau
客戶服務及維修中心 Customer Service & Repair Centre
China Hong Kong
Unit B, G/F, Sunshine Kowloon Bay
Cargo Centre, 59 Tai Yip Street,
Kowloon, Hong Kong
Tel : [phone]
Fax : [phone]
Email : [e-mail]
China Macau
A, 1 Andar, Mei Kui Kuong Cheong Fase 2,
No.515 Avenida Do Conselheiro Borja
Macau
Tel : [phone]
Fax : [phone]
中國香港
九龍大業街59號
三湘九龍灣貨運中心地下B室
電話：[phone]
傳真：[phone]
電郵：[e-mail]
中國澳門
澳門青洲大馬路(青洲新路)
515號美居廣場第二期1樓A座
電話：[phone]
傳真：[phone]
*
貴戶須在購機十天內，以下列其中一種方式向本公司
登記資料，保用手續方正式生效﹕
2)
填妥本公司網頁保用登記表
1) 填妥德國寶VIP手機應用程式
保用登記表（掃描右方二維碼）
www.germanpool.com/warranty
3)
填妥保用卡郵寄至本公司。
* This warranty is not valid until customer registration information
is receivedby ourService Centre within10 days ofpurchase
via one of the following means:
2) Visit our website and register online:
1) Visit our VIP App and register online:
www.germanpool.com/warranty
3)
Complete the attached Warranty
Card and mail itback to our
(Scan the QR Code on the right)
Customer Service Centre.
GPU-6SSM

G e rman Pool (Hong Kong) Limi t e d
www.germanpool.com
Hong Kong
Room 113. Newport Centre Phase II. 116 Ma Tau
Kok Road. Tokwawan. Kowloon. Hong Kong.
Tel: [phone]
Fax: [phone]
China
Tel:[phone]
Fax:[phone]
8th, Xinxiang Road, Wusha Industrial Park,
Daliang, Shunde, Foshan, Guangdong
Macau
© All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted.
HONG KONG TOP BRAND TEN YEAR
ACHIEVEMENT AWARD
20152005 2008 2007 2008 2007 2015 2014 2015 2015
GPU-6SSM-M-23(1)
1 Andar A, Edf. Mei Kui Kuong Cheong Fase 2,
515 Av. do Conselheiro Borja
Tel:[phone]
Fax:[phone]
