MADRID 5FT SIDE OPENING OTTOMAN BED
ASSEMBLY INSTRUCTIONS
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of
the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be kept away
from young children whilst assembling your unit to avoid the danger of choking hazards.
Page 1of 21
Tools Required
Thank you forpurchasing theMADRID 5FT SIDE OPENING OTTOMAN BED.Please
read
the instructions carefully to ensure safe operation ofthe product.
1 HOUR 30 MINUTES
V103/18
Size: 5FT L 2121 XW 1654 X H 1135

IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Page 2of 21
INFORMATION
This product is intended for a maximum person’s weight of 110kg per side. Do
not exceed this weight.
Due to the size of this product we recommend that it is assembled in the room
intended for use
When you are ready to start, make sure that you have the right tools, plenty of
space and a clean, dry area for assembly.
Unwrap all packaging materials and place the components on top of the carton
box or on a clean floor to prevent it from scratching
Check the pack and make sure you have all the parts listed
Ensure that this product is fully assembled and secured as illustrated before use.
Check all screws or bolts are tightened and inspect regularly
This product should only be used on firm, level ground
Please dismantle for transportation
Tools not included
WARNINGS
Keep small parts out of reach of children
Make sure the legs remain in contact with the ground
DO NOT use power tools to construct this product
DO NOT tighten screws until fully assembled
DO NOT over tighten screws or bolts
DO NOT use this product if parts are missing, damaged or worn
DO NOT stand on the product
This bed uses a pressured mechanism, always use caution when operating.
DO NOT remain on the bed whilst the lifting mechanism is in use.
Only use the storage compartment when the frame is fully raised in the up
position.
Please pay particular attention when children or animals are present to ensure
that no accidental entrapment occurs whilst operating this product.
Keep hand and fingers clear of the mechanism when opening and closing the
bed for use.
Incorrect installation could lead to injury, take care following instruction.
Take care when adjusting positions to avoid trapping of body parts.
CARE INFORMATION
Never use scourers, abrasives or chemical cleaners.
To clean wipe with a sponge and warm soapy water. Do not use solvent based
cleaners or detergents as they can bleach or damage the product.
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

Please check the pack contents before assembling the product. If any components are missing, please contact your
retailer. The fings packcontains small items that should be kept away fromsmall children.
Page 3 of 21
(P4)
(P5)
(P7)
(P6)
(P11)
(P14)
(P12)
(P3)
(P3)
(P9)
(P9)
(P10)
(P10)
(P16)
(P17)
ASSEMBLY INSTRUCTIONS
V103/18
(P8)
(P13)
(P13)
(P1)
(P2)
MADRID 5FT SIDE OPENING OTTOMAN BED

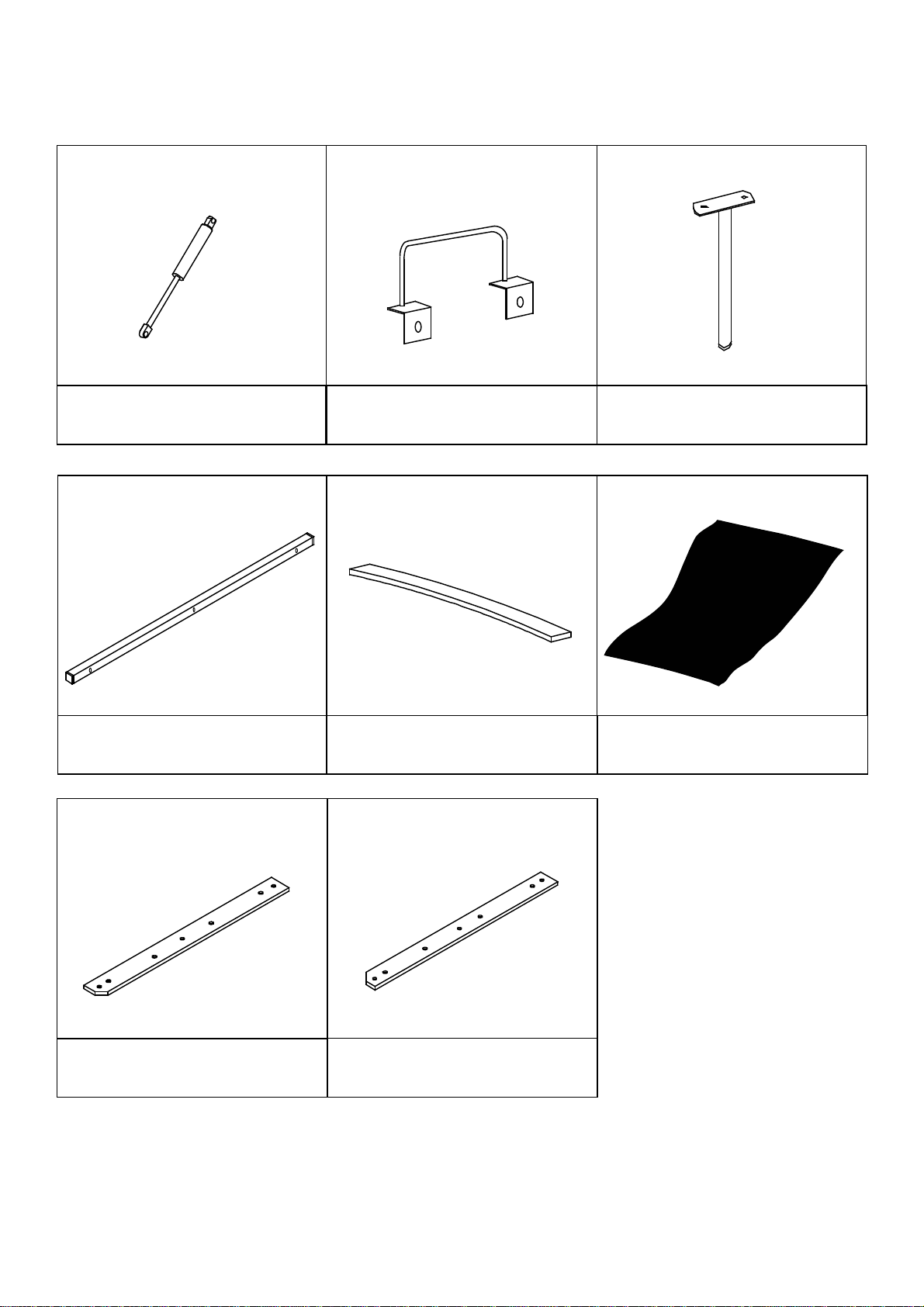

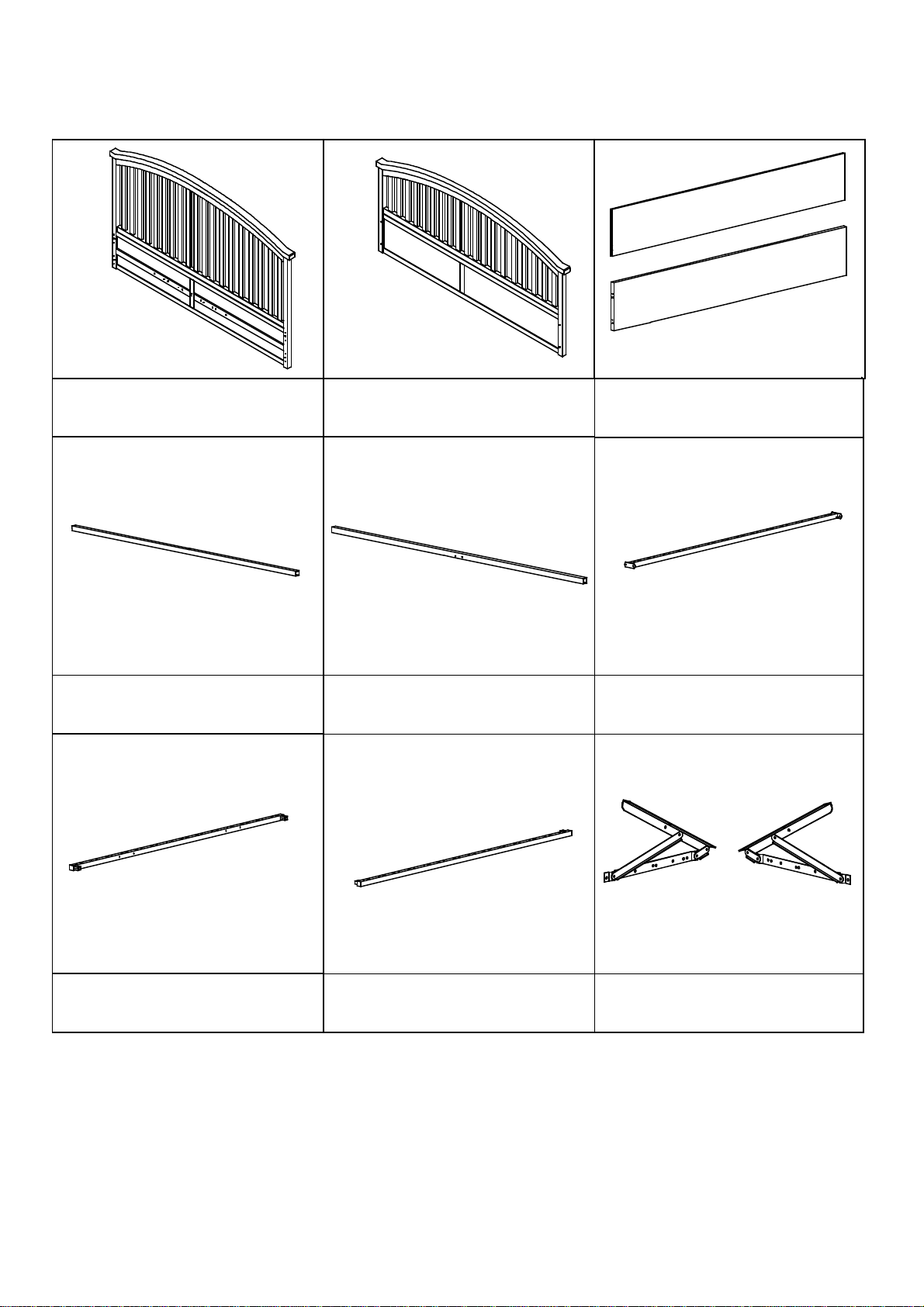

SIDETUBE
1PC
Carton No: 3
P7 P8 P9
Page 4 of 21
FRONTTUBE
1PC
Carton No: 3
CENTRETUBE
1PC
CartonNo:3
BACKTUBE
1PC
Carton No: 3
P4 P5 P6
HINGE
2PCS
Carton No: 3
LEFT RIGHT
HEADBOARD
1PC
CartonNo:1
FOOTBOARD
1PC
CartonNo:2
SIDE RAIL
2PCS
Carton No: 2
P1 P2 P3
Parts ASSEMBLY INSTRUCTIONS
V103/18
SIDETUBE
1PC
Carton No: 3
MADRID 5FT SIDE OPENING OTTOMAN BED

HOLDINGTUBE
2PCS
Carton No: 2
WOODENSLAT
28PCS
Carton No: 3
NON-WOVEN FABRIC
1PC
carton no:1
P13 P14 P15
SUPPORT LEG
2PCS
Carton No: 3
MATTRESS STOPPER
2PCS
Carton No: 3
P10 P11 P12
Page 5 of 21
Parts
P16
1PC
carton no:1
HINGE SUPPORT RAIL
ASSEMBLY INSTRUCTIONS
V103/18
P17
1PC
carton no:1
HINGE SUPPORT RAIL
PISTON
2PCS
Carton No: 3
MADRID 5FT SIDE OPENING OTTOMAN BED

Page 6 of 21

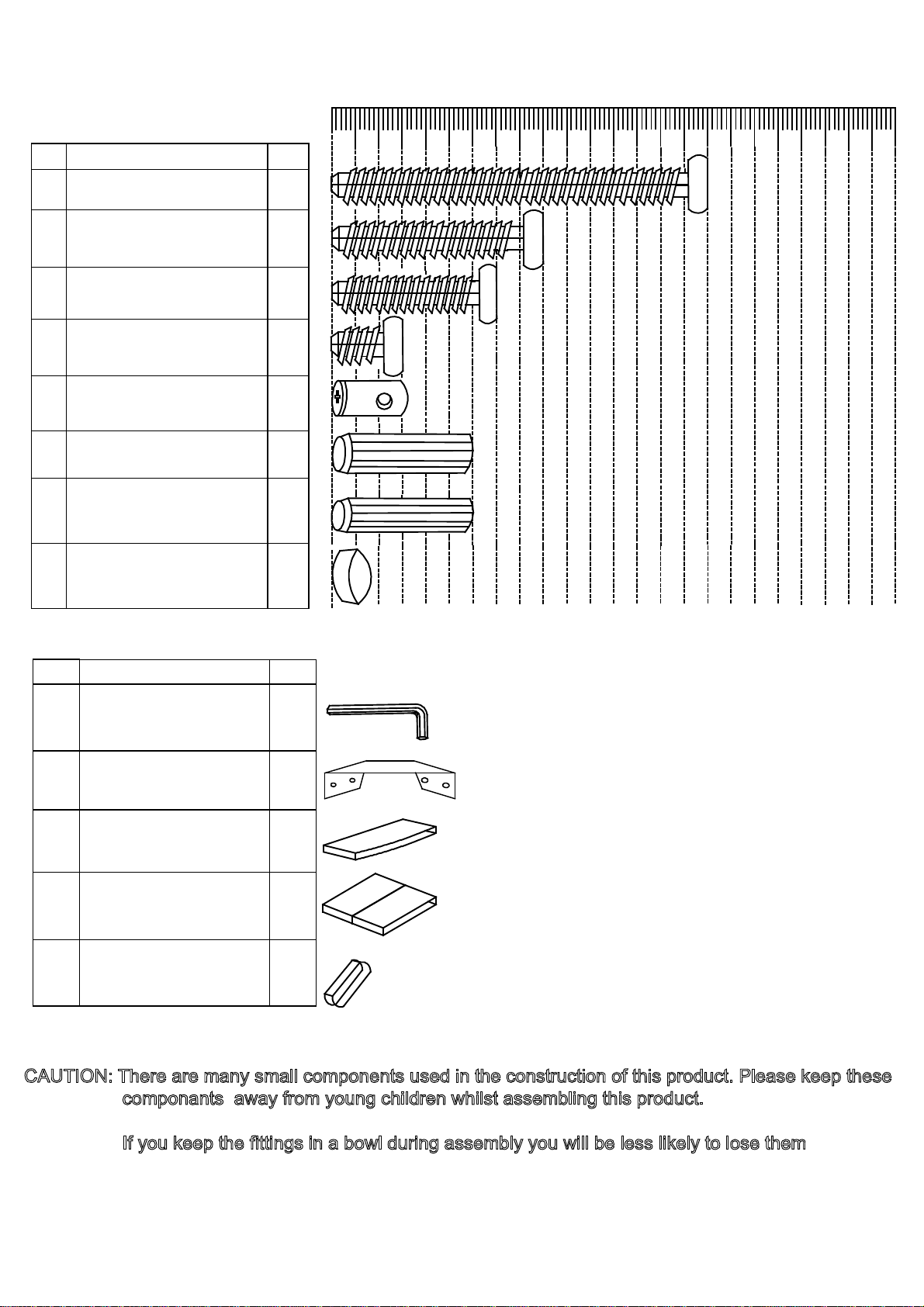

CAUTION: There are many small components used in the construction of this product. Please keep these
componants away from young children whilst assembling this product.
If you keep the fittings in a bowl during assembly you will be less likely to lose them
Ref Qty Dimensions
H1
H2
H3
H4
H5
H6
10 20 30 40 50 60 70 80 100 120
110
90
JCBCSCREW M6X80MM
JCBCSCREWM6 X45MM
JCBCSCREWM6 X15MM
BARREL NUT M6 X 16MM
DOWEL M10 X30MM
8
6
8
4
16
38
Fixings (to scale)
WOODBUTTON8MM
(Not to scale)
Ref Qty Dimension
H11
H12
H13
PLASTIC END CAP
PLASTIC CENTRE CAP
BELT 1
H10 CORNER BRACKET 4
H9 1
ALLEN KEY M4
28
14
DOWEL M8X30MM
8
JCBCSCREWM6 X35MM
6
H7
H8
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

Page 7 of 21
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

H
i
n
t
s
a
n
d
T
i
p
s

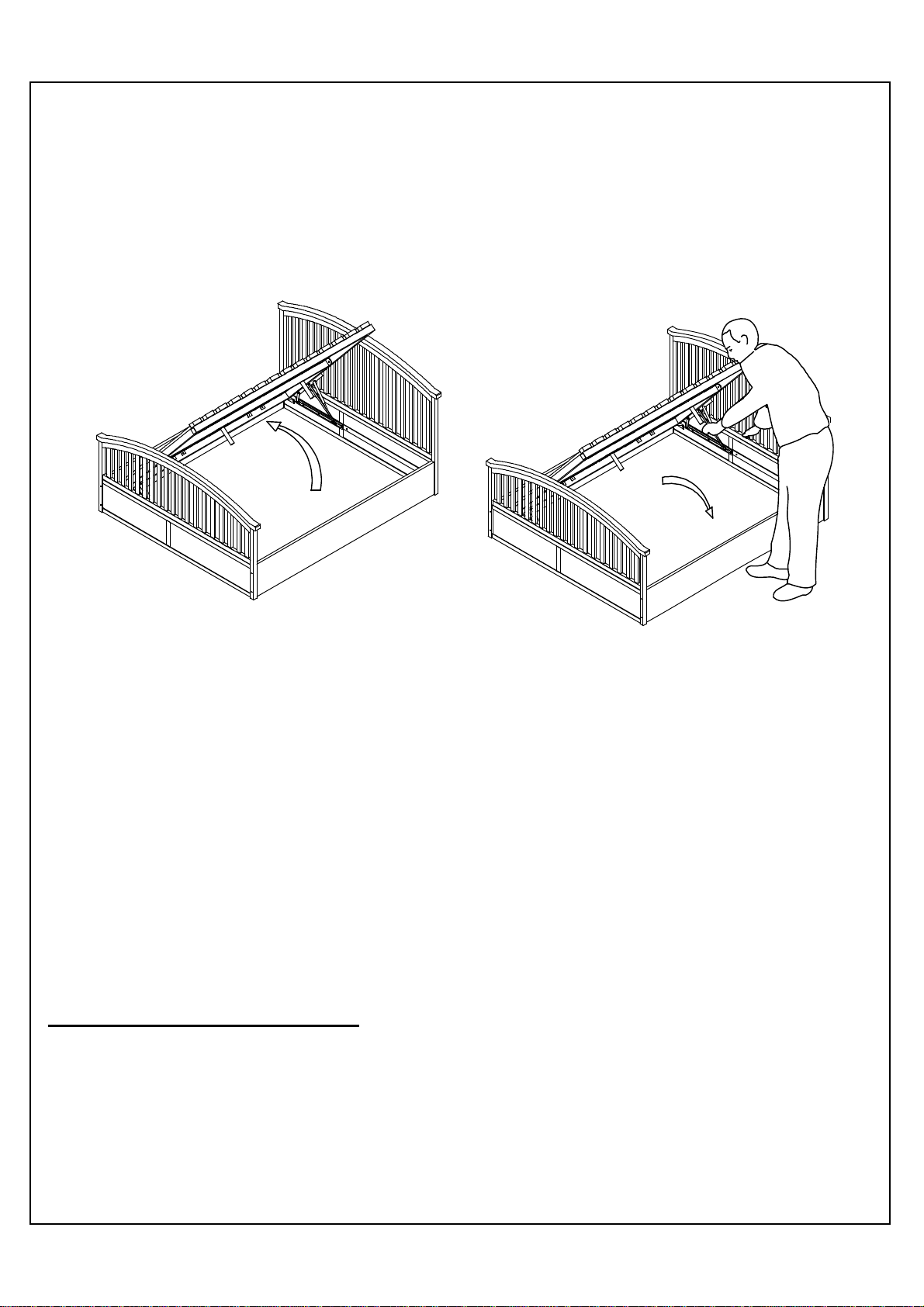

To operate the ottoman, always use 2 hands at arm's length and only where illustration on this
product. You must ensure the mattress is on the bed frame before lifting the mechanism. Failure
to do so may result in injury.
To ensure your safety please do not stand too close in case the frame bounces up. The weight of
the mattress loaded on the frame will keep the frame in a lower position until it is pulled upwards
by the user.
If removing the mattress, make sure the frame is secured so it does not flip open. When lifting the
bed frame, remove pillows and covers.
PLEASE NOTE - It takes a lot of force to make the initial movement of the ottoman – THIS IS A
DESIGN FEATURE OF THE PRODUCT SO THAT IT DOES NOT FALL SHUT - and the nearer
to being closed the ottoman is, the easier it is to move. When the ottoman is almost shut, it will
close completely under its own weight.
When lowering the slat unit for the first time, take care to make sure it does not rub unevenly on
the inside face of the Side Rail. If it does, the bed has been assembled slightly out of square. This
can be rectified by moving the Footboard of the bed slightly to the left or right whilst leaving the
headboard of the bed frame stationary.
T
i
p
f
o
r
d
i
f
f
i
c
u
l
t
y
w
i
t
h
c
o
m
p
r
e
s
s
i
o
n
:
If you are experiencing difficulty with the initial compression try fitting one piston at a time
(following the Assembly Instructions) then press down on the side of the frame with the piston
fitted - this acts like a big lever (The weight of the mattress can be used to supplement the load
exerted). Effectively you are doubling the amount of force applied, because you have halved the
resistance offered by the pistons. It can take slightly more effort than you might feel comfortable
applying to the bed frame at first.
Page 8 of 21
Do not attemptto move the bed whilst the frame is in the upright positon
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

Page 9 of 21
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

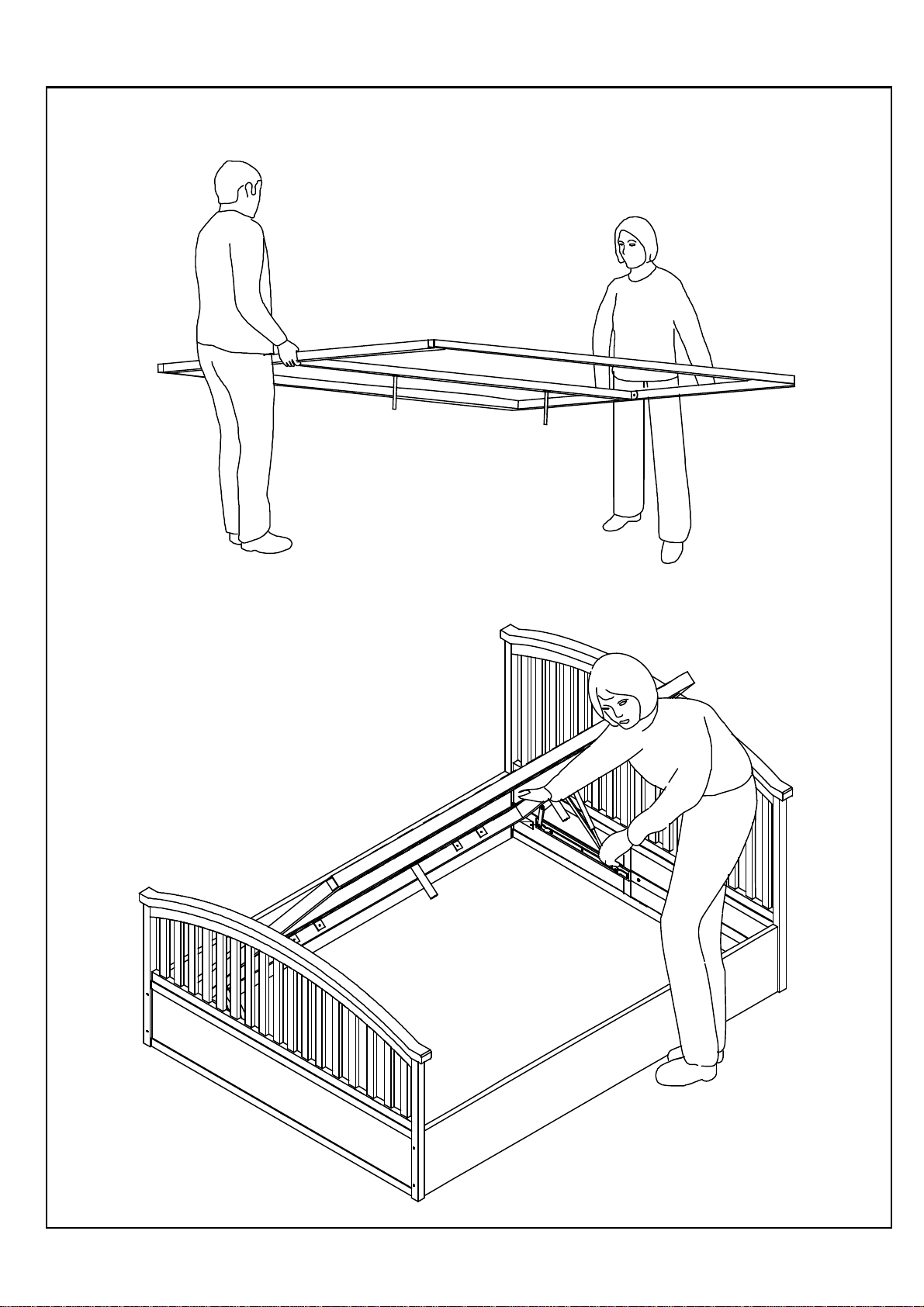

2 people are required to fit the frame safety.
Page 10 of 21
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

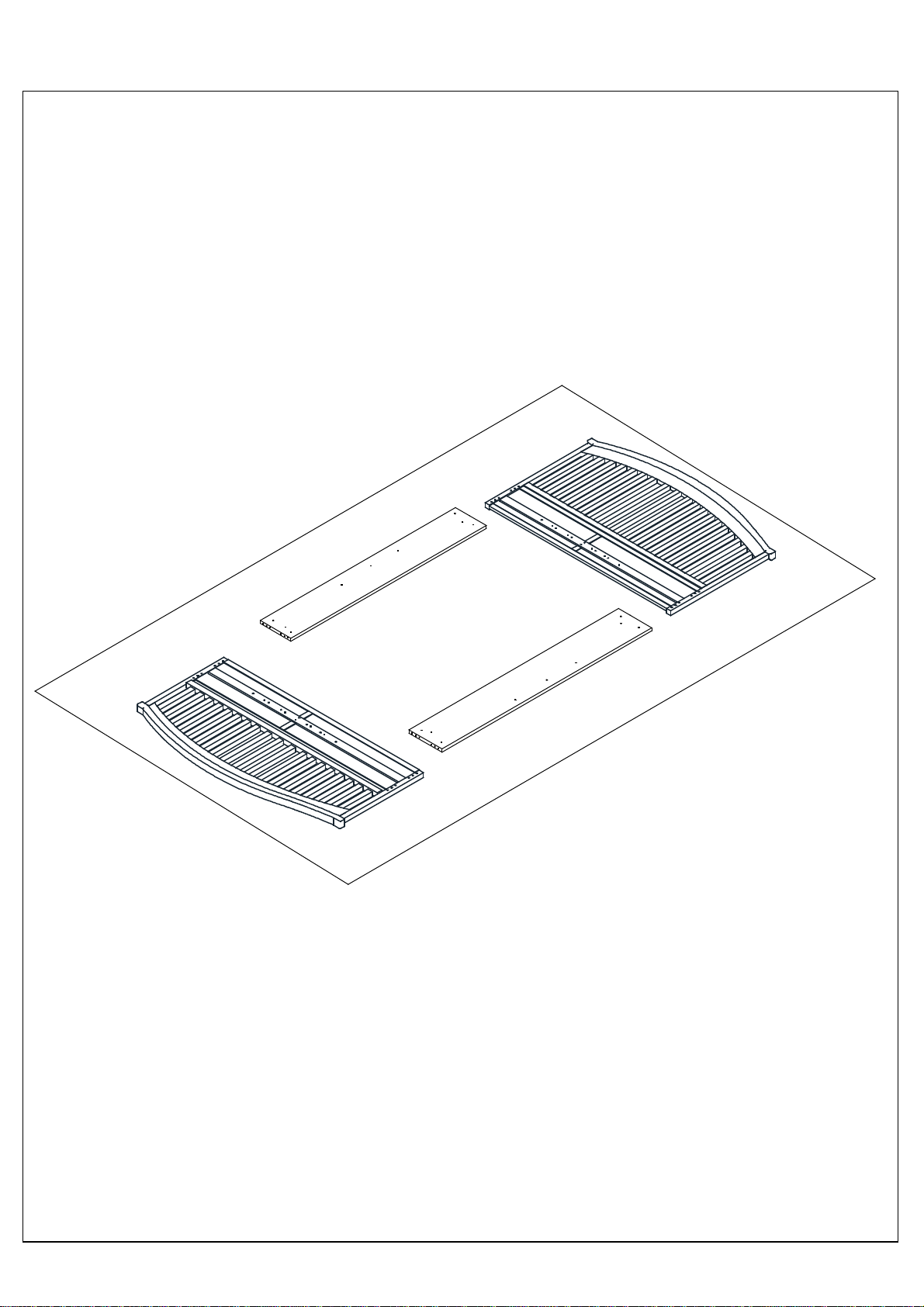

Lay out all 4 sides on a soft surface i.e. Rug, Carpet or Packaging Carton
Page 11 of 21
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED

STEP 1 RIGHT SIDE OPENING ( HEADBOARD ) Parts
Required
(H4)
JCBC SCREW
M6 x 15MM - 4pcs
(H9)
M4 Allen Key - 1pc
Page12of 21
(P9)
Hinge- 1pc
(P10)
Piston- 1pc
(P1)
HEADBOARD - 1pc
(H3)
JCBC SCREW
M6 x 35MM - 3pcs
(H7)
DOWEL
M8 x 30MM - 2pcs
(P16)
HINGE SUPPORT RAIL
-1pc
ASSEMBLY INSTRUCTIONS
V103/18
STEP 1 RIGHT SIDE OPENING ( HEADBOARD ) Parts
Required
(H4)
JCBC SCREW
M6 x 15MM - 4pcs
(H9)
M4 Allen Key - 1pc
Page12of 21
(P9)
Hinge- 1pc
(P10)
Piston- 1pc
(P1)
HEADBOARD - 1pc
(H3)
JCBC SCREW
M6 x 35MM - 3pcs
(H7)
DOWEL
M8 x 30MM - 2pcs
(P16)
HINGE SUPPORT RAIL
-1pc
ASSEMBLY INSTRUCTIONS
V103/18

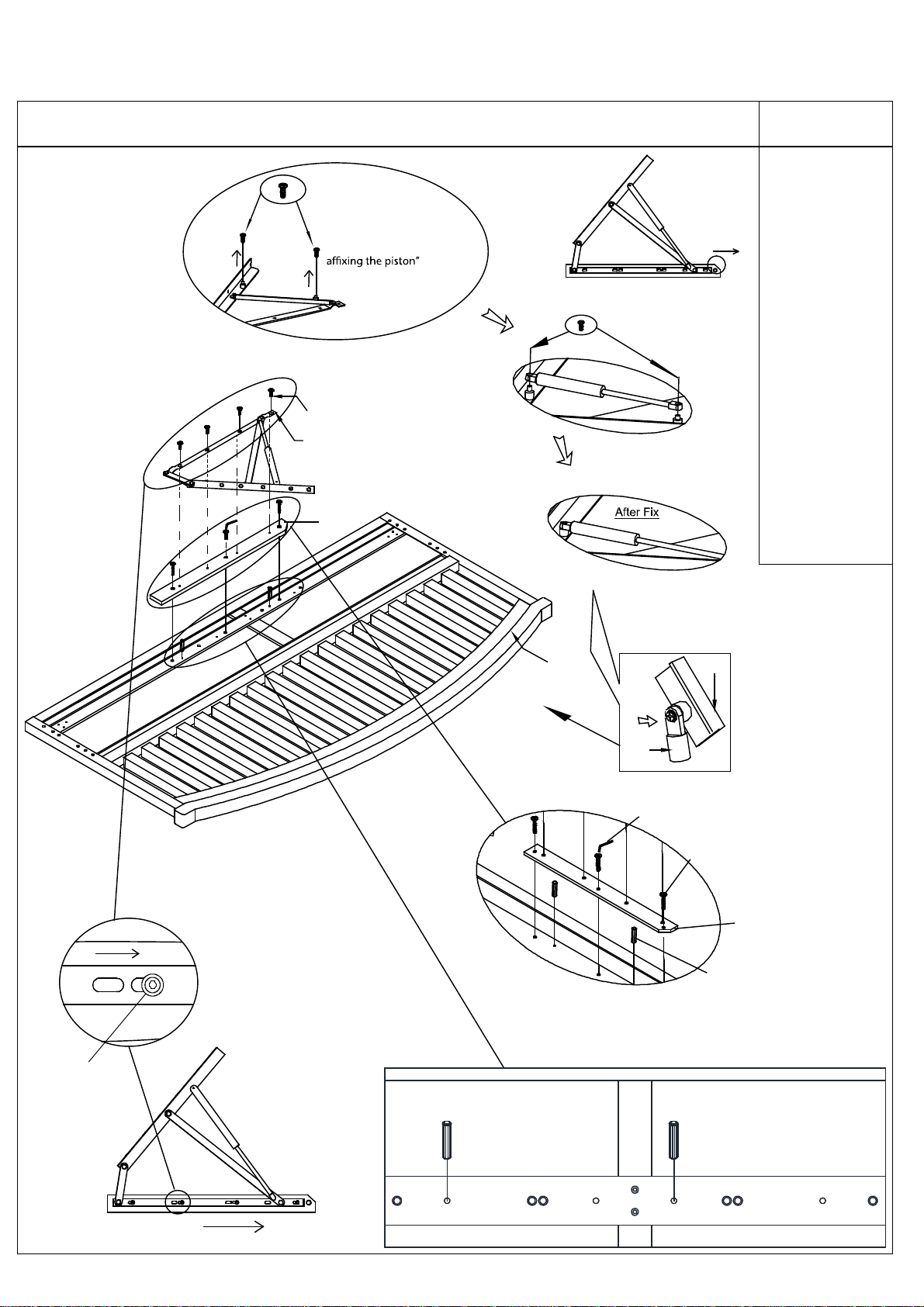

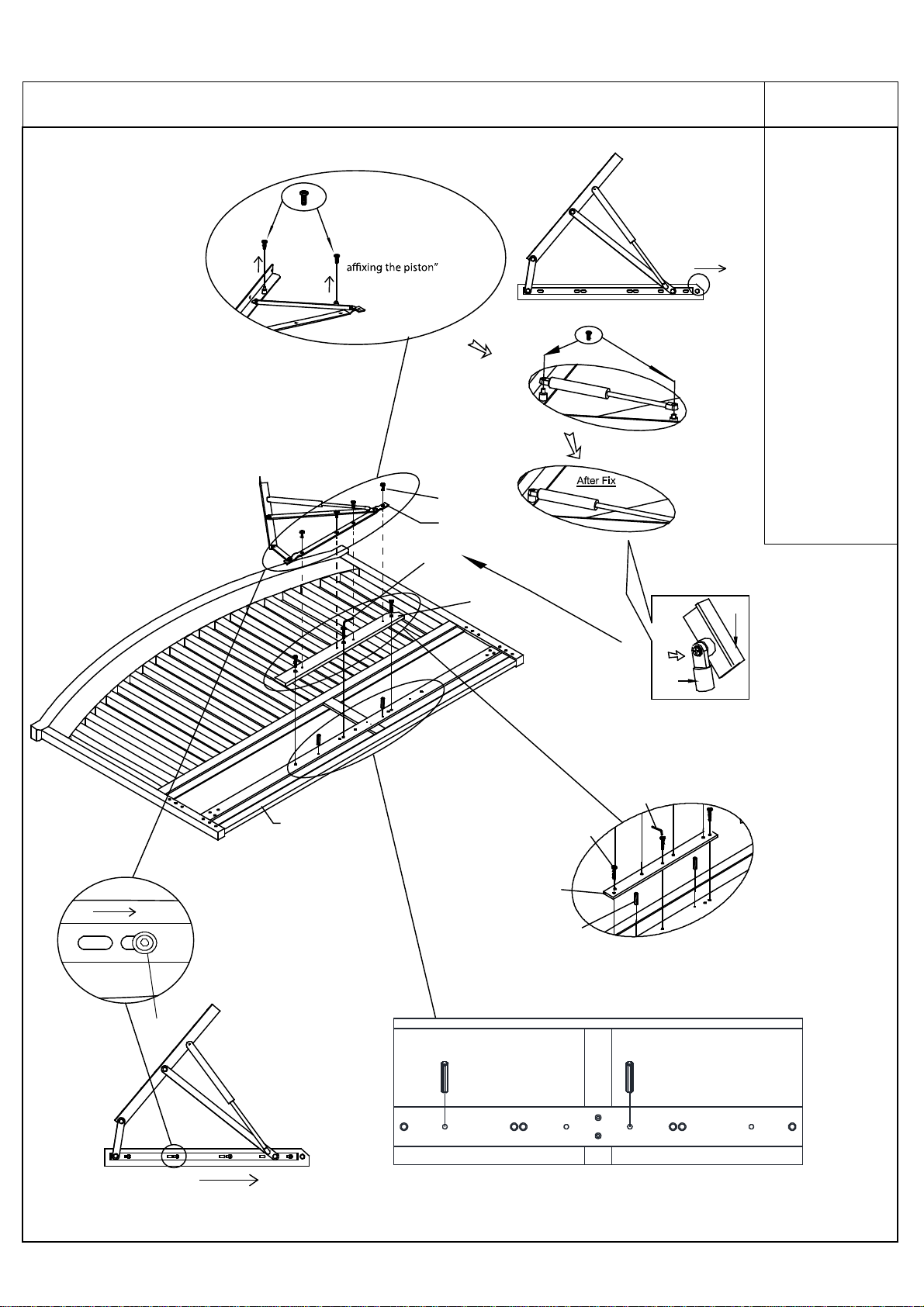

RIGHTOPENING
(A)
“Removepreassembled piston
securing bolt from hinge before
(H9)
(H7)
(H16)
(H3)
(P10)
(P9)
(B)
(C)
(P10)
(P9)
(H4)
(H9)
(P16)
(P1)
(H4)
(H7) (H7)
MADRID 5FT SIDE OPENING OTTOMAN BED

STEP 2 RIGHT SIDE OPENING (FOOTBOARD) Parts
Required
(H4)
JCBC SCREW
M6 x 15MM - 4pcs
(H9)
M4 Allen Key - 1pc
Page13of 21
(P9)
Hinge- 1pc
(P10)
Piston- 1pc
(P2)
FOOTBOARD -1pc
(P17)
HINGE SUPPORT RAIL
-1pc
(H3)
JCBC SCREW
M6 x 35MM - 3pcs
(H7)
DOWEL
M8 x 30MM - 2pcs
ASSEMBLY INSTRUCTIONS
V103/18
RIGHT OPENING
(P10)
(P9)
(B)
(C)
(P10)
(A)
“Remove preassembledpiston
securing bolt from hingebefore
(P17)
(H3)
(H9)
(H7)
(H7) (H7)
(H4)
(P9)
(H4)
(P17)
(P2)
MADRID 5FT SIDE OPENING OTTOMAN BED

STEP3 Parts
Required
(H4)
JCBC SCREW
M6 x 15MM - 4pcs
(H9)
M4 Allen Key - 1pc
Page14of 21
(P9)
Hinge- 1pc
(P10)
Piston- 1pc
(P1)
HEADBOARD - 1pc
(P17)
HINGE SUPPORT RAIL
-1pc
(H3)
JCBC SCREW
M6 x 35MM - 3pcs
(H7)
DOWEL
M8 x 30MM - 2pcs
LEFT SIDE OPENING ( HEADBOARD )
ASSEMBLY INSTRUCTIONS
V103/18
LEFT OPENING
(A)
“Removepreassembledpiston
securing bolt from hinge before
(H7) (H7)
(P17)
(H3)
(H9)
(H7)
(P1)
(P9)
(H4)
(P17)
(B)
(C)
(P10)
(P9)
(P10)
(H4)
MADRID 5FT SIDE OPENING OTTOMAN BED

STEP4 Parts
Required
Page15of 21
LEFT SIDE OPENING (FOOTBOARD)
ASSEMBLY INSTRUCTIONS
V103/18
(H4)
JCBC SCREW
M6 x 15MM - 4pcs
(H9)
M4 Allen Key - 1pc
(P9)
Hinge- 1pc
(P10)
Piston - 1pc
(P2)
FOOTBOARD -1pc
(H3)
JCBC SCREW
M6 x 35MM - 3pcs
(H7)
DOWEL
M8 x 30MM - 2pcs
(P16)
HINGE SUPPORT RAIL
-1pc
LEFT OPENING
(A)
“Removepreassembled piston
securing bolt from hinge before
(H9)
(H7)
(P16)
(H3)
(B)
(C)
(P10)
(P9)
(P10)
(P2)
(H9)
(P16)
(P9)
(H4)
(H4)
(H7)
(H7)
MADRID 5FT SIDE OPENING OTTOMAN BED

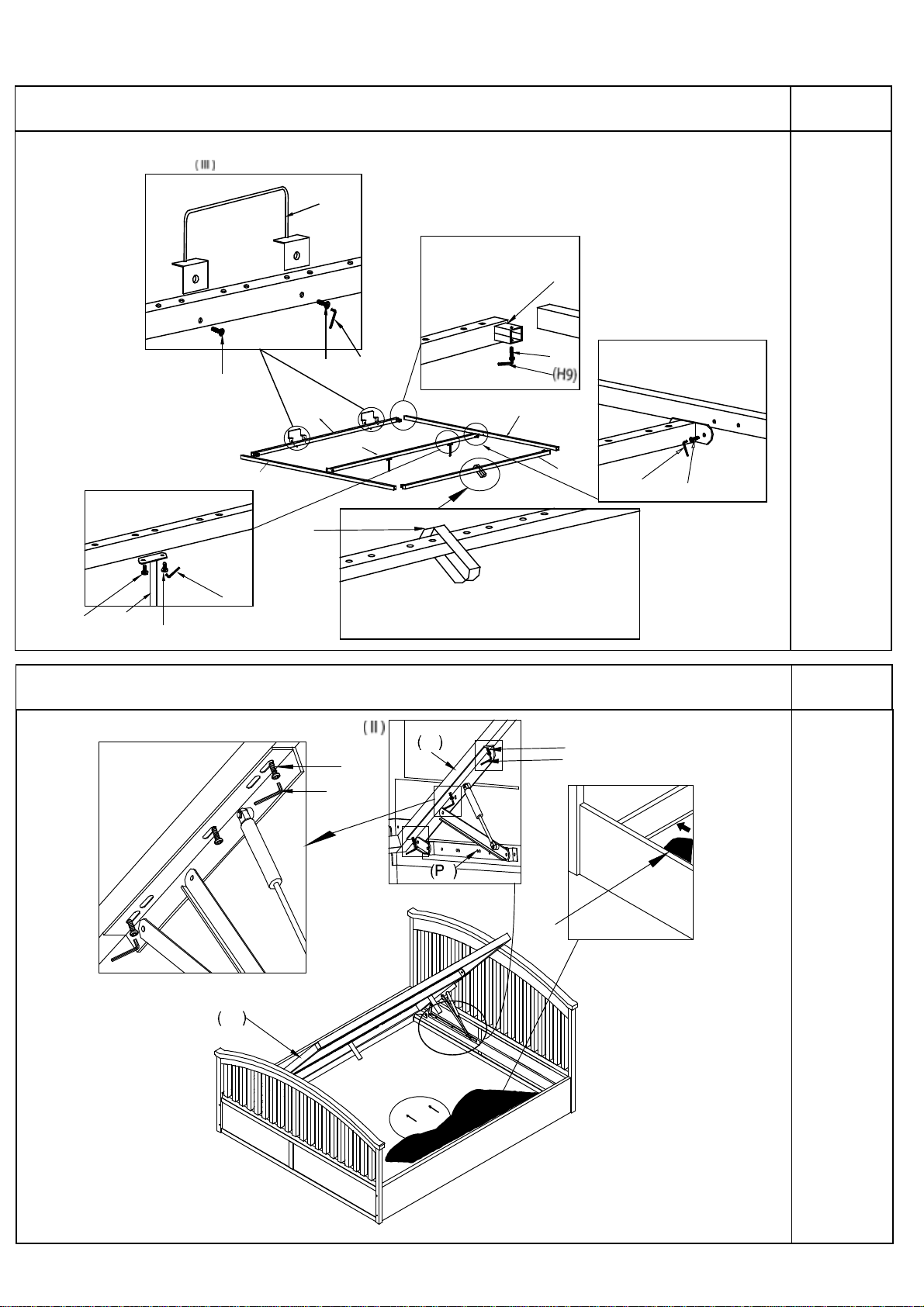

STEP5 Parts
Required
(H1)
JCBCSCREW
M6x 80MM
- 8pcs
(H6)
DOWEL
M10 x 30MM
- 16pcs
(H8)
Wood Button
-8pcs
(H9)
M4 Allen Key
-1pc
(H5)
BARREL NUT
M6x 16MM
- 8pcs
STEP6 Parts
Required
W
(H4)
JCBCSCRE
M6x15MM
- 8pcs
(H9)
M4 Allen Key
- 1pc
(H10)
Corner Bracket
-4pcs
Page 16 of 21
(P1)
Headboard
- 1pc
(P2)
Footboard
- 1pc
(P3)
Side rail
- 2pcs
(P1)
Headboard
- 1pc
(P3)
SIDE RAIL
- 2pcs
ASSEMBLY INSTRUCTIONS
V103/18
W
(H2)
JCBCSCRE
M6x45MM
- 6pcs
(P13)
HOLDIN TUBE
- 2pcs
(H4)
(P3) (P1)
(H9)
(P3)
(P3)
(P13)
(P13)
(H9)
(H2)
(H9) (H2)
(P2)
(P1)
(P3)
(P1)
(P2)
(P3)
(P1)
(P2)
REPEAT
x 4
(H8)
(H8)
(H1)
(H9)(H1)
(H5)
(P3)
(P1)
(P2)
(P3)
(H6)
STEP 4
Outside
View
STEP 3
Outside
View
STEP 2
Inside
View
STEP 1
Outside
View
MADRID 5FT SIDE OPENING OTTOMAN BED

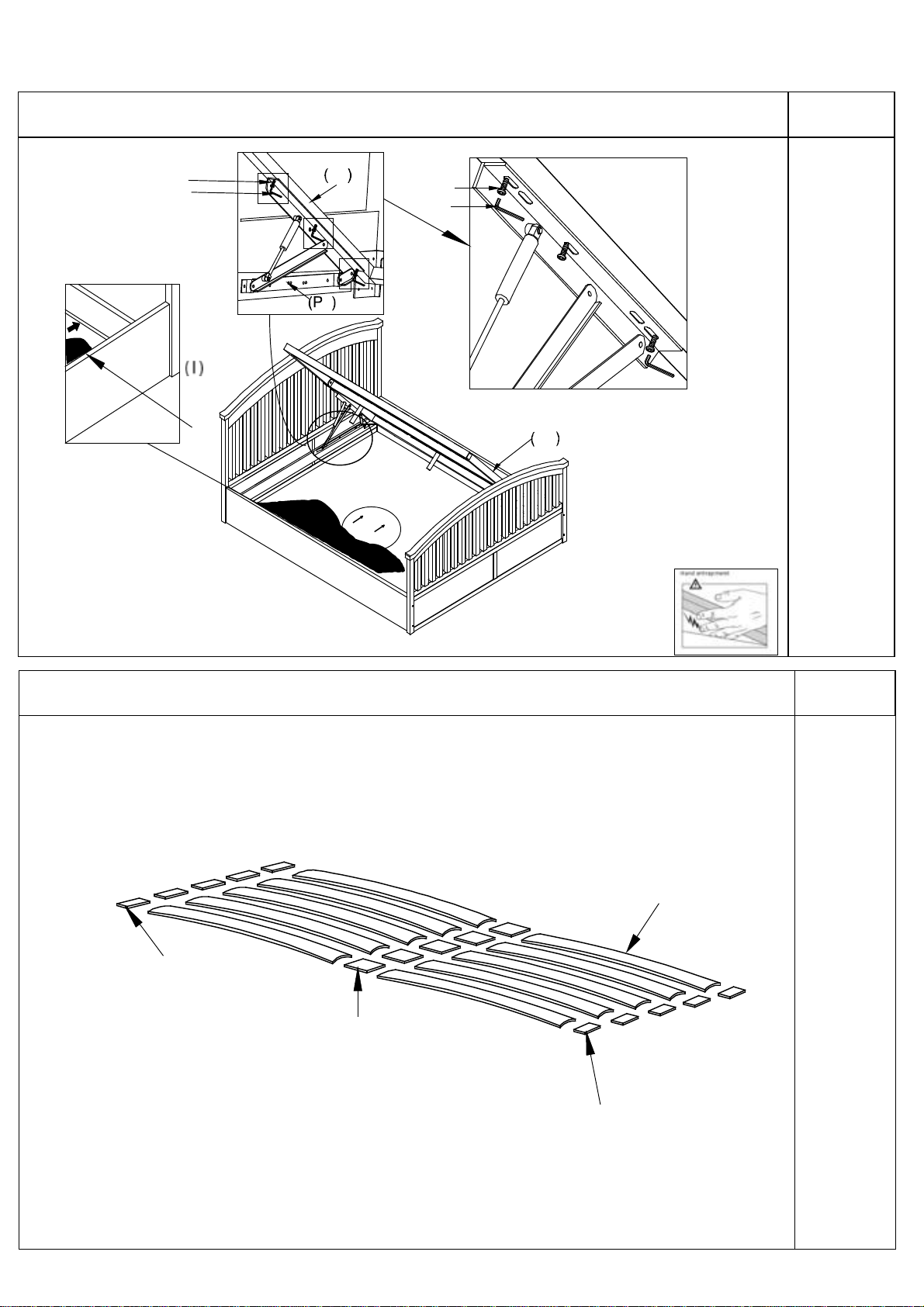

STEP8 Parts
Required
Page 17 of 21
(H4)
JCBCSCREW
M6x15MM
- 6pcs
(H9)
M4 Allen Key
- 1pc
(P15)
Non-Woven Fabric
-1pc
STEP7 Parts
Required
(P4)
Front tube -1pc
(P5)
Backtube - 1pc
(P6)
Centre tube-1pc
(P7)
Sidetube
-1pc
(P11)
Mattressstopper
- 2pcs
(P12)
Support leg
-2pcs
(H4)
JCBC SCREW
M6 x15MM
-16pcs
M4Allen Key
-1pc
(H13)Belt
-1pc
(P5)
BACK TUBE
- 1pc
(P4)
(P5)
(P6)
(P7)
(H4)
Bracket
( II )
(P6)
( I )
(H9)
(P4)
FRONTTUBE
- 1pc
RIGHT SIDE OPENING
(H13)
ASSEMBLY INSTRUCTIONS
(P6)
(H9)
(P12) (H4)
(P8)
V103/18
slide pull strap H13 onto frame
before connecting parts p4 and p8
(H9)
(H4)
(P11)
(H4)
(P8)
Sidetube
-1pc
(H4)
(H9)
(P3)
SIDE RAIL
- 2pcs
(H4)
(P15)
( I )
P5
(H4)
(H9)
9(P3)
(H4)
(H9)
P4
MADRID 5FT SIDE OPENING OTTOMAN BED

STEP10 Parts
Required
Page 18 of 21
STEP9 Parts
Required
LEFT SIDE OPENING
ASSEMBLY INSTRUCTIONS
(H4)
JCBCSCREW
M6x15MM
- 6pcs
(H9)
M4 Allen Key
- 1pc
(P15)
Non-WovenFabric
-1pc
(P5)
BACK TUBE
- 1pc
(P4)
FRONTTUBE
- 1pc
V103/18
(P14)Wooden Slat
- 28pcs
(H11)
PlasticEnd Cap
- 28pcs
(H12)
Plastic Centre Cap
- 14pcs
(H11)
(H12)
(H11)
(P14)
(P3)
SIDE RAIL
- 2pcs
(P15)
( II )
P5
(H4)
(H9)
9
(H4)
(H9)
P4
MADRID 5FT SIDE OPENING OTTOMAN BED

Page 19 of 21
(H11)
PlasticEnd Cap
- 28pcs
(H12)
Plastic Centre Cap
- 14pcs
(P6) centre tube
-1pc
(P7) side tube
-1pc
(P14)
Wooden Slat
- 28pcs

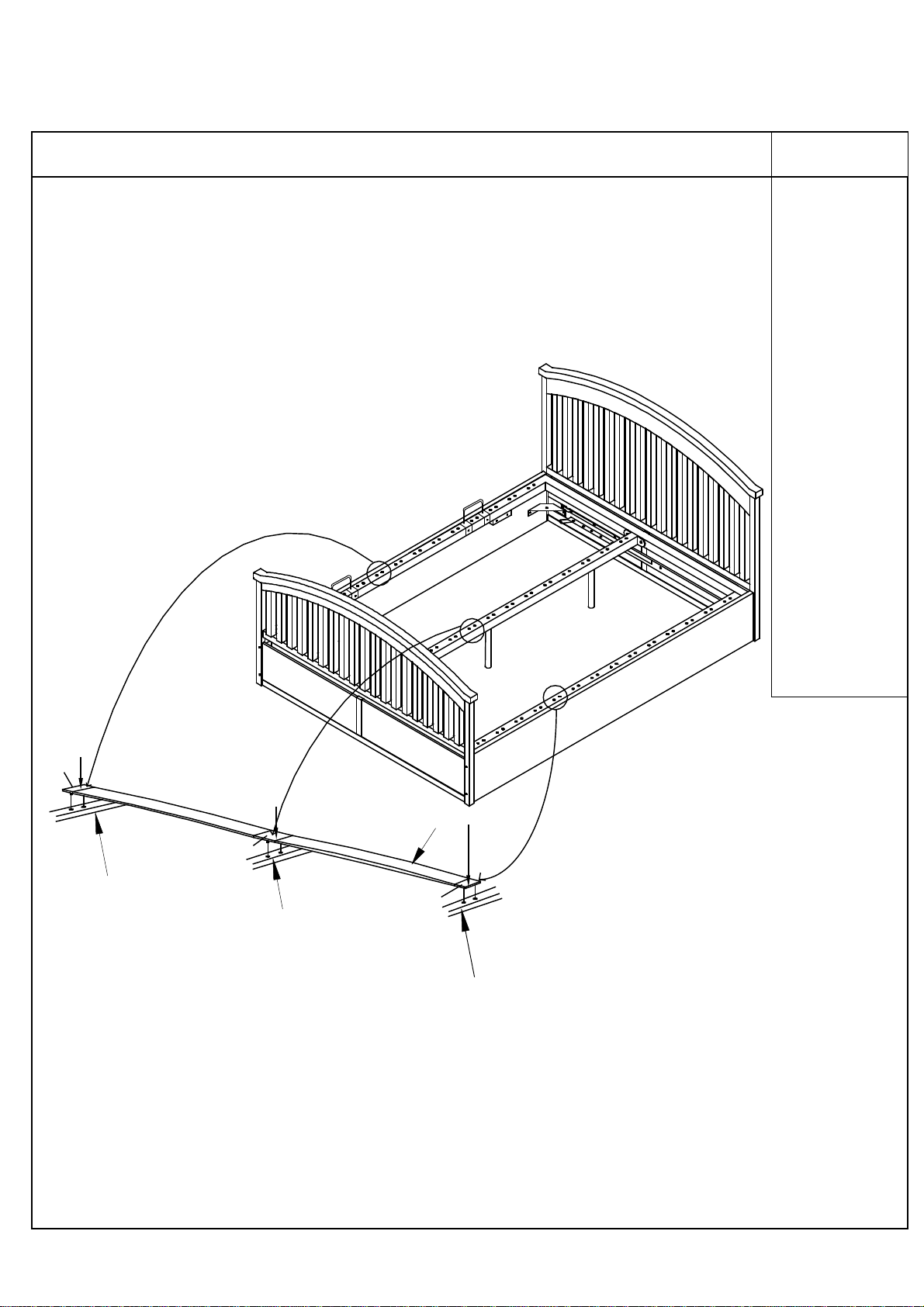

STEP11 Parts
Required
ASSEMBLY INSTRUCTIONS
V103/18
(P8) side tube
-1pc
(P8)
1st
2nd
3rd
(P7)
(P6)
(P13)
(H12)
(H11)
(H11)
MADRID 5FT SIDE OPENING OTTOMAN BED

P
age 20 of 21
CompleteAssembly
Your bed frame is now completelyassembled but the ottoman will not operate correctly unless a mattress
is placed on the slatframe and will not stay shut unless the mattressremains in position.To position
the mattress onthe slat frame, simply place the mattress on top of the slate frame whilst it is in
the up (open) position.
Li
WARNING
WHEN STORING ITEMS INTHE OTTOMANCOMPARTMENT ENSURETHEY ARE CLEAR OFTHE CENTRE
RAIL SUPPORT LEGSWHENTHE BASE IS CLOSED. FAILURETO DO SO MAY RESULT IN DAMAGETOTHE
BED FRAME.
ft with the strap (H13) and close with the strap.The strap should always be accessible.Take care
not to lean over the bed when lifting, if the mattress is thin and light, the frame may rise quickly.The
metal frame.
PLEASE NOTE - It take a lot of force tomake the initial movement of the ottoman-THIS IS A
DESIGN FEATURE OFTHE PRODUCT SOTHAT IT DOES NOT FALL SHUT - and the nearer
to being closed the ottoman is, the easier it isto move.When the ottoman is almost shut, it will
close completely under its ownweight.
ASSEMBLY INSTRUCTIONS
V103/18
MADRID 5FT SIDE OPENING OTTOMAN BED
