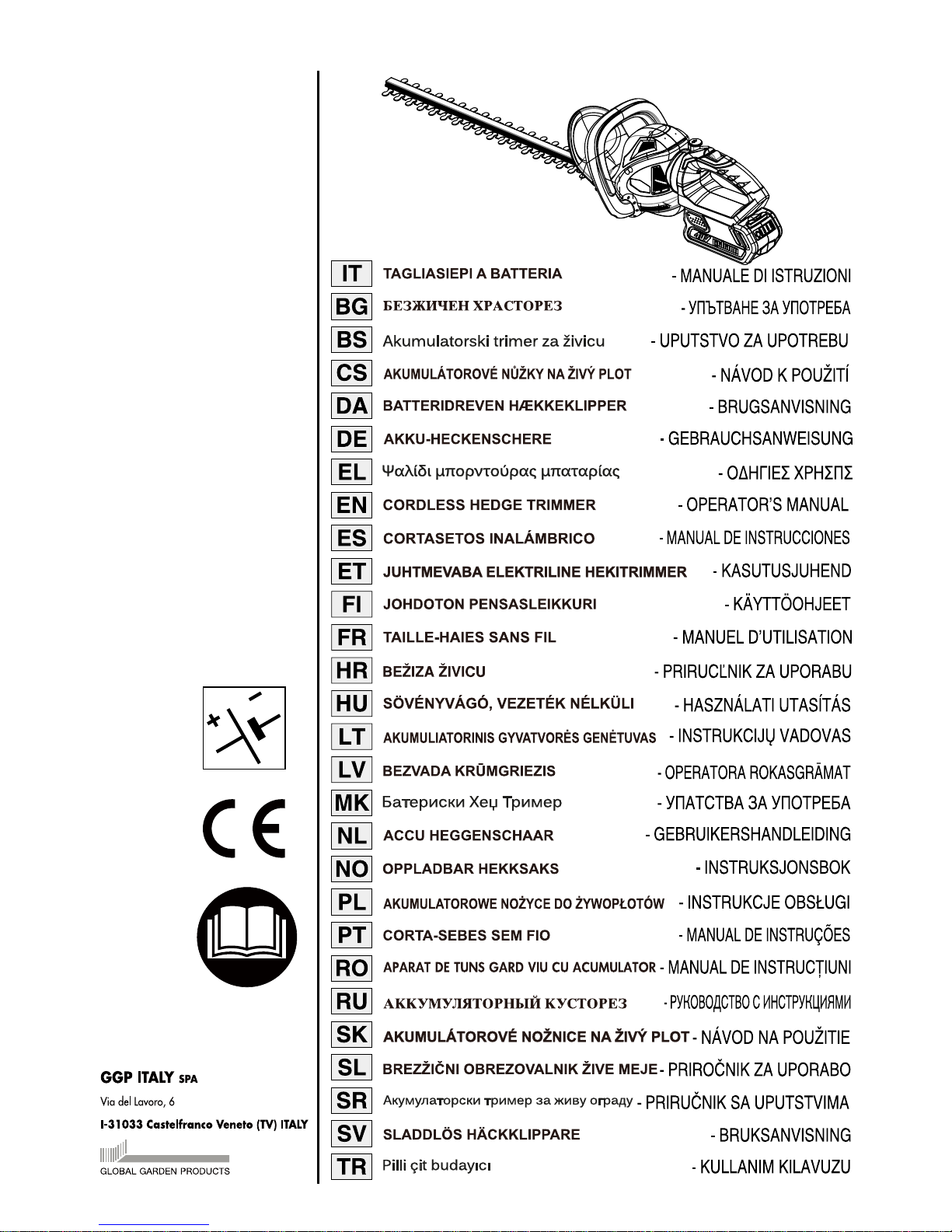

GGP ITALY H5648Li User manual

ii
ITALIANO - Istruzioni Originali ..................................................................... IT
ENGLISH - Translation of the original instructions .......................................... EN
FRANÇAIS - Traduction de la notice originale ................................................ FR
DEUTSCH - Übersetzung der Originalbetriebsanleitung ................................. DE
ESPAÑOL- Traducción del Manual Original ................................................... ES
NEDERLANDS - Vertaling van de oorspronkelijke gebruiksaanwijzing .......................... NL
PORTUGUÊS - Tradução do manual original ................................................ PT
ΕΛΛΗΝΙΚΑ - Μετάφραση του πρωτοτύπου των οδηγιών χρήσης ............................... EL
TÜRKÇE - Orijinal Talimatların Tercümesi ...................................................... TR
POLSKI - Tłumaczenie instrukcji oryginalnej ................................................... PL
SLOVENŠČINA - Prevod izvirnih navodil ........................................................ SL
РУССКИЙ - Перевод оригинальных инструкций ........................................ RU
HRVATSKI - Prijevod originalnih uputa ........................................................... HR
SVENSKA - Översättning av bruksanvisning i original ..................................... SV
SUOMI - Alkuperäisten ohjeiden käännös ...................................................... FI
DANSK - Oversættelse af den originale brugsanvisning .................................. DA
NORSK - Oversettelse av orginal bruksanvisning ........................................... NO
ČESKY - Překlad původního návodu k používání ............................................ CS
MAGYAR - Eredeti használati utasítás fordítása ............................................. HU
МАКЕДОНСКИ - Превод на оригиналните упатства ................................... MK
LIETUVIŠKAI - Originalių instrukcijų vertimas .................................................. LT
LATVIEŠU - Instrukciju tulkojums no oriģinālvalodas ...................................... LV
ROMÂN - Traducerea manualului fabricantului ............................................. RO
БЪЛГАРСКИ - Инструкция за експлоатация ............................................. BG
EESTI - Algupärase kasutusjuhendi tõlge ....................................................... ET

iii
10.1 10.2
10.4 10.310.5
10.610.7
10.8
Fig. 2 Fig. 3
Fig. 1
1
2
35
6
7
4
8
6
4
8
7
2
9
Made in China Battery Hedge Trimmer
WA
L
dB
WA
L
48V

iv
Fig. 5
Fig. 4
Fig. 6
Fig. 7
Fig. 8
1
9

1
EN
Your hedge trimmer has been engineered and
manufactured to high standard for dependability, ease of
operation, and operator safety. When properly cared for,
it will give you years of trouble-free performance.
RULES FOR SAFE OPERATION
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, fire and/or serious injury
INTENDED USE
This hedge trimmer is intended for cutting and trimming
hedges and bushes in domestic use. It is not intended to
be used for cutting above shoulder level.
■Save all warnings and instructions for future
reference. The term “power tool” in the warnings
refers to your mains-operated (corded) power tool or
battery-operated(cordless) power tools.
USER TYPE
This machine is intended for use by consumers, i.e.
non-professional operators.The Machine is intended for
“DIY” use only.
WORK AREA SAFETY
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
PERSONAL SAFETY
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
■Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal
injuries.
EN
1
1. GENERAL SAFETY WARNINGS
■Prevent unintentional starting. Ensure the switch is in
the o-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying
power tools with your nger on the switch or energising
power tools that have the switch on invites accidents.
■Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
POWER TOOL USE AND CARE
■Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
■Do not use the power tool if the switch does not turn
it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
■Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
■Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may aect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed.Use of the power tool for operations
dierent from those intended could result in a
hazardous situation.
BATTERY TOOL USE AND CARE
■ Ensure the switch is in the o position before
inserting battery pack. Inserting the battery pack into
power tools that have the switch on invites accidents.
■ Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
■ Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
TABLE OF CONTENTS
1. General safety warnings ..............................................................................................................1
2. Symbols ......................................................................................................................................4
3. Specications ..............................................................................................................................5
4. Description ..................................................................................................................................5
5. Operation ....................................................................................................................................5
6. Maintenance and repair................................................................................................................6

2
EN
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
■ Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
SERVICE
■ Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
HEDGE TRIMMER SAFETY WARNINGS
■Keep all parts of the body away from the cutter blade.
Do not remove cut material or hold material to be
cut when blades are moving. Make sure the switch
is o when clearing jammed material.A moment of
inattention while operating the hedge trimmer may
result in serious personal injury.
■Carry the hedge trimmer by the handle with the cutter
blade stopped. When transporting or storing the
hedge trimmer always t the cutting device cover.
Proper handling of the hedge trimmer will reduce
possible personal injury from the cutter blades.
■ Hold the power tool by insulated gripping surfaces
only, because the cutter blade may contact hidden
wiring. Cutter blades contacting a “live” wire may
make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
READ ALL INSTRUCTIONS BEFORE OPERATING
■Read the instructions carefully. Be familiar with the
controls and proper use of the unit.
■Do not operate this unit when tired, ill, or under the
inuence of alcohol, drugs, or medication.
■Inspect the unit before use. Replace damaged parts.
■Check for battery pack leaks.
■Make sure all fasteners and guards are in place and
secure. Replace cutting blades or any other parts
that are cracked, chipped, or damaged. Make sure
the cutting blade is properly installed and securely
fastened. Failure to do so can result in personal injury
to the operator and bystanders, as well as damage
to the unit.
■Use the right tool. Only use this hedge trimmer for the
purpose intended.
■Do not use hedge trimmer if switch will not turn the
unit on or o. A unit that cannot be controlled with the
switch is dangerous and must be repaired.
■Clear the area to be cut before each use. Remove all
objects such as cords, lights, wire, or string which can
become entangled in the cutting blade.
■Clear the area of children, bystanders, and pets.
At a minimum, keep all children, bystanders and
pets outside a 15 m radius; there still may be a
risk to bystanders from thrown objects. If you are
approached, stop the unit immediately.
■Do not operate power tools in explosive atmospheres,
such as in the presence of  ammable liquids, gases
or dust. Power tools create sparks which may ignite
the dust or fumes.
■To avoid the risk of electric shock, do not operate unit
in damp or wet locations.
■Do not handle the unit with wet hands.
■Do not allow children or untrained individuals to use
this hedge trimmer.
■ To reduce the risk of injury, always wear full eye
protection, footwear, goggles and clothing when
using this machine.
■Wear a face or dust mask if the operation is dusty.
■Dress properly. Do not wear loose clothing or
jewellery; they can be caught in moving parts. Use of
rubber gloves, substantial footwear and long trousers
is recommended when working outdoors.
■To prevent hair from being drawn into nearby air
vents and becoming entangled in moving parts, wear
protective hair covering to contain long hair or secure
covered hair above shoulder level.
■ When transporting or storing the machine always t
with blade cover.
■Always be aware of your surroundings and stay alert
for possible hazards that you may not hear due to the
noise of the machine.
■Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before
turning it on.
■ Always ensure all the handles and guards are tted
when using the tool.
■Never attempt to use an incomplete machine or one
tted whith an unauthorised modication.
■The vibration level during actual use of the power tool
can dier from the declared total value depending on
the ways in which the tool is used.
■It has been reported that vibrations from hand-held
tools may contribute to a condition called Raynaud’s
Syndrome in certain individuals. Symptoms may
include tingling, numbness and blanching of the
ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness,
diet, smoking and work practices are all thought to
contribute to the development of these symptoms. It
is presently unknown what, if any, vibrations or extent
of exposure may contribute to the condition. There
are measures that can be taken by the operator to
possibly reduce the eects of vibration:
■Keep your body warm in cold weather. When
operating the unit wear gloves to keep the hands and
wrists warm. It is reported that cold weather is a major
factor contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician
about these symptoms.

3
EN
WHILE OPERATING
■Do not use trimmer without front handle in place.
Keep both hands on handles when unit is in use.
■To avoid accidental starting, never carry your unit
with your nger on the trigger.
■Stay alert and pay attention to what you are doing.
Use common sense when using this hedge trimmer.
■Wear heavy, long pants, substantial footwear and
well tting gloves. Do not wear short pants, sandals
or go barefoot.
■Do not operate in poor lighting. Use the unit only in
daylight or good articial light.
■Do not overreach or stand on unstable support. Keep
good footing and balance at all times. Do not use on
ladder.
■ Do not force the hedge trimmer. It will do the job
better and with less likelihood of a risk of injury at the
rate for which it was designed.
■Release the trigger, allow the motor to stop,
and remove the battery pack before performing
maintenance, repair, or making adjustments.
■This hedge trimmer is to be used for cutting hedges,
bushes, and shrubs only. Do not use for any other
purpose.
■Before starting the unit, make sure the cutting blades
will not come in contact with anything.
■If the machine strike or become entangled with
foreign objects, stop the unit immediately, remove the
battery pack and check for damage. Do not operate
before repairing damage. Do not operate the unit with
loose or damaged parts.
■Watch what you are doing. Use common sense.
■Maintain hedge trimmer with care. Keep cutting edge
sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating
and changing accessories. Keep handles dry, clean,
and free from oil and grease.
■Check damaged parts. Before further use of the
hedge trimmer, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform it’s intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other condition that may aect it’s operation. A guard
or other part that is damaged should be properly
repaired or replaced by a Authorised Service Centre
unless indicated elsewhere in this manual.
■Risk of cut. Keep hands away from blades. Do not
attempt to remove cut material or hold material to
be cut when blades are moving. Make sure battery
pack is removed and the trigger is released when
clearing jammed material from blades. Do not grasp
the exposed cutting blades or cutting edges when
picking up or holding the unit.
CAUTION
Blades continue to move for a short time after unit is
turned off.
■Keep hands, face, and feet at a safe distance from
moving parts. Do not touch or try to stop the cutting
blades when they are moving.
■Always stop the motor when cutting is delayed or
when walking from one cutting location to another.
■Keep unit clean of hedge clippings and other
materials. They may become lodged in the cutting
blades.
■Store the unit inside in a dry place, either locked up or
up high to prevent unauthorised use or damage. Keep
out of the reach of children or untrained individuals.
■Replace blade cover when unit is not in use.
■Never douse or squirt the unit with water or any other
liquid. Keep handles dry, clean and free from debris.
Clean after each use, see Storage instructions.
■Be sure to secure the unit while transporting.
■Keep these instructions. Refer to them often and use
them to instruct other users. If you loan someone this
unit, also loan them these instructions.
SERVICE
■ Service on unit must be performed only by qualied
repair personnel. Service or maintenance performed
by unqualied personnel could result in a risk of injury
to the user, or damage to the unit. It may also void
your warranty.
■When servicing a unit, use only identical replacement
parts. Follow instruction in the maintenace section of
this manual. Use of unauthorised parts or failure to
follow Maintenance Instructions may create a risk of
shock or serious injury to the user, or damage to the
unit. It may also void your warranty.
CAUTION
If any parts are missing, do not operate unit until the
missing parts are replaced, Failure to do so could
result in possible serious personal injury.
SAVE THESE INSTRUCTIONS. REFER TO THEM
FREQUENTLY AND USE THEM TO INSTRUCT
OTHERS WHO MAY USE THIS UNIT. IF YOU
LOAN SOMEONE THIS UNIT, LOAN THEM THESE
INSTRUCTIONS ALSO.

4
EN
2. SYMBOLS
Some of the following symbols may be used on this tool. Please study them and understand their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL DESIGNATION/EXPLANATION
Precautions that involve your safety.
Read the operation manual and follow all warnings and safety instructions.
Wear eye protection and ear protection.
Thrown objects can ricochet and result in personal injury or property damage. Wear protective
clothing and boots.
Wear non-slip, heavy duty gloves.
Keep all bystanders at least 15m away.
Do not expose to rain or damp conditions.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBoL MeANiNG
Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate
injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
50
'
15 m

5
EN
3. TECHNICAL DATA
Voltage 43.2 Volt DC
No load speed 1600/min
Blade speed 3200spm
Blade length 610 mm
Cutting capacity 20 mm
Weight with battery pack 2.7 KG
Measuered sound pressure level LPA=86 dB(A)
Measurerd uncertainly 3 dB(A)
Guaranteed sound power level LWA=99 dB(A)
Measurerd uncertainly 3 dB(A)
Vibration 2 m/s2
4. DESCRIPTION
1. Blade cover
2. Blade
3. Guard
4. Sensor switch
5. Front handle
6. Battery pack
7. Trigger lock button
8. Trigger
9. Rotate button
5. OPERATION
For complete charging instructions, refer to the perator’s
Manuals for your battery pack and charger models.
NOTE: To avoid serious personal injury, always remove
the battery pack and keep hands clear of the lock-out
button when carrying or transporting the tool.
INSTALL BATTERY PACK See Figure 2.
■Place the battery pack in the hedge trimmer. Align
raised rib on battery pack with groove in hedge
trimmer.
■Make sure the latch on the battery pack snaps in
place and that battery pack is secured in hedge
trimmer bofore beginning operation.
REMOVE BATTERY PACK See Figure 2.
■Locate the latch on the battery pack and depress to
release the battery pack from the hedge trimmer.
CAUTION
When placing battery pack in your hedge trimmer, be
sure raised rib on battery pack aligns with groove in
hedge trimmer and latch snaps in place properly.
Improper assembly of battery pack can cause
damage to internal componets.
STARTING THE HEDGE TRIMMER See Figure 3.
■Remove the blade cover.
■For added safety, there is a micro switch in the
fronthandle. When operating, hold the trimmer with
The example of the conformity declaration is found in the penultimate page of the manual.
10. Model label
10.1 CE mark .....
10.2 Name and address of Manufacturer
10.3 ACoustic power leve according to .....
10.4 Article code 10.5 Type code
10.6 Model name 10.7 Serial number
10.8 Year of manufacture

6
EN
BLADE MAINTENANCE – HEDGE TRIMMER
WARNING
Battery units do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. To prevent serious personal
injury, always remove the battery and take extra
precautions and care when performing maintenance,
service or for changing the cutting blade.
WARNING
To prevent serious personal injury, remove the battery
pack before servicing, cleaning, or removing material
from the unit.
DANGER
If blade jams on any electrical cord or line, DO NOT
TOUCH THE BLADE! IT CAN BECOME
ELECTRICALLY LIVE AND VERY DANGEROUS.
Continue to hold the hedge trimmer by the insulated
rear handle or lay it down and away from you in a safe
manner. Disconnect the electrical service to the
damaged line or cord before attempting to free the
blade from the line or cord. Failure to heed this
warning will result in serious personal injury or
possible death.
both hands, one hand to pull the trigger lock button
backward and squeeze the trigger, and the other
hand to squeeze the front handle.
■Release the trigger lock button and continue to
squeeze the trigger for extended operation.
STOPPING THE HEDGE TRIMMER
■Release the trigger to stop the hedge trimmer.
■Upon release of the trigger, the trigger lock button will
be automatically reset to the lock position.
■Remove battery pack from the hedge trimmer.
OPERATING TIPS
■Do not force the hedge trimmer through heavy
shrubbery. This can cause the blades to bind and
slow down. If the blades slow down, reduce the pace.
■Do not try to cut stems or twigs that are larger than
15 mm thick, or those obviously too large to feed into
the cutting blade. Use a non-powered hand saw or
pruning saw to trim large stems.
■If desired, you can use a string to help cut your
hedge level. Decide how high you want the hedge.
Then, stretch a piece of string along the hedge at this
height. Trim the hedge just above this guide line of
string. See Figure 4. Trim the side of a hedge so that
it will be slightly narrower at the top. See Figure 5.
More of the hedge will be exposed when shaped this
way, and it will be more uniform. If blades do become
jammed, stop the motor, allow the blades to stop and
remove the battery pack before attempting to remove
the obstruction.
■Wear gloves when trimming thorny or prickly growth.
When trimming new growth, use a wide sweeping
action, so that the stems are fed directly into the
cutting blade. Older growth will have thicker stems
and will be trimmed easiest by using a sawing
movement.
WARNING
Clear the area to be cut before each use. Remove all
objects such as cords, lights, wire, or string which can
become entangled in the cutting blade and create a
risk of serious personal injury.
WARNING
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged
by their use. Use a clean cloth to remove dirt,
oil,grease, etc. When servicing use only identical
replacement parts. Use of any other parts can create
a hazard or cause product damage.
CAUTION
Do not at any time let brake fluids, gasoline,
petroleum based products, penetrating oils, etc.,
come in contact with plastic parts. They contain
chemicals that may damage, weaken, or destroy
plastics.
6. MAINTENANCE AND REPAIR
BLADE CARE
■Lubricate the cutting blades after each use.
■Periodically inspect the blades for damage and wear.
■ Always use the manufacturer’s specied replacement
blades.
TO LUBRICATE BLADE See Figure 7.
■Remove battery pack from hedge trimmer.
■For easier operation and longer blade life, lubricate
the hedge trimmer blade before and after each use.
Before lubricating, remove the battery pack and lay
hedge trimmer on a at surface. Apply light weight
machine oil along the edge of the top blade.
■Occasionally, you should oil your hedge trimmer
during prolonged use. Before oiling, stop hedge
trimmer, remove battery pack, then oil. You then can
resume trimming. Do not oil while hedge trimmer is
running.

7
EN
the temperature, the quicker they lose their charge.
If you store your unit for long periods of time without
using it, recharge the batteries every month or two.
This practice will prolong battery pack life.
ENVIRONMENTAL PROTECTION
■Environmental protection should be a priority of
considerable importance when using the machine,
for the benet of both social coexistence and the
environment in which we live. Try not to cause any
disturbance to the surrounding area.
■Scrupulously comply with local regulations for the
disposal of packaging, deteriorated parts or any
elements with a strong environmental impact; this
waste must not be disposed of as normal waste, it
must be separated and taken to specied waste
disposal centres where the material will be recycled.
■Scrupulously comply with local regulations for the
disposal of waste materials after mowing.
■At the time of decommissioning, do not pollute the
environment with the machine, but hand it over to a
disposal centre, in accordance with the local laws in
force.
DISPOSAL
Do not dispose of electrical equipment with household
waste material. In observance of European Directive
2012/19/EC on waste electrical and electronic equipment
and its implementation in accordance with national
regulations, electric equipment that has reached the end
of its life must be collected separately and recycled in
an ecologically compatible way. If electrical equipment
is disposed of in dumps or in landlls, hazardous
substances can leak into the groundwater and get into
the food chain, damaging your health and well-being. For
further information on the disposal of this product, contact
a domestic waste collection authority or your dealer.
HEDGE TRIMMER LUBRICATION
■All of the bearings in this tool are lubricated with a
sucient amount of high-grade lubricant for the
life of the unit under normal operating procedures.
Therefore, no further lubrication is required.
WARNING
Do not attempt to modify this unit or create or mount
any accessory not specifically recommended in this
manual for use with this hedge trimmer. Any such
alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING
Examine hedge trimmer frequently to assure all parts
are unbroken and securely attached. Make sure all
screws and fasteners are securely tightened to
prevent the risk of serious personal injury.
CLEANING THE HEDGE TRIMMER
WARNING
To prevent serious personal injury, remove the battery
pack before servicing, cleaning, or removing material
from the unit.
■Remove the battery pack.
■Clean the unit using a damp cloth with a mild
detergent.
■Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by
certain aromatic oils such as pine and lemon, and by
solvents such as kerosene.
■ Moisture can cause a shock hazard. Wipe o any
moisture with a soft dry cloth.
■Use a small brush or the air discharge of a small
vacuum cleaner brush to clean the air vents on the
battery pack housing and motor housing. Keep the air
vents free of obstructions.
STORING THE HEDGE TRIMMER See Figure 8.
■Clean the hedge trimmer thoroughly before storing.
Store the hedge trimmer in a dry, well-ventilated
place that is inaccessible to children. Keep away
from corrosive agents such as garden chemicals and
deicing salts.
■Always place blade cover on cutting blades before
storing.
■Store and charge your batteries in a cool area.
Temperatures above or below normal room
temperature will shorten battery pack life.
■Store the battery pack where the temperature is
below 27°C, and away from moisture.
■Never store batteries in a discharged condition. Wait
for battery pack to cool and fully charge immediately.
■All batteries gradually lose their charge. The higher

doc_base r.4 - hh-cs-b_0
DICHIARAZIONE CE DI CONFORMITÁ
(Direttiva Macchine 2006/42/CE, Allegato II, parte A)
1. La Società: GGP Italy S.p.A. – Via del Lavoro, 6 – 31033 Cast elfranco Veneto (TV) – Italy
2. Dichiara sotto la propria responsabilità, che la macchina: Sega a catena con alimentazione a batteria ,
abbattimen to / sezionamento / sramatura di alberi
a) Tipo / Modello Base
b) Modello commerciale
c) Anno di costruzione
d) Matricola
e) Motore a batteria
3. É conforme alle specifiche delle direttive:
·MD: 2006/42/EC
f) Ente Certificatore
g) Esame CE deltipo:
·OND: 2000/14/EC, ANNEX V
·EMCD: 2004/108/EC
·RoHS II: 2011/65/EU
4. Riferimento alle Norme armonizzate:
EN 60745-1:2009/A11:2010
EN 60745-2-13:2009
i) Livello di potenza sonora misurato dB(A)
j) Livello di potenza sonora garantito dB(A)
m) Potenza installata kW
q) Persona autorizzata a costituire il FascicoloTecnico: GGP ITALY S.p.A.
Via delLavoro, 6
31033 Castelfranco Veneto (TV)- Italia
r) Castelfranco V.to, 00.00.2014 Vice Presidente R&D &Quality
Ing. Raimondo Hippoliti
doc_base r.4 - hh-cs-b_0
FR
Déclaration CE de Conformité
(Directive Machines 2006/42/CE, Annexe II, partie
A)
1. La Société
2. Déclare sous sa propre responsabilité que la
machine : Scie à chaîne sans fil,
abattage/tronçonnage/ébranchage d’arbres
a) Type / Modèle de Base
b) Modèle commercial
c) Année de construction
d) Série
e) Moteur: batterie
3. Est conforme aux prescriptions des
directives :
f) Organisme de certification
g) Examen CE du Type
4. Renvoi aux Normes harmonisées
i) Niveaude puissance sonore mesuré
j) Niveaude puissance sonore garanti
m) Puissance installée
q) Personne habilitée à établir le Dossier
Technique :
r) Lieu et Date
EN
EC Conformity Statement
(Machine Directive 2006/42/EC, Annex II, part A)
1. The Company
2. Declares under its own responsibility that the
machine: Battery powered chainsaw, felling,
bucking, delimbing trees
a) Type / Base Model
b) Commercial model
c) Yearof manufacture
d) Serial number
e) Motor: battery-operated
3. Conforms to directive specifications:
f) Certifying body
g) EC examination of Type
4. Reference to harmonised Standards
i) Sound power level measured
i) Sound power level guaranteed
m) Power installed
q) Person authorised to create the Technical
Folder:
r) Place and Date
DE
EG-Konformitätserklärung
(Maschinenrichtlinie 2006/42/EG, Anhang II, Teil
A)
1. Die Gesellschaft
2. Erklärt auf eigene Verantwortung, dass die
Maschine: Batteriebetriebene Kettensäge,
fällen/schneiden/entasten von Bäumen
a) Typ / Basismodell
b) Handelsmodell
c) Baujahr
d) Seriennummer
e) Motor: Batterie
3. Den Anforderungen der folgenden Richtlinien
entspricht:
f) Zertifizierungsstelle
g) EG-Baumusterprüfung
4. Bezugnahme auf die harmonisierten Normen
i) Gemessener Schallleistungspegel
j) Garantierter Schallleistungspegel
m) Installierte Leistung
q) Zur Verfassung der technischen Unterlagen
befugte Person:
r) Ort und Datum
NL
EG-verklaring van overeenstemming
(Richtlijn Machines 2006/42/CE, Bijlage II, deel A)
1. Het bedrijf
2. Verklaart onder zijn eigen
verantwoordelijkheid dat de machine:
Kettingzaag met accuvoeding,
vellen/snijden/snoeien vanbomen
a) Type / Basismodel
b) Handelsmodel
c) Bouwjaar
d) Serienummer
e) Motor: accu
3. Voldoet aan de specificaties vande
richtlijnen:
f) Certificatie-instituut
g) EG-onderzoek vanhet Type
4. Verwijzing naarde Geharmoniseerde normen
i) Gemeten niveau van geluidsvermogen
j) Gegarandeerd niveau van geluidsvermogen
m) Geïnstalleerd vermogen
q) Bevoegd persoon voorhet opstellen van het
Technisch Dossier
r) Plaats en Datum
ES
Declaración de Conformidad CE
(Directiva Máquinas 2006/42/CE, Anexo II, parte
A)
1. La Empresa
2. Declara bajo su propia responsabilidad que la
máquina: Sierrade cadena con alimentación por
batería, tala/seccionamiento/poda de árboles
a) Tipo / Modelo Base
b) Modelo comercial
c) Año de fabricación
d) Matrícula
e) Motor: batería
3. Cumple con las especificaciones de las
directivas:
f) Ente certificador
g) Examen CE del Tipo
4. Referencia a las Normas armonizadas
i) Nivelde potencia sonora medido
j) Nivelde potencia sonora garantizado
m) Potencia instalada
q) Persona autorizada a realizar el Manual
Técnico:
r) Lugar y Fecha
PT
Declaração CE de Conformidade
(Diretiva de Máquinas 2006/42/CE, Anexo II,
parte A)
1. A Empresa
2. Declara sob a própria responsabilidade que a
máquina: Serra de corrente com alimentação a
bateria, abate/secionamento/desramação
a) Tipo / Modelo Base
b) Modelo comercial
c) Ano de fabricação
d) Matrícula
e) Motor: Bateria
3. É conforme às especificações das diretivas:
f) Órgão certificador
g) Exame CE do Tipo
4. Referência às Normas harmonizadas
i) Nível medido de potência sonora
j) Nívelgarantido de potência sonora
m) Potência instalada
q) Pessoa autorizada a elaborar o Caderno
Técnico
r) Local e Data
EL
EK-
( 2006/42/CE, II,
A)
1.
2. :
,
/ /
a) /
b)
c)
d)
e) :
3.
:
f)
g) CE
4.
i)
j)
l)
q)
:
r)
TR
AT Uygunluk Beyanı
(2006/42/CE Makine Direktifi, Ek II, bölüm A)
1. irket
2. ahsi sorumlulu u altında aşaıdaki
makinenin: Batarya beslemeli zincirli testere,
Aaçların kesilip devrilmesi/parçalara
bölünmesi/dallarının budanması
a) Tip / Standart model
b) Ticari model
c) malat yılı
d) Sicil numarası
e) Motor: batarya
3. Aşaıdaki direktiflerin özelliklerineuygun
oldu unu beyan etmektedir:
f) Sertifikalandıran kurum
g) ... Tipi CE incelemesi
4. Harmonize standartlara atıf
i) Ölçülen ses güç seviyesi
i) Garanti edilen ses güç seviyesi
m) Kurulu güç
q) Teknik Dosyayı oluşturmaya yetkili kişi:
r) Yer ve Tarih
MK
заусогласеност соЕУ
(Директивазамашини2006/42/CE, АнексII,
делA)
1.
2. соцелосна личнаодговорнос
т
дека следната машина: моторнапилана
батерии, / /
дрва
а) Тип/ основенмодел
б) модел
в) годинанапроизводство
г) етикета
д) мотор: акумулатор
3. Усогласено со спецификаци
ите според
директивите:
) телоза
е) тестСЕзатипот
4. заусогласенинормативи
з) измеренониво
) Нивона гарантирана звучна
к) инсталирана
н) овластенолицеза
Техничкатаброшура
) местоидатум
doc_base r.4 - hh-cs-b_0
NO
EF- Samsvarserklæring
(Maskindirektiv 2006/42/EF, Vedlegg II, del A)
1. Firmaet
2. Erklærer på eget ansvar at maskinen:
Batteridreven kjedesag, nedfelling/kutt/kvisting
av trær
a) Type / Modell
b) Handelsnavn
c) Produksjonsår
d) Serienummer
e) Motor: batteri
3. Oppfyller kravene i direktivene:
f) Sertifiseringsorgan
g) EF-typeprøving
4. Henvisning til harmoniserte standarder
i) Målt lydeffektnivå
j) Garantert lydeffektnivå
m) Installert effekt
q) Person som har fullmakt til å utferdige teknisk
dokumentasjon:
r) Sted og dato
SV
EG-försäkran om överensstämmelse
(Maskindirektiv 2006/42//EG, bilaga II, de la)
1. Företaget
2. Försäkrar på eget ansvar att maskinen:
Batteridriven kedjesåg,
fällning/kapning/grenklippning av träd
a) Typ / Basmodell
b) Handelsmodell
c) Tilverkningsår
d) Serienummer
e) Motor: batteri
3. Överensstämmer med föreskrifterna i
direktivet
f) Intygsorgan
g) EG typgodkännande
4. Referens till harmoniserade standarder
i) Uppmätt ljudeffektnivå
j) Garanterad ljudeffektnivå
m) Installerad effekt
q) Auktoriserad person för upprättandet av den
tekniska dokumentationen:
r) Ort och datum
DA
EF-overensstemmelseserklæring
(Maskindirektiv 2006/42/EF, bilag II, del A)
1. Firmaet
2. Erklærer på eget ansvar, at maskinen:
Batteridrevet kædesav, fældning af
træer/udskæring af stykker/opskæring af grene
a) Type / Model
b) Handelsbetegnelse
c) Fremstillingsår
d) Serienummer
e) Motor: batteri
3. Er i overensstemmelse med specifikationerne
ifølge direktiverne:
f) Certificeringsorgan
g) EF-typeafprøvning
4. Henvisning til harmoniserede standarder
i) Målt lydeffektniveau
j) Garanteret lydeffektniveau
m) Installeret effekt
q) Person, der har bemyndigelse til at udarbejde
det tekniske dossier:
r) Sted og dato
FI
EY-VAATIMUSTENMUKAISUUSVAKUUTUS
(Konedirektiivi 2006/42/EY, Liite II, osa A)
1. Yritys
2. Vakuuttaa omalla vastuullaan, että kone:
akkukäyttöinen moottorisaha, Puiden
kaataminen/pilkkominen/karsinta
a) Tyyppi / Perusmalli
b) Myyntimalli
c) Valmistusvuosi
d) Sarjanumero
e) Moottori : akku
3. On yhdenmukainen seuraavien direktiivien
asettamien vaatimusten kanssa:
f) Sertifiointiyritys
g) EY-tyyppitarkastus
4. Viittaus harmonisoituihin standardeihin
i) Mitattu äänitehotaso
j) Taattu äänitehotaso
m) Asennettu teho
q) Teknisten asiakirjojen laatimiseen valtuutettu
henkilö:
r) Paikka ja päivämäärä
CS
ES – Prohlášení o shodě
(Směrnice o Strojních zařízeních 2006/42/ES,
Příloha II, část A)
1. Společnost
2. Prohlašuje na vlastní odpovědnost, že stroj:
řetězová pila napájená z akumulátoru,
Kácení/rozřezávání/odvětvování stromů
a) Typ / Základní model
b) Obchodní model
c) Rok výroby
d) Výrobní číslo
e) Motor: akumulátor
3. Je ve shoděs nařízeními směrnic:
f) Certifikační orgán
g) ES zkouška Typu
4. Odkazy na Harmonizované normy
i) Naměřená úroveňakustického výkonu
i) Zaručená úroveňakustického výkonu
m) Instalovaný výkon
q) Osoba autorizovaná pro vytvoření
Technického spisu:
r) Místo a Datum
PL
Deklaracja zgodności WE
(Dyrektywa maszynowa 2006/42/WE, Załącznik II,
częśćA)
1. Spółka
2. Oświadcza na własnąodpowiedzialność , że
maszyna: piła łańcuchowa akumulatorowa,
Ścinanie, obalanie/przerzynanie/okrzesywanie
drzew
a) Typ / Model podstawowy
b) Model komercyjny
c) Rok produkcji
d) Numer seryjny
e) Silnik: akumulator
3. Spełnia podstawowe wymogi następujących
Dyrektyw:
f) Jednostka certyfikująca
g) Badanie typu WE
4. Odniesienie do Norm zharmonizowanych
i) Zmierzony poziom mocy akustycznej
j) Gwarantowany poziom mocy akustycznej
m) Moc zainstalowana
q) Osoba upoważniona do zredagowania
Dokumentacji technicznej:
r) Miejscowość i data
HU
EK-megfelelőségi nyilatkozata
(2006/42/EK gépirányelv, II. melléklet "A" rész)
1. Alulírott Vállalat
2. Felelősségének teljes tudatában kijelenti,
hogy az alábbi gép: akkumulátoros láncfűrész,
Fák kidöntése/darabolása/gallyazása
a) Típus / Alaptípus
b) Kereskedelmi típus
c) Gyártási év
d) Gyártási szám
e) Motor: akkumulátor
3. Megfelel az alábbi irányelvek előírásainak:
f) Tanúsító szerv
g) CE vizsgálat típusa
4. Hivatkozás a harmonizált szabványokra
i) Mért zajteljesítmény szint
i) Garantált zajteljesítmény szint
m) Beépített teljesítmény
q) Műszaki Dosszié szerkesztésére
felhatalmazott személy:
r) Helye és ideje
RU
ДекларациясоответствиянормамЕС
(Директиваомашинномоборудовании
2006/42/ЕС, ПриложениеII, частьA)
1. Предприятие
2. Заявляет под собственную
ответственность, чтомашина: цепнаяпилас
батарейным питанием,
Валка/разделка/обрезкаветвей деревьев
a) Тип/ Базоваямодель
b) Коммерческое наименование
c) Годизготовления
d) Паспорт
e) Двигатель: батарея
3. Соответствует требованиям следующих
директив:
f) Сертифицирующийорган
g) ИспытаниеЕСтиповогообразца
4. Ссылки
на гармонизированныенормы
i) Измеренный уровеньзвуковоймощности
j) Гарантируемый уровеньзвуковой
мощности
m) Установленная мощность
q) Лицо, уполномоченное наподготовку
технической документации:
r) Местоидата
HR
EK Izjava o sukladnosti
(Direktiva 2006/42/EZ o strojevima, dodatak II,
dio A)
1. Tvrtka:
2. pod vlastitom odgovornošću izjavljuje da je
stroj: lančana pila s baterijskim napajanjem,
Obaranje/prerezivanje/obrezivanje stabala
a) Vrsta / Osnovni model
b) Komercijalni model
c) Godina proizvodnje
d) Matični broj
e) Motor: baterija
3. sukladan s temeljnim zahtjevima direktiva:
f) Certifikacijsko tijelo
g) Tipsko ispitivanje EZ
4. Primijenjene su slijedećeharmonizirane
norme:
i) Izmjerena razina zvučne snage
j) Zajamčena razina zvučne snage
m) Instalirana snaga
q) Osoba ovlaštena za pravljenje Tehničke
datoteke:
r) Mjesto i datum
SL
ES izjava o skladnosti
(Direktiva 2006/42/ES) , priloga II, del A)
1. Družba
2. pod lastno odgovornostjo izjavlja, da je stroj:
Akumulatorska verižna žaga,
podiranje/rezanje/odstranjevanje vej
a) Tip / osnovni model
b) tržni model
c) Leto izdelave
d) Serijska šbaterija tevilka
e) Motor:
3. Skladen je z določili direktiv :
f) Ustanova, ki izda potrdilo
g) ES pregled tipa
4. Sklicevanje na usklajene predpise
i) Izmerjen nivo zvočne moči
j) Zagotovljen nivo zvočne moči
m) Instalirana moč
q) Oseba, pooblaščena za sestavo tehnične
knjižice:
r) Kraj in datum
BS
EZ izjava o sukladnosti
(Direktiva o mašinama 2006/42/EZ, Prilog II, deo
A)
1. Firma
2. Daje izjavu pod vlastitom odgovornošću da je
mašina: Lančana pila na bateriju, obaranje i
sječadrveća/rezanje grana
a) Tip / Osnovni model
b) Komercijalni model
c) Godina proizvodnje
d) Serijski broj
e) Motor: akumulator
3. sukladna s osnovnim zahtjevima direktive:
f) Certifikaciono tijelo
g) EZ ispitivanje tipa
4. Pozivanje nausklađene norme
i) Izmjereni nivo zvučne snage
i) Garantovani nivo zvučne snage
m) Instalisana snaga
q) Osoba ovlaštena za izradu tehničke brošure:
r) Mjesto i datum
SK
ES vyhlásenie o zhode
(Smernica o Strojných zariadeniach 2006/42/ES,
Príloha II, časťA)
1. Spoločnosť
2. Vyhlasuje na vlastnú zodpovednosť, že stroj:
Reťazová píla napájaná z akumulátora,
stínanie/rozrezávanie/odvetvovanie stromov
a) Typ / Základný model
b) Obchodný model
c) Rok výroby
d) Výrobné číslo
e) Motor:
3. Je v zhode s nariadeniami smerníc:
f) Certifikačný orgán
g) Skúška typu ES
4. Odkaz na Harmonizované normy
i) Nameraná úroveňakustického výkonu
j) Zaručená úroveňakustického výkonu
m) Inštalovaný výkon
q) Osoba autorizovaná na vytvorenie
Technického spisu:
r) Miesto a Dátum
RO
CE -Declaratie de Conformitate
(Directiva Maşini 2006/42/CE, Anexa II, partea A)
1. Societatea
2. Declarăpe propria răspundere cămaşina:
Ferăstrău cu lanţcu alimentare pe baterie,
Doborâre/secţionare/tăierea ramurilorde copaci
a) Tip / Model de bază
b) Model comercial
c) An de fabricaţie
d) Numărde serie
e) Motor: baterie
3. Este în conformitate cu specificaţiile
directivelor:
f) Organism de certificare
g) Examinare CE de Tip
4. Referinţă la Standardele armonizate
i) Nivelde putere sonorămăsurat
j) Nivelde putere sonorăgarantat
m) Putere instalată
q) PersoanăautorizatăsăîntocmeascăDosarul
Tehnic
r) Locul şi Data
LT
EB atitikties deklaracija
(Mašinųdirektyva 2006/42/CE, Priedas II, dalis A)
1. Bendrovė
2. Prisiima atsakomybę, kad įrenginys: Baterija
maitinamas grandininis pjūklas, medžių
kirtimas/pjaustymas/genėjimas
a) Tipas / Bazinis Modelis
b) Komercinis modelis
c) Pagaminimo metai
d) Serijos numeris
e) Variklis: baterija
3. Atitinka direktyvose pateiktas specifikacijas:
f) Sertifikavimo įstaiga
g) CE tipo tyrimas
4. Nuoroda įsuderintas Normas
i) Išmatuotas garso galios lygis
i) Užtikrinamas garso galios lygis
m) Instaliuota galia
q) Autorizuotas asmuo sudaryti Techninę
Dokumentaciją:
r) Vieta ir Data
LV
EK atbilstības deklarācija
(Direktīva 2006/42/EK par mašīnām, pielikums II,
daļa A)
1. Uzņēmums
2. Uzņemoties par to pilnu atbildību, paziņo, ka
mašīna: ķēdes zāģis ar barošanu no
akumulatora, Koku gāšana/zāģēšana/atzarošana
a) Tips / Bāzes modelis
b) Komerciālais modelis
c) Ražošanas gads
d) Sērijas numurs
e) Motors: akumulators
3. Atbilst šādu direktīvu prasībām:
f) Sertifikācijas iestāde
g) CE tipveida pārbaude
4. Atsauce uz harmonizē
tiem standartiem
i) Izmērītais skaņas intensitātes līmenis
j) Garantētais skaņas intensitātes līmenis
m) Uzstādītājauda
q) Pilnvarotais darbinieks, kas sagatavoja
tehnisko dokumentāciju:
r) Vieta un datums
SR
EC deklaracija o usaglašenosti
(Direktiva o mašinama 2006/42/EC, Prilog II, deo
A)
1. Preduzeće
2. Daje izjavu pod vlastitom odgovornošću da je
mašina: lančana testera nabateriju, obaranje i
sečadrveća/rezanjegrana
a) Tip / Osnovni model
b) Komercijalni model
c) Godina proizvodnje
d) Serijski broj
e) Motor: akumulator
3. u skladu s osnovnim zahtevima direktiva:
f) Sertifikaciono telo
g) EC ispitivanje tipa:
4. Pozivanje na usklađene norme
i) Izmereni nivo zvučne snage
j) Garantovani nivo zvučne snage
m) Instalisana snaga
q) Osoba ovlašćena za sastavljanje tehničke
brošure
r) Mesto i datum
BG
ЕОдекларациязасъответствие
(ДирективаМашини2006/42/ЕО, Приложение
II, частА)
1. Дружеството
2. Насобственаотговорност декларира, че
машината: верижна резачка захранванас
батерия, Сеч/нарязване на трупи/окастряне
клонитенадървета
а) Вид/ Базисенмодел
б) Търговскимодел
в) Годинанапроизводство
г) Сериенномер
д) Мотор: акумулатор
3. Е всъответствиесъс спецификата на
директивите:
е) Сертифициращорган
ж) ЕОизследване навида
4. Базирано на хармонизиранитенорми
и) Нивона измерена акустична мощност
й) Гарантиранонивона акустична мощност
м) Инсталирана мощност
р) Лице, упълномощенодасъстави
Техническата Документация:
с) Мястоидата
ET
EÜ vastavusdeklaratsioon
(Masinadirektiiv 2006/42/EÜ, Lisa II, osa A)
1. Firma
2. Kinnitab omal vastutusel, et masin: akutoitega
kettsaag, Puude
langetamine/järkamine/laasimine
a) Tüüp / Põhimudel
b) Kaubanduslik mudel
c) Ehitusaasta
d) Matrikkel
e) Mootor: aku
3. Vastab direktiivide nõuetele:
f) Kinnitav asutus
g) EÜ tüübihindamine
4. Viide ühtlustatud standarditele
i) Mõõdetud helivõimsuse tase
j) Garanteeritud helivõimsuse tase
m) Installeeritud võimsus
q) Tehnilise Lehe autoriseeritud koostaja:
r) Koht ja Kuupäev

Realizzazione: EDIPROM - Bergamo
© by GGP ITALY
spa
• Soggetto a modifiche senza preavviso • Подлежи на промени без предупреждение • Moguće su promjene bez najave • Možnost
změn bez předešlého upozornění • Ret til ændringer forbeholdes • Kann ohne Vorankündigung geändert werden • Υπόκειται σε αλλαγές
χωρίς προειδοποίηση • Subject to modifications without notice • Sujeto a modificaciones sin previo aviso • Võimalikud muudatused ilma
ette teatamata • Voidaan tehdä muutoksia ilman ennakkoilmoitusta • Sujet à des modifications sans aucun préavis • Podložno promjena-
ma bez prethodne obavijesti • Előzetes értesítés nélkül módosítható • Objekto pakeitimai be perspėjimo • Var tikt mainīts bez iepriekšēja
brīdinājuma • Подлежи на промени без претходно известување • Kan zonder kennisgeving wijzigingen ondergaan • Kan endres uten
forvarsel • Poddawany modyfikacjom bez awizowania • Sujeito a alterações sem aviso prévio • Poate fi modificat, fără preaviz • Moжет
быть изменено без преомления • Možnosť zmien bez predošlého upozornenia • Lahko pride do sprememb brez predhodnega obvesti-
la • Podložno izmenama bez upozorenja • Kan utsättas för modifieringar utan att detta meddelas • Önceden haber verilmeksizin değiştirilebilir
