Giant CONTACT SL SWITCH User manual

GIANT CONTACT SL SWITCH SEATPOST
USER’S MANUAL

1
 INTRODUCTION
 BILL OF MATERIALS
 SPECIFICATIONS & TOOLS
 PROCEDURES
 DISASSEMBLING & REASSEMBLING CARTRIDGE
 INSTALLING SEATPOST ON BIKE
 OPERATION OF SEATPOST
 GIANT LIMITED WARRANTY

2
 INTRODUCTION
Congratulations on the purchase of your new GIANT CONTACT SWITCH
seatpost. This product is designed to help you ride more efficiently in technical
situations and ultimately help you enjoy your rides. When used properly, this
product will provide years of use.
Precaution
Please read the instructions thoroughly before installation and using this
seatpost. Failure to follow the instructions may result in serious injury or death.
1. Adjusting the position of the saddle height during riding can cause the loss
of control.
2. Never ride with a Contact Switch seatpost that is modified, or excessively
worn. Do not modify the Contact Switch seatpost; any modifications will
void the warranty, and could cause invisible damages to the seatpost
and/or the seatpost malfunctions.
3. Loose, over tightened, damaged, or worn parts may cause unexpected
malfunction. Periodically check the seatpost for wear or damage. If there
are any indications of wear, cracks, or dents shown on the seatpost or any
of its parts, stop using the seatpost immediately and find an authorized
GIANT dealer for inspection, repair or replacement of the parts.
4. Please check that all bolts on the Contact Switch seatpost have been
properly fastened within the recommended torque settings before you ride
the bike.
5. Over tightening the seatpost clamp will affect the height-adjustment
functionality of the seatpost, please find the recommended clamping torque
etched on the seatpost clamp or in the bicycle user manual.

3
 BILL OF MATERIALS
Contact Switch seatpost –External Cable Routing Position

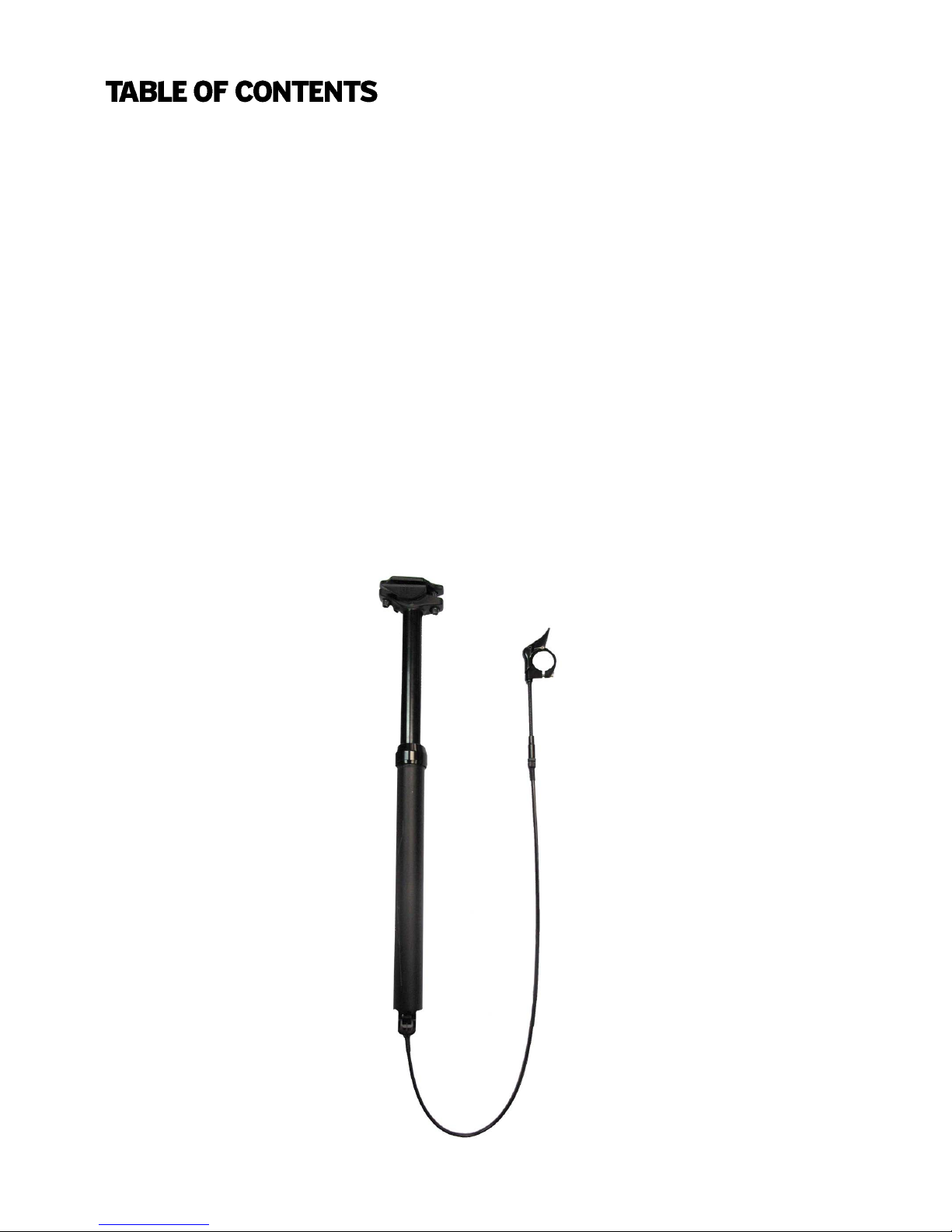

Please refer to the illustration in the Table of Contents for internal cable routing
position view.
Saddle Clamp Body
Seatpost Stanchion
Dust Wiper
Bearing Retainer
Lower Cap
Remote Control Unit
Barrel
Seatpost
Lower Tube
Cable Casing

4

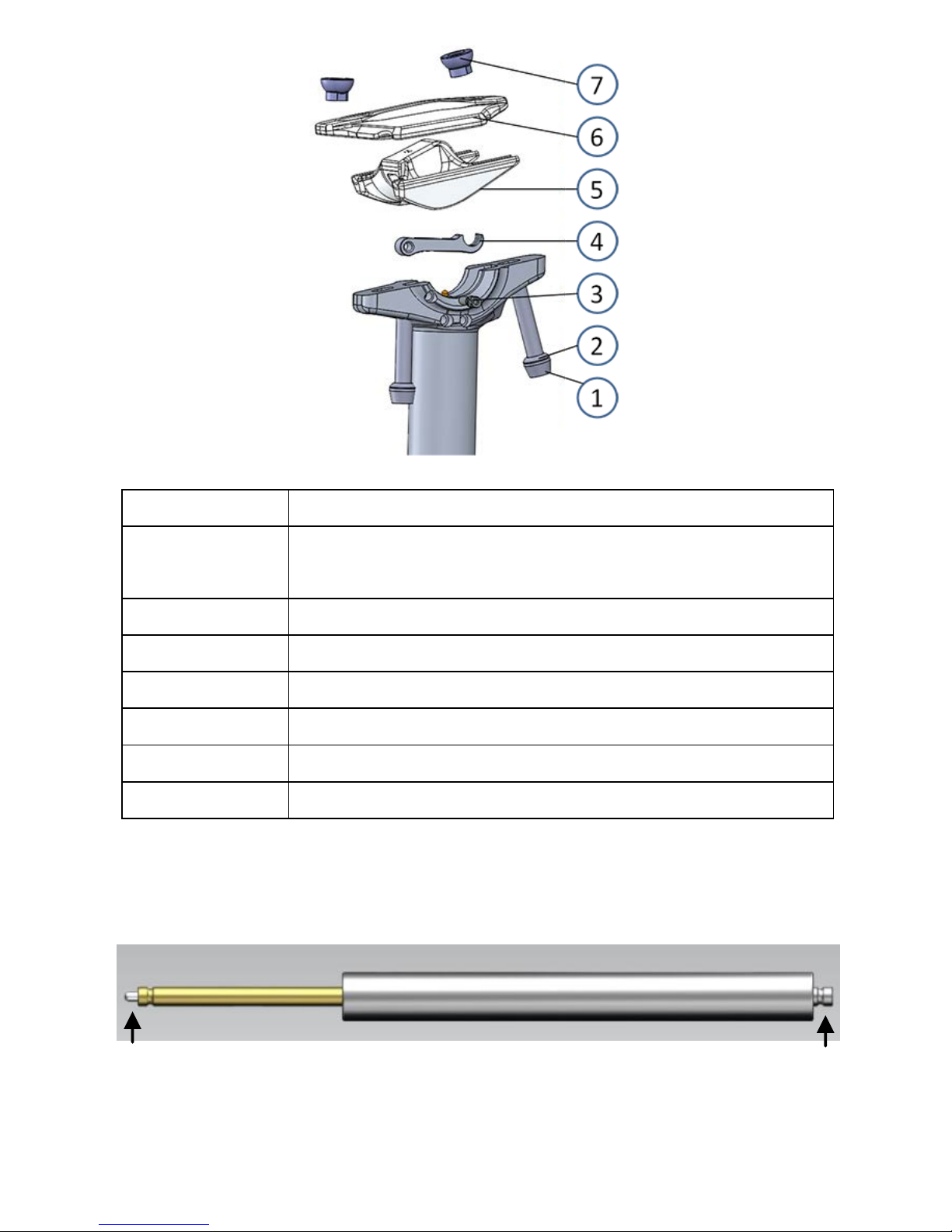

Saddle Clamp Unit –
Ref #
Description
1
Clamp bolt: M6 mm hex key,
Max Torque: 8.0 Nm | 70 lbs-in | 80 kgf-cm
2
3
Tube fixing screw
4
5
Saddle outer clamp – Down (7 / 9 mm rail only)
6
Saddle outer clamp – Top (7 / 9 mm rail only)
7
Clamp nut (M6)
Contact Switch seatpost cartridge –
Damper shaft
Cartridge body
Trigger
Mounted head
Washer
Top tube

5
 SPECIFICATIONS
The Contact Switch seatpost is designed to have the remote cable run either
internally or externally. Internal cable routing requires the cartridge trigger to be
at the bottom of the post; external routing requires the trigger to be at the top.
Specifications
 Seat tube diameter: 30.9 mm
 Minimum insertion: 100 mm
 Seatpost length:
‒ 440mm / cartridge travel 150 mm
‒ 395mm / cartridge travel 125 mm
‒ 345mm / cartridge travel 100 mm
Tools
 Allen Key (hex wrench): 2/2.5/3/5/8 mm
 Cable cutter
 A calibrated torque wrench

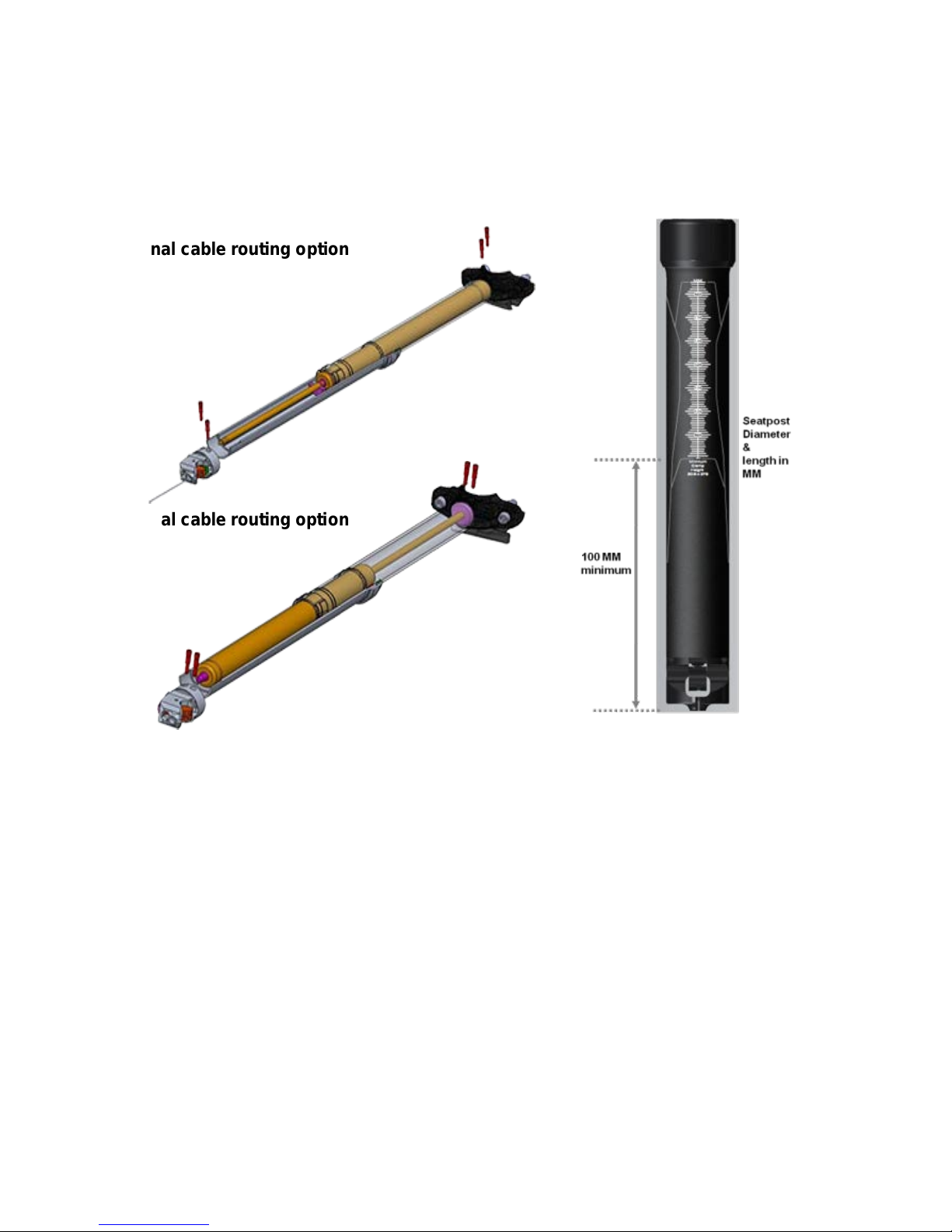

Internal cable routing option
External cable routing option

6
Re
 PROCEDURES

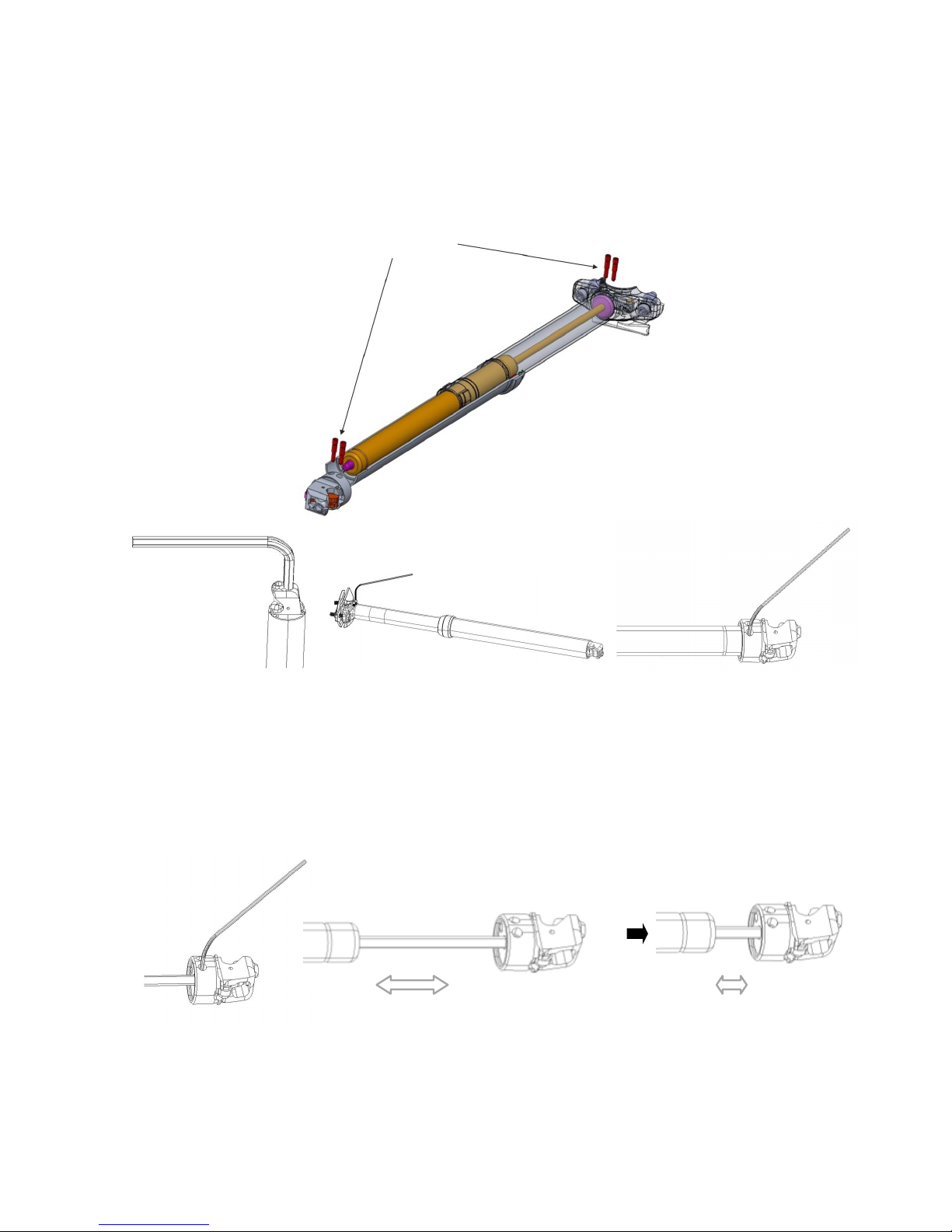

DISASSEMBLING & REASSEMBLING CARTRIDGE
Disassembling The Cartridge
Reassembling The Cartridge
Remove the lower cap
using a 8mm hex key.
Remove the cartridge fixing
screws from saddle clamp
body using a 2.5 mm hex
key. Pull out the cartridge.
Remove screws from the
lower cap. Remove the
lower cap from cartridge.
Attach the cartridge to the
lower cap. Fasten the
cartridge screws to the
recommended torque.
Operate the trigger to compress the cartridge through
about half it’s travel (approximately 50mm) to make
installation of the cap easier and allow the cartridge to
function properly once installed.

7
Fasten the lower cap to
the recommended torque
setting.
NOTE: Fasten the cartridge trigger at the saddle clamp body for the external
cable routing. Fasten the trigger at the lower cap for the internal cable routing
option.
INSTALLING SEATPOST ON BIKE
WARNING
 If you have any doubts about your ability to properly install the Contact
Switch seatpost, please visit an authorized GIANT dealer.
 To prevent serious injury while riding, be sure your entire bicycle is
adequately maintained and that all components are correctly installed and
adjusted.
Installing Procedure
1. Remove the existing seatpost and saddle from the bike before installation.
2. Thread the remote control cable through the remote cable stopper.
3. Route the remote cable casing and remote cable in
compliance with the cable routing instruction of the
bicycle/frame manufacturer.
CAUTION: It could be necessary to remove the
crank, chain ring and BB parts before routing the cable inside the frame. It is a
complex job to remove and reinstall these parts, we recommend finding an
authorized GIANT dealer for assistance, if you choose to use the internal routing
option.
Insert cartridge to the
seatpost lower tube to the
end. Fasten the fixing
screws.
Recommended Torques:
- Cartridge fixing screws:
1.1 Nm | 10 lbs-in |
12kgf-cm
- Lower cap: 16 Nm |
141 lbs-in | 163kgf-cm
WARNING: Not fastening the
screw to the recommended
torque can cause the parts to
loosen when riding, which
can result in severe injury.

8
Hang the remote control
cable stopper on the lower
compressing lever.
Thread the cable through the barrel
until attaching the cable casing tightly.
Thread the cable through the
holes on the remote control unit.
Pull the cable taut and ensure the
seatpost, cable casing, barrel,
and remote control unit attached
correctly.

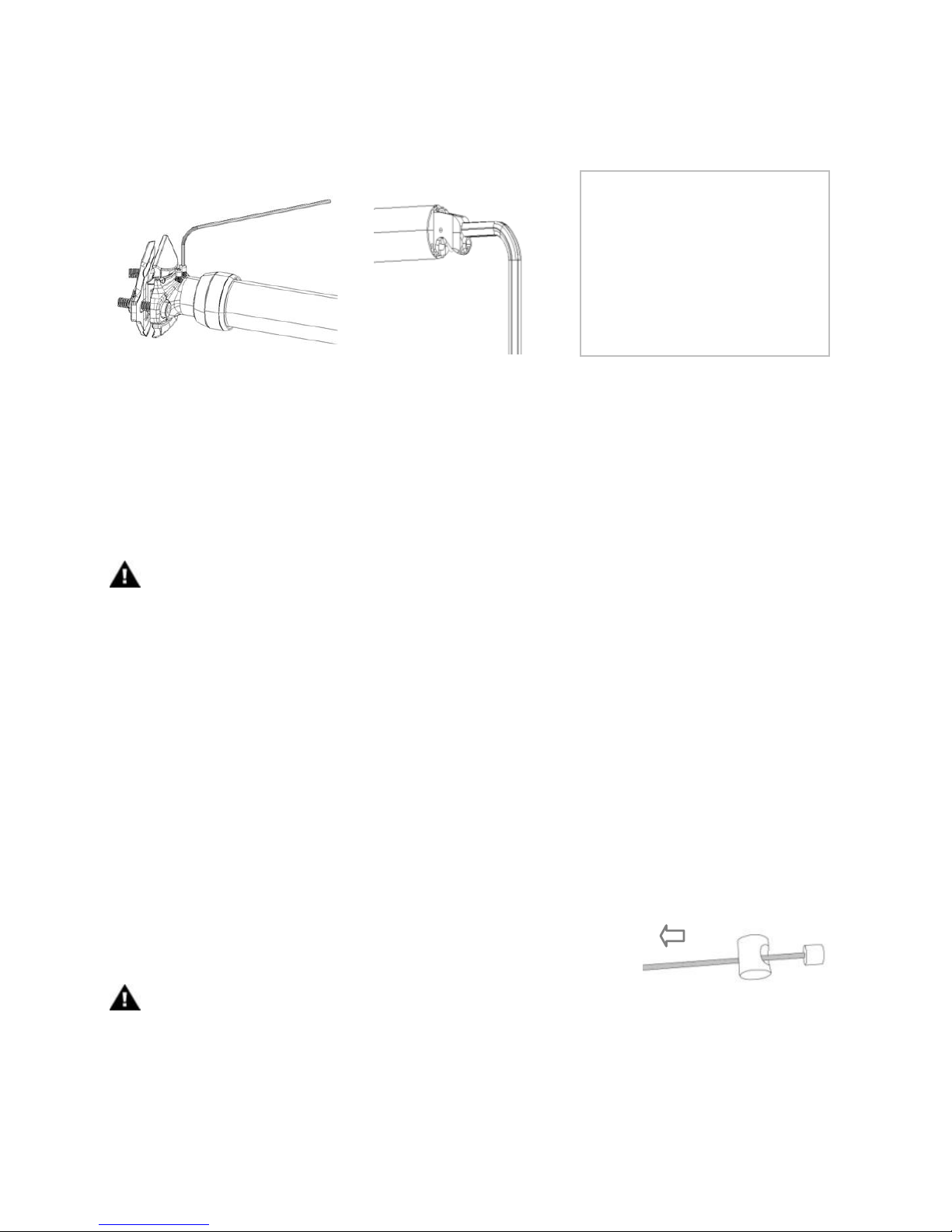

4. Assemble the remote control cable to the seatpost and the remote control
unit.
I. Hang the cable stopper on the seatpost.
 Install the remote control cable for external cable:
 Install the remote control cable for internal cable:
II. Install barrel and remote control Unit.
Thread the remote control
cable through the hole in the
saddle clamp body. Hang the
remote control cable stopper
on the compressing lever.
Lower
compressing
lever
Upper compressing lever

9
Thread cable to the cable
hole.
Mount the control unit to the handlebar and fasten within
3mm hex key.
Recommended Torque: 1.6Nm | 14 lbs-in | 16 kgf-cm
Adjust the cable so the cable casing, barrel and remote
unit are tightly connected so the control lever is properly
positioned and the cartridge moves properly. Fasten the
screw using a 2mm hex key.
The recommended torque: 1.2Nm | 10 lbs-in | 12kgf-cm
Cut the excess cable.
III. Adjust remote cable
CAUTION: Add a cable end to the remote cable to prevent the cable from
having a sharp end or to keep it from fraying.
IV. Assemble the seatpost to bike.
 Insert the seatpost into seat tube with a minimum of 100mm
insertion, and then tighten the seatpost clamp according to the
bicycle manufacturer’s recommendations.
 Loosen the clamp bolt of saddle clamp unit, put the saddle rail on the
lower rail support, adjust saddle position, and then fasten the clamp
bolt.
 Sit on the saddle and adjust seatpost height to ensure proper
functionality before riding.
WARNING: Do not ride if the seatpost height-adjusting functionality
operates improperly.
