Giant neos pro User manual

- English -

Content
Introduction
Unit
Parts
Installation
General Operation
Display
Compatible Sensor
Pairing
Searching
Record Reminder
Reset Computer
1
3
5
7
13
15
Reset Trip Data
Enter Setting Mode
Set Clock
Set Odometer
Set Wheel Size
Set Stopwatch
Set Countdown Distance
Set Heart Rate Limit
Set Altitude
Set User Data
Set Unit
17
19
21
23
25
27
29
31
33
35
37
41
43
45
Set Smart EL
Power Calibration
Mode / Sub Mode Functions
Clock
Date
Ride Time
Stopwatch
View Lap Data
ODO
Distance Countdown
Cadence
47
49
51
53
55
Heart Rate
Calories
Current Altitude
Set Home Altitude
Ascent%
Average
Maximum Speed
Bike1 / Bike2
Power
Temperature
Trouble Shooting
Technical Specification

Introduction
Thanks for purchasing a Giant Neos PRO computer, it is an ANT+ digital
multi-function computer. It is compatible with all ANT+ sport transmission
devices, including Giant RideSense which is integrated in selected Giant
bikes.
For your own safety, please do not stare at the computer screen while riding, it
may cause a dangerous situation during the ride.
With digital ANT+ sport transmission, you can get the information from digital
speed/cadence sensor and digital heart rate belt. Please make sure you pair
these sensors before you start riding. With the Stopwatch function, you can
record your trip data in the computer and with PC-link docking upload/download
the data to Giant RideSync software for training analysis and management.
If you have any questions regarding this product, please visit our website at
www.giant-bicycle.com or contact your local dealer. Enjoy the ride!
Introduction
1 2

Unit / Parts
Unit / Parts
Neos PRO computer package contains 1 unit and 8 parts, Neos PRO+
computer package have additional PC-link docking and Heart Rate Belt.
1. Computer Unit
2. Base Mount
3. Rubber Pad
4. Battery Cap
5. CR2032 Battery
6. O-ring
7. Extended Mount + 2 x C-clamp pads (for ø31.8 and 29.7mm handle bar)
8. 2 x Screws for Extended Mount
9. Zip Tides x 3
10. PC-link Docking (Neos PRO+ Only)
11. Heart Rate Belt (Neos PRO+ Only)
3 4
3V
CR2032
+
1 2
3
5
6
4
9
11
10
X3
8
7
X2

Installation
To install the battery, use a coin to open and close the battery cap.
Computer can be mounted in 3 different positions: (A) Extened Mount (B)
Stem (C) Handle Bar.
Installation
3V
CR2032
+
6
5
4
1
1
11
2
22
3
8
7
A.
CLICK
PUL L
C.B.
10 10
A
.
C.
B.
3
5 6

General Operation / Display
GENERAL OPERATION / DISPLAY
There are 4 main keys on the computer unit.
EL key: Manual key for backlight
M key: Operates the Mode functions, it also can be pressed on the bottom of unit when
it is mounted.
S key: Operates the Sub Mode funtions in Mode display.
U key: Operates the Upper Mode functions.
1. Current Speed
Display the current speed in km/h or m/h.
2. Upper Mode
Press U key to display: Ride Time / Distance Travelled / Current Cadence (if paired) /
Current Heart Rate (if paired) / Current Altitude / Current Power (if paired)
3. Mode
Press M key to display: Clock / Ride Time/ Stopwatch / Distance Travelled / Current
Cadence (if paired) / Current Heart Rate (if paired) / Current Altitude / Gradient % / Ave.
Speed / Current Power (if paired) / Max. Temperature
4. Current Temperature
Display the current temperature in °C or °F.
5. Bike1 / Bike2
Indicate the display data for Bike1 or Bike2
CLICK
7 8

General Operation / Display
6. Pacer
The pace arrow shows the comparison between current speed and average speed. If
the current speed is above or equal to average speed, the up arrow displays; if the
current speed below the average speed, the down arrow appears.
7. Service Interval Reminder
In any mode, if Travelled Distance > 500km, it will appear to remind the user to
maintain the bike. It is independent of trip distance & odometer. To turn off the icon by
pressing the M Key for 2 seconds or it will turn off automatically after 50km.
8. Low Battery Indicator
In any mode, if battery < 2.7V, the low battery sign will display.
9.Sensor Sleep
If no speed sensor magnet is detected for more than 20 minutes, the current speed will
display dash bars. If no cadence sensor magnet is detected more than 20 minutes, it
will display dash bars in cadence mode. If no heart rate monitor is detected for more
than 3 minutes, in heart rate mode, it will display dash bars.
10. % Distance Countdown Bar
Shows the percentage of whole pre-set countdown distance. It only works with
Distance Countdown feature (see p.25-26 )
11. Stopwatch Running & Data Recording
STP icon keeps blinking when the stopwatch is running and data is recording.
9 10

General Operation / Display
General Operation / Display
12. PC Link Mode
If the computer unit is placed into the USB cradle, it will enter the PC-link mode
automatically for data upload & download.
13. Sleep Mode
The computer unit will turn to SLEEP mode after all sensors sleep more than 5
minutes.
14. Paired Sensor Icons
The sensors icons will display in sleep mode if the sensor was paired previously.
C: cadence sensor, Heart: Heart rate monitor, S: speed sensor, P: power meter. If
the computer can’t find the sensors, please make sure the sensor is reacting with
magnet while pairing or it is not in sleep mode.
15. Searching
If the computer is not in SLEEP mode, but on the mount, when you move the bike,
the computer wil automatically start searching. The longest time for searching is
30 seconds, effective distance for transmission is within 1 meter.
16. Record Reminder
After searching, Record Reminder will show “Record STP?” (Record Stopwatch) to
ask you want to record the trip data. Press M key to confirm it or press U key to
decline it. To stop recording by pressing M key for 3sec or it will automatically stop
after all sensors go sleep.
11 12

Compatible Sensor
Neos PRO computer is compatible with all ANT+ 2.4G digital transmission
device sensors, including Giant Ride Sense sensor in selected Giant bikes or
2 in 1 sensor in accessories. The sensor is not included in the package. Pair
the sensor with computer unit before starting to ride.

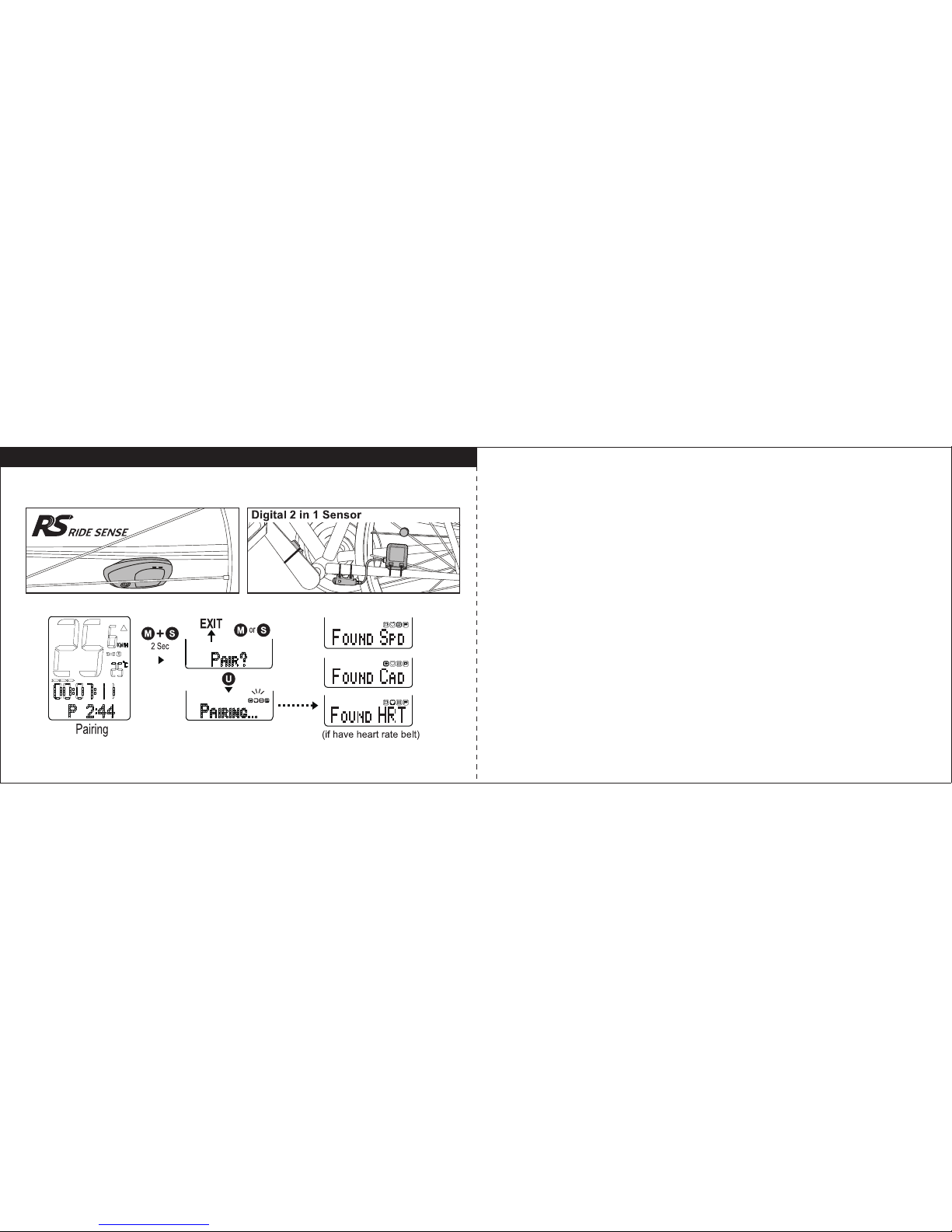

Pairing
Press M+S keys for 2 seconds to enter the pairing mode. Press U key to
confirm and it will start pairing automatically. It will display paired with the
closest device, or press S or M key to release the pairing mode. The longest
time for pairing is 1 minutes, effective distance for transmission is within 1
meter.
Compatible Sensor / Pairing
13 14
2 in 1 Sensor

Searching / Record Reminder / Reset Computer / Reset Trip Data
15 16
Searching
In Sleep mode, When bike is moving or press U+EL keys for 2 seconds, computer
will start searching for paired devices. The longest time for searching is 30 seconds,
effective distance for transmission is 1 meter.
Record Reminder
After searching, Record Reminder will show “Record STP?” (Record Stopwatch)
to ask you if you want to record the trip data. Press M key to confirm it or press U key
to decline it. To Stop STP recording by pressing M key for 3 seconds.
Reset Computer
When the computer is not working or the screen is blank after installing the
battery, press the AC button at back of unit to reset the computer back to original
setting.
Reset Trip Data
In any mode, hold S key for 3 seconds, to reset all trip data.
Reset Trip data
Reset Computer

Enter Setting Mode
Enter Setting Mode

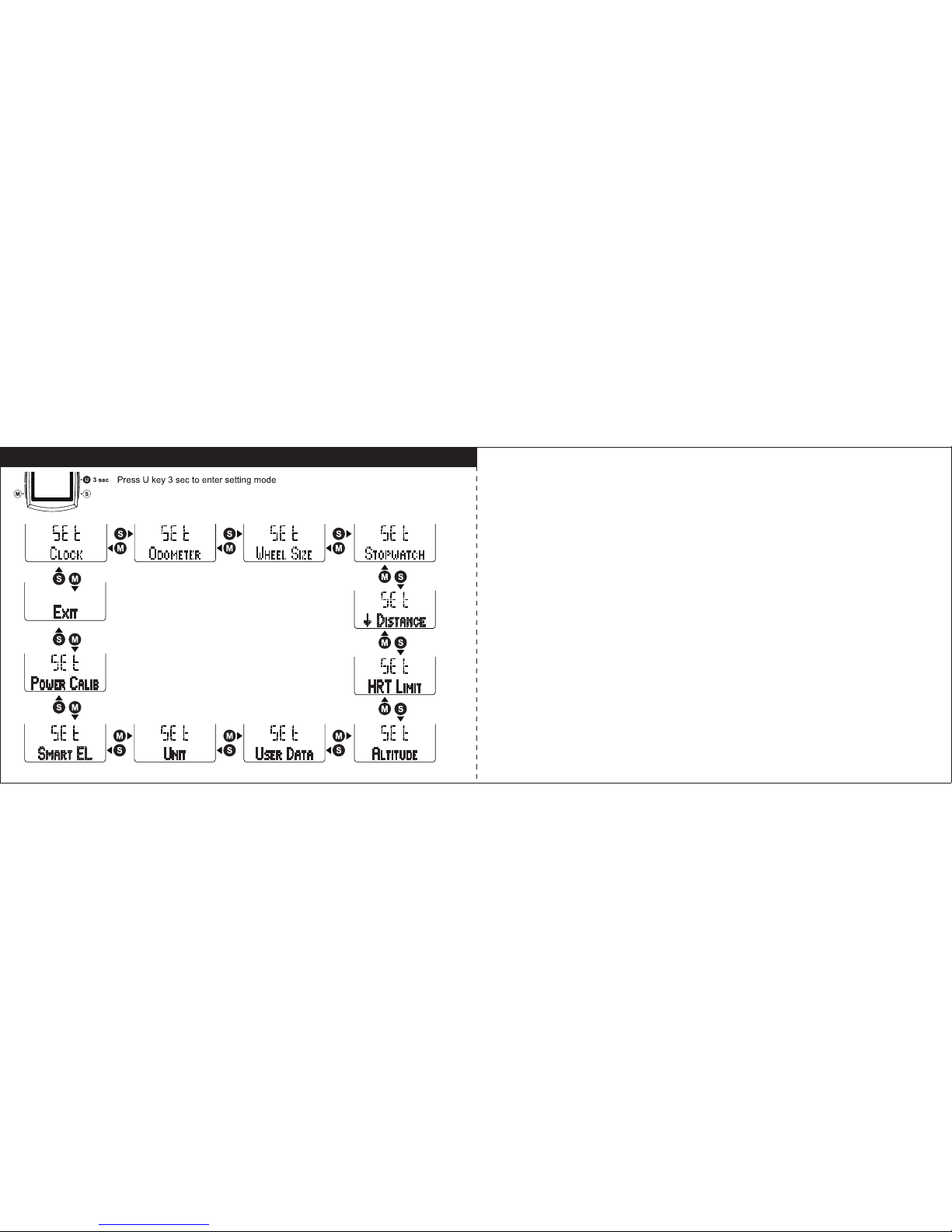

1. Press U key for 3 seconds to enter the setting modes. Select the parameter
setting by pressing S or M key in sequence loop of Clock, Odometer, Wheel
Size, Stopwatch, Countdown Distance, Heart Rate Limit, Altitude, User Data,
Unit, Smart EL, Power Calibrate (if paired), and Exit. Press U key to enter
particular parameter setting or return to previous mode in Exit.
2. When Stopwatch is running, the Stopwatch and User Data will not display in
setting mode. Power Calibrate only shows when the power meter is paired.
17 18

Set Clock / Set Odometer
Set Clock
Select “
CLOCK ” in setting mode, and press U key to enter Clock setting. Follow
the key flow diagram. Select 24 hours set or 12 hours set by pressing S or M
key and confirm it by U key. Press S or M key to adjust the hour, minute, year,
month and date and confirm it by U key. (Tips: press and hold S or M key will
speed up the digital number setting).
Set Odometer
Select “
ODOMETER ”in setting mode, and press U key to enter Odometer setting,
Follow the key flow diagram. Press S or M key to select Bike1 or Bike2, and
press U key to enter the odometer digits setting. Adjust the number in blinking
digit by pressing S or M key, and press U key go to next digit. Press U to
confirm the number in each digit and leave the Odometer setting mode.
19 20

Set Wheel Size
Set Wheel Size
Select “
WHEEL SIZE ” in setting mode, and press U
key to enter Wheel Size setting. Follow the key flow
diagram. Press S or M key to select Bike1 or Bike2
and press U key to set the wheel size. Press S or
M key to choose the Tire Sizes or you can enter the
wheel circumference in Custom option.
*Same as Bike2 setting
EASY CALIBARATION &
CIRCUMFERENCE
REFERENCE TABLE
WHEEL CIRCUMFERENCE
Tire Size
700x20C 2086
700x23C 2096
700x25C 2105
700x28C 2136
700x32C 2155
700x35C 2168
700x38C 2180
600x23C 1930
26x1.5 2010
26x1.90 2045
26x1.95 2050
26x2.0 2055
26x2.1 2068
26x2.2 2075
Custom 0-3999
a. (mm)
21 22

Set Stopwatch
Set Stopwatch
Select “
STOPWATCH ” in setting mode, and press U key to enter Stopwatch
setting. Follow the key flow diagram. Press S or M key to select lapping by
Manual or Auto and press U key to enter the setting. In Manual Lap setting,
select sample rate in 5, 10, 20 seconds to record the data or Clear Memory by
pressing S or M key. Confirm it by the U key and return to the previous mode.
In Auto Lap setting, select auto lapping by Distance or Time (hh:mm), and
preset the lapping distance or lapping time. The lapping distance range is from
0.5 to 99.9km. The lapping time range is 1 minute (0:01) to 9 hours and 59
minutes (9:59). (Tips: press and hold S or M key will speed up the digital
number setting).
23 24

Set Countdown Distance / Set Heart Rate Limit
Set Countdown Distance
Select “Ļ
DISTANCE ” in setting mode, and press U key to enter Countdown Distance
setting. Follow the key flow diagram. Press S or M to adjust the number in
different digit, and press U to confirm it. The preset range for countdown
distance is 1 to 50km or 1 to 31 mile.
Set Heart Rate Limit
Select “
HRT LIMIT ” in setting mode, and press U key to enter Heart Rate Limit
setting. Follow the key flow diagram. Press S or M to adjust the Upper rate and
Lower rate, and press U key to confirm it. The preset highest Upper limit is 240,
the lowest Lower limit is 30. (Tips: press and hold S or M key will speed up the
digital number setting).
25 26

Set Altitude
Set Altitude
Select “
ALTITUDE” in setting mode, and press U key to enter Altitude setting.
Follow the key flow diagram. Press S or M to adjust the altitude above (+) or
below (-) horizontal line and the altitude height, and press U key to confirm it.
Then you can save it as current altitude or set as home altitude. To set as
home altitude, the display will show the height base on current altitude is 0.
Then set the total altitude gain and loss of Bike1 and Bike2. For first time
setting, the recommend value is 0. (Tips: press and hold S or M key will
speed up the digital number setting)
27 28

Set User Data / Set Unit

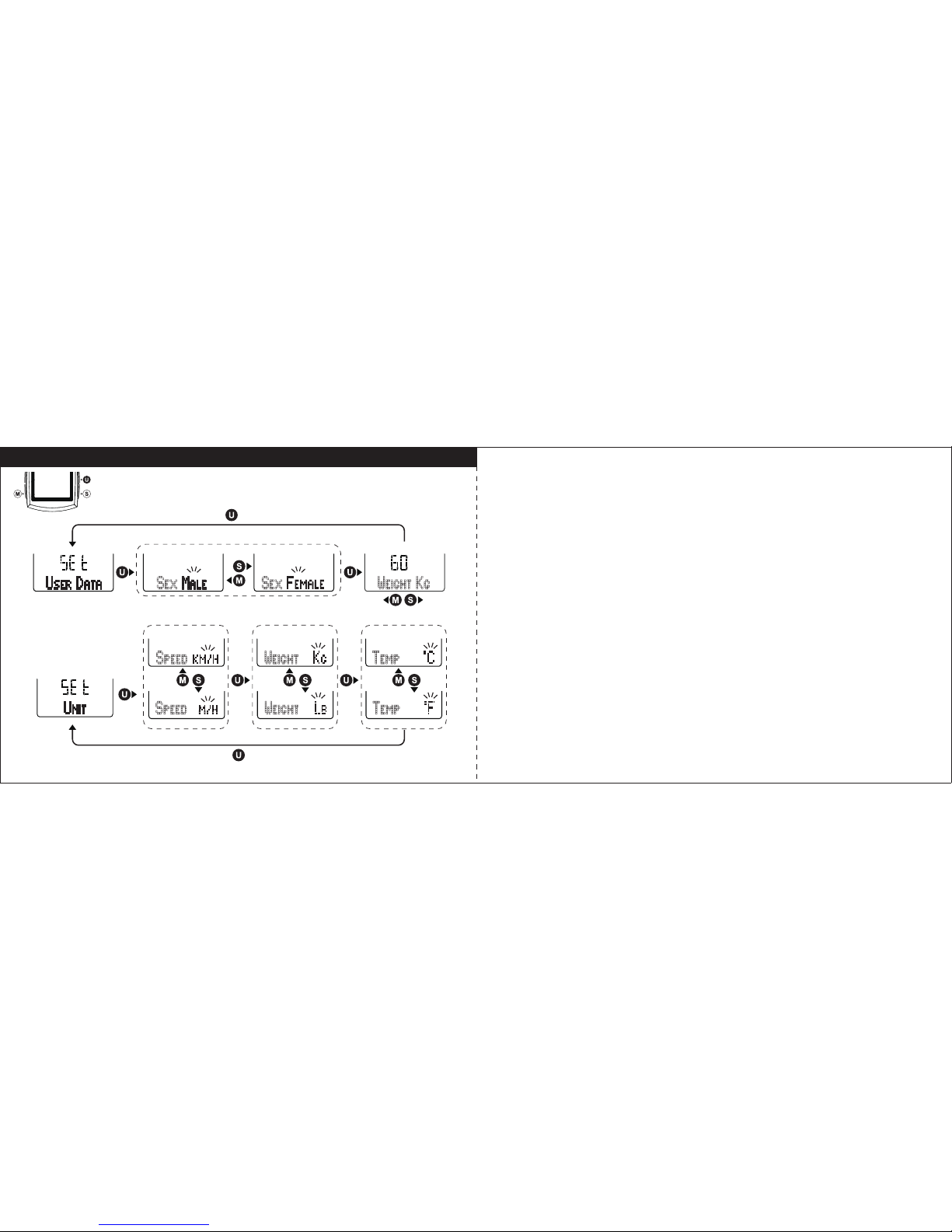

Set User Data
Select “
USER DATA ” in setting mode, and press U key to enter User Data
setting. Follow the key flow diagram. Press S or M key to select Male or
Female and press U key to set personal weight, the range is 20 ~ 220 kg or
44 ~ 485 lb. (Tips: press and hold S or M key will speed up the digital number
setting).
Set Unit
Select “
UNIT ” in setting mode, and press U key to enter Unit setting. Follow the
key flow diagram. Press S or M key to select Speed in KM/H or M/H, Weight
in KG or LB, and Temperature in °C or °F.
29 30

Set Smart EL / Power Calibration
Set Smart EL (Backlight)
Select “
SMART EL ” in setting mode, and press U key to enter Smart EL setting.
Follow the key flow diagram. Press S or M key to turn Smart EL function on or
off, and press the U key to confirm it. To preset its function Start Time and End
Time press S or M key to set hours and minutes and press U key to confirm it
and go next step.
Power Calibration
Select “
POWER CALIB” in setting mode, and press U key to start calibrating the
power meter. When it is done, it will return to Set Power Calib display. If it fails,
press M or after 30 seconds return to Set Power Calib display.
31 32

Mode / Sub Mode Functions
Mode / Sub Mode Functions
In Mode display press M key to display Clock/ Ride Time/ Stopwatch/ Distance
Travelled/ Current Altitude/ Gradient%/ Ave. Speed/ Current Power/ Max.
Temperature, and press S key to display the Sub functions under the main
Mode functions.
33 34

Clock / Date / Ride Time
Clock / Date
Clock display in 12hrs / 24hrs set, press S key to display date (MM-DD-YY). It
will return to Clock automatically after 3 seconds if S key is not pressed.
Ride Time
Ride Time / Total Bike1 Ride Time / Bike1+Bike2 Ride Time
Ride Time display the trip riding time, and press S key to display Total Bike1 trip
ride time and Bike1+Bike2 ride time. It will return to Ride Time automatically
after 3 seconds if S key is not pressed.
35 36
