GIGA-TMS Promag SLR810 Installation manual

SLR810
Hardware User Guide
Apr 9, 2020
TM9513
27

Any part of the contents of this document, without the express written GIGA-TMS
permission, shall not in any documents, electronic, mechanical form of remakes or
spread. File contents are subject to change without notice.
Revisions
Revision Date Description
01 Apr 9,2020 Preliminary draft
Copyright
©
2020
GIGA-TMS INC.
Printed in Taiwan

Has been tested in accordance to essential protection requirements of the RED –
DIRECTIVE 2014/53/EU, EU-LOW VOLTAGE DIRECTIVE 2014/35/EU on the
approximation of the laws of the Member States relating to Radio Spectrum Matters
and found the test results indeed meet the limitation of the relevant test standard(s)
listed below:
EMC RF LVD MPE SAR
EN301489-1-3 EN300328_868MHz EN62368-1 EN62311
EN55032/EN55024
Test standard: FCC rules Part 15 subpart B
Test Result: Radiated Emission. FCC Part 15.109/15.107 Class B Test passed.
Test standard: FCC rules Part 15 subpart C 15.247 (2017 - 10)
Test Result: No deviations from the technical specification(s) were ascertained in the
course of the tests performed.
NCC RF LP0002_Base on FCC

Warning
Federal Communication Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer
orperipheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 0.5 centimeter between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
The antennas used for this transmitter must be installed to provide a separation distance
of at least 0.5 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired
operation.

LIMITED WARRANTY
Giga-Tms warrants that the products sold pursuant to this Agreement will perform in
accordance with Giga-Tms’s published specifications. This warranty shall be provided
only for a period of one year from the date of the shipment of the product from
Giga-Tms (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the
original purchaser, unless that entity resells the product as authorized by Giga-Tms, in
which event this warranty shall apply only to the first re-purchaser).
During the Warranty Period, should this product fail to conform to Giga-Tms’s
specifications, Giga-Tms will, at its option, repair or replace this product at no
additional charge except as set forth below. Repair parts and replacement products will
be furnished on an exchange basis and will be either reconditioned or new. All
replaced parts and products become the property of Giga-Tms. This limited warranty
does not include service to repair damage to the product resulting from accident,
disaster, unreasonable use, misuse, abuse, negligence, or modification of the product
not authorized by Giga-Tms. Giga-Tms reserves the right to examine the alleged
defective goods to determine whether the warranty is applicable.
Without limiting the generality of the foregoing, Giga-Tms specifically disclaims any
liability or warranty for goods resold in other than Giga-Tms’s original packages, and
for goods modified, altered, or treated without authorization by Giga-Tms.
Service may be obtained by delivering the product during the warranty period to
Giga-Tms (8F No. 31 Lane 169, Kang Ning Street, Hsi Chih Dist New Taipei City,
Taiwan). If this product is delivered by mail or by an equivalent shipping carrier, the
customer agrees to insure the product or assume the risk of loss or damage in transit,
to prepay shipping charges to the warranty service location, and to use the original
shipping container or equivalent. Giga-Tms will return the product, prepaid, via a three
(3) day shipping service. A Return Material Authorization (“RMA”) number must
accompany all returns. Buyers may obtain an RMA number by contacting with
[email protected]om.tw
EACH BUYER UNDERSTANDS THAT THIS GIGA-TMS PRODUCT IS OFFERED
AS IS. GIGA-TMS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND
GIGA-TMS DISCLAIMS ANY WARRANTY OF ANY OTHER KIND, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
IF THIS PRODUCT DOES NOT CONFORM TO GIGA-TMS’S SPECIFICATIONS,

THE SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED
ABOVE. GIGA-TMS’S LIABILITY, IF ANY, SHALL IN NO EVENT EXCEED THE
TOTAL AMOUNT PAID TO GIGA-TMS UNDER THIS AGREEMENT. IN NO EVENT
WILL GIGA-TMS BE LIABLE TO THE BUYER FOR ANY DAMAGES, INCLUDING
ANY LOST PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO
USE, SUCH PRODUCT, EVEN IF GIGA-TMS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
LIMITATION ON LIABILITY
EXCEPT AS PROVIDED IN THE SECTIONS RELATING TO GIGA-TMS’S LIMITED
WARRANTY, GIGA-TMS’S LIABILITY UNDER THIS AGREEMENT IS LIMITED TO
THE CONTRACT PRICE OF THIS PRODUCT.
GIGA-TMS MAKES NO OTHER WARRANTIES WITH RESPECT TO THE PRODUCT,
EXPRESSED OR IMPLIED, EXCEPT AS MAY BE STATED IN THIS AGREEMENT,
AND GIGA-TMS DISCLAIMS ANY IMPLIED WARRANTY, INCLUDING WITHOUT
LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
GIGA-TMS SHALL NOT BE LIABLE FOR CONTINGENT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES TO PERSONS OR PROPERTY. GIGA-TMS
FURTHER LIMITS ITS LIABILITY OF ANY KIND WITH RESPECT TO THE
PRODUCT, INCLUDING ANY NEGLIGENCE ON ITS PART, TO THE CONTRACT
PRICE FOR THE GOODS.
GIGA-TMS’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE
STATED IN THIS SECTION AND IN THE SECTION RELATING TO GIGA-TMS’S
LIMITED WARRANTY.

Contents
Chapter 1 : Introduction ........................................................................ 9
Introduce .............................................................................................................. 9
Chapter 2：About SLR810 .................................................................. 10
Specification ...................................................................................................... 10
LED Indication ................................................................................................... 11
Chapter 3：How to use SLR810 ......................................................... 12
Before Installing ................................................................................................ 12
Start to use SLR810........................................................................................... 12
Chapter 4：Good to Read ................................................................... 13
Chapter 5：Troubleshooting .............................................................. 14
Contact Us ........................................................................................... 15

Chapter 1 : Introduction
Introduce

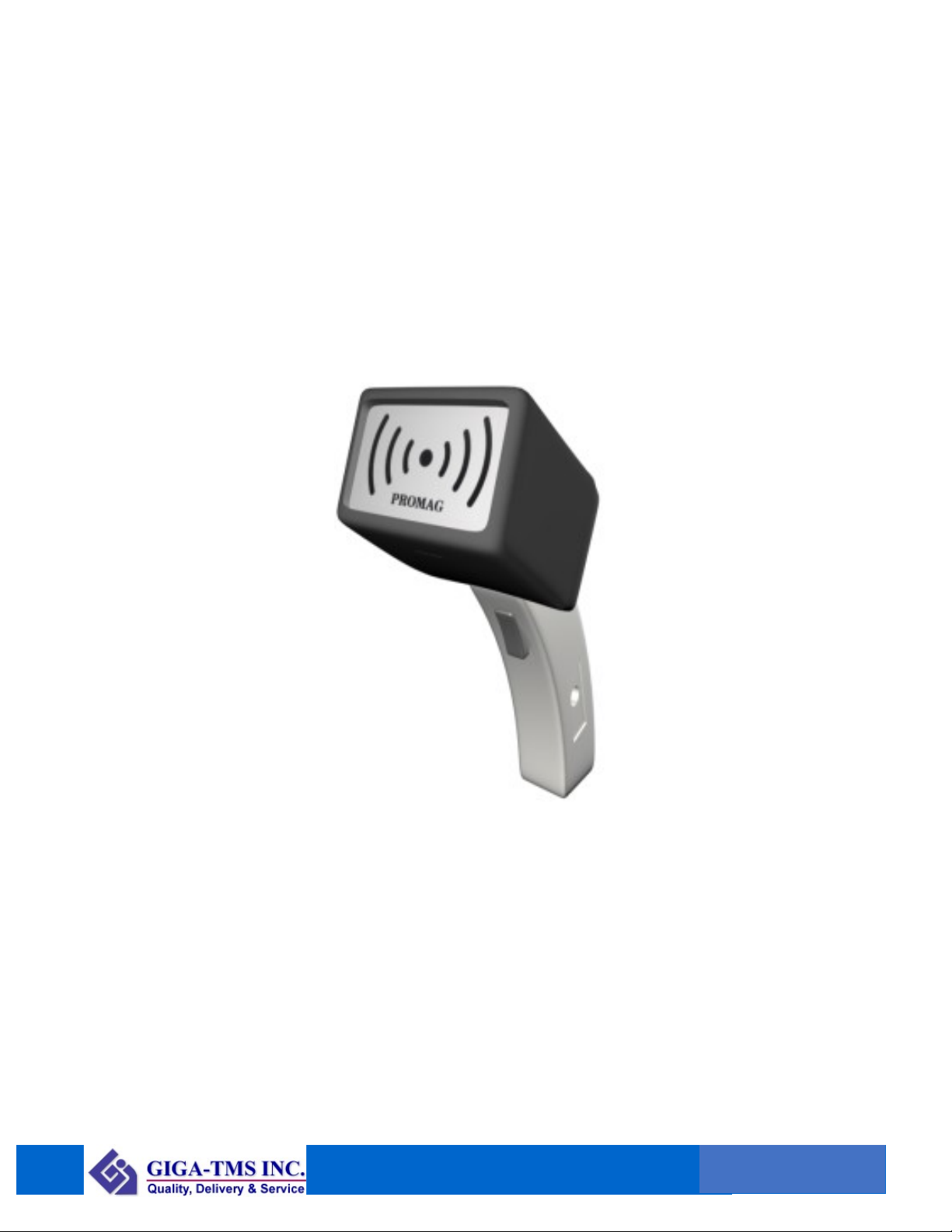

The SLR810 include Antenna. It is all in one Ultra High Frequency RFID Reader
compliant to ISO18000-6C EPC Gen 2 protocol with an operating range of 860 to 960
MHz. With UHF Tag which maximum read range can up to 0.5 meters. SLR810 include
USB HID connect to PC or Controler. It is suitable for retail operations management、
factory material production management and other applications.
Before using the SLR810 Reader. We recommend that you should already read this
user guide.
View
Please download software or user guide from following link. Also can scan QR code
http://ftp.gigatms.com.tw/disks/disk5472

Chapter 2：About SLR810
Specification
SLR810 series
USA
(902.75-927.25Mhz)
EUROPE
(865.7-867.5Mhz)
TAIWAN
(920-928Mhz)
Model SLR810-00 SLR810-30 SLR810-40
Standard
RFID spec ISO 18000-6C, EPC Class1 Gen2
Interface Interface Wire – USB HID
Power Require Working : Max 500mA@5VDC
Dimension L: 70mm / W: 40mm / H: 175mm
Physical Characteristics
Weight 200g
Environment parameter
Temperature Operating : -10°C ~ +60°C
Storage : -15°C ~ +65°C
Humidity Operating : +0% ~ +90% (no coagulation)
Storage : MAX 90% (no coagulation)
Regulatory approvals
Authentication CE R&TTE FCC ID NCC
EN301489-1-3 Part 15B LP0002
EN55032/EN55024 Part 15C
EN300328_868MHz
EN62368-1
EN62311
ESD Contact : 4kv , Air : 8kv

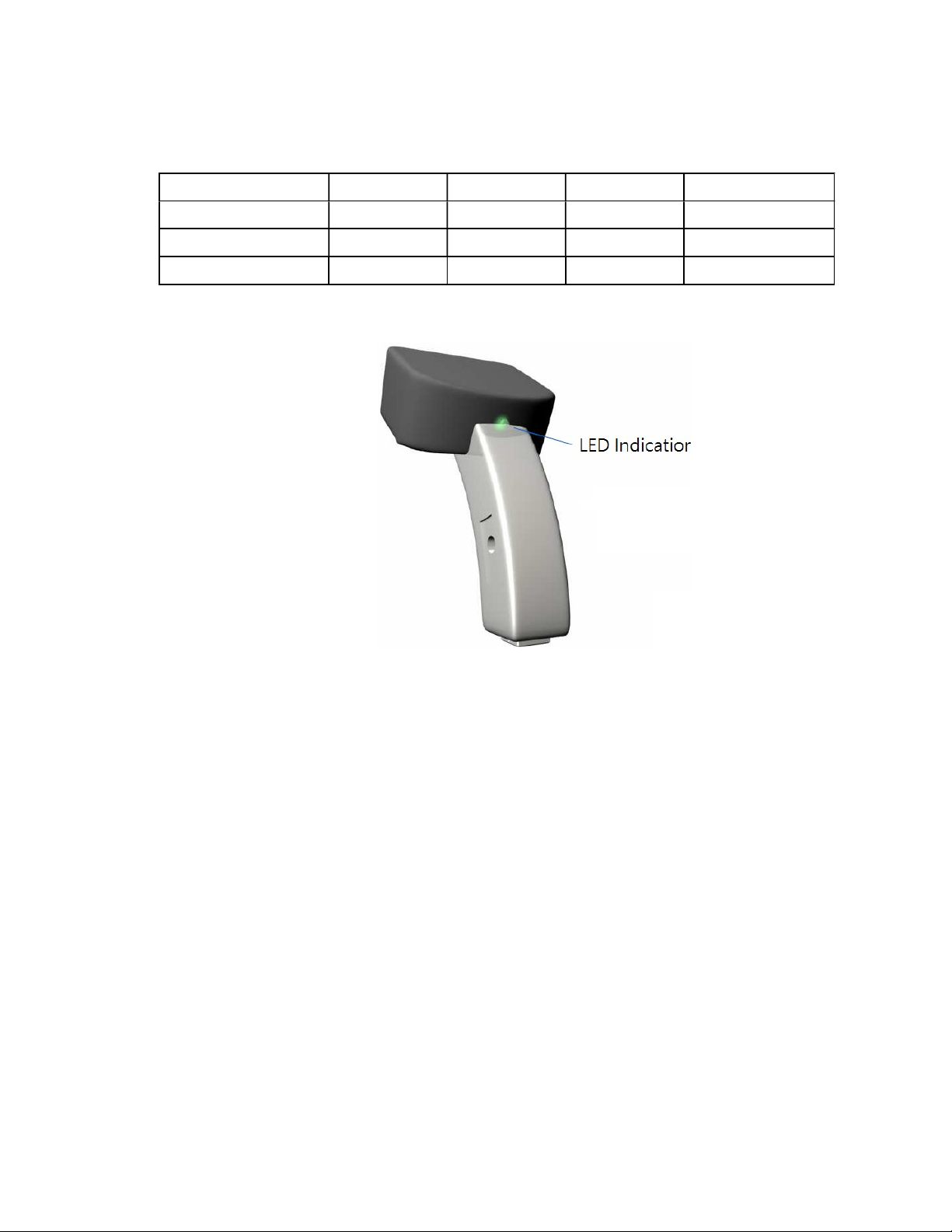

LED Indication
LED Orange LED Green Buzzer Vibration
Power just turned on Blink once Ring once Vibration once
Standby ●
Read Success Blink once Ring once Vibration once

Chapter 3：How to use SLR810
Before Installing
Before Install SLR810. Please make sure the following items are ready.
A SLR810
A PC or Controller. PC need already installed SLR810 software (DISK5472)
Start to use SLR810

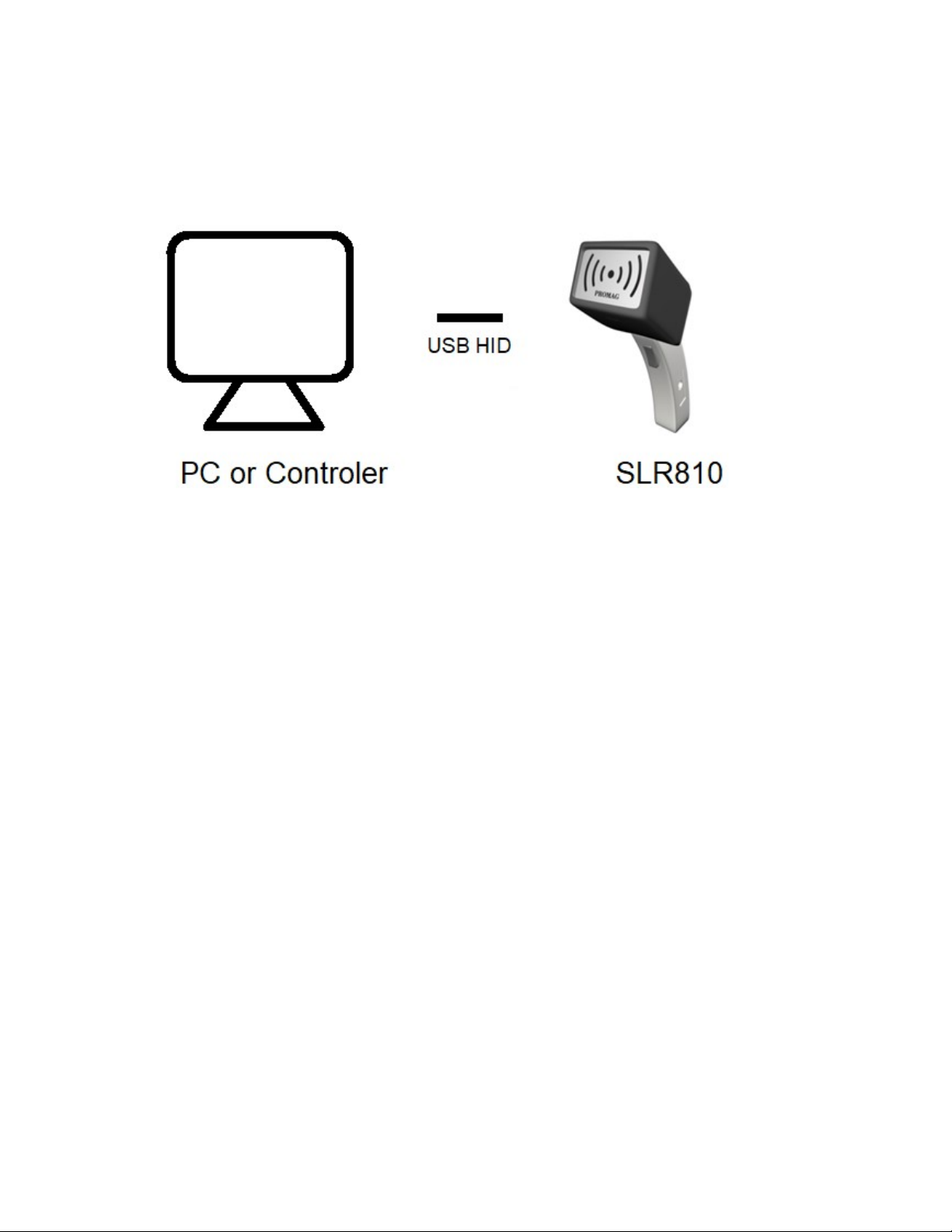

 The SLR810 use USB HID to connect the PC or Controller.
 PC open SLR810 software to set up the SLR810.
 Please refer to SLR810 Software User Guide. There are instructions about how
to read EPC
 SLR810 also support auto keyboard output which can use Notepad from Microsoft
Windows

Chapter 4：Good to Read
The antenna of the SLR810 is horizontally polarized. UHF Tag is consistent with
antenna direction which can get better reading distance.

Chapter 5：Troubleshooting
1. Cannot connect to SLR810 with SLR810 software?
 Please check that the SLR810 is actually connected to USB.
 Please check the power light (Green light) of SLR810 is lighting
