Gigabyte Gv-n57128d User manual

Jun. 10, 2004

VGA Card

GV-N57128D

VGACard

Jun. 10, 2004

GV-N57128D

User's Manual

GeForce™FX 5700 Graphics Accelerator

Rev. 301

12MD-N57128D-301

without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a

commitment to update the information contained herein.

GV-N57128D Graphics Accelerator - 2 -

English

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum system requirement .................................................................... 3

2. Hardware Installation ........................................................................... 4

2.1. Board Layout .............................................................................................. 4

2.2. Hardware installation ................................................................................... 6

3. Software Installation ............................................................................ 8

3.1. Win®XP driver and utilities installation ....................................................... 8

3.1.1. Operating system requirement ......................................................................................... 8

3.1.2. DirectX installation ............................................................................................................ 9

3.1.3. Driver installation ............................................................................................................ 11

3.1.4. Utilities on driver CD ...................................................................................................... 13

3.1.5. Taskbar icon ................................................................................................................... 15

3.1.6. Display properties pages ............................................................................................... 18

3.1.7. nView properties pages ................................................................................................. 24

3.2. Win®98/98SE / Win®2000 / Win®ME driver installation ........................... 29

3.3. BIOS flash utility ....................................................................................... 29

4. Troubleshooting Tips ......................................................................... 30

5. Appendix .......................................................................................... 31

5.1. How to Reflash BIOS in MS-DOS mode ..................................................... 31

5.2. Resolutions and color depth table (In Windows®XP) .................................. 32

Introduction- 3 -

English

1. Introduction

1.1. Features

•Powered by nVIDIA GeForce FX 5700 Graphics Processing Unit (GPU)

•Supports the new AGP 8X standard

•Integrated with 128MB DDR memory

•Supports TV-Out and D-Sub connectors

•Supports DVI-I connector

•Supports Direct X 9.0 Spec

1.2. Minimum system requirement

•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz

class processor or higher

•One available AGP3.0 compliant slot or better

•Operating Systems Win®98/98SE / Win®2000 / Win®ME / Win®XP

•64MB system memory

•50MB of available disk space for full installation

•CD-ROM or DVD-ROM drive

GV-N57128D Graphics Accelerator - 4 -

English

TV-Out

VGA Monitor Connector

(15pin)

DVI-I Connector

1) GV-N57128D (ver. 1.0)

2. Hardware Installation

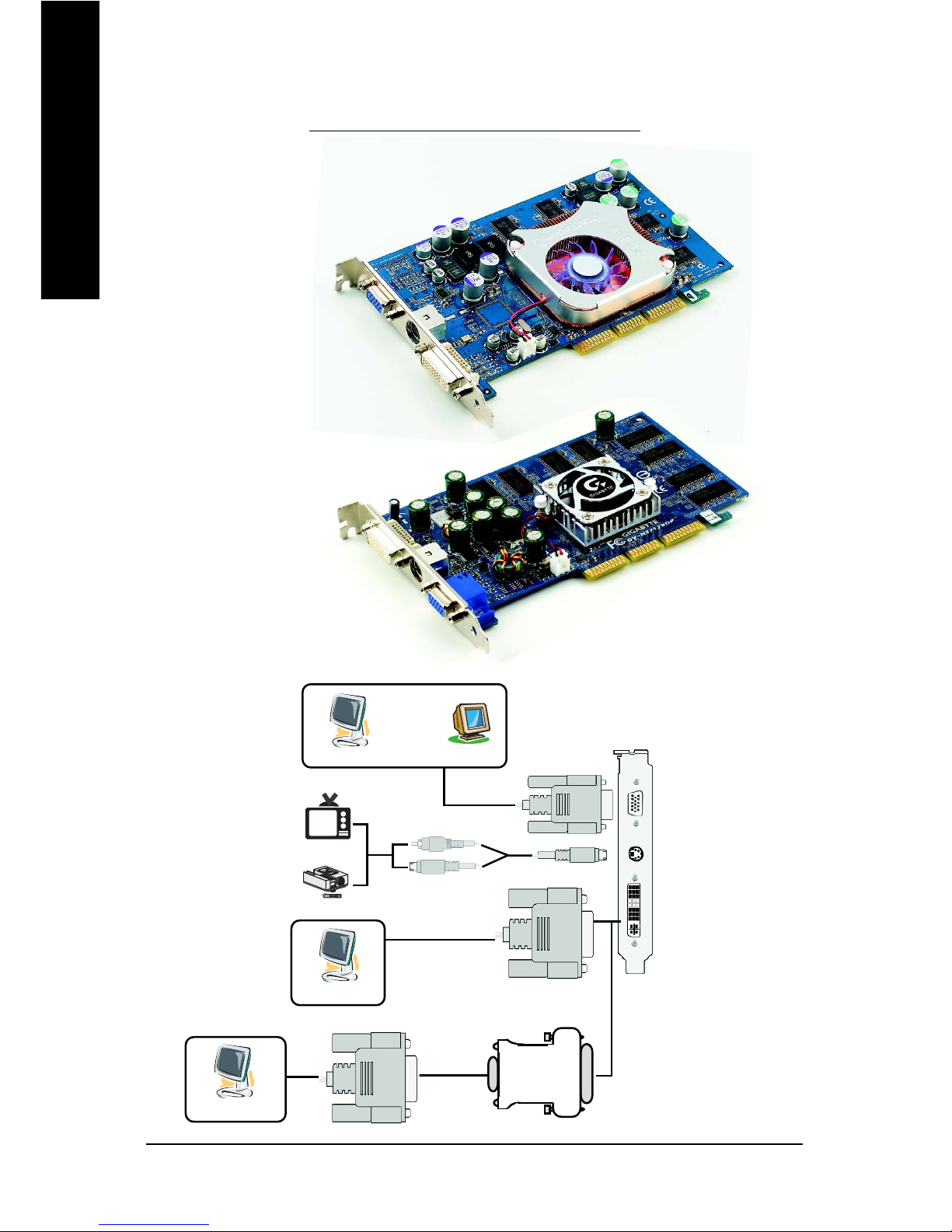

2.1. Board Layout

Analog LCD Monitor Analog Monitor

VGA Output

Digital LCD Monitor

VGA Output

TV-Out

VGA Monitor Connector

(15pin)

DVI Connector

AV Output

NTSC / PAL TV

Projector

S-VideoOutput

DVI Output

DVI-I to D-Sub Connector

Analog LCD Monitor

2) GV-N57128D (ver. 3.0)

VGA Monitor Connector

(15pin)

DVI-I Connector

TV-Out

Hardware Installation- 5 -

English

Expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some

precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static

electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator

should be wearing an anti-static wristband, grounded at the same point as the anti-static

mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage

to your card. Be sure there are no shipping and handling damages on the card before

proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON

THE CARD.

In order to ensure your graphics card working correctly, please use official

Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem

on the graphics card.

GV-N57128D Graphics Accelerator - 6 -

English

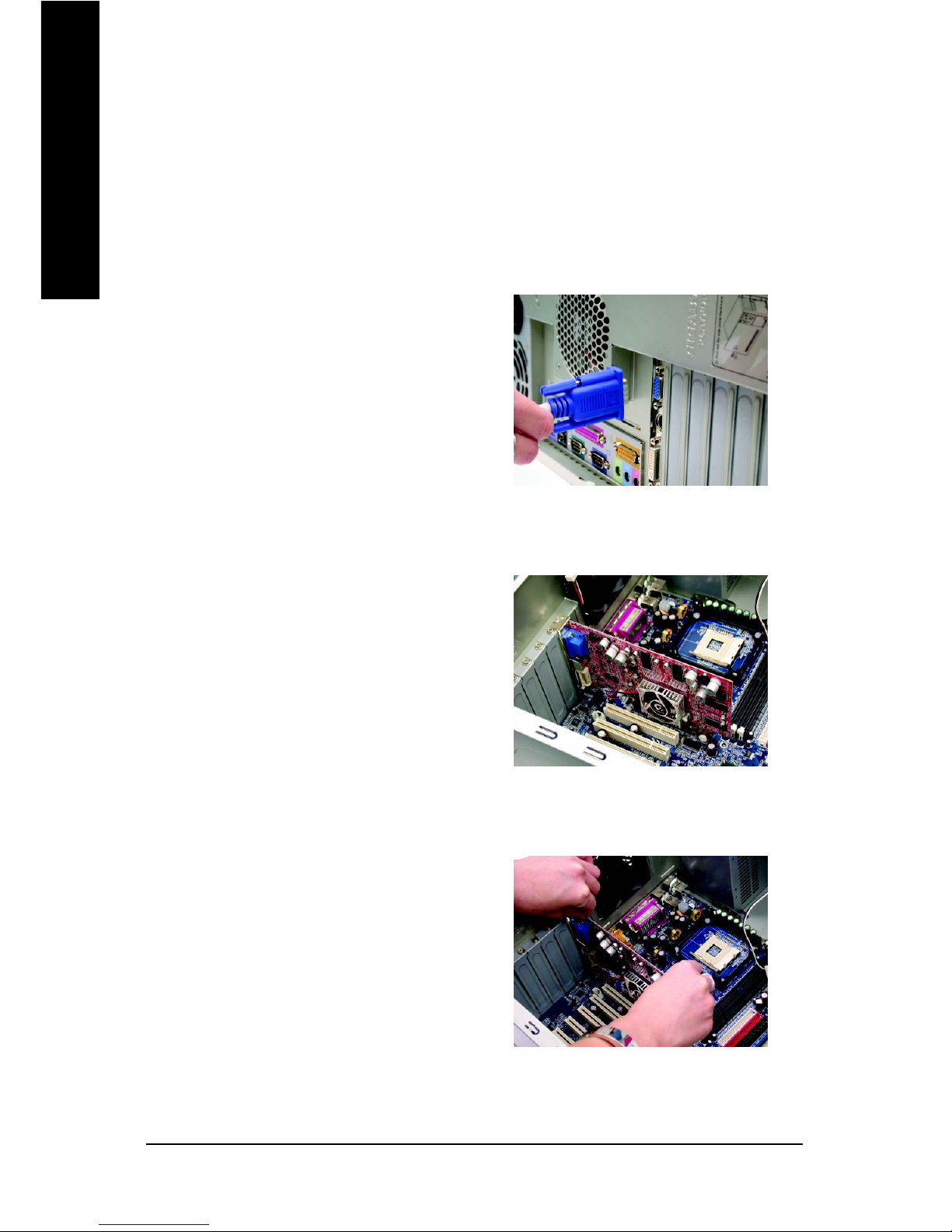

2.2. Hardware installation

Installing Your graphics card.

Now that you have prepared your computer, you are ready to install your graphics

accelerator card.

To install your graphics accelerator card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help

in removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to

disable it on the motherboard. For more

information, see you computer

documentation.

Hardware Installation- 7 -

English

4. Locate the AGP slot. If necessary, remove

the metal cover from this slot; then align

your graphics card with the AGP slot, and

press it in firmly until the card is fully seated.

5. Replace the screw to fasten the card in

place, and replace the computer cover.

6. Plug the display cable into your card; then

turn on the computer and monitor. If your

graphics card came with a DVI connector,

you can connect a flat panel display to the

appropriate connector, as shown below...

You are now ready to proceed with the installation of the graphics card driver. For detailed

instructions, select your operating system from the list below.

To TV or VCR

To VGA Monitor

To Flat Panel Display

GV-N57128D Graphics Accelerator - 8 -

English

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Win®98/98SE / Win®2000 / Win®ME / Win®XP drivers is very simple.

When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN

window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to

setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation"

to install the driver for your graphics accelerator.)

3.1. Win®XP driver and utilities installation

3.1.1. Operating system requirement

•When loading the graphics card drivers for the system, please make sure your

system has installed DirectX 9 or later version.

•If you install the graphics card drivers for the motherboard, which consist of SIS, VIA

chipsets, please install the appropriate driver program for that motherboard. Or please

contact your motherboard nearest dealer for motherboard driver.

Software Installation- 9 -

English

3.1.2. DirectX installation

Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®98/

98SE / Windows®2000 / Windows®ME or Windows®XP to achieve better 3D performence.

0Note: For software MPEG support in Windows®98/ 98SE/ Windows®2000 / Windows®

ME or Windows®XP, you must install DirectX first.

Click "Install DirectX 9" item.

Step 2. Choose I accept the agreement and

Click "Next" button.

Step 3. Click "Next" button.

Step 1. When autorun window show up, click

Install DirectX 9 item.

GV-N57128D Graphics Accelerator - 10 -

English

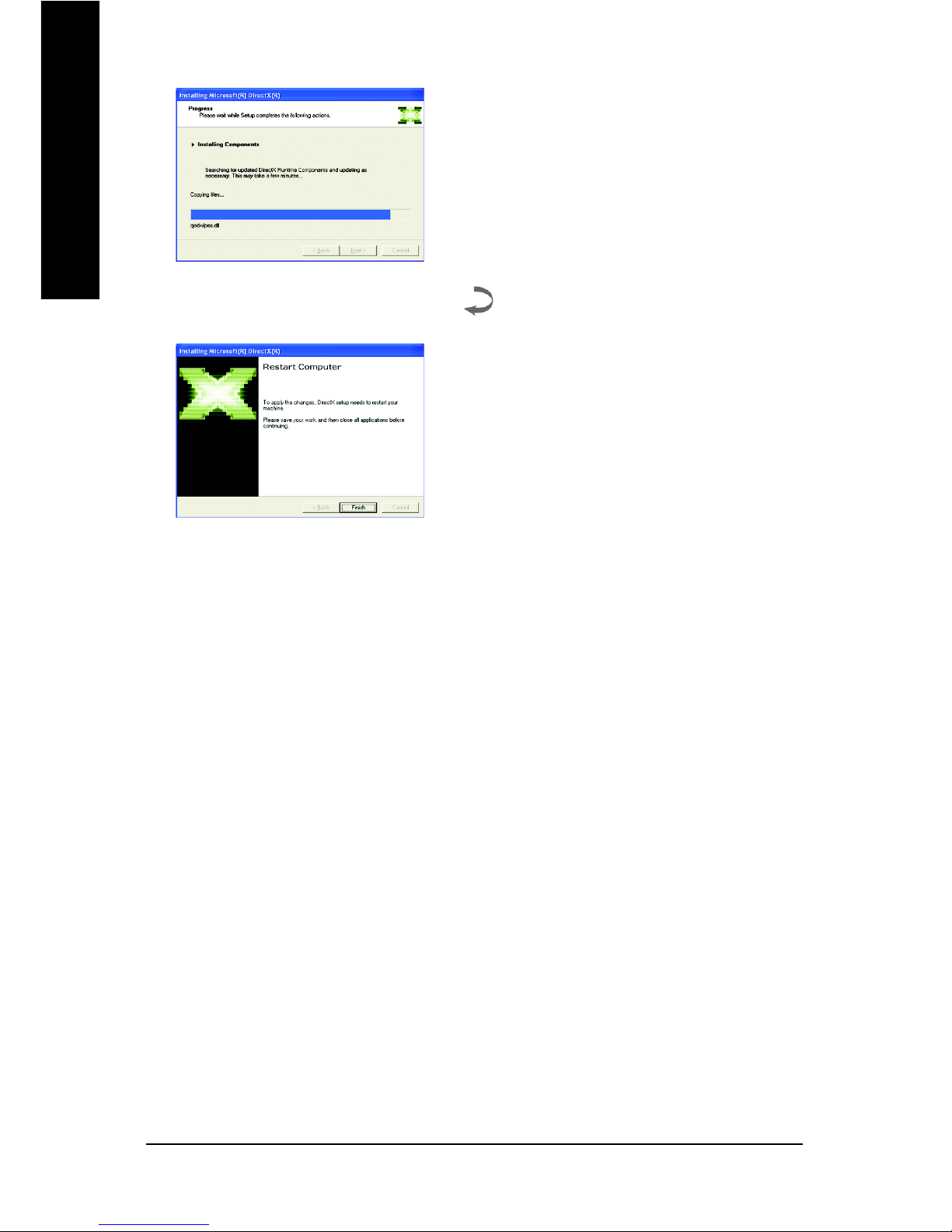

Step 4. Click "Finish" to restart computer.

Then the DirectX 9 installation is completed.

Installing the components.

Software Installation- 11 -

English

3.1.3. Driver installation

A. New hardware found

After the graphics card is inserted into your computer at the first time, the windows will

automatically detect a new hardware in the system and pop out a "New Hardware Found"

message. The following is the step-by-step installation guide.

Step 1: Found new hardware wizard: Video controller (VGA Compatible)

Click "Next" button to install the driver. (There

is a driver CD disk that came with your graph-

ics accelerator, please insert it now.)

Or click the "Cancel" button to install the driver

from AUTORUN window.

Step 2: Found new hardware wizard: Searching and installing

The wizard will search for the driver and install it automatically.

Step 3: Found new hardware wizard: Finish

Click the "Finish" button to finish the installation.

GV-N57128D Graphics Accelerator - 12 -

English

B. Driver installation (Autorun Window)

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

Step 2. Click "Next" button.

Click "Install Display Driver" item.

Step 1. When autorun window show up, click

Install Display Driver item.

Step 3. Click "Finish" button to restart computer.

Then the driver installation is completed.

Windows installings the components.

Software Installation- 13 -

English

3.1.4. Utilities on driver CD

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

•Install V-Tuner:

Step 3. Enter your name and company.

Step 4. Click "Finish" button to restart computer.

Then the V-Tuner installation is completed.

Step 2. Click "Next" button.

Click "V-Tuner" item.

Step 1. When autorun window show up, click

V-Tuner item.

GV-N57128D Graphics Accelerator - 14 -

English

Display Memory Clock

Close V-Tuner

Min V-Tuner

Display Core Clock

Display & Adjust

Core Clock

Link to the Websit of Gigabyte Help Description Close V-Tuner To

system Tray

Display & Adjust

Memory Clock

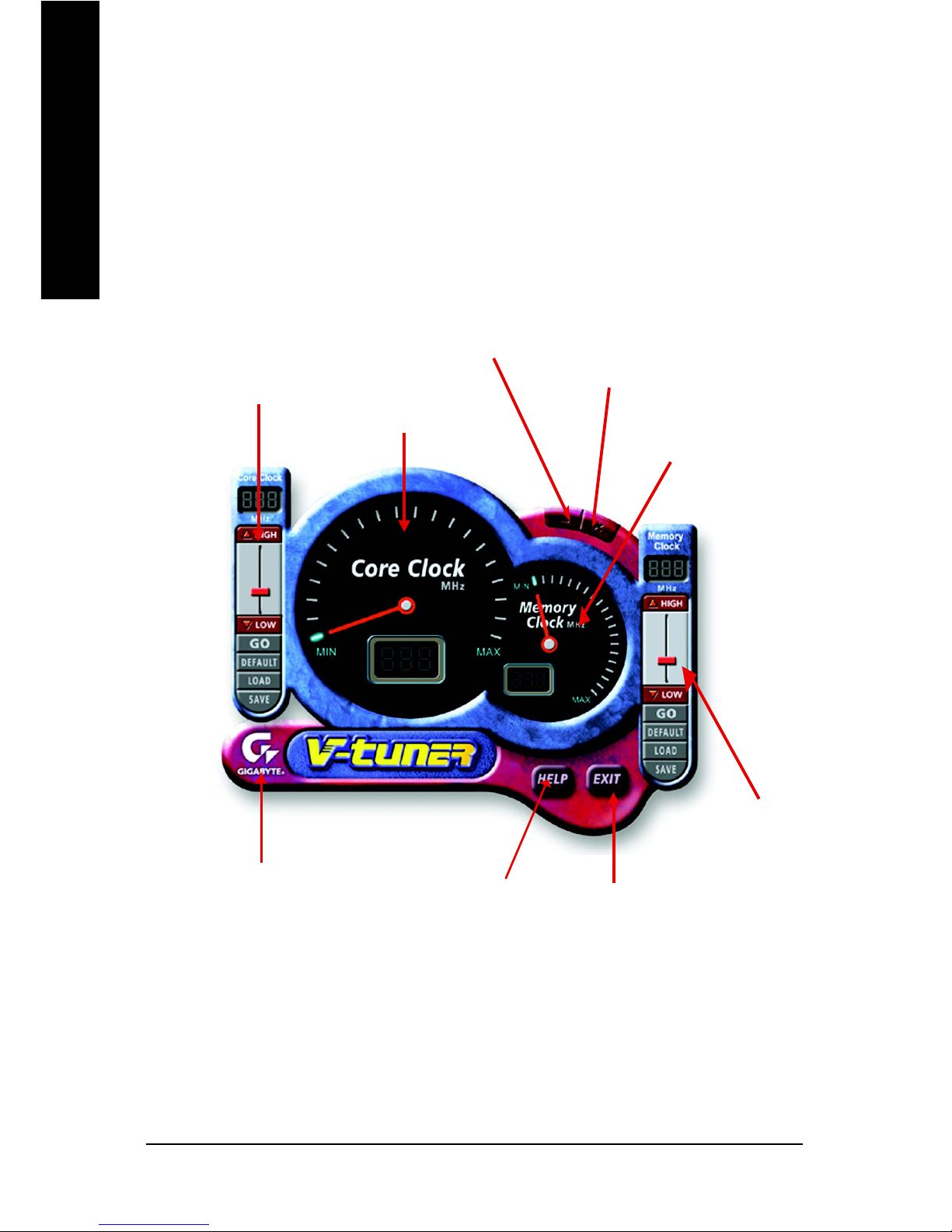

V-Tuner (Overclock Utility)

V-Tuner lets you adjust the working frequency of the graphic engine and video memory

(Core Clock and Memory Clock).

Software Installation- 15 -

English

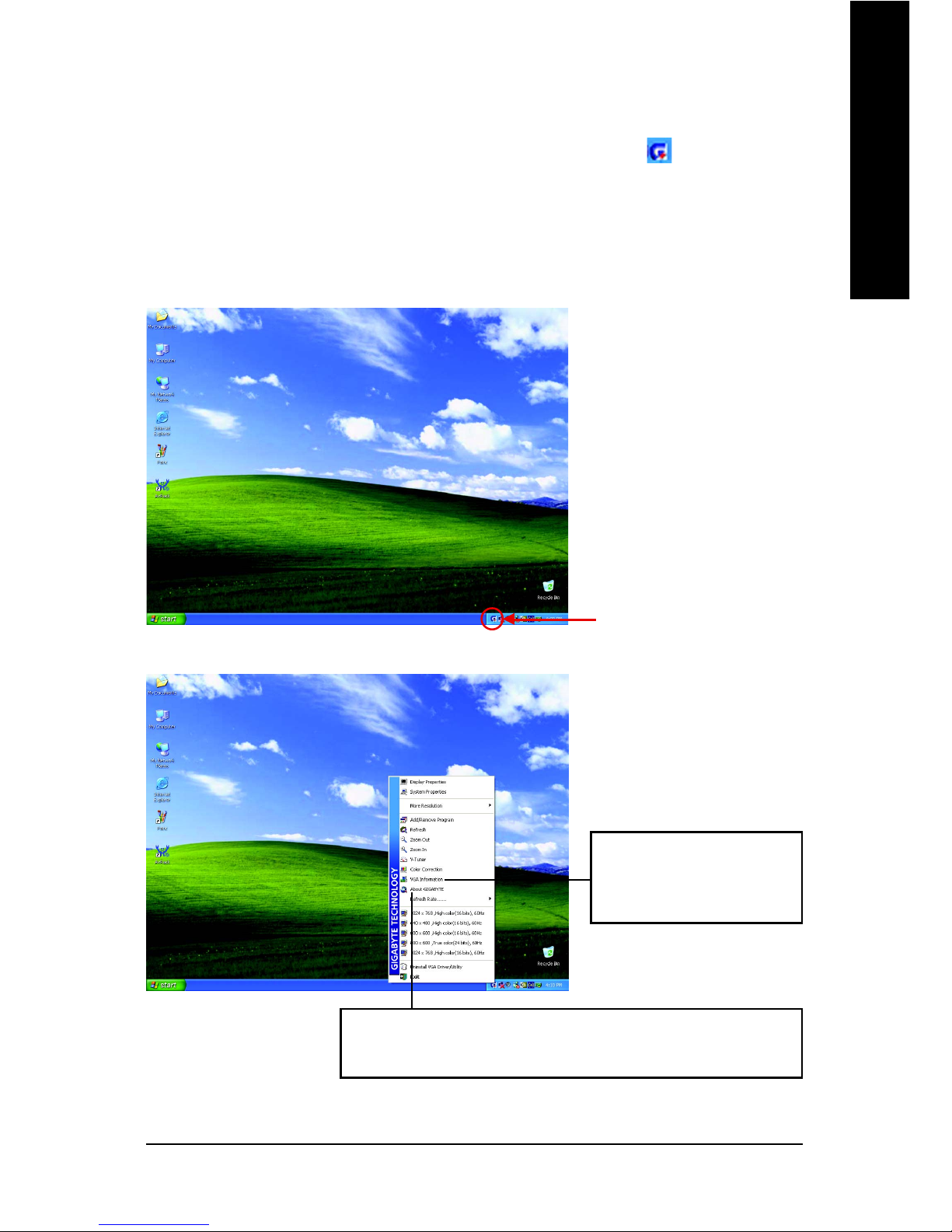

3.1.5. Taskbar icon

After installation of the display drivers, you will find a GBT icon on the taskbar's

status area. Right-clicking this icon opens the GBT control panel, showing a menu

composed of shortcut of the graphics card's enhanced and other functions.

You may click the "Display Properties" item, and then click Settings. Click "Advanced"

after clickng Settings. Click the appropriate tab to change your display settings.

Right click the icon.

You can link to GBT website for updated information about the

graphics accelerator, latest drivers, and other information.

Click "VGA Information" item

into the "VGA Info" and "Color

Adjust"tabs.

GV-N57128D Graphics Accelerator - 16 -

English

VGA Information

VGA Info lists the relevant information about your card.

Color Adjust

Color Adjust allows you to make color adjustments, such as brightness, contrast and

gamma values for each or all of RGB colors.

Software Installation- 17 -

English

After installation of the display drivers, you will find a NVIDIA icon on the taskbar's

status area. Clicking this icon open the control panel.

Right click the icon.

You can adjust the properties of the

graphics accelertaor from here.

You can enable the nView function.

GV-N57128D Graphics Accelerator - 18 -

English

3.1.6. Display properties pages

The screen shows the information of display adapter, color, the range of display area

and the refresh rate.

Settings (Resolutions and Color depth for windows)

The Setting properties page allows you to adjust the screen resolution and color quality

settings.

You can click the item to change

the color depth.

You can move the slider to change

the resolution.

This page shows the Adapter, System and

Driver versions information.

Click "Advanced" icon for adapter and setting.

Click "Advanced", into details settings:

You can select other properties from the pop-out menu.

Table of contents

Gigabyte GV-N57128D User manual

Popular Video Card manuals by other brands
