Gigabyte GV-NX76G256D-RH User manual

Jnu. 12, 2006
VGA Card
GV-NX76G256D-RH

VGA Card
Jun. 12, 2006
GV-NX76G256D-RH

Aug. 1, 2006
VGA Card
GV-NX76G256D-ZL-RH

VGA Card
Aug. 1, 2006
GV-NX76G256D-ZL-RH

Aug. 1, 2006
VGA Card
GV-NX76G512P-RH

VGA Card
Aug. 1, 2006
GV-NX76G512P-RH

GV-NX76G256D-RH /
GV-NX76G256D-ZL-RH /
GV-NX76G512P-RH
GeForce™7600 GS Graphics Accelerator
User's Manual
Rev. 103
12MD-NX76G2R-103R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Copyright
© 2006 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

GV-NX76G Series Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum system requirements ..................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board layout ............................................................................................... 4
2.2. Hardware installation ................................................................................... 8
3. Software Installation .......................................................................... 12
3.1. Windows®XP driver and utilities installation ................................................ 12
3.1.1. Operating system requirement ................................................................................... 12
3.1.2. DirectX installation ........................................................................................................ 12
3.1.3. Driver installation .......................................................................................................... 14
3.1.4. Utilities on driver CD .................................................................................................... 16
3.1.5. Taskbar icon ................................................................................................................. 18
3.1.6. Display properties pages ............................................................................................. 21
3.1.7. nView properties pages ............................................................................................... 26
3.2. Windows®2000 driver installation .............................................................. 31
4. Troubleshooting Tips ........................................................................ 32
5. Appendix .......................................................................................... 33
5.1. How to Reflash the BIOS ........................................................................... 33
5.1.1. Reflash BIOS in MS-DOS mode ................................................................................. 33
5.1.2. Reflash BIOS in Windows mode ................................................................................ 33
5.2. Connecting to a HDTV .............................................................................. 34
5.3. Resolutions and color depth table (In Windows®XP) .................................. 35

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™7600 GS Graphics Processing Unit (GPU)
•Supports the newest PCI Express x16
•Integrated with 256MB DDRII memory
(For GV-NX76G256D-RH / GV-NX76G256D-ZL-RH only)
•Integrated with 512MB DDRII memory (For GV-NX76G512P-RH only)
•Supports DirectX 9.0c
•Supports NVIDIA® SLITM (Scalable Link Interface) technology (Note)
•Supports AV / S-Video and HDTV output
•Supports D-sub connector
•Supports Dual-Link DVI-I connector
1.2. Minimum system requirements
•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz
class processor or higher
•One PCI Express x16 slot
•Operating Systems Win®2000 / Win®XP
•64MB system memory
•50MB of available disk space for full installation
•CD-ROM or DVD-ROM drive
•Minimum power supply 300W
(To set up an SLI system with the GV-NX76G256D-RH / GV-NX76G256D-ZL-RH
/ GV-NX76G512P-RH graphics cards, please use a power supply of 350 watt or
above.)
(Note): SLI technology requires a PCI Express motherboard with two x16 physical
connectors. Graphics cards working in an SLI configuration must be with the same model
name (i.e. GV-NX76G256D-RH) and from the same vendor (i.e. GIGABYTE
TECHNOLOGY).

GV-NX76G Series Graphics Accelerator - 4 -
English
2. Hardware Installation
2.1. Board Layout
SLI Connector
TV-Out
VGA Monitor Connector
(15-pin)
Dual-Link DVI-I Connector
TV-Out
VGA Monitor
Connector
(15-pin)
Dual-Link DVI-I
Connector
Analog LCD Monitor Analog Monitor
OR
VGA Output
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
NTSC / PAL TV Projector
OR
Analog LCD Monitor
Digital LCD Monitor
Dual-Link DVI Output
Dual-Link DVI-I to D-Sub
Connector
VGA Output
1. GV-NX76G256D-RH

Hardware Installation- 5 -
English
TV-Out
VGA Monitor
Connector
(15-pin)
Dual-Link DVI-I
Connector
Analog LCD Monitor Analog Monitor
OR
VGA Output
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
NTSC / PAL TV Projector
OR
Analog LCD Monitor
Digital LCD Monitor
Dual-Link DVI Output
Dual-Link DVI-I to D-Sub
Connector
VGA Output
SLI Connector
TV-Out
VGA Monitor Connector
(15-pin)
Dual-Link DVI-I
Connector
2. GV-NX76G256D-ZL-RH

GV-NX76G Series Graphics Accelerator - 6 -
English
TV-Out
VGA Monitor
Connector
(15-pin)
Dual-Link DVI-I
Connector
Analog LCD Monitor Analog Monitor
OR
VGA Output
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
NTSC / PAL TV Projector
OR
Analog LCD Monitor
Digital LCD Monitor
Dual-Link DVI Output
Dual-Link DVI-I to D-Sub
Connector
VGA Output
SLI Connector
TV-Out
VGA Monitor Connector
(15-pin)
Dual-Link DVI-I
Connector
3. GV-NX76G512P-RH

Hardware Installation- 7 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some
precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-static
mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.

GV-NX76G Series Graphics Accelerator - 8 -
English
2.2. Hardware installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.
To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to disable
it on the motherboard. For more information,
please see your computer documentation.

Hardware Installation- 9 -
English
You are now ready to proceed with the installation of the graphics card driver. Please refer
to next chapter for detailed instructions.
To TV/VCR
To VGA Monitor To Flat Panel Display
2. Replace the screws to fasten the card in
place, and replace the computer cover.
3. Plug the display cable into your card; then
turn on the computer and monitor. If your
graphics card came with a Dual-Link DVI-I
connector, you can connect a flat panel
display to the appropriate connector, as
shown below...
To install your new graphics card:
1. Locate one PCI Express x16 slot. If
necessary, remove the metal cover from the
slot; then align your graphics card with the
PCI Express x16 slot, and press it in firmly
until the card is fully seated.
* Please make sure that the gold edge connectors
of the graphics card is securely inserted.

GV-NX76G Series Graphics Accelerator - 10 -
English

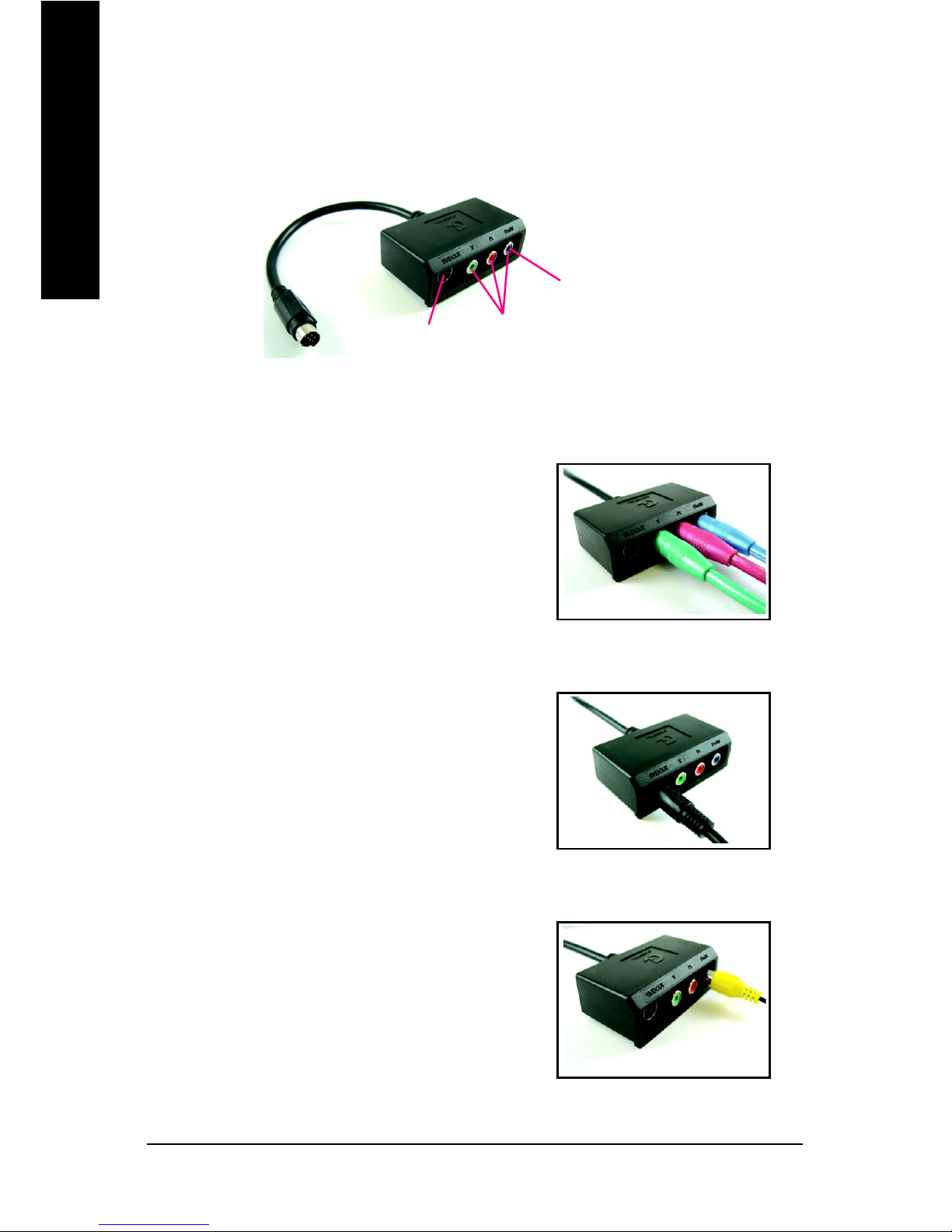

GIGABYTE Component Video Adapter for Nvidia Graphics Cards (HDTV Cable)
(1) Connecting HDTV
Connect your HDTV cables to the component video
adapter according to the corresponding color. (Y= Green,
Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-
Video cable from your TV to the S-Video Out port on the
adapter.
(3) Connecting AV Output
If your TV has a Composite video connection, you can
connect the RCA cable from your TV to the AV Out port
on the adapter.
Connect to the TV-Out
port on the graphics card.
S-Video Out HDTV Component
(Y+Pr+Pb)
AV Out

Hardware Installation- 11 -
English

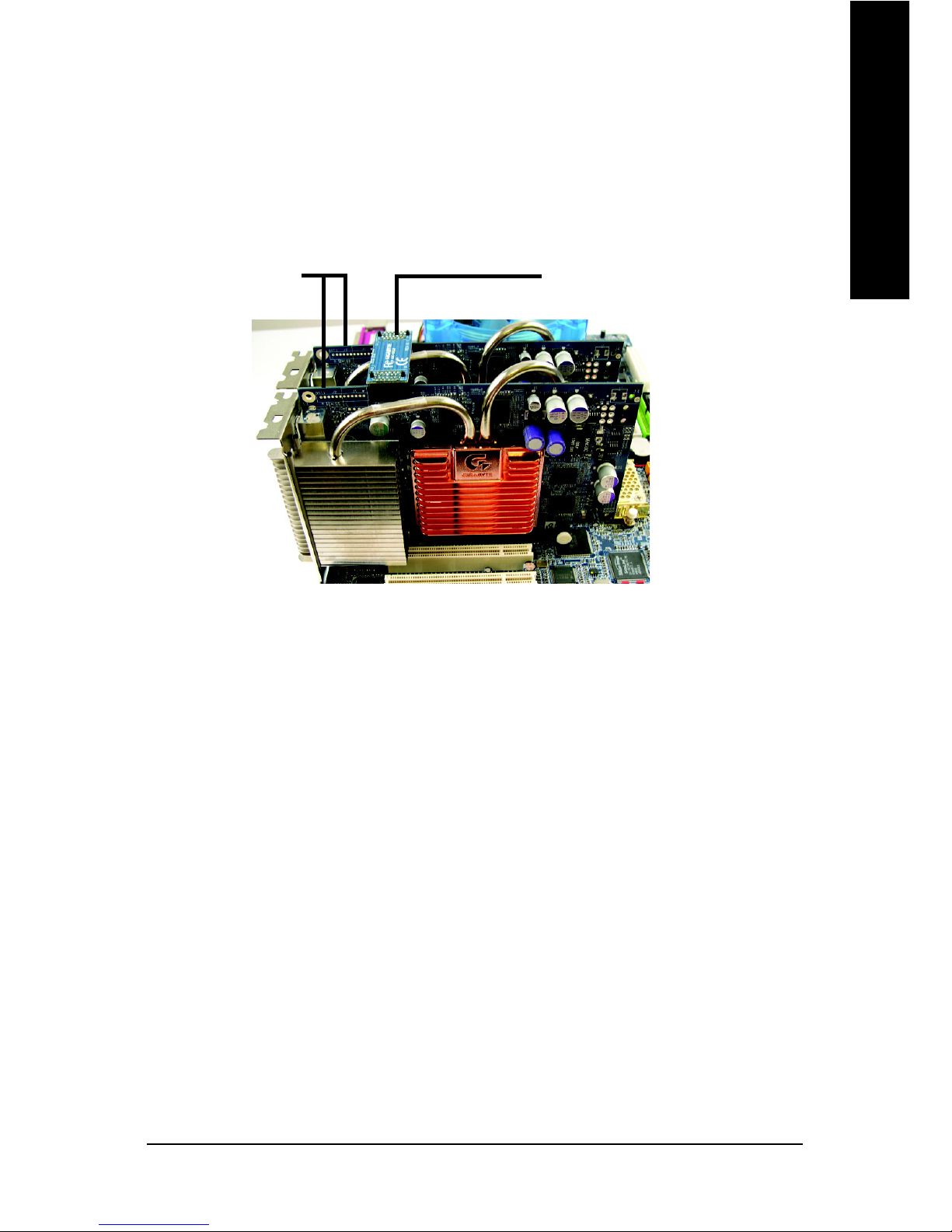

How NVIDIA® SLITM (Scalable Link Interface) technology works:
In an SLI configuration, two SLI-ready graphics cards of the same model and the same
manufacturers are connected together via SLI bridge connector in a system that provides
two x16 PCI Express slots to scale graphics performance. The picture below shows that two
graphics cards are linked in parallel in an SLI configuration.
SLI bridge connector
(provided by motherboard
manufacturer)
Two SLI-ready graphics
cards of the same type.
(Example: GV-NX66T256DP-RH)

GV-NX76G Series Graphics Accelerator - 12 -
English
3.1.2. DirectX installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000 or
Windows®XP to achieve better 3D performance.
0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install
DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to
install DirectX separately.
Step 1. When autorun window show up, click
the Install DirectX 9 item.
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert the
driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show
up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver.
(Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics
accelerator.)
3.1. Windows®XP driver and utilities installation
3.1.1. Operating system requirement
•When loading the graphics card drivers for the system, please make sure your system
has installed DirectX 9.0C or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS or VIA
chipsets, please install the appropriate driver program for that motherboard. Or please
contact your motherboard nearest dealer for motherboard driver.

Software Installation- 13 -
English
Step 4. Click "Finish" to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.
Step 2. Choose I accept the agreement and click
the "Next" button.
Step 3. Click the "Next" button.

GV-NX76G Series Graphics Accelerator - 14 -
English
3.1.3. Driver installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click the "Next" button to install the driver. (There
is a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the "Cancel" button to install the driver
from AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the "Finish" button to finish the installation.
