Gigabyte Gv-rx19t512vb-rh User manual

any form without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make

a commitment to update the information contained herein.

GV-RX19T512VB-RH

Radeon X1900XT Graphics Accelerator

User's Manual

Rev. 101

12MD-RX19T5BR-101R

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

- 2 -

English

GV-RX19T512VB-RH Graphics Accelerator

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum System Requirement ..................................................................... 3

2. Hardware Installation ........................................................................... 4

2.1. Board Layout .............................................................................................. 4

2.2. Hardware Installation ................................................................................... 6

3. Software Installation ............................................................................ 8

3.1. Windows®XP Driver and Utilities Installation ................................................. 8

3.1.1. Operating System Requirement ................................................................................... 8

3.1.2. DirectX Installation .......................................................................................................... 9

3.1.3. Driver Installation .......................................................................................................... 10

3.1.4. Utilities on Driver CD ................................................................................................... 12

3.1.5. Video In Introduction ..................................................................................................... 13

3.1.6. Taskbar Icon ................................................................................................................. 16

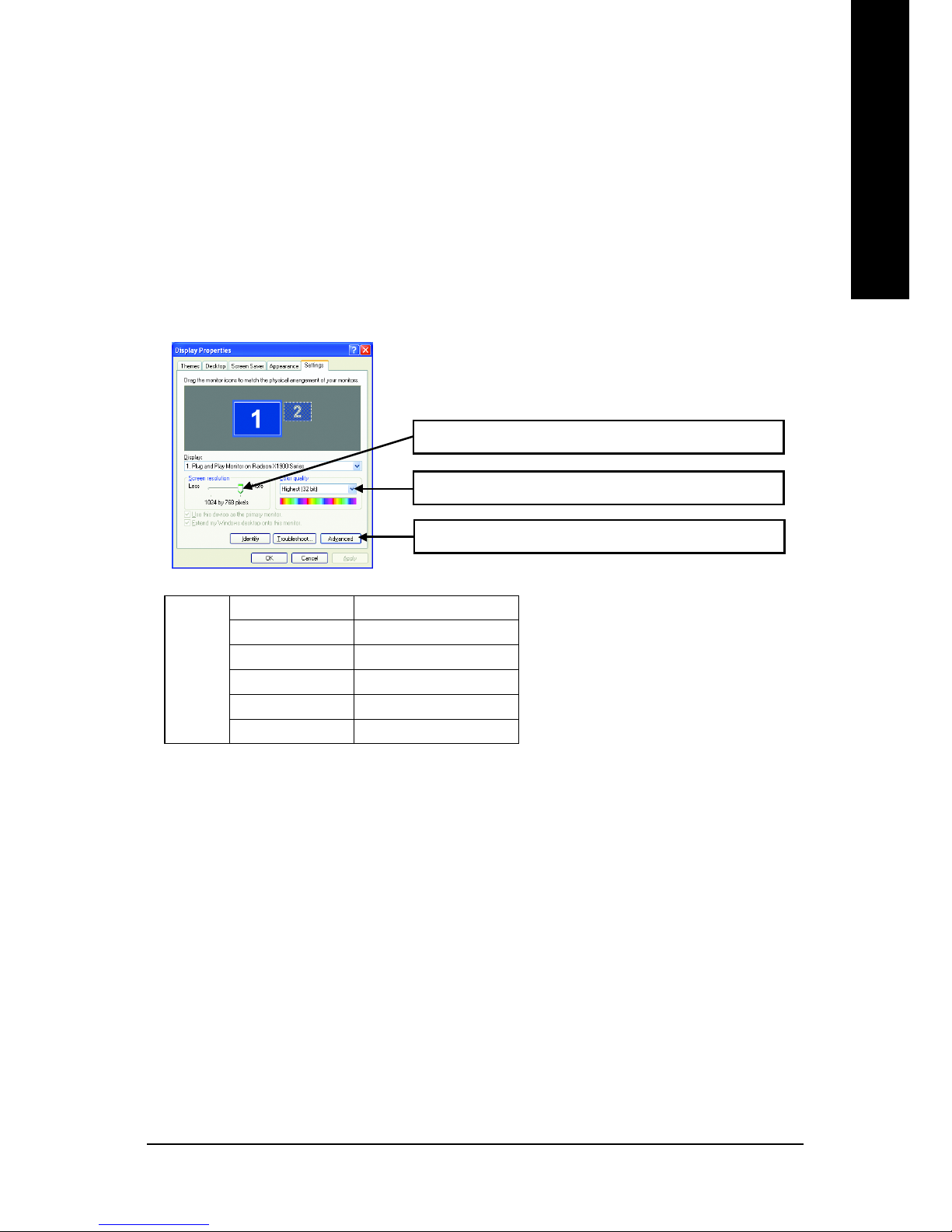

3.1.7. Display Properties pages ............................................................................................ 17

3.2. Windows®2000 Driver Installation ............................................................. 34

4. Troubleshooting Tips ........................................................................ 35

5. Appendix .......................................................................................... 36

5.1. How to Reflash the BIOS in MS-DOS mode ............................................... 36

5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 37

Introduction- 3 -

English

1. Introduction

1.1. Features

•Powered by ATI Radeon X1900XT Visual Processing Unit (VPU)

•Supports the newest PCI Express x 16

•Integrated with 512MB GDDR3 memory

•Supports DirectX 9.0C

•Supports AV / S-Video and HDTV output

•Supports AV / S-Video input

•Supports TV-Out connector

•Supports 2 DVI-I connectors

1.2. Minimum System Requirement

• Hardware

•Intel®Pentium®4 or AMD Athlon® .

•512MB of system memory ; 1GB or more for best performance.

•Optical drive for installation software (CD-ROM or DVD-ROM drive).

•A 450watt power supply or above must be used.

• Operating System

•Windows® XP with Service Pack 2(SP2).

•Windows®XP Professional x64 Edition.

•Windows®2000.

• CrossFireTM Compatibility

If you are planning on using this grpahics card as part of a CorssFireTM system, the

following is required:

•A CrossFireTM certified motherboard with two (2) PCI Express®X16 sltos

and correct PCIe chipset driver.

•Provides X1900 CrossFireTM edition master card.

•A 550watt power supply or above must be used.

- 4 -

English

GV-RX19T512VB-RH Graphics Accelerator

2. Hardware Installation

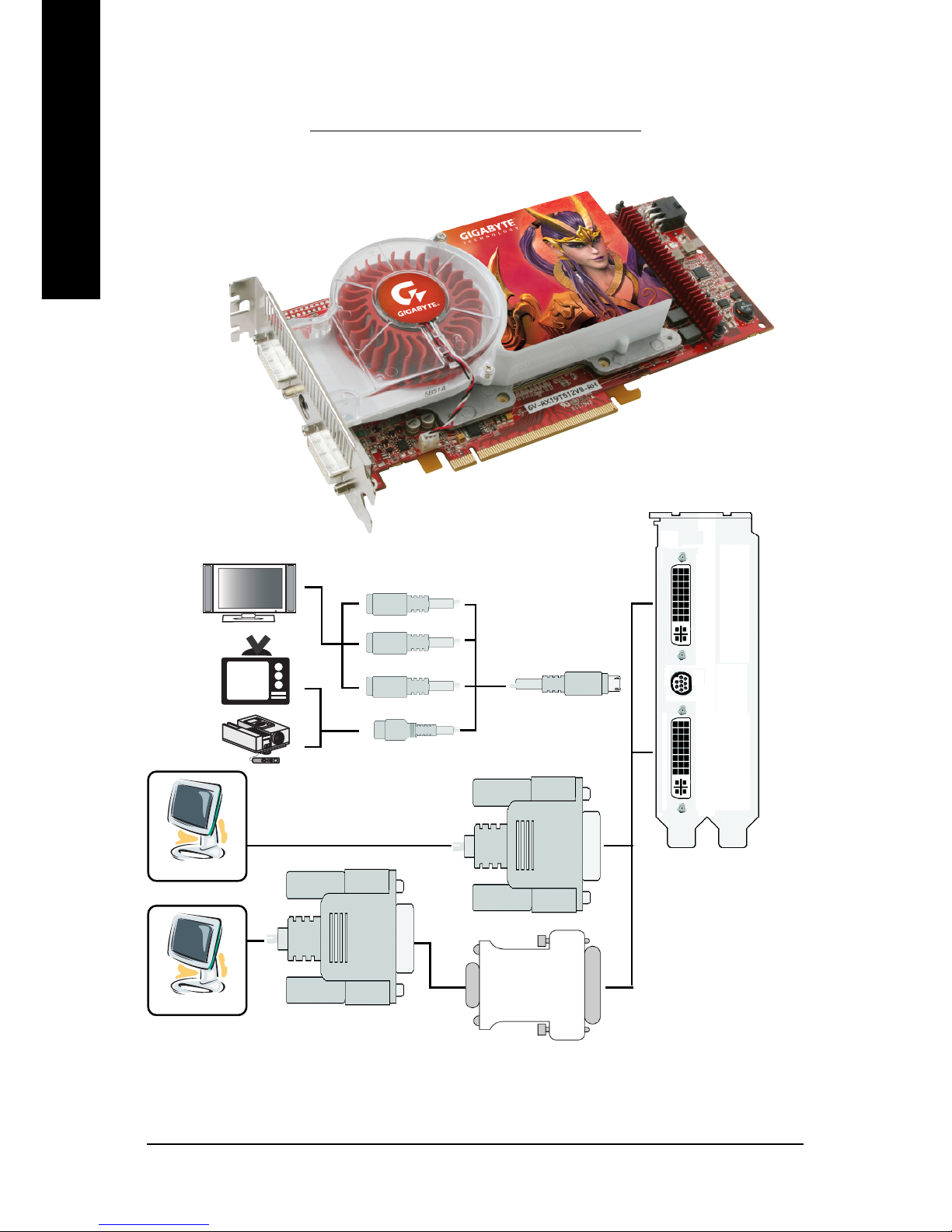

2.1. Board Layout

VIVO (Note)

DVI-I

Connector 2

Analog LCD Monitor

Digital LCD Monitor

DVI Output

DVI-I

Connector 1

DVI-I to D-Sub

Adapter

VGA Output

(Note) Please refer to page 13 about Video In introduction.

NTSC / PAL TV

Projector

S-Video Output

YHDTV

Pb/AV Output

DVI-I Connector 2

VIVO

DVI-I Connector 1

Hardware Installation

- 5 -

English

Expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow

some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not

have one, touch both of your hands to a safely grounded object or to a metal object,

such as the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by

static electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator

should be wearing an anti-static wristband, grounded at the same point as the anti-

static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage

to your card. Be sure there are no shipping and handling damages on the card before

proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON

THE CARD.

In order to ensure your graphics card working correctly, please use official

Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem

on the graphics card.

- 6 -

English

GV-RX19T512VB-RH Graphics Accelerator

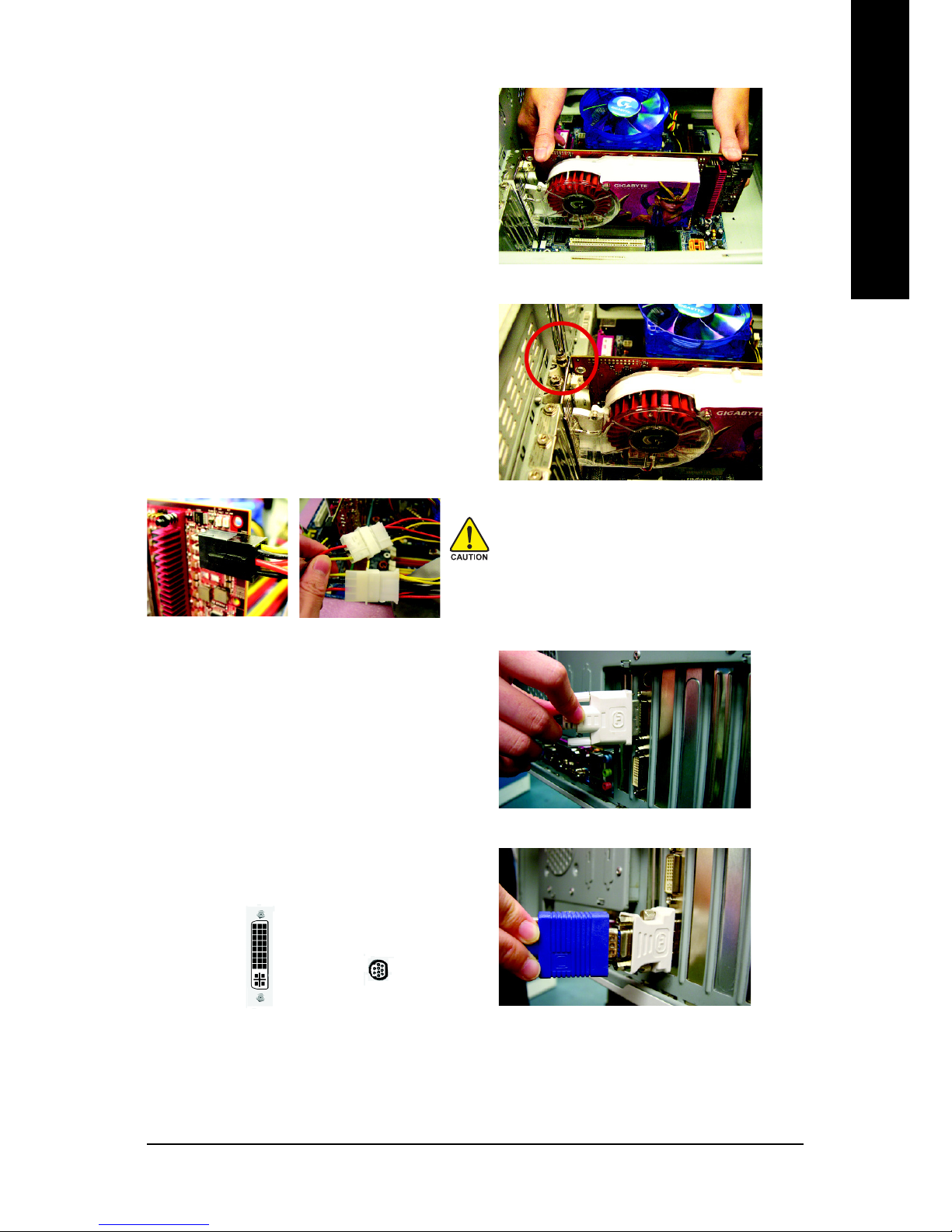

2.2. Hardware Installation

Now that you have prepared your computer, you are ready to install your graphics accelerator

card.

To remove the existing graphics card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help in

removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to disable

it on the motherboard. For more information,

see your computer documentation.

Hardware Installation

- 7 -

English

2. Replace the screw to fasten the card in place,

and replace the computer cover.

You are now ready to proceed with the installation of the graphics card drivers. Please

refer to next chapter for detailed instructions.

To Flat Panel Display 9-Pin for VIVO

3. Plug the display cable into your graphics

card; then turn on the computer and

monitor. To connect a flat panel directly to

your graphics card, use the DVI-I connector.

To connect a VGA monitor to the DVI-I

connector, plug the DVI-I to D-sub adapter

into the DVI-I connector, then plug the

monitor cable into the adapter.

After installation, please connect the power cable to

your graphics card, or the system will not boot.

Connect a flat panel

Connect a VGA monitor via DVI-I to D-sub adapter

To install your new graphics card:

1. Locate the PCI Express x 16 slot. If

necessary, remove the metal cover from this

slot; then align your graphics card with the

PCI Express x 16 slot, and press it in firmly

until the card is fully seated.

- 8 -

English

GV-RX19T512VB-RH Graphics Accelerator

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert

the driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not

show up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card

driver. (Please follow the subsection 3.1.3 "Driver installation" to install the driver for your

graphics accelerator.)

3.1. Windows®XP Driver and Utilities Installation

3.1.1. Operating System Requirement

•When loading the graphics card drivers for the system, please make sure your

system has installed DirectX 9 or later version.

•If you install the graphics card drivers for the motherboard, which consist of SIS, or

VIA chipsets, please install the appropriate driver program for that motherboard.

Or please contact your motherboard nearest dealer for motherboard driver.

Software Installation- 9 -

English

3.1.2. DirectX Installation

Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000

or Windows®XP to achieve better 3D performance.

0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install

DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to

install DirectX separately.

Step 1. When autorun window show up, click the

Install DirectX 9 item.

Step 2. Choose I accept the agreement

and click the Next button.

Step 3. Click the Next button.

Step 4. Click Finish to restart computer.

Then the DirectX 9 installation is completed.

Installing the components.

Click the Install DirectX 9 item.

- 10 -

English

GV-RX19T512VB-RH Graphics Accelerator

3.1.3. Driver Installation

A. New hardware found

After the graphics card is inserted into your computer at the first time, the windows will

automatically detect a new hardware in the system and pop out a "New Hardware Found"

message. The following is the step-by-step installation guide.

Step 1: Found new hardware wizard: Video controller (VGA Compatible)

Click the Next button to install the driver. (There

is a driver CD disk that came with your graphics

accelerator, please insert it now.)

Or click the Cancel button to install the driver

from AUTORUN window.

Step 2: Found new hardware wizard: Searching and installing

The wizard will search for the driver and install it automatically.

Step 3: Found new hardware wizard: Finish

Click the Finish button to finish the installation.

Software Installation- 11 -

English

B. Driver installation (Autorun Window)

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

Click the Install Display Drivers (Radeon

X1900 Series) item.

Step 1. When autorun window show up, click the

Install Display Drivers (Radeon X1900 Series)

item.

Step 2. Click the Next button. Step 3. Click the Yes button.

Setp 4. Click the Express or Custom icon.

Step 5. Click the Finish button to restart computer.

Then the driver installation is completed.

Windows installings the components.

- 12 -

English

GV-RX19T512VB-RH Graphics Accelerator

3.1.4. Utilities on Driver CD

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

zInstall Hydravision :

Step 2. Click the Next button.

Click the Hydravision Install item.

Step 3. Click the Yes button.

Step 4. Click the Next button. Windows installings the components.

Step 6. Click the Finish button to restart computer.

Then the Hydravision Install is completed.

Step 5. Click the Next button.

Software Installation- 13 -

English

Red record

button

Videobutton

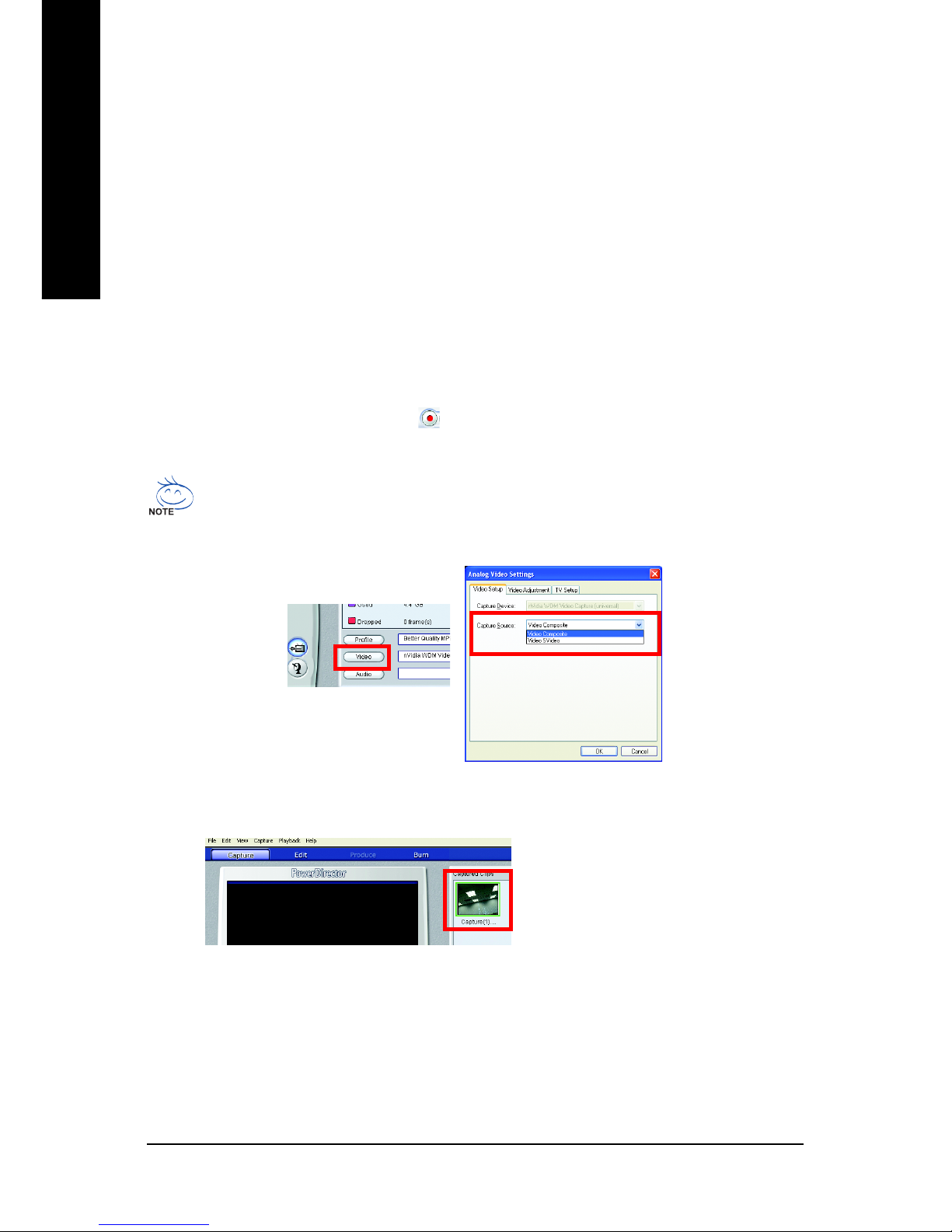

3.1.5. Video In Introduction

zCyberlink Power Director 3.X Installation (Note)

Please install the Cyberlink Power Director 3.X (or above) version with your graphics card.

Press the "Capture" button, PowerDirector enter Capture mode, in which you can capture

media from a variety of device. (Figure 1)

Figure 1

(Note) Power Director 3.X only supported on the Windows XP operating systems.

- 14 -

English

GV-RX19T512VB-RH Graphics Accelerator

Figure 3

zIntroduction of the capture sources device

Please check out your capture source. In general, the media sources comprise the following item:

1. Video Tape Recorder (VCR), V8 :

Connect the AV connector or video cable of the VCR to the Video In of the video capture card. And if your

VCR, V8 supports S-Video output, connect S-Video connector to the S-Video In port of the graphics card.

Connect the audio cable of the VCR, V8 to the Line In of the sound card.

If your sound card has no Line In port, try the Microphone port.

2. DV (recommend to use IEEE1394 card)

DV (Check out if the power of DV is turned on, and enter VCR mode; moreover, make sure FireWire

cable connect well.

Furthermore, when capturing media by VIVO-based graphics card, you could chose two ways(Note),

including Composite (COMP-IN) and SVideo(SVID-IN). Afterward please click the play button of

captured devices, and click the red REC button between Capture preview window and Capture

device selection area.

Figure 4

When you got the media you need, click the red REC button again to stop capturing. And then the media

clips will be loaded into Capture clips area automatically. (Figure 4)

Please verify how your cable connects. If the cable connects to SVID-IN port on HDTV/VIVO

cable, please press the "Video" button (Figure 2), and please select the "Video SVideo" item

(Figure 2); if it connects to COMP-IN port on HDTV/VIVO cable, please select the "Video

Composite" item (Figure 3).

Figure 2

Software Installation- 15 -

English

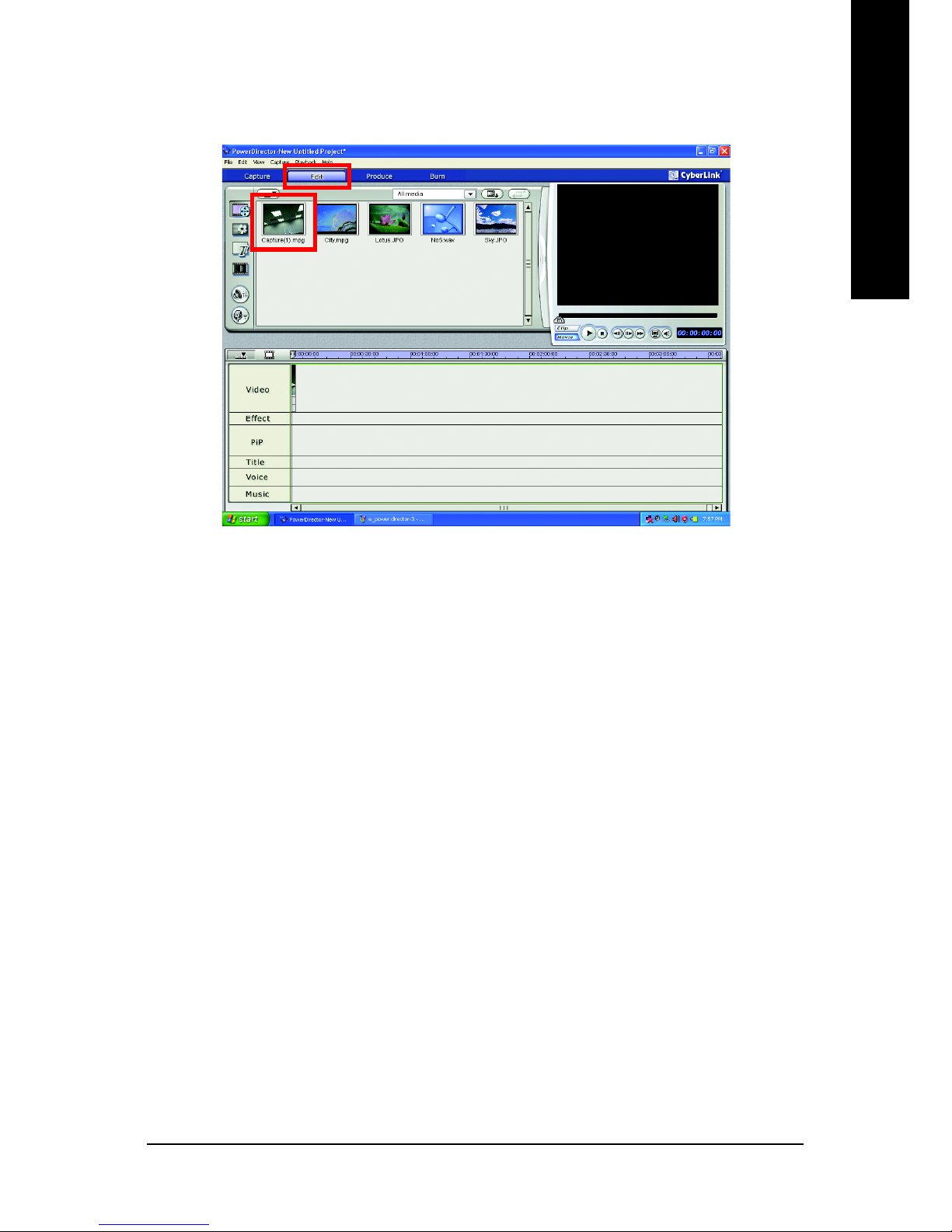

Once you click the "Edit" button to return Edit mode, the media clips will be loaded into Library

immediately.

(Figure. 4)

At this moment in time, you can expand a series of outstanding editing experience to fill you life with

boundless possibility.

(For more details about movie editing function of PowerDirector, please refer to user's guide, or visit

Cyberlink website for official technical support.)

- 16 -

English

GV-RX19T512VB-RH Graphics Accelerator

ATI CATALYSTTM Control Center:

After installation of the display drivers, you will find an ATI CATALYSTTM Control Center icon

on the taskbar's status area. The ATI CATALYSTTM Control Center is used to configure all your

graphics card settings. Right-click the icon to enter the ATI CATALYSTTM Control Center (refer to

Fig. 1). Or you can right-click on the desktop to select Properties>Settings>Advanced>ATI

CATALYST Control Center tab and press ATI CATALYST(tm) Control Center button (refer to Fig. 2).

Fig. 1 Fig. 2

HYDRAVISIONTM :

HYDRAVISION has everything you need to manage increased amounts of information across

your computer desktop. It allows you to quickly and easily tailor your computer desktop to the way

you work. You can:

• arrange and rearrange monitors. • assign Hot Key shortcuts.

• create up to 9 virtual desktops. • add special effects to windows and menus.

You can right-click on ATI CATALYSTTM Control Center icon to select HYDRAVISIONTM>

HYDRAVISIONTM Properties to set the HYDRAVISION (refer to Fig. 3).

Fig. 3

3.1.6. Taskbar Icon

Software Installation- 17 -

English

3.1.7. Display Properties pages

To access Display Properties pages, right-click the GIGABYTE icon on the taskbar and

select Display Properties or right-click on Desktop and then select Properties. The

Display Properties dialog box shows the information of display adapter, color, the range

of display area, and the refresh rate.

Settings (Resolutions and Color depth for Windows)

You may adjust the screen resolution and color quality settings in this dialog box.

(Note)The CRT+TV configuration requires that you connect your CRT display to the DVI connector 2

on the card using the DVI-I to VGA adapter to ensure normal operation.

This configuration is not supported if the CRT monitor is directly attached to the DVI connector 1

on the card.

You can click the item to change the color quality.

Click the Advanced button for adapter and setting.

You can move the slider to change the resolution.

Display

Matrix

Model GV-RX19T512VB-RH

CRT+TV(Note) Yes

CRT+DVI Yes

DVI+TV Yes

DVI+TV+CRT No

DVI +DVI Yes

- 18 -

English

GV-RX19T512VB-RH Graphics Accelerator

View Properties:

The CATALYST Control Center dashboard supports three types of views: Standard View/

Advanced View/ Custom View.

Standard View

The Standard view is the default view when

CATALYST Control Center is launched for the first

time. It provides a single button in the left naviga-

tion pane for each main page. The Standard view

is recommended for novice users.

Advanced View

The Advanced view provides access to the

advanced features on each page. The left

navigation pane displays a tree view that lists all

the advanced features. The Advanced view is

recommended for experienced users.

Custom View

The Custom view allows you to display only the

features you choose in the left navigation pane.

The Custom view is recommended for

experienced users who want to expose only the

features they adjust most often or that their 3D

application supports.

Hotkeys Properties:

The Hotkeys Manager allows you to create shortcut key combinations to quickly perform tasks

such as changing a graphics setting or opening an application. A Hotkey is a combination of a

modifier key or keys, such as Ctrl, Alt, or Shift, and any letter from the alphabet.

Software Installation- 19 -

English

Profiles Properties:

You can use profiles to create customized environments for your desktop, video, and 3D

applications. Define and save your own personal video settings that can be quickly activated

manually, through a Hotkey, or by file association.

Preferences Properties:

The Preferences page helps to restore defaults, change skins, and update the CATALYST Control

Center. The CATALYST Control Center Preferences page contains the following options:

Note:

A profile applies to a specific graphics card. If

there is more than one graphics card installed

in your computer, you need to select the

appropriate card before creating, loading, or

activating a Profile.

Always on Top

Hide Tooltips

Hide Toolbar Text

Enable System Tray menu

Select a Language ...

Select a Skin ...

Restore Factory Defaults ...

- 20 -

English

GV-RX19T512VB-RH Graphics Accelerator

Help Properties:

The CATALYST Control Center Help feature allows you to access the comprehensive online help,

The CATALYST Control Center Help feature offers the following options:

Help for this Page

Help Contents ...

Search Help ...

Go to ATI.com

About CATALYST Control Center ...

Information Properties:

The Information Center provides detailed information about the installed graphics hardware and

associated software.

Graphics Software

Graphics Software includes information such

as installed 2D and 3D driver versions,

OpenGL®version, and Catalyst®Control

Center version.

Table of contents

Gigabyte GV-RX19T512VB-RH User manual

Popular Video Card manuals by other brands
