Gigo 1248R User manual

#1248R
600 PCS
77

1
INVENTING CAN BE
LEARNED
Gigo Learning Lab’s complete series includes 20 individual packages, as well as ve
school sets. The special features of Gigo’s Learning Lab are as follows:
Using Gigo’s “building block” construction-based curriculum, every class has a ready-
toassemble model, and includes time designed to promote individual creativity.
Promotes thinking outside-the-box of the traditional educational framework by learning
innovation through play!
We are all innately good at something, so we should take into account both individual
development and the ability to work as part of a team e󰀨ort.
Course levels are designed from elementary to di󰀩cult, combining a life sciences-
based curriculum with applications from daily life.
Experiment using Gigo’s “building blocks”, which can be used over and over again,
saving both time and e󰀨ort.
Learning Lab’s Cloud Platform allows systematic recording of learning progress.
We hope that kids can enthusiastically learn scientic knowledge through fun hands-on
experience, developing their problem-solving abilities, as well as a positive attitude
towards science. Our mission is to help children apply their newfound knowledge to
daily life, furthering their innovational skills and abilities.
1.
2.
3.
4.
5.
6.

2
7. Impact Tester
8. Ball Pitching Machine
10. GreenMech 2
11. Rise Step By Step
20. GreenMech 4
19. Cable Car
18. Scissor Lift
17. Latch
16. Four-Layer Track
15. GreenMech 3
14. Tian-Shui
13. Elastic Firing Device
12. Elevator
9. Trebuchet
4. Surprise Bucket
5. GreenMech 1
6. Domino
3. Stamping Machine
2. Hauling Engine
1. Slide
Parts List
Index
Education Philosophy 139
45
9 53
17 59
23 67
31 75
2
3
41
5 49
13 57
21 63
27 71
35
Index
Appendix Paper card 77

3
Parts List
x100
1 2
x100
3
x20
4
x10
5
x2
11
x10
14
x30
12
x5
13
x10
6
x2
7
x10
8
x2
9
x5
10
x2
16
x5
17
x10
19
x10
15
x10
20
x20
21
x10
22
x15
23
x2
24
x15
27
x4
28
x10
29
x6
30
x4
31
x1
33
x1
34
x1
35
x10
36
x5
37
x5
39
x2
40
x2
18
x5
41
x1
42
x100
43
x2
46
x2
48
x2
44
x5
45
x5
49
x4
50
x1
53
x2
52
x1
51
x1
32
x1
38
x2
26
x2
25
x2
47
x6

4
Requires 2 AA/LR06 batteries-not included.
TIPS AND TRICKS:
Fig.1 Fig.3 Fig.2 Fig.4
The models will often have several gear
wheels installed in a row, or gear train. In
order for the models to work well, thesae
gears will have to mesh well. Otherwise,
the force from one gear wheel won’t be
properly transferred to the next.
C. Gear wheels:
Here are a few tips for assembling and using the models.
Read them carefully before starting.
NG!(without space) OK!(with space)
For more assembly
tips, please refer to
When xing gears onto the frame with drive
axle be sure to keep a proper space (about
1mm) between the gear and the frames (Fig. 2).
And try to turn the gear to ensure every gear in
the gear train turning smoothly so that the least
friction will be created and most e󰀩cient power
transmission can be expected.
Using peg remover to pull peg o󰀨 as
Fig.3 shows.
Using peg remover to pull axle o󰀨 as
g.4 shows.
A. Pay attention to the hole: B. B-Peg remover:

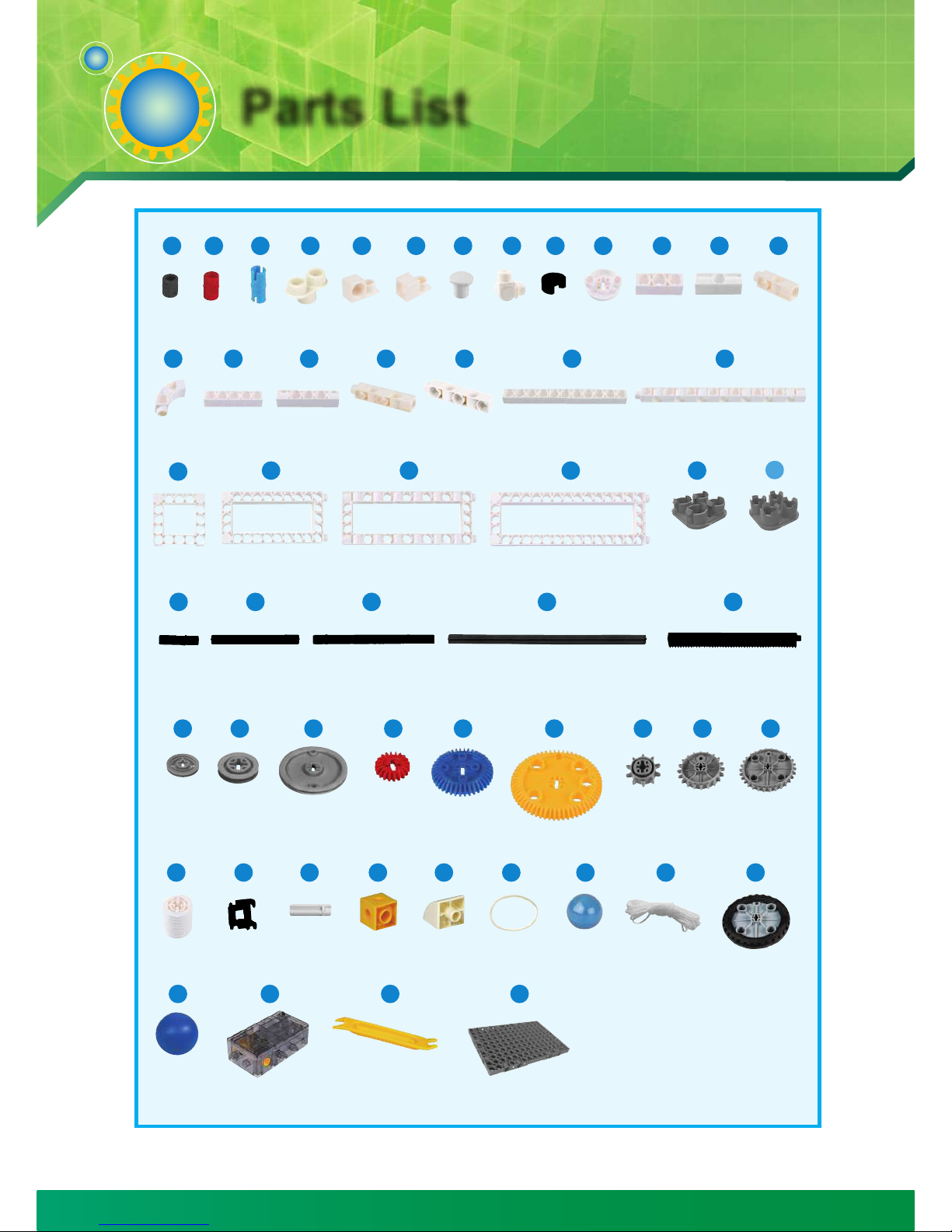

Parts List :
No. Description Item No. Qty.
1B-SHORT PEG 100
2C-LONG PEG 100
3C-20mm AXLE CONNECTOR 20
4C-TWO-IN-ONE CONVERTER 10
5C-LATERAL CONVERTER 2
6C-FRONT CONVERTER 2
7C-SHORT BUTTON FIXER 10
8C-HINGE 2
9C-AXLE FIXING 5
10 C-ROD CONNECTOR 2
11 C-3 HOLE ROD 10
12 C-3 HOLE ROD FRONT CLOSED 5
13 C-3 HOLE DUAL ROD 10
14 C-BENDED ROD 30
15 C-5 HOLE ROD 10
16 C-5 HOLE ROD FRONT CLOSED 5
17 C-5 HOLE DUAL ROD 10
18 C-5 HOLE DUAL ROD BOTTOM CLOSED 5
19 C-11 HOLE ROD 10
20 C-
15 HOLE DUAL ROD
20
21 C-5×5 FRAME 10
22 C-5×10 FRAME 15
23 C-5×13 DUAL FRAME 2
24 C-5×15 FRAME 15
25 C-JUMBO BASE GRID CONNECTOR 2
26 C-JUMBO BASE GRID REMOVER 2
27 C-30mm AXLE Ⅱ 4
No. Description Item No. Qty.
28 C-70mm AXLE Ⅱ 10
29 C-100mm AXLE Ⅱ 6
30 C-150mm AXLEⅠ 4
31 C-150mm RACK 1
32 C-OD23 PULLEY 1
33 C-OD33 PULLEY 1
34 C-OD53 PULLEY 1
35 C-20T GEAR 10
36 C-40T GEAR 5
37 C-60T GEAR 5
38 C-10T CHAIN GEAR 2
39 C-20T CHAIN GEAR 2
40 C-30T CHAIN GEAR 2
41 C-WORM GEAR 1
42 C-CHAIN 100
43 C-MOTOR AXLE 2
44 B-CUBE 5
45 B-CONVEX 5
46 C-100mm RUBBER BAND 2
47 C-MARBLE 6
48 C-2000mm STRING 2
49 C-RACING TIRE 4
50 A-40mm BALL 1
51 C-28X MOTOR WITH SWITCH 1
52 B-PEG REMOVER 1
53 C-JUMBO BASE GRID 2
7061-W10-Q1D
7413-W10-L2D
7026-W10-P1D
7061-W10-T2D
7344-W10-N3S1
7344-W10-N2S1
7344-W10-N1S1
7026-W10-D2R
7346-W10-C1B
7026-W10-W5Y
3569-W10-D2S1
3569-W10-D1S1
3569-W10-C1S1
7344-W10-A1W
3569-W10-B1D
7026-W10-L1W
880-W10-A1Y
880-W10-R1W
R10-05
E41-17
R39-W85-200
1115 - W8 5 - F2 S
73 3 0 -W 11- M 1B
7441-W10-A1TD
7061-W10-B1Y
7125-W10-B1S
7344-W10-C2D
7061-W10-C1R
7413-W10-T1B
7061-W10-G1W
7061-W10-X1W
7061-W10-Y1W
7061-W10-W1W
7061-W85-F1W
3620-W10-A1D
7026-W10-L2W
7026-W10-Q2W
7026-W10-X1W
7413-W10-Y1W
7061-W10-V1W
7413-W10-K2W
7413-W10-R1W
7413-W10-X1W
7413-W10-W1W
7413-W10-P1W
7413-W10-H1W
7413-W10-Q1W
7413-W10-I1W
7061-W10-U1W
7413-W10-J1W
7125-W10-C1S
7125-W10- C2S
7413-W10-N1D

5
B
rainstorming
B
rainstorming
Slide
1
The frequently-seen barrier free facilities in
our daily life are the application of the slide
principle, which enables the disabled to move
upward using their wheelchairs with little effort
or slide down by braking gently.A slide is an inclined
plane by which the falling speed of objects can be reduced
but the moving path becomes longer; on the contrary, it can move the
objects from a lower to a higher place e󰀨ortlessly but with more time
required. The parameters a󰀨ecting the slide include the oblique angle,
mass of objects and friction on the contacting surfaces.
What other applications does an inclined plan have?
Daily
Application
Daily
Application
Tony got up excitedly this morning because he was going to take a holiday
with his mom on the mountain. Unexpectedly, it started to rain when they were
driving only halfway up the mountain. His mom said hesitantly, “it is raining so
hard. I’m afraid the road may collapse.” As expected, it’s not long before they
were stuck in a traffic jam. Tony watched the mountain stream not far away.
He was surprised to nd that grass, trees and stones,mixed in the mud, were
owing downwards. Seeing this, Tony asked his mom what they were. “Some
people deforested the mountain without
conserving water and soil, so mudslide
occurs, leading to disaster,” she said
with a sigh.
Kids, have you ever seen a mudslide?
Did the mud move down rapidly? Do
you know how to prevent mudslides
from occurring?
Scientic
Application Slide

6
Parts List
7
x2
8
x2
22
x1
24
x2
53
x1
47
x3
1
3
2

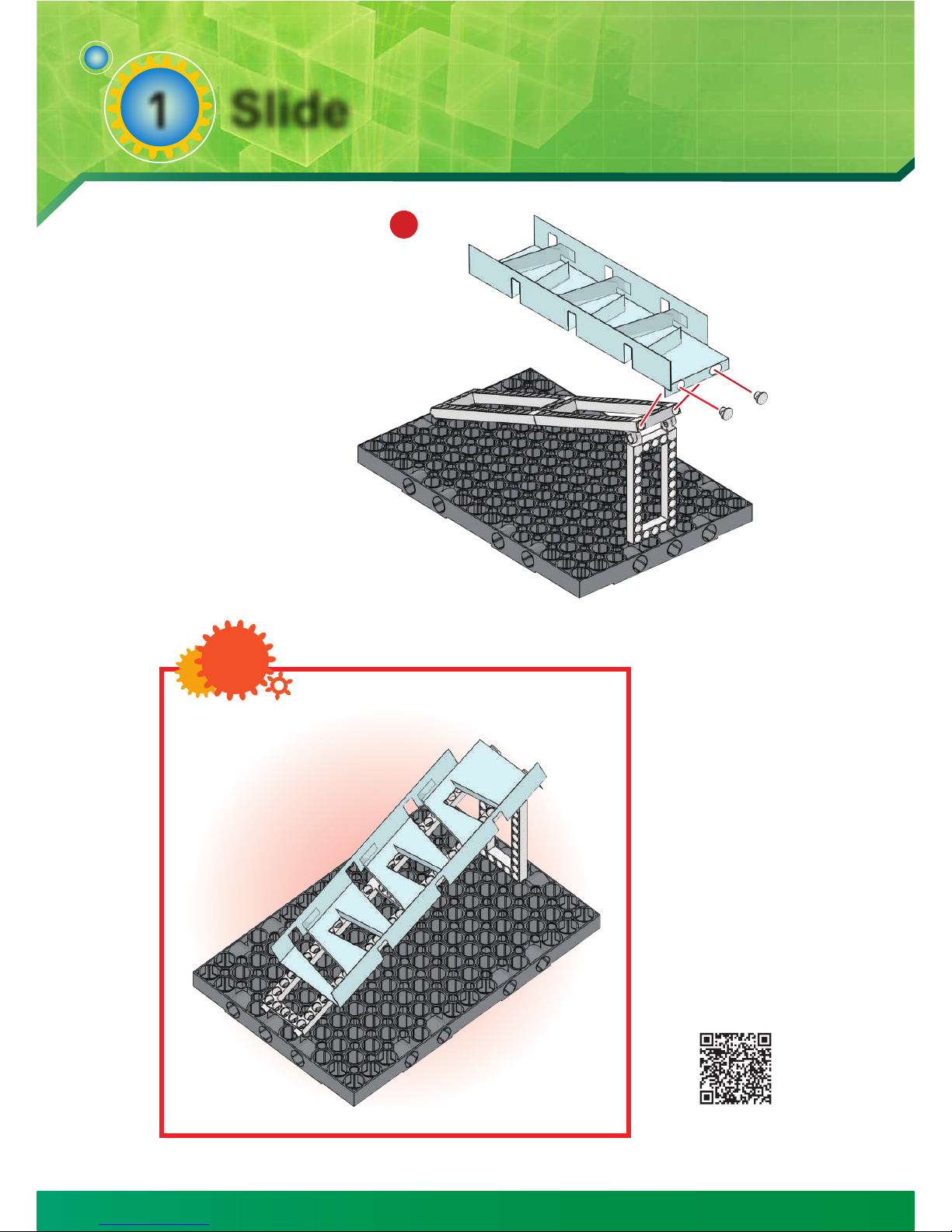

Slide
x2

7
1
Model Operation
Video
Slide
Done
4

1 2 3
8
Hands-on
Experiment
Hands-on
Creativity
Evaluation
Model
Assembled Experiment Complete Model Creation
Adjust the angle of the ramp and observe what
places will be impacted.
Design different ramps with different type of
papers.

9
Grandpa Rudolph used to drive a container truck at the dock. When he got old,
he returned to his hometown after retirement and became a farmer. He cultivated
the land bequeathed by his father and planted many kinds of fruits organically.
However, Grandpa Rudolph was old and no longer strong. Moreover, the
countryside was short of labor, and all the hard work must be done using
automated machines. Grandpa Rudolph wished to have an automated fertilizer
distributor, which can do digging, organic fertilizer applying and earthing. He didn’t
know this kind of machine had been
invented until he asked about it.
Kids, have you ever been to a farmland
or orchard to see agricultural machines?
Though they operate slowly, they
usually have high torque.
B
rainstorming
B
rainstorming
The frequently-used fork lift truck mainly
uses the characteristics of a gears, a
mechanism that conveys the energy through
the interlocking mechanism of the gear teeth.
Gears with different quantity of teeth can change the
motion direction and convey the energy by their interlocking
process. Speed increasing gear set requires more efforts since it
works in a way wherein the large gears drive the small ones; on the
contrary, the speed reducing gear set is labor-saving because it works
in a way wherein the small gears drive the large ones.
What other applications do gears have?
Daily
Application
Daily
Application
2Hauling Engine Scientic
Application Gear

10
Parts List
2
x3
22
x2
29
x4
35
x3
37
x3
42
x33
43
x1
48
x1
53
x1
51
x1
32
x1
38
x2
x3
14
x1
17
100mm
100mm
100mm
100mm
1
3
2
Gear

11

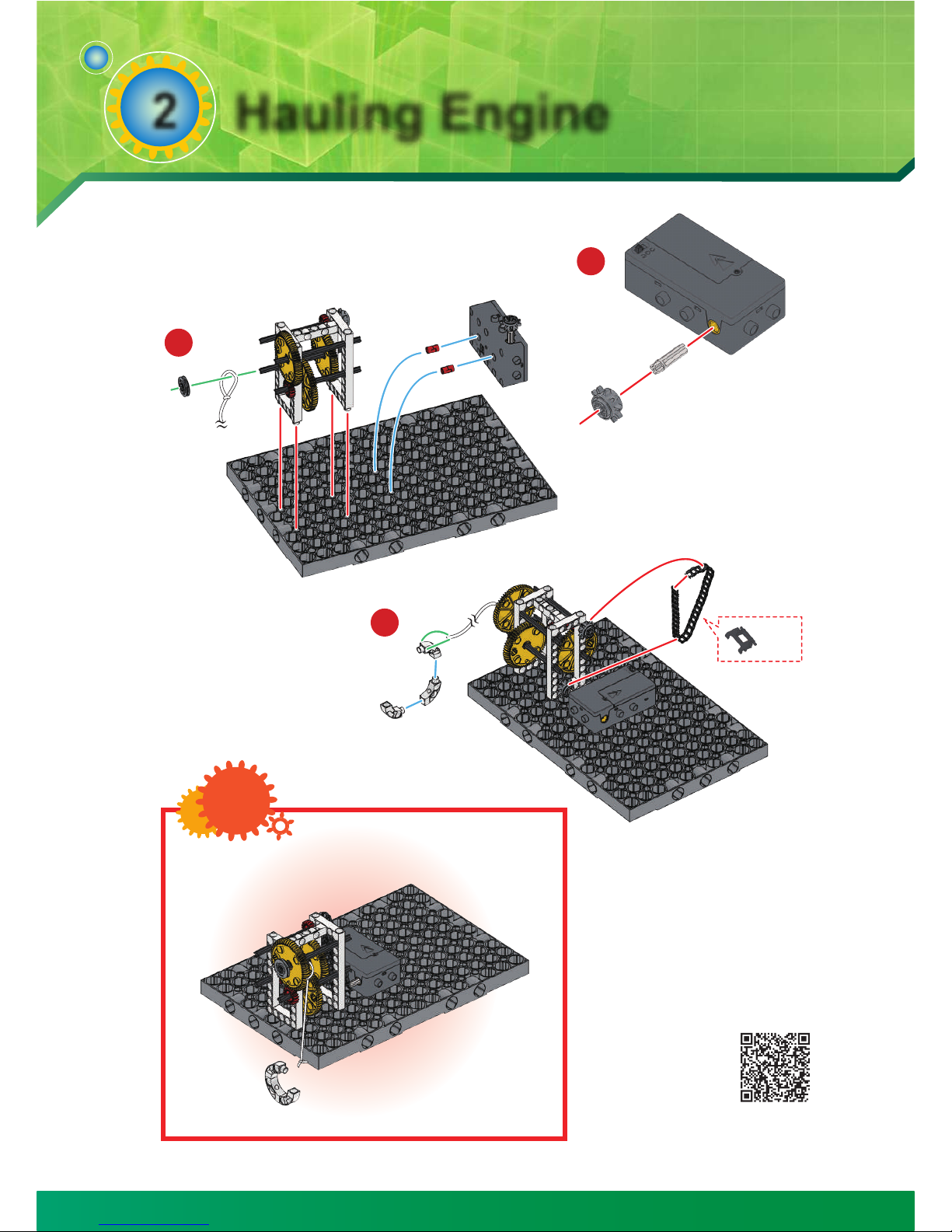

2Hauling Engine
X33
5
6
4
Done
Model Operation
Video

1 2 3
12
Hands-on
Experiment
Hands-on
Creativity
Evaluation
Model
Assembled Experiment Complete Model Creation
Disassemble the motor then use your hands to
rotate the gears from both sides. Observe what
will happens to the gears.
Change the arrangement of gears. Which design
can lift heavier objects?

13
B
rainstorming
B
rainstorming
The parallel ruler which can be seen
in our daily life is a parallel mechanism
which mainly uses the characteristics of the
lever and linkage. A lever is a machine that works
in a rotational motion and the function of the linkage
is to change the motio modality. Through the rigid body structure
combined with rotational parts, it can form the linkage mechanism
producing the motion required by transporting.
What other interesting designs can you come up with using
the lever or linkage Stamping Lever & Linkage principles?
Daily
Application
Daily
Application
3Stamping
Machine
Anna is a grade school teacher. It’s been two months
since she passed her teacher’s exam and was
assigned to a school. Anna loves to spend time with
children and teach them all the things they need to
know. Unfortunately, Anna has been feeling down in
the dumps.
Her colleague, Teacher Craig, noticed how she was
feeling and asked if she needed help. Anna told
him that although she only had 25 students in her
class, her schedule was extremely busy so she did not have enough time to mark
her students’ homework. Grading homework meant she had to pick out errors, write
suggestions and then give them a “good performance” stamp for encouragement.
Having to write and stamp at the same time made grading homework a massive
endeavor and Anna was having trouble keeping up.
When Craig heard this, he decided to use his craftsmanship skills to design a
stamping machine to help her. He told Anna to focus on grading homework and to
choose a smart student to help her complete her stamping with his new machine. It
was a big help and Anna could nally nish her workload!
Kids, can you follow the instructions and help Teacher Craig design a
stamping machine?
Pendulum&Principle of
Momentum Conservation
Scientic
Application Lever & Linkage

14
Parts List
3
x5
53
x1
x4
20 22
x4
24
x2
1
3
2
4

15
Model Operation
Video
2
1
3Stamping Machine
5
Done

1 2 3
16
Hands-on
Experiment
Hands-on
Creativity
Evaluation
Model
Assembled Experiment Complete Model Creation
Change the length of connecting rod and observe
the di󰀨erences in results.
Find a way to stamp without using hands.

17
“Here he comes!”
The classroom quieted down. Paul placed a blue plastic bucket at the door and
then returned to his classmates. Everyone couldn’t stop imagining what would
happen next and they excitedly waited to see the surprised look on Walter’s
face.
When the door opened, the blue bucket fell down,
pouring golden powder and colored ribbons all over
Walter. All of them clapped their hands excitedly to
wish Walter happy birthday. Having recovered from his
initial shock,Walter started to laugh with them. Paul’s
plan was very successful!
Kids, remember jokes mustn’t hurt people! As for the
bucket with golden powder and colored ribbons, do
you know at which side of the door it should be put so
that it can produce a pleasant surprise?
B
rainstorming
B
rainstorming
A drop tester is an equipment testing the crash resistance
of a packaging container or mobile facility, which lifts the
testing samples to the preset height and then drops it at the
desired status to make it crash with the shock platform. The results
can ensure the safety of products when receiving impacts during its
transportation and falling. Here it utilizes the characteristics of the
wheel and axle which is a mechanism consisting of a wheel and an
axle that rotate together.
What other applications do these Surprise mechanisms
have?
Daily
Application
Daily
Application
4Scientic
Application Wheel & Axle
Surprise
Bucket

18
2
1
Parts List
2
x8
53
x1
4
x2
7
x2
10
x2
21
x4
22
x1
24
x4
28
x2
48
x1
47
x3
x4
14
x1
19
x2
18
X2
4
12
3
5
6
Wheel & Axle

19
Model Operation
Video
4
70mm
70mm
Surprise Bucket
Done
8
7
