Gilis BebeStars 9502 User manual

User’s Manual / Οδηγίες Χρήσης
cannot be assured unless you follow these instructions.
DO NOT USE THIS PRODUCT UNTIL YOU READ AND
UNDERSTAND THESE INSTRUCTIONS
Η ασφάλεια του παιδιού σας εξαρτάται από εσάς. Η σωστή χρήση του
προϊόντος προϋποθέτει την ανάγνωση των οδηγιών χρήσης.
ΜΗΝ ΧΡΗΣΙΜΟΠΟΙΗΣΕΤΕ ΤΟ ΠΡΟΙΟΝ ΑΝ ΠΡΩΤΑ ΔΕΝ ΔΙΑΒΑΣΕΤΕ
ΚΑΙ ΚΑΤΑΝΟΗΣΕΤΕ ΠΛΗΡΩΣ ΤΙΣ ΟΔΗΓΙΕΣ ΑΥΤΕΣ
Video Baby Monitor
Your child’s safety depends on you. Proper usage cannot
Item 9502
OK

PRODUCT OVERVIEW
1.1 What’s included
1. Parent unit x1
2. Baby unit x1
3. AC Adapter x2
4. User manual x1
5. Screw set (for on wall installaon)
EN
2
OK
1 2
3 4 5

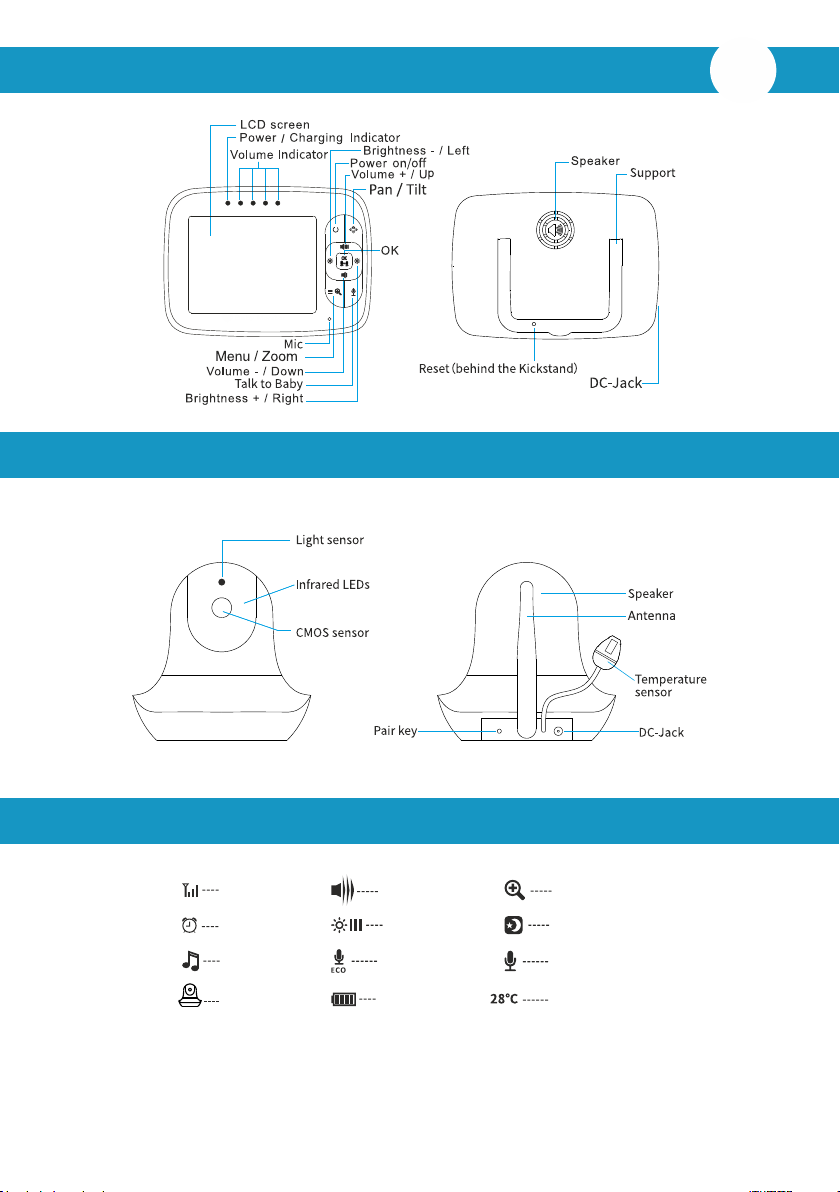

1.2 PARENT UNIT OVERVIEW EN
1.3 BABY UNIT OVERVIEW
1.4 ICONS OVERVIEW
Signal
Alarm
Lullaby
Camera
Volume
Brightness
ECO
Baery
Zoom
Night vision
Talk to baby
3
Temperature

2. GETTING STARTED
EN
4
2.1 Charge the Parent unit
Step1:
Fully charge the Parent unit before
using it.
When charging, the charging
indicator will turn red.
When the unit is turned on, the
charging indicator will turn green.
2.2 Turn on the Baby unit
Step2:
Use the provided AC adapter to connect
the Baby unit to an AC outlet.
*Note: the Baby unit needs to be
connected to the AC adapter when in
use.
OK
2.3 Turn on the Parent unit
Step3:
Press and hold the power buon. The
animaon “waing for connecon” will
be displayed on the screen.
Step4:
Press and choose to select
the icon will flash, then wait for
connecon.
OK
2.4 Prepare for connecng the Baby unit

OK
5
2. GETTING STARTED EN
2.5 Pair the Parent unit with the Baby unit
Step5:
Long press the “Pair” buon at the back
of the Baby unit unl the Parent unit
shows images. If failed, choose another
Baby unit channel
and try again.
Notes:
Important guidelines for installing your Baby monitor.
Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic
door or reinforced concrete between the Baby unit and the Parent unit, may
block the radio signal.
The signal strength may also be reduced by other solid structures, like walls, or
by radio or electrical equipment, such as TVs, computers, wireless or mobile
phones, fluorescent lights or dimmer switches.
Use of other 2.4Ghz product, such as wireless networks (Wi-Fi routers),
Bluetooth systems, or microwave ovens, may cause interference to this
product, so keep the baby monitor at least 5 (1,5m) away from these types of
products, or turn them off if they appear to cause interference.
Note: If you place the Parent unit and the Baby unit too close together, it will be
normal for you to hear a high-pitched noise called “feedback”. The units are
designed to be placed in separate rooms.

3. FUNCTION OPERATION
EN
3.1 Pairing more than one Baby unit with Parent unit
1. Press the Menu/Exit key to display the menu.
2. Press the LEFT buon or RIGHT buon unl the Baby unit icon is highlighted,
then press UP buon or DOWN buon to select the Baby Unit to pair.
3. Press OK buon to start pairing.
4. While the LED is flashing, press the PAIR buon on the back of the Baby unit.
5. Once paired, the screen will display the image from the Baby unit.
6. If failed, please repeat the steps above.
7. Aer connecng with all the Baby unit, press OK key to view/scan the Baby unit.
8. In Scan mode, the Scan icon will be displayed on the top of the screen.
3.2 Digital Zoom & Pan/Tilt
1. Press and hold for around 2 seconds to operate Zoom in/out.
2. In the Zoom mode, press and hold the Up/Down/Le/Right to pan/lt the
image. In Digital Zoom mode, the zoom icon will be displayed on the top of the
screen.
Note: If you want to adjust the volume/brightness, you have to exit the Zoom
mode before operaon.
3.3 Talk to baby
To talk to your baby, press and hold on the Parent unit. Release the buon when
you have finished talking and listen to the sound from the baby’s room again. Bear
in mind that you can’t listen to your baby whilst you’re talking to them, you have to
stop pressing the buon.
3.4 Infrared Night Vision (Automac)
The infrared night vision funcon allows the Baby unit to pick up images of your
baby or the monitored area in dark or low light condions. In this mode, only black
and white images will be displayed on the Parent unit. The opmum distance is 6
(2m) between the Baby unit and the object.
6

3.5. ECO Seng
This mode allows you to control the sound acvaon of your baby monitor. When
the ECO default seng is ON, if no sound comes to the Baby unit within 30
seconds, the Baby unit will stop transming signal. The Parent unit screen will turn
off when the Baby unit is not transming. When the Baby unit detects sound that
is louder than the preset sensivity level, it will start transming signal to the
Parent unit again. To change the ECO level, please follow the next instrucons:
1. Press the Menu/Exit key and the menu will display.
2. Press the LEFT buon or RIGHT buon unl the ECO icon is highlighted,
then press UP buon or DOWN buon to select desired level.
3. Press OK buon to confirm.
Note:
LOW- High volume of sound is required to reacvate the transmission.
MID- Medium volume of sound is required to reacvate the transmission.
HIGH- Low volume of sound is required to reacvate the transmission
OFF- no standby mode.
When ECO funcon is on, an ECO indicator will be displayed on top of the LCD
screen. To view a video signal on your Parent unit when ECO funcon is on, simply
press the power buon.
3.6 Alarm Seng
You can use the alarm to remind yourself to feed baby/change diapers/sleep. etc.
1. Press the Menu/Exit key and the menu will display.
2. Press the LEFT buon or RIGHT buon unl the Alarm icon is highlighted
3.Press UP buon or DOWN buon to select desired level.
4. Press OK buon to confirm.
Note:
If the alarm is ringing and no one answers, then the ringing will last for 1 minute,
aer 3 minutes the ringing will start again.
The alarm will ring for three mes total if no one answers.
3.7 Lullaby Seng
you can soothe the baby to sleep by playing a gentle lullaby from the Baby unit.
1. Press the Menu/Exit key and the menu will display.
2. Press the LEFT buon or RIGHT buon unl the Lullaby icon is
highlighted
3.Press UP buon or DOWN buon to select desired level.
4. Press OK buon to confirm.
EN
7
3. FUNCTION OPERATION

8
3.8 Video Pan/Tilt
1. Press the shortcut key to enter into the Pan/Tilt mode.
2. Press or key to Pan the video.
3. Press or key to Tilt the video.
4. Press the shortcut key to exit the Pan/Tilt mode.
Note: During the Pan/Tilt mode, you can not use the navigaon keys to adjust the
Volume and/or Brightness.
4. SPECIFICATIONS

5. TROUBLE SHOOTING EN
The power adapters may not be properly connected.
Confirm that the camera and monitor are ON.
Camera may be far away from the monitor.
Camera and monitor may not be properly paired,
follow PAIRING instrucons.
Restart Baby unit and Parent unit.
Press the reset key at the back of Parent unit.
Move the monitor close to the camera.
The camera or monitor may be placed too close to
many metal objects.
Other electronic devices may be interfering with the
signal.
The baery power may be too low.
Restart Baby unit and Parent unit.
The camera and monitor may be too close together.
The volume on the monitor may be set too high.
Press the reset key at the back of Parent unit.
Volume seng may be too low.
Press the reset key at the back of Parent unit.
Restart the baby unit (plug out the adapter then plug it
into the socket again).
Press the reset key at the back of parent unit (behind
the stand).
No recepon on
the monitor
Interference or
poor recepon
Feedback
(screeching, stac)
Cannot hear the
baby on the
parent unit
Image frozen
9

6. MAINTENANCE
7. BATTERY AND PRODUCT DISPOSAL
Do not aempt to repair or adjust any of the electrical or mechanical funcons
of the unit.
Remember to dispose off the product in an environmentally responsible way.
For proper collecon and processing of these products, take them to the
collecon points designated by local authories.
1. The temperature sensor is posioned very close to the
Baby unit and when it warms up during the operaon:
Stretch out the sensor so it would be far enough from
the Baby unit.
Place the Baby unit in an area with good air circulaon.
2. If none of the above work, restart the Parent unit.
1. Pair the Baby unit in wrong ways
Refer to 3.1 “Pairing more than one Baby unit with
Parent unit”.
2. If none of the above work, restart the Parent unit.
Temperature
is inaccurate
Unable to connect
to mulple
Baby units
10
Keeping the lens clean can help you monitor the clearest picture. Gently wipe
the fingerprints and dust on the lens and LCD screen by so gauze.
Clean the surfaces of the camera and monitor with a se, fluff-free cloth.
Never use cleaning agents or solvents.
If the units become dirty, use a lightly dampened cloth to wipe surfaces, taking
care to not allow water into any openings.
