Gima CONTEC08A-VET User manual

I
Contents
Chapter1 Safety Precautions......................................................................................................... 1
Chapter2 Main Unit...................................................................................................................... 6
Chapter4 External Interfaces....................................................................................................... 10
Chapter5 Dry Battery/AC Adapter Installation........................................................................... 13
5.1 Dry Battery Installation .............................................................................................. 14
5.2 Using the AC Adapter................................................................................................. 14
Chapter6 Setting the Date and Time ........................................................................................... 16
Chapter7 Unit ............................................................................................................................. 19
Chapter8 Alarm Function............................................................................................................ 20
Chapter9 Applying the Limb Cuff .............................................................................................. 22
Chapter10 BP Measurement ....................................................................................................... 26
10.1 Accurate Measurement Way ..................................................................................... 26
10.2 BP Measurement....................................................................................................... 28
Chapter11 Memory Function...................................................................................................... 30
11.1 Review the Memory Value........................................................................................ 30
11.2 Delete Memory Values.............................................................................................. 32
Chapter13 Error Message ........................................................................................................... 37
Chapter14 Troubleshooting......................................................................................................... 39
Chapter15 Clean and Maintenance ............................................................................................. 41
Chapter16 Specification.............................................................................................................. 46

1
Chapter1 Safety Precautions
Before use, carefully read "Safety Precautions" for a correct use.
To prevent users suffered hurt or damnification due to improper use, see "Safety
Precautions", and use this product properly.
For safety reasons, be sure to comply with safety precautions.
Note
If not to use correctly, it exists that a potentially hazardous situation which may result in
injury to the user or patient or damage to the equipment or other property.

2
Note
Self-diagnosis and treatment using measured results may be dangerous.
Follow the instructions of your physician.
Contact your physician for specific information about your animal’s blood pressure.
Please hand measurement results to the doctor who know your animal’s health to
accept diagnosis.
For severe blood circulation disorder or arrhythmia patients, please use the device
under the guidance of a doctor.
Otherwise it may lead to acute hemorrhage, or measurement error as a result of
squeezed arm.
This device is intended for using in measuring blood pressure and pulse rate.
Do not use for any other purpose.
Otherwise it may cause accident or holdback.
Please use special cuff.
Otherwise it is possible that measurement result is incorrect.
Do not disassemble or attempt to repair the unit or components without permission.
Otherwise it can not measure correctly.

3
Operation forAC Adapter (Separate Sale)
Note
Please use sold separately dedicated AC adapter.
Otherwise it may cause trouble.
The dedicated AC adapter must useAC 100V-240V.
Otherwise it may cause fire or electric shock.
When there is breakage of sold separately dedicated AC adapter plug or wire ,
please immediately pulled the plug from the socket.
Otherwise it may cause electric shock or injury.
Do not plug or unplug the adapter power cord with wet hands.
Otherwise it may cause electric shock or injury.

4
Operation for battery
Note
Please use 4 "AA" size manganese or alkaline batteries, do not use batteries of other types.
Otherwise it may cause fire.
New and old batteries, different kinds batteries can not be confusion.
Otherwise it may cause battery leakage, heat, rupture, and damage to Electronic
Sphygmomanometer.
+ and - polarities of the batteries must match the polarities of the battery compartment as
indicated. When the batteries power exhausts, replace with four new batteries at the same time.
Please take out the batteries when you do not use the device for a long time.
Otherwise it may cause battery leakage, heat, rupture, and damage to Electronic
Sphygmomanometer.
If battery fluid should get in your eyes, immediately rinse with plenty of clean water.
Contact a physician immediately.
Otherwise it will cause blindness or other hazards.
If electrolyte of the batteries immodestly glues on the skin or the clothes, immediately rinse with
plenty of clean water.
Otherwise it may hurt the skin.

5
Advice
Do not subject the device to strong shocks, such as dropping the unit on the floor.
Do not inflate before the cuff wrapps around the arm.
Do not inflect the cuff and the air tube forcibly.
Warning
You must not perform NIBP measurements on animals with sickle-cell disease or under any
condition which the skin is damaged or expected to be damaged.
For a thrombasthemia animal, it is important to determine whether measurement of the
blood pressure shall be done automatically. The determination should be based on the
clinical evaluation.
Ensure that the correct setting and blood pressure cuff are selected when performing
measurements on animal. It may be dangerous for the animal to use an over pressure level.
The device has normal useful life for five years since the first electrified use. After its
normal life, dispose the device and its accessories according to applicable local regulations
about environmental.

6
Chapter2 Main Unit
The production is in the package. Open the package and confirm whether the production is
whole.

7
Accessories:
Cuff:
The sphygmomanometer supports cuffs in a variety of sizes, please choose suited cuff according
to the size of the animal.
User Manual
Optional Accessories:
AC adapter

8
Cuff:
There are several suitable cuffs(range of limb circumference,middle of upper limb)
the range of limb circumference is 6-11cm
the range of limb circumference is 10-19cm
the range of limb circumference is 18-26cm
the range of limb circumference is 22-32cm
the range of limb circumference is 32-43cm
Note
◎The cuff is a consumable. Calculate by measuring 6 times a day(3 times each morning and
evening), the service life of the cuff is about 1 year.(using our experimental conditions)
◎In order to correctly measure blood pressure, please replace the cuff in time.
◎If the cuff leaks, please contact our company to buy a new one. The cuff purchased separately
does not include the airway tube plug. When replacing, please do not throw the airway tube plug
away, install it on the new cuff.
Input: voltage: AC 100V~240V
frequency: 50Hz/60HZ
Rated current: AC 150mA
Output: DC 6.0V±0.2V 1.0A
or DC5.0V±0.2V 1.0A

9
Note
When the product and accessories described in this manual are about to exceed the period of use,
they must be disposed according to relevant product handling specification. If you want to know
more information, please contact our company or representative organization.

10
Chapter3 Button Functions
All the operations to the Electronic Sphygmomanometer are through the buttons. The names of
the buttons are above them. They are:
【ON/OFF】Hold the button to start or close the device.
【START/STOP】Press to inflate the cuff and start a blood pressure
measurement. When measuring, press to cancel the measurement and deflate the cuff.
The three buttons correspond with the hint in the LCD screen
downside, pressing any button will carry on corresponding function, eg:【MENU】
【ENTER】【 LIST】etc.
Up and down buttons respectively carry on the functions of moving the cursor
up and down, changing the parameters and switching the status.

11

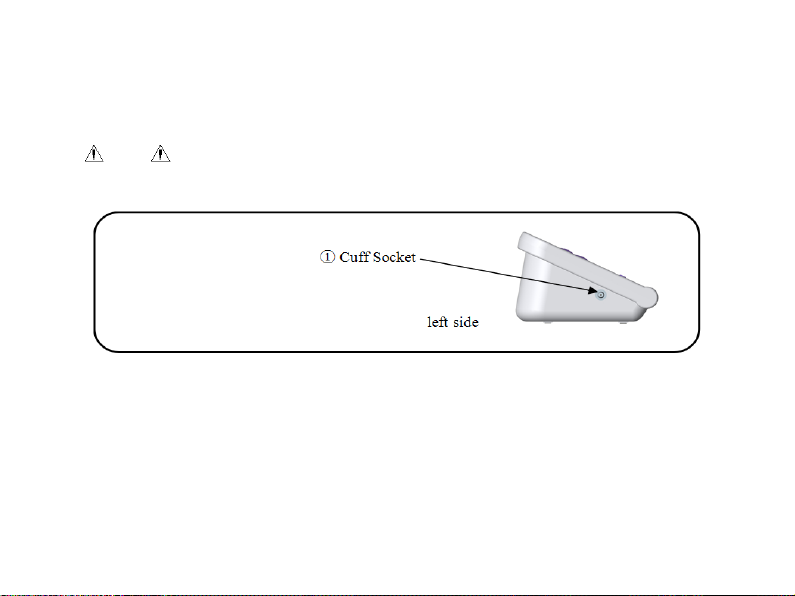

Chapter4 External Interfaces
Note
Please hold the air plug to remove the NIBP cuff.

12

13
Chapter5 Dry Battery/AC Adapter Installation
The production can use dry battery or AC adapter as power source.




14
5.1 Dry Battery Installation

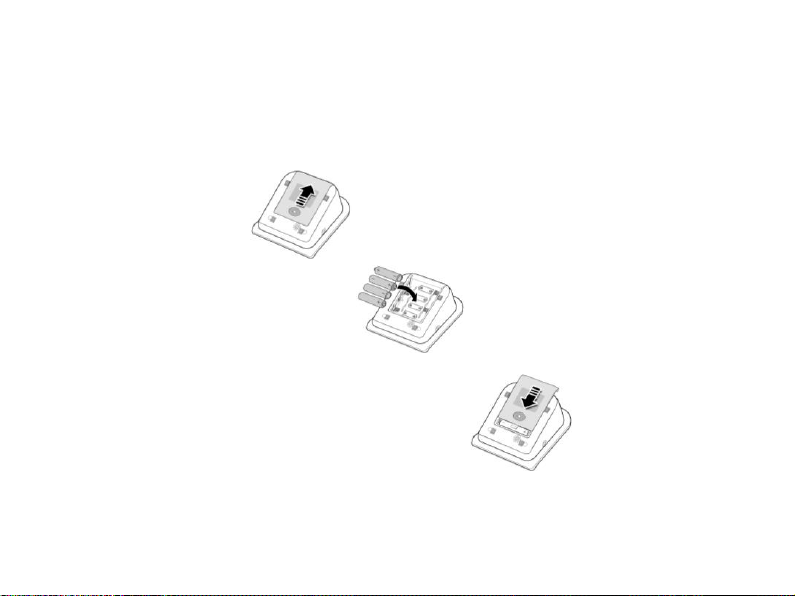

①Demount the battery cover in the direction of the arrow.
②Install "AA" dry batteries according to polarities.
③Slide to close the battery cover.
Icon “ ”: the batteries power will exhaust.
Replace with four new batteries (the same sort) at the same time.
Turn the unit off before replacing the batteries.
Note
Dispose of the batteries according to applicable local regulations about environmental.
5.2 Using the AC Adapter

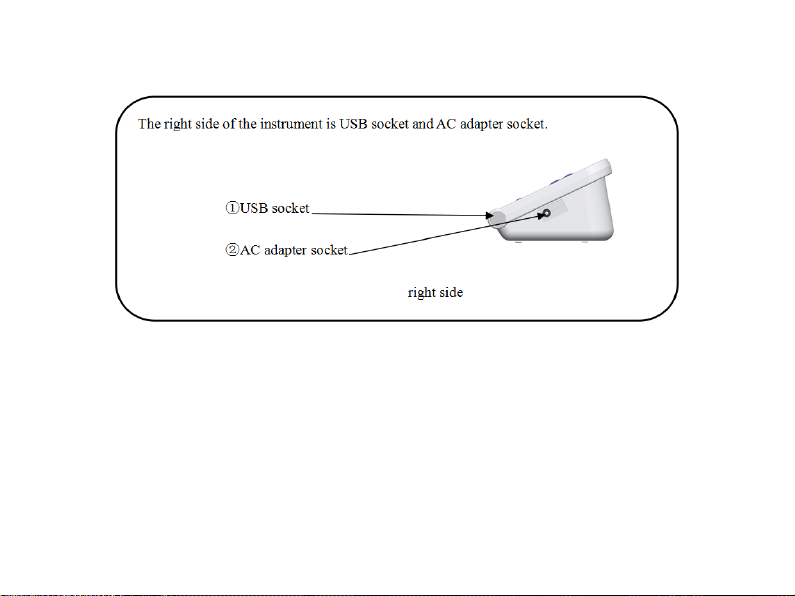

①Connect device and the AC Adapter. Insert the AC Adapter Plug into the AC Adapter Jack
on the right side of the device.
②Please insert the power plug of AC adapter into the 100V- 240V socket.
Note
①Hold and pull the Housing to remove the AC Adapter from the electrical outlet. Do not
remove by pulling on the cord.

15
②Remove the ACAdapter plug from the unit.
Please be sure to use dedicated AC adapter.
Note
You'd better take off batteries when use the AC adapter as power source. If there is any
damage to theAC adapter, you should use batteries to run the device.
When adapter and batteries are both used at the same time, the battery power will not be
consumed. Switch adapter and battery as power supply when the device is off, otherwise,
the device may shutdown due to power failure.

16
Chapter6 Setting the Date and Time
The Electronic Sphygmomanometer stores 100 groups of measurement results at most. If the
date and time are set correctly, the date and time when measuring will be correct in the memory,
otherwise it may not be correct.The results can be uploaded to PC via USB and processed with
the PC software. If the date and time are set correctly, the date and time when measuring will be
correct in the memory, otherwise it may not be correct.
Note
Correctly use data upload function:
1. First, make sure the time is right, there are three modes of time setting:
(1)When using the Sphygmomanometer for the first time or after the Sphygmomanometer has
been placed without power supply for a certain time(more than 5 minutes), after power on, there
is a prompt of time error on the main interface, set date and time with 【UP】, 【DOWN】and
is necessary to set date and time after turning on the device.
The Electronic Sphygmomanometer can automatically stores measurement results, date
and time.
If dry battery power exhausts or removed, the time to stop.
At the moment, please reset date and time.

17
【ENTER】button.
(2)Press 【MENU】button on the main interface to enter system menu, then enter 【SYSTEM
TIME】item, the current time will be displayed on the screen. Set date and time with 【UP】,
【DOWN】and 【ENTER】button

18
2. After setting, select【CONFIRM】option and press【ENTER】button to confirm the setting
value. If you do not want to change the time, select 【EXIT】option and press 【ENTER】
button to return to the previous menu.
Note
The year can be set between 2010 and 2099. When the display reaches 2099, it will return to
2010 when pressing【UP】button.
Note
Please choose the computer which should be ensured compliance with the requirements of
IEC60950, or else it may damage the device.

19
Chapter7 Unit
There are two units: "mmHg" and "kPa".
The default is: "mmHg".

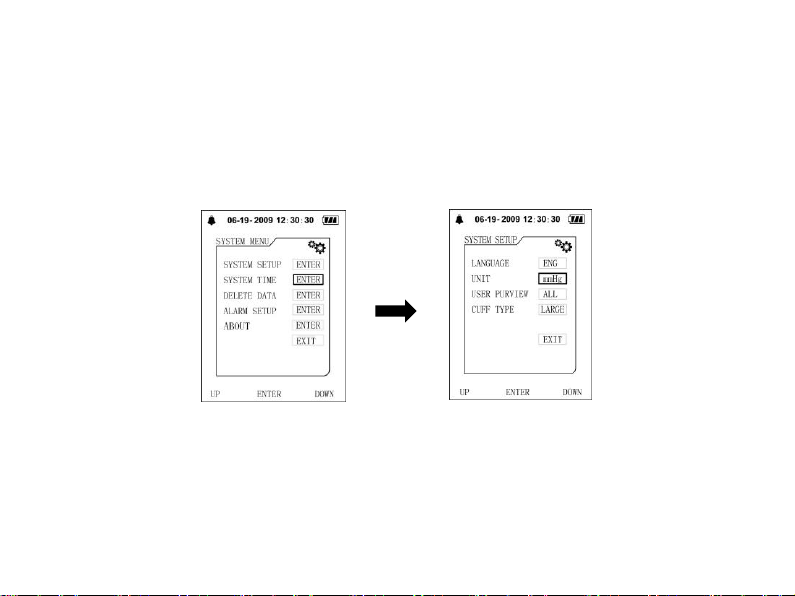

To switch "mmHg" and "kPa" units, enter the 【SYSTEM SETUP】submenu in 【SYSTEM
MENU】, and complete switching in 【UNIT】item.
