Gira 2111 00 User manual
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
Table of contents
1 Safety instructions ............................................................................................................ 3
2 Function............................................................................................................................ 3
3 Operation.......................................................................................................................... 5
4 Information for electrically skilled persons........................................................................ 8
4.1 Mounting and electrical connection........................................................................ 8
4.2 Commissioning ...................................................................................................... 9
5 Appendix......................................................................................................................... 12
5.1 Technical data...................................................................................................... 12
5.2 Troubleshooting ................................................................................................... 13
5.3 Warranty .............................................................................................................. 14
2 / 14
82406602 07.09.2023
1 Safety instructions
Electrical devices may be mounted and connected only by electrically skilled
persons.
Serious injuries, fire or property damage are possible. Please read and follow the
manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device
or load. In so doing, take all the circuit breakers into account, which support danger-
ous voltages to the device and or load.
DALI is an FELV (functional extra-low voltage). On installing, ensure safe isolation
between KNX and DALI and mains voltage. A minimum distance of at least 4 mm
must be maintained between bus conductors and DALI/mains voltage cores.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Function
System information
This device is a product of the KNX system and complies with the KNX directives.
Detailed technical knowledge obtained in KNX training courses is a prerequisite to
proper understanding.
The function of this device depends upon the software. Detailed information on load-
able software and attainable functionality as well as the software itself can be ob-
tained from the manufacturer´s product database.
The device can be updated. Firmware can be easily updated with the Gira ETS Ser-
vice App (additional software).
The device is KNX Data Secure capable. KNX Data Secure offers protection against
manipulation in building automation and can be configured in the ETS project. De-
tailed technical knowledge is required. A device certificate, which is attached to the
device, is required for safe commissioning. During mounting, the device certificate
must be removed from the device and stored securely.
Planning, installation and commissioning of the device are carried out with the aid of
the ETS, version 5.7.7 and higher or 6.1.0.
Intended use
– Controlling of luminaires and other applications with DALI operating device in
KNX installations, e.g. electronic ballast
– Mounting on DIN rail according to EN 60715 in distribution boxes
Product characteristics
– DALI-2 certified
– Control of up to 64 DALI devices in up to 32 groups ("1-fold" device variant)
3 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
– Control of max. 2x 64 DALI devices in max. 2x 32 groups ("2-fold" device vari-
ant)
– Setting the colour temperature or light colour (RGB, RGBW) for luminaires
with DALI Device Type 8 in accordance with IEC 62386-209
– Short-circuit, overload and overvoltage protected
– Operating hours counter
– Automatic colour wheel sequence or brightness sequence
– HCL mode (Human Centric Lighting), automatic daytime colour temperature
profile
– CT (Colour Transition) mode, automatic daytime colour profile
– Suitable for operation of emergency lighting systems with DC voltage
– Individual, group or central addressing
– 16 light scenes per DALI system
– Reading out of DALI device states via KNX, e.g. brightness or luminaire error
– Manual operation of the DALI groups, single devices or central (broadcast)
separately for each DALI system
– Restraint or disabling functions
– Feedback of switching state and brightness value in bus and manual mode
– Collective feedback
– Central switching and dimming function
– Disabling function for each DALI group or each single device
– Separate switch-on and switch-off delay
– Staircase lighting timer with run-on time
– Online or offline project design of the DALI devices with ETS-DCA
– Standby switch-off of the DALI devices
– An individual DALI device of the same type can be exchanged during opera-
tion without software
Delivery state: Construction site mode, manual operation is enabled. The connected
DALI operating devices of both DALI systems can be controlled via the keypad via
the broadcast function.
The complete functionality of the DALI system can only be ensured if DALI-2
operating device is used exclusively.
A complete list of DALI-2 operating and control devices can be found here: ht-
tps://www.dali-alliance.org/products
4 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
3 Operation
Figure1: DALI Gateway control panel, 1fold
Figure2: DALI Gateway control panel, 2fold
(1) ǃ button – Manual operation
(2) LED ǃ – On: Continuous manual mode active
LED ǃ – Flashing: Temporary manual mode is active
(3) ON|+ button – switch on or increase brightness
(4) LED ON|+ – On: DALI device or group switched on,
Brightness 1...100%
(5) OFF|− button – switch off or reduce brightness
(6) LED OFF|− – On: DALI device or group switched off,
Brightness 0%
(7) Button ALL OFF – Switch off all DALI devices
(8) Display of DALI number
(8a) Display of DALI group
(8b) Display of the short address of the individual DALI devices (1...64)
5 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
(9) LED of the active DALI system lights up in manual mode or after pressing
the change-over button (only with "2fold" device variant)
(10) Change-over button for DALI systems 1 and 2 (only with "2fold" device vari-
ant)
If the display (8) shows bc (broadcast operation), all devices of a DALI system are
controlled jointly. This is done in the following operating conditions.
– The device is not programmed
– Set to master control in the KNX configuration
– In bus mode, broadcast is additionally configured and active
When operating the DALI devices with the keypad, the device differentiates between
short and long actuation.
– Short: Pressing for less than 1 second
– Long: Pressing for between 1 and 5 seconds
Change-over system 1 and system 2
In the case of the "2fold" device variant, the change-over button (10) can be used to
switch between an operation of DALI systems 1 and 2. This is possible either while
the device is in operation or during active temporary or permanent manual operation.
Only the selected DALI system is ever operated via the keypad of the manual control.
The LEDs (9) signal the DALI system effective for manual operation.
Switching on temporary manual operation mode
Operation using the button field is programmed and not disabled.
￭ Press the ǃ (1) button briefly.
Display (8) shows the first group number, short address or bc, LED ǃ (2)
flashes. With the "2fold" device version, the LED (9) of the last operated DALI
system lights up.
After 5 seconds without a button actuation, the device returns automatically to bus
mode.
Switching on/off the permanent manual mode
Operation using the button field is programmed and not disabled.
￭ Press the ǃ (1) button for at least 5 seconds.
LED ǃ (2) is illuminated, display (8) shows the first group number, short ad-
dress or bc.. Permanent manual operation is switched on. With the "2fold"
device version, the LED (9) of the last operated DALI system lights up.
- or in case of repeated actuation for at least 5 seconds -
LED ǃ (2) is off, display (8) is off, bus mode is switched on.
6 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
Operating DALI devices
The device is in permanent or temporary manual operation mode.
Press ǃ (1) button briefly as many times as necessary until the display (8) shows
the desired DALI number.
￭ Operate output with ON|+ (3) button or OFF|− (5) button.
Short: switch on/off.
Long: dim brighter/darker.
Release: Stop dimming.
The LEDs ON|+ (4) and OFF|− (6) indicate the status.
The display (8) shows first the numbers of the available DALI groups (8a), followed
by the individual addresses of the DALI devices (8b).
Switch off all DALI devices
The device is in permanent manual operation mode.
￭ Press the ALL OFF button (7).
Disabling/enabling individual DALI devices or groups
The device is in permanent manual operation mode and the lock is released.
Press Ǖ (1) button briefly as many times as necessary until the desired DALI num-
ber is indicated (8).
￭ Press the buttons ON|+ (3) and OFF|− (5) simultaneously for at least 5
seconds.
The selected DALI number flashes on the display (8).
DALI device or group is blocked.
- or in case of repeated actuation -
The display (8) no longer flashes.
DALI device or group is enabled.
￭ Activate bus mode (see section Switching the permanent manual mode on/
off).
DALI devices blocked via manual operation can be operated in manual mode.
7 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
4 Information for electrically skilled persons
4.1 Mounting and electrical connection
DANGER!
Electric shock when live parts are touched.
Electric shocks can be fatal.
Always disconnect device before carrying out work on it. For this, switch off all cor-
responding circuit breakers, secure against being switched on again and check that
there is no voltage. Cover up adjacent live parts.
Mount device
￭ Mount device on DIN rail.
Connect device
Control cable: appropriate type, cross-section and routing for the specifications for
230 V cables. DALI and mains voltage wires can be run together in a cable, e.g.
NYM 5x1.5 mm².
￭ The DALI control voltage is a functional extra-low voltage (FELV). When in-
stalling, perform the installation in such a way that when an area is disconnec-
ted, the lines carrying both the DALI and also the mains voltage are discon-
nected.
￭ If multiple circuit breakers supply dangerous voltages to the device or load,
couple the circuit breakers or label them with a warning to ensure tripping.
￭ DALI participants from some manufacturers have expanded functions and can
be controlled, for example, via mains voltage on the DALI connection. When
existing DALI installations are refitted, remove all corresponding operator con-
trols.
￭ Connect device as shown in the connection example (see figure 3)
8 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
Figure3: DALI gateway connection example, 2fold
￭ Attach the cover cap to the bus cable connection as protection against hazard-
ous voltages.
If the display (8) shows Er (error), an installation fault occurred that causes mains
voltage to reach the DALI cable. In this case disconnect the device and the DALI
devices from mains voltage and disconnect bus voltage. Correct installation.
4.2 Commissioning
The device can be put into operation, after mounting of the device and connection of
the bus line, the mains supply and the DALI cables. The following procedure is gen-
erally recommended...
Commissioning the device
￭ Switch on the mains supply of the gateway.
￭ Switch on the bus voltage.
Voltage check: When the programming button is pressed, the red program-
ming LED must light up.
￭ Configure and program the physical address with the help of the ETS
￭ Download the application program using the ETS.
￭ Commission the DALI system using commissioning software (DCA).
￭ Download the application program using the ETS again.
The gateway is ready for operation.
It is not explicitly necessary to carry out DALI commissioning and reprogram
the application program if the gateway has been integrated into an existing
DALI installation (e.g. when replacing a device of the same type) and contin-
ues to be used with an unchanged DALI configuration (same short addresses,
9 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
device types, group assignments, etc.). This is the case, for example, if a
device is copied unchanged in the ETS project design or a configuration tem-
plate is imported.
No ETS programming is possible if no mains voltage supply is connected.
Safe-state mode
If the device does not work properly - for instance as a result of errors in the project
design or during commissioning - the execution of the loaded application program
can be halted by activating the safe-state mode. In safe-state mode it is not possible
to control the DALI operating devices via the KNX or by manual operation. The gate-
way remains passive in safe-state mode, since the application program is not being
executed. Only the system software is still functional so that the ETS diagnosis func-
tions and also programming of the device continue to be possible.
Activating safe-state mode
There are two options for activating the safe state mode.
Option 1:
￭ Switch off the mains voltage supply.
￭ Wait approx. 10 seconds.
￭ Press and hold down the programming button.
￭ Switch on the mains supply. Release the programming button only after the
programming LED starts flashing slowly.
The safe-state mode is activated.
Option 2:
Prerequisite: The mains voltage supply must be switched on without interruption.
￭ Switch off the bus voltage or disconnect the bus terminal.
￭ Press and hold down the programming button.
￭ Switch on the bus voltage or attach the bus terminal. Release the program-
ming button only after the programming LED starts flashing slowly.
The safe-state mode is activated.
Even in safe-state mode, a brief press of the programming button can switch
the programming mode on or off as usual as long as the bus power supply is
switched on. The programming LED then stops flashing, even though safe-
state mode is still active.
Deactivating safe-state mode
￭ Switch off the mains voltage supply (wait approx. 10 s),
or
￭ Perform the ETS programming operation,
10 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
or
￭ Cause bus voltage failure.
Master reset
The master reset restores the basic device settings (physical address 15.15.255,
firmware remains in place). The device must then be recommissioned with the ETS.
Manual operation is possible.
In secure operation: A master reset deactivates device security. The device can then
be recommissioned with the device certificate.
Performing a master reset
Precondition: The safe-state mode is activated.
￭ Press and hold down the programming button for > 5 s.
The programming LED flashes quickly.
The device performs a master reset, restarts and is ready for operation again
after approx. 5 s.
11 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
5 Appendix
5.1 Technical data
KNX
KNX medium TP 256
KNX commissioning mode S mode
Rated voltage KNX DC 21 ... 32 V SELV
Current consumption KNX 4.5 ... 5.0 mA
Connection type for bus Device connection terminal
Supply
Rated voltage AC 110 ... 240 V ~
Mains frequency 50 / 60 Hz
Rated voltage DC 110 ... 240 V
Power loss max. 3 W
DALI
Rated voltage DALI DC 16 V (typ.)
Output current per DALI system Typ. 128 mA, max. 250 mA for short
periods
Guaranteed bus current per DALI system 148 mA
Number of DALI subscribers Max. of 64 per DALI system
DALI transmission rate 1.2 kBit/s
DALI protocol EN 62386
Cable type Sheathed cable 230 V, e.g. NYM
DALI cable length (see figure 4)
Figure4: DALI cable length
Ambient conditions
Ambient temperature -5 ... +45°C
Storage temperature -5 ... +45°C
Transport temperature -25 ... +70°C
Clampable cable cross-sections (see figure 5)
12 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang

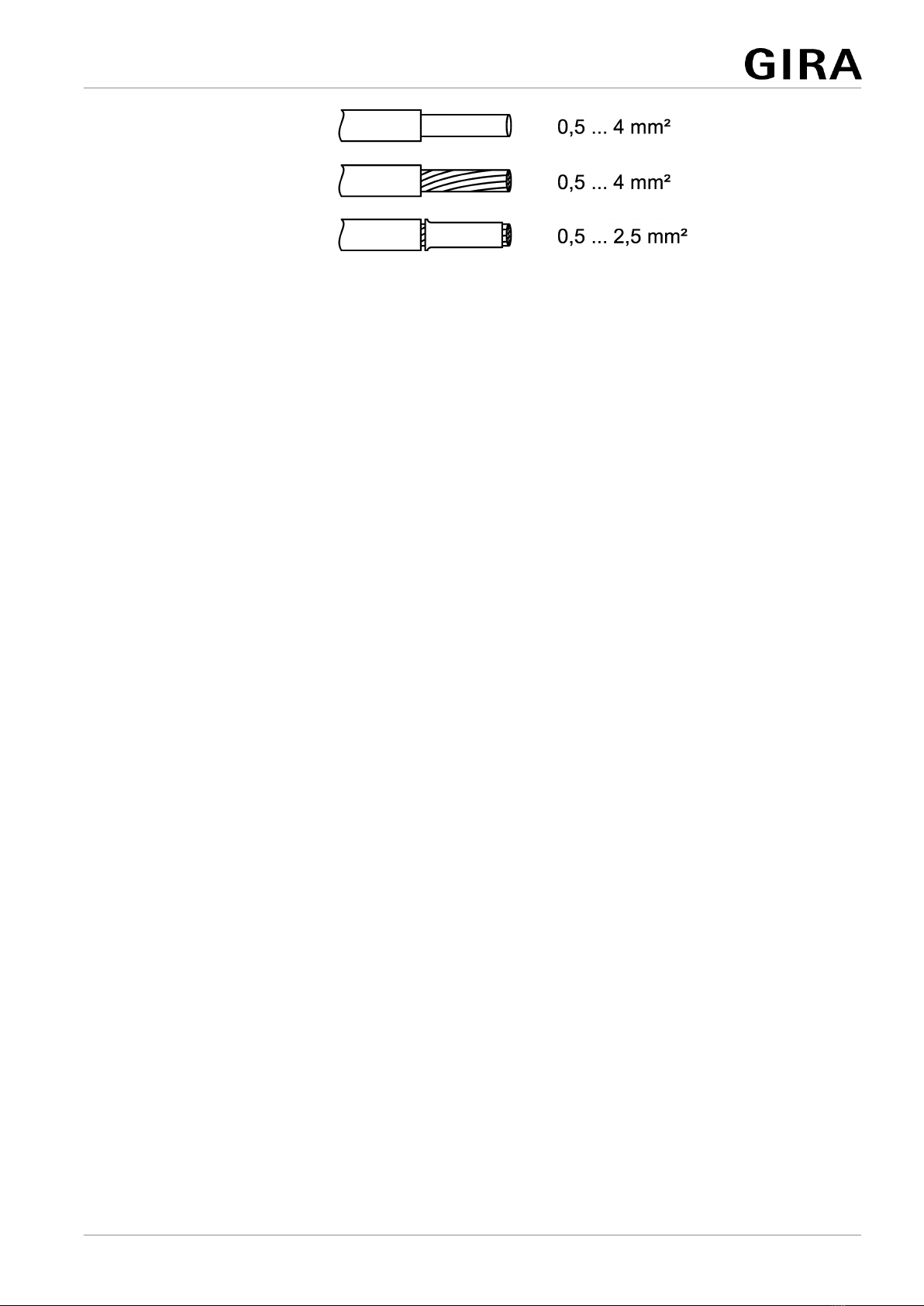

Figure5: Clampable cable cross-sections
Installation width 72 mm / 4 HP
Connection mode Screw terminal
Connection torque, screw terminals max. 0.8 Nm
5.2 Troubleshooting
Indication shows "Er", connected DALI devices have no function, no operation
possible
Cause: Mains voltage on DALI cable.
Installation error. Disconnect device and connected DALI devices from mains
voltage and disconnect bus voltage. Correct installation.
Indication shows "bc" in manual mode, control of individual luminaires not possible.
Cause: The device is not programmed or is programmed for central control.
– Check device status or change operation from broadcast to group or individual
control.
Individual DALI devices have no function
Cause 1: Load is defective, e.g. lamp.
– Exchange load.
Cause 2: DALI device is defective.
– Exchange defective device.
– Switch on voltage.
– Press ǃ and ALL OFF buttons together for at least 10 seconds.
– The device detects the exchanges DALI device and loads in the necessary
data. The display (8) shows LE.
Simultaneous exchange of multiple DALI devices is only possible with commissioning
software (DCA) and project data.
DALI groups or single devices cannot be operated
Cause 1: DALI groups or single devices disabled via bus or manual operation.
– Cancel disabling.
Cause 2: Permanent manual mode is switched on.
13 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
– Deactivate permanent manual operation mode.
Cause 3: Application programme has been stopped; programming LED is flashing.
– Perform reset: Disconnect device from bus, switch on again after approx. 5
seconds.
Cause 4: Application programme is not loaded.
– Check and correct the programming.
5.3 Warranty
The warranty is provided by the specialist trade in accordance with statutory require-
ments. Please submit or send faulty devices postage paid together with a fault de-
scription to your responsible salesperson (specialist trade / installation company /
electrical specialist trade). They will forward the devices to the Gira Service Center.
Gira
Giersiepen GmbH & Co. KG
Elektro-Installations-
Systeme
Industriegebiet Mermbach
Dahlienstraße
42477 Radevormwald
Postfach 12 20
42461 Radevormwald
Deutschland
Tel +49(0)21 95 - 602-0
Fax +49(0)21 95 - 602-191
www.gira.de
14 / 14
82406602 07.09.2023
DALI gateway Colour, 1-gang, DALI gateway Colour, 2-gang
This manual suits for next models
1
Table of contents
Other Gira Gateway manuals
