GivEnergy Giv-AC3.0 User manual

GivEnergy Ltd
Unit 10, Kellythorpe Industrial Estate, Driffield, YO25 9DJ, United Kingdom
Telephone: [phone]
AC COUPLED INVERTER
USER MANUAL
(V1.0)

Contents
1 Notes On This Manual ................................................1
1.1 Validity ...........................................................................1
1.2 Target Group .................................................................1
1.3 Additional Information ................................................1
1.4 Storage Of The Manuals ................................................1
1.5 Symbols Used ...............................................................1
1.6 Markings On This Product ............................................2
2 Safety And Conformity ...............................................3
2.1 Safety Instructions ........................................................3
3 Product Description ...................................................4
3.2 Information Of The Unit ..............................................4
3.3 Storage Of Inverter ......................................................5
4 Unpacking ...................................................................6
5 Installation And Electrical Connection ....................7
5.1 Safety .............................................................................7
5.2 Selecting The Installation Location ...........................8
5.3 Mounting The Inverter With Bracket ........................10
5.4 Fixed The Inverter On The Wall ...................................11
5.5 Check Inverter Installation Status ............................12
5.6 Electrical Connection ..................................................12
5.6.1 Safety ..................................................................12
5.6.2 System Diagram With Inverter Electrical ........12
5.6.3 Connect To The Grid(AC Utility) .......................13
5.6.4 Connect To The Back-up ....................................14
5.6.5 Connect To The Battery .....................................15
5.6.6 Connect CT Clamp Or Mid Approved Meter To Inverter .......16
6 The Inverter Parameter setting ................................17
7 Communications ........................................................17
8 Start-Up And Shut Down The Inverter ...................18
8.1 Start-Up The Inverter .................................................18
8.2 Disconnecting The Inverter ......................................18
9 Maintenance And Cleaning ......................................18
9.1 Checking Heat Dissipation ........................................18
9.2 Cleaning The Inverter ................................................18
9.3 Checking The DC Switch ..............................................18
10 Decommissioning ....................................................19
10.1 Dismantling The Inverter ........................................19
10.2 Packing The Inverter ................................................19
10.3 Storing The Inverter .................................................19
10.4 Disposing Of The Inverter .......................................19
11 Work Modes .............................................................20
12 Manufacturer Warranty ..........................................20
13 Technical Data ..........................................................................21
Contact
7.1 Wi-Fi .............................................................................17
7.2 The DRM0 Function For SAA Certification ...............17
3.1 Inverter Overview ........................................................4

CAUTION
NOTE
This manual is for qualified personnel that have received training and
have
demonstrated skills and knowledge in construction and operation of this
device. Qualified personnel are trained to deal with the dangers and hazards
involved in installing electric devices.
1 Notes On This Manual
1.1 Validity
This manual describes the assembly, installation, commissioning and mainte nance of the AC
Coupled inverter.
1.2 Target Group
WARNING indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in a minor or moderate injury.
NOTE Failure to observe this warning may lead to damage to
property.
Beware of hot surface
The product can become hot during operation. Do
not touch the product during operation.
Observe the operating instructions
Read the product's documentation before working on it. Follow all
safety precautions and instructions as described in the
documentation.
Point of connection for grounding protection.
Direct Current (DC)
Alternating Current (AC)
Signals danger due to electrical shock and indicates the times (5
minutes) to allow after the inverter has been turned off and
disconnected to ensure safety in any installation operation.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
1.3 Additional Information
Find further information on special topics on our website.
1.4 Storage of the manuals
The manual and other documents must be stored in a convenient place and be available at all
times. We assume no liability for any damage caused by failure to observe these instructions.
1.5 Symbols Used
The following types of safety instructions and general information app ear in this document
as d escribed below :
Manual ‒ Read the Manual!
21
Description
Warning regarding dangerous voltage
The product works with high voltage. All work on the product must
only be performed as described in its documentation and by qualified
trades people.
1.6 Markings On This Product
Symbol

3 4
NOTE
2 Safety And Conformity
2.1 Safety Instructions
Danger To Life Due To Lethal Voltages!
Lethal voltages are present within the unit and on the power supply
lines. Therefore, only authorized electricians may install and open
the unit. Even when the unit is disconnected, high contact voltages
may still be present within the unit.
Danger Of Burn Injuries Due To Hot Enclosure Parts!
During operation, the four sides of the enclosure lid and the heat sink
may become hot. Only touch the front enclosure lid during operation.
No one should be opening the unit
Qualification Of Skilled Workers
Knowledge of how an inverter works and is operated
Instruction in how to deal with the dangers and risks associated with installing
and using electrical devices
Training in the installation and commissioning of electrical devices and plants
Knowledge of all applicable standards and guidelines
Knowledge and observance of this manual and all safety instructions
3 Product Description
3.1 AC Coupled Overview
3.2 Information of the Unit

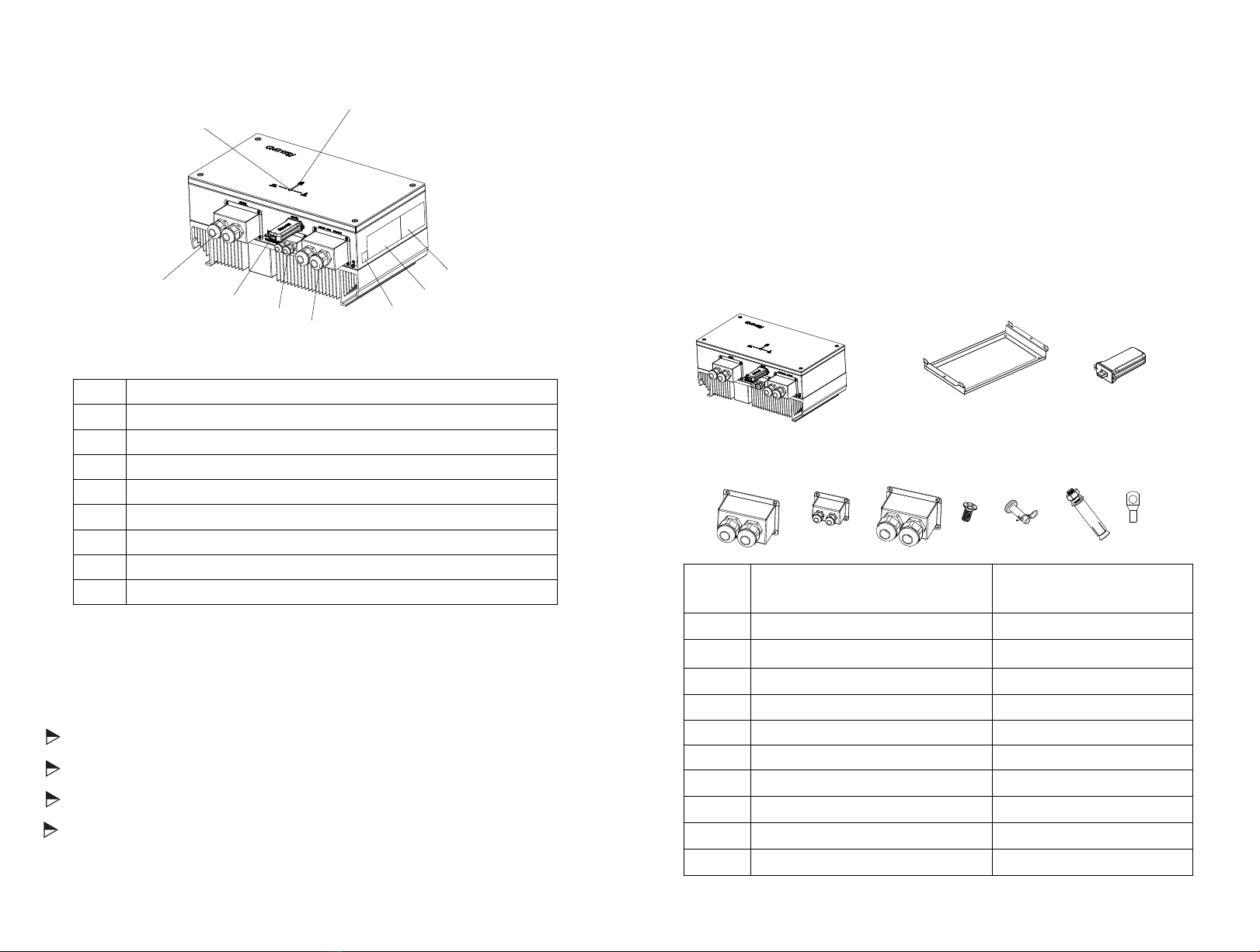

Figure 1
The unit is bidirectional which is connected to grid and battery storage system and
grid. It also can work with existing solar system. 1. AC coupled hybrid system working
separately. When the electricity price is low, use energy from grid to charge battery.
When the electricity price is high, discharge battery energy to home load.
(Or discharge battery energy to grid, which is optional)2. AC coupled hybrid system
working with existing solar systemIf the energy of solar system is enough for load
and export some to grid, AC coupled system will the export energy to charge battery.
If the energy of solar system is not enough for load and import some from grid,
AC coupled system will discharge the energy of battery to the load.

A The Inverter Power Flow Direction Indicator
B The Inverter Operation Status Indicator
C
D
Battery Input Terminals And Cover
E
F
WIFI Or GPRS Com Module And USB Port
G
BAT._NTC and RS485 Communication (BMS Com, Load Monitor Com, )
H
AC Output Terminals And Cover
I
Inverter Serial No.
Spec Label
Warning Signals Label
The storage temperature should be always between -25℃ and +60℃.
The storage relative humidity should be always between 0 and 95%.
If there are a batch of unit need to be stored, the maximum layers for original
carton is four.
3.3 Storage of Inverter
If you want to storage the unit in your warehouse, you should choose an appropriate
location to store the inverter.
The unit must be stored in original packaging.
56
Note; The battery storage much be according with the battery manufacturers
specifications.
Figure 2
A
C
D
B
EG
I
F
H
Figure 3
4 Unpacking
Item Name Quantity
A AC Coupled 1
B Mounting Frame 1
C WIFI Or GPRS 1
D BAT Wire Cover 1
E BMS, RS485 Com Wire Cover 1
F AC Output Cover 1
G Cover Screw 14
H Inverter Security Pin 2
I Mounting Frame Fixings 4
J Battery Input Terminations 2
Complete Delivery Should Contain As Follows:
Thoroughly inspect the packaging upon receipt. If any damage to the packaging is
visible, or if you find that the unit is damaged after unpacking, please notify the
distributor immediately.
If there is anything damaged or missing, please contact your supplier. Do not dispose
of the original packaging. If you want to transport the unit, it is better stored in the
original packaging.
AB C
D E FGH I
J

5 Installation and Electrical Connection
5.1 Safety
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires. Do not install the inverter on
easily flammable materials and where flammable materials are stored.
Risk of burns due to hot enclosure parts
Mount the inverter in such a way that it cannot be touched inadvertently.
All electrical installations shall be done in accordance with the IEE Wiring Regulations.
Do not remove the casing. The inverter contains no user serviceable parts. Please refer
servicing to qualified service personnel.
Carefully remove the unit from its packaging and inspect for external damage. If you find
any imperfections, please contact your local supplier.
This unit is designed to feed power to the public power grid (utility) only. Do not connect
this unit to a generator. Connecting the inverter to external devices could result in
serious damage to your equipment.
When a photo-voltaic panel is exposed to light, it generates a DC voltage. When
connected to this equipment, a photo-voltaic panel will charge the DC capacitors.
78
All wiring and electrical installation should only be conducted by a qualified electrician.
Select the installation location so that the status display can be easily viewed.
Do not install the inverter on structures constructed of flammable materials.
The humidity of the installation location should be 0 - 95%, without condensation.
The installation location must be safely accessible to get to at all times.
Vertical installation or tilted backwards by max. 15° and make sure the connections
of inverter are at the bottom. Never install horizontally and avoid forward and
sideways tilt.
Be sure that the inverter is out of the children’s reach.
Do not put anything on the inverter. Do not cover the inverter.
Do not install the inverter near television antenna or any other antennas, antenna
cables.
The Inverter requires adequate cooling space. Provide the best ventilation for the
Inverter to ensure the heat escapes adequately. The ambient temperature should be
below 40° C to ensure optimum operation.
The inverter shall not be installed where in direct contact with water or in direct
sunlight.
90〫
Figure 4
5.2 Selecting The Installation Location
This is guidance for the installer to choose a suitable installation location, to avoid
potential damages to the device and operators.
The unit shall be mounted at least 914 mm (3 feet) above the ground.
The installation location must be suitable for the inverter's weight and dimensions
for a long period of time.

The inverter should not be installed in direct sunlight, direct heavy water sources or unstable
locaons. We recommend that the inverters be installed at a locaon with some cover or protecon.
Observe the minimum clearances to walls, other inverters or objects as shown in the
diagram below in order to guarantee sufficient heat dissipation.
9 10
Figure 5
Figure 7
60cm
40cm
Direction Min. clearance(cm)
above 60
below 60
sides 40
front 30
Figure 6
Roof
Ground
60cm
60cm
336 mm
110 mm
Hook On The Upside
Figure 8
Figure 9
PLEASE NOTE: If damage arises to the inverter as a result of insufficient fixings so as
to withstand the load of the inverter, or the installation is not carried out in accordance
with the manufacturer’s requirements, the warranty may be voided.
Ambient Dimensions Using Inverters In Series
There must be sufficient clearance between the individual inverters to ensure that
the ambient air from the adjacent inverter is not taken in.
If necessary, increase the clearance spaces and make sure there is enough fresh air
supply to ensure sufficient cooling of the inverters, and heat dissipation.
5.3 Mounting The Inverter With Bracket
In order to avoid electrical shock or other injury, inspect existing electrical wiring
systems or plumbing installations before drilling holes for bracket fixings
The dimension of bracket as in [Figure 8]:
Using the mounting frame as a template, drill holes as illustrated in the image below.
Fix The Bracket With 4PCS
M6X50 Expansion Bolt

5.4 Fixed The Inverter On The Wall
Falling equipment can cause serious or even fatal injury. Never mount the
inverter on the bracket unless you are sure that the mounng frame is
securely mounted on the wall.
Raise the inverter a lile higher than the bracket. Consider the weight
during the process to maintain the balance of the inverter. Hang the inverter
on the bracket through the hooks on bracket.
Aer confirming the inverter is fixed securely, insert the four M4
safety-locking screws on the le and right side to prevent the inverter from
being lied off the bracket.
11 12
Figure 10
Figure 11
5.5 Check Inverter Installation Status
Check the mounting of the inverter by trying to raise it from the bracket. The
inverter should remain firmly attached.
Please ensure that the correct mounting surface is selected to allow for vibration of
the inverter during normal operation.
5.6 Electrical Connection
High voltages which may cause electric shocks are present in
the conductive parts of the inverter. Prior to performing any
work on the inverter, disconnect the inverter on the AC side,
battery side.
Do not reverse the polarity of the battery! It will damage the
inverter and void any warranty.
Danger To Life Due To Lethal Voltages!
5.6.1 Safety
Danger of damage to electronic components due to electrostatic
discharge. Take appropriate ESD precautions when replacing and
installing the inverter.
Before connecting the DC power cables, the AC supply must be
earthed.
Earthing.
5.6.2 System Diagram With Inverter Electrical
Figure 12
ABCE
FGJ
PV ARRAY AC BREAKER ELECTRIC
METER UTILITY
BATTERY DC BREAKER AC BREAKER LOAD
CT
INVERTER ELECTRIC
METER
ELECTRIC
METER
AC BREAKER ELECTRIC
METER
CDC
C
D
D
AC COUPLED
H

PV Modules
Posion Descripon
A
Inverter B
Energy Meter C
AC Breaker D
Utility Grid
E
F Battery
G Battery DC Breaker
H AC Coupled
5.6.3 Connect To The Grid (AC Utility)
13 14
A Conductor Cross-section:
See the conductor cross section
in the flowing chart
B Bare Length: 8mm around
Ensure all wiring is correctly selected and erected in accordance with BS7671:2015,
IEE wiring regulations.
NOTE
INVERTER
48V
Batter y
Back-Up
Loads
Max.output
2500VA
Grid
Grid
L
N
PE
Back-Up
L
N
PE
L
N
PE
L
N
PE
CT
Figure 13
Figure 14 Figure 14
Output Connection Terminals
The cable length should not exceed 50 m as the resistance of the cable will
consume inverter output power and reduce the inverter efficiency.
You must install a separate AC circuit-breaker or other load disconnection unit
between the inverter and utility, in order to ensure that the inverter can be safely
disconnected under load.
Output cable requirements
Giv-AC3.0 2.5 ~4.015A
Product Model Area CSA (mm ) Current 2
5.6.4 Connect To The Back-Up
The back-up can provide a maximum output power of 2500w. You can connect the
essential load to the back-up terminals.
You must install an AC Isolator or other load disconnection unit between the inverter
back-up output and the essential load, in order to ensure that the inverter can be
safely disconnected under load. We suggest the separate unit spec is 20A.
The back-up MAX output power is 2500w. If the load is greater than 2500w, the
inverter will stop outputting and draw from the grid. The output power of back-up
depends on the battery capacity.
We suggest the AC separate unit spec as follow,
NOTE

15 16
5.6.5 Connect To The Battery
Before connecting to the battery, you must install a separate DC breaker (not less
than 120A) between the inverter and battery. That will ensure the inverter can be
securely disconnected during maintenance.
Reversed polarity will damage the inverter!!!
It is very important for system safety and efficient operation to use appropriate
cable for battery connection. To reduce risk of injury, you much use the proper
recommended cable size, refer to the following;
B 10 ~ 25mm
C.S.A.
C10mm
Bare Wire Length
A 10 ~12mmO.D.
Grade Value Descripon
2
Figure 18
The battery must be installed in accordance with the manufacturer ’s instructions.
The MAX charge / discharge current of the inverter is 50A.
The inverter ’s battery rated voltage is 48V. The battery series connection voltage
must not exceed 48V or it will damage the inverter and void any warranty.
Follow the below steps to implement the battery connection:
(1) Check the battery nominal voltage meets the inverter spec.
(2) Disconnect the breaker between inverter and battery.
(3) Check out the polarity of the battery and the inverter.
(4) Terminate battery DC cables by means of the lugs provided.
(5) Screw the DC cable to the inverter's battery input terminal.
(6) The correct baery technology must be selected upon commission, so
that it can be controlled via the BMS

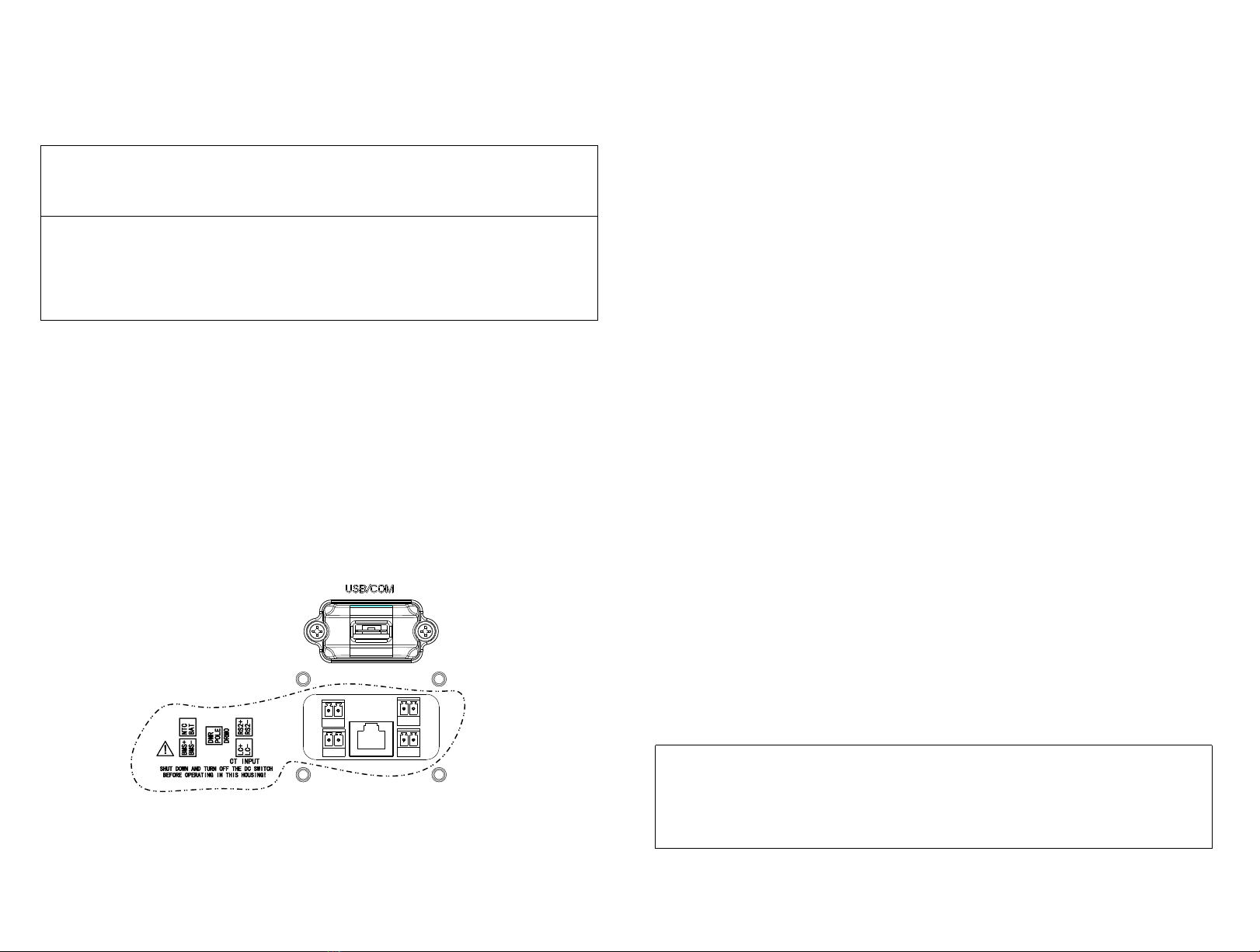

Figure 19
Before you install the BAT.NTC, you must turn off the inverter,
check all the separate breakers are off, and the inverter's LED is
off. Then you can safely install the BAT.NTC terminal to the
inverter.
Danger to life due to voltages!
we recommend using the Solarshop appointed lithium battery,
because the battery BMS communication has been designed to
be compatible with the Solarshop Hybrid Inverter.
NOTE

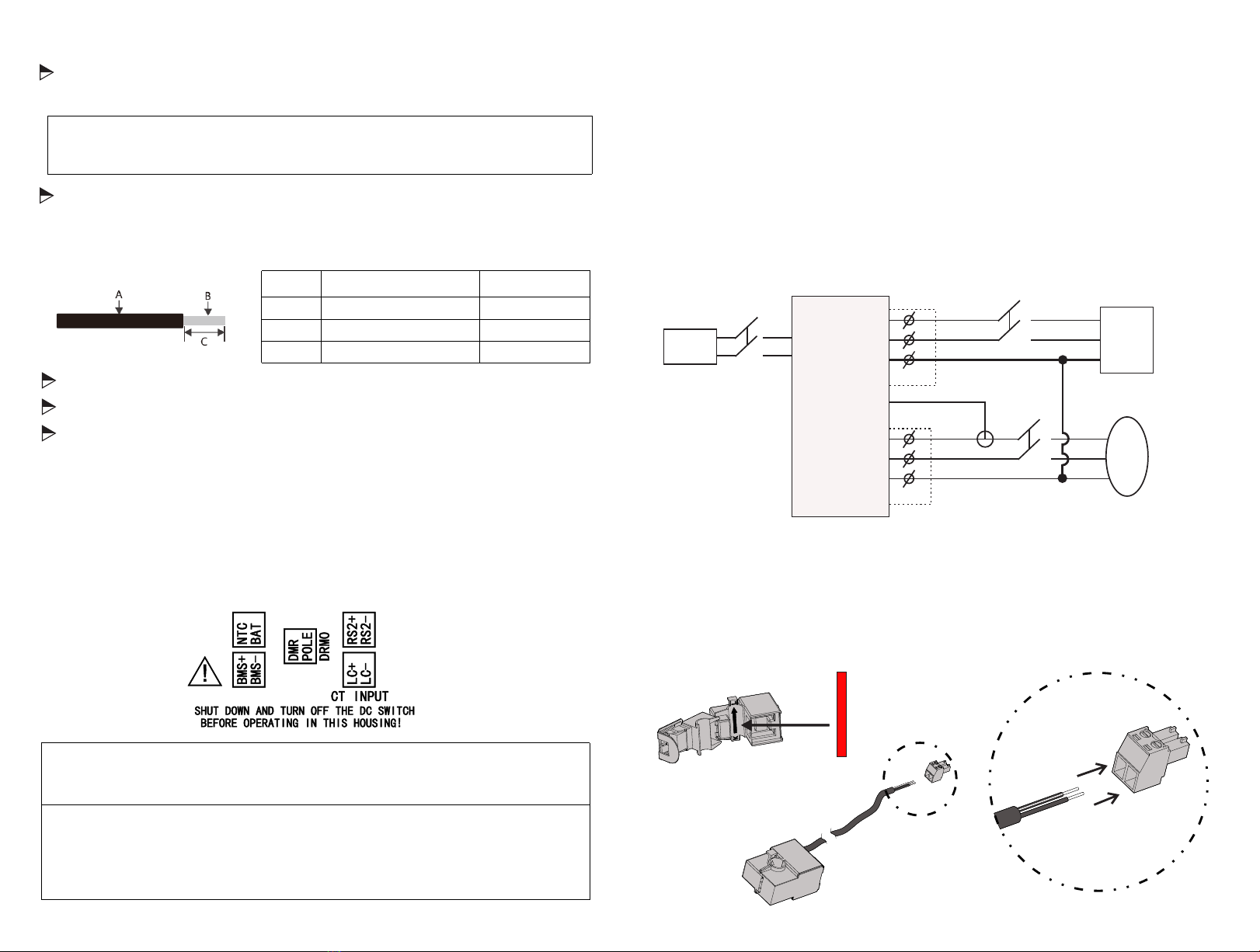

5.6.6 Connect CT Clamp Or Mid Approved Meter To Inverter
In the system, a CT or mid approved meter must be installed to monitor the
power of the house to decide the inverter status: charge or discharge.
CT or meter must be installed at the origin of supply. In this case, the
inverter can monitor all household consumpon of power. According to the
sensor, the inverter will control the PV power feeding to the grid to balance
the level of household power use.
Place the CT reader inbetween the meter and the inverter. This must be positioned
in front of local load and around the LIVE wire only with the arrow pointing
TOWARDS the inverter.
Inverter
L-line
Meter
INVERTER
48V
Battery
Back-Up
Loads
Max.output
2500VA
Grid
Grid
L
N
PE
Back-Up
L
N
PE
L
N
PE
L
N
PE
CT
Figure 20
Figure 21
Black/White in “A”
Black in “B”
