Glacier bay ARNETTE HD67623W-614405 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
ARNETTE 4 IN. CENTERSET 2-HANDLE
HIGH-ARC BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
5/2022 REV.01THD
Model#
HD67623W-614405
HD67623W-6110H
HD67623W-6104
HD67623W-6101
SKU#
1007747512
320828888
320828883
320828882

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................7
Troubleshooting........................................7

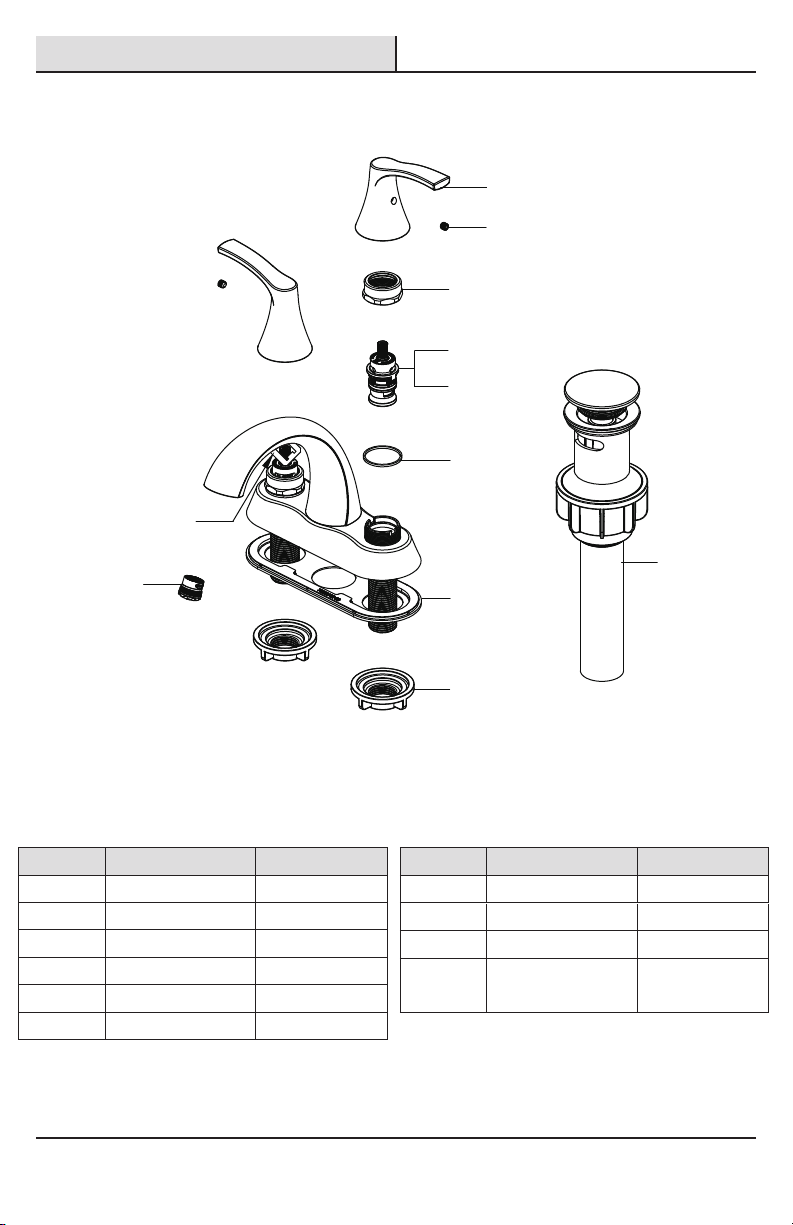

Service Parts ........................................... 8
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

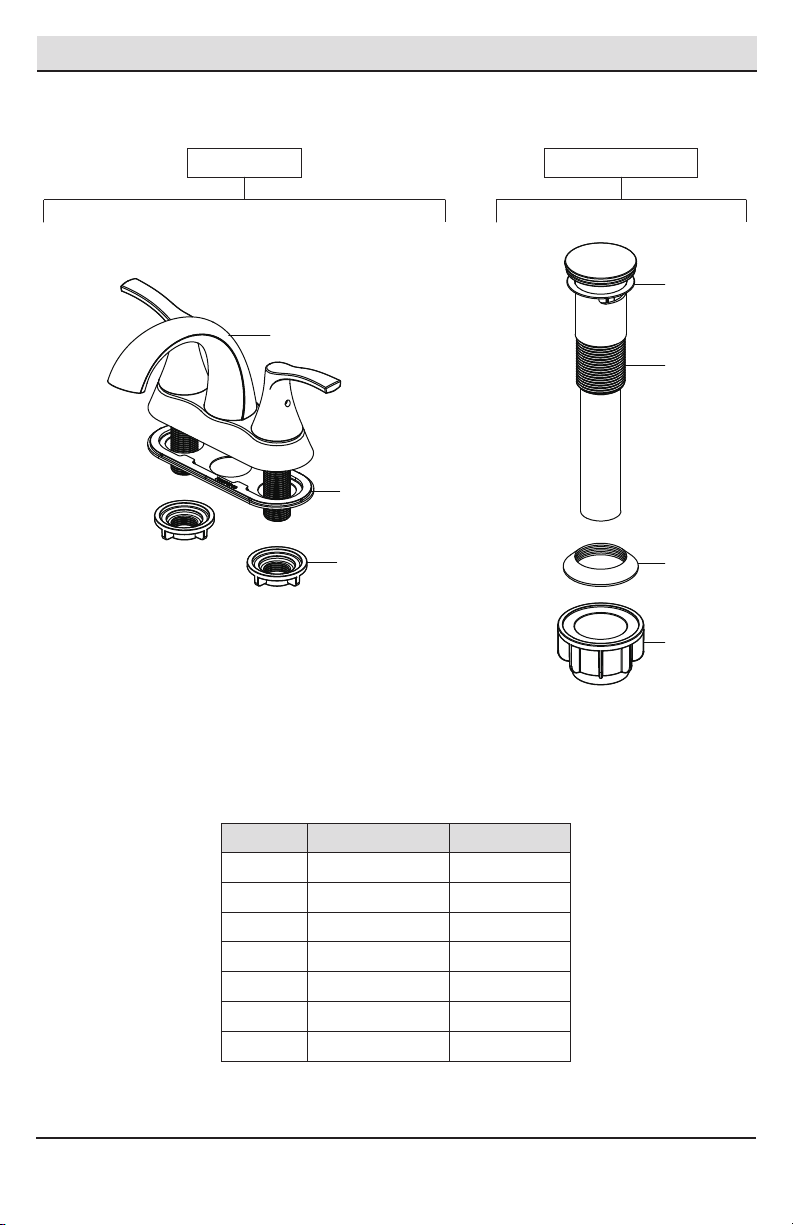

PACKAGE CONTENTS
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Press Pop-Up Assembly
Part Description Quantity
A 1Faucet
B 1Gasket
C 2Mounting nut
D 1Top gasket
E 1Pop-up body
F 1Bottom gasket
G 1Nut
D
E
F
G
A
B
C

Installation
4

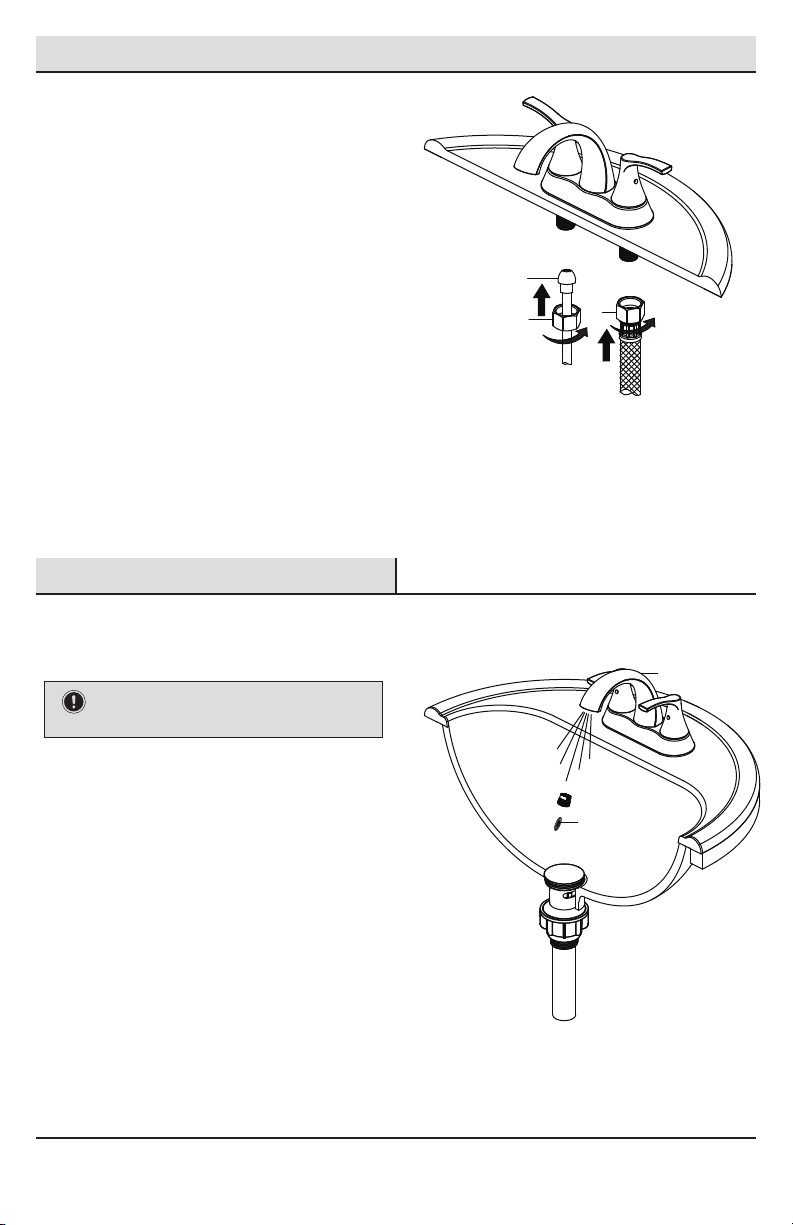

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
□Place the faucet (A) through the mounting
holes in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand-tighten only.
NOTE: Silicone sealant is required under the gasket (B).
□Clean the mounting surface.
2 Preparing the pop-up assembly
□Remove the bottom gasket (F) and nut (G) from
the top gasket (D) and pop-up body (E).
□Attach these pieces together by pushing the
bottom gasket (F) down into the top of the
nut (G) and twisting together.
D
E
F
G
A
B
C
SILICONE

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)

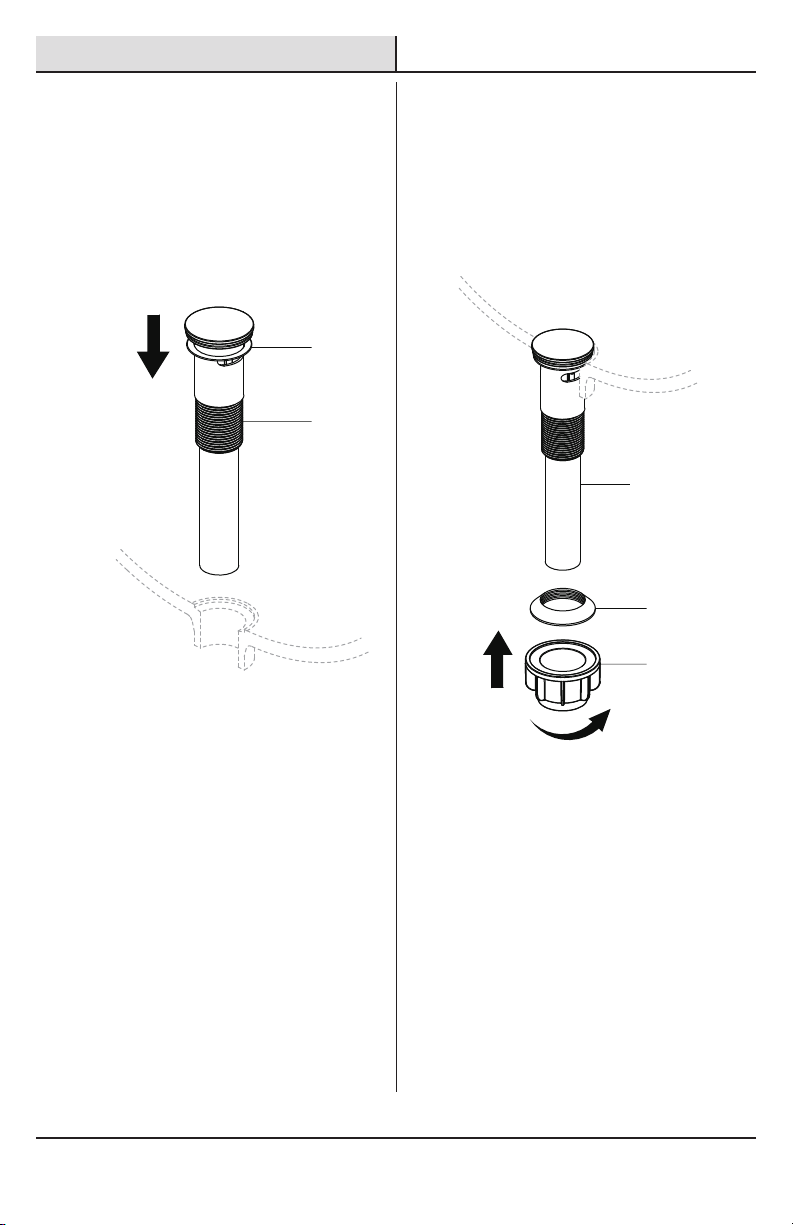

3 Installing the pop-up body
□Insert the pop-up body (E) into the sink. Ensure
that the top gasket (D) rests securely between
the top of the sink and the top of the pop-up
body (E).
4 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (F) and nut (G) assembly onto the pop-up
body (E) by twisting clockwise until secure.
D
E
E
F
G
