Glacier bay F1AA0005OB Assembly instructions

We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this tub and
shower set. We strive to continually create quality products designed to enhance your home. Visit us online to
see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
SKU #
1000 029 968
1000 029 967
1000 029 963
Model #
F1AA0005OB
F1AA0005BNV
TUB AND SHOWER SET
INSTALLATION AND CARE GUIDE
;/(52@6<
THD 04/2015 REV.01

0UZ[HSSH[PVU)HJR[V)HJR0UZ[HSSH[PVU*SLHU[OL:JYLUU>HZOLY*HYLHUK*SLHUPUN;YV\ISLZOVV[PUN:LY]PJL7HY[ZTable of Contents
Warranty
Important Information
1. Do not install this product until you read and understand the instructions in this manual. If you are installing this
product for someone else, leave this manual for the owner’s/user’s reference.
2. Inlet ports are designed to allow for 1/2 in. COPPER connection or 1/2 in. IPS threaded connection. For threaded
connection warp thread seal tape around male threads on valve before connection ttings. If soldering
conncetions, cartridge and integral stops must be removed to avoid heat damage and reinstalled when
connections are completed and cooled. If you are unsure how to remove these parts please call us at 1-800-HD-
Glacier (1-800-494-5884).
3. Protect your eyes with safety glasses when cutting or soldering water supply lines.
NOISE AND WATER HAMMER IN PEX SYSTEMS: Due to the inherent exibility of PEX compared with metallic
plumbing materials, water hammer and noise can sometimes occur from the pressure surges. It is important to
ensure the tubing is not in contact with wallboard, forced air ducts or other high-resonance materials. Clamping
or strapping can help prevent these noises. DO NOT USE PEX tubing from the valve to the tub spout.
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse, or normal wear
and tear. This warranty excludes all industrial, commercial, and business usage, whose purchasers are hereby ex-
tended a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except
the duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD Glacier for
more details.
4.
0TWVY[HU[0UMVYTH[PVU2
>HYYHU[`  2
7YLPUZ[HSSH[PVU3

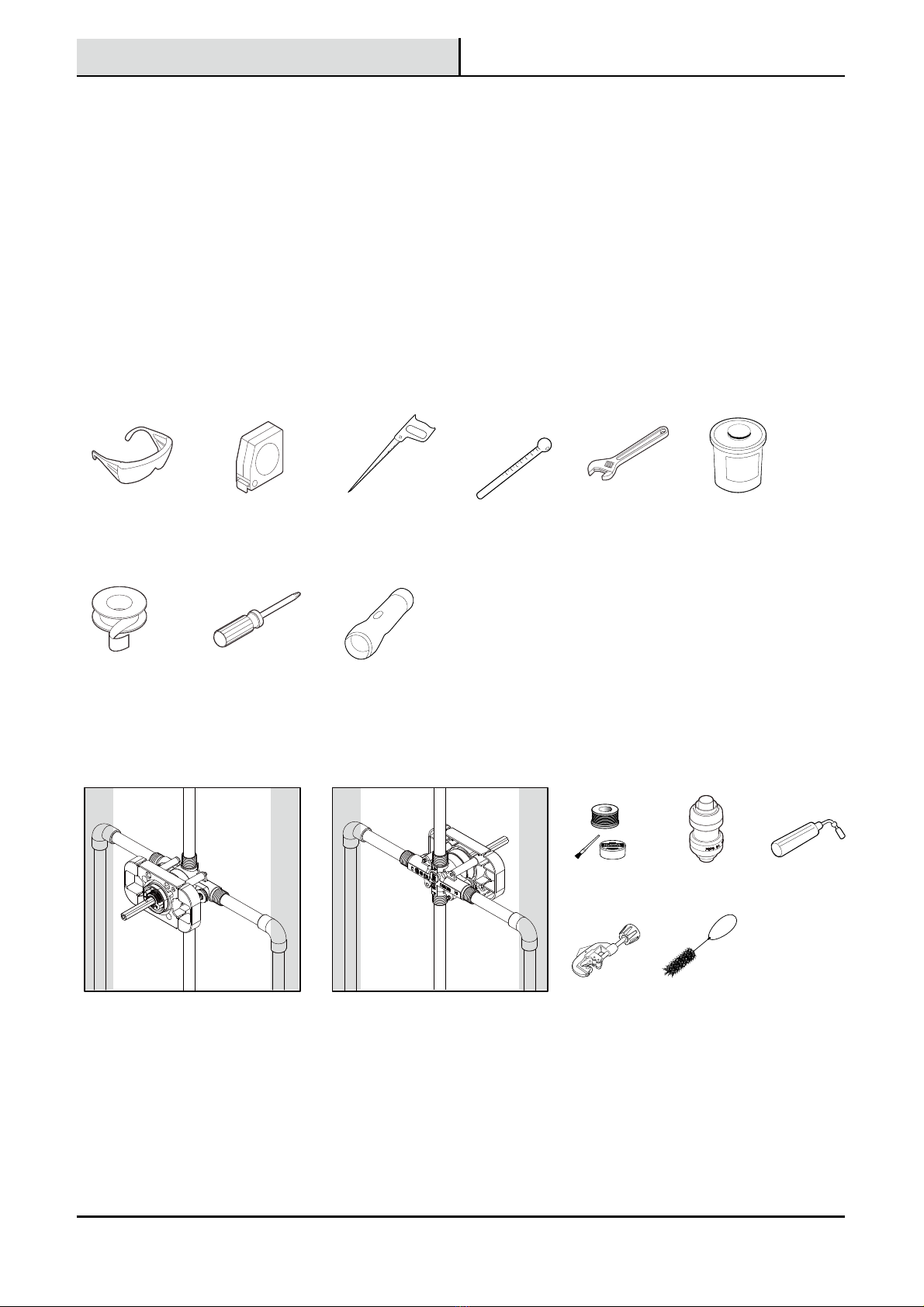

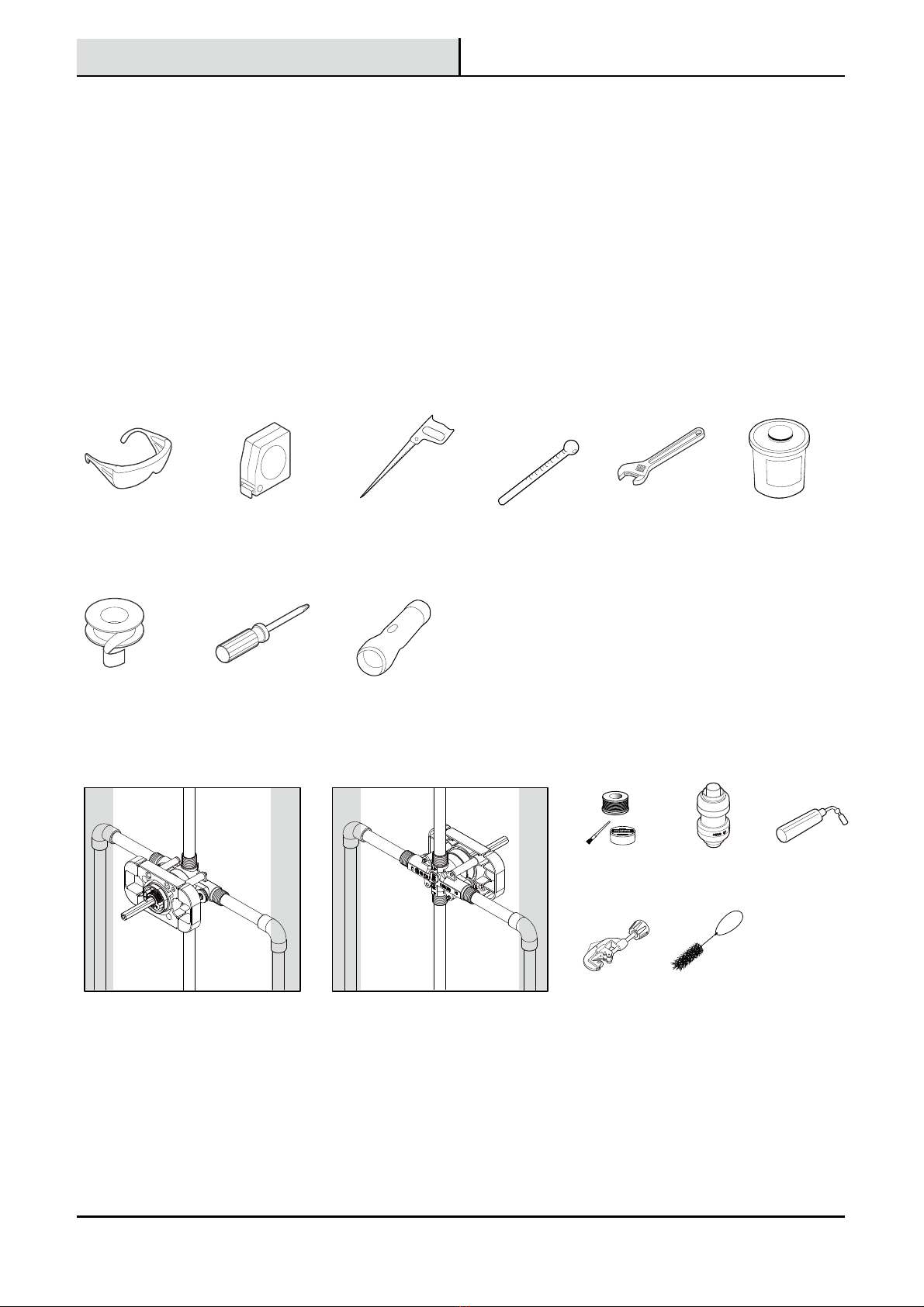

Planning Installation
 HelpfulTools
 Package Contents3040;,+30-,;04,>(99(5;@2

If you are replacing your plumbing valve, please review the four common plumbing methods illustrated below:
COPPER, IPS, PEX and CPVC. Remove the existing handle and valve trim before replacing your valve. Please follow
all local building and plumbing codes.
These are some common tools.
(*677,9
Torch
Wire
Brush
Tube
Cutter
Lead-free
Solder Kit
SharkBite
Fittings
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Safety
Glasses
Measuring
Tape
Phillips
Screwdriver
Thread
Seal Tape
Crescent
Wrench
Pipe Joint
Compound
Flashlight
Key
Hole Saw Thermometer
/,37-<3;663:73(5505.05:;(33(;065Pre-installation
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.
All installations can vary depending on how your previous faucet was installed. Not all supplies for faucet
installation are included; however, they are available wherever plumbing supplies are sold. When choosing your
installation supplies, make sure they are UPC and/or CSA approved products.
3HOMEDEPOT.COM/GLACIERBAY

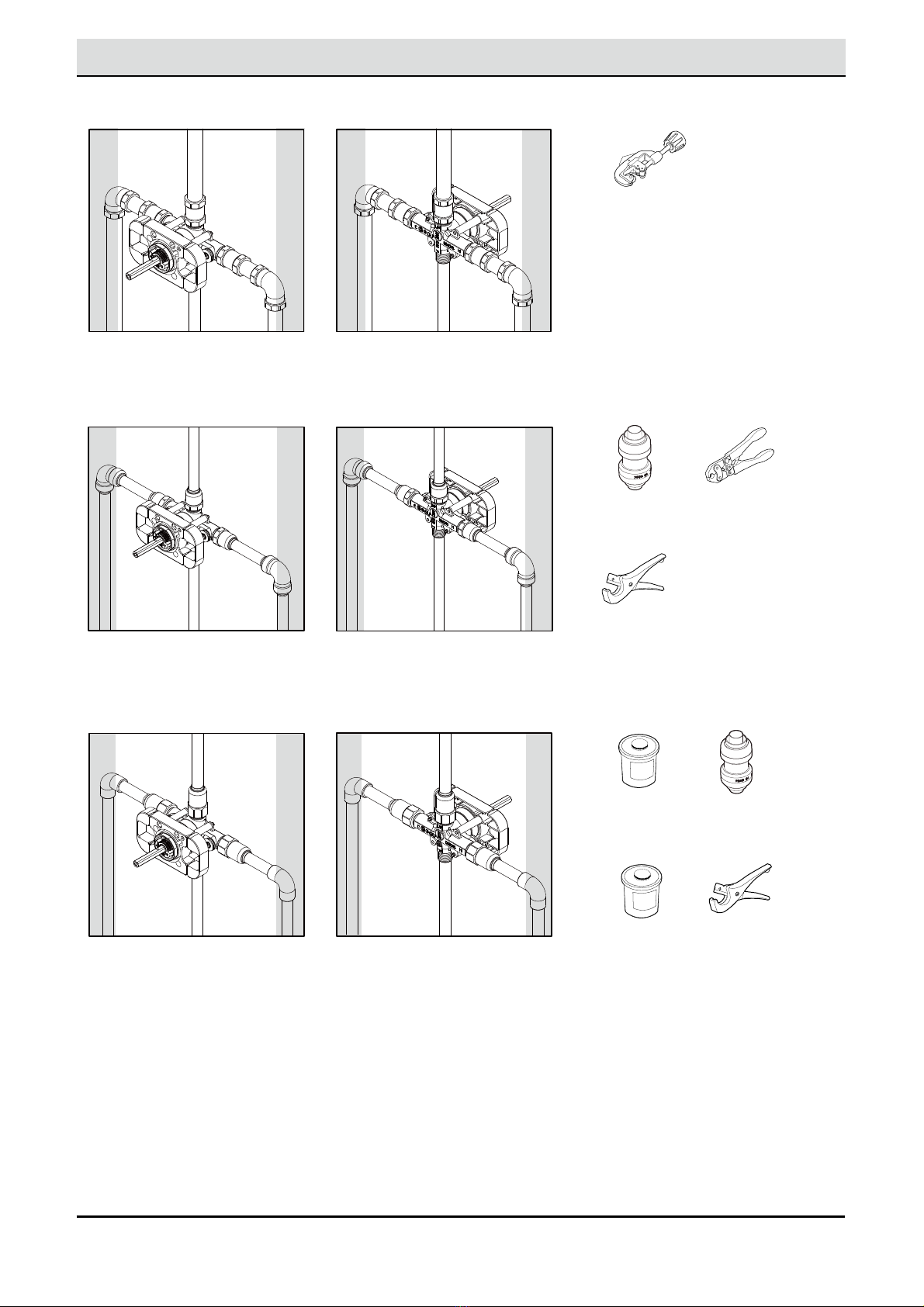

Pre-installation (continued)
+*7=*
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Tubing
Cutter
CPVC
Cement
CPVC
Cleaner
SharkBite
Fittings
*7,?Tubing
Cutter
FullCircle
CrimpingTool
SharkBite
Fittings
)07:Tube
Cutter
4

Pre-installation (continued)
7(*2(.,*65;,5;:7HY[+LZJYPW[PVU8\HU[P[`A Shower head 1
B Shower arm 1
C Shower arm ange 1
D Escutcheon 1
E Escutcheon screw 2
F Handle 1
G Spout 1
H Plaster guard 1
I Valve body 1
J Plug 1
K Allen wrench (H 2.5 * 19 mm L * 53 mm L) 1
L Allen wrench (H 3.18 *20 mm L * 90 mm L) 1
M Sealant tape 1
A
E
FG
K
LM
I
J
C
H
B
D
HOMEDEPOT.COM/GLACIERBAY
5

Turn on the faucet nearby to relieve water pressure
and ensure the water supply has been completely
shut off.
78"
(1981mm)
32"
(813mm)
6” (152mm) Min.
9” (229mm) Max.
Use 1/2” COPPER or IPS pipe
only. DO NOT USE PEX.
;\YUPUNVMM^H[LYZ\WWSPLZ4LHZ\YPUNMVYPKLHS[\IHUKZOV^LYWLYMVYTHUJLNote the recommended installation measurements
in positioning the valve body for tub and shower.
Do not use PEX, CPVC or SHARK BITE ttings for
supplying tub spout.
Shut off the main water supply before installation.
Recommended installation of the shower arm is to
a anged elbow tting (not included) attached to
a wood brace.
Installation
CAUTION: Installation of this product at non-recommended
measurements may lead to issues such as water discharge
from the showerhead during tub ll mode.
0UZ[HSSPUN`V\Y]HS]LaThin Wall Installation
For Walls Thinner Than 1/4 inch
The “Thin Wall” installation method is used when
the shower wall is less than 1/4 inches thick (such
as berglass tub surround) and will be the main
source of support for the valve. The plaster guard (H)
remains attached to the valve.
The “Thick Wall” installation method is used
when the shower wall is greater than 1/4
inches thick. “Thick Walls” are usually built up with
materials such as cement board, drywall, tile, etc. The
valve is secured by straps (not included) holding the
water inlet lines to the framing members (2X4’s). The
plaster guard (H) is positioned so that it is ush with
the nished wall. This ensures that the valve will be
at the correct position to accept the trim.
bThick Wall Installation
For Walls Thicker Than 1/4 inch
more than 1/4"
(6mm)
5-1/2"
(140 mm)
less than 1/4"
(6mm)
2-1/4" min.
(57mm)
3-1/2" max.
(89mm)
3/4"
(19mm)
a
b
H
H
6

1-1/2 in.- 2 in.
(38mm - 51mm)

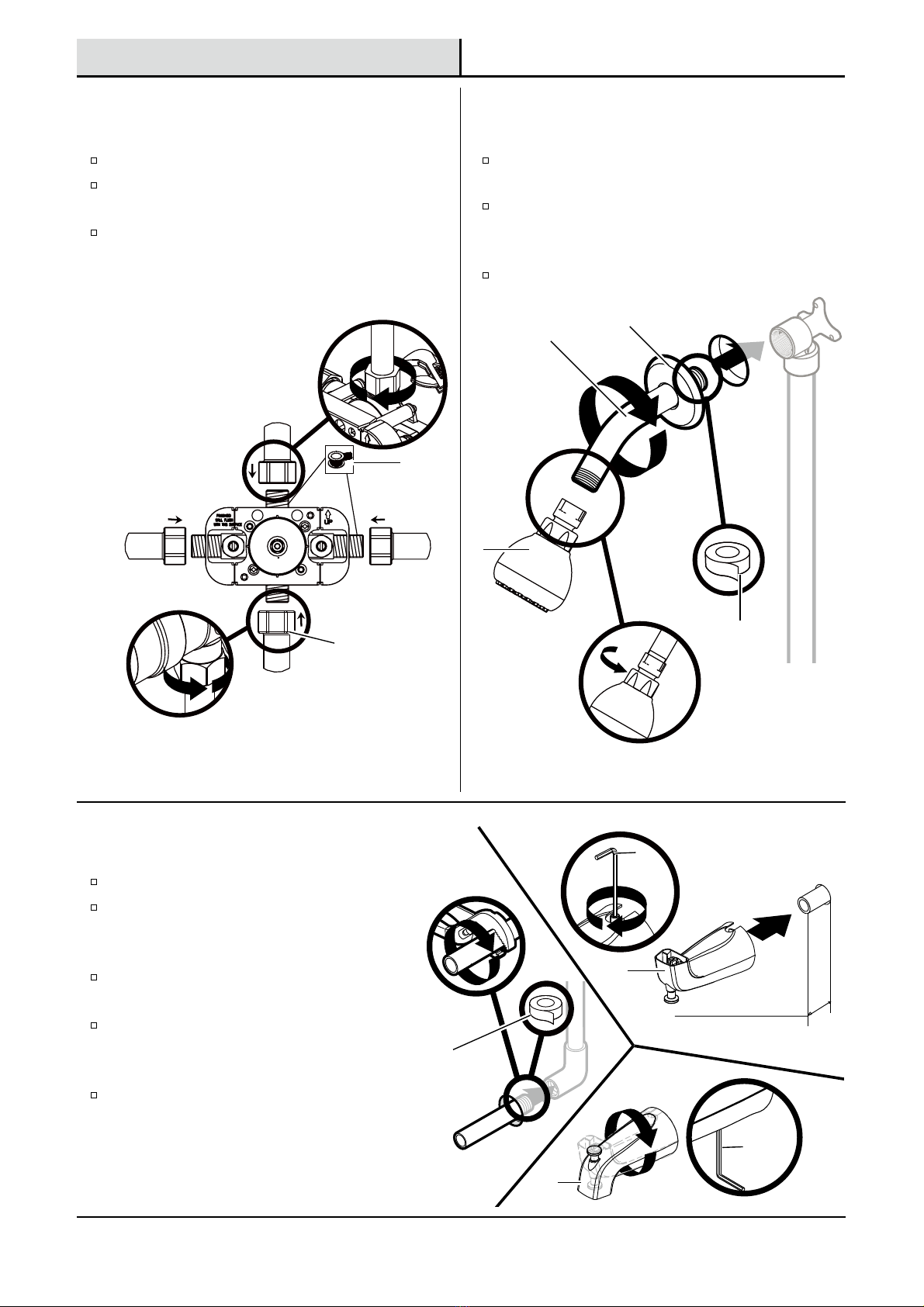

*VUULJ[PUN[OLWPWLZConnect water supply pipes to the valve body.
For shower only installation, install the plug (J) onto
the bottom unused port.
Apply threaded pipe tape to where threading
connection will be made.
J
M
M
0UZ[HSSPUN[OL[\IZWV\[0UZ[HSSPUN[OLZOV^LYThread the shower pipe arm (B) through the
shower arm ange (C), and screw the shower
pipe arm (B) onto the vertical shower pipe elbow.
Screw the shower head (A) on to the shower arm (B).
Wrap the threads on the shower arm (B) with
sealant tape (M).
Apply sealant tape (M) on all threads.
Install a stub-out pipe (not included) for
the spout by using an adjustable wrench to
tighten.
Slip the tub spout (G) onto the stub-out pipe
pointing up and use an allen wrench (L) to
slightly tighten the set screw.
The proper length of stub-out pipe will extend
1-1/2 in. to 2 in. beyond the nished wall.
Rotate the tub spout (G) to nal position and
use an allen wrench (L) to fully tighten the set
screw and secure the spout to the stub-out
pipe.
Installation (continued)
C
B
A
G
G
M
L
L
HOMEDEPOT.COM/GLACIERBAY
7

9LTV]PUN[OLWSHZ[PJJHWTwist and break off the plastic cover (1) from the
plaster guard (H) and discard.
Installation (continued)
1
2
I
H
Remove the valve cap (2) from the valve body (I).
b
cab
c
a
120°F
(49°C)
(KQ\Z[PUN[OL[LTWLYH[\YLSPTP[PUNKL]PJLTurn the valve counterclockwise to the full position.
After several minutes, check the temperature using
the thermometer.
Slowly turn the valve clockwise to adjust the maximum
water temperature to the desired temperature.
CAUTION: The maximum water temperature should never
be set above 120°F (49°C). -S\ZOPUNHUKJOLJRPUNMVYSLHRZTurn on the water supply, and then turn on the valve
to check all connections for leaks.
8

Installation (continued)
0UZ[HSSPUN[OLOHUKSLSecure the escutcheon (D) onto the valve body (I)
with the escutcheon screws (E).
Install the handle (F) using the set screw. Tighten in
place using the allen wrench (K).
F
E
K
D
I
9LWSHJPUN[OL]HS]LJHWReplace the valve cap (1) onto the valve body (I).
1
I
(KQ\Z[PUN[OL[LTWLYH[\YLSPTP[PUNKL]PJLRemove the red stop (a) and replace it against
the stationary stop (c) to prevent the valve stem
from turning further.
Turn the lever to the off position once the
temperature is set.
NOTE: Seasonal maintenance of the maximum outlet
temperature may be required due to changes in groundwater
temperature.
2
b
c
a
b
a
1
b
c
a
a
b
9HOMEDEPOT.COM/GLACIERBAY

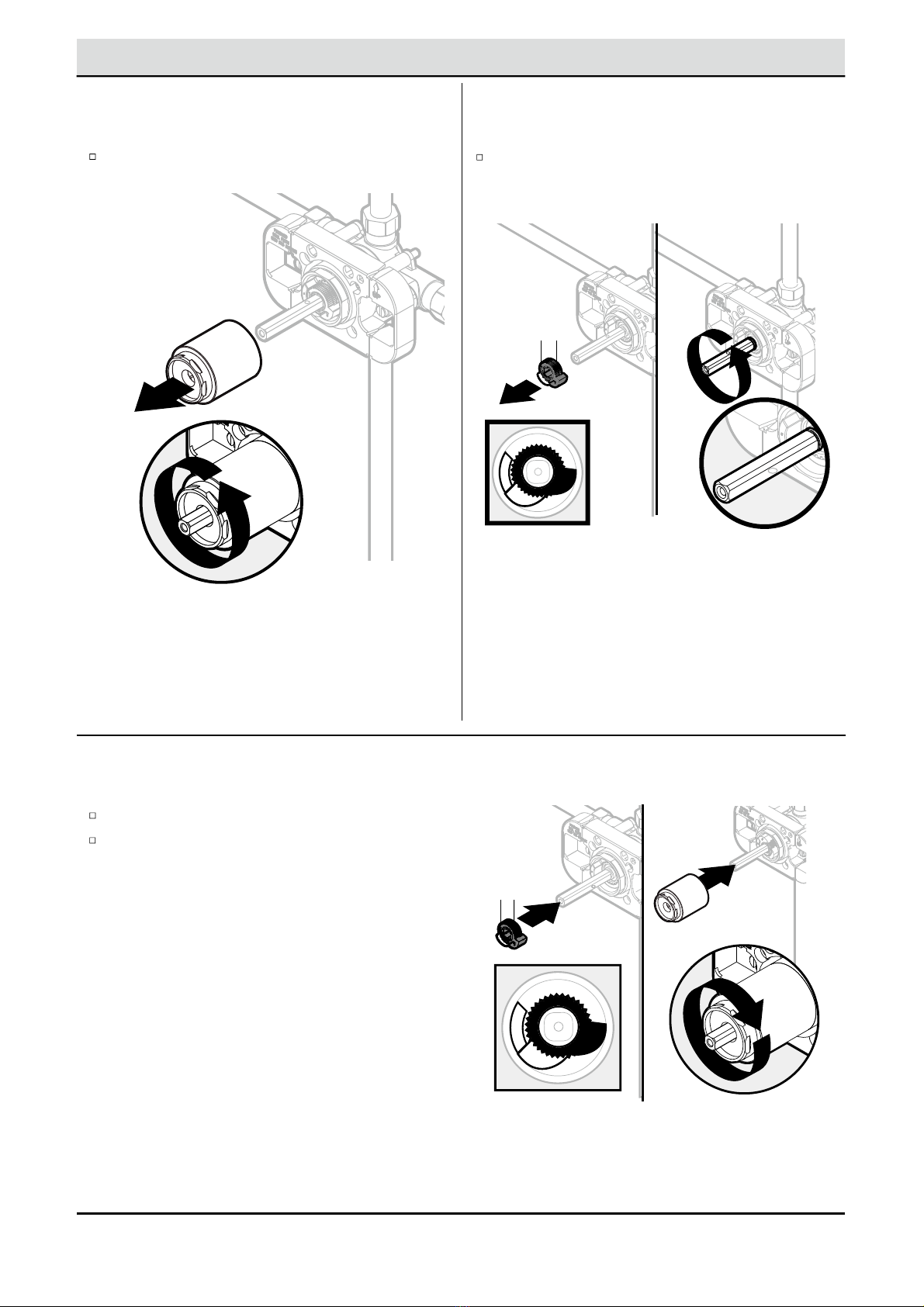

Back to Back Installation
Replace the valve cap on to the valve stem.
9LWSHJPUN[OL]HS]LJHW
Replace the red stop (a) and the blue stop (b).

1
2
3
b
ca
ab
9LTV]PUN[OL]HS]LJHW
Remove the valve cap from the valve stem.

2
1
9V[H[PUN[OL]HS]L
Remove the red stop (a) and the blue stop (b) and
rotate the valve 180°.

1
2
b
ca
ab180°
10

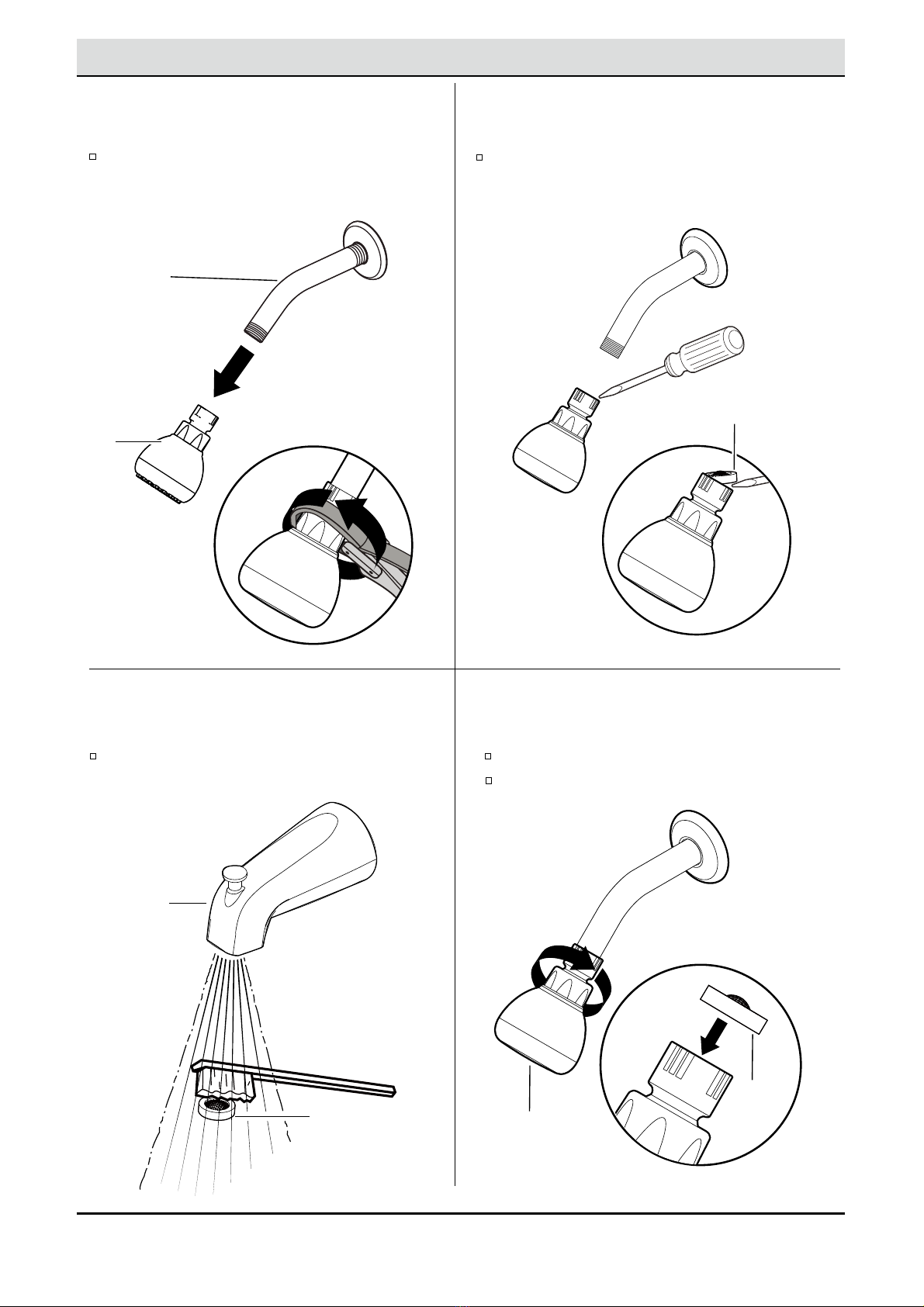

Clean the Screen Washer
*SLHUPUN[OLZJYLLU^HZOLYGently clean the screen washer (1) with a
toothbrush (not included).
9LTV]PUN[OLZOV^LYOLHKUse a clean strap wrench to remove the
showerhead (A) from the shower arm (B).
9LTV]PUN[OLZJYLLU^HZOLYUse a athead screwdriver (not included) to
carefully remove the screen washer (1).

1
2
2
1
9LWSHJPUN[OLZOV^LYOLHKReinstall the screen washer (1) .
B
A
G
A
Reinstall the showerhead (A).
1
11
11 HOMEDEPOT.COM/GLACIERBAY

Care and Cleaning
Troubleshooting
To clean, wipe down with a damp cloth and towel dry.
Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
7YVISLT7VZZPISL*H\ZL:VS\[PVUHot and cold are reversed. Lines reversed or cartridge
installed upside down. Rotate the cartridge stem 180° so that the notch is facing down
towards the drain.
There is no or a low water
ow. One or both water supplies are not turned on. Turn both water supply valves counterclockwise to the on
position.
There is leaking or dripping
from the spout. Grommets not sealing properly. Replace the cartridge.
There is only hot water or only
cold water from the spouts. Balancing spool stuck. Replace the cartridge.
Water comes out of the show-
erhead during tub ll mode. The pipe used between the
valve and tub spout is not the
1/2 in. IPS nor COPPER pipe is
incorrect.
The distance between the valve
and the showerhead is less than
46 inches.
There are too many elbows or
something else that is restrict-
ing the ow of water exiting the
valve.
There is a restriction between
the valve and the tub spout.
The valve is installed upside
down.
Change the pipe to IPS or COP-
PER.
The distance from the shower-
head and valve moved to at least
46 inches.
Change or remove anything
restrictive.
Remove the tub spout and ush
out debris and/or replace the
undersized line or ttings.
Remove the valve and reinstall it
using the correct orientation.
The temperature range is
restricted. The handle (more common in knob models) is installed upside
down.
Temperature limit stop is out of
position.
Remove the handle, rotate it 180°
and re-install.
Reposition the temperature limit
stop to the desired temperature
position.
Unable to install the handle or
the handle rubs against the
escutcheon.
The valve is installed too far
back from the nished wall. Order extension kit (206416676
or 206416670) on Homedepot.
com.
The handle is hard to turn. The cartridge stem is difcult
to rotate. Replace or lubricate the car- tridge.
12

1.
17.
16.
15.
14.
2.
3.
5.
4.
6.
7.
8.
9.
10
11
12
13
18.
7HY[+LZJYPW[PVU7HY[5V1 Shower Head S1214306*
2 Shower Arm A020002-S*
3 Shower Arm Flange A019001-S*
4 Metal Handle A069752*
5 Handle Cap A66D814
6 Screw A608563
6 Screw (for 1000 029 968) A608564
7 Escutcheon Assembly A667103*
7Escutcheon Assembly
(for 1000 029 968) A66F601*
8 Screw A608519
9 Plaster Guard A127223KP 7HY[+LZJYPW[PVU7HY[5V10 Sleeve A103322*
11 Bonnet Nut A103310-Z*
12 Pressure Balance Cartridge A507190
13 Integral Stop A507040
14 Plug A028452
15 Allen Wrench (H 2.5 * 19 mml
* 53 mml) A031000NI
16 Allen Wrench (H 3.18 * 20 mml
* 90 mml) A031017NI
17 Spout W/Diverter A118011*
18 Screen Washer A010199
*Specify Finish
Many replacement cartridges can be purchased
at your local The Home Depot store or online at
HOMEDEPOT.COM
Service Parts
13 HOMEDEPOT.COM/GLACIERBAY

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m.-7 p.m., EST, Monday-Friday
9 a.m.-6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

Apreciamos la conanza que ha depositado en Glacier Bay por la compra de este para bañera y ducha. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra
ínea completa de productos disponibles para sus necesidades de mejorar su hogar. ¡Gracias por elegir a Glacier Bay!
¿Tiene preguntas, problemas, o faltan piezas?
Antes de regresar a la tienda, llame a Servicio al Cliente de Glacier Bay
de lunes a viernes de 8 a.m. a 7 p.m., hora local del Este
de lunes a viernes de 9 a.m. a 6 p.m., sábado
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Núm. de sku
1000 029 968
1000 029 967
1000 029 963
Núm. de modelo
F1AA0005OB
F1AA0005BNV
BAÑERA Y DUCHA CONJUNTO
GUÍA DE INSTALACIÓN Y CUIDADO
.9(*0(:

0UZ[HSHJP}U0UZ[HSHJP}U(KVZHKH3PTWPLJVUSHHYHUKLSHJVUÄS[YV*\PKHKV`3PTWPLaH:VS\JP}UKL7YVISLTHZ7PLaHZKL9LW\LZ[VTabla of Contenido
Garantía
Información Importante
1. No instale este producto hasta que haya leído y comprendido las instrucciones de este manual. Si instala el
producto para otra persona, deje este manual para que el propietario o usuario lo consulte.
2. Las tomas de agua han sido pensadas para conexiones de COBRE de ½ pulg. o conexiones roscadas IPS de ½
pulg. Para la conexión roscada, ponga cinta selladora para rosca en las roscas macho de la válvula antes de
conectar los empalmes. Si se sueldan las conexiones, hay que retirar el cartucho y los topes integrados para
evitar que el calor los dañe y volver a instalarlos cuando se haya terminado y enfriado la conexión. Si no sabe
cómo retirar estas piezas, llámenos al 1-800-HD-Glacier.
3. Al cortar o soldar tuberías de agua, protéjase los ojos con lentes protectoras.
RUIDO Y GOLPE DE ARIETE EN LOS SISTEMAS PEX: dada la exibilidad inherente de los sistemas PEX con
respecto al material metálico de plomería, a veces pueden producirse ruidos y golpes de ariete con la subida de
la presión. Es importante que las tuberías no estén en contacto con el panel mural, con conductos de aire
forzado ni con otros materiales de alta resonancia. El uso de abrazaderas y correas puede ayudar a evitar estos
ruidos.
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respal-
dados por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador
consumidor original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS
cualquier producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de
las ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD Glacier (1-855-434-5224) para recibir
el artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe
estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD Glacier para más detalles.
4.
0UMVYTHJP}U0TWVY[HU[L2
.HYHU[xH
 2
7YLPUZ[HSHJP}U  3
Planicación de la Instalación
 Herramientas Requeridas
 Contenido del Paquete.(9(5;Ð(+,769=0+(3040;(+(2

Si va a reemplazar su válvula plomería, consulte los cuatro métodos de plomería comunes se describen a
continuación: CPVC, PEX, IPS, y cobre. Retire la manija existente y los componentes exteriores de la válvula antes
de reemplazar su válvula. Siga todos los códigos locales de construcción y de plomería.
Estas son algunas herramientas habituales.
(*677,9
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Gafas de
seguridad
Medición
cinta
Destornillador
phillips
Cinta para
sellar roscas
Llave
ajustable
Pasta selladora
para uniones
de tubería
Linterna
Serrucho para
tablaroca Termómetro
Soplete
Cepillo de
alambre
Cortatubos
Juego de
soldar sin
plomo
Accesorios de
tubería
SharkBite
/,99(40,5;(:9,8<,90+(:73(50-0*(*0Ô5+,3(05:;(3(*0Ô5Pre-instalación
Antes de comenzar a instalar este producto, asegúrese de que todas las partes estén presentes. Compare las partes
con la lista de contenido del paquete. Si hace falta alguna parte o se encuentra dañada, no intente instalar el pro-
ducto. Póngase en contacto con servicio al cliente para las partes de reemplazo.
Todas las instalaciones pueden variar dependiendo de cómo instaló su grifo anterior. No todas las herramientas
necesarias para la instalación del grifo están incluidas. No obstante, puede obtenerlas en cualquier establecimiento
donde vendan artículos de plomería. Al seleccionar sus herramientas para la instalación, asegúrese de que sean
productos aprobados por IAPMO y/o CSA.
3HOMEDEPOT.COM/GLACIERBAY

Pre-installation (continued)
+*7=*
*7,?)07:Cortatubos
Cortador de
tuibos
Herramienta
de compresión
de círculo
completo
Accesorios de
tubería
SharkBite
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Cortador de
tuibos
Cemento
CVPC
Accesorios de
tubería
SharkBite
Pasta selladora
para uniones
de tubería
4

Pre-instalación (continuación)
*65;,50+6+,37(8<,;,7PLaH+LZJYPW[P}U*HU[PKHKA Cabeza de ducha 1
B Brazo de ducha 1
C Brida del brazo de ducha 1
D Escudo 1
E Tornillos del escudo 2
F Manija 1
G Vertedor 1
H Placa para pared 1
I Cuerpo de válvula 1
J Tapón 1
K Llave allen (H 2.5 * 19 mm L * 53 mm L) 1
L Llave allen (H 3.18 *20 mm L * 90 mm L) 1
M Cinta sellante 1
A
E
FG
K
LM
I
J
C
H
B
D
HOMEDEPOT.COM/GLACIERBAY
5

Abra el grifo cercano para disminuir la presión del
agua y compruebe que la alimentación de agua esté
totalmente cerrada.
78"
(1981mm)
32"
(813mm)
6” (152mm) Min.
9” (229mm) Max.
Use sólo tubos de COBRE o
IPS de ½ pulg. NO USE PEX.
*PLYYLKLSZ\TPUPZ[YVKLHN\H4LKPJP}UWHYH\UYLUKPTPLU[VPKLHSKLIH|LYH`K\JOHFíjese en las medidas de instalación aconsejadas
para colocar el cuerpo de la válvula para bañera y
ducha. No utilice conexiones PEX, CPVC o SHARK
BITE para alimentar el vertedor de la bañera.
Cierre el suministro de agua antes de instalar.
La instalación recomendada del brazo de la
regadera es con un codo de brida (no se incluye) y
unido a un refuerzo de madera.
Instalación
PRECAUCIÓN: La instalación de este producto en medidas
no recomendadas puede dar lugar a problemas como la
descarga de agua del cabezal de la regadera en el modo de
llenado de la tina.
0UZ[HSHJP}UKLSH]mS]\SHaInstalación en pared delgada: para paredes
de menos de ¼ pulg
El método de instalación para pared delgada se usa
cuando la pared de la ducha tiene un grosor de menos
de ¼ de pulgada (como una pared de bra de vidrio
para bañera) que será el principal apoyo de la válvula.
La placa para pared (H) permanece sujeta a la válvula.
El método de instalación para pared gruesa se usa
cuando la pared de la ducha tiene un grosor de más
de ¼ de pulgada. Las paredes gruesas habitualmente
están hechas de materiales tales como paneles de
cemento, paneles de yeso, azulejos, etc. La válvula se
sujeta con correas (no incluidas) que amarran la toma
de agua a los postes de la armazón (2x4). La placa para
pared (H) se coloca de manera que esté a nivel con la
pared terminada. Esto permite que la válvula tenga una
posición adecuada para poner la pieza exterior.
bInstalación para pared gruesa: para paredes
de más de ¼ pulg 
más de ¼ pulg.
(6mm)
5 ½ pulg.
(140 mm)
Menos de ¼ pulg.
(6mm)
2 ¼ pulg. mín.
(57mm)
3 ½ pulg. máx..
(89mm)
¾ pulg.
a
b
H
H
(19mm)
6
