Glacier bay HDQFP3C0001SP Assembly instructions

INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
PULL-OUT KITCHEN FAUCET
SKU#
1006744001
1006743996
1006743998
1006744000
1006743993
OMSID#
318213099
318213104
318213103
318213100
318213107
Model#
HDQFP3C0001SP
HDQFP3C0001CP
HDQFP3C0001BL
HDQFP3C0001OB
HDQFP3C0001CZ

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation...........................2
Tools and Hardware Required.............2
Package Contents...............................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts.............................................9
Important Information
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of the warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
TOOLS AND HARDWARE REQUIRED
SILICONE
(2)
Adjustable
wrench
Safety
goggles Sealant

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)

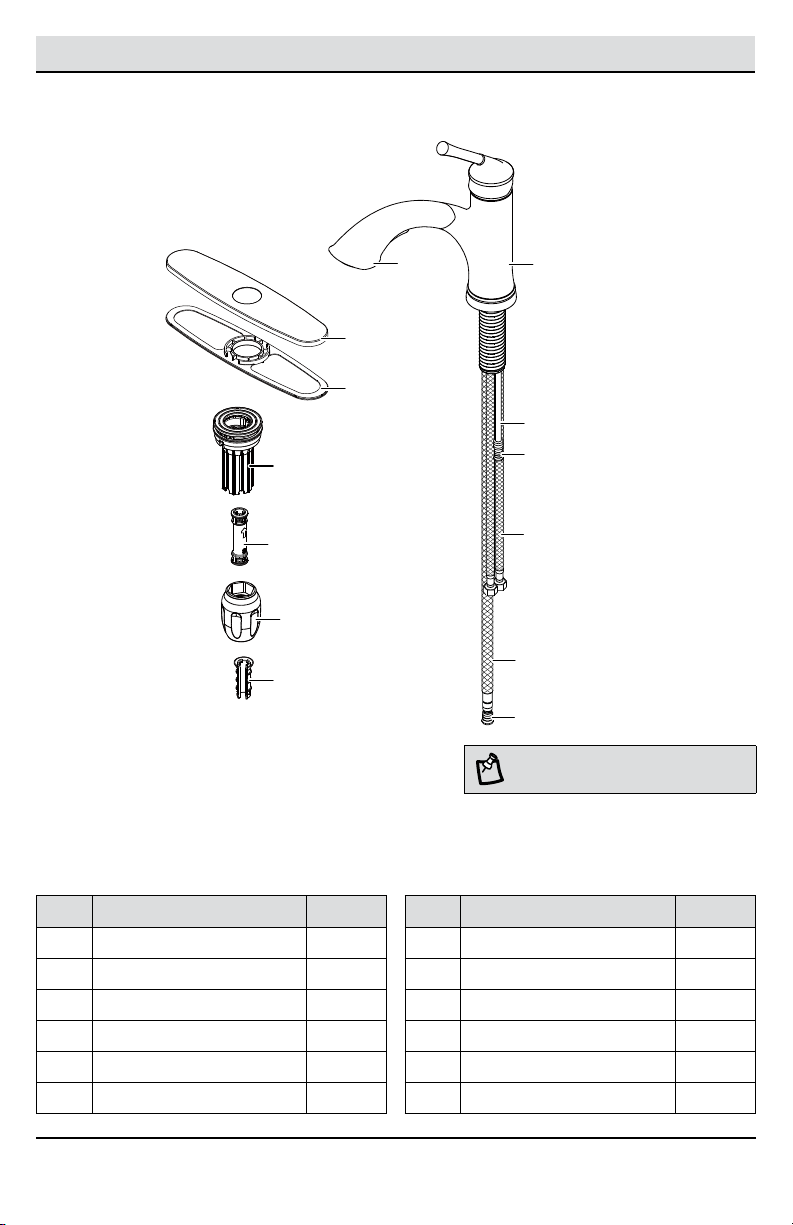

PACKAGE CONTENTS
A
B*
L*
I*
J*
L*
K*
C
D
E
F
G
H
NOTE: *Items come pre-assembled.
Part Description Quantity
A Faucet assembly 1
B* Pull-out spray 1
C Deck plate 1
D Putty plate 1
E FastMount™ 1
F Quick connector 1
Part Description Quantity
G Weight 1
H* Weight clip 1
I* Outlet hose 1
J* Water supply line 2
K* Pull-out spray hose 1
L* Cap 2

4
Installation
A
I
J
K
1
2
A
C
D
I
J
K
□Shut off the water supply. Remove the old faucet.
□Clean off the mounting surface.

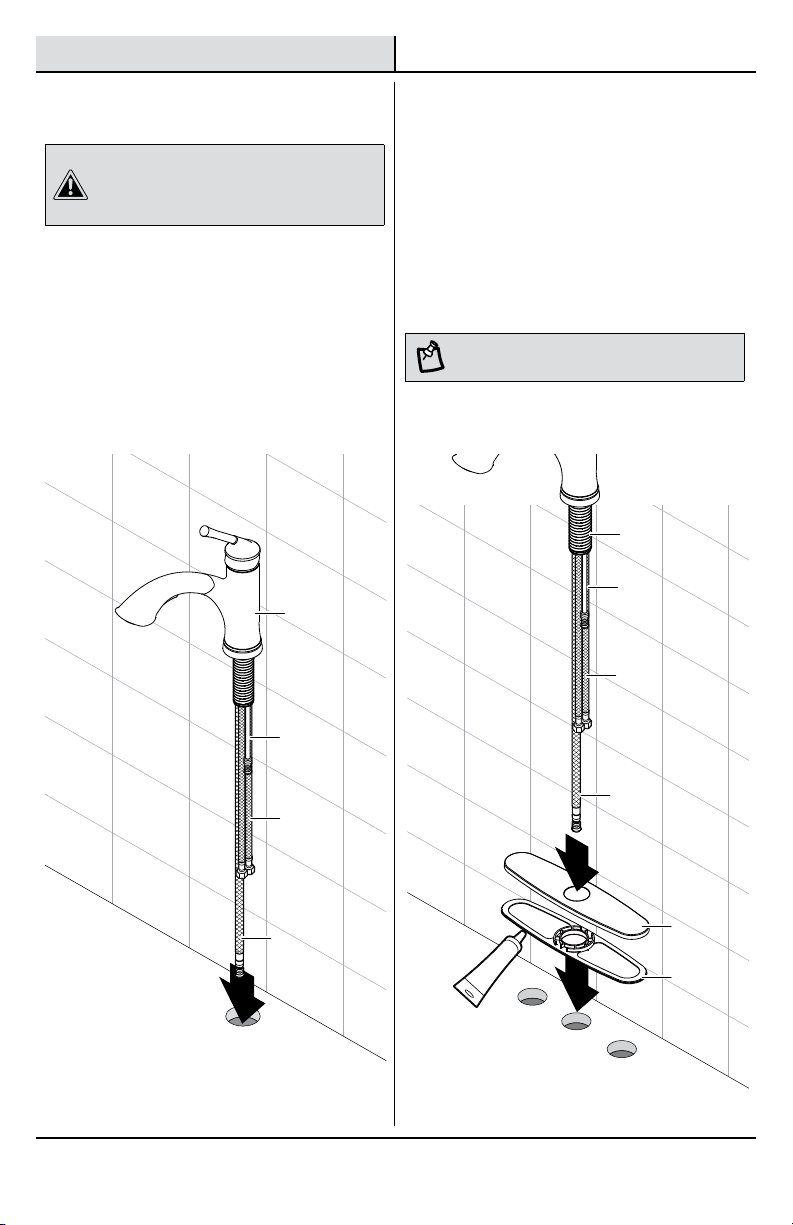

□WITHOUT DECK PLATE: Install faucet body (A)
through top of sink (not included).
□WITH DECK PLATE: Place a bead of clear silicone
sealant (not included) around the base of the
putty plate (D). Place putty plate (D) and deck
plate (C) on sink (not included). Insert faucet body
(A) through deck plate (C).
1 Installing the faucet assembly
NOTE: If the sink is uneven, use silicone under the
gasket (D).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
4
1
2
3
G
K
G
K
H
H
A
E
E
2
1
□From underneath the sink, secure the faucet
assembly (A) to the sink with the FastMount™
system (E).
□Push the FastMount™ system (E) up over the
threads until it stops against the bottom of the
sink, then turn to tighten.

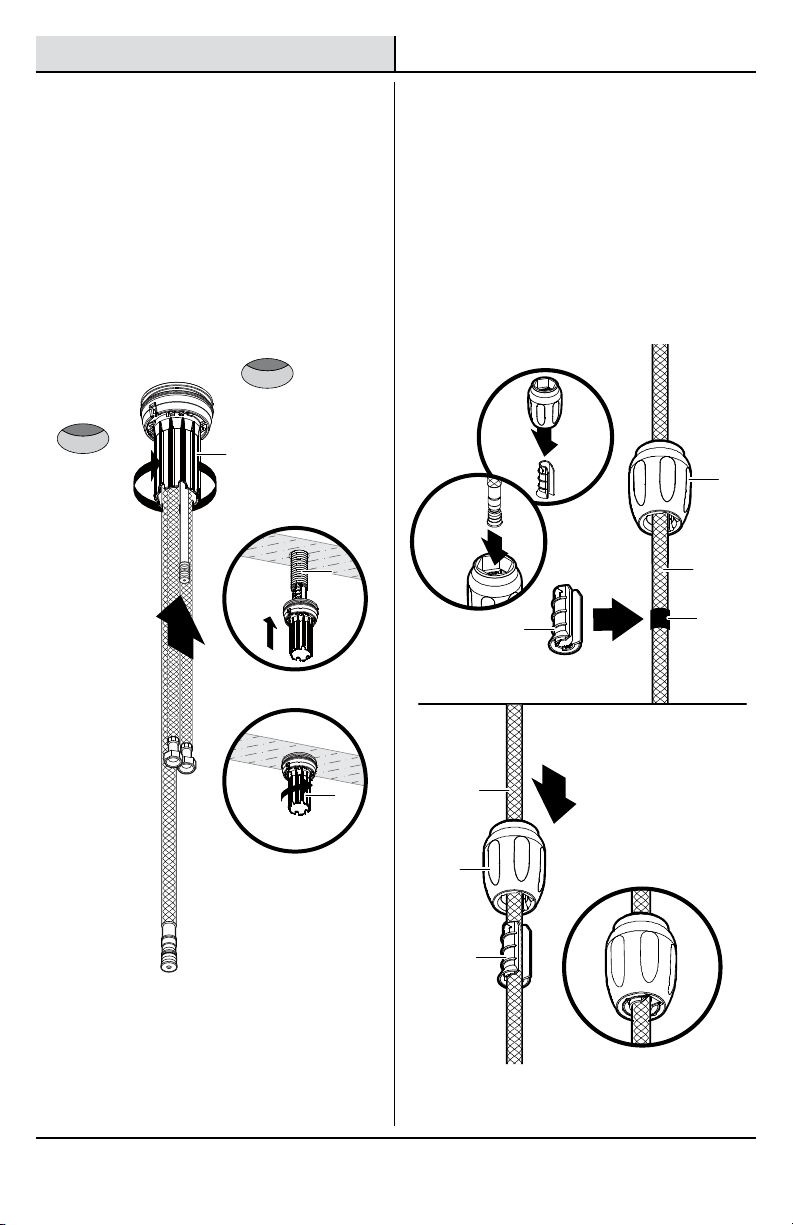

□Install the weight (G) through the pull out spray
hose (K).
□Insert the weight clip (H) at the weight sticker on
the pull out spray hose (K) and slide the weight
(G) down onto the clip (H).
2 Securing the faucet assembly 3 Installing the weight
Weight
sticker
Hexagon
face up
Push up
Sink
Sink
Screw

6
Installation (continued)
1
1
2
□Use two adjustable wrenches to connect and
tighten the supply lines to the supply valves.
□Connect the red supply line to the hot water
supply valve.
□Connect the blue supply line to the cold water
supply valve.
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
BLUE LINE
RED LINE
HOT
COLD
2
1
1
3
L
I
K
L
K
K
F
I
F
4 Attaching the quick connector 5 Connecting supply lines
□Remove the cap (L) from the the pull out spray
hose (K) and the outlet hose (I).
□Attach the quick connector (F) to the pull out
spray hose (K).
□Attach the quick connector (F) to the outlet hose
(I). Pull down the quick connector (F) to ensure it
is secure.

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Operation
1 2
3
K
B
B
A A
BA
3
2
1
□Detach the pull out spray (B) from the pull out
spray hose (K). Hold the pull out spray hose (K)
firm to prevent it from retracting into the faucet
body (A).
□Ensure the handle is in the closed position. Turn
the hot and cold water supplies on and check all
connections for leaks. If leaks are discovered,
check the connections to ensure they are tight
and properly secured.
□Lift the handle to allow the water to run for
approximately one minute. This flushes away any
debris that could damage the internal parts.
□Turn the water off and reattach the pull out spray
(B).
□If it is necessary to remove the quick
connector (F), push the quick connector
housing up, hold the housing together
and pull down.
2 Removing the quick connector
CAUTION: Use caution when removing the quick
connector hose to prevent injuring your hands.
1 Checking for leaks

8
Operation
Care and Cleaning
3-2
3-4
3-3
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
□Close (shut off) the water supply to the faucet.
□Use wrenches to loosen and remove supply hose.
□Rinse the supply hose end with screen filter in a cup of water to flush loose sediment.
□Stubborn sediment can be removed with a small brush.
□Inspect before re-installing onto the shut off valve.
□Use two adjustable wrenches to connect and tighten the supply lines to the supply valves.
□Connect the red supply line to the hot water supply valve.
□Connect the blue supply line to the cold water supply valve.
3 Checking for low or reduced water pressure
1
1
2
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
BLUE LINE
RED LINE
HOT
COLD
3-1

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Troubleshooting
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water flow.
□The aerator is dirty or mis-
fitted.
□The cartridge may be clogged.
□Remove the aerator and check for debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly installed.
There are leaks from
the hose underneath the
deck.
□The connection between the
pull out spray and pull out spray
hose may be loose.
□Tighten the connection between the pull
out spray and pull out spray hose.
The hose does not retract. □The weight is not installed in
the correct position.
□The pull out spray hose is
obstructed.
□Reinstall or readjust the weight.
□Check under the sink to ensure the pull
out spray hose is not obstructed.
There is no hot or cold
water.
□The hot or cold water supply
lines may be kinked or twisted.
□Ensure hot and cold water supply lines
are not kinked or twisted. Reinstall the
supply line if necessary.
The water pressure is
irregular or low.
□The screen filter located at the
end of the supply hose may be
clogged with debris.
□Turn off the water supply valves
□Use wrenches to disconnect the supply
lines from supply valves
□Clean screen filter by placing hose end
in a cup of water for a few seconds to
remove any possible debris. Stubborn
debris can be removed from screen with
a small cleaning or toothbrush
Note: Do not attempt to disassemble
or remove the screen filter from supply
hose
□Connect the red supply line to the hot
water supply valve
□Connect the blue supply line to the cold
water supply valve
□Use wrenches to reconnect and tighten
the supply lines to the supply valves
□Turn on the water supply valves
□Turn on the faucet to verify if water flow
has improved. Repeat steps above if
necessary.

10

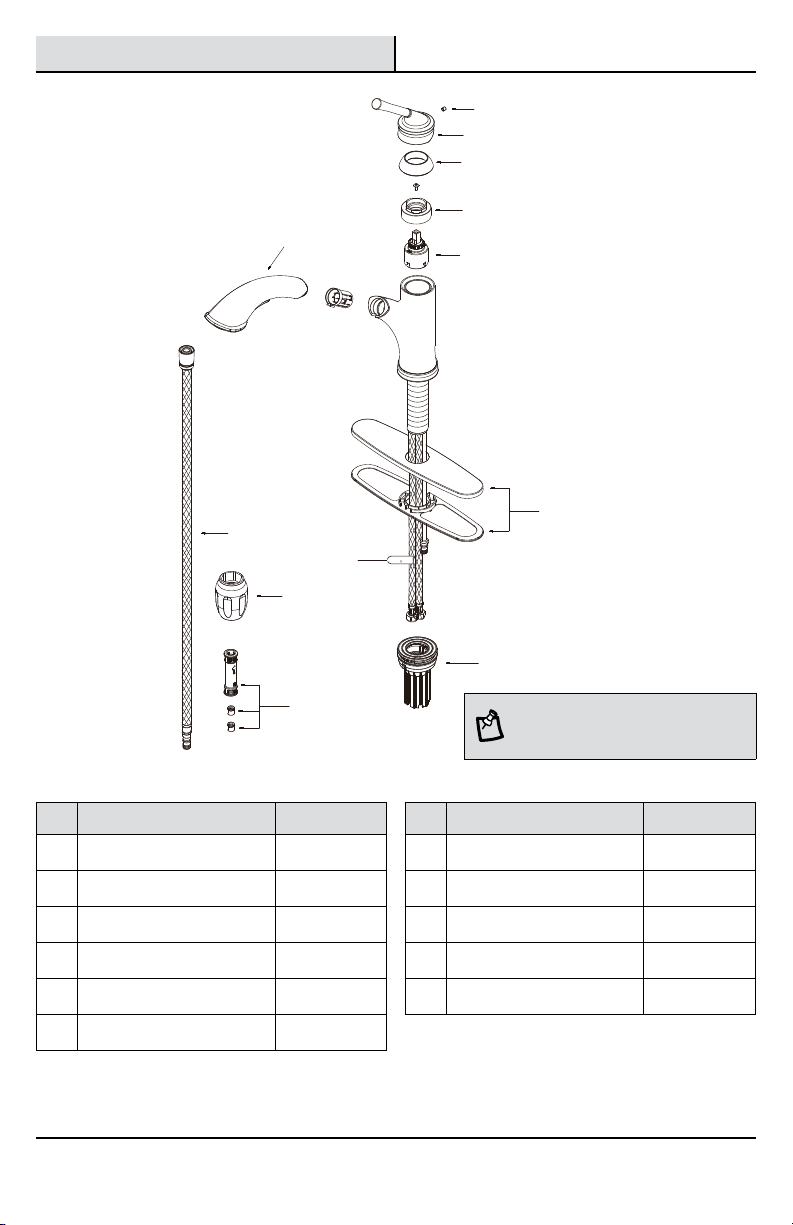

Service Parts
* Specify finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
DATECODE:
DONOT REMOVE
1-888-328-2383
HOT
Part Description Part No.
1 Screw (M5 * 5mm L) A008003
2* Metal Handle A079087
3* Trim Ring A508020
4 Adjusting Ring A104365
5 Ceramic Disc Cartridge A507348N-31
6* Spray Head A568012N
Part Description Part No.
7* Deck Plate Assembly A667A48
8 FastMountTM A527128
9 Spray Hose A515103NCP-T
10 Weight A527113
11 Quick Connector A663123N
Product
ID tag can
be found
on the hot
supply line.
NOTE: Many replacement cartridges, aerators,
and drain assemblies can be purchased at
your local The Home Depot store or online at
HOMEDEPOT.COM.
