INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY

Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation...........................2
Tools and Hardware Required.............2
Package Contents...............................3
Installation................................................4
Operation...................................................6
Care and Cleaning ....................................7
Troubleshooting........................................7
Service Parts.............................................8
Important Information
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
□This product is engineered to meet the EPA WaterSense flow requirement. The flow rate is governed by the
aerator or flow controller. If replacement is ever required, be sure to replace it with a WaterSense compliant
aerator or flow controller to retain the water conserving flow rate of this product.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of the warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
Pre-Installation
PLANNING INSTALLATION
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
TOOLS AND HARDWARE REQUIRED
SILICONE
Adjustable
wrench
Safety
goggles Sealant
2

Pre-Installation (continued)
PACKAGE CONTENTS
Faucet Assembly Drain Assembly
H
G
J*
K*
L*
I*
F
B
A
C*
D*
E*
NOTE: *Items come pre-assembled.
Part Description Quantity
A Faucet 1
B Aerator 1
C* Rubber washer 1
D* Metal washer 1
E* Lock nut 1
F Supply line 2
Part Description Quantity
G Deck plate 1
H Putty plate 1
I* Main plunger 1
J* Rubber washer 1
K* Lock nut 1
L* Drain body 1
3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

Installation
2
6
1
2
3a
3b
1
2
1
□WITHOUT THE DECK PLATE: Install faucet body (A)
through top of sink (not included).
□Shut off the water supply. Remove the old faucet.
□Clean off the mounting surface.
□Remove the lock nut (E), metal washer (D) and
rubber washer (C).
□WITH THE DECK PLATE: Place a bead of clear
silicone sealant (not included) around the base of
the putty plate (H). Place the putty plate (H) and
the deck plate (G) on sink (not included). Insert
the faucet body through the deck plate (G).

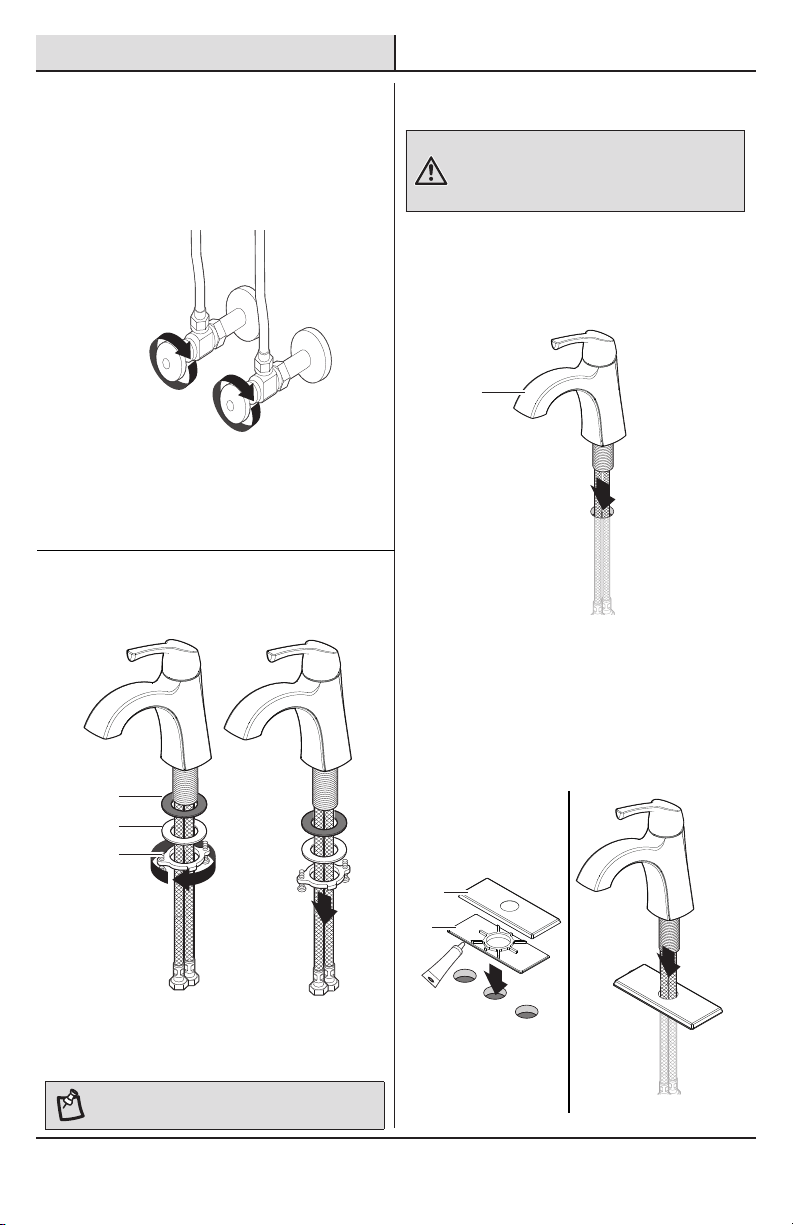

1 Assembly instructions 2 Installing the faucet assembly
NOTE: If the sink is uneven, use silicone under the Putty
plate (H).
WARNING: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
4
C
D
E
A
G
H

Installation (continued)
4
5
1
6
1
1
1
RED LINE
HOT
COLD
BLUE LINE
4
5-2
3
5-1
2
6
2

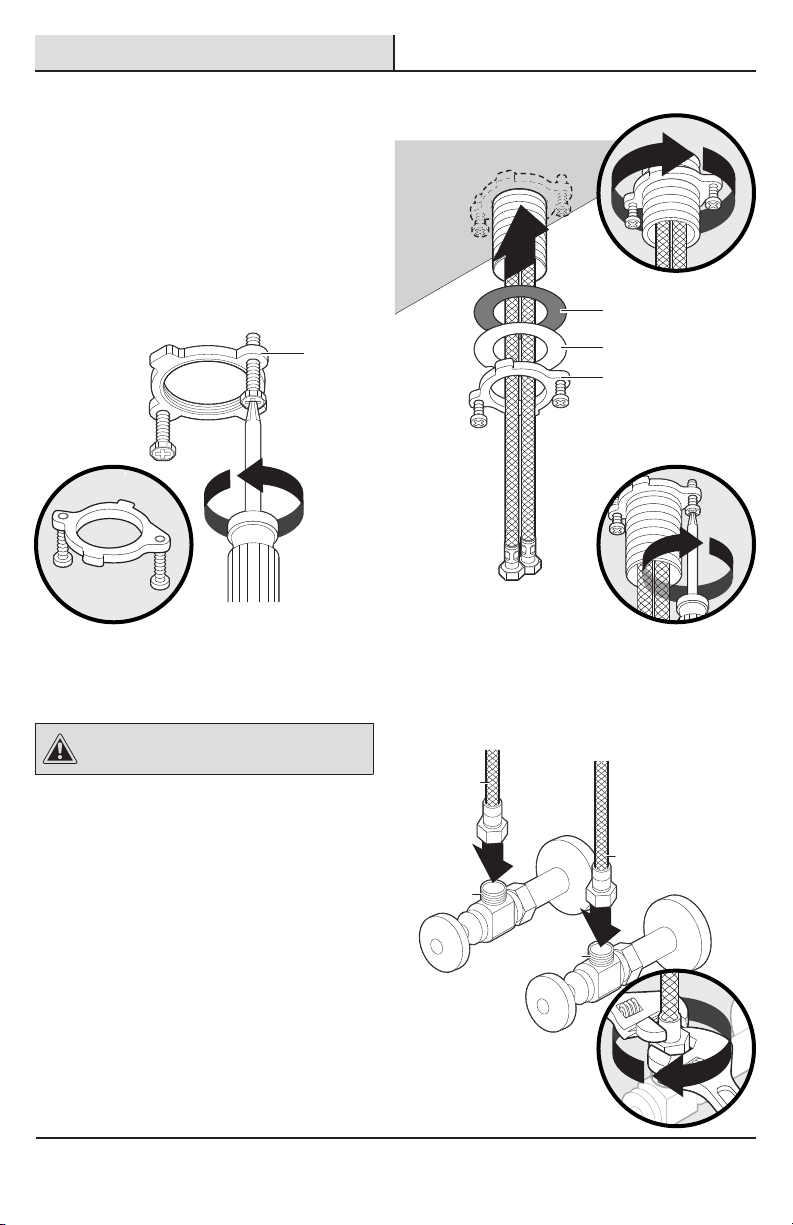

3 Securing the faucet
4 Making the water supply connections
□Use two adjustable wrenches to connect and
tighten the supply lines to the supply valves.
□Connect the red supply line to the hot water
supply valve.
□Connect the blue supply line to the cold water
supply valve.
□Unscrew screws on the lock nut (E) until they are
flush with the face of the nut.
□Slide rubber washer (C) and metal washer (D)
onto shank of faucet body (A). Secure faucet body
(A) to sink with lock nut (E) and preassembled
screws.
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
E
C
D
E

Installation (continued)
Operation
5
B
1
1
2

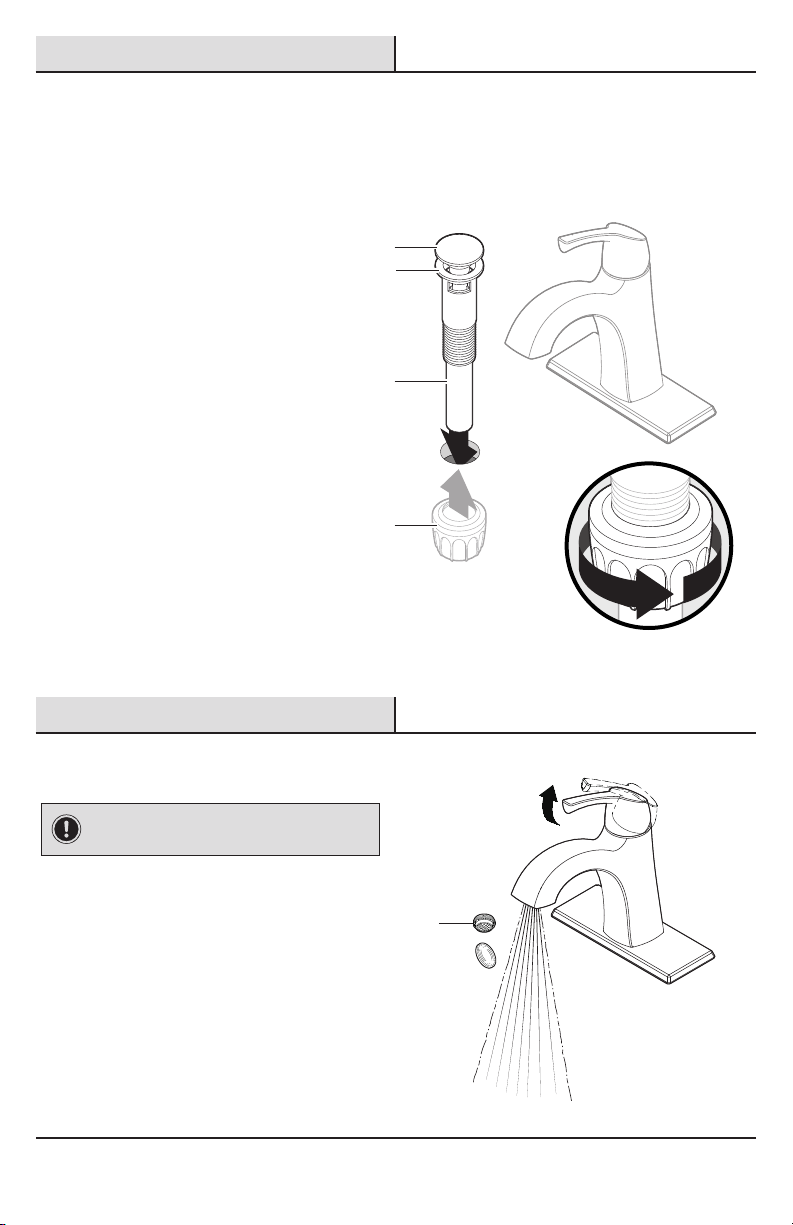

5 Installing the drain
□Install the main plunger (I) rubber washer (J) and
the drain assembly (L) above sink. From below
sink, install the rubber washer (J) and lock nut
(K).
3
1-popup
I
J
L
K
1 Flushing and checking for leaks
□Ensure the handle is in the off position. Turn on the
water supply and check for leaks. If you discover
any leaks, check your connections to ensure they
are installed properly.
□Use a coin to remove the aerator (B) from the
faucet (A). Turn on the hot and cold handles to
allow the water to run for at least one minute. This
flushes away any debris that could cause damage
to internal parts.
□Turn off the water and reinstall the aerator (B) and
housing (if applicable).
IMPORTANT: After installation is complete, remove the
aerator to flush the water lines. Do not lose the gasket in
the aerator.
6

Care and Cleaning
Troubleshooting
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Problem Possible Cause Solution
There are leaks from the
handle.
□The Adjusting Ring is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the Adjusting Ring.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water flow.
□The aerator is dirty or misfitted.
□The cartridge may be clogged.
□Remove the aerator and check for
debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly
installed.
The sink drain at the base of
the sink is leaking.
□The sink surface is rough or
irregular.
□Apply additional silicone sealant to
the beveled side of the drain flange.
□Retighten and test for leaks.
The water will not shut off
completely.
□The cartridge is dirty or broken.
□The cartridge is not positioned
correctly.
□Remove the handle to check the
cartridge.
□Tighten the Adjusting Ring.
□Clean or replace.
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

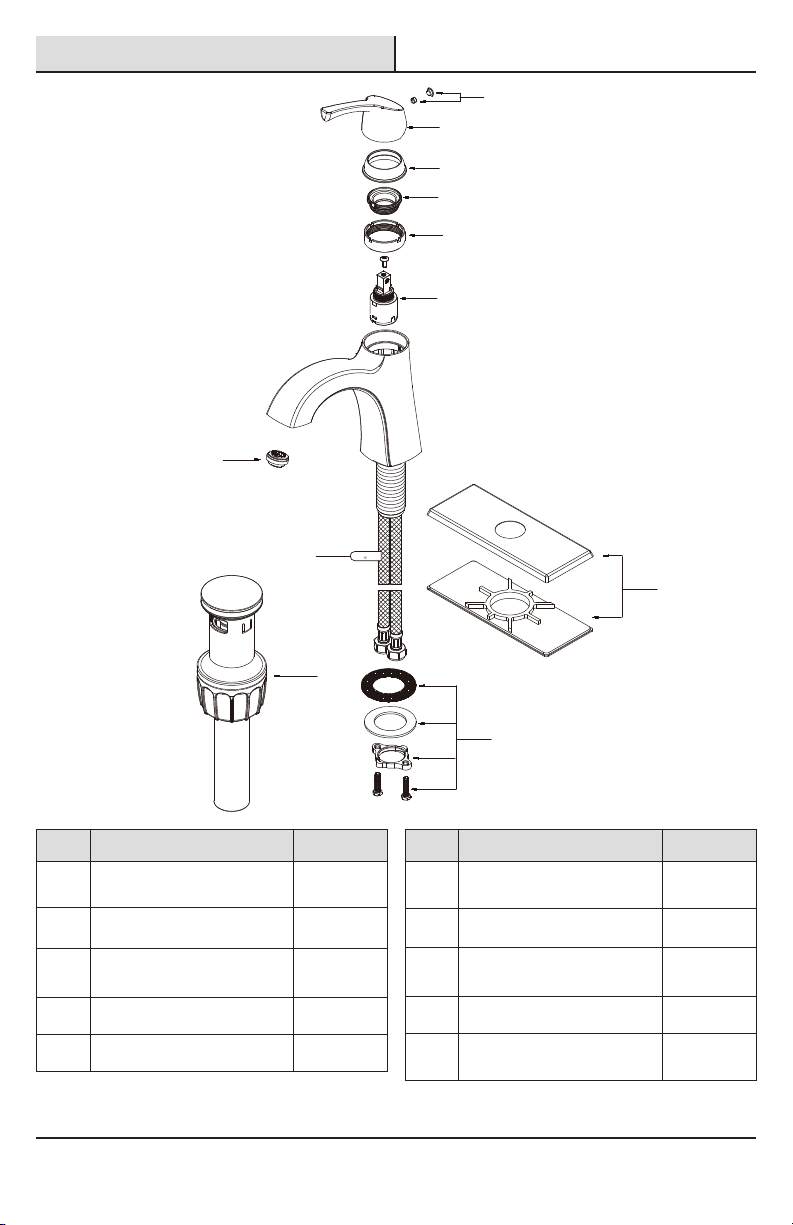

Service Parts
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
DATECODE:
DONOT REMOVE
1-888-328-2383
HOT
Faucet ID Tags can
be found on the hot
supply line.
Part Description Part No.
1 Index Button A66D558
2* Metal Handle A079300
3* Trim Ring A508044
4 Adjusting Ring A104399
5 Nut A082089BPA
Part Description Part No.
6 Ceramic Disc Cartridge A507906N
7 Aerator A66G520N
8* Deck Plate Assembly A607568-S
9 Mounting Hardware A663221
10* Push Down Drain A505218
* Specify finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
8

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
