GlassUp F4 User manual

GlassUp F4
USE and MAINTENANCE MANUAL
GlassUp
Via Alfeo Corassori, 72
41124 Modena (MO), Italy
www.glassup.net
Tel.: +39 059 7879243


GlassUp F4
Page 3
USE AND MAINTENANCE MANUAL
GENERAL CONTENTS
INFORMATIVE LETTER ....................................................................................................4
SYMBOLS USED...............................................................................................................4
WARRANTY.................................................................................................................5
INTRODUCTION TO OUR COMPANY.....................................................................................6
PRODUCT DESCRIPTION...................................................................................7
CONTENT AND OPTIONAL..................................................................................7
TECHNICAL FEATURES......................................................................................12
FIELD OF APPLICATION.....................................................................................13
GENERAL SAFETY RULES.................................................................................................14
USE.................................................................................................................15
MAINTENANCE...................................................................................................18
CLEANING.............................................................................................................18
TROUBLESHOOTING...............................................................................................19
DISPOSAL...............................................................................................19
Manual edited by:
Redimec
via Libertà 35
Settimo Milanese (Milano - Italy)
www.redimec.it
Tel./Fax: +39 02 33503341

GlassUp F4
Page 4
USE AND MAINTENANCE MANUAL
Informative letter
This instruction and maintenance manual is an integral part of GlassUp F4 eyewear and must
be easily available to the staff in charge of its installation and maintenance. The user must
know the content of this manual. The descriptions and the pictures it contains are not to be
considered as binding.
Although the main features of the equipment described in this manual are not subject to chan-
ge, GlassUp reserves the right to change any part, detail and accessory it deems necessary to
improve the glasses, or for manufacturing or commercial requirements, at any time and without
being obliged to update this manual immediately.
ALL RIGHTS ARE RESERVED ACCORDING TO THE
INTERNATIONAL COPYRIGHT CONVENTIONS,
the reproduction of any part of this manual, in any form, is forbidden
without the prior written authorization of GlassUp.
The content of this guide can be modied without prior notice. Great care
has been taken in collecting and checking the documentation contained
in this manual to make it as complete and comprehensible as possible.
Nothing contained in this manual can be considered as a warranty,
either expressed or implied - including, but not limiting
the suitability warranty for any special purpose.
Nothing contained in this manual can be interpreted as a modication or
conrmation of the terms of any purchase contract.
WARNING
In case of damages or uncorrect operating, please contact GlassUp Customer Care Technical
Service at the following address:
GlassUp Technical Service
Via Alfeo Corassori, 72
41124 Modena (MO), Italy
www.glassup.net
Tel.: +39 059 7879243
Symbols used
The operations which can be dangerous if they are not carried out correctly are
indicated with this symbol.

GlassUp F4
Page 5
USE AND MAINTENANCE MANUAL
GlassUp F4 glasses have a 12 month warranty from the date of the invoice for companies or
workers with VAT number, unless otherwise stated in writing.
The warranty covers all manufacturing and material defects. Replacements and repair operations
are covered only if carried out by our company and at our servicing shop. In case of return for
repair under warranty, the customer must always send the glasses to GlassUp.
The material to be repaired will have to be sent CARRIAGE FREE.
Once the device has been repaired, it will be sent to the customer CARRIAGE FORWARD.
The warranty does not include:
+failure caused by wrong use or assembly,
+failure caused by external agents,
+failure caused by lack of maintenance or carelessness
WARRANTY FORFEITURE:
+in case of arrearage or other breaches of contract,
+whenever the seals are broken,
+whenever changes or repairs are carried out on our glasses without our prior authorization,
+whenever the damage is caused by improper use, bad treatment, bumps, falls and other
causes not due to normal working conditions,
+whenever the device seems tampered with, dismantled or previously repaired by unautho-
rized staff.
The repairs under manufacturer’s warranty do not interrupt it.
All disputes will be settled in the court of justice of Modena (Italy).
We thank you in advance for the attention you will pay to this manual and we invite you to
inform us of any improvement you will think necessary to make it more complete.
Warranty

GlassUp F4
Page 6
USE AND MAINTENANCE MANUAL
The company is marked by the continuous search of brand new ideas to be developed. This
business is centred on new innovative ideas, curiosity and research are the main characteristics
of every project developed by our team.
GlassUp is also creativity and passion for details. These elements are perfectly integrated in
order to work for innovation in the eyewear sector.
Operators and employees in logistics, quality check and safety departments can have access to
advanced technologies optimizing timing and performances for industrial machine maintenance.
GlassUp services and technologies allow companies enhancing productivity, reducing maintenance
timing and costs, optimizing training results and increasing safety standards at work.
(The management)
Introduction to our company

GlassUp F4
Page 7
USE AND MAINTENANCE MANUAL
Product description
GlassUp F4 glasses are full color monocular, with a 22° FOV and are provided with the following
systems:
• LED
• onboard videocamera
• thermographic camera
• lighting system
• safety lenses
The safety lenses guarantee more security and protection.
Content and Optional
The glasses are supplied with a USB socket type C and a 3.5 headphone jack (placed on the
lower right part of the glasses).
The glasses packaging contains also a battery charger, a charging cable, headphones and a
soft cloth to clean the lenses.
Furthermore, GlassUp offers the following Optional:
- Neoprene foam
- Headset with headband
- Lenses of different colours (transparent, grey, dark)
For further information about the available optional, please contact GlassUp team and the dealer.

GlassUp F4
Page 8
USE AND MAINTENANCE MANUAL

GlassUp F4
Page 9
USE AND MAINTENANCE MANUAL

GlassUp F4
Page 10
USE AND MAINTENANCE MANUAL

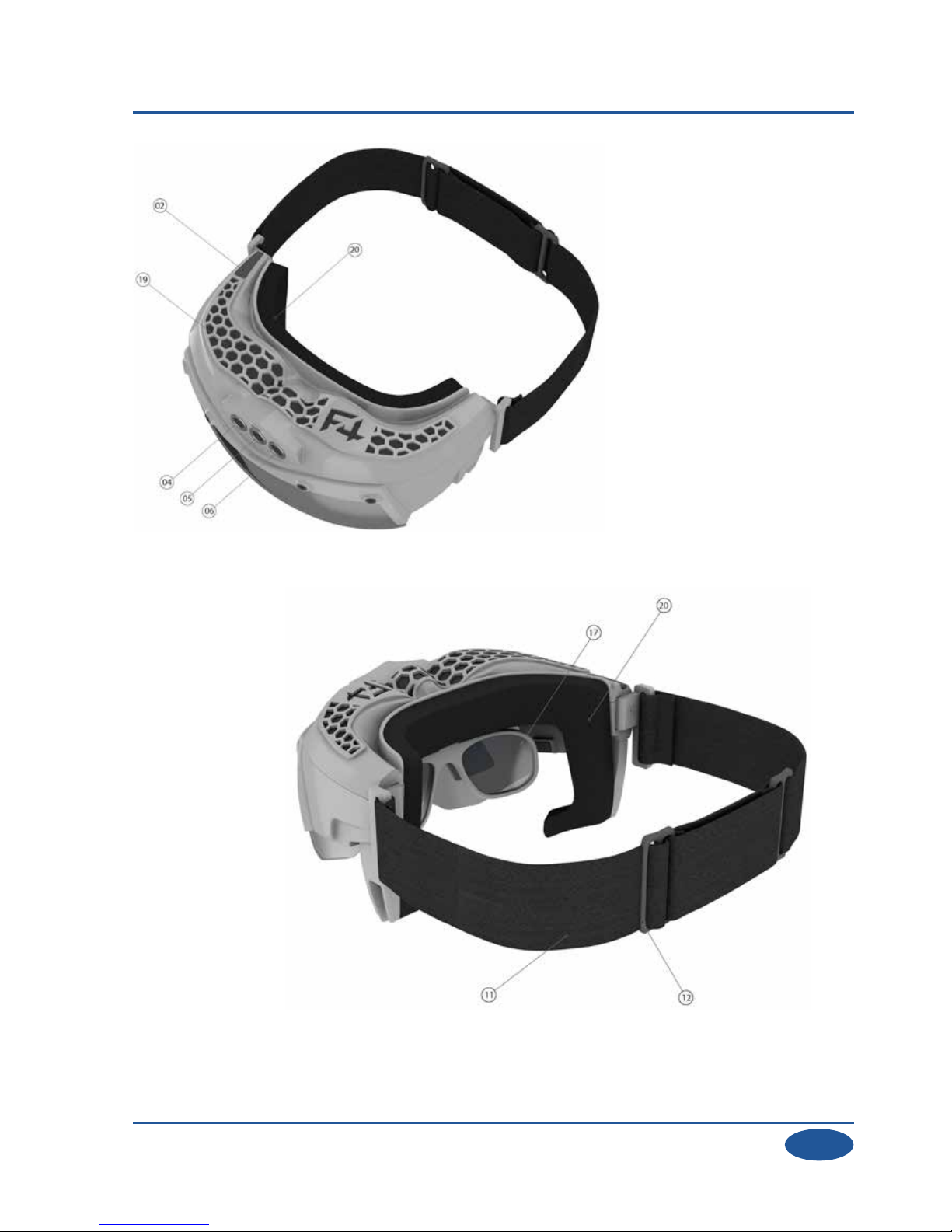

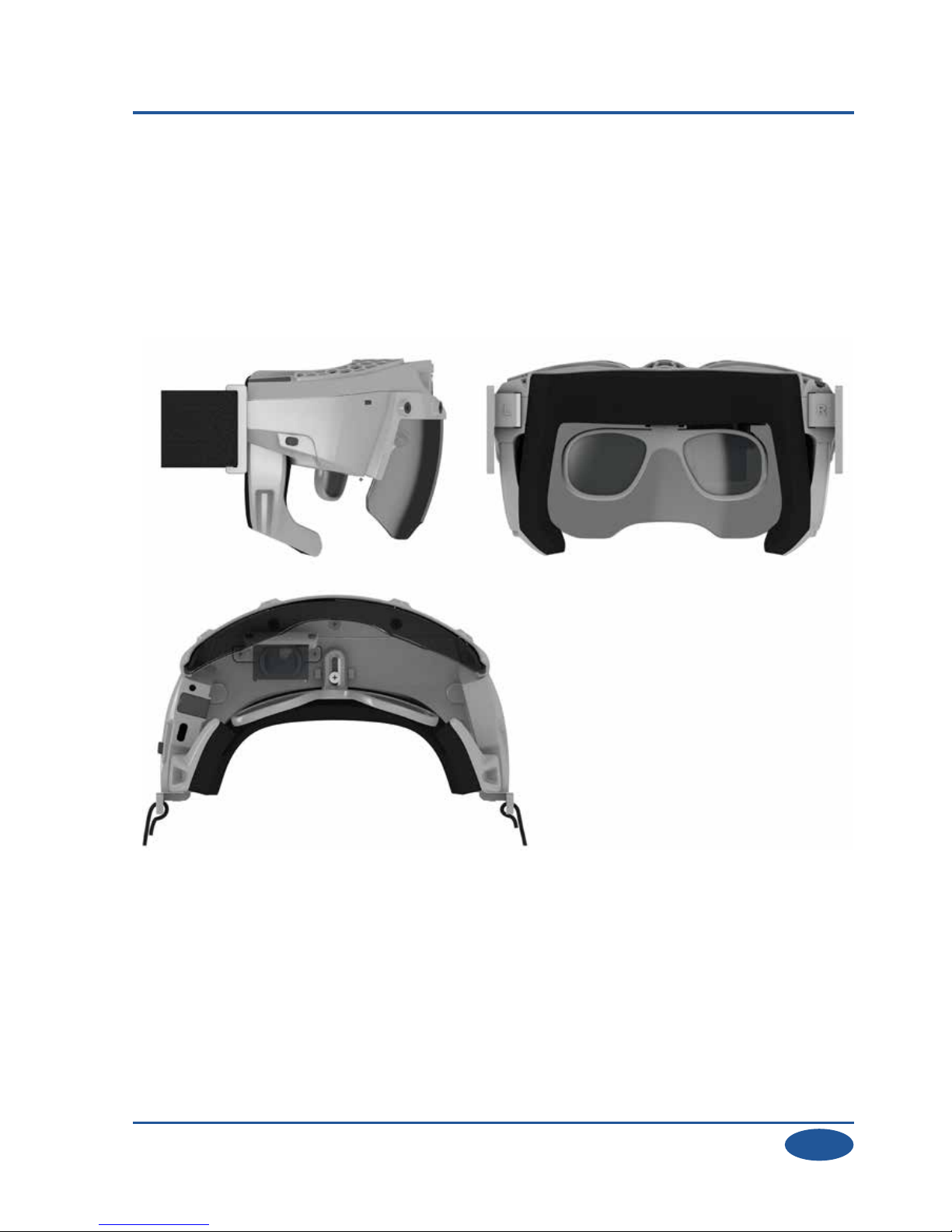

1) Cheekbone protection
2) SD Card input
3) Front protection lens
4) Videocamera
5) Lighting LED
6) Thermographic camera (if any)
7) Lux sensor
8) LED indicating active videocamera
9) Push button
10) Elastic band clip
11) Elastic band
12) Band size adjustment
13) Frame supporting the front protection lens
14) USB input

GlassUp F4
Page 11
USE AND MAINTENANCE MANUAL
15) Audio Jack 3.5 input
16) Status LED
17) Clipon
18) Combiner
19) Heat sink
20) Foam

GlassUp F4
Page 12
USE AND MAINTENANCE MANUAL
GlassUp F4 glasses guarantee considerable precision. Optimize the vision, speed up processes and
increase safety standards are the main goals reached by GlassUp with F4 glasses. GlassUp F4 is the
rst model of augmented reality eyewear for the industrial eld.
F4 glasses were completely designed and manufactured in Italiy, combining high technology and
design, with a special attention to safety and comfort.
Technical features
GlassUp F4 TECHNICAL FEATURES
OPTICAL
Display Right eye
LCD Display Driving Method Color lter Active Matrix LCD
LCD Display Size 0,35"
Aspect Ratio 04:03
LCD Display Pixel Number 640x480 (VGA)
Color Full Color
Field of View 22°
Screen Size (Projected Distance) 70" a 5 m
Interpupillar distance 55 mm - 71 mm range
Lenses Light Brown / Gray / Transparent
CONTROLS
Joypad 9 push buttons
Controls Power on/off, Factory Reset
SOFTWARE
OS on Board Linux
SDK Android, iOS, Windows, Unity
ELECTRONICS
Processor Cortex A9
Videocamera Full Color, 5 Mega Pixel, 15 FPS
I2C Plug in 32x32 thermographic camera
Sensors 9 axis accelerometer+gyroscope, bush, temperature, lux sensors
SD Card Memory 8GB
Connectivity WiFi, Bluetooth®
Battery Type Li-Polymer 5000mAh
Battery Duration 8h
Power Supply AC Adapter (Charger) 100-240 V AC, 50/60 Hz Input; DC5V 0,5 A min Output (included)
Cable USB 2.0 to USB type C, 1m (included)
GENERAL
Operating Temperature 5-35°
DIMENSIONS
Glasses (W×L×H) 180x100x100 mm
External Box (WxLxH) 130x85x30 mm
LANGUAGES
OSD English
Apps Default Application language
Manual Italian, English, Spanish, Chinese
ACCESSORIES
Head Support Elastic Band
Packaging Headphones

GlassUp F4
Page 13
USE AND MAINTENANCE MANUAL
Field of application
After about two years of studies
in the research and development
eld, F4 glasses can nowadays co-
ver a wide range of functions, like
indoor navigation for logistics aims,
e-learning/on the job training, dan-
ger detection thanks to an onboard
infrared videocamera.
Moreover, since the eyewear is sup-
plied with its own OS (Linux based),
the image recognition skills – even-
tually applicable to quality check or
safety systems – are almost innite.
The teleservice app awakes a
particular interest. By means of the
onboard videocamera and through
a proper desktop application deve-
loped by GlassUp, remote operators
can visualize on videostreaming
worker's point of view while on the
job. This allows the operator to cor-
rectly give instructions to the worker
regarding the maintenance.
This type of use implies a reduction
of costs for the maintenance of
industrial machines, that might
notoriously have the highest impact
on business expenses.

GlassUp F4
Page 14
USE AND MAINTENANCE MANUAL
This section describes the minimum safety rules that must be followed by the user in order to
use the glasses.
Use the product at the prescribed supply voltage.
Use the provided USB cable and AC adapter. The use of a USB cable or an AC adapter different
from the ones provided may cause overheating, explosion, malfunction or leaks of liquids.
When using the plug follow the indications below, in order to avoid re or electric shock.
• Do not insert the AC adapter in a socket where other devices are already connected
• Do not insert the plug in a dusty socket
• Do not hold the plug with bare hands
Do not use the power cable (USB cable provided) if damaged, as it may result in a risk of re
or electric shock.
• Do not modify the power cable
• Do not place heavy objects on the power cable
• Do not bend, twist or pull the power cable with excessive force
• Keep the power cable away from overheated electric devices
Disconnect the product when it is not used.
Do not leave the glasses in a spot exposed to direct sunlight for a long time. Otherwise the sunlight
may cause re or explosions.
Do not leave the glasses with the lenses against any supporting surface or worktop, to avoid
accidental damages.
Do not place the glasses next to any heat source.
Do not disassemble the product.
Where any of the following conditions occur, turn the product off immediately, disconnect the
power cable and contact GlassUp Customer Care Technical Service.
• In case of any abnormality including smoke, strange smells or noises
• In case water or external objects are inside the product
• In case the housing is damaged
DO NOT try to repare the product by yourself.
Do not use the glasses for a purpose other than the ones specied in the use and maintenance
manual.
PRECAUTIONS TO USE THE WIRELESS FUNCTION
• Do not use the product in areas where the electromagnetic waves are forbidden (for example
on an airplane, at the hospital).
• Do not use Bluetooth or LAN wireless function near automatic control devices such as auto-
matic doors or re alarms.
• The electromagnetic waves may cause electromagnetic interferences with medical devices or
their malfunction.
General safety rules
WARNING

GlassUp F4
Page 15
USE AND MAINTENANCE MANUAL
Before using GlassUp F4 glasses, make sure that the battery is fully charged.
BATTERY CHARGING and Wi-Fi CONNECTION
The battery is located in an external box, that must be connected to a proper socket by means
of its specic power cable (see picture below, point 3).
It is also possible to connect the glasses only to the computer or to other electronic devices
(see picture below, points 1 and 2); the glasses will turn on, but you can not get connected to any
network (the Wi-Fi connection is in the external box).
Expected time to recharge the battery: about 4 hours
Guaranteed autonomy in normal use conditions: 8 hours
The external box can be connected to the glasses and to the computer at the same time, but
in this case the computer is used only to recharge the battery.
The LEDs onboard indicate the phases of viewer lighting.
- during the rst lighting moments: blinking red;
- during the main phase of boot: blinking yellow;
- when the glasses are ready: blinking blue
A red LED turns on when the videocamera is on streaming, for privacy reasons.
Use

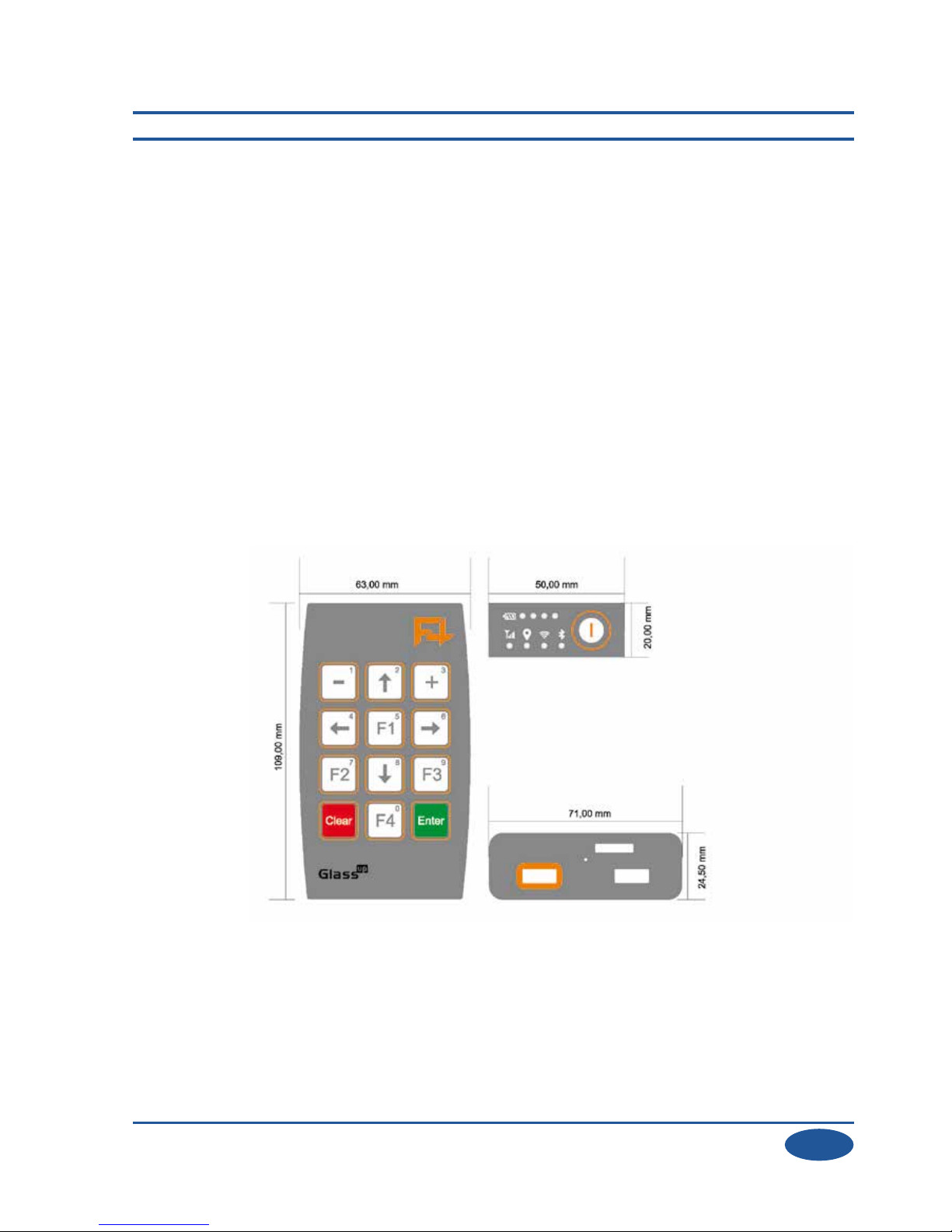

Some push buttons are placed on the external box to conrm, delate, set and adjust different
parameters. F1, F2, F3 and F4 buttons can be set through the software.
A button with the following functions is placed on the right side of the viewer:
- if it is pressed once, it has the same function of "enter" button on the keypad, and can be
used for example to get an external call or to give OK to a message
- if it is kept pressed from 10 to 15 seconds (and then released), it resets the glasses Wi-Fi
connection back to factory defaults
- it can be set in the same way of keypad buttons, in addition to the reset function

GlassUp F4
Page 16
USE AND MAINTENANCE MANUAL

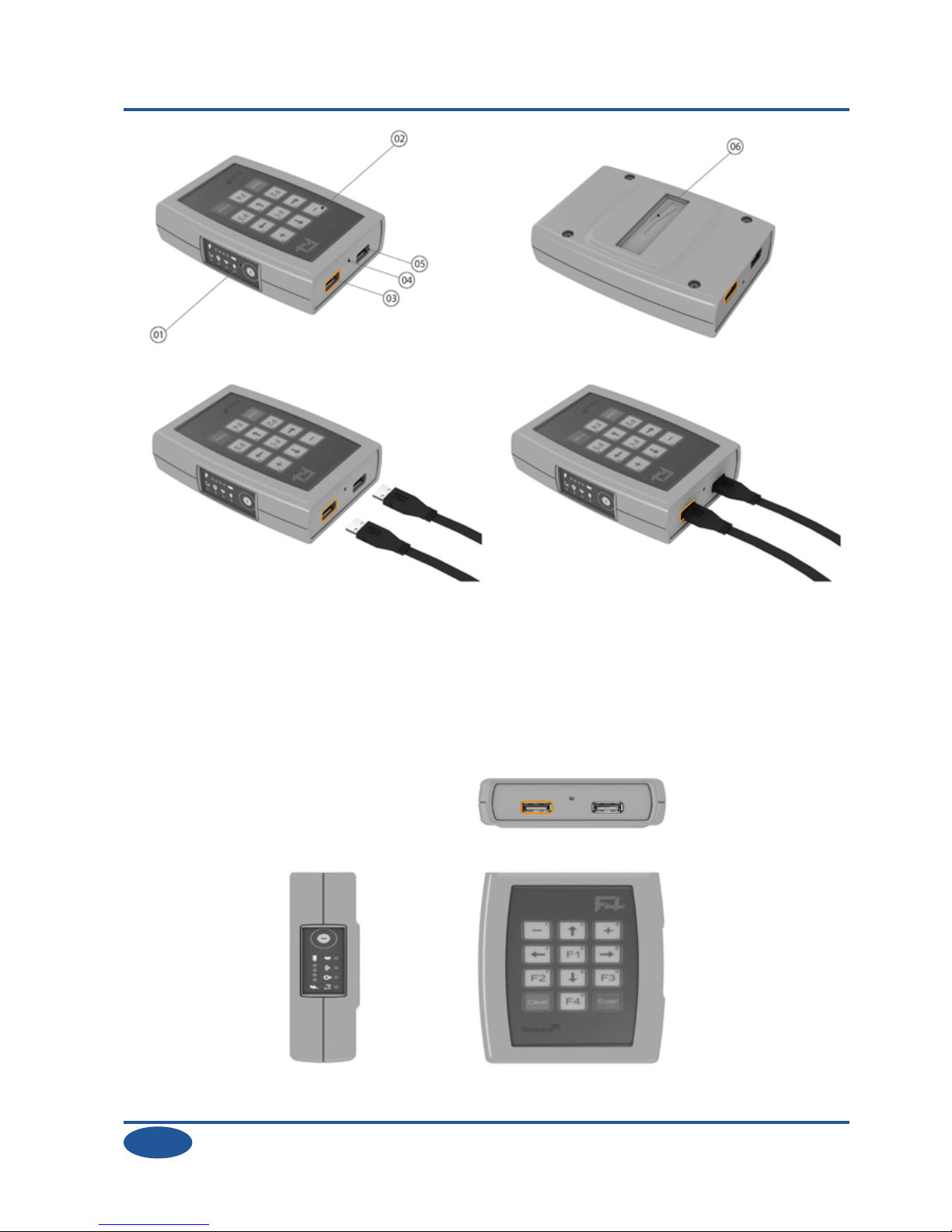

1) Power push button, battery and connectivity LED
2) Keypad
3) Glasses power USB input
4) Reset
5) Battery recharge USB input
6) Belt clip

GlassUp F4
Page 17
USE AND MAINTENANCE MANUAL

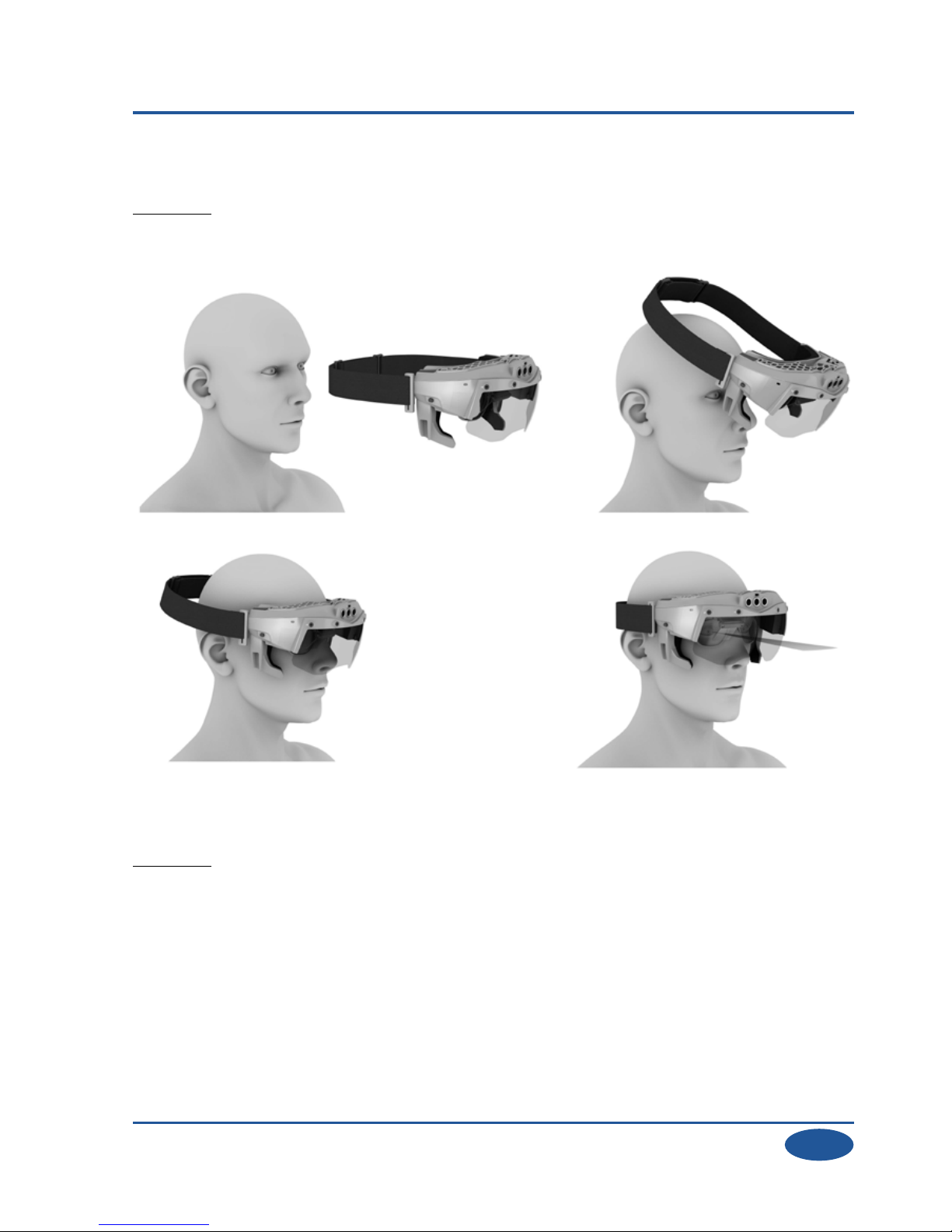

HOW TO WEAR THE GLASSES
The glasses are provided with an adjustable elastic belt.
The inclination of the mask can be adjusted by means of the proper cheekbone protections.
WARNING: Do not use excessive force to enlarge the belt and adjust it correctly.
The external box can be hanged to the belt by means of the proper clip.
FIELD OF VIEW
The augmented reality eld of view has a xed width of 22°.
WARNING: Periodically stop viewing the images through the glasses. Using them for long pe-
riods may cause eye fatigue. In case the eye fatigue continues even after the break, stop the
use of the glasses immediately.

GlassUp F4
Page 18
USE AND MAINTENANCE MANUAL
The part in foam (or neoprene) is supplied with velcro, that can be removed and washed in the
washing machine.
Maintenance
Cleaning
In case you see dust on the image or if the image is blurry, check that there is no dust or any im-
print on the lenses.
In case the lenses are dirty or dusty, clean them carefully by means of neutral detergents
and dry with a soft cloth.
Do not use aggressive agents and/or solvents, such as alcohol or benzene, on the product.
Do not use a wet cloth or solvents to clean the product.
Eventual gaps inside the product may cause malfunctions, explosions or electric schocks.
WARNING
WARNING
Do not use the product in unstable places (for example stairs) and in crowded or dark places.
This may cause accidents or injuries.
While viewing the images displayed by the glasses, pay attention to what surrounds you. Acci-
dents may happen caused by dropping or shocks.
Do not handle the product with excessive force. If the glasses should break due to a strong
impact, stop the use of the product immediately. Using the glasses after an impact may cause
injuries due to broken glass.
Stop the use of the product if the skin gets irritated and consult a dermatologist. The glasses
cover or material may cause allergies.
While viewing the images, do not watch the sun or very bright sources directly. This may cause
view injuries, even though the eyes are protected by the dark lenses of the glasses.
Do not use the product in case of view problems. This may worsen visual disturbances such as
strabismus, amblyopia or anisometropia.

GlassUp F4
Page 19
USE AND MAINTENANCE MANUAL
In case of malfunctions, check what follows.
The device does not turn on
• Check if the device is charged
• If the device does not turn on due to discharged battery, the red LED remains turned on while
the power push button is kept pressed.
• If the battery is completely discharged, the LED does not turn on immediately after starting
the charging phase. Charge for at least 30 minutes.
The device does not visualize the videos or does not allow listening to audio
• Check if the video format is supported
• If the images visualized on the display are without audio, the device could have been set on
silent mode
The device does not connect to the network
• Check if the device is connected to the Wi-Fi network
Troubleshooting
Disposal
Dispose the product in accordance with local regulations.

Table of contents
