glattCAD HEINKEL HE-162 SALAMANDER User manual

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
• RC Model Aircraft - 25% Scale
• Wingspan 180 cm
• Length 227 cm
• Take Off Weight 12 .. 18 kg
• CAD Designed - CNC Milled
• Wood Construction
• Supplemented with Composite Parts
• Jet or EDF Drive
Heinkel He-162 Salamander
Model Aircraft
glattCAD
design.
precision.
perfection.
Christoph Glatt
Bauernstr. 77
86462 Langweid
Germany
Web: www.glattCAD.de
Email: Info@glattCAD.de
MANUAL
Part 1: Fuselage

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
Have Fun!
Kind regards,
Christoph Glatt.
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
info@glattCAD.de
RC Model Aircraft
Span. 180 cm • Length 227 cm
Take Off Weight 12 .. 18 kg
He-162 Salamander 25%
Part 1: Fuselage
Questions?
Part 2: Empennage
Part 3: Wings

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
Most images depicted in this manual will be self-explanatory.
You will find hints and tips in form of additional text where necessary.
Please browse the manual first to get an overall impression. If you are not sure what
step to do next skim the pages ahead and try to find the idea behind the design
that is not completely compehensive to you in the moment.
Cut out the pieces and parts from the milled boards using a box knife or a similar
sharp tool. Turn the board on its back so you can better see the small tabs that
need to be cut. If you break parts by accident this is not a problem. Wood is patient.
Modelers are used to glue things together (again).
Basically you should always test-fit the parts first before glueing. You can take PVA,
CA or any type of glue that is usually taken in wood model making. Use resin for the
typical highly stressed bonds and feel free to add some carbon stringers, wooden
reinforcements, ... where you find it useful (but: keep additional weight in mind).
The kit is available in two versions: " " and " ": You will find markings left and JET EDF
right to the descriptions of this manual.
Have fun!
• JET • JET • JET • JET • JET •
• EDF • EDF • EDF • EDF • EDF •
Introduction

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
1Jig (Auxiliary Build Board)
Let´s prepare the fuse´s 'jig' at first.
Several auxiliary boards are part of 'He162.SetA' ensuring perfect builds
of fuselage, wings, tail plane and all rudders.
For your orientation:
The left side (illustration above) points to the fuselage´s nose,the right to
the rear.
The whole fuselage will be erected onto this jig. The frames´(formers,
bulkheads) legs only need to be placed into the tiny nuts milled in the
jig. Do not glue them in.

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
2Frames (Bulkheads),
Cabin\Canopy Secure System
Caution: There are asymmetric frames, too.
A small 'R' mille in the frame´s leg means that this is the right-hand side
of the frame.

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD

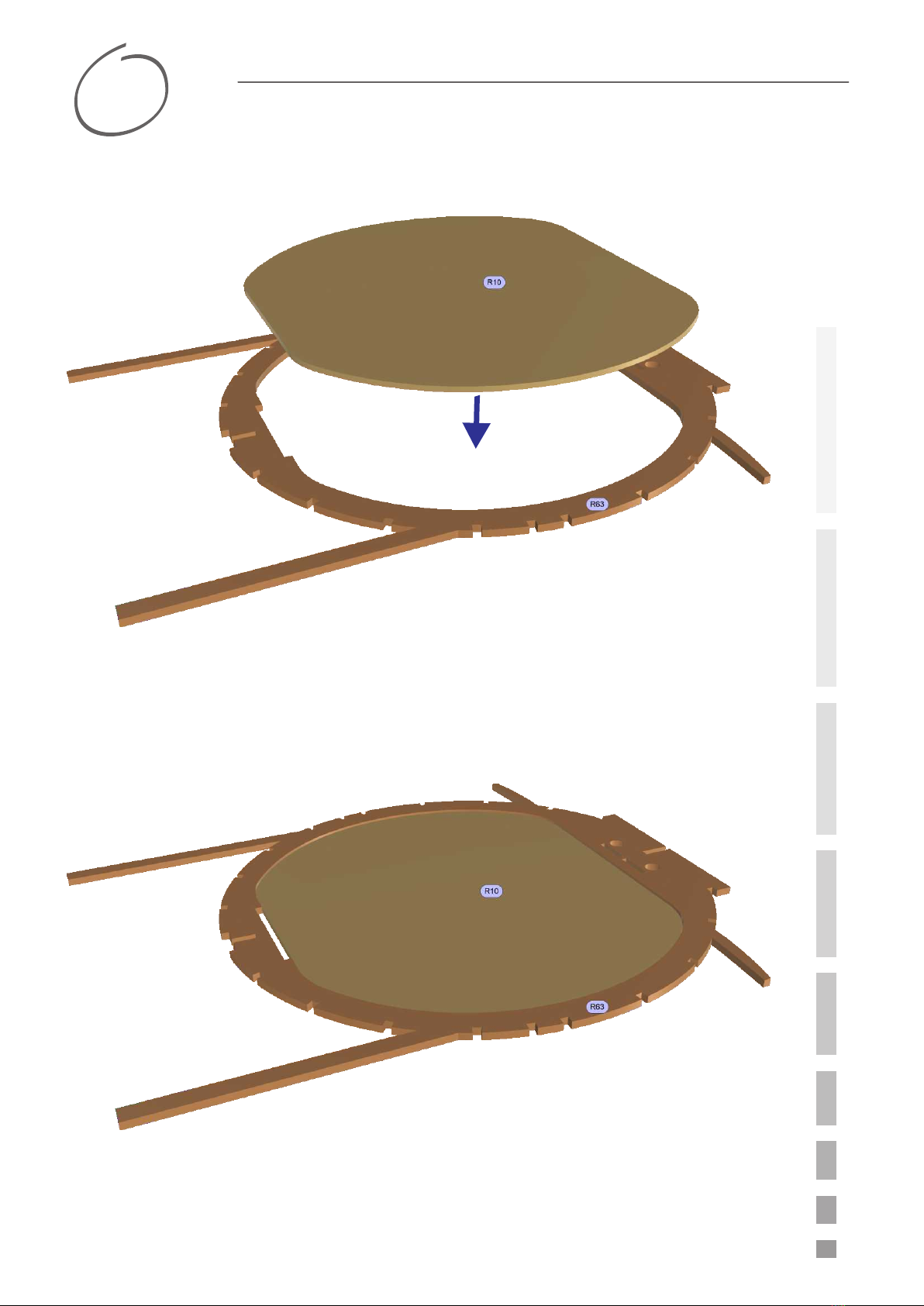

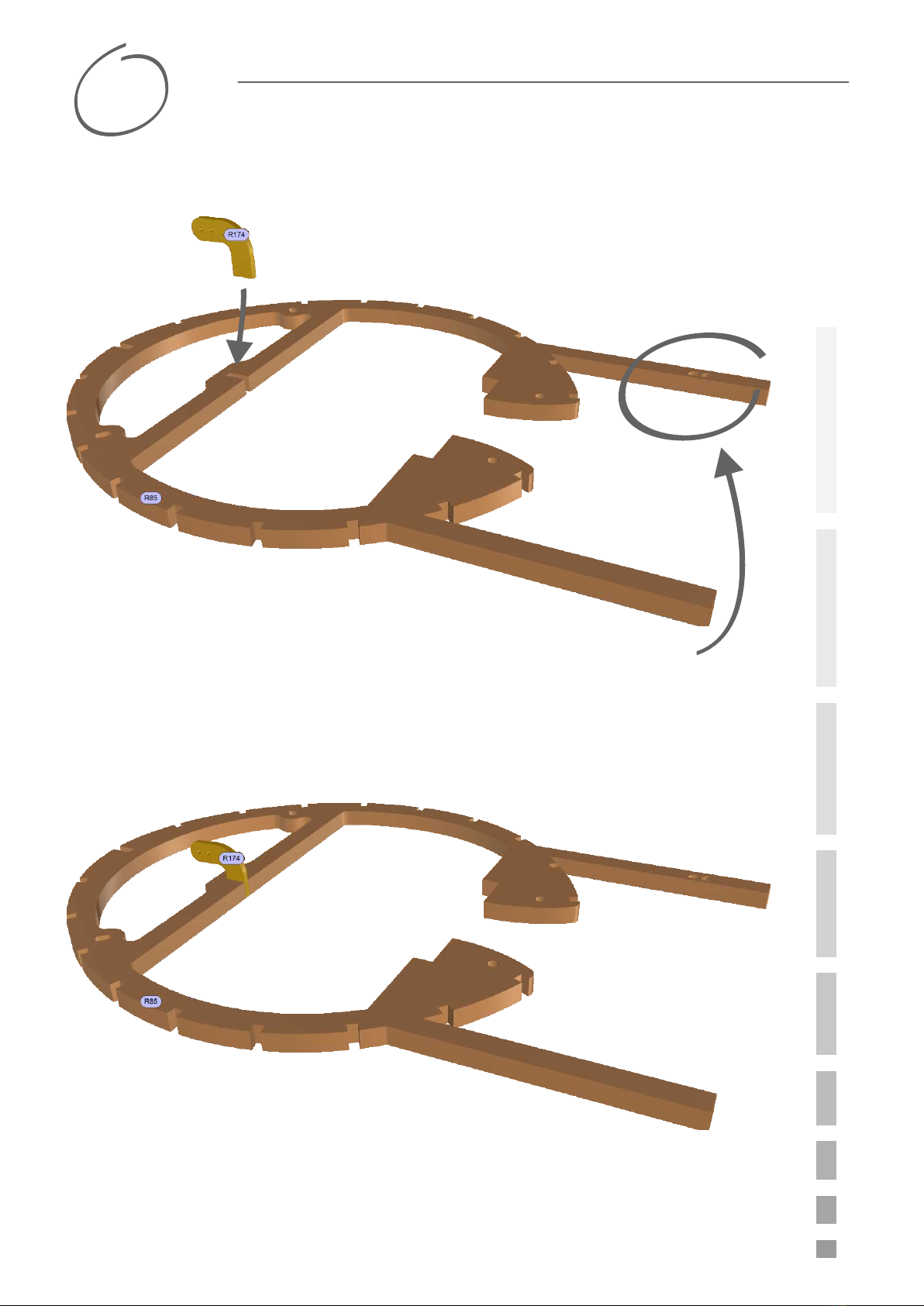

3
Plywood fuselage
former (frame) R88 and balsa isert R7
shall be placed flatlyon your building board.
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
Frames (Bulkheads)
'R' !

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
4Frames (Bulkheads)\
Fuel Tank Adapter

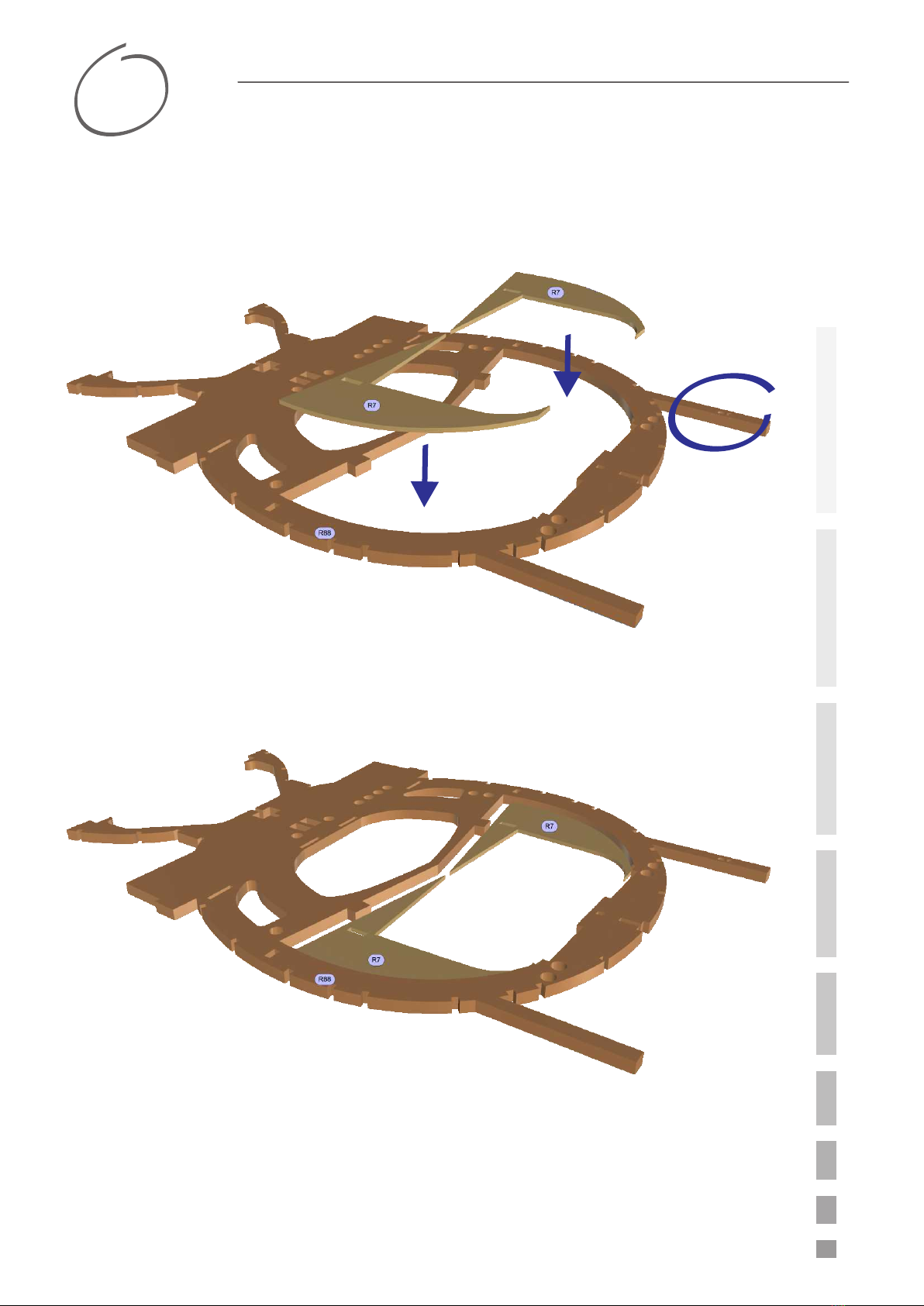

Plywood fuselage former R88 and the two balsa iserts R7 shall be placed flatly on
your building board.
• JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET •
• JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET •

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
5Cabin\
Back Frame
Tiny
neodym magnets
(~10mm x 2mm) need
to be bonded into former´s R38 nuts.

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
6Cabin\
Cockpit Center Console

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD

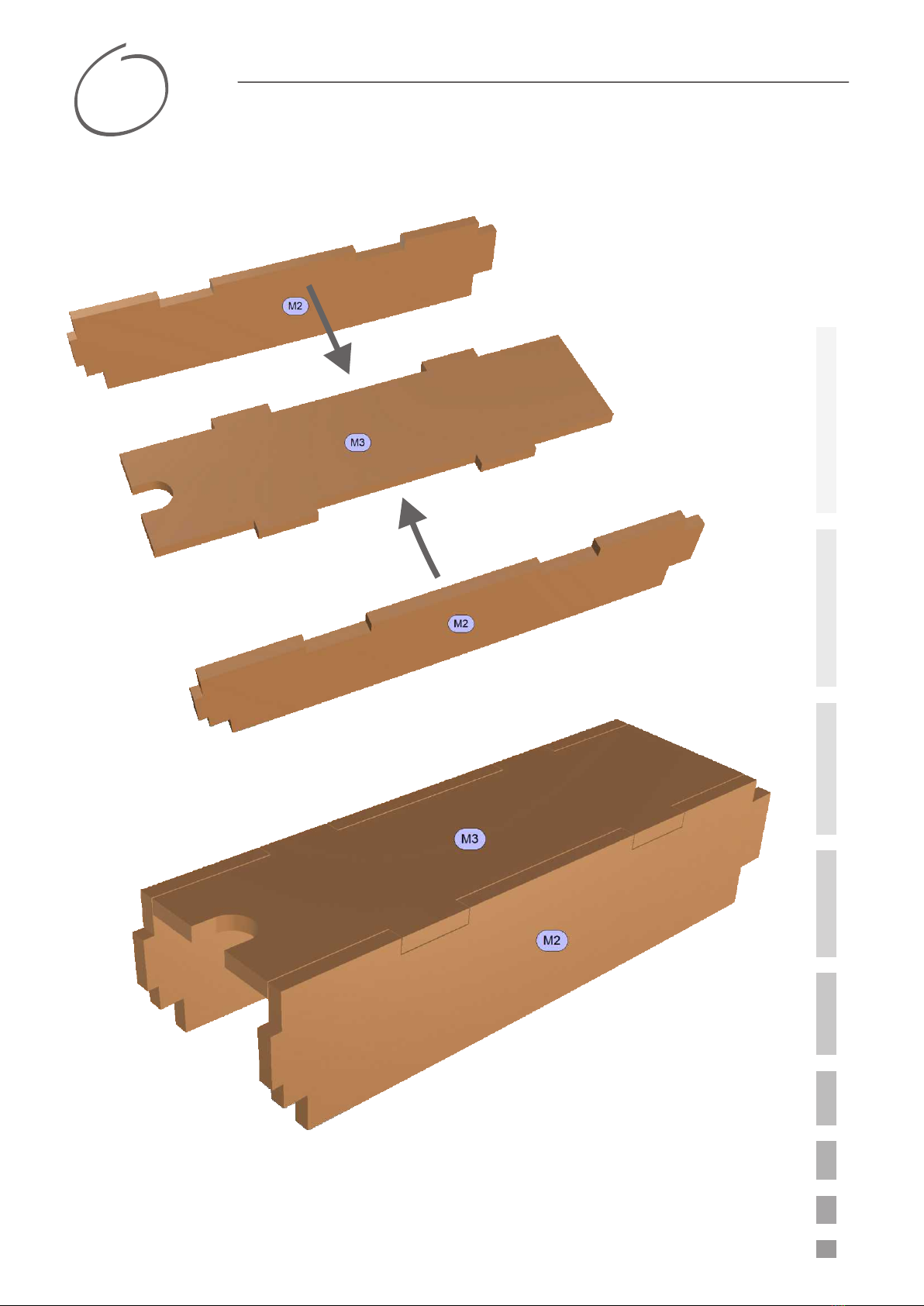

7
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
Main Gear Bay\
Back Wall

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
8
• JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET •
• JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET • JET •
Main Gear Bay\
Back Wall

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
9
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •

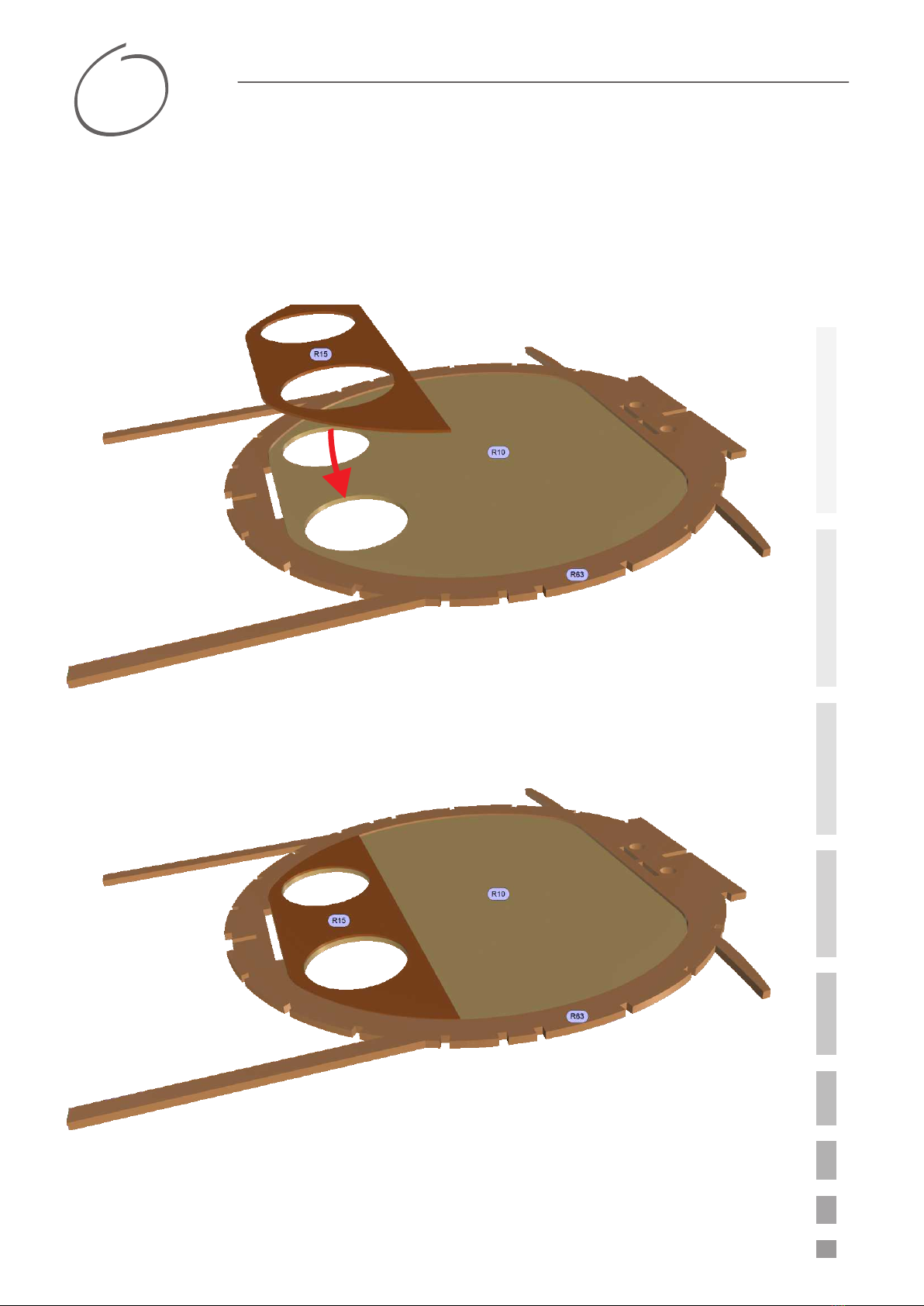

Put some fly screen material between R10 and R15. (Not depicted in the images.)
The openings are located in the main gear bay´s rear former They are throughflown
by air.
Main Gear Bay\
Back Wall (Front Side)

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
10 Main Gear Bay\
Back Wall (Back Side)
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •
• EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF • EDF •

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
11 Front Gear Mounting Frame

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD

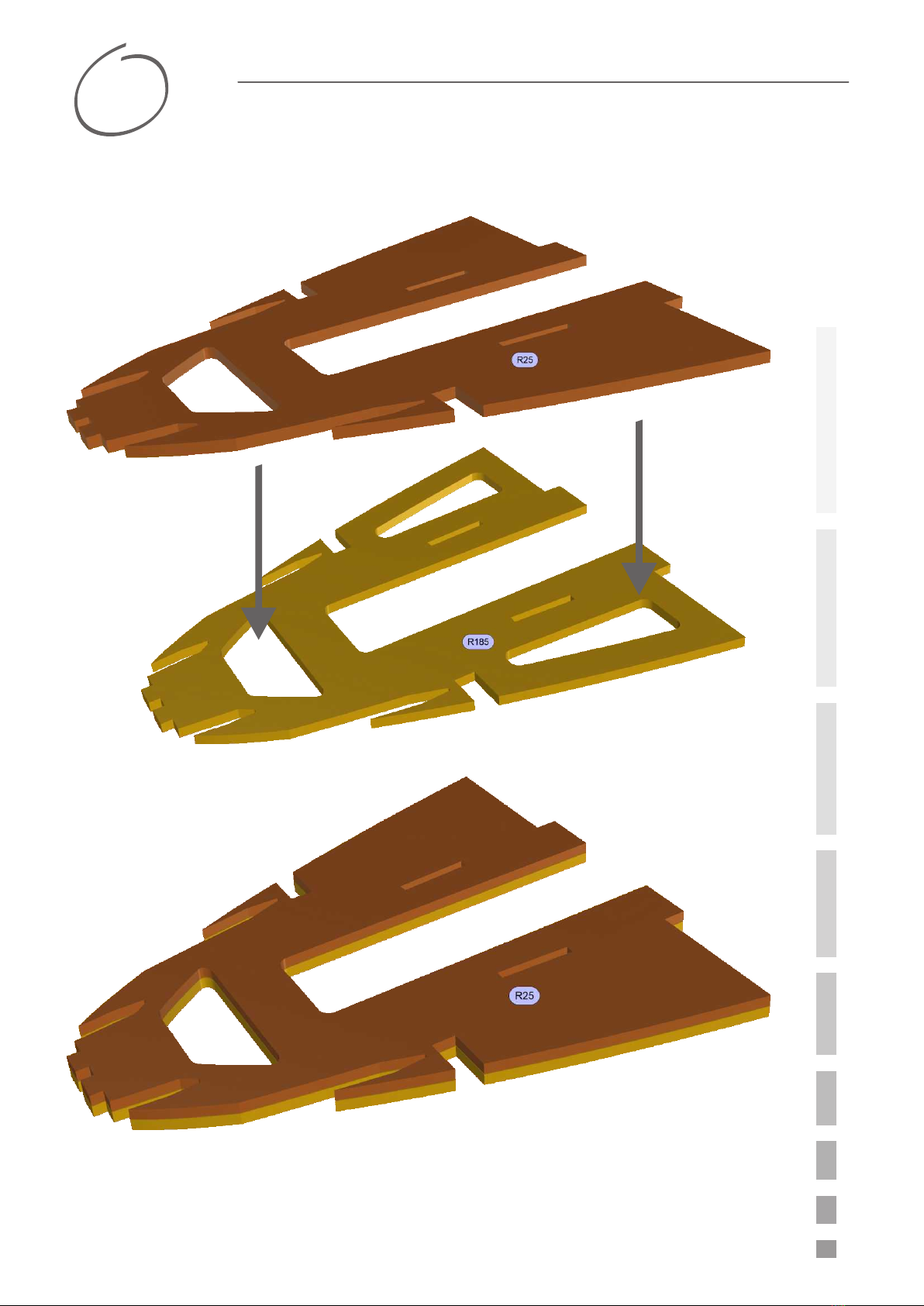

12 Formers,
Front Gear Mounting Frame

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
13 Frames

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
14 Front Gear Bay\
Side Walls

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD
15 Front Gear Bay\
Hinges Frame

Manual
He-162 Salamander • 25%
christoph glatt • bauernstr. 77 • 86462 langweid
info@glattCAD.de • www.glattCAD.de
He162.26.02_Teil1.01 - APR 2020
Flugmodelle
glattCAD

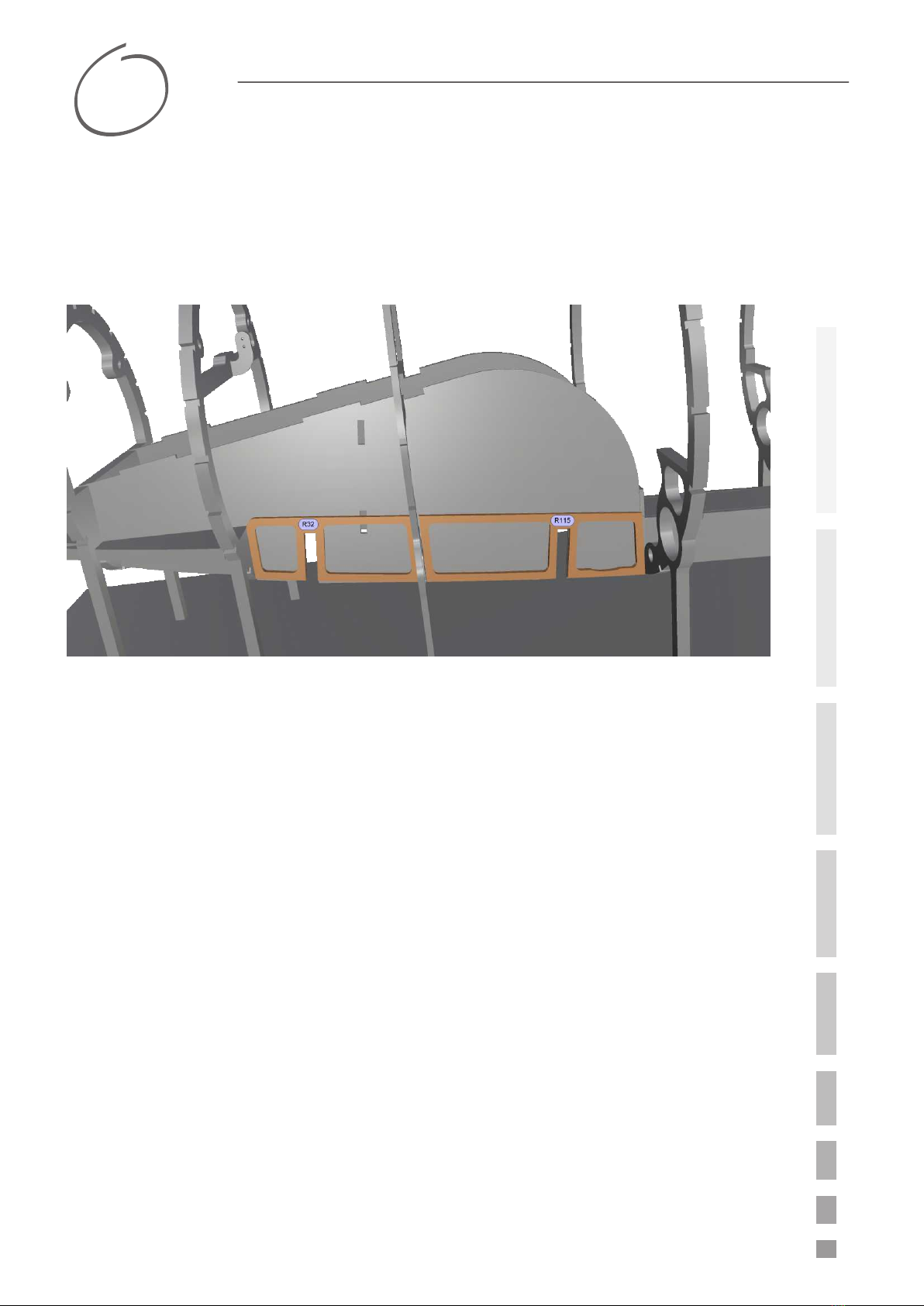

16 Pine Strip

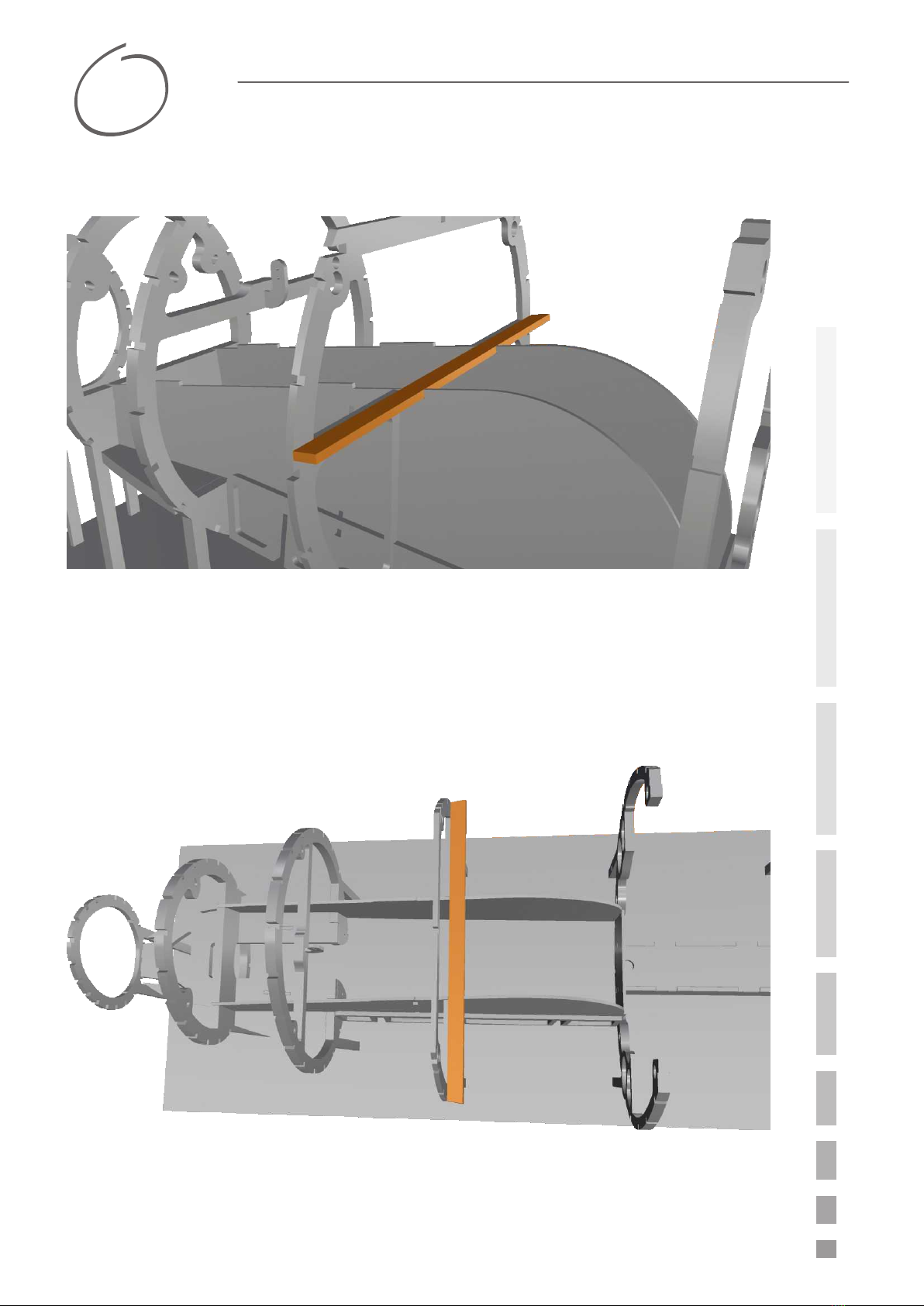

Put a pine strip (10mm x 3mm) across/above the front gear bay. You can adjust its
true length (left and right side) later.
