GLAZING VISION Ridgeglaze User manual

402-INST-UK-003 v1.1 –11 Dec 2020
www.glazingvision.co.uk
[phone]
[email protected]
Ridgeglaze

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 2 of 12
Contents
Section Description
Page
Introduction
3
Safety Information
4
Pre-Installation Preparation
6
Upstand Top Trim Installation
8
Installation Procedure
9
Interior Finishing
12

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 3 of 12
Introduction
Thank you for purchasing a Glazing Vision Ridgeglaze.In order to ensure that it gives you many years of service it is important that
before commencing any work you read these instructions fully and ensure that they are strictly followed for a successful and trouble
free installation.
We recommend that the installation should be undertaken by Glazing Vision Engineers or Approved Installers (installers that have
attended a Glazing Vision Installation training course for this product and carry ‘Approved Installer’ status). This will ensure a reliable
product and enable the property owner to benefit from the full 10 year warranty on the product. It should be noted that an
installation by non-approved installers will result in a reduced warranty period of just 2 years.
By following the correct installation procedure, a reliable and high performing end result is guaranteed. The critical operations that
can lead to problems if not done correctly are the lifting, preparation of the upstand, and ensuring the correct line and level when
mounting. Taking the time to carry out these operations correctly will ensure that the product does not twist or distort making sure
that the installed product has no undue stresses in the frame or glass.
Care should be taken when working on the product, avoiding accidental damage and ensuring product reliability.
Should you have any queries beyond this manual please do not hesitate to contact Glazing Vision.

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 4 of 12
Safety Information
Installation of your rooflight may involve working at heights, working at an unusual angle, being in unfamiliar locations or all of
these. Before work is commenced, stop and consider the best way to carry out the task and what hazards you might encounter.
Let our experts carry out your routine maintenance with a maintenance contract.
[phone]
[email protected]
These products can be very heavy. Extreme care must be taken during handling and installation. Full
consideration should be given to how you will safely transport your rooflight product from the delivery
vehicle to the installation location. Glazing Vision strongly recommends that specialist, mechanical lifting
equipment is employed.
Consider:
•The weight(s) of the product purchased.
•How you will safely transport your rooflight product from the delivery vehicle to the installation
location.
•All lifting methods and equipment required for safe installation to eliminate manual handling.
•How you will safely access the area to carry out installation.
•Any openings, voids or unprotected edges that might pose a significant risk whilst working at height.
•Use of scaffolding with all appropriate edging, rails and inspection certification.
•If specialist access or equipment is required e.g. a fall arrest system.
•What personal protective safety equipment (PPE) is required for working at height –e.g. harness.
•Methods for safe working, for example, to avoid falling from height, reducing manual handling and
so as not to drop equipment.
•How you will transport tools and other equipment to the installation area.
•The number of persons required to assist with safe installation.
•The competence, capability and experience of the installation team to safely carry out the task.
•Impact of weather on safe installation, especially driving rain and high winds.
If in doubt, please contact Glazing Vision for assistance.
Anticipated hazards may include:
•Falls from height
•Working with specialist lifting equipment or third-party lifting
•Manual handling injury
•Equipment falling from height
•Slips, trips and falls
•Fragile roof areas.
•Finger or clothing entrapment under unit, in mechanical or moving parts
•Impact of weather conditions
•Competence of personnel
Do not attempt to repair, move or dismantle the product unless suitably competent and qualified to do so,
with the appropriate safety measures in place. Any repairs and/or movement of the product may invalidate
the warranty. Please seek advice from Glazing Vision.

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 5 of 12
Warning
The following warnings are here to prevent personal injury and damage to the product. Please follow them explicitly.
General:
•The product must be properly installed and commissioned in accordance with this manual before it is used.
•Glazing Vision strongly recommends that any work is carried out by suitably qualified individuals (e.g. Glazing Vision
Engineers or Approved Installers, or an experienced service engineer).
•Glazing Vision strongly recommends that specialist, mechanical lifting equipment is employed.
•Use the product only for its intended purpose.
•Regular cleaning and maintenance must be carried out according to guidelines.
•A safe working platform must be provided for any installation/maintenance work carried out. This includes suitable edge
protection.
•Glazing Vision cannot be held responsible for damage incurred during the lifting and transportation of the product to the
installation location (please refer to terms and conditions of sale).
Pre-Installation:
•Glazing Vision products are heavy, fragile and of awkward shape and size. There may be uneven weight distribution due to
the materials used and their design.
•The weight(s) of each individual product (or product section) will be clearly marked on the product and will be
communicated to clients before despatch of goods.
•Never install any product showing signs of damage. If in doubt consult Glazing Vision for advice.
•Please dispose of the packaging material for this product in a considerate manner. Cardboard and wood items are widely
recycled.
During Use:
•Do not place anything on, walk or sit on the unit.
For more information or assistance please contact Glazing Vision.

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 6 of 12
Pre-Installation Preparation
These products can be very heavy. Due consideration should be given to getting the product onto the roof safely
and extreme care taken during installation.
Points to Note Prior to Commencing Installation
1. The Ridgeglaze should arrive on site in undamaged packaging, which includes a wooden build frame, cardboard, polyfoam
glass protection and low tack tape. Please inspect for damage to packaging and/or product and advise Glazing Vision of
any damage or shortfall within 48 hours from signing the receipt of your delivery.
2. Enclosed within the box containing this manual will be the required number of fixing woodscrews and a number of plastic
packers, as well as some silicone and other required materials and any additional optional items selected at the time of
order.
Standard Installation Hardware
Enclosed within the hardware box for each unit you should find at least the following:
Stainless steel woodscrews
Plastic horseshoe packers
(various sizes)
Low modulus silicone
Joining plates
Polyethylene backing rod
3. The upstand must already be in place for the product. The dimensioning of the product will have taken into consideration
the external dimensions of the upstand including all weathering. More information about upstand construction can be
found in Glazing Vision’s sales drawings. Please note that a minimum distance of 150 mm clearance between the upstand
and any surrounding structures must be left on all sides. Sufficient room for installation and maintenance must also be
allowed for.
4. It is important to ensure that the area of installation is suitably prepared. The area surrounding the upstand should be clear
to provide safe access during the installation works. It will be necessary to work on the inside and outside and therefore
suitable provisions should be made for safe handling of the product, including all relevant personal protective equipment
(PPE) and safety systems for working at heights.

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 7 of 12

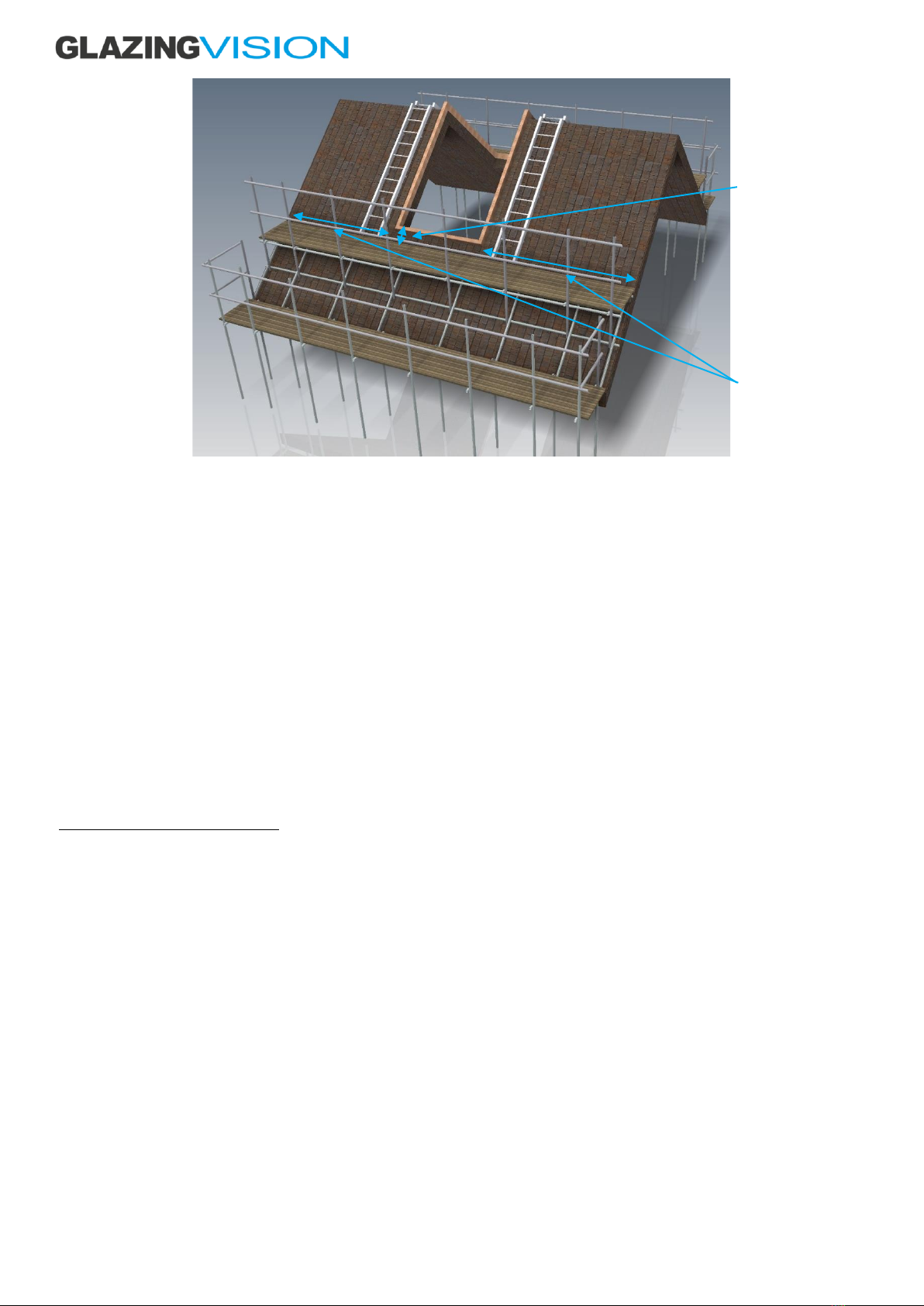

Figure 1 –Required external access arrangement diagram
5. Before starting installation, Glazing Vision advises that the physical upstand dimensions are cross-checked with those given
for the order, to ensure the product will fit. The upstand will need to be within ± 10 mm of the ordered size. The top surface
of the upstand should be flat without undulations greater than ± 2 mm. Also check the diagonals to ensure that the upstand
has been constructed square. The upstand must be weathered as per the sales drawings. If using any metallic
waterproofing material, this cannot be applied across the top surface of the upstand as this will cause a thermal bridge
which can lead to internal condensation and invalidate the product warranty.
6. These products can be very heavy. Glazing Vision strongly recommends that a structural engineer is consulted when
designing the structure(s) that will support the product and the surrounding structure. Nothing in this manual or on Glazing
Vision’s sales drawings constitutes a structural proposal.
7. Glazing Vision strongly recommends that a ‘dry run’ (without any silicone) is completed before committing to the final
installation.
Sales Drawings
Sales drawings for the Ridgeglaze can be obtained by downloading them from Glazing Vision’s website
(www.glazingvision.co.uk/resources) or by contacting Glazing Vision.
500 mm to 1000 mm
distance between
the upstand and the
platform
Minimum 800 mm
distance between
the upstand and the
end of the platform

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 8 of 12
Upstand Top Trim Installation (If Specified)
Begin by cutting the upstand top trim to the lengths required for all sides of the upstand. The corner joints can either be mitred (45°)
or straight cut with notches (see image below). If the material requires bending to suit the pitch of the upstand, this can be achieved
by screwing the section to the upstand as below and gently tapping the horizontal part using a clean rubber mallet.
Figure 1 –Upstand top trim placement
The upstand top trim should be cut to size along its length to leave a dimension of 60 mm between the edge of the trim and outside
of the upstand. This dimension ensures that the visible internal upstand top is covered and that there is no contact between the
upstand top trim and the exterior product framework. The upstand top trim is supplied with 5 grooves along the underside. These
grooves can be used to help guide a saw or similar when trimming the cover to size. Failure to follow this step exactly may result in
a thermal bridge.
Figure 2 –Upstand top trim measurements
After all upstand top trim lengths have been cut to size and adjusted to fit, they can be fixed into place with the supplied fixings. Drill
holes at approximately 500 mm centres using the groove to aid with positioning of the drill bit. The upstand top trim has been
designed to accept standard 12 mm plasterboard to ensure a flush finish. Refer to the sales drawings for more information.
Figure 3 –Upstand top trim fixings
60 mm

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 9 of 12
Installation Procedure
Prior to commencing installation, photographs of the fully weathered upstand and surrounding area must be taken
and retained for future reference.
Step 1
Remove all packaging from the product including polyfoam glass protection and low tack tape.
When removing the packaging, try to keep it intact as much as possible, so that after installation it can be re-used to
protect the product until project completion and final handover.
Gently prise all of the upstand fixing clip on covers off the framework drip legs.
Figure 5 - Clip on cover
Step 2
Apply two large lines of silicone (supplied in the installation kit) to the top of the upstand. The two lines of silicone need to be
approximately 20 mm and 40 mm in from the outside face of the upstand.
Figure 6 –Silicone placement
Step 3
Fit the chosen lifting equipment to the product sections and check that it is secure.
Section by section, carefully lift the product to the installation site (roof) using strops underneath the wooden build frame/bocks.
This is to ensure that the build frame/blocks do not separate from the product during the lift.

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 10 of 12
Step 4
When on the roof the first product section should be lifted off the wooden build frame/blocks (remove the fixings first) and then
gently lowered onto the upstand.
With the framework in contact with the upstand top and the majority of the weight still supported by the crane/lifting equipment,
adjust the position of the section on the upstand so that the internal framework is equally spaced and aligned with the internal
finishes. The section should line up with the upstand centreline. Take care when positioning the section during final installation, as
once the weight of the unit has been placed onto the sealants it adheres to the upstand making repositioning difficult.
Once satisfied that everything is correctly positioned, carefully release the weight of the section. Remove the crane and lifting
equipment.

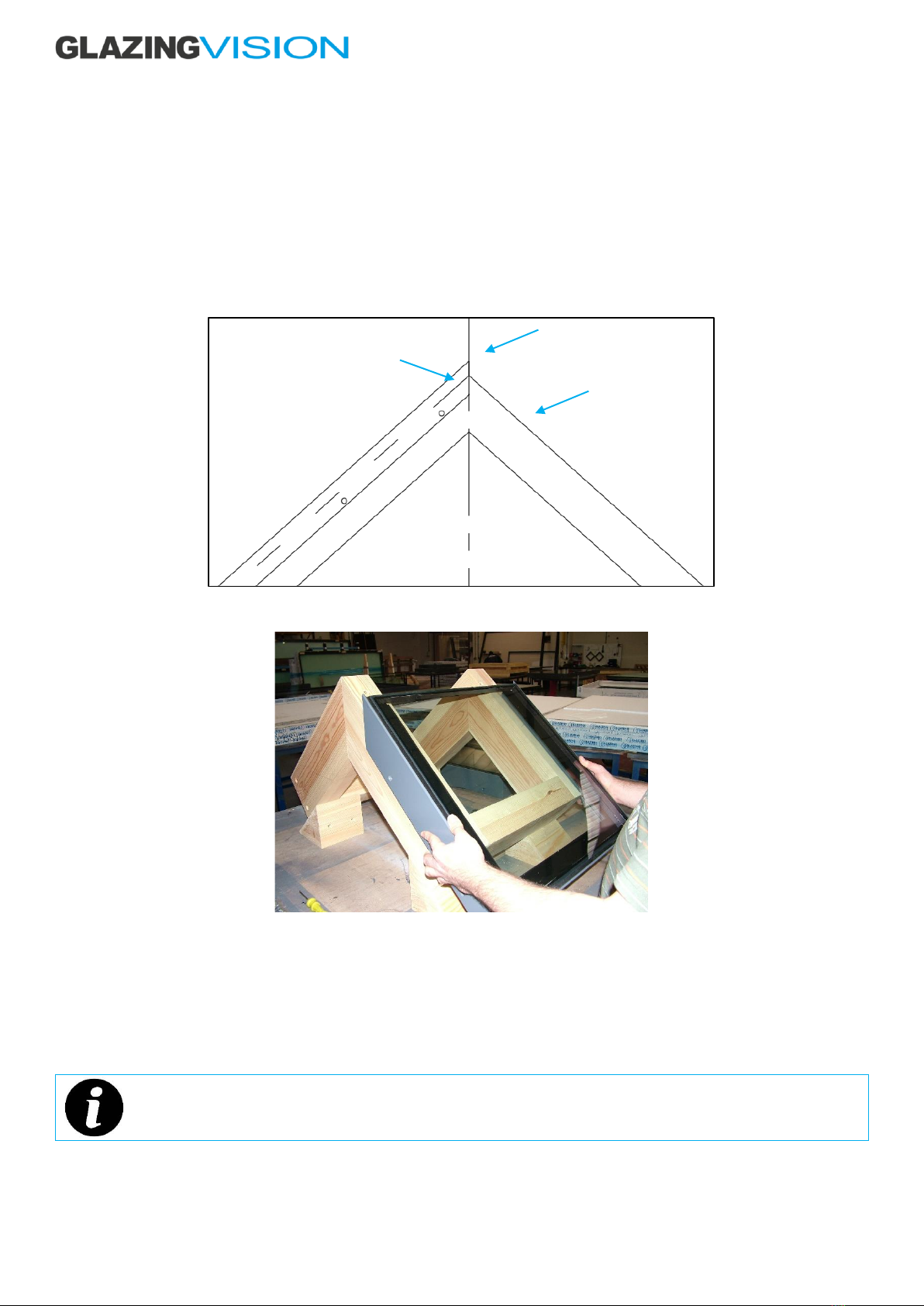

Figure 7 –Centreline alignment
Figure 8 –Installing the first half of the unit
Step 5
Drill Ø3 mm pilot holes into the upstand through the pre-drilled holes in the section’s framework (concealed by the clip on cover).
Secure the product to the upstand using the woodscrews and packers provided in the hardware kit. The packers must fill the entire
gap between the upstand and product for each woodscrew. Care should be taken when tightening the fixings to ensure the frame
does not distort. Fit the clip on covers back onto the unit.
If installing into an alternative material to wood, it may be necessary to source suitable wall plugs and/or fixings to
use instead of those provided.
Curb centreline
First section of Ridgeglaze
Curb

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 11 of 12
Figure 9 - Upstand fixings
Step 6
Place the joining plates into the section that has not yet been installed. Ensure that the centrelines of these plates line up with the
upstand centreline at the apex.
Step 7
Install the second section as per step 4. If required (only for products with pitches between 10° and 39°), insert the crush tube
(supplied - it can be held in place with silicone if needed). Place the second section onto the upstand and lower it down to meet the
first section. When you get close to the joining plates, make sure they are engaged on both sides, and continue to lower the section
until both sections meet at the apex. Take care to ensure that the glazing units do not make contact, as this may damage the glass.
No large gaps should be present and ensure that the internal framework is equally spaced and aligned with the internal finishes.
Secure the product in place as per step 5.
Figure 10 –The second section is lowered to meet the first section at the apex
Step 8
Once the unit has been securely screwed to the upstand, cut sufficient length(s) of polyethylene backing rod to fit the gap between
the sections of glass (there should be approximately an 8 mm gap between the glazing units). Press the backing rod into the gap
and position it 8 mm below the outer surface of the glass. After pressing the backing rod in, wait a minimum of 15 minutes to allow
any compressed air to escape from the backing rod (otherwise the air can cause bubbles in wet silicone).
Step 9
Apply enough black silicone to overfill the gap and tool off this excess silicone (a suggested method is to use the open end of a used
silicone tube with some soapy water) to finish the joint. When tooling off the excess silicone from outside, make sure you do not
create a cavity where water can pond and potentially affect the seal quality in the future.
Repeat this process for the inside of the glass.
The edges of the frames should sit flush and should not require any finishing. If for whatever reason they do require external finishing,
the appropriate colour of silicone to match the framework can be run along the joint.
Once installation has been completed take photographs of the finished installation. These must be retained for
future reference.
Upstand fixing
Packers

402-INST-UK-003 v1.1 –11 Dec 2020
Need assistance? [phone] [e-mail] Page 12 of 12
Interior Finishing
Glazing Vision does not specify the finishes permitted except for the following stipulations:
•The finish must be built up to the internal dimension of the product –see Glazing Vision’s sales drawings.
•No interior metal component (for example edging strips for plastering) may touch any part of the product framework.
•Any airspaces between the aluminium frame of the product and the internal finishes must be filled with insulating material.
•Nothing should be fixed directly to the product.
Contravention of any of these stipulations may severely undermine the thermal efficiency of the product.
