Glen Dimplex DLR 175 User manual

08/18750/1 - Issue 1
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336
DLR 175
DLR 350

1
2
DLR 350
LL NN
1
2
4
3
5
6
7
8
175W
175W
DLR 175
N
L
1
2
3
4
5
175W
3 4
DLR 300
728
100 min. 156600
150 min.
DLR 175
600 156
533
150 min.
100 min.
DLR 350 150 min.
72
200 min.
C
L
C
L
1200 min.
DLR 175 150 min.
C
L
170 min.
72
C
L
600 min.

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Installation and Operating Instructions
Models Specification
DLR 175 175W, 5 Rails, White
DLR 175C 175W, 5 Rails, Chrome
DLR 350 350W, 8 Rails, White
DLR 350C 350W, 8 Rails, Chrome
IMPORTANT SAFETY ADVICE
WARNING –THE SURFACE OF THESE TOWEL RAILS CAN BE
HOT. The surface temperatures are within the
requirements of EN60335-2-43, the European standard
covering the safety requirements of electrically heated
towel rails. In order to be effective the towel rail will get
hot, however momentary contact with any part of it should
not cause injury.
CAUTION – Aged or infirm persons and young children
should not be left unsupervised in the vicinity of the towel
rail. Precautions should be taken to ensure that prolonged
contact with the towel rail cannot occur. Particular care
should be taken in confined areas where accidental
prolonged contact with the rail could be more likely to
occur.
IMPORTANT – If the towel rail is to be installed in a place
used by the public, a warning notice should be placed
adjacent to the rail advising that the surface can be hot.
If the supply cord is damaged it must be replaced by the
manufacturer or service agent or a similarly qualified
person in order to avoid a hazard.
General
The DLR towel rail is designed to provide an all year round service for
airing towels and articles of clothing. It is not intended to provide a sole
heating service, but the larger model will take the chill off a normal size
bathroom or toilet. Your rail will be in one of two sizes and will have
either silver chromium plated or white stove-enamel finish.
No routine maintenance is necessary apart from occasional cleaning.
Both models are splashproof to IPX4 standard.
Electrical connection
WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation of this towel rail must be carried out by a
competent electrician in accordance with the current I.E.E Regulations
for Electrical Equipment. The towel rail is suitable for use on an A.C.~
electrical supply. Before installation check that the supply voltage
corresponds with that marked on the rail.
IMPORTANT - The wires in the mains lead are coloured in accordance
with the following code:
GREEN and YELLOW - EARTH
BLUE - NEUTRAL
BROWN - LIVE
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
fixed socket oulet, proceed as follows:
The wire which is coloured GREEN and YELLOW must be connected
to the terminal in the fixed socket oulet which is marked with the letter
Eor by the earth symbol or coloured green or green and yellow.
The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter Nor coloured black
The wire which is coloured BROWN must be connected to the terminal
which is marked with the letter Lor coloured red.
This appliance must only be used on A.C. mains supply of 230/240
Volts~.
Installation
IMPORTANT – Protect the electrical connection whilst handling
the towel rail.
Operation (Electrical)
The towel rail may be switched on and off by means of a switch
located on the right hand side of the central panel. Heat will be distributed
along each of the rails and a smaller amount from the central panel.
Some variation in the temperature across the surface of the rail is also
normal. When the appliance is covered the heating pattern of the rails
may alter slightly.
Wall mounting

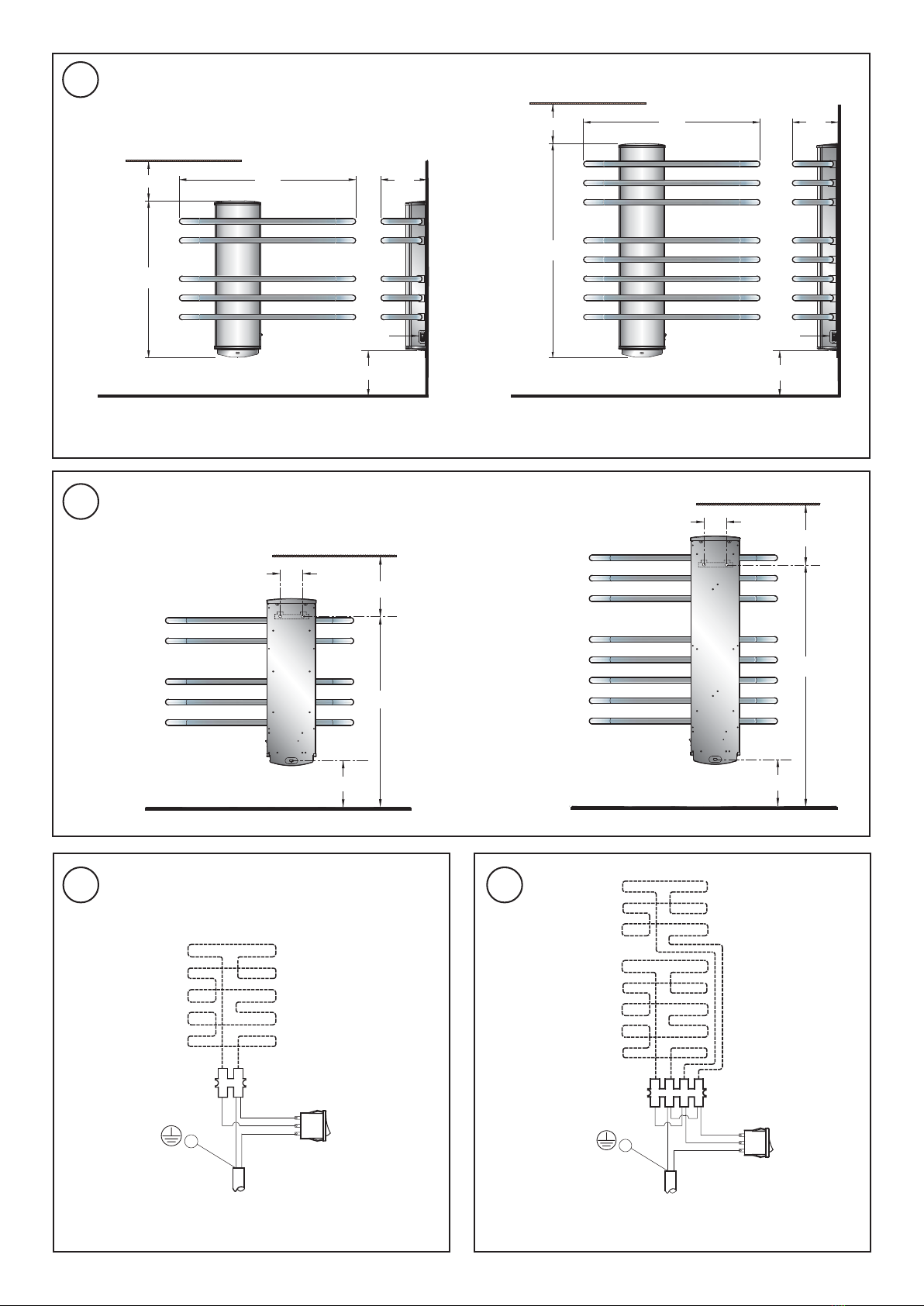

The towel rail must be permanently fixed to the wall using the wall
mounting bracket and screws supplied. The rail must be mounted
vertically as shown observing the minimum clearances stated (see
Fig. 1).
The accessory pack contains a wall mounting bracket, three Ø6mm
screws and wall plugs, which will secure the towel rail to the wall.
Place the wall mounting bracket against the wall as shown. (see Fig.
2). Ensure the bracket is horizontal, mark the hole’s positions and drill
and plug wall to suit. Then screw two of the screws supplied into the
wall plugs.
Hang the towel rail on to the bracket, then mark the hole position for the
bottom screw, drill and plug wall to suit.
Wiring
- see Wiring Diagrams : for DLR175 see Fig. 3, and DLR350 see Fig. 4.
Drying and Airing Towels
It is recommended that for efficient drying, no more than two layers of
towels or similar fabric should be draped over each rail. Items should
be placed evenly over the whole surface of the rail where possible.
It is not advisable to leave very damp towels or clothes on the towel rail
when not switched on, as this may in time, affect the product finish.
The rail, although hot to the touch is not hot enough to scorch or burn
fabrics. However, soap and detergents remaining in articles after
washing can cause discoloration. Therefore care should be taken to
thoroughly rinse articles before airing.
Cleaning
The finish on your towel rail can be maintained by occasionally wiping
over with a damp cloth and lightly finishing with a soft dry cloth. This
should only be carried out when the rail is cold. Do not use abrasive
cleaning powders as this could damage the surface finish.
After Sales Service
Your product is guaranteed for one year from the date of purchase.
Within this period, we undertake to repair or exchange this product
free of charge provided it has been installed and operated in accordance
with these instructions.
Your rights under this guarantee are additional to your statutory rights,
which in turn are not affected by this guarantee.
Should you require after sales service you should contact our customer
services help desk on 0870 727 0101. It would assist us if you can
quote the model number, series, date of purchase, and nature of the
fault at the time of your call. The customer services help desk will also
be able to advise you should you need to purchase any spares.
Please do not return a faulty product to us in the first instance as this
may result in loss or damage and delay in providing you with a
satisfactory service.
Please retain your receipt as proof of purchase.
Ladder Towel Rails
Models : DLR 175 and DLR 175C
DLR 350 and DLR 350C
IPX4

Glen Dimplex UK Limited
Millbrook House
Grange Drive
Hedge End
Southampton
Hampshire. SO30 2DF
UK customer help line (8.00AM – 6.00PM Mon-Fri; 8.30AM-1.00PM Sat)
Customer Services: Tel. [phone]
Fax. [phone]
e-mail customer[email protected]
Republic of Ireland Tel. [phone]
