Introduction
GAI's product of 3304280 is a 3.5
”
SBC with an on-board embedded
5x86 class CPU , NS Geode GX1-300 processor. With this board, system
engineers will be able to upgrade 386-based or 486-based to 586-level
without some additional worries, because a NS Geode GX1-300 processor
and 64MB SDRAM are mounted on 3304280 . No longer worry about the
CPU installation ,don ’t n eed to set any jumpers of speed or voltage of
processor . And the fan is not necessary for NS Geode Gx1-300 , the MTBF
worries will be reduced . DRAM on-board will improve the ability of the anti-
vibration . 3304280 has the good reliability for system designer .
With its ultra low power, rich levels of integration, advanced multimedia
capabilities and communication features, this board is an exciting opportunity
for System Integrators and OEMs to develop new generation products that
meet the desires and aspirations of the 21th century consumers.
4 3304280 User's Manual

Specifications
General Specifications
• CPU : NS Geode GX1 300MHz MHz with FSB 33MHz.
• Chipset : NS CS5530A.
• BIOS : AWARD
®
Flash BIOS
• Green Function : power saving supported in BIOS. DOZE / STANDBY
APM
• L1 Cache : Integrated on CPU
• L2 Cache : Integrated on CPU
• DRAM Memory : Onboard 64MB SDRAM, and up to 256MB of SDRAM on
SODIMM (144-pin), Total of 320MB Memory
• Enhanced IDE with UltraDMA : supports 2 port and up to 4 ATAPI
devices, Ultra DMA transfer 33 MB/sec. Two 44-pin (2.0 pitch) box
header.
• Watchdog Timer : 1~127 Sec generates RESET when your application
loses control over the system.
• Real-time Clock : built-in chipset with lithium battery backup. CMOS data
backup of BIOS setup and BIOS default.
High Speed Multi I/O
• Chipset : Winbond 83977F
• Serial Ports : Two high speed RS-232C ports (COM1). One high speed
RS-232C/422/485 port COM2 (jumper selectable). Both with 16C550
compatible UART.
• USB : 2 onboard USB prots Ver 1.1.
• SIR Interface : onboard IrDA TX/RX port
• Floppy Disk Drive Interface : 2 floppy disk drives, 3 ½ " (720 KB, 1.44
MB or 2.88 MB).
• Bi-directional Parallel Port : SPP, EPP and ECP mode.
• Keyboard and Mouse Connectors : external PS/2 KB/Mouse port (2-in-
1 mini DIN) and onboard AT Keyboard port (6-pin box header)
• Audio Chipset : NS CS5530A, AC97 2.0 compliant, Multistream Direct
Sound and Direct Sound 3D acceleration. (Line-in, CD Audio in, MIC in,
Speaker out)
3304280 User's Manual 5

Network Interface Controller
• Chipset : Single Realtek 8139C, 10/100 Mbps
• Connector : external RJ-45 with LEDs on connector
Display Controller
• Chipset : SMI712(3304280/VLC), CS5530A(3304280/VL)
• Display Type : CRT (VGA, SVGA, XGA, SXGA), 24-bit (SMI712) and 16-bit
(CS5530A) TFT LCD TV-Out (3304280VL including)
• Connectors : external DB15 for CRT on-board
• Resolution : >3304280/VLC CRT resolutions up to 1280x1024 @ 256
colors or 1204x768 @ 16bit or 800x600 @ 24bit . Panel
resolutions up to 1280x1024 @ 8bpp or 1024x768 @ 16bpp or
800x600 @ 24bpp.
>3304280/VL CRT resolutions up to 1280x1024 @ 256
colors or 1024x768 @ 16bit . Panel resolutions up to
1280x1024 @ 8bpp or 1024x768 @ 16bpp .
SSD Interfaces
• DiskOnChip (DOC)
- Package : Single Chip Flash Disk in 32-pin DIP JEDEC
- Capacity : Up to 288 MByte
- Data Reliability : ECC/EDC error correction
- Memory Window : 8 KByte
• Compact Flash Card (CFC)
- Compact Flash Socket : supports Type I/II CFC
- Capacity : up to 512MB CFC
Environmental and Power
• Power Requirements : +5 V @ 1.32 A (typical);(Low Power Embedded
NS Geode GX1 300MHz with onboard 64 SDRAM)
• Board Dimensions : 145mm x 102mm
• Board Weight : 0.176kg
• Operating Temperature : 0 to 60
°
C (32 to 140
°
F)
• Operating Humidity : 0%~90%
6 3304280 User's Manual

Warning
Single Board Computers and their components contain very
delicate Integrated Circuits (IC). To protect the Single Board
Computer and its components against damage from static
electricity, you should always follow the following precautions
when handling it :
1. Disconnect your Single Board Computer from the power source
when you want to work on the inside
2. Hold the board by the edges and try not to touch the IC chips, leads
or circuitry
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that
came with the Single Board Computer, whenever components are
separated from the system
3304280 User's Manual 7

PACKING LIST
3304280
1 x CD-ROM (driver)
3304280 Quick Installation
Before up and running, please make sure the package contains all of above
accessories.
If any of the above items is damaged or missing, contact your vendor
immediately.
Ordering Codes
3304280A
3.5" NS GX1 Module with 64MB on-board and one SODIMM up to 320 MB
SDRAM , SMI712 Flat Panel / CRT VGA , Fast Ethernet , Audio
3304280B
3.5" NS GX1 Module with 64MB on-board and one SODIMM up to 320 MB
SDRAM , Flat Panel / CRT VGA , TV-out, Fast Ethernet , Audio
Note : Cable Kit is optional.
8 3304280 User's Manual

Board Image
3304280 User's Manual 9

Board Layout
IDE1 AUDIO LCD3 LCD2
JV9
FDD1 J1 LAN1
ON
1 2 3 4
SW1 INV1
USB1
RES1
HLED1
LPT1
PLED1
ATX1 KBM2
VGA1
Geode
GX1- 300B-55
SIR1
KBM1
J6 COM1
DiskOnChip 2000
J2 COM2
PWR1 JFRT1 J5 PC104
10 3304280 User's Manual

Jumper/Connector Quick Reference
Jumpers Label Function
J1 Clear CMOS
J2 DOC Address Select
J5 COM2 RS-232C / 422 / 485 Selection
INV1 ( INVERTER
SW1 LCD type selection
J6 RS422/485 connector
3304280 User's Manual 11

Jumper/Connector Quick Reference
Connectors
Label Function
VGA1 VGA Display Connector
LCD2 LCD Connector
LCD3 LCD Connector
IDE1 Primary IDE Connector
CFD Compact Flash Connector
USB1 USB Port 0,1
AUDIO Audio Interface Port
SIR1 Infrared (IR) Connector
KBM1 Keyboard and PS/2 Mouse (Mini Din)
KBM2 Keyboard and PS/2 Mouse
FDD1 Floppy Drive Connector
LAN1 10/100M LAN1 Connector
LPT1 Parallel Port
COM1 RS-232C Serial Port (DSub-9)
COM2 RS-232C/422/485 Serial Port
PWR1 Small 4P Power Connector
ATX1 ATX Power Connector
DOC 2000 Disk On Chip 2000
RES1 Reset Switch
PC104 ISA PC-104 Interface
PLED1 Power LED
HLED1 HDD LED
JFRT1 Front Panel Connector
SODIM1 SODIMM Socket
12 3304280 User's Manual

CMOS Jumper Settings
CMOS Operation (J1)
Type : J1: onboard 3-pin header
If the 3304280 refuses to boot due to inappropriate CMOS settings here is how
to proceed to clear (reset) the CMOS to its default values.

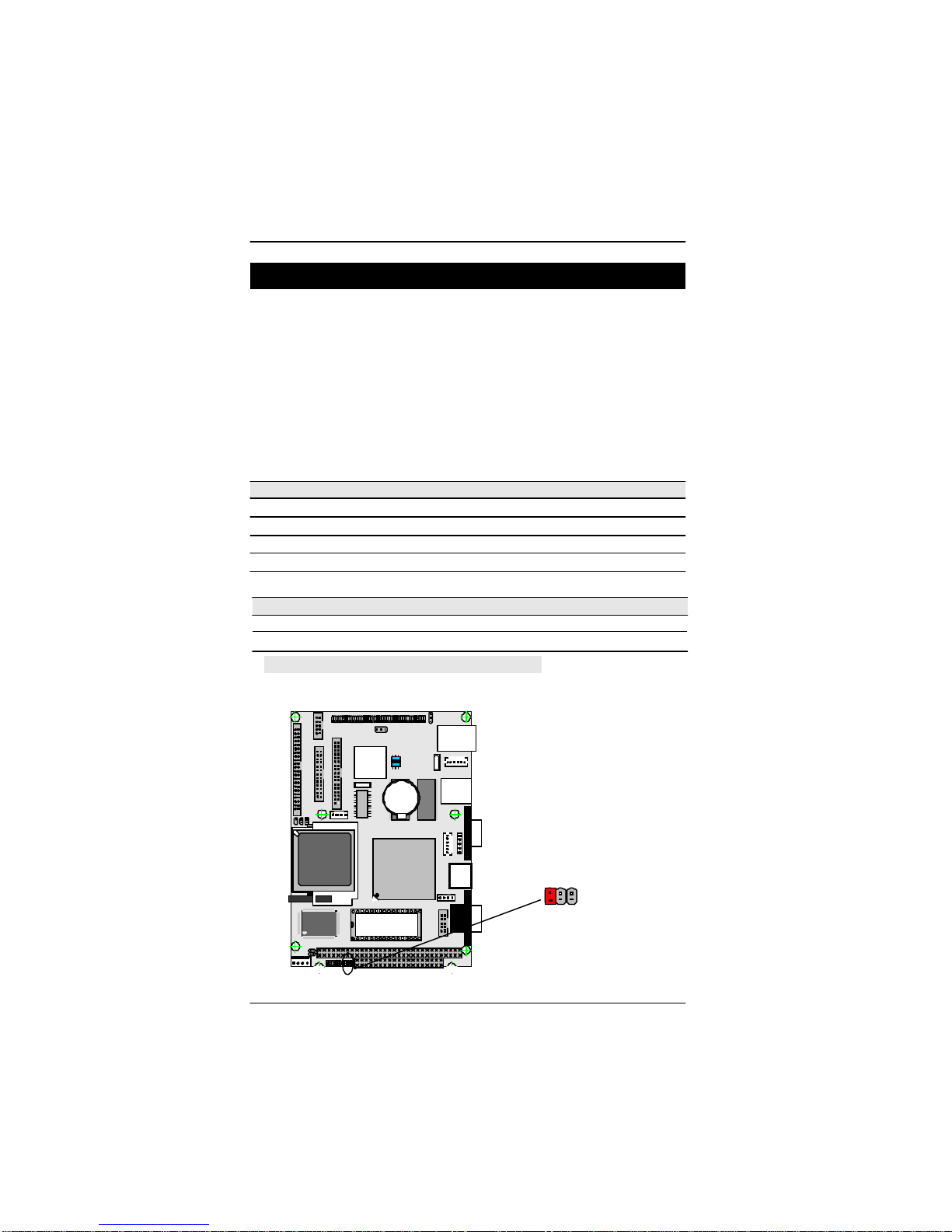

CMOS Setup (J1) J1 Status
Normal Operation 1-2 ON
Clear CMOS 2-3 ON
default setting 1-2 ON
ON
1 2 3 4
123
J 1
Geode
GX1- 300B-55
*
DiskOnChip2000
3304280 User's Manual 13

DOC Address Select

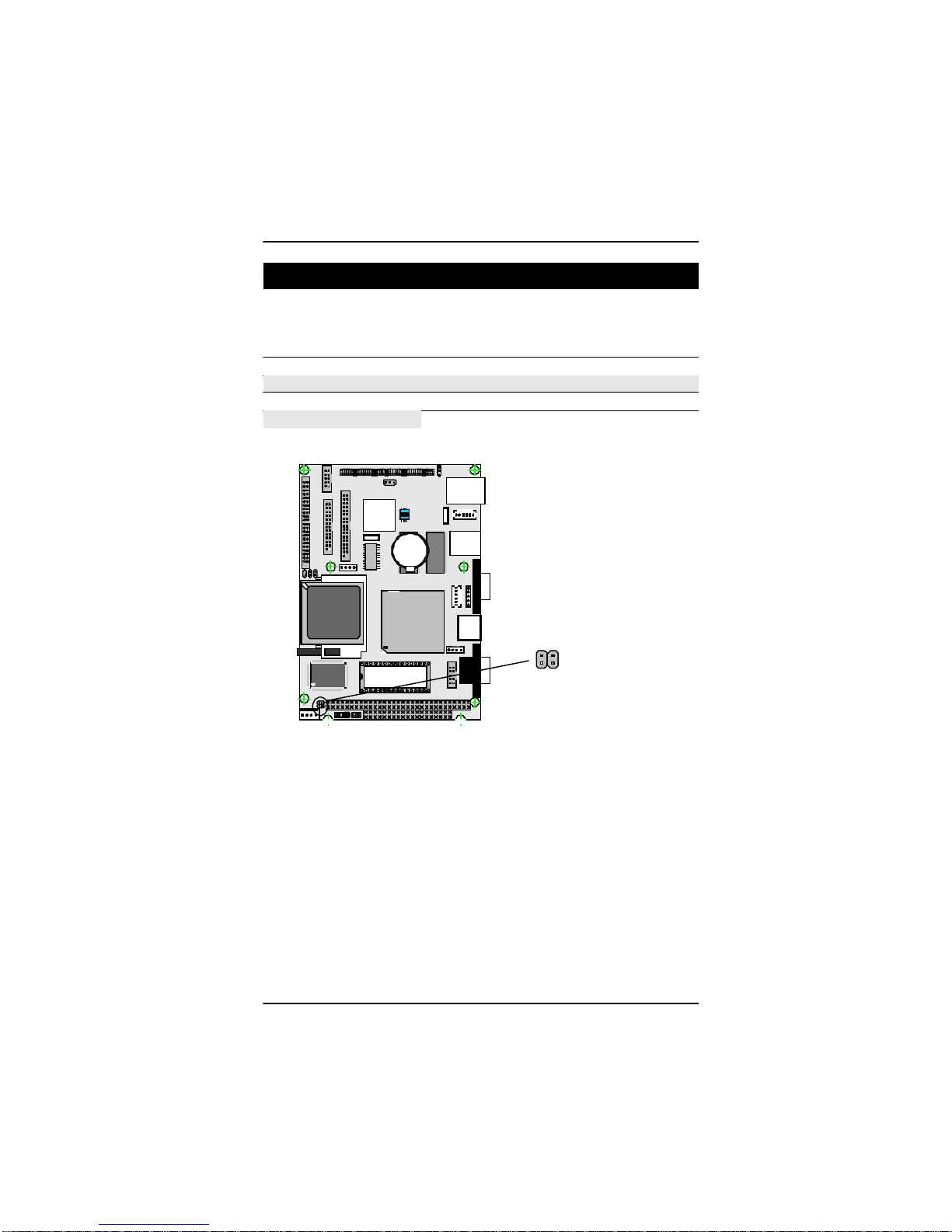

DOC Address Select (J2)
Type : J2: onboard 4-pin(2*2) header
Port Address 1-2 3-4
D800h OFF OFF
D000h ON OFF
Disable ON ON
default setting D800h
ON
1 2 3 4
Geode
GX1- 300B-55
3 1
*
DiskOnChip2000
4 2
14 3304280 User's Manual

Serial Port Selection (RS232C/422/485)
RS-232C/422/485 Mode select (J5)
Type : J5: onboard 6-pin(2*3) header
RS-422/485 Mode on COM2
The onboard COM2 port can be configured to operate in RS-422 or RS-485
modes. RS-422 modes differ in the way RX/TX is being handled. Jumper J5
switches between RS-232C or RS-422/485 mode. All of the RS-232C/422/485
modes are available on COM2.
COM2
Pin Defined: RS-232C RS-422 RS-485
Pin1 : DCD Tx+ RTx+
Pin2 : RXD Tx- RTx-
Pin8 : CTS Rx+ x
Pin9 : RI Rx- x
J5 Selection 1-2 3-4 5-6
RS-232C ON OFF OFF
RS-422 OFF ON OFF
RS-485 OFF OFF ON
default setting RS-232C
ON
1 2 3 4
Geode
GX1- 300B-55
2 4 6
*
DiskOnChip2000
1 3 5
3304280 User's Manual 15

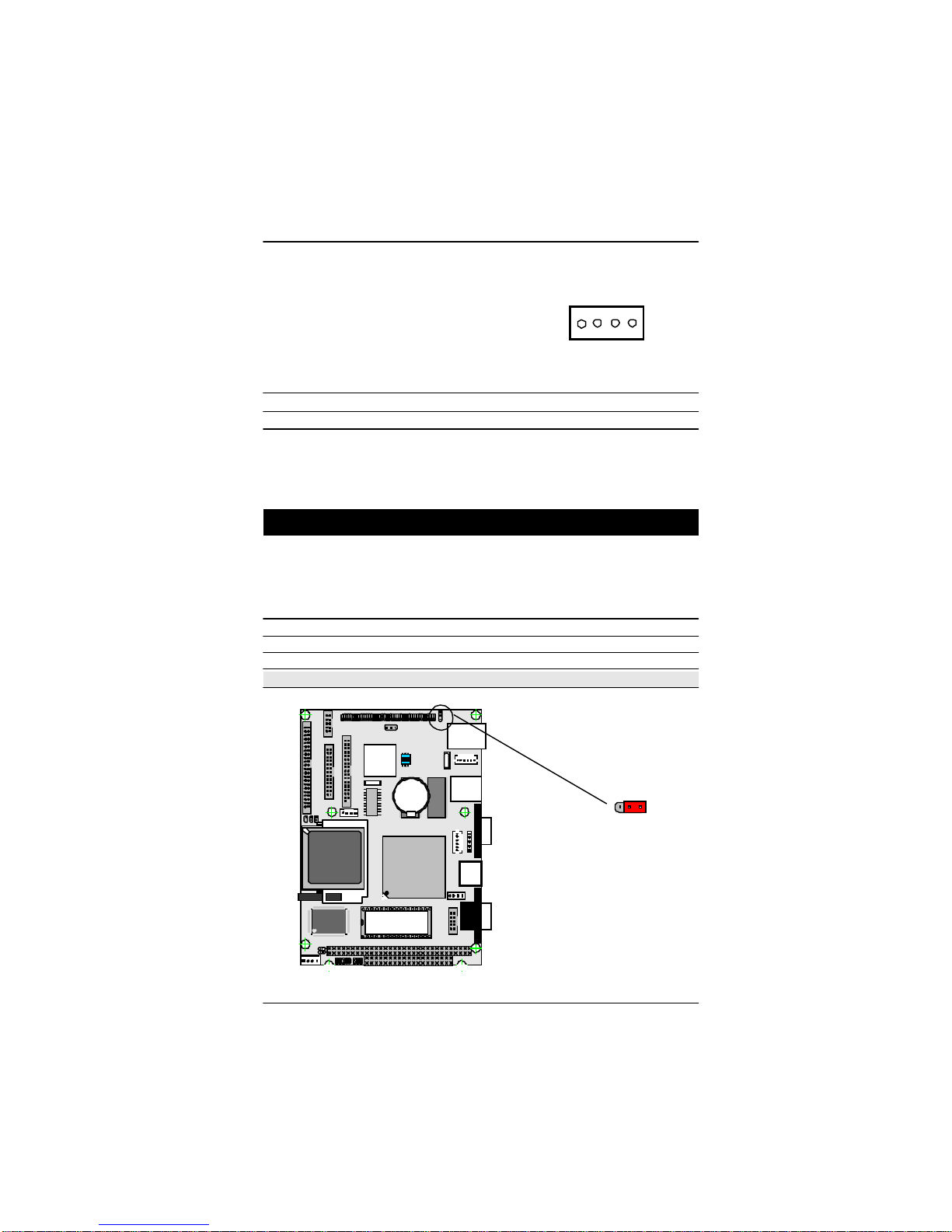

RS-422/485 Output Port (J6)
Type : J6: onboard 4-pin header
4 3 2 1
PIN1 PIN2 PIN3 PIN4
RS-485 RS485+ RS485-
RS-422 RS485+ RS485- RS422+ RS422-
LCD Inverter
Connector : INV1
Type : Onboard 5-pin mini boxheader
Pin Description Pin Descriptio n
1+12 V 2 GND
3 PPEN 4 VEEP
5 GND
Default setting: 3.3V
ON
1 2 3 4
123
J V9
Geode
GX1- 300B-55
*
DiskOnChip 2000
16 3304280 User's Manual

Watchdog Timer
Watchdog Output
The onboard watchdog timer can be disable by jumper setting or enable for
either reboot by system RESET .The Jumper is on the carrier board.
Even if enabled by jumper setting upon boot the watchdog timer is always
inactive. To initialize or refresh the watchdog timer writing of port 444H is
sufficient. To disable the watchdog time read port 44H.
Status Action
Enable/refresh the Watchdog Timer I/O Write 444H
Disable the Watchdog Timer. I/O Read 044H
After the watchdog timer has been initialized by reading port 444H, it has to
be strobed at preconfigured intervals to keep it from issuing a RESET or NMI.
The watchdog timer timeout intervals are set by software programming.
Timeout Values
Timout values are programmed. The watchdog timer supports 128 steps.
use the table on the next page to find the hexidecimal value that needs to be
passed on to get the correct timer interval. Look subsequntly at the program
example how to pass the value to the watchdog timer.
Timeout Table
Level Value Seconds Level Value Seconds Level Value Seconds
1 1 1 2 2 2 3 3 3
4 4 4 5 5 5 6 6 6
7 7 7 8 8 8 9 9 9
10 A10 11 B11 12 C12
13 D13 14 E14 15 F15
16 10 16 17 11 17 18 12 18
19 13 19 20 14 20 21 15 21
3304280 User's Manual 17

22 16 22 23 17 23 24 18 24
25 19 25 26 1A 26 27 1B 27
28 1C 28 29 1D 29 30 1E 30
31 1F 31 32 20 32 33 21 33
34 22 34 35 23 35 36 24 36
37 25 37 38 26 38 39 27 39
40 28 40 41 29 41 42 2A 42
43 2B 43 44 2C 44 45 2D 45
46 2E 46 47 2F 47 48 30 48
49 31 49 50 32 50 51 33 51
52 34 52 53 35 53 54 36 54
55 37 55 56 38 56 57 39 57
58 3A 58 59 3B 59 60 3C 60
61 3D 61 62 3E 62 63 3F 63
64 40 64 65 41 65 66 42 66
67 43 67 68 44 68 69 45 69
70 46 70 71 47 71 72 48 72
73 49 73 74 4A 74 75 4B 75
76 4C 76 77 4D 77 78 4E 78
79 4F 79 80 50 80 81 51 81
82 52 82 83 53 83 84 54 84
85 55 85 86 56 86 87 57 87
88 58 88 89 59 89 90 5A 90
91 5B 91 92 5C 92 93 5D 93
94 5E 94 95 5F 95 96 60 96
97 61 97 98 62 98 99 63 99
100 64 100 101 65 101 102 66 102
103 67 103 104 68 104 105 69 105
106 6A 106 107 6B 107 108 6C 108
109 6D 109 110 6E 110 111 6F 111
112 70 112 113 71 113 114 72 114
115 73 115 116 74 116 117 75 117
118 76 118 119 77 119 120 78 120
121 79 121 122 7A 122 123 7B 123
124 7C 124 125 7D 125 126 7E 126
127 7F 127
18 3304280 User's Manual

Programming Example
The following program is an examples of how to enable,
disable and refresh the Watchdog timer:
WDT_EN_RF equ 444H
WDT_DIS equ 044h
WT_Enable push AX ; Save AX,DX
push DX
mov DX,WDT_EN_RF ; Enable Timer
mov AX,INTERVAL ; Set Timeout Value
out DX,AX
pop DX ; Restore DX,AX
pop AX
ret
WT_Refresh push AX ; Save AX,DX
push DX
mov DX,WDT_EN_RF ; Refresh Timer
mov AX,INTERVAL ; Set Timout Value
out DX,AX
pop DX ; Restore DX,AX
pop AX
ret
WT_Disable push AX ; Save AX,DX
push DX
mov DX,WDT_DIS ; Disable Timer
in AX,DX
pop DX ; Restore DX,AX
pop AX
ret
WT_Disable push AX ; save AX,DX
push DX
mov DX,WDT_DIS ; Disable Timer
in AX,DX
pop DX ; restore DX,AX
pop AX
ret
3304280 User's Manual 19

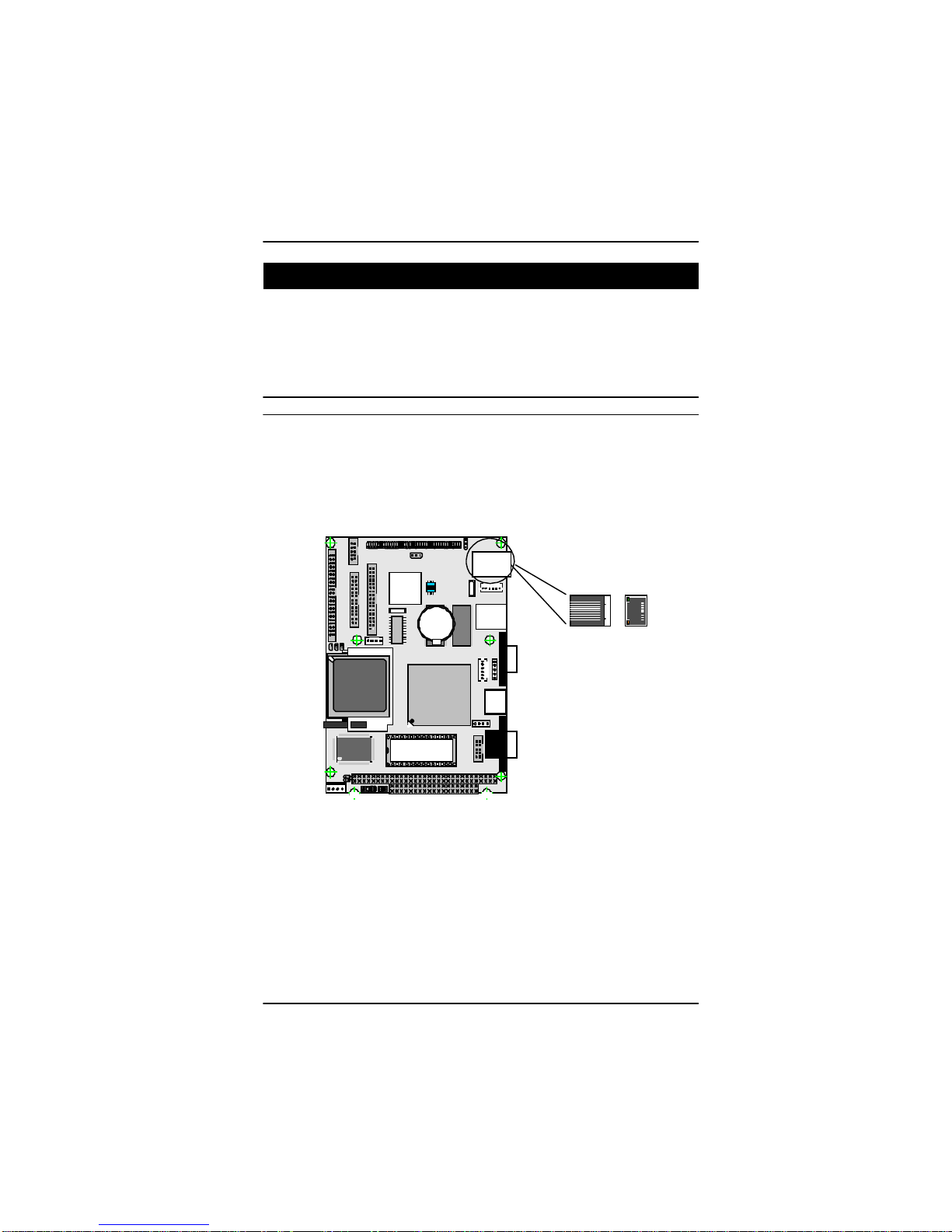

Fast Ethernet Connectors
LAN Port
Connector : LAN1, LAN2
Type : external RJ-45 on bracket
Pin 1 2 3 4 5 6 7 8
Desciption TX+ TX- RX+ NC NC RX- NC NC
LAN LED Indicator on RJ-45 connector
ON
1 2 3 4
LAN 1 & LAN 2
1
2
3
4
5
6
7
8
Geode
GX1- 300B-55
*
DiskOnChip2000
20 3304280 User's Manual
